Introduction
Primary sclerosing cholangitis (PSC) is an idiopathic and lethal cholestatic liver disease characterized by persistent and progressive biliary inflammation and fibrosis [
1‐
4]. Although the cause and pathogenesis of PSC are unclear, it is generally accepted that both genetic and environmental factors contribute to the development of the disease. PSC diagnosis is based on cholangiographic findings, histology, and the absence of alternative diagnoses [
5]. Various forms of secondary sclerosing cholangitis mimic PSC, thus complicating the diagnosis of PSC. Therefore, the development of specific diagnostic markers for PSC is needed.
Although multiple factors, such as genetic predisposition, environmental factors, dysbiosis, and dysregulated immune responses, are known to be involved in the pathogenesis of PSC, the exact underlying mechanisms remain unclear [
1,
2]. The association with human leukocyte antigens and the presence of autoantibodies in the sera of patients with PSC support the important roles of immune-mediated mechanisms in PSC [
1]. Patients with PSC have been reported to possess autoantibodies against biliary epithelial cells [
6,
7]. Biliary epithelial cells are the main target of PSC. However, the target molecules or the mechanisms underlying the injuries have not been elucidated.
PSC is strongly associated with inflammatory bowel disease (IBD), suggesting common pathophysiological mechanisms between PSC and IBD [
1]. We previously reported that anti-integrin αvβ6 autoantibodies are specifically found in patients with ulcerative colitis (UC), the most common type of IBD [
8]. Recently, it was reported that most patients with UC in Europe and North America also possess anti-integrin αvβ6 autoantibodies [
9,
10]. Integrins are a large family of heterodimeric cell surface receptors comprising two non-covalently associated α and β subunits that bind to the extracellular matrix (ECM) and mediate cell adhesion [
11]. In mammals, 18 α and 8 β subunits have been identified that together form a minimum of 24 distinct heterodimers [
11]. Among them, integrin αvβ6 is a receptor for ECM proteins, such as fibronectin [
12], and its expression is restricted to epithelial cells [
13]. Integrin αvβ6 on biliary epithelial cells is important for promoting the proliferation of biliary epithelial cells following liver injuries [
14]. A recent report showed that germline mutations in human integrin β6, a subunit of integrin αvβ6, cause lethal cholestatic liver injuries and bloody diarrhea [
15], which are major symptoms of PSC and UC, respectively, suggesting that integrin αvβ6 is a key molecule for PSC as well as UC.
Considering the close link between PSC and UC, the report that the human integrin β6 mutation causes PSC- and UC-like clinical characteristics [
15], and the presence of anti-integrin αvβ6 autoantibodies in most patients with UC [
8], we hypothesized that patients with PSC also possess autoantibodies against integrin family proteins, especially integrin αvβ6.
Materials and methods
Patients
We enrolled 55 patients with PSC and 150 controls [127 disease controls and 23 healthy controls (HCs)] in this study. The clinical characteristics of patients with PSC and the controls are summarized in Table
1 and Table S1. The patients with PSC were diagnosed based on serum biochemistry, cholangiogram, histological findings, and association with IBD. We also excluded secondary sclerosing cholangitis according to the method described by Ludiwig et al. [
16]. The study did not include cases of small-duct PSC, and thus all the patients were categorized as large duct PSC, but included two cases of PSC-autoimmune hepatitis (AIH) overlap syndrome (PSC 41 and 46). Only five patients were treatment-naïve. The patients with UC were diagnosed according to a combination of symptoms, endoscopic findings, histologic findings, and the absence of alternative diagnoses [
17,
18]. More detailed clinical information is provided in Table S2. It is generally considered that PSC-associated IBD and solitary UC are different diseases [
19‐
21]. Indeed, colonic lesions of IBD accompanied by PSC are usually mild and mainly occur in the proximal colon. By contrast, solitary UC invariably affects the distal colon, including the rectum [
21], and thus, IBD with PSC is often named PSC-associated IBD [
22,
23]. Accordingly, in this study, we defined PSC, with or without IBD, as PSC and defined UC without PSC as UC.
Table 1
Clinical features of PSC patients and controls
Age |
Range | 19–74 | 22–80 | 52–85 | 43–84 | 35–86 | 24–90 | 20–78 | 20–78 |
Median | 39.0 | 42.5 | 70.0 | 70.0 | 66.0 | 69.0 | 56.0 | 56.0 |
Average | 39.7 | 46.0 | 70.9 | 69.7 | 65.0 | 62.7 | 55.9 | 55.9 |
Sex male (%) | 25 (69.4) | 13 (65.0) | 19 (59.4) | 11 (78.6) | 6 (15.4) | 1 (6.7) | 8 (29.6) | 14 (60.9) |
Age of diagnosis |
Range | 11–66 | 18–76 | | | | | | |
Median | 27.0 | 39.0 | | | | | | |
Average | 30.1 | 41.0 | | | | | | |
ALPa (U/L) |
Range | 57–1000 | 69–666 | | | | | | |
Median | 277.0 | 264.0 | | | | | | |
Average | 323.0 | 275.0 | | | | | | |
PMS (%) |
0 | 31 (86.1) | | | | | | | |
1 | 3 (8.3) | | | | | | | |
2 | 1 (2.8) | | | | | | | |
3 | 1 (2.8) | | | | | | | |
> 4 | 0 (0) | | | | | | | |
Rectal sparing (%) | 16/25 (64) | | | | | | | |
In total, 36 of the 55 patients with PSC had IBD, and the remaining 19 had PSC alone. Among the 36 PSC patients with IBD, the partial Mayo score for IBD was 0 in 31 patients, 1 in 3 patients, 2 in 1 patient, and 3 in 1 patient (Table
1). Most patients with IBD and PSC were under remission. All the PSC patients underwent a colonoscopy to confirm the presence or absence of IBD. The diagnostic criteria for control diseases are listed in Table S3. There was no patient with UC among the disease controls. The serum samples of the study participants were obtained from January 2016 to February 2021 at the Kyoto University Hospital. The screening was performed on 17 patients with PSC and 12 controls; validation was performed with another 38 patients with PSC and 138 controls (Table S1). We used the sera of randomly selected 37 patients with PSC and 16 controls to examine IgG subclasses and antibody isotypes and performed a solid-phase integrin αvβ6 binding assay. All serum samples were stored at − 80 °C until assayed. Histologic analysis of frozen tissues was performed using bile duct tissues of 10 patients with PSC and 5 controls who underwent liver transplantation due to liver failure from other diseases or cholangiocarcinoma (Table S1).
The experiments were performed according to the Declaration of Helsinki and approved by the Ethics Committee of Kyoto University Graduate School and Faculty of Medicine (protocol number: R1004 and G738). All subjects provided written informed consent.
ELISA

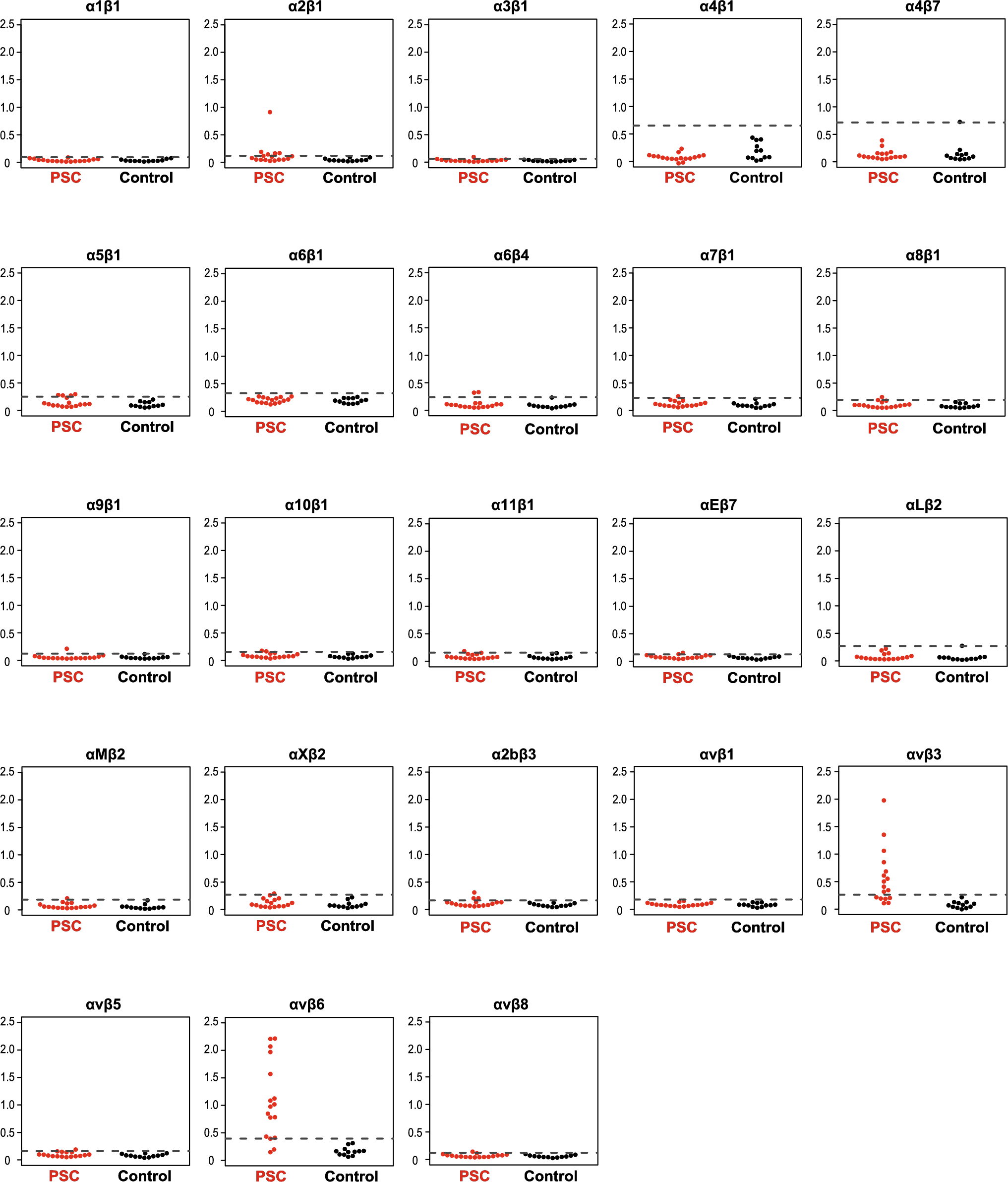

Integrins were screened using human recombinant proteins purchased from ACRO Biosystems (Newark, DE, USA) and R&D Systems (Minneapolis, MN, USA) (Table S4). For the detection of serum IgG antibodies against integrins, we used an ELISA Starter Accessory kit (E101, Bethyl Laboratories, Montgomery, TX, USA) following the manufacturer’s instructions. Briefly, microtiter plates were coated with 100 μL of 2 μg/mL recombinant proteins, incubated overnight at 4 °C, blocked, and incubated with 100 µL of diluted serum (1:100) or purified IgG (1:100) from patients for 60 min at room temperature. After washing, the plates were incubated with 100 µL of rabbit anti-human IgG antibody conjugated with horseradish peroxidase (HRP) (1:50,000; ab6759, Abcam, Cambridge, UK) at room temperature for 60 min. After washing, the bound reactants were detected by incubation with 3,3′,5,5′-tetramethylbenzidine for 7 min at room temperature. Absorbance was noted at 450 nm. Mg
2+ and Ca
2+ are important for integrin heterodimer formation and stability [
24‐
26]. ELISA for integrin αvβ6 in the presence of Mg
2+ and Ca
2+ is effective in increasing the sensitivity and specificity [
8]. Thus, in this study, all ELISAs were performed in the presence of MgCl
2 and CaCl
2 (1 mM each).
To examine the subclasses of the autoantibodies, we used the following secondary antibodies: anti-human IgG1, IgG2, IgG3, and IgG4 conjugated with HRP (1:2000; A-10648, Thermo Fisher Scientific Waltham, MA, USA; BS-AP007, BS-AP008, and BS-AP009; The Binding Site, Birmingham, UK). The following secondary antibodies were used to examine the isotypes of the autoantibodies: anti-human IgA, IgM, and IgE conjugated with HRP (1:50,000 A80-102P, 1:100,000 A80-100P, and 1:1000 A80-108P; Bethyl Laboratories).
To study whether the RGD (Arg–Gly–Asp) peptide inhibited the binding of patient IgG to integrin αvβ6, we added the RGDS (Arg–Gly–Asp–Ser) peptide (A9041, Sigma Aldrich, St. Louis, MO, USA) or the control RGES peptide (Arg–Gly–Glu–Ser) (A5686, Sigma Aldrich) to purified IgG before incubation.
Preparation of human IgG
To purify IgG from the sera of patients with PSC and the controls, we used Ab-Rapid SPiN (P-013, ProteNova, Higashikagawa, Japan), according to the manufacturer’s instructions. The purified IgG was dialyzed against phosphate-buffered saline (PBS, pH 7.2), concentrated by ultrafiltration using an Amicon Ultra filter (UFC805024, Millipore, Darmstadt, Germany) to the same volume as the sera before purification, and stored at − 20 °C. The purified IgG concentration was measured using a Human IgG EIA kit (MK136, TaKaRa, Kusatsu, Japan). The purity of the IgG fraction was confirmed by testing for IgA, IgM, IgE, and protein contaminants using a Human IgA ELISA kit (E88-102, Bethyl Laboratories), a Human IgM ELISA kit (E88-100, Bethyl Laboratories), a Human IgE ELISA kit (E88-108, Bethyl Laboratories), and sodium dodecyl sulfate–polyacrylamide gel electrophoresis with Coomassie Brilliant Blue staining, respectively. The IgG recovery rate from the sera was confirmed to be > 90% in five patients with PSC and five controls, as in our previous study [
27].
Immunofluorescence
Immunofluorescence was performed according to standard methods for frozen tissues. The primary antibody was anti-integrin αvβ6 (1:1000; ab77906, Abcam), and the secondary antibody was Alexa Fluor 594 anti-mouse IgG (1:1000; A-11032, Thermo Fisher Scientific). All procedures were performed in the presence of MgCl
2 and CaCl
2 (1 mM each) because Mg
2+ and Ca
2+ are important for integrin heterodimer formation and stability, and the anti-integrin αvβ6 antibody detects the integrin αvβ6 heterodimer formation [
8,
24].
Solid-phase integrin αvβ6 binding assay
A solid-phase integrin αvβ6 binding assay was performed as previously described, with minor modifications [
24]. Briefly, a 96-well microtiter plate was coated with 100 µL/well of 2 µg/mL integrin αvβ6 overnight at 4 °C, blocked, and then incubated with 100 µL of diluted patient or control IgG (1:10) for 60 min at room temperature. After washing five times with a wash solution, the plates were incubated with 100 µL of 2 µg/mL fibronectin (FC010, Millipore Sigma, Burlington, MA, USA) at room temperature for 60 min. After washing five times with a wash solution, an anti-fibronectin antibody (1:5000; ab2413, Abcam) was added, followed by incubation at room temperature for 60 min. After washing five times with a wash solution, an anti-rabbit IgG HRP-conjugated secondary antibody (1:10,000; A27036, Thermo Fisher Scientific) was added, followed by incubation at room temperature for 60 min. After washing five times with a wash solution, bound reactants were detected by incubation with 3,3′,5,5′-tetramethylbenzidine for 10 min at room temperature. Absorbance was determined at 450 nm. A solid-phase integrin αvβ6 binding assay was performed in the presence of MgCl
2 and CaCl
2 (1 mM each).
Before use, we determined that the anti-rabbit IgG HRP secondary antibody did not cross-react with the human IgG using an ELISA. Blank wells coated with integrin αvβ6 were incubated with fibronectin without patient or control IgG to calculate the inhibition rate. The inhibition rate was calculated as follows: (blank OD–sample OD)/blank OD. We used monoclonal anti-integrin αvβ6 antibody 10D5 (ab77906, Abcam) as a positive control.
Statistical analysis
Statistical analyses were performed using GraphPad Prism version 9.1.2 (GraphPad, La Jolla, California, USA) or R version 3.6.3. Associations between categorical variables were tested using Fisher’s exact tests. The correlation between IgG antibody titers against integrin αvβ6 and the blocking activity of integrin αvβ6-fibronectin binding was evaluated using the Pearson product–moment correlation. Statistical significance was defined as P < 0.05.
Discussion

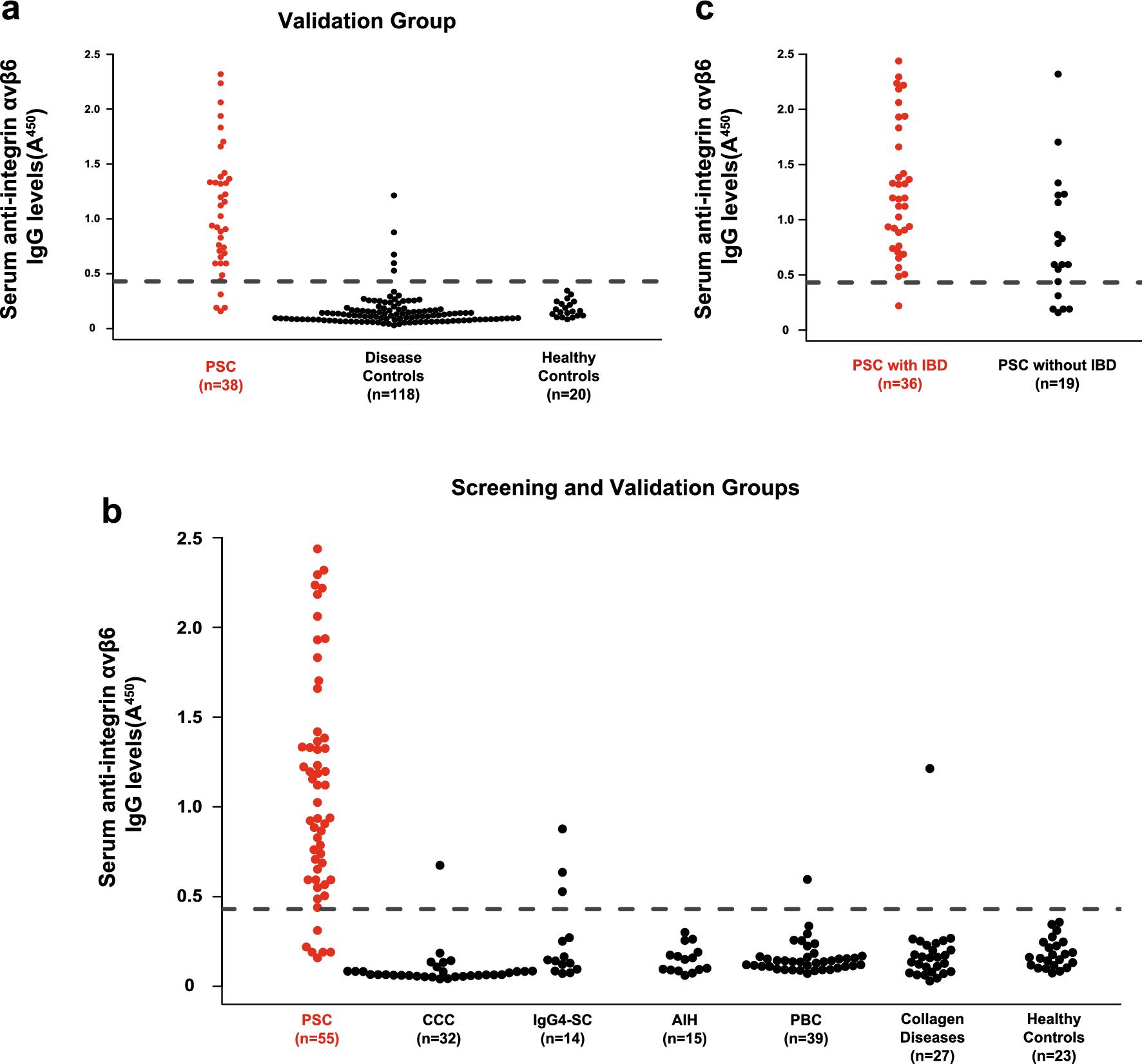

This study revealed that most patients with PSC possessed anti-integrin αvβ6 autoantibodies. The sensitivity and specificity of anti-integrin αvβ6 antibodies for diagnosing PSC were very high. Immunofluorescence staining demonstrated the expression of integrin αvβ6 in biliary epithelial cells. In addition, IgG from half of the examined patients with PSC inhibited integrin αvβ6-fibronectin binding through the RGD motif.
Since there are no specific diagnostic markers for PSC, the diagnosis is based on non-specific biochemical, imaging, and pathological findings [
1,
2,
5]. However, it is often difficult to differentiate PSC from other biliary diseases, such as cholangiocarcinoma, biliary-stone-associated cholangitis, and IgG4-related sclerosing cholangitis [
5]. In addition, diagnostic imaging of endoscopic retrograde cholangiopancreatography carries a high risk of complications of acute pancreatitis. Here, we demonstrated that the anti-integrin αvβ6 antibody is a potential non-invasive diagnostic marker for PSC.
In this study, we found that integrin αvβ6 is expressed in biliary epithelial cells. Recently, Weil et al. reported that a patient with an integrin β6 germline mutation showed lethal cholestatic liver injuries and bloody diarrhea, characteristic clinical features of PSC and UC, respectively [
15]. Moreover, Guillot et al. found that integrin αvβ6 is involved in biliary epithelial cell proliferation induced by bile acid-activated macrophages following liver injury in mice [
14]. These data suggest that integrin αvβ6 plays an important role in the homeostasis of biliary epithelial cells. In this regard, it is noteworthy that IgGs from patients with PSC have inhibitory effects on integrin αvβ6-fibronectin binding. Thus, anti-integrin αvβ6 antibodies may play a pathological role in the development of PSC by disrupting the functions of integrin αvβ6 in biliary epithelial cells.
We recently reported that most patients with UC also possess anti-integrin αvβ6 antibodies [
8]. Anti-integrin αvβ6 antibodies of patients with PSC or those with UC have similar characteristic features. The predominant subtypes of the antibodies of patients with both PSC and UC are IgG1; IgG of both patients inhibits integrin αvβ6-fibronectin binding via the RGD motif. Although integrin αvβ6 is present on the surface of both colonic [
8] and biliary epithelial cells, the presence of anti-integrin αvβ6 antibodies in patients with both PSC and UC suggests common pathophysiological roles of the antibodies in PSC and UC; for example, disruption of integrin αvβ6-fibronectin binding results in epithelial cell-basement membrane dissociation. Nonetheless, although PSC is often associated with IBD, the colonic lesions in patients with PSC are different from those in patients with UC. For example, colonic lesions of IBD accompanied by PSC are usually mild and mainly occur in the proximal colon with rectal sparing and backwash ileitis. By contrast, UC invariably affects the distal colon, including the rectum, [
21] and thus, IBD with PSC is often named PSC-associated IBD [
22,
23]. Moreover, genome-wide association studies have demonstrated that a substantial number of single nucleotide polymorphisms of PSC are not shared by UC, and the presence of IBD in patients with PSC cannot be fully explained by shared genetic risk [
28]. If anti-integrin αvβ6 antibodies play pathological roles in PSC or UC, the reason why those antibodies in patients with PSC and UC have different effects is unknown. The antigen epitope of the integrin αvβ6 recognized by anti-integrinαvβ6 antibodies of patients between PSC and UC may be different and induce different effects on different organs: the bile duct and colonic epithelium.
We observed in this study that prevalence of autoantibodies against integrin αvβ6 is different between PSC patients with and without IBD. The reason for this difference is unknown at present. In this regard, however, it may be noted that the titer of anti-integrin αvβ6 antibodies in PSC patients with IBD is higher than those without IBD (Fig.
2c). Therefore, one possibility is that some PSC patients with IBD who were negative for anti-integrin αvβ6 autoantibodies may have had very low levels of the antibody. Alternatively, some PSC patients without IBD may have other autoantibodies. However, further studies are needed to test these hypotheses.
One thing to be noted is that positivity of anti-integrin autoantibodies in patients who received endoscopic treatment was significantly lower than that in patients without endoscopic treatment. Because the sample size was small, whether the endoscopic treatment has an inhibitory role in the production of anti-integrin autoantibodies needs to be further clarified.
The present study has several limitations. The sample size was relatively small, and the study was limited to Japanese patients. The study outcomes warrant further investigations in patients of other ethnicities, with a large number of patients, to assess the wider application of these results.
Nevertheless, in conclusion, this study revealed for the first time that most patients with PSC possess autoantibodies against integrin αvβ6. These autoantibodies have a high specificity and sensitivity for PSC diagnosis. A more precise analysis of the characteristics of anti-integrin αvβ6 in patients with PSC and patients with UC is required.
