Background
Several targeted therapies are commonly used today as single agents or in combination with radiation or chemotherapeutic drugs for the treatment of solid tumors. Since activation of epidermal growth factor receptor (EGFR) promotes mechanisms leading to tumor growth and progression, EGFR-targeted agents are being widely explored. In addition, some solid tumors, such as lung cancer, exhibit EGFR gene amplification [
1,
2]. The most clinically advanced EGFR tyrosine kinase inhibitors are erlotinib (Tarceva) and gefitinib (Iressa). Iressa has been shown to be highly effective in non-small-cell lung cancer (NSCLC) patients with activating EGFR mutations [
3]. Results with erlotinib in Phase III trials are more promising and the treatment of advanced or metastatic NSCLC with erlotinib is now approved by the FDA [
4]. Nevertheless, there remains an urgent need for the identification of additional tyrosine kinase inhibitors that are effective against lung cancer.
Novel drugs such as lapatinib are currently undergoing clinical trials for the treatment of NSCLC, and other tumors [
4]. Lapatinib may have a therapeutic advantage over erlotinib because it acts as a dual inhibitor of EGFR (or HER-1) and HER-2 (ErbB2) tyrosine kinases. In lung adenocarcinomas, both EGFR and HER-2 are overexpressed and this is associated with poor prognosis [
5]. In addition, previous clinical trials have demonstrated that both EGFR and HER-2 genes are amplified in lung cancer, resulting in the overexpression of these proteins [
1,
2]. Such overexpression significantly correlates with gene amplification [
6]. Studies have shown that EGFR and HER-2 protein overexpression is present in 43-89%, and 30-40% lung cancer specimens, respectively [
2]. Therefore, lung tumors with high levels of both EGFR and HER-2 may be appropriate for treatment with lapatinib.
The human NSCLC cell line A549 overexpresses both EGFR and HER-2 and may be an excellent model for testing the efficacy of lapatinib [
7,
8]. In fact, previous
in vitro studies have shown that A549 cells are sensitive to this drug [
9]. Other lung cancer cells, such as NCI-H358, and Calu3 are also strongly inhibited by lapatinib [
9]. In the present work, we analyzed the
in vitro and
in vivo efficacy of lapatinib on A549 lung cancer cells. Our results showed that lapatinib decreased cell proliferation and increased apoptosis in these cells
in vitro. In A549-injected nude mice, treatment with lapatinib significantly reduced tumor activity and angiogenesis. Our data show that lapatinib is an effective drug against NSCLC.
Methods
Cell culture
A549 bronchoalveolar carcinoma cells were obtained from the American Type Culture Collection (ATCC, Manassas, VA) and maintained in complete medium, consisting of RPMI 1640 growth medium (Invitrogen/21875-034) with Glutamax®, supplemented with 10% heat-inactivated fetal bovine serum (FBS), 1% penicillin-streptomycin (both antibiotics from Invitrogen). Cells were grown at 37°C in a 5% CO2 atmosphere. Viable cells were counted in a Neubauer chamber using the Trypan Blue (Sigma-Aldrich, St Louis, MO) exclusion method.
Cell growth inhibition

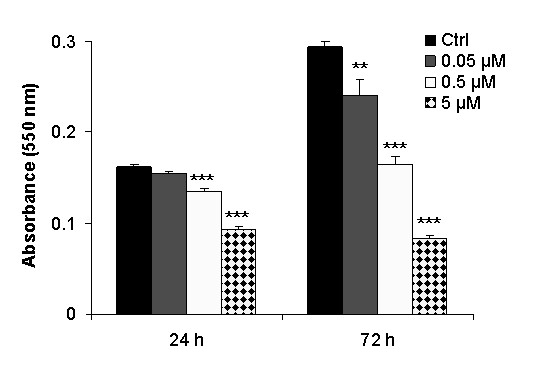

Cells were seeded in 96-well plates at a density of 1000 cells/well. After 24 h to allow for attachment, cells were treated with 0.05, 0.5 and 5 μM lapatinib (Tykerb
®, GlaxoSmithKline) or left untreated (controls). Cell proliferation was determined with the MTT Cell Proliferation Kit I (Roche, Mannheim, Germany), according to the manufacturer's recommendations. Readings were done at 540/690 nm in the SunRise ELISA plate reader (Tecan Austria GmbH, Salzburg, Austria).
Clonogenic assay
A549 cells (50,000 per well) were plated (in triplicates) into 6-well plates. After 24 h, cells were treated with 2 μM lapatinib and detached with Trypsin-EDTA (Cambrex Bio Science Verviers, Belgium) one day later. Cells were then counted and 500 cells per 10 cm culture dishes were re-seeded (in triplicates). After 12 days in culture, colonies were fixed with 10% buffered formalin and stained with 2% crystal violet. The number of colonies were determined and normalized to the number of colonies in controls.
Cell cycle analysis and apoptosis
After incubation with 2 μM lapatinib for 24 h, cells were centrifuged at 1200 rpm for 5 min, fixed in 70% alcohol, kept on ice for 1 h, centrifuged, and washed with PBS. The samples were then resuspended in 500 μL PBS, and 10 μL RNAse A (10 mg/mL) was added and incubated at 37°C for 30 min. After addition of 10 μg/mL propidium iodide (Sigma-Aldrich), the relative DNA content per cell was obtained by measuring the fluorescence of the DNA. The stained cells were detected by flow cytometry using a FACSCalibur (BD Pharmingen, San Diego, CA) and the subsequent analysis was performed with the CELLQuest program. To quantify apoptosis, cells were exposed to 2 or 5 μM lapatinib (for 24 h or 72 h), and active caspase-3 was measured with an apoptosis kit (FITC Active Caspase-3 Apoptosis Kit, BD Pharmingen), according to manufacturer's protocol.
Fluorescence in situhybridization (FISH)
A549 cell suspension was spotted onto a glass slide and air dried. Slides were incubated with protease solution (50 mg/mL pepsin in 0.01 M HCl) at 37°C and fixed with 10% buffered paraformaldehyde. Samples were dehydrated by processing through a series ethanol concentrations. Co-denaturation and hybridization of the probe and cellular DNA were performed with a Hybridizer (DAKO, Glostrup, Denmark), according to the manufacturer's protocol. HER-2/CEP17 FISH probes were obtained from Vysis, Inc. (Dowers Grove, IL). Evaluation of FISH signals was done by counting 100 nuclei and 100 metaphases and calculating the average of HER-2/CEP17 gene copy number per cell.
Western blot analysis
After treatment with 2 μM laptinib (or PBS as a control) for 72 h, attached and floating A549 cells were collected by centrifugation and lysed at 4°C in lysis buffer (10 mM Tris-HCl, pH 7.4, 1% Triton X-100, 1% Na deoxycholate, 150 mM NaCl, 50 mM NaF, 5 mM EDTA, 0.1% SDS, 1 mM sodium vanadate). Extracts were aliquoted and stored at -80°C for further Western blot analyses. Protein concentrations were determined with the BCA Protein Assay Kit (Pierce, Rockford, IL), resolved by SDS-PAGE, and transferred to polyvinylidene difluoride membranes (Bio-Rad, Hercules, CA). Membranes were blocked with 5% nonfat dry milk in TBS-Tween (1× TBS: 0.05 M Tris-HCl, 0.5 M NaCl, pH 7.36; 0.1% Tween-20) and incubated at the recommended dilution with antibodies specific for PCNA (Dako), GAPDH (AbD Serotec, Kidlington, Oxford, UK), phospho-EGFR, total EGFR, phospho-HER-2, total HER-2, phospho-AKT, total AKT, cleaved PARP (Asp 214), XIAP (all of the latter ones from Cell Signaling Technology, Danvers, MA); c-Myc, cyclin B1, cyclin A, cyclin D1, Mcl-1, IAP-1, IAP-2, survivin (all of these antibodies from Santa Cruz Biotechnology, Santa Cruz, CA); Bcl-xL (BD Pharmingen); and Bak-1 (NT; Upstate, Charlottesville, VA). Membranes were then incubated with the appropriate horseradish peroxidase-conjugated secondary antibody (goat anti-mouse IgG or goat anti-rabbit IgG, Santa Cruz Biotechnology). Immunoblots were developed with the chemiluminescence detection system Lumi-Light PLUS (Roche), exposed to Amersham Hyperfilm™ MP (Amersham, GE Healthcare, Buckinghamshire, UK) and developed with an AGFA automated X-ray film processor.
A549 xenograft mouse model and treatment with lapatinib
Four week-old male athymic nude (nu/nu) mice (Harlan, Barcelona, Spain) were used in the study and maintained in SPF (Specific Pathogen Free) environment. Animals (n = 5 per group) were inoculated subcutaneously in the left leg (using a sterile 22-gauge needle) with 0.2 mL of Matrigel (BD Pharmingen) containing 1×107 A549 cells (1:1 volume Matrigel/A549 cells) under ketamine-xylazine anesthesia. Mice were randomized into two groups: a) treated with 100 mg/kg body weight lapatinib (Tykerb
®, GlaxoSmithKline) or b) controls (injected with vehicle). Treatments by daily gavage were started one week after cell injection. Tumor width (W) and length (L) were measured once a week with a caliper and the tumor volume (V) was calculated according to the formula: V = 0.5 × W2 × L. All the animal experiments were performed in accordance with the guidelines for the Animal Care Ethics Commission of our institution (University of Navarra) under an approved animal protocol.
Small animal PET analyses
At the end of treatment (week 4), the effect of lapatinib on tumor activity was measured by positron emission tomography (PET) with the radiotracer 18 fluorodeoxyglucose (18F-FDG). Mice were fasted overnight but allowed to drink water ad libitum. The following day, mice were anesthetized with 2% isoflurane in 100% O2 gas and 18F-FDG (10 MBq ± 2 in 80-100 μL) injected via the tail vein. To avoid radiotracer uptake in the hindlimb muscle, 18F-FDG uptake was performed under continuous anaesthesia for 50 min. PET imaging was performed in a dedicated small animal Philips Mosaic tomograph (Cleveland, OH), with 2 mm resolution, 11.9 cm axial field of view (FOV) and 12.8 cm transaxial FOV. Anesthetized mice were placed horizontally on the PET scanner bed to perform a static acquisition (sinogram) of 15 min. Images were reconstructed using the 3D Ramla algorithm (a true 3D reconstruction) with 2 iterations and a relaxation parameter of 0.024 into a 128×128 matrix with a 1 mm voxel size applying dead time, decay, random and scattering corrections. For the assessment of tumor 18F-FDG uptake, all studies were exported and analysed using the PMOD software (PMOD Technologies Ltd., Adliswil, Switzerland). Regions of interest (ROIs) were drawn on coronal 1-mm-thick small-animal PET images on consecutive slices including the entire tumor. Finally, maximum standardized uptake value (SUV) was calculated for each tumor using the formula SUV = [tissue activity concentration (Bq/cm3)/injected dose (Bq)] × body weight (g).
Lapatinib plus irradiation combination in vivo study
To assess the activity of lapatinib on A549 cells in response to irradiation, combination treatments (irradiation+lapatinib) were performed in nude mice. A549 tumor-bearing mice received a total irradiation dose of 16Gy (8 Gy/dose administered the second and third week after cell injection). For this experiment, mice were randomized into two groups: 1) X-ray irradiated alone and 2) the combination of lapatinib (100 mg/Kg) and irradiation at the indicated dose. Irradiation was performed with a Primus® Linear Accelerator (Siemens AG, Erlangen, Germany) X-ray machine.
Quantification of the circulating endothelial progenitors (CEPs)
To quantify the content of circulating endothelial progenitors (CEPs) in lapatinib-treated A549 xenografts by flow cytometry analysis, a volume of 100-200 μL peripheral blood was pre-incubated for 30 min at 4°C with 200 μL PBS-EDTA-BSA (phosphate 10 mM, 3% EDTA, 2% bovine serum albumin pH 7.4). Subsequently, samples were incubated in darkness for 30 min at 4°C with 7-aminoactinomycin-D (7AAD, Sigma-Aldrich), FITC-conjugated anti-mouse CD45, APC-conjugated anti-mouse CD117, and PE-conjugated anti-mouse Flk-1/KDR (the latter ones from BD Pharmingen). Cells were plotted according to forward scatter and side scatter profiles and gated to include only mononuclear cell events and to exclude cell doublets, platelets, dead cells/debris, microparticles and high side scatter events. The number of CEPs (CD45-CD117+VEGFR2+) were quantified and expressed as percentage (number of CEPs per hundred viable mononuclear cells).
Immunohistochemistry for CD31 and quantification of tumor angiogenesis
A549 lung cancer tissues were fixed in 10% buffered formalin, embedded in paraffin, and sectioned (5 μm in thickness). Slides were stained with H&E and Masson Trichrome. For immunohistochemistry, slides were deparaffinized, incubated for 30 min with 3% H2O2 in methanol to quench the endogenous peroxidase activity and hydrated through graded alcohols. Antigen retrieval was carried out as follows: Slides were incubated with 50 μg/mL proteinase K for 30 min at 37°C and 20 min at room temperature. Tissues were then incubated with goat normal serum in buffer Tris- EDTA (TE) at 1:20 dilution for 30 min at room temperature. The anti-CD31 monoclonal antibody (BD Pharmingen) was diluted 1:25 in TE buffer and incubated overnight at 4°C. Slides were then incubated for 30 min at room temperature with a secondary rabbit anti-rat antibody at 1:200 dilution in TE buffer. Afterwards, slides were incubated for 30 min with the EnVision™ anti-rabbit detection system (Dako). Peroxidase activity was carried out with DAB (3,3'-diaminobenzidine, Dako). Finally, slides were counterstained with hematoxylin, dehydrated, and mounted with DPX. For quantifications, 30 random images (400×) per experimental group were captured with a microscope (Leica, Wetzlar, Germany) equipped with the Analysis™ software. CD31-positive vessels were quantified with the Axiovision 4.6 software (Zeiss). Measurements are given as relative area occupied by CD31-positive vessels with respect to the reference area.
Statistical analysis
Unpaired two-tailed Student's t test was used to analyze comparisons between two groups. One-way ANOVA with Newman-Keuls multiple comparison Test was used to analyze vessel density data. Statistical differences were considered significant when p < 0.05.
Discussion
Although progress has been made in the management of advanced lung cancer, many challenges still remain. Chemotherapy is the primary treatment for advanced NSCLC patients. However, recent results suggest that no significant improvement in survival is likely to occur in those patients [
15‐
17]. The overexpression of EGFR and HER-2, which has been observed in a significant number of lung cancer patients, offers an opportunity to block these tyrosine kinase receptors with targeted drugs [
2,
18]. The EGFR tyrosine kinase inhibitors erlotinib and gefitinib were approved by the US Food and Drug Administration (FDA) for the treatment of NSCLC. Although in randomized phase III clinical trials gefitinib was not associated with significant improvement in survival [
19], its use has been proven clinically effective for patients with activating EGFR mutations [
3]. Lapatinib is a novel dual EGFR and HER-2 tyrosine kinase inhibitor that is now approved by the FDA for treatment of metastatic breast cancers with overexpression of HER-2 receptors [
20‐
22].
We used the A549 cell line model of NSCLC, which expresses EGFR and HER-2, to test the preclinical efficacy of lapatinib against lung cancer. Our results show that lapatinib inhibits the growth and increases apoptosis in these cells in vitro. More importantly, lapatinib inhibits A549 tumor activity and angiogenesis in a xenograft mouse model.
We have shown by FISH analysis that the HER-2 gene is amplified in A549 cells. This is consistent with previous studies that reported increased EGFR gene copy number in lung tumours [
1,
2]. Prediction of DNA alterations (gains or losses) to diverse genomic regions (chromosome 7, 11, 17 or 20 amplification and chromosomes 1, 2 or 9 deletions) in A549 cells have been recently associated with sensitivity to lapatinib [
7]. Interestingly, in A549 cells, chromosomal gains were predicted in the region 17q12, where the HER-2 gene is located [
7]. The A549 cell line might therefore constitute an appropriate preclinical model for testing the efficacy of lapatinib against NSCLC.

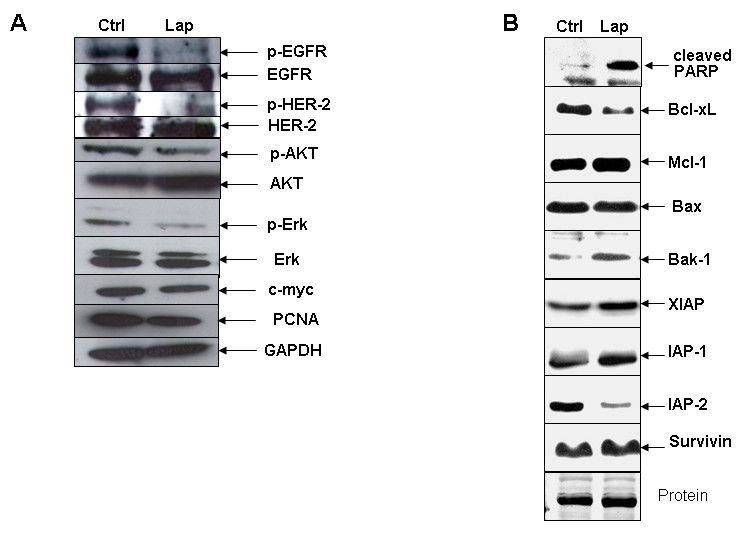

We demonstrate in this model that lapatinib-mediated blockade of both EGFR and HER-2 phosphorylation causes downstream signaling alteration upon drug administration. Similar to other EGFR inhibitors, such as erlotinib, lapatinib inhibited cell growth of A549 cells, and increased the proportion of cells in the G1 phase, while decreased those in the S and G2/M phases [
23]. A possible reason for this cell cycle effect is the decrease in the protein levels of cyclins A and B1, which are regulators of S and G2/M phases, respectively. Lapatinib-induced inhibition of cyclins A and B1 likely slows down progression through the S and G2/M cell cycle phases, contrasting with the result showing no change in cyclin D1, a mediator of the G1 phase. This very same phenomenon has been observed with erlotinib [
23].
We found that lapatinib blocks ERK1/2 phophorylation in A549 lung cells, as previously described in lapatinib-treated breast cancer cells [
24]. Furthermore, p-ERK1/2 downregulation is followed by a downstream reduction of c-Myc, which might contribute to the aforementioned G1 arrest. A recent work also demonstrated that c-Myc is a target of lapatinib in gastric cancer cell lines [
25]. In addition, these data are consistent with other reports demonstrating that cyclin A is critical for c-Myc-modulated cell cycle progression [
26]. Therefore, lapatinib inhibition of cyclin A may subsequently abrogate c-Myc and, in turn, induce G1 phase arrest in A549 cells.
An important feature of anti-cancer agents is the ability to trigger apoptotic cell death. Our results show that treatment of A549 cells with lapatinib causes apoptosis, as determined by an elevated proportion of cells in the sub-G1 cell cycle phase, and increased cleaved PARP and active caspase-3. Moreover, lapatinib decreased levels of the anti-apoptotic proteins Bcl-xL and IAP-2. Bcl-xL is a member of the Bcl-2 family that acts on the mitochondrial membrane to prevent release of caspase activators such as cytochrome-C [
27]. Overexpression of inhibitor of apoptosis (IAP) family members (IAP-2 among them) can also inhibit caspase activation, block apoptosis, and increase drug resistance [
28]. Therefore, the ability of lapatinib to reduce the levels of Bcl-xL and IAP-2 should increase mitochondria outer membrane permeabilization (MOMP), release cytochrome-C, and induce apoptosis. Results presented here also show increased Bak-1 (a proapoptotic member of the Bcl-2 family) levels, which are required along with Bax to increase MOMP and apoptosis. The correlation between lapatinib-induced cell death, Bak activation and Bcl-xL downregulation has been described as well in colon cancer cells [
29].

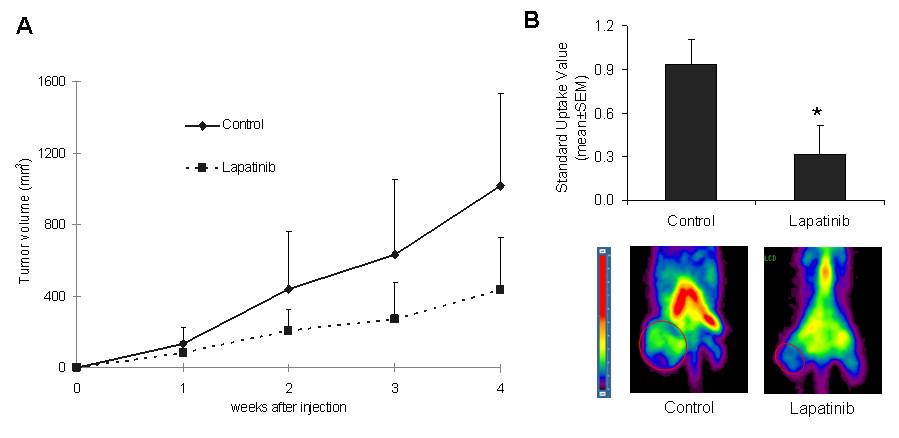

The growth-inhibitory effects of lapatinib were also evaluated
in vivo. In the A549 xenograft model, this drug reduced tumor growth, and glucose uptake (indicating decreased metabolism and proliferative activity of tumor cells). PET analysis has also been used in NSCLC patients to monitor the response to the EGFR tyrosine kinase inhibitor gefitinib [
30].

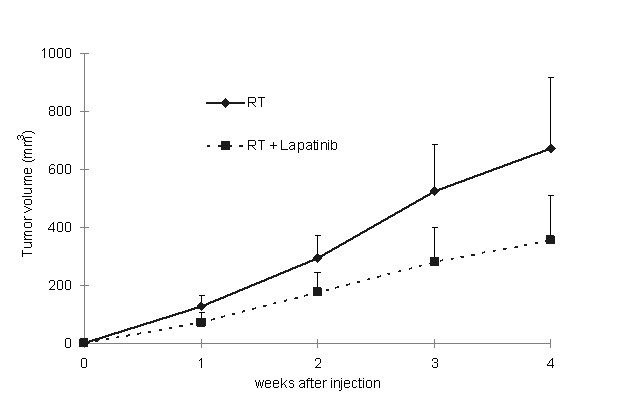

In vivo experiments using lapatinib in combination with radiotherapy showed no therapeutical benefit as compared to the use of each therapy alone in our study. Therefore, at least in these experimental settings, lapatinib does not enhance the therapeutic effect of radiotherapy. Randomized trials using lapatinib were recently initiated in patients with locally advanced squamous cell carcinoma of head and neck [
10] and NSCLC [
4]. Results from these studies and from other preclinical models will determine whether the use of lapatinib alone or in combination with other therapeutical agents may result in clinical benefit.
In vivo preclinical experiments using EGFR and VEGFR inhibitors in colon cancer models reported several important findings: First, both receptors were present in tumor-associated mouse endothelial cells; and second, targeting both receptors with the tyrosine kinase inhibitor AEE788 reduced tumor growth and caused apoptosis in both tumor and endothelial cells [

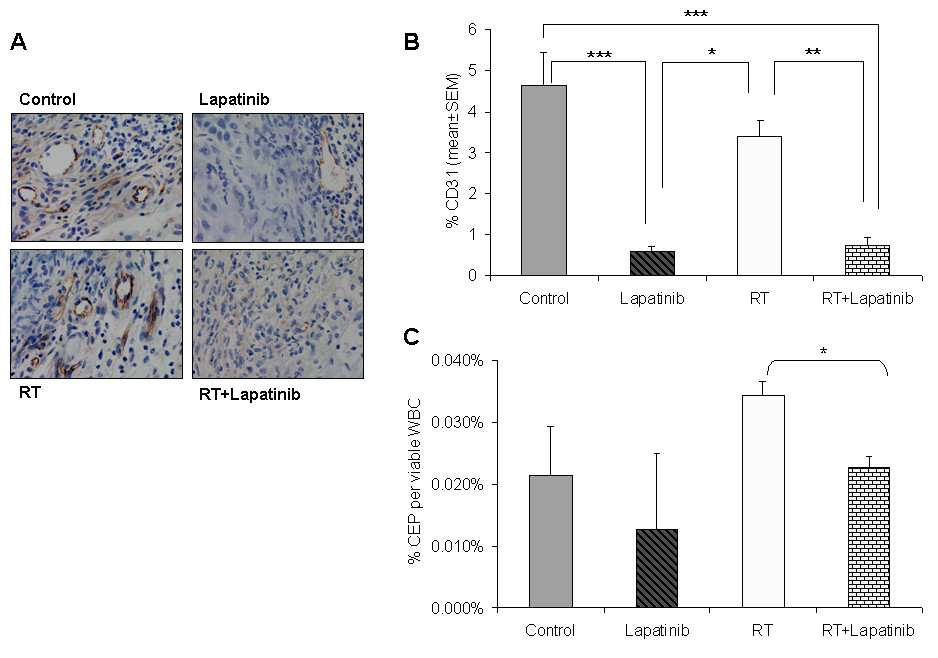

31]. We have found in the present study that treatment with lapatinib decreases dramatically tumor angiogenesis (by >80%) as compared to controls. This result suggest that blockade of angiogenesis may be one critical
in vivo mechanism elicited by lapatinib. It is possible that inhibition of EGFR downstream signaling reduces the expression of angiogenic factors (such as VEGF, IL-8, etc.) through indirect mechanisms. Interestingly, Olaussen et al. [
32] have recently demonstrated that lapatinib inhibits VEGFR1 phosphorylation by >70% in A549 cells. Although such an effect has not been shown in endothelial cells, one could assume that VEGFR1 phosphorylation blockade would have a direct antiangiogenic effect. These issues should be addressed in future studies.
Both peritumoral vessels and circulating bone-marrow-derived endothelial progenitors (CEPs) contribute to tumor angiogenesis [
33]. In addition, CEPs are significantly increased in NSCLC patients and are associated with poor prognosis [
34]. Our results show that lapatinib reduces modestly the number of CEPs. Radiotherapy caused an increase in CEPs in our
in vivo model, similar to that previously described in response to stress or therapy, including radiation [
13,
14,
35‐
37]. Interestingly, after tumor irradiation and lapatinib administration, the number of CEPs was significantly reduced. Therefore, a potential mechanistic function of lapatinib could be the inhibition of endothelial cell recruitment to the tumor.
