Background
Human
Campylobacter infections are currently on the rise as indicated by increased prevalence and incidence rates in developed as well as developing countries [
1,
2].
C. jejuni colonizes the intestinal tract of wild and domestic animals as a commensal, whereas humans usually become perorally infected by consumption of contaminated products derived from livestock animals or of surface water [
3,
4]. Infected patients complain about gastroenteritis of varying degree ranging from mild malaise with watery diarrhea to severe ulcerative colitis with abdominal cramps, fever and inflammatory, bloody diarrhea [
2,
5]. In the vast majority of cases, disease resolves spontaneously, whereas post-infectious sequelae affecting the nervous system (i.e. Guillain-Barré syndrome, Miller-Fisher syndrome and Bickerstaff encephalitis), the joints (i.e. reactive polyarthritis) or the intestinal tract (i.e. irritable bowel syndrome) might arise in rare cases with a latency of weeks to months [
2,
5,
6]. Susceptibility of vertebrates to
Campylobacter infections is highly depending on the host specific intestinal microbiota composition conferring physiological colonization resistance [
7,
8]. Whereas conventionally colonized mice expell the pathogen from their intestinal tract within a few days following peroral
C. jejuni challenge, modification of the murine intestinal microbiota by antibiotic treatment and reassociation with a human intestinal microbiota, for instance, results in stable pathogenic infection and, subsequently, distinct pro-inflammatory responses mimicking key features of human campylobacteriosis [
7,
9]
C. jejuni infection was further facilitated by pathophysiological conditions associated with increased intestinal commensal enterobacterial (i.e.
E. coli) loads including acute and chronic intestinal inflammation and obesity [
10,
11]. Also 3-weeks-old infant mice (immediately after weaning) harbored approximately two orders of magnitude higher intestinal commensal
E. coli loads as compared to adult animals and were susceptible to
C. jejuni infection, whereas the latter were not [
12,
13]. In line with these results, artificial elevation of the intestinal
E. coli loads in conventional adult mice by feeding a viable commensal
E. coli strain via the drinking water was sufficient to override colonization resistance and resulted in stable pathogenic infecton upon peroral challenge [
10].
The nucleotide-binding oligomerization domain (NOD) like receptors comprize intracellular pattern recognition receptors that regulate host immunity by sensing microbial products and damage-associated factors [
14]. Among these, NOD2 is encoded by the
card15 gene and expressed at different levels by Paneth cells [
15] and innate (dendritic cells, macrophages) as well as adaptive (i.e. T lymphocytes) immune cell populations [
16‐
18]. Muramyl dipeptide (MDP) is a major constituent of bacterial peptidoglycan that is well-known for its adjuvant and immunomodulatory properties [
19]. Furthermore, MDP from virtually all Gram-positive and Gram-negative bacteria can activate NOD2 conferring resistance against a plethora of bacterial species [
14,
20‐
22]. Whether NOD2 is also capable of sensing other microbial structures or participates as a mere signaling partner is under current debate [
23].
In the present study we addressed the role of NOD2 in C. jejuni infection of mice harboring a conventional intestinal microbiota and surveyed potential C. jejuni induced NOD2 dependent pro-inflammatory sequelae and bacterial translocation from the commensal intestinal microbiota to extra-intestinal compartments.
Methods
Ethics statement
All animal experiments were conducted according to the European Guidelines for animal welfare (2010/63/EU) with approval of the commission for animal experiments headed by the “Landesamt für Gesundheit und Soziales” (LaGeSo, Berlin, registration number G0135/10). Animal welfare was monitored twice daily by assessment of clinical conditions.
Mice and C. jejuni infection
NOD2
−/− mice (in C57BL/6j background; initially obtained from The Jackson Laboratories, Bar Harbor, USA) and sex- and age-matched wildtype (WT) counterparts were bred, raised and maintained within the same specific pathogen free (SPF) unit in the Forschungseinrichtungen für Experimentelle Medizin (FEM, Charité-University Medicine Berlin). At the age of 3 months, female mice were perorally infected with 10
9 colony forming units (CFU) of viable
C. jejuni strain 81–176 in a volume of 0.3 mL phosphate buffered saline (PBS; Gibco, life technologies, Paisley, UK) on three consecutive days (days 0, 1 and 2) by gavage as described earlier [
7].
Sampling procedures
Mice were sacrificed at day 14 post infection (p.i.) by isofluran treatment (Abbott, Greifswald, Germany). Ex vivo biopsies from mesenteric lymph nodes (MLN), spleen, liver, kidney and the gastrointestinal tract (i.e. stomach, duodenum, ileum and colon) were asserved under sterile conditions. Colonic samples were collected in parallel for microbiological and immunological analyses. For immunohistological analyses, colonic ex vivo biopsies were immediately fixed in 5% formalin and embedded in paraffin.
Quantitative analysis of bacterial colonization and translocation
For bacterial quantification within the gastrointestinal tract feces was taken over time p.i. and luminal samples were derived from stomach, duodenum, ileum and colon at necropsy (day 14 p.i.) and dissolved in sterile PBS. For determination of C. jejuni loads, serial dilutions were cultured on Columbia-Agar supplemented with 5% sheep blood and Karmali-Agar (both Oxoid, Wesel, Germany) for two days at 37 °C under microaerobic conditions using CampyGen gas packs (Oxoid). For quantification of E. coli, serial dilutions were cultured on Columbia-Agar supplemented with 5% sheep blood and Mac Conkey Agar (both Oxoid) in aerobic atmosphere for two days at 37 °C.
Translocation of commensal intestinal bacteria to extra-intestinal compartments was quantitatively assessed in respective organ homogenates under aerobic, microaerobic and obligate anaerobic conditions as described earlier [
24‐
26].
The respective weights of fecal or tissue samples were determined by the difference of the sample weights before and after asservation. The detection limit of viable pathogens was ≈100 CFU per g.
Immunohistochemistry
Five µm thin paraffin sections of colonic ex vivo biopsies were subjected to in situ immunohistochemical analysis as described previously [
27‐
29]. In brief, primary antibodies against cleaved caspase-3 (Asp175, Cell Signaling, Boston, MA, USA, 1:200), Ki67 (TEC3; Dako, Glostrup, Denmark; 1:100), CD3 (#N1580; Dako; 1:10), FOXP3 (FJK-16 s; eBioscience, San Diego, CA, USA; 1:100), B220 (eBioscience; 1:200) and myeloperoxidase (MPO-7, # A0398; Dako; 1:500) were used to assess apoptotic cells, proliferating/regenerating cells, T lymphocytes, regulatory T cells (Treg), B lymphocytes and neutrophils, respectively. The average number of positively stained cells within at least six high power fields (HPF, 0.287 mm
2; 400× magnification) were determined by an independent and blinded investigator.
Cytokine detection in supernatants of colonic ex vivo biopsies
Colonic ex vivo biopsies were cut longitudinally and washed in PBS. Strips of approximately 1 cm
2 large intestinal tissues were placed in 24-flat-bottom well culture plates (Nunc, Wiesbaden, Germany) containing 500 μL serum-free RPMI 1640 medium (Gibco) supplemented with penicillin (100 U/mL) and streptomycin (100 µg/mL; PAA Laboratories, Cölbe, Germany). After 18 h at 37 °C culture supernatants were tested for IL-6 and IL-10 by the Mouse Inflammation Cytometric Bead Assay (CBA; BD Biosciences, Heidelberg, Germany) on a BD FACSCanto II flow cytometer (BD Biosciences) as described previously [
30].
Real-time PCR
RNA was isolated from snap frozen colonic ex vivo biopsies, reverse transcribed and analyzed as described previously [
31]. Murine TNF, IFN-γ, IL-23p19, IL-22, IL-18 and mucin-2 mRNA expression levels were detected by real-time PCR with specific primers and quantified by analysis with the Light Cycler Data Analysis Software (Roche Life Science, Mannheim, Germany). The mRNA of the housekeeping gene for hypoxanthine-phosphoribosyltransferase (HPRT) was used as reference, and the mRNA expression levels of the individual genes were normalized to the lowest measured value and expressed as fold expression (Arbitrary Units).
Statistical analysis
Medians and levels of significance were determined using the Mann–Whitney U test (GraphPad Prism v5, La Jolla, CA, USA) as indicated. Two-sided probability (p) values ≤0.05 were considered significant.
Discussion
The well-orchestrated interaction of distinct immune cells, pattern recognition receptors and evolving signaling pathways is pivotal to prevent the vertebrate host from infections with invading pathogens including

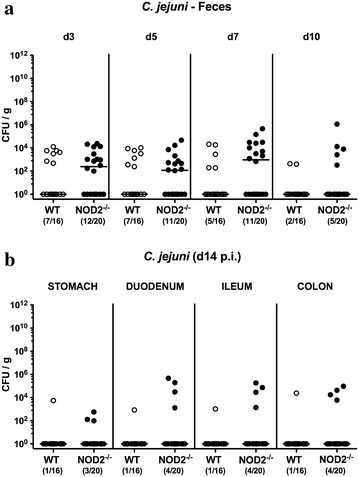

C. jejuni. In the present study we investigated the impact of the bacterial MDP sensor NOD2 during
C. jejuni infection of conventionally colonized mice. Despite peroral challenge with high pathogenic loads even on three consecutive days, both WT and NOD2
−/− could be colonized only sporadically until day 14 p.i., which is due to the physiological colonization resistance mediated by the distinct murine microbiota composition [
7,
9,
12,
13,
34,
39,
40]. During the entire time course following infection pathogenic positivity rates of fecal samples were slightly higher in NOD2
−/− as compared to WT mice. This might be explained by concomitant slightly higher loads of commensal
E. coli (between one and two orders of magnitude) within the gastrointestinal lumen known to facilitate
C. jejuni colonization [
7,
8,
10,
12,
13,
34,
39,
40]. In addition, NOD2 deficiency is associated with defective expression of antimicrobial peptides resulting in compromized pathogenic clearance by the host [
41,
42].
Several studies further revealed the importance of NOD2 in sensing and elimination of pathogens, given that NOD2
−/− mice have been shown to be more susceptible to infection with
Salmonella Typhimurium [
43] or
Listeria monocytogenes [
42]. A previous elegant in vivo study revealed that NOD2 is essential for the control of campylobacteriosis in antibiotics-treated mice lacking IL-10 [
44]. Interestingly,
C. jejuni induced colitis was more pronounced in NOD2
−/− IL-10
−/− mice as compared to IL-10
−/− mice. The authors further demonstrated that NOD2 was essential for nitric oxide production in peritoneal macrophages. Based on the finding that nitroprusside attenuated murine campylobacteriosis the authors concluded that NOD2 is essential for pathogen control by bactericidal responses involving nitric oxide [
44]. Differences regarding disease outcomes when compared to our report are due to substantial differences regarding the applied animal models. Whereas Su and colleagues had pretreated IL-10
−/− mice with broad-spectrum antibiotics prior
C. jejuni infection, we here investigated WT animals harboring a conventional microbiota.
In line with our previous reports, also in the present study
C. jejuni infected conventionally colonized mice of either genotype were neither clinically compromized (by wasting or abundance of bloody diarrhea, for instance), nor could microscopic sequelae such as colonic epithelial apoptosis be observed at necropsy [
7‐
9,
30]. One could assume that lack of overt pathological responses might be due to successful clearance of the enteropathogen during the course of infection by the host. As shown earlier, however,
C. jejuni does not necessarily need to permanently establish witin the intestinal tract to evoke pro-inflammatory host responses [
30,
32,
36,
45]. It is rather the initial hit of the enteropathogenic infection that tips the balance towards immunopathological host responses [
30]. In support of this hypothesis,
C. jejuni induced large intestinal immune cell responses could, in fact, be observed also in the present study as indicated by elevated Treg numbers in infected NOD2
−/− mice only, whereas B lymphocytes increased exclusively in the large intestines of WT mice. In addition, innate immune responses were more pronounced in NOD2 deficient mice as indicated by an increased influx of neutrophils into the colonic mucosa and lamina propria following
C. jejuni infection that was more pronounced in NOD2
−/− as compared to WT mice and paralleled by higher levels of pro-inflammatory cytokines including IL-6 and TNF. Conversely, colonic concentrations of the anti-inflammatory cytokine IL-10 was elevated in WT, but not NOD2
−/− mice at day 14 p.i., further supporting the overall more pronounced
C. jejuni induced pro-inflammatory host responses upon NOD2 deficiency.

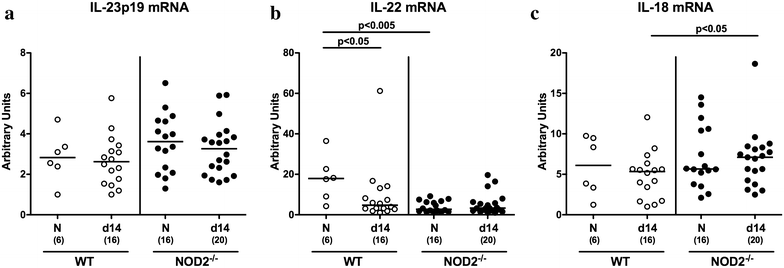

Very recently our group has highlighted the importance of the IL-23/IL-22/IL-18 axis in campylobacteriosis [
30,
32,
34,
36]. In infected secondary abiotic WT mice, for instance, colonic IL-23p19, IL-22 and IL-18 were all upregulated [
36], whereas large intestinal IL-22 mRNA levels were shown to be increased in infected IL-10
−/− mice [
46]. As member of the IL-10 cytokine family, IL-22 can exert dichotomous modes of action depending on the respective tissue (i.e. compartment of the intestinal tract) and the surrounding cytokine milieu [
30,
47,
48]. Whereas in the small intestines IL-22 exerts pro-inflammatory properties as shown in murine
Toxoplasma gondii induced ileitis [
31,
49,
50], IL-22 has anti-inflammatory functions in the colon [
48]. Interestingly, in the present study basal IL-22 mRNA levels were lower in large intestines of NOD2
−/− as compared to WT mice. Given that IL-22 was shown to be effective in antimicrobial host defence against
C. jejuni [
51], down-regulated basal IL-22 levels might explain slightly higher fecal pathogenic positivity rates in NOD2
−/− as compared to WT mice shown here.
C. jejuni infection, however, resulted in down-regulation of colonic IL-22 expression in WT animals only, whereas neither IL-23p19 (as well-known master regulator of mucosal immune responses [
52]) nor IL-18 (amplifying IL-22 production during intestinal inflammation [
50]), were affected upon infection, which is well in line with our very recent results derived in
C. jejuni infected conventional mice as well [
30].
Epithelial barrier integrity is of utmost importance for limiting bacterial/pathogenic spread from the intestinal compartment to extra-intestinal including systemic compartments with potentially fatal consequences for the host [
53]. Whereas in the present study bacterial translocation could not be observed in any naive mice of both genotypes, viable commensal intestinal species such as
E. coli, enterococci and/or lactobacilli could be exclusively detected in MLN and livers of NOD2
−/− mice, whereas bacterial translocation rates to kidney and spleen were rather comparable. Given that mucins including MUC-2 are pivotal components of the viscous mucous layer preserving epithelial barrier function by protecting the underlying mucosal epithelial layer not only from invading pathogens, but also from translocating intestinal commensals [
53,
54], we analyzed MUC-2 expression in the colon of NOD2
−/− and WT mice before and 14 days after
C. jejuni infection. We could, however, not observe significant differences in colonic MUC-2 expression that might explain the observed differences in bacterial translocation rates. One needs to take into consideration that epithelial barrier function is warranted by a complex interaction of many independent factors (with MUC-2 mRNA expression only one amongst plenty) [
55].
We conclude that NOD2 is involved in the well-balanced regulation of innate and adaptive pro-inflammatory immune responses of conventional mice upon C. jejuni infection. Future studies are needed to unravel the underlying molecular mechanisms in more detail.
Authors’ contributions
Conceived and designed the experiments: SB MMH. Performed the experiments: MEA UG AF MMH. Analyzed the data: UG MEA AF MMH. Wrote the paper: SB MMH. All authors read and approved the final manuscript.
