CD133 expression in chemo-resistant Ewing sarcoma cells

ESFT cell lines were maintained and passaged as cellular monolayers in 10% fetal bovine serum-containing media as described [17, 18]. STA-ET-8.2 cells were obtained from Children's Cancer Research Institute, Vienna, Austria and the remainder of cell lines from Childrens Hospital Los Angeles (CHLA), CA. Primary tumor sections and RNA were obtained from the Children's Oncology Group (COG) Biorepository in Columbus, Ohio (Cooperative Human Tissue Network - CHTN) and the CHLA tumor bank. All specimens were obtained in compliance with HIPAA regulations and following protocol review by institutional review board. Informed consent for use of tumor samples for research purposes was obtained from each subject or subject's guardian.

Cultured cells were trypsinized and resuspended in FcR Blocking Reagent (Miltenyi Biotec, Auburn, CA, USA) with 0.5% bovine serum albumin (Sigma, St Louis, MO, USA) in phosphate-buffered saline (PBS). Mouse anti-human CD133/2-PE (Miltenyi) monoclonal antibody was then added (1:11 dilution) and incubated for 15 min at 4°C in the dark. After two washes, labeled cells were analyzed by a FACScan flow cytometer (Becton Dickinson). A minimum of 10,000 events was collected and acquired using CellQuest software (Becton Dickinson). For flow-activated cell sorting (FACS), cells were stained for CD133/2-PE and isolated on FACS Vantage or FACS Aria instruments (BD Biosciences). Analysis was done using the Flow-Jo program (Tree Star, Ashland, OR). Positive and negative gates were determined using IgG stained and unstained controls. Isolated cells were then washed twice with PBS and plated under the same conditions as unsorted cells. For cell lines with less than 20% CD133+ cells, FACS was preceded by magnetic bead sorting (MACS) to first enrich for the CD133 population and thereby improve FACS efficiency. Cells were labeled with primary CD133/1 antibody (mouse IgG1, Miltenyi Biotec, 1 ul per million cells), magnetically labeled with rat anti-mouse IgG1 Micro beads (Miltenyi Biotec, 20 ul per 10 million cells) and separated by MACS LS column (Miltenyi Biotec) according to manufacturer's instructions. Since MACS-separated cells might be saturated with the antibody (CD133/1), it is recommended by the manufacturer to use an alternative antibody recognizing the second epitope of CD133 (CD133/2) when performing subsequent analyses of cell separation. Thus, we used CD133/2 in the FACS experiment when evaluating sorting efficiency of MACS-sorted cells.

Total RNA was extracted from cells and frozen tissue sections using Qiagen columns (Qiagen, Valencia, CA). First strand complementary DNA (cDNA) was synthesized from 250-500 ng RNA using iScript Reverse Transcriptase kit (Bio-Rad, Hercules, CA). Primers for semi-quantitative RT-PCR were: PROM1 (CD133) sense-GACCGACTGAGACCCAACAT and antisense-TGGTTTGGCGTTGTACTCTG; GAPDH sense- CTTTAACTCTGGTAAAGTGG and antisense-TTTTGGCTCCCCCCTGCAAAT. Quantitative realtime RT-PCR (Q-RT-PCR) was performed using a validated TaqMan Gene Expression Assay (Applied Biosystems; Hs01009261-m1) which detects both known isoforms of PROM1. Assays were performed in triplicate on an Applied Biosystems 7900HT system. Average Ct values were normalized relative to expression of GAPDH and β -Actin in the same sample using the formula: % expression = 2^-ΔCt × 100.

Whole cell lysates were analyzed by western blot using standard procedures. Primary antibodies used were: anti-CD133 (1:500)(Santa Cruz Biotech, Santa Cruz, CA); anti- Bax (1:1000) (BD Pharmingen, San Jose, CA); anti-Bcl-XL(1:200)(Santa Cruz Biotech, Santa Cruz, CA); anti-Bcl2(1:200)(Santa Cruz Biotech, Santa Cruz, CA); anti-survivin 1 (1: 1000)(Novus Biologicals, Littleton, CO); anti-ABCG2 (1:500)(Abcam, Cambridge, MA) and anti-β-actin (1:1000)(Santa Cruz Biotech, Santa Cruz, CA). Immunostaining cells cultured on chamber slides were rinsed in PBS and fixed in ice cold acetone for 5 min. For frozen tissue samples tumor tissue was fresh-frozen in Tissue-Tek O.C.T. compound (Sakura Finetechnical, Tokyo, Japan), cryosectioned at 10 um then fixed in acetone for 10 min at -20°C. To detect CD133, tumor sections and chamber slides were pre-incubated with 10% normal Donkey serum, then hybridized with anti-CD133 antibody (rabbit polyclonal IgG; 1: 200; Abcam, Cambridge, MA) for 1 hour at room temperature. The primary antibodies were detected with Cy3 conjugated Donkey anti-rabbit IgG, (1: 500; Jackson Immuno West Grove, PA). Sections were counterstained with DAPI, viewed with a Leica DM RXA Upright Fluorescence Microscope and photographed using a SKY camera on the system (Applied Spectral Imaging, Inc., Carlsbad, CA).

FACS-sorted cells were plated in triplicate wells at a density of 3 × 10⁴ cells/35 mm dish and total cell counts and cell viability determined using a ViCell XR cell counter (Beckman Coulter) on days 0, 1, 3, 5, 7 and 14. Cell growth and viability following drug treatment was assessed using the CellTiter-GIo Luminescent Cell Viability Assay (Promega, Madison, MI). Cells were plated at a density of 5 × 10³ cells/well in 96 flat-bottomed plates, allowed to attach overnight, and then chemotherapeutic agents added at increasing concentrations. Survival of cells was assessed 24-96 hrs post-treatment with Doxorubicin, Etoposide and/or Vincristine as individual agents or in combination. (Calbiochem, San Diego, CA).

For soft agar colony formation assays cells were plated as single cell suspensions in 0.35% noble agar as previously described [19]. Cells were maintained at 37°C in a humidified incubator for 2-4 weeks and macroscopic colony formation assessed. To assess sphere-forming ability in serum and non-serum containing media in nonadherent conditions, single FACS-sorted CD133+ or CD133- cells were seeded into low attachment 96-well plates. Visual inspection was performed the day after the initial plating to confirm that each contained a single cell. After 3-4 weeks, spheres that contained > 50 cells were counted.

Nonobese diabetic (NOD)-severe combined immunodeficiency (SCID) mice (Charles River Laboratories) were injected with 5 × 10⁶ ESFT parent or CD133 FACS-sorted cells. Tumor growth was monitored over time and the frequency of tumor formation compared between sorted and unsorted cells. Studies were carried out with the assurance of the Institutional Animal Care and Usage Committee.

All assays were repeated at least 3 times and values in the figures and text are reported as means ± SD. Statistically significant differences (p.0.05) between mean values was determined by Student's t test.

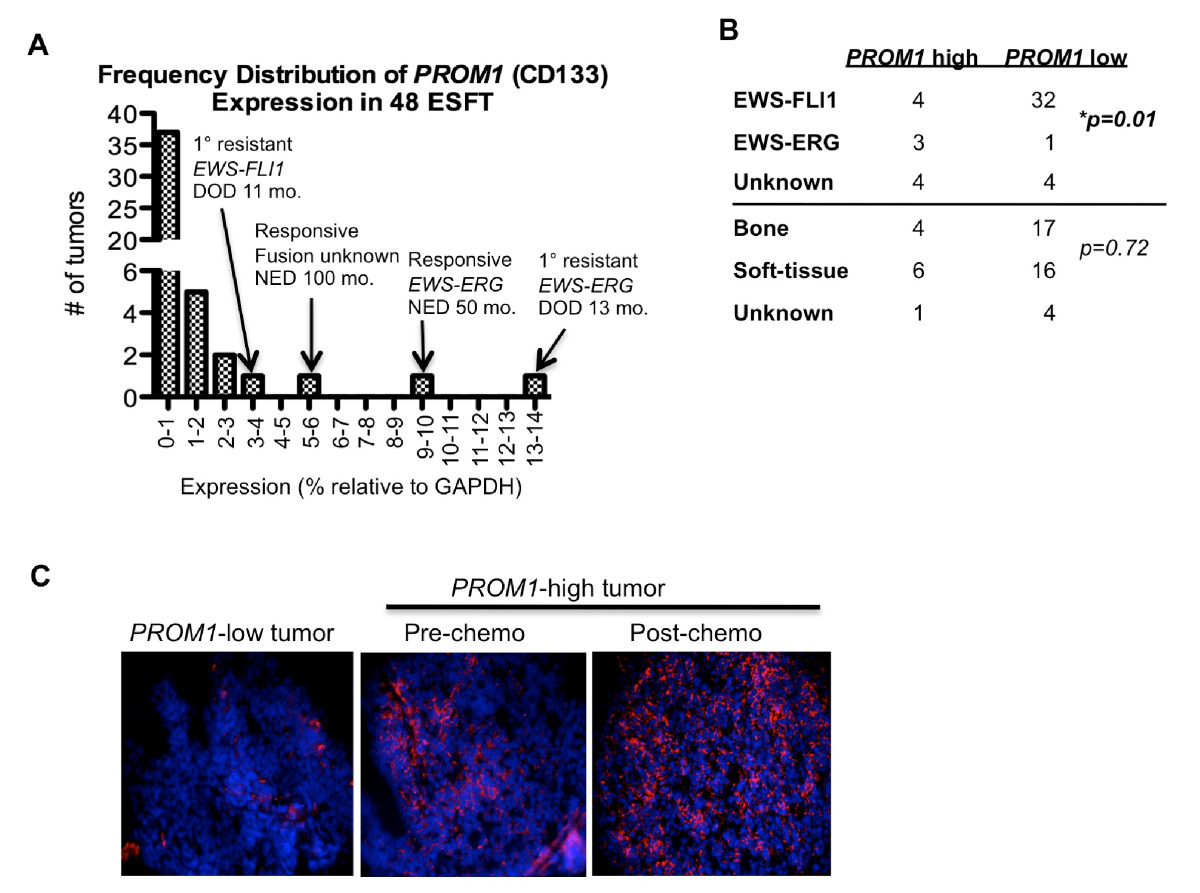

CD133+ cells were shown to be extremely rare in a study of 8 primary ESFT [16]. To define the relative levels of expression of the CD133-encoding PROM1 gene in a larger cohort of ESFT we evaluated 48 tumor RNA samples by quantitative RT-PCR. As shown, consistent with a low frequency of CD133+ cells, PROM1 expression was extremely low relative to housekeeping gene expression in most tumors (Fig 1A). In contrast, however, the PROM1 transcript was readily amplified from 11 tumors and in 4 tumors expression was at least 40-fold greater than the median (Fig 1A, cases marked with arrows). Data were equivalent whether normalized to GAPDH or β-Actin (not shown). Translocation and tissue of origin data were available for 40 and 43 of the 48 tumors, respectively. As expected, the majority of tumors expressed an EWS-FLI1 fusion; however, there was a significant over-representation of EWS-ERG fusions among the 11 PROM1 positive tumors (Fig 1B). Notably, two of the four patients with PROM1 over-expressing tumors had highly drug-resistant disease and died 11 and 13 months from diagnosis (one with an EWS-FLI1 and one with an EWS-ERG tumor; Fig 1A).

Bild vergrößern

To determine if over-expression of the PROM1 transcript is indicative of an increased frequency of CD133+ cells we obtained fresh-frozen tumor sections from a PROM1 negative and a PROM1 positive case. In keeping with the relative levels of transcript expression, only rare CD133+ cells were detected in the PROM1 low case while large numbers of CD133+ cells were apparent in the PROM1 over-expressing tumor (Fig 1B). Significantly, this PROM1-high, EWS-ERG+ bone tumor was highly drug resistant and the level of PROM1 (data not shown) and frequency of CD133+ cells increased further following induction chemotherapy (Fig 1C) suggesting that the CD133+ cells were relatively more chemo-resistant than their CD133- counterparts (Fig 1B).

Together these data demonstrate that although CD133+ cells are usually infrequent in ESFT, in a subset of cases large numbers of CD133+ cells can be identified. Moreover, this increased frequency of CD133+ cells is reflected by increased expression of PROM1. Importantly, 2 of 4 PROM1 over-expressing tumors in this cohort were highly resistant to induction chemotherapy suggesting that, in at least some cases of primary ESFT, CD133 may be useful as a marker of chemo-resistant disease.

Although tumor-initiating cancer stem cells are definitively isolated from primary tumors [20], some cancer cell lines retain a cellular hierarchy thus permitting prospective isolation of stem cell populations from cultured cells [15]. To define the frequency of CD133+ cells in ESFT cell lines we evaluated PROM1 and CD133 expression in 9 well-established lines by RT-PCR and western blot, respectively. PROM1/CD133 expression was found to be variable but high levels were detectable in two of six EWS-FLI1+ cell lines and in all three EWS-ERG+ cell lines (Fig 2A). To establish if differing levels of expression were due to overall differences among all cells or a result of different frequencies of CD133+ cells, we used immunostaining and flow cytometry to directly assess the prevalence of CD133+ cells in each culture. The antibody we used for these studies is specific for the AC133 epitope of CD133 that is present on progenitor cells [21]. First, immunocytochemical staining revealed that while nearly all TC252 cells exhibit dense cell surface expression of CD133, STA-ET-8.2 and A4573 display a heterogeneous mixture of CD133+ and CD133- cells (Fig 2B). These data are consistent with the relative levels of overall CD133 transcript and protein detected in the three cell lines (Fig 2A). Next, we used flow cytometry to more precisely define the proportion of CD133+ vs. CD133- cells. Interestingly, although CD133+ cells were identified in all the cultures, the frequency ranged from only 2% of A4573 cells to nearly 100% of TC252 cells (Fig 2C). Together, these data demonstrate that, like primary tumors, the frequency of CD133+ cells in established ESFT cell lines varies widely and that expression is, in general, higher in EWS-ERG than EWS-FLI1 cells.

Bild vergrößern

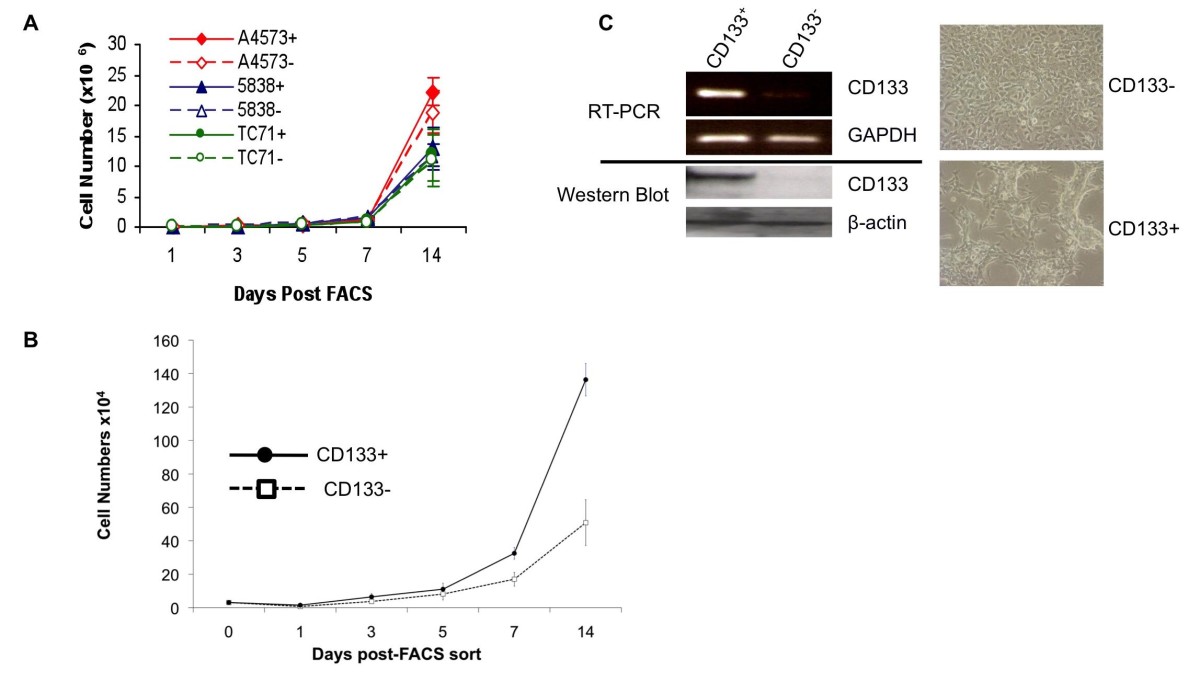

To establish if a CD133-defined cellular hierarchy exists in ESFT cell lines we sorted four different lines into CD133+ and CD133- fractions. Growth and morphology of the sorted cells was monitored over time in several independent experiments and differential expression of CD133 expression in the sorted populations was confirmed at the start and end of each experiment by RT-PCR and/or flow cytometry (not shown). Intriguingly, although there was no difference in growth rate or morphologic appearance between CD133+ and CD133- cells in A4573, TC71 or 5838 cell lines (Fig 3A), CD133+ STA-ET-8.2 cells consistently grew faster than their CD133- counterparts (Fig 3B). In addition, we observed a marked change in cellular morphology between CD133+ cells and CD133- cells. Whereas CD133- cells grew as uniform, evenly distributed adherent monolayers, CD133+ STA-ET-8.2 cells preferentially grew in aggregate clusters of cells (Fig 3C). Together these data suggested that CD133+ STA-ET-8.2 cells might be enriched for tumor-initiating cancer stem cells.

Bild vergrößern

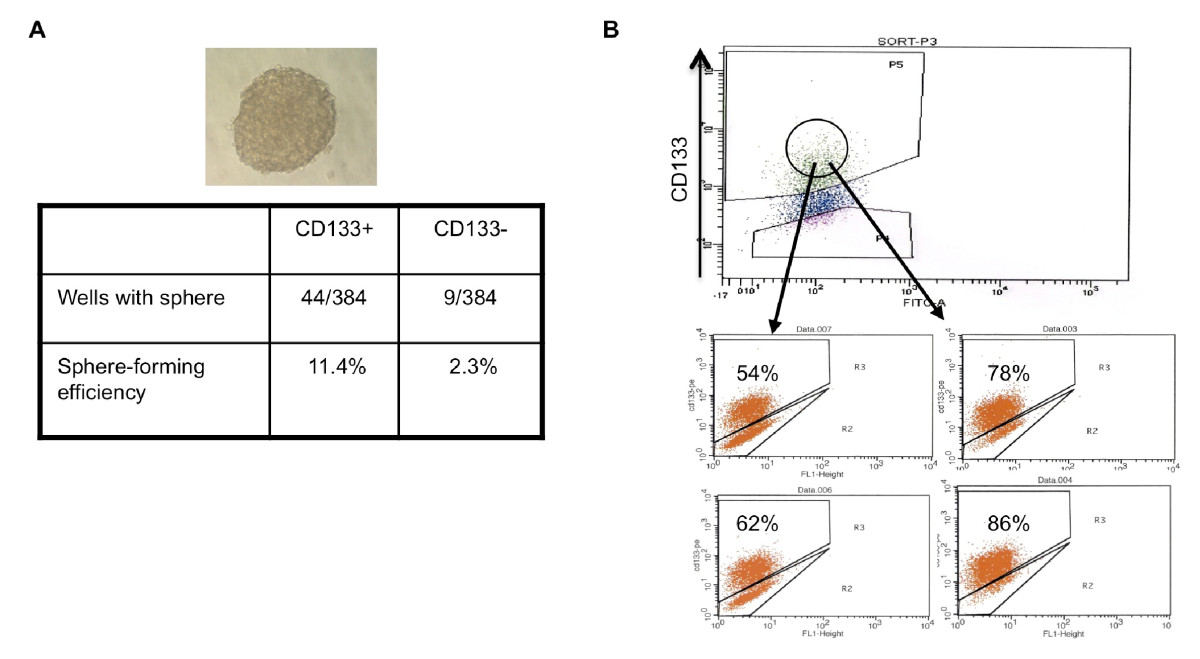

Prior studies have shown that CD133+ tumor-initiating cells uniquely form and can be expanded as 3-dimensional spheres in non-adherent culture conditions [5, 22]. Therefore, we compared sphere-forming capacity of CD133+ and CD133- STA-ET-8.2 cells in vitro. Single CD133+ or CD133- cells were independently seeded into ultra low adhesion 96-well plates that favor the proliferation of undifferentiated cells. The number of spheres was scored after 3-4 weeks in culture. Importantly, we observed that the ability of CD133+ cells to generate and proliferate as tumor spheres was 5-fold greater than CD133- cells. Multi-cellular spheres consisting of 500 to 3000 cells (Fig 4A; top panel) grew from 11.4% of individually seeded CD133+ cells. In contrast, spheres were generated from only 2.3% of the single-sorted CD133- cells (Fig 4A). Similar results were seen whether cells were sorted into serum-containing or defined bFGF/EGF neurosphere media (not shown). Importantly, consistent with proliferation assays, we observed no difference in sphere-formation ability between CD133+ and CD133- TC71 cells (not shown).

Bild vergrößern

In normal and malignant neural differentiation, CD133+ stem cells undergo asymmetric cell division to generate both CD133+ and CD133- progeny [5]. To determine if CD133+ STA-ET-8.2 cells are similarly capable of generating both CD133+ and CD133- daughter cells we evaluated clonally derived spheres generated from single CD133+ cells. Individual spheres derived from CD133+ cells were expanded in culture for several passages and then progeny analyzed by flow cytometry. As shown in Fig 4B, CD133+ cell-derived spheres contained both CD133+ and CD133- cells. Thus, these data support the hypothesis that the heterogeneity of CD133 expression in STA-ET-8.2 cell cultures is consequence of asymmetric cell division in which CD133+ cells give rise to both CD133+ and CD133- daughter cells.

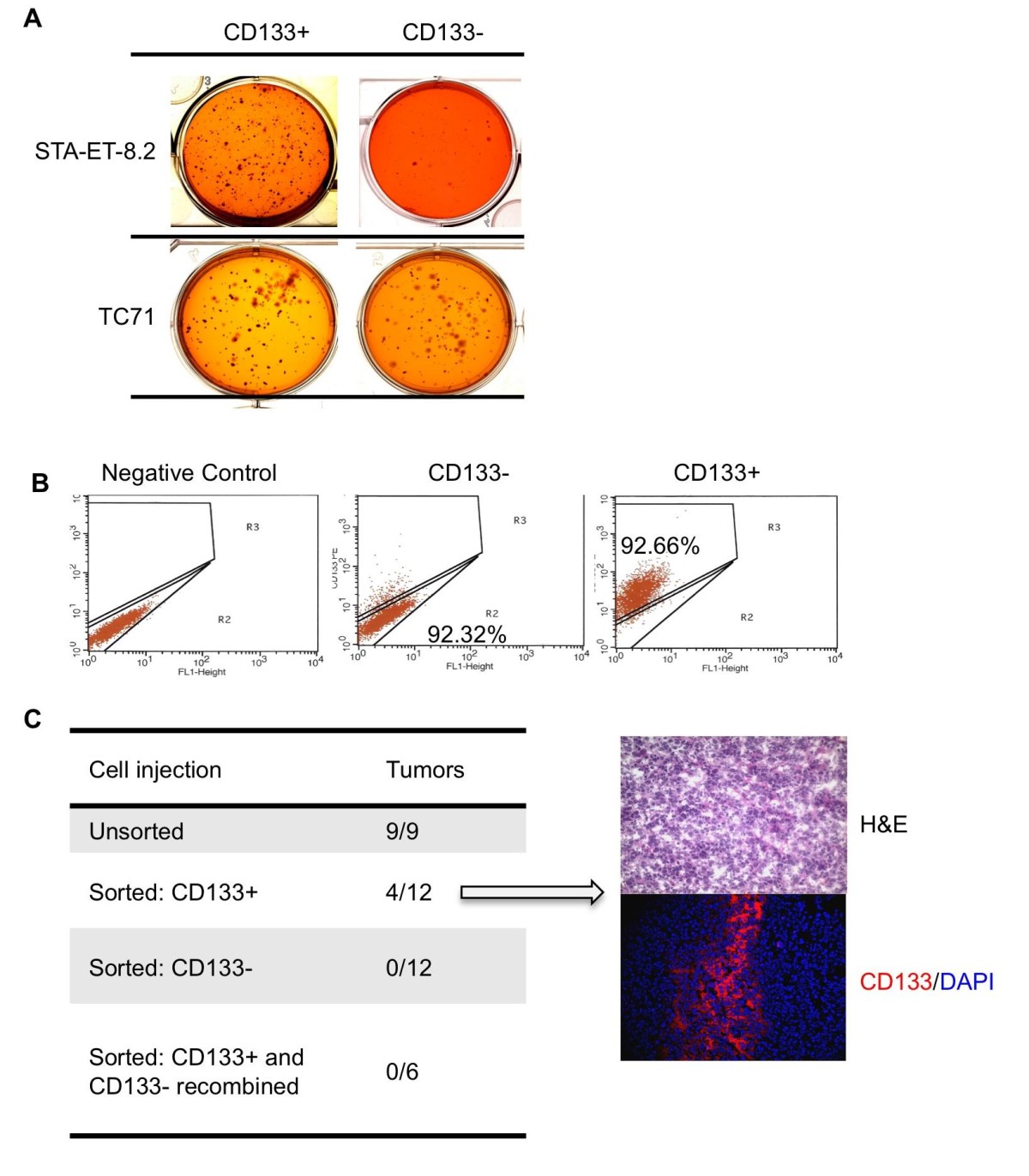

By definition cancer stem cells possess tumor-initiating capability [20]. To assess whether CD133+ ESFT cells display enhanced anchorage-independent growth in vitro we performed soft agar assays of FACS-sorted CD133+ and CD133- cells. In keeping with their differential growth characteristics in adherent culture, CD133+ STA-ET-8.2 cells displayed dramatically enhanced growth in anchorage-independent conditions compared to CD133- STA-ET-8.2 cells (Fig 5A). In contrast to STA-ET-8.2 cells, and consistent with findings in adherent culture, no differences in colony formation were observed between CD133+ and CD133- cells derived from parental TC71, A4573 or 5838 cell lines (Fig 5A and data not shown). Thus, among the four ESFT cell lines tested, the enhanced clonogenic capacity of CD133+ cells in anchorage-independent conditions was unique to STA-ET-8.2 cells.

Bild vergrößern

Next, we assessed whether increased capacity to generate colonies in soft-agar was associated with increased tumorigenicity in vivo. Cells were FACS-sorted into CD133+ and CD133- populations, expanded in culture as independent populations for three to five passages and then equal numbers of cells injected subcutaneously into NOD-SCID mice. Significant enrichment of CD133+ cells and CD133- cells in the respective sorted populations was confirmed immediately prior to cell injection (purity > 90%; Fig 5B). While 4 of 12 mice injected with CD133+ STA-ET-8.2 cells developed a tumor, none of the CD133- cell injections resulted in tumor formation (Fig 5C). Xenograft tumors derived from CD133+ STA-ET-8.2 cells displayed the classic poorly differentiated, homogenous small round blue cell phenotype of ESFT (Fig 5C; right panel). Immunostaining of these xenografts further revealed that the tumors derived from CD133+ cells contained both CD133+ and CD133- cells and the proportion of CD133- cells was significantly greater than the ~7% of contaminating CD133- cells that were present in the tumor cell inoculation (Fig 5C; right panel). In contrast, no differences in tumorigenicity were observed between CD133+ and CD133- TC71 cells: all mice rapidly developed tumors (not shown). Together these data provide preliminary in vivo evidence that the tumor-initiating potential of CD133+ STA-ET-8.2 is greater than that of CD133- cells and that CD133+ tumor-initiating cells undergo asymmetric cell division during tumor growth to generate both CD133+ and CD133- progeny. Serial dilution and serial transplantation experiments will be required to define the precise frequency of tumorigenic cells in each of these respective cell populations.

Finally, although the tumorigenicity of CD133+ STA-ET-8.2 cells was enhanced compared to CD133- cells, their capacity to initiate tumors was significantly less than that of unsorted parent cells (Fig 5C). Specifically, although tumors rapidly grew in 9 of 9 mice injected with unsorted STA-ET-8.2 cells, only 4 of 12 mice injected with the same number of CD133+ enriched cells developed a tumor (Fig 5C). This unexpected observation led us to hypothesize that either the CD133- cells contribute to the inherent tumorigenicity of the unsorted, parental cell line or that the process of FACS-sorting had diminished the relative tumorigenic capacity of all cells. To address this CD133+ and CD133- STA-ET-8.2 cells were collected and injected together. Despite the presence of a 50/50 mix of CD133+ and CD133- cells (which is the homeostatic state of parental, unsorted STA-ET-8.2 cells), no tumors formed in any of the six mice that received this merged cell injection (Fig 5C). These data suggest that the process of FACS-sorting negatively affects the tumor-initiating capacity of STA-ET-8.2 cells irrespective of CD133 expression. Whether MACS-sorting similarly affects the tumor-initiating potential of these cells remains to be evaluated.

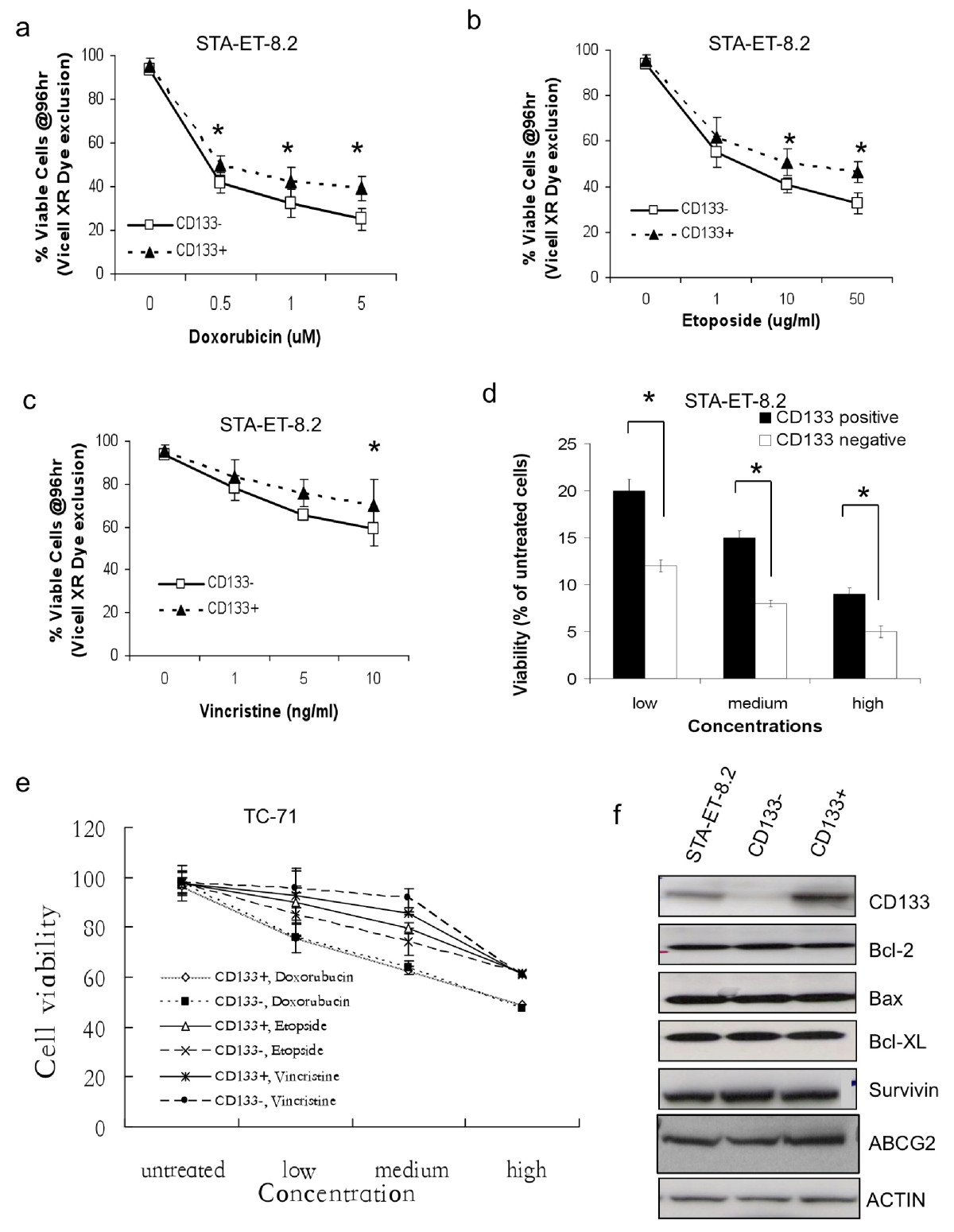

Cancer stem cells have been reported to be more resistant to chemotherapy [11, 23]. We therefore examined the viability of sorted CD133+ and CD133- STA-ET-8.2 cells that were exposed to increasing doses of doxorubicin, etoposide and vincristine alone or in combination for 24-96 hours. As shown (Fig 6A-D), both CD133+ and CD133- STA-ET-8.2 cells displayed a dose-dependent sensitivity to these chemotherapeutic agents. However, the relative resistance of CD133+ cells to drug-induced cell death was significantly greater than for CD133- cells at all three doses (Fig 6A). In contrast, no difference in cell viability was seen between CD133+ and CD133- populations sorted from TC71 (Fig 6E), A4573 or 5838 cell lines (data not shown). Thus, these data demonstrate that CD133 expression enriches for chemo-resistant cells in the STA-ET-8.2 cell line but not in the other ESFT cell lines tested.

Bild vergrößern

Having established that CD133+ STA-ET-8.2 cells display greater drug resistance than autologous CD133- cells, we next sought to investigate the mechanism of this differential sensitivity. FACS-sorted populations were evaluated by western blot for relative expression of proteins involved in apoptosis and multi-drug resistance. No differences between CD133+ and CD133- STA-ET-8.2 cells were observed in the expression of BH3-proteins (Bcl-2, Bcl-XL, Bax), survivin, or the ATP-binding cassette protein ABCG2 (Fig 6F). Similarly, equivalent levels of P-glycoprotein and activated AKT were detected in the sorted and unsorted cells (not shown). Thus, as with many putative cancer stem cells [21], the mechanism of enhanced chemo-resistance in CD133+ STA-ET-8.2 cells remains to be elucidated.
