In order to elucidate tumoral progression and drug resistance, cultured cell lines are valuable tools applied on tumor related assays provided they are well established and characterized. Our laboratory settled the NG97 cell line derived from a human astrocytoma grade III, which started to develop and express important phenotypical characteristics of an astrocytoma grade IV after injection in the flank of nude mice. Astrocytomas are extremely aggressive malignancies of the Central Nervous System (CNS) and account for 46% of all primary malignant brain tumors. Progression to worse prognosis occurs in 85% of the cases possibly due to changes in cell tumor microenvironment and through biological pathways that are still unclear.
Methods
This work focused on characterizing the NG97 cell line specifically after being recovered from the xenotransplant, who maintained their undifferentiated characteristics along the following 60th passages in vitro. These cells were subcultivated to evaluate the possible contribution of these undifferentiated characteristics to the malignant progression phenotype. These characteristics were the expression of molecules involved in the processes of migration, dedifferentiation and chromosomal instability.
Results
Results showed that NG97(ht) had an decrease in doubling time through sub cultivation, which was characterized by a converse modulation between the expression of glial fibrillary acidic protein (GFAP) and vimentin. In addition, β1 integrins were present in intermediate levels while α5 integrins had a high expression profile as well as fibronectin and laminin.
Cytogenetic analysis of NG97(ht) revealed several chromosomal abnormalities, 89% of the cells showed to be hyperdiploid and the modal number was assigned to be 63. Several acrocentric chromosomes were visualized and at least 30 figures were attributed to be murine. These findings suggest a possible fusion between the original NG97 cells with stromal murine cells in the xenotransplant.
Conclusion
In this study the NG97(ht) cells were characterized to embryonic recovery patterns of intermediate filaments, adhesion molecules expression, chromosomal imbalances and murine chromosomes. In the latter case, these presumably chromosomes were originated as fusions between murine stroma cells and NG97 cell lineage in the xenotransplant. Our results emphasize important queries about astrocytomas tumor progression.
The online version of this article (doi:10.1186/1471-2407-8-291) contains supplementary material, which is available to authorized users.
Competing interests
The authors declare that they have no competing interests.
Authors' contributions
This work is part of a Doctor's Dissertation by CMLM. All authors intensely discussed these results.
Background
Astrocytomas are highly aggressive tumors that account for around 46% of all the primary malignancies of the Central Nervous System (CNS), demonstrate poor prognosis and statistics show a 5-year survival ranging from 22% for astrocytomas-grade III to only 2% for astrocytomas-grade IV after diagnosis [1]. The treatment is surgical excision followed by adjuvant chemotherapy [2] and radiotherapy; however, many patients exhibit recurrences due to intrinsic drug resistance within 2 years following the removal of the tumoral mass, leading to death [3].
A better understanding of tumor dynamics and progression pathways will improve both diagnosis and therapeutics. For this regard, many laboratories have established cell lines from tumors [4‐7]. In the same way, the NG97 glioma cell line was recently established in our laboratory after the removal of a tumor mass from a patient who had been diagnosed with an astrocytoma grade III [8]. The subcutaneous inoculation of NG97 cells in the flank of athymic mice (nu/nu) resulted in the development of solid tumor masses, demonstrating its tumorigenicity [8]. When the tumor mass was excised and examined, a spontaneous tumor progression was confirmed by the presence of prominent vascularity, presence of pseudopalisading cells and increase of GFAP which were compatible with a grade IV astrocytoma or glioblastoma multiforme [9]. Cells from the tumor mass were then processed and cultivated in vitro as an adherent monolayer and had the same morphological characteristics of the original culture, before the xenotransplant [8].
Anzeige
Many authors report the tumor progression phenotype as a result of expression of dedifferentiated characteristics of the cells. During the embryonic development of the CNS, astrocytes hypothetically are originated from progenitors that solely express vimentin as a cytoskeleton filament [10, 11]. These cells have a migratory pattern and before they migrate to the glia radial, they express vimentin and GFAP during cell maturation period [12]. By the end of this process, mature cells express mainly GFAP [13] as a cytoskeleton protein. In the adult brain, most of glial cells express GFAP and this expression can be modified in the course of many diseases such as Alzheimer's when they become positive or even negative as in astrocytomas [14]. For these tumors, a GFAP and vimentin proteomics modulatory pattern was described in patients who progressed from grade III to IV [15, 16].
The migration pattern presented by glioma cells can be associated to the progenitor and embryonic CNS cell migration [17]. The transformed cells that reach a malignant progression, acquire the ability to migrate through tissues in the tumor microenvironment, consequently resulting in tumor mass growth. This infiltration ability is driven by a set of molecules called integrins and their receptors in the extracellular matrix [18]. In gliomas, the most representatives of this group are a quite a few forms of α and β1 integrins, laminin and fibronectin. [19‐21].
Considering the tumor progression, since 70's decade, there is a consensus about the genetic instability resulting in clones that would become more aggressive after successive mitotic divisions [22]. About five decades earlier, Boveri (1929) [23] observed that sea urchin eggs experimentally fertilized with two (rather than one) sets of spermatozoa underwent abnormal mitosis and proposed that the deregulated growth of cancer cells might also be a result of chromosomal imbalance. These findings have led some researchers to postulate that in vivo cell fusion in cancer [24] would not only be responsible for chromosomal abnormalities, but also for the acquisition of the malignant phenotype and metastasis promotion [25, 26].
In this study, we investigated the expression of astrocytic molecules of embryonic origin, adhesion and deadhesion molecules and the cytogenetic patterns of the NG97(ht); and its characterization may clarify the tumor spontaneous progression into astrocytoma.
Anzeige
Methods
Cell culture
The NG97(ht) xenotransplanted cultures were derived from the NG97 cell line. It was firstly described in 2001 [4] and obtained through the excision, cutting and enzymatic digestion of the tumor mass of the xenotransplant and in vitro cultivation of the small pieces, according to the explant technique. Subcultures were carried out in D-valine-containing Eagle's minimal Essential Medium (GIBCO) supplemented with 2 mmol/L L-glutamine, 10 mmol/L HEPES, 100 U/mL penicillin, 100 μg/mL streptomycin, and 10% heat-inactivated fetal calf serum (Nutricell, Campinas-SP-Brazil) and stocked as described before [4]. After being defrost and adapted to the cultivation for five passages, cells were cultivated by more than a hundred passages in RPMI-1640, supplemented with 13% heat-inactivated fetal calf serum (Nutricell, Campinas, SP, Brazil) and 25 μg/mL streptomycin. Cultures were maintained in a humidified atmosphere at 37°C and 5% CO2. The medium was changed after intervals of 24 h when the culture almost reached confluence. Sub culturing was performed after treatment with trypsin and versene (Adolfo Lutz, São Paulo, SP, Brazil). In this moment, the NG97(ht) cell line was underwent about 120 passages.
Subcultivations growths curves and cells passages doubling time
The amount of 1 × 104 cells of NG97 cells was cultivated in triplicates on 24-well plate for 11 days to determine the growth curve. After processing the cultures with the routine TVS solution treatment (tripsin-versene solution), aliquots of the cell suspension obtained was diluted daily in 1% trypan blue in RPMI medium and counted in a Newbauer chamber.
The number of cells duplications in culture was calculated according to the formula: (1.1) N = N0 × 2n, where "N" is the final number of cells after 11 days of culture, N0 the number at the beginning of the exponential growth phase of culture and "n" the number of duplications in the amount of cells.
For the determination of the doubling time (T), the following formulas were used: (1.2) g = t - t0, where "t" represents the final time in hours when "n" was determined (as described and determined above in (1.1) equation) and "t0"the initial time when N0 was studied. Each final cell doubling time was obtained by the mathematical formula: T = g/n [27].
Western blotting reaction
total protein extraction was carried out after cells being homogenized in 1% Triton X-100, 50 mM PB pH 7.4, 1 mM sodium pirophosphate, 1 mM sodium fluoride, 5 mM EDTA, 1 mM sodium vanadate, 1% protease inhibitor cocktail (P8340 Sigma), 7 M Urea, 2 M Tiourea. Sample homogenization was carried out at 4°C using a Politron 20 s generator (Brinkmann) set at maximum speed for 30 seconds. To remove insoluble materials, centrifugation (12,000 g centrifugation, 4°C for 15 minutes) was performed. Protein concentration was determined using the Bradford method [28]. Total protein extracts from each cell sample were eletrophoretically separated in SDS-PAGE and electro blotted to a nitrocellulose membrane according to standard procedures [29]. Membranes were blocked with PBS-tween® containing 5% non-fat dry milk and than incubated with an anti-GFAP (polyclonal antibody, rabbit anti-bovine GFAP) (cat. no. Z0334 from DakoCytomation, California, USA) and anti vimentin (mouse monoclonal antibody, Vim clone 3B4) (DakoCytomation, California, USA) diluted (1:1,000) in PBS-tween containing 3% BSA for 12 h at 4°C. Membranes were washed with PBS-tween® and incubated with HRP labeled secondary antibody (Zymed, 1:10,000). Reactive bands were detected with the SuperSignal West Pico chemiluminescent kit (Pierce).
Immunocytochemistry
NG97(ht) cells from the 19th to 83rd passages were grown on 13 mm sterile rounded cover slips which were rinsed three times in phosphate saline buffer (PBS), pH 7,4 at RT, and treated with 3% H2O2 in methanol to suppress endogenous peroxidase activity. After being washed in PBS, slides were treated with 1% normal mouse serum at RT for 1 hour. The slides were washed again in PBS, and then incubated overnight at 4°C with the following antibodies for GFAP (anti-rabbit polyclonal anti-GFAP, cat. no. Z0334 from DakoCytomation, California, USA) and anti-vimentin (mouse monoclonal antibody, clone V9, DakoCytomation, California, USA). All incubations were carried out in a darkened, humidified chamber at RT. After being washed in PBS, the slides were incubated with labeled polymer horseradish peroxidase anti-mouse/anti-rabbit (EnVysion plus® System, DakoCytomation; Carpinteria, CA, USA) for 1 hour at RT. Peroxidase enzyme activity was visualized by DAB solution (DAKO liquid DAB substrate-chromogen solution). To stop the reaction distilled water was applied. The slides were then weakly counter-stained with Harris' Haematoxylin, dehydrated in an ethanol series and mounted in Permount® medium. The images were captured with a Nikon microscope connected to an image acquiring system (Leyca® system). Positive cells were counted using specific software (Pro-plus 4.3 software®). For each batch positive and negative controls were used.
Flow Cytometry
Cells from the 22nd, 54th and 92nd passages were harvested from culture flasks, washed and re-suspended in cold PBS supplemented with 0.5% BSA. Then, cells were incubated for 30 minutes at RT in the dark with monoclonal mouse antibodies such as: anti-β1-PECy5, anti-α4-PE, anti-α5-PE, anti-α6-PE and isotypes controls such as mouse IgG-PECy5 and IgG-PE (BD biosciences®-Pharmingen, Mountain View, CA, USA). The expression of these surface molecules were analyzed by flow cytometry (FACSCalibur®, BD Biosciences, Mountain View, CA, USA) and quantified by WinMdi® shareware software. The cloned human thymic epithelial cell line described by Fernandez and co-workers [30] was included as a positive control for the flow cytometry reaction.
Immunofluorescence
the slides containing NG97(ht) were rinsed in PBS and incubated for 1 h at 37°C with mouse anti-human fibronectin and anti-human laminin antibodies (BD Biosciences, Mountain View, CA, USA). For detection, slides were incubated for 2 hours at RT with FITC-conjugated rabbit anti-mouse serum (Santa Cruz Biotechnology Inc., California, CA, and USA). Slides were mounted using the ProLong Antifade Kit (Molecular Probes, Eugene, OR, USA) according to the manufacturer's instructions, and immunoreactions were viewed using an Olympus fluorescent microscopic coupled to a Kodak camera. Negative controls in which normal mouse immunoglobulin was substituted by the primary antibody were included as well as positive controls with the cloned human thymic epithelial cell line described elsewhere [30].
Anzeige
Cytogenetics
The analysis of the 20th passage was obtained after routine cell culture for karyotype. Briefly metaphase spreads were obtained after 6-hour incubation with 100 μl of Karyomax 10 μg/ml (GIBCO). GTG and C-banding were assessed through standard banding protocols. Image analysis and acquisition were performed in a Zeiss Axioplan microscope 2 ® equipped with the BandView software (Applied Spectral Imaging). The results of the several analyses were compaired at the same passage or, when it is impossible, in a representing of a near passage for analysis.
Statistical analysis
A linear regression was calculated to verify a relation between the duplication time and the progression of cell passages in culture, with the software SYSTAT 10, 2 for Windows (SYSTAT Software Incorporation, 2002). For the validation of the described model, the analysis of residues was also assessed.
Results
Cell Growth Kinetics
The NG97(ht) cell growth was observed in the 19th, 24th, 32nd, 43rd, 59th, 65th and 73rd cell passages. This study of several passages in culture improves the knowledge about the maintenance or lack of all features observed in these cells from in vivo tumoral mass to cells in long-term subcultivation in vitro.
All curves revealed a typical pattern of cell kinetics and growth including four distinct phases: an initial phase which is represented by slight cells divisions (i), followed by an exponential growth (ii) and a stationary phase (iii). An end phase represented by a growth decline as well as cell death (iv) is shown in figure 1. The doubling time was calculated for each cell passage (Table 1) assayed and the statistical analysis showed a negative linear correlation between the NG97(ht) doubling time through the subcultivation passages, which demonstrates a significant doubling time decrease (fig. 2A). This linear model regression was validated by residual analysis (R2 = 715,415; F1,25 = 30,597 e P << 0,001) as represented in fig. 2B.
Table 1
Increase of cell proliferation by doubling culture time decreased calculated to NG97(ht) trough cell subcultivation
Cell passages
Doubling time (hours)
19
30
24
32
32
36
37
29
43
23
51
23
59
17
65
21
73
19
* Approximated values.

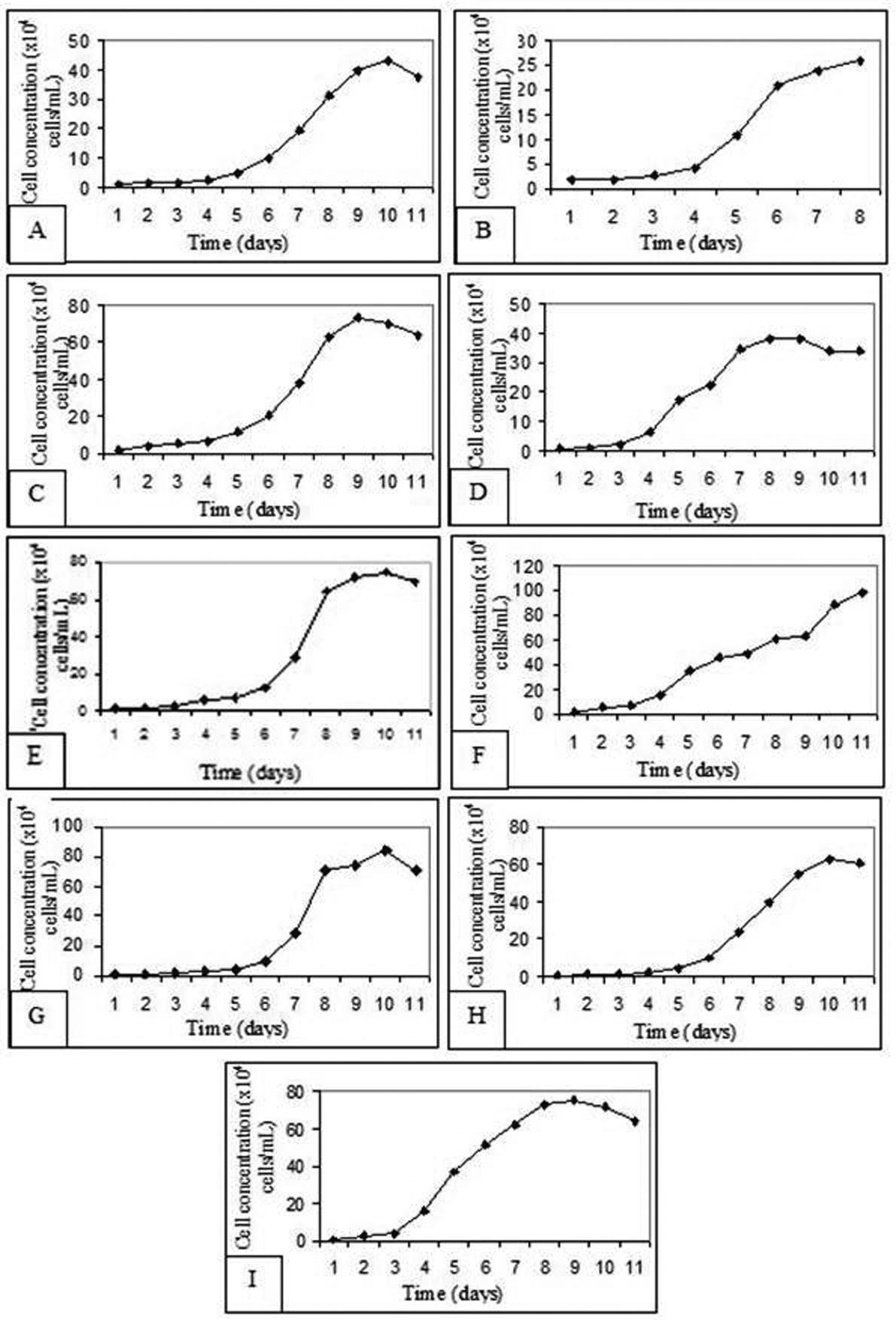

Figure 1
Representative cell growth graphics of different NG97(ht) cells passage through subcultivation: 19th(A), 24th(B), 32nd(C), 37th(D), 43rd(E), 51st(F), 59th(G), 65th(H) e 73rd(I).

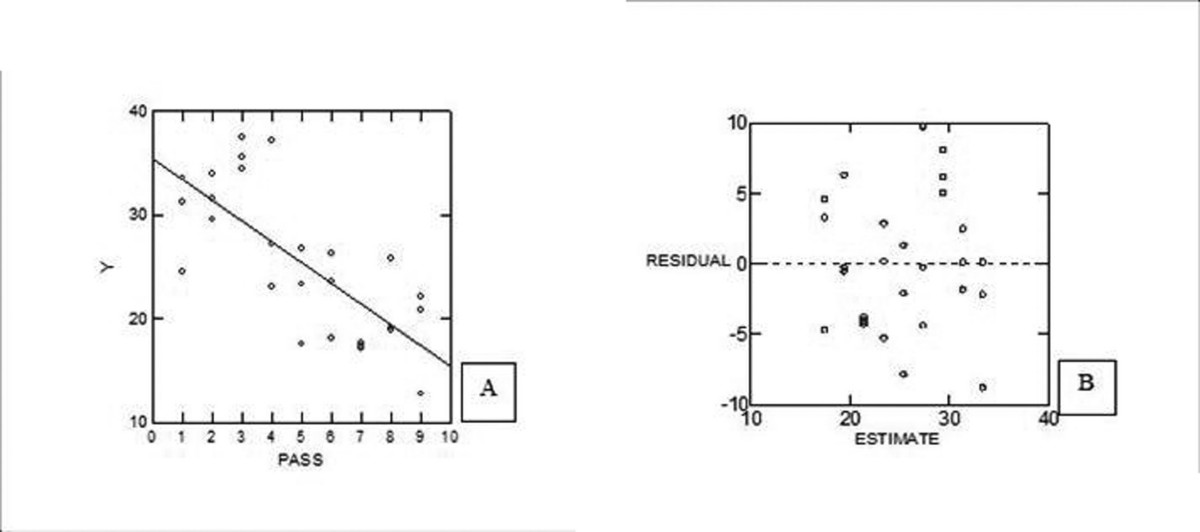

Statistical analysis to validate the significance of the NG97(ht) doubling time decrease. The simple linear regression was used and show the correlation between cell doubling time (plotted in "Y" axis) and the cell passages at subculture, which was represented by ordinal values (plotted in "X" axis). The equation that describes the linear regression mathematical model was y = 35.379-1.994x (A). (B) This graphic represents the residual analysis to validate the mathematic model (R2 = 715,415; F1,25 = 30,597 and P << 0,001).
In order to assess the ontogenic protein patterns and their stability through cell subcultivation: early (until 50th), middle (from 51st to 79th) and later (after 80th) NG97(ht) cell passages were analyzed.
Western Blot (WB) reactions showed that cells expressed basal amounts of GFAP (fig. 3A) and Vimentin (fig. 3B) cytoskeleton proteins in the cytoplasm fraction containing 5 μg and 30 μg amounts of proteins, respectively. In particular, another molecular weight (approximately 41,8 kDa) for vimentin was also registered from protein degradation during 33rd cell passage protein extraction by sonication.

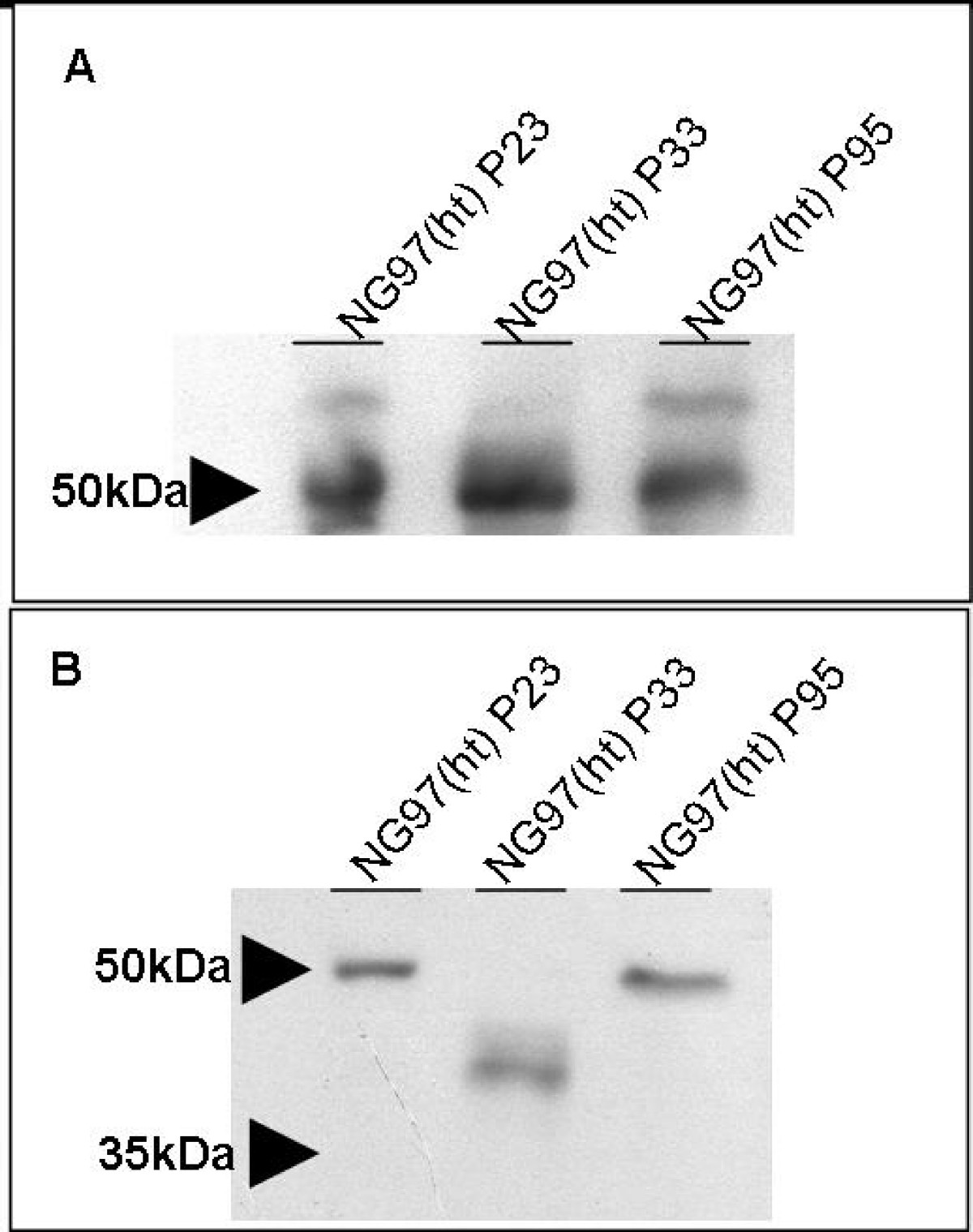

Figure 3
Western Blot of NG97(ht) from different cell passages subcultivation to (A) GFAP and (B) vimentin, which contained approximately 5 μg and 30 μg of protein cytoplasm fraction, respectively. Lines 1, 2 and 3 show 23rd, 33rd e 95th cell passages, respectively. (A) Note the GFAP basal linear conformational protein expression banded at approximated 50 kDa molecular weight in all passages. (B) Note the vimentin linear conformational basal expression banded at approximated 50 kDa molecular weight at earlier and later passages, though a 41,8 kDa molecular weight banded the 33rd cell passage resulted from a partial vimentin degradation by the protein sonication extraction procedure.(Positive and negative controls were assayed but were omitted here).
This observed GFAP detection did not represent the functional molecular polymerized expression. These GFAP and vimentin cytoskeletons conformational arrangements were demonstrated by immunocytochemistry and suggested a modulation pattern through cell subcultivation. An intense cytoplasmatic staining for GFAP was observed in 100% of cells in the 19th cell passage (fig. 4A). The same pattern was present in approximately 85% of the NG97(ht) cells in the 30th (fig. 4B) and, finally, totally absent in 51st (fig. 4C) and 80th (fig. 4D) cell passages. Nevertheless, it was shown an absence of staining for cytoplasmatic vimentin in the 21st cell passage (fig. 4E), followed by weakly stained areas in the 40th NG97(ht) cell passage (fig. 4F). Approximately 54% of NG97(ht) cells in the 59th passage (fig. 4G) and, finally, a markedly positive staining in the 83rd cell passage (fig. 4H).

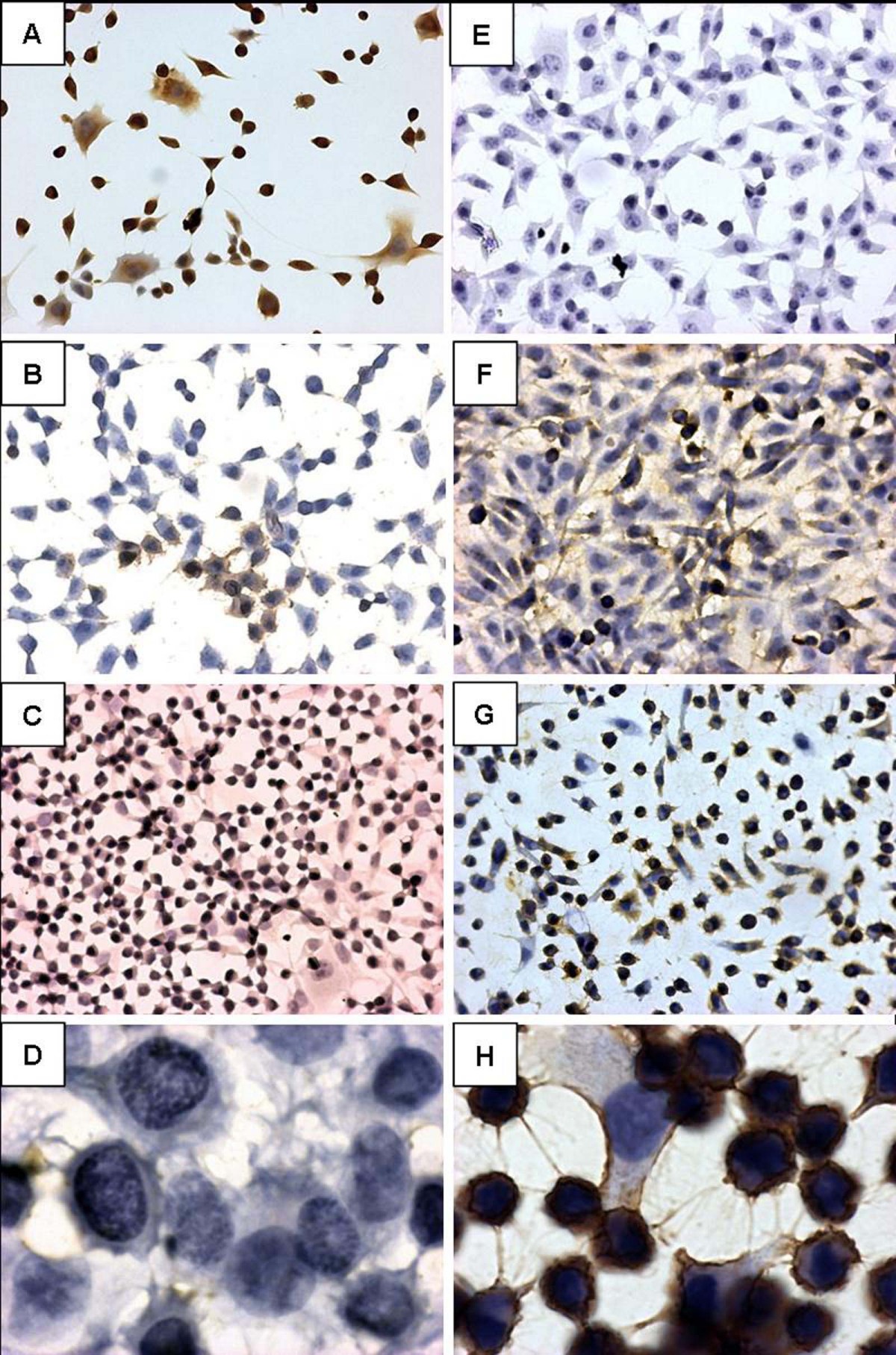

Figure 4
GFAP and vimentin immunocytochemistry through cell subcultivation. Notice the negative modulatory expression pattern to GFAP (A – D) concomitant to the positive modulatory pattern to vimentin (E-H) in NG97(ht). The GFAP appears intensely marked in 100% of the 19th cell passage cytoplasm (A), being presented in approximately 85% of the 30th (B) and, finally, totally absent in 51st (C) and 80th (D) cell passages. Nonetheless, the vimentin were absent at 21st (E) cell passage, presented in weakly areas in the 40th (F) and in 54% of the 59th (G) cell passage and, finally, markedly positive at 83rd (H) cell passage (Original magnification: A – C and E – G = 200× and D and H = 1000×) (Positive and negative controls were assayed but were not displayed here).
Flow cytometry was applied on passages 22nd, 54th and 92nd for the assay of β1, α4, α5 and α6 subunits (Table 2).
Table 2
Absence of α4 and α6 integrin subunits.
NG97(ht)
Markers
early
middle
Later
average
SD
β1 (CD29)
49,0
58,47
50,70
52,72
5,04
α4 (CD49d)
0,0
0,0
0,0
0,0
0,0
α5 (CD49e)
98,03
98,72
98,21
98,32
0,35
α6 (CD49f)
0,0
0,0
0,0
0,0
0,0
Intermediate β1 and high α5 integrin expression levels in: earlier (22nd), middle (54th) and later (92nd) NG97(ht) cell passages by flow cytometry. The results showed the percentage of positive cells, the average of positivity for each marker and the standard deviation (SD).
*Representative values of 104 cells NG97(ht) analyzed. (Positive controls with the cloned human thymic epithelial cell line was assayed but was not displayed here).
The table 2 shows a low average expression of the β1 chain (52,72%) through cell subcultivation, when compared to the α5 subunit that presented an average of 98,32% of positive cells through sulbcultivation. The α4 and α6 integrins were not detected. The positive control, a cloned human thymic epithelial cell line established by Fernandez and co-workers [30], showed a 95–99% range of expression through flow cytometry for β1, α4, α5 and α6 subunits (not shown).
Fibronectin and laminin staining was performed on fixed cells, which may illustrate the intracellular and extracellular presence of proteins on living cells. A punctate fibronectin and laminin immunoreactivity mainly located in the perinuclear area was observed (fig. 5A and 5B), whereas a fibronectin labelled network and immunoreactive intercellular fibrils were clearly detected in NG97(ht) cells (fig. 5A). In some cells with a known migratory pattern, it was evidenced the accumulation of fibronectin in the lamelipodia cytoplasm extensions. The same pattern was observed for laminin and seems to be more intense in polinucleated cells (fig. 5B). The positive control, the cloned human thymic epithelial cell line [30], presented both intracellular and extracellular fibronectin and laminin expressions (not shown).

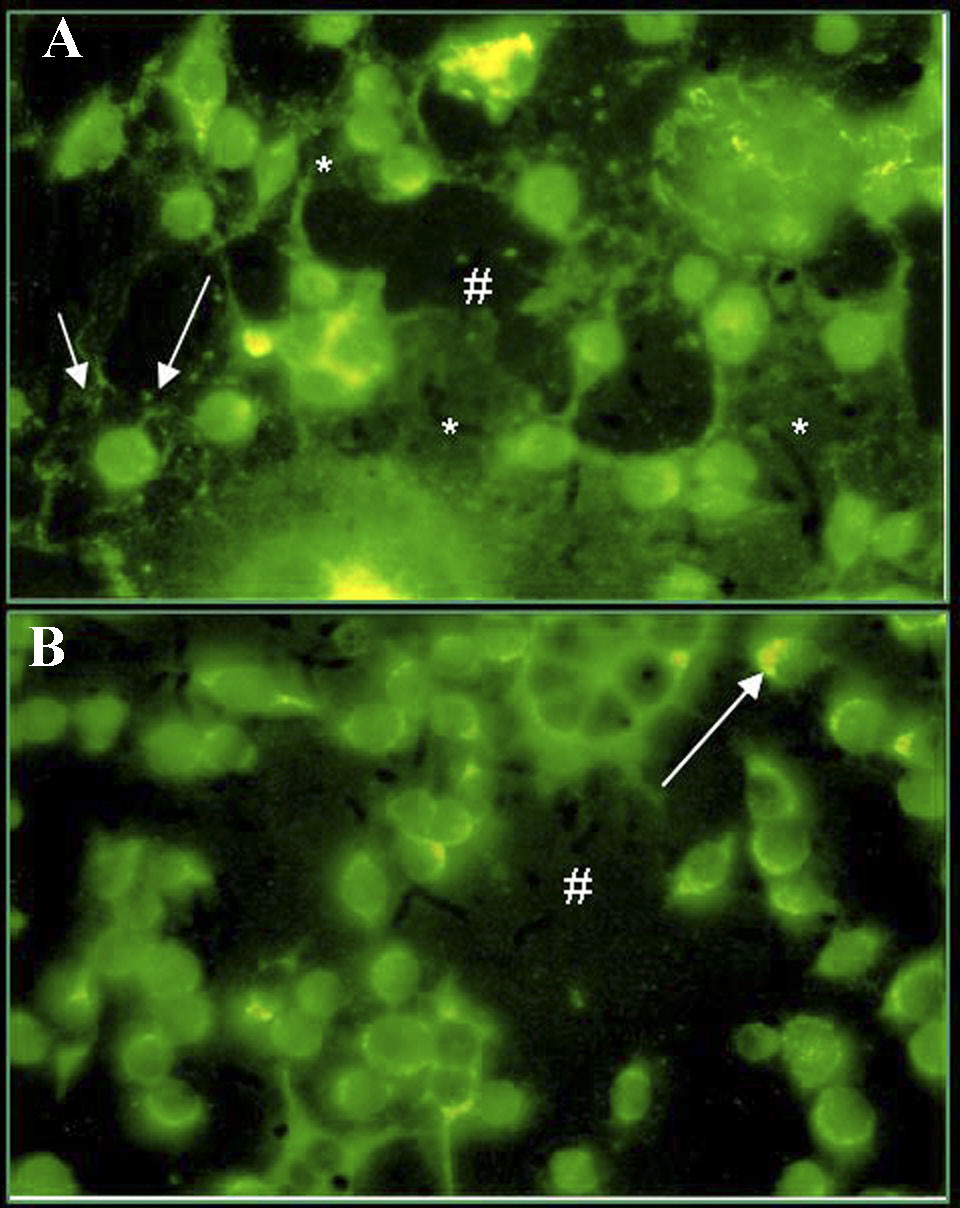

Figure 5
Immunofluorescence in the NG97(ht) 20thcell passage for (A) fibronectin and (B) laminin expression which were represented by a diffusely cytoplasmatic pattern, hot spot areas (#) and some fibrils (*) deposition in the ECM and increase of polymerization in the lamelipodia cytoplasmatic extensions (arrow) (original magnification: 400×).(Positive controls with cells of cloned human thymic epithelial lineage were assayed; however the data are not displayed here).
Structural and Numerical Chromosomal Abnormalities
GTG-band staining applied to the 20th passage of the NG97(ht) cells revealed remarkably fused, translocated segments and acentric fragments (fig. 6A), while several regions of heterochromatin, dicentrics and acrocentric chromosomes were visualized by C-banding (fig. 6B).

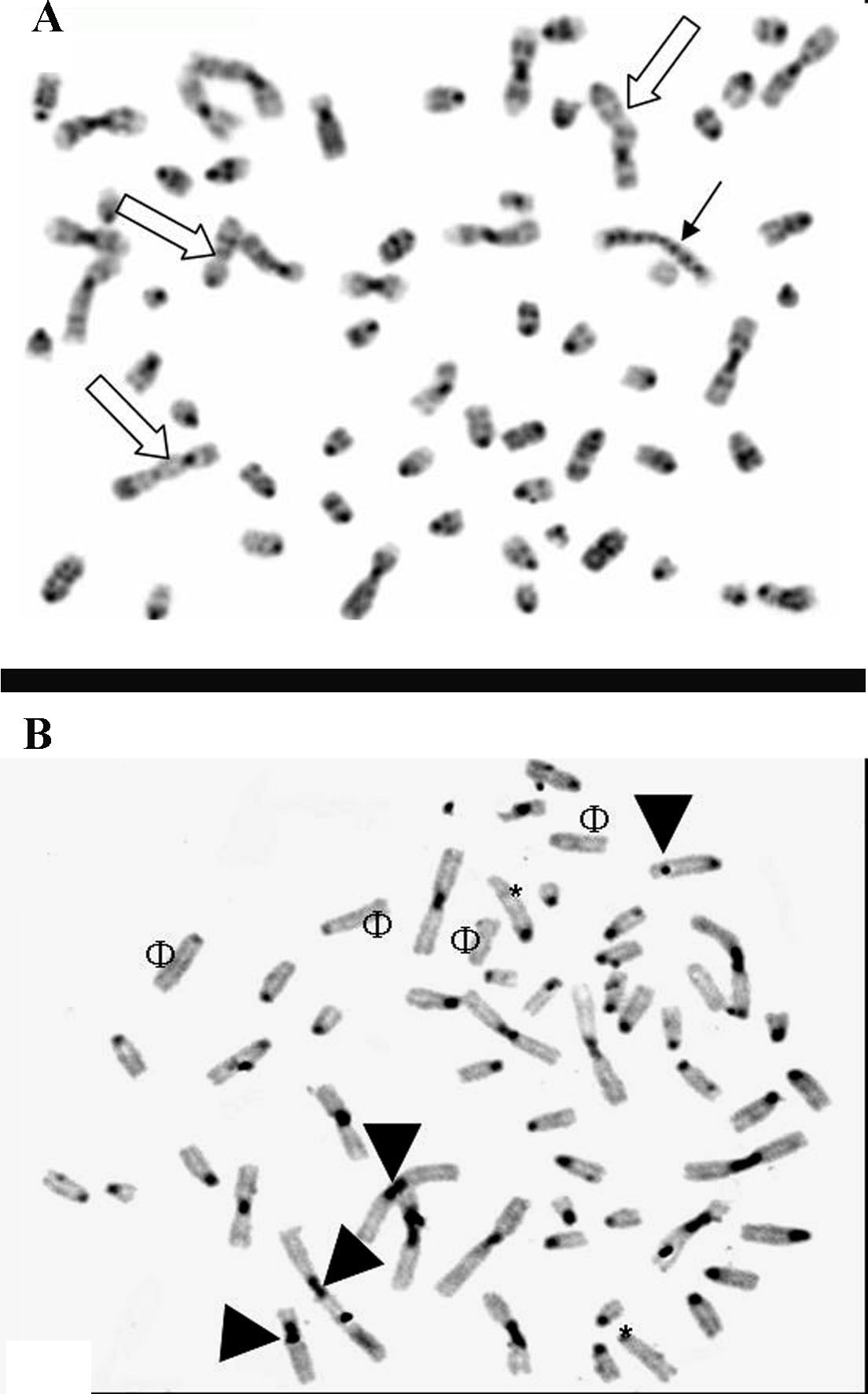

Figure 6
Digitalizated images from NG97(ht) cells spread metaphases. (A) G-banded chromosomes with 400 bp resolution showing a large amount of chromosomal imbalances represented by figures of bridge (black arrow) and fusioned chromosomes (white arrows). (B) These breakages formed acrocentric (*) and acentric (Φ) chromosomes which are evidenced by C-band technique. Notice the dicentrics (arrow head) chromosomes and heterochromatin regions.
The analysis of 100 metaphases showed more than 50 numerical and structural abnormalities, with a modal number of 63 chromosomes. In addition, 89% of metaphases exhibit a range of 20 to 49 acrocentric chromosomes showing a strong correlation with murine banding pattern (fig. 7). The most frequent numerical abnormalities were the monosomies (2, 5, 11, 16, 17 and X), trisomies (1,10,14,15,16 and 19), the tetrasomies (4 and 6), as well as structural alterations like isochromosome formations (murine chr 4 and chr 14), disbalanced fusion (murine: ?→ chr 1) and pericentric inversion (chr 15).

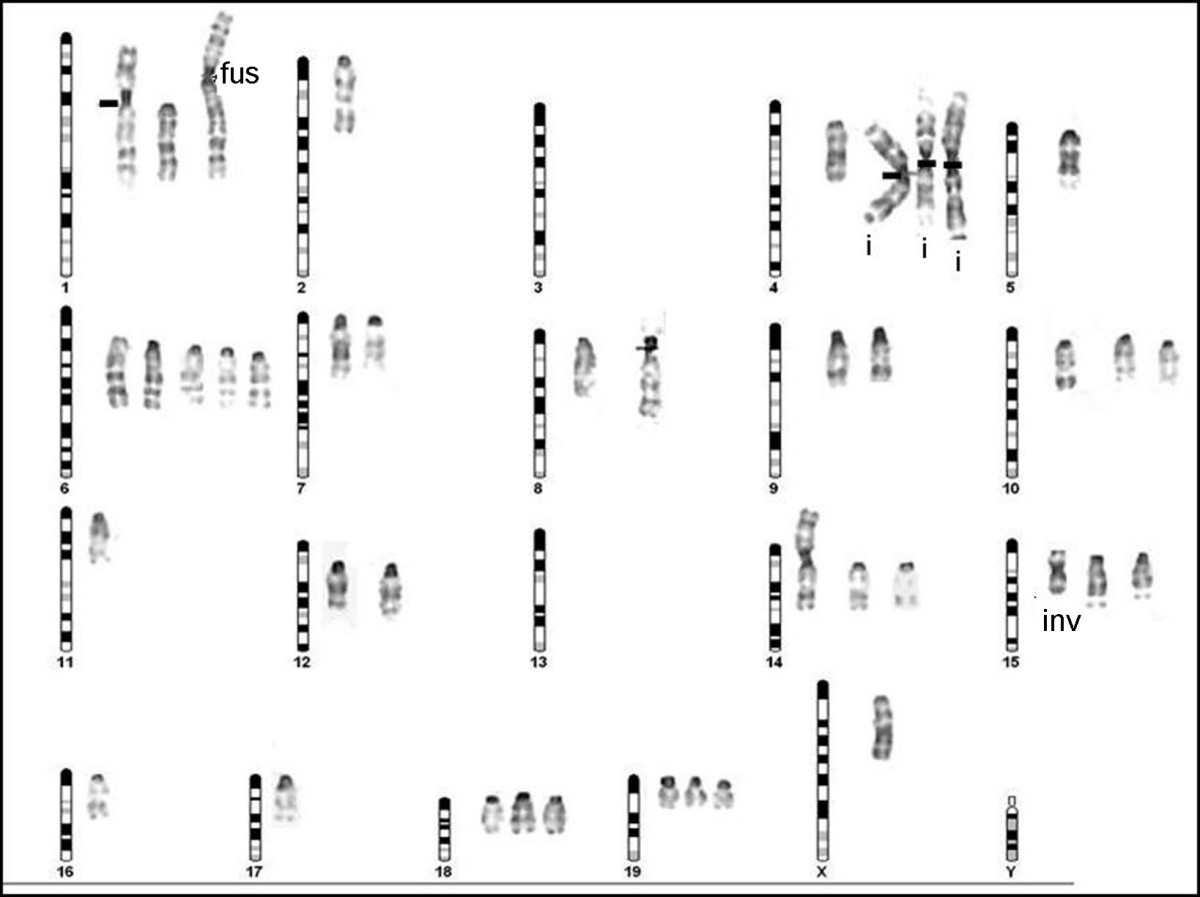

Figure 7
Mouse representative diagram and the corresponding NG97(ht) murine kayotype. Note the murine acrocentric chromosomes associated with the cell line composed of isochromosomes (i), fusion (fusion), absences (3 and 13), monossomies (2,5,11,16 and X), trisomies (1,10,14,15,16 and 19), tetrasomies (4 and 6) and chromosomes with pericentric inversion (inv).
Several studies have associated astrocytomas malignant progression with amplification, over expression or mutation of specific gene sequences [31]. Considering that morphological alterations of the neoplastic tissue are directly linked to these genetic changes, researches have tried to establish which chromosome alterations are directly linked to astrocytomas progression [32, 33]. The absence of this correlation is partially due to the fact that astrocytomas present an intrinsic chromosomal instability pattern even in different intra-tumoral regions, disabling this direct correlation.
In vivo xenograph tumor models developed by subcutaneous implantation of glioma cell lines in mice are extensively used [6, 7] to test therapeutical approaches that target angiogenesis, local invasion and secretion of immune suppressive molecules. These models have the advantages that they are highly tumorigenic, show reproducible growth rates and because their superficial location allows an easily access to tumoral masses. Besides, tumoral mass volume in these dorsal models would mimic the original astrocytoma volume [34] and reproduce the hypothetical "vicious cycle of thrombosis, necrosis, hypoxia, enhanced tumor and metabolic demand" to the development of GBM [35]. Moreover, stable cell cultures derived from these tumors are important tools to therapeutical and biological analysis. However, for immunotherapeutical approaches, the flank microenvironment cells in culture represents a limitation to these models once the inflammatory cytokines and infiltrating cells profile have must be considered for data analysis [36].
Anzeige
The modulatory pattern of intermediate filaments GFAP and vimentin microarchitectural arrangement in NG97(ht) cells
The astrocytes embryogenic origins can be evaluated by the expression of GFAP, in particular after migration of the progenitor to the radial glia during the CNS development; which is dependent of chemical mediators present in the brain microenvironment [37]. This migratory phase is accompanied by an early vimentin expression, an indicative of the neuroectodermical glial precursor origin. Vimentin establishes a link with microtubules or cytoskeleton filaments to form a dynamic polymerization and depolymerization balance that allows cellular motility [38]. Besides, some glial precursors have a transitory phase named astrocytes type I, where vimentin and GFAP are expressed, which in adulthood originates oligondendrocytes [37]. Thus, the modulatory GFAP and vimentin expression pattern presented by the NG97(ht) cells showed that through cell subcultivation, the reduced immunocytochemistry detection of GFAP is associated to an increased detection of vimentin which may account for the recovery of embryonic characteristics. This feature is observed in other glioma cells [39] and patients diagnosed with astrocytoma grade III and IV [15, 16]. Together with GFAP immunodetection decrease and vimentin enhance patterns; there is an increase on cell mitosis concomitant to a decline in cell doubling time. This may be associated with loss of GFAP expression in vivo, frequently found in high grade astrocytomas, although this event does not constitute a mandatory step in tumor development and it only represents the cell evolution towards an undifferentiated state. In this sense, some kinases related to cell cycle regulation, like kinases C and cdc2, also may participate of phosphorylation and depolymerization processes of cytoskeleton intermediary filaments at the beginning of cell division. So, the absence of the main component of astrocytes cytoskeleton, GFAP, would increase enzyme accessibility to substrats, resulting in progressive cell cycle acceleration [40]. It is also important to note that the increase of positive vimentin cells cannot be attributed to the possible NG97 cell fusion with the murine stroma in the xenotransplant, because the monoclonal antibodies anti-vimentin clone V9 used in the immunocytochemistry recognizes specifically the human vimentin [41]. However, the monoclonal antibodies anti-vimentin 3B4 clone used in Western Blot reaction recognizes both human and murine proteins. Thus, Ciesielski-Treska and colleagues documented before the ~41,8 kDa vimentin sub band as an artifact resulted from protein extraction [42].
High migratory and malignant potential driven by the NG97(ht) expression of α5β1, fibronectin and laminin
The increased aggressiveness of astrocytomas is accompanied by the acquisition of cellular migratory potential [18], from the modulation of integrins and their receptors expression with an increase of lamellipodia cytoplasm extensions and diminution of focal adhesion to the extracellular matrix [43].
Integrins are composed of two non covalently associated subunits (α and β) that form a binding pocket for specific sequences or domains in extracellular matrix (ECM) molecules; the most well known is the tripeptide RGD (argenin-glycin-aspartic acid) domain found in fibronectin and laminin ECM molecules. In gliomas, the α4, α5 and α6 molecules combined with β1 subunit in cellular membrane form the integrin adhesion molecules that can also play a role in intracellular cell signaling that leads, at last, to promote an increase in proliferation rates [44].
This integrin molecule heterodimerization and clustering can be modulated by RGD polypeptides concentration [44]. The absence of α4β1 expression observed in NG97(ht) was also documented previously in gliomas cell lines [44]. Besides, some studies only demonstrated the expression of α5β1, α6β1 and their ligands both in vivo and in vitro. The fibronectin ligand for the α5β1 integrin was described by some authors to be increased or decreased in gliomas influencing its invasive patterns. A high-level expression of α5 monomeric integrin concomitant to the β1 intermediate expression was observed, suggesting an unfunctional α5β1 integrin expression. Indeed, some authors describe this fact as a result of differential interaction of integrin molecules in different tumoral mass regions. Specifically in the tumor core, α5β1 is functionally expressed to modulate cell divisions, while α5β1 interaction with fibronectin in the ECM induces cell migration [45]. It is hypothesized that the reduced β1 integrin and the high expression of α5 would correspond to an increased expression of the Mgat5 enzyme during malignant transformation resulting in an increase of β1,6 glycosides ramifications at the β1 subunit. This process could reduce integrin dimerization and clusterization of β1 and α5 [46], once the fibronectin is synthesized and released to the extracellular compartment of the NG97(ht) cells, this would be a high stimuli to α5β1 expression. In the NG97(ht) cells, no expression of α6β1 integrin was observed, although its laminin ligand was present in the cytoplasm. It is reasonable to ponder that the α6β1 expression absence is a result of a lack of stimuli from the microenvironment once laminins were detected in the NG97(ht) mainly in the cytoplasm. Further experiments aiming to assess the integrins functionalities in the cells NG97(ht) will be developed in our laboratory to elucidate these questions.
Anzeige
The chromosomal abnormalities as a possible explanation for the spontaneous tumoral progression
Also associated to malignant transformation, chromosomal alterations in glioma lineages are poorly described in the literature, while many cytogenetical evaluations in patients were reported. Nevertheless, aneuploidy, hyperploidy or numerical abnormalities documentations presented similarities between literature data in gliomas, pointing to a correlation with the tumoral phenotype [47]. Accordingly to some authors, the aneuploid phenotype would not be the cause, but the consequence of cumulative alterations provided by the tumoral microenvironment [22, 26]. The chromosomal instability caused by cytogenetical heterogeneity is responsible for the malignant progression but is still to be fully elucidated [47]. Jacobsen and colleagues [25] demonstrated that mice inoculated with human-derived breast cancer cell lines (BC6) presented cell fusion with murine stroma (BJ3Z), leading to an increased aggressiveness. Pawlek [24], in his review on melanomas, showed solid evidences that stroma immune system cells from tumoral host fusioned with tumoral cells, not only causing aneuploidy but contributing for other mechanisms related to the malignant phenotype including aberrant glycosylation and metastasis. The NG97(ht) karyotyping and immunophenotyping are in agreement with the cell fusion phenomena, once murine chromosomes were observed in the NG97(ht) cells as well CD86 and CD44 murine proteins detected by flow cytometry (data not shown). Also, a possible increase of aggressiveness, given by the reduction of the doubling time from 72 h at NG97 cell establishment [8] to currently 25 h was noticed to occur within the NG97(ht) cells. Nevertheless, the evaluation of these murine chromosomes translocated fragments with human chromosomes or vice and versa by concomitant human/murine Spectral Karyotyping, as well as the possible chimerisms, must be an objective of future studies. In addition, the evaluation of human cryptic chromosomes analysis by Fluorescent Hybridization could be an important target for further researches.
Conclusion
The NG97(ht) cells possesses embryonic recovery patterns of intermediate filaments and adhesion molecules expression that corroborate the astrocytoma grade IV diagnosis after NG97 inoculation in nude mice. Furthermore, the chromosomal imbalances and a tumoral cell fusion with the murine stroma cells in the xenotransplant give clues to the spontaneous in vitro cell progression to the most aggressive astrocytoma phenotype. However, further studies are necessary to address unanswered questions regarding the in vitro tumoral progression of the NG97(ht) cells, aiming to translate these events to the clinical practice and management of astrocytoma tumors.
Acknowledgements
The authors would like to thank Marileila Varella-Garcia, PhD for the critical discussion on karyotype issues and Roger Chammas, PhD for the extended discussion of the results. This work was partially supported with grants from CAPES (Coordenação para o Aperfeiçoamento de Pessoal em Nível Superior-Brazil), FAPESP (#04/13069-0) and FAEPEX-UNICAMP (#1282/06).
This article is published under license to BioMed Central Ltd. This is an Open Access article distributed under the terms of the Creative Commons Attribution License (http://creativecommons.org/licenses/by/2.0), which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited.
Competing interests
The authors declare that they have no competing interests.
Authors' contributions
This work is part of a Doctor's Dissertation by CMLM. All authors intensely discussed these results.
Characterization of cells recovered from the xenotransplanted NG97 human-derived glioma cell line subcultured in a long-term in vitro
Verfasst von
Camila ML Machado
Rafael Y Ikemori
Tatiana Q Zorzeto
Ana CMA Nogueira
Suse DS Barbosa
Wilson Savino
André A Schenka
José Vassallo
Juliana K Heinrich
Fátima Boetcher-Luiz
Liana Verinaud
Fremgen AM, Bland KI, McGinnis LS, Eyre HJ, McDonald CJ, Menck HR, Murphy GP: Clinical highlights from the national cancer data base, 1999. CA Cancer J Clin. 1999, 49: 145-58. 10.3322/canjclin.49.3.145.CrossRefPubMed
2.
Kleihues P, Cavenee WK: WHO classification of tumours of the nervous system. Pathology and genetics of tumours of the nervous system. Edited by: Kleihues P, Cavanee WK. 2000, Lyon: IARC, 6-7.
3.
Chang SM, Parney IF, Huang W, Anderson FA, Asher AL, Bernstein M, Lillehei KO, Brem H, Berger MS, Laws ER: Patterns of care for adults with newly diagnosed malignant glioma. JAMA. 2005, 293 (20): 2469-70. 10.1001/jama.293.20.2470.
4.
Wang J, Wang X, Jiang S, Lin P, Zhang J, Wu Y, Xiong Z, Ren JJ, Yang H: Establishment of a new human glioblastoma multiforme cell line (WJ1) and its partial characterization. Cell Mol Neurobiol. 2007, 27 (7): 831-43. 10.1007/s10571-007-9188-3.CrossRefPubMed
5.
Bigner DD, Bigner SH, Pontén J, Westermark B, Mahaley MS, Ruoslahti E, Herschman H, Eng LF, Wikstrand CJ: Heterogeneity of genotypic and phenotypic characteristics of fifteen permanent cell lines derived from human gliomas. J Neuropathol Exp Neurol. 1981, 40 (3): 201-229.CrossRefPubMed
6.
Manuelidis EE: Long-term lines of tissue cultures of intracranial tumors. J Neurosurg. 1965, 22: 368-373.CrossRefPubMed
7.
Magnani I, Guerneri S, Pollo B, Cirenei N, Colombo BM, Broggi G, Galli C, Bugiani O, DiDonato S, Finocchiaro G, Conti AMF: Increasing complexity of the karyotype in 50 human gliomas. Progressive evolution and de novo occurrence of cytogenetic alterations. Cancer Genet Cytogenet. 1994, 15;75 (2): 77-89. 10.1016/0165-4608(94)90157-0.CrossRef
8.
Grippo MC, Penteado PF, Carelli EF, Cruz-Höfling MA, Verinaud L: Establishment and partial characterization of a continuous Human Malignant Glioma cell Line-NG-97. Cell Mol Neurobiol. 2001, 4: 421-428. 10.1023/A:1012662423863.CrossRef
9.
Schenka AA, Machado CM, Grippo MC, Queiroz LS, Schenka NG, Chagas CA, Verinaud L, Brousset P, Vassallo J: Immunophenotypic And Ultra Structural Characterization Of A Recently Established Human Malignant Glioma Cell Line: NG-97. Cell Mol Neurobiol. 2005, 5: 929-941. 10.1007/s10571-005-4959-1.CrossRef
10.
Chisholm JC, Houlinston E: Cytokeratin filament assembly in the pre-implantation mouse embrio. Development. 1987, 101: 565-582.PubMed
11.
Bigami A, Raju T, Dahl D: Localization of vimentin, the nonspecific intermediate filament protein, in embryonal glia and in early differentating neurons. Dev Biol. 1982, 91: 286-295. 10.1016/0012-1606(82)90035-5.CrossRef
12.
Dahl D: The vimetin-GFA protein transition in rat neuroglia cytoskeleton occurs at the time of mielinization. J Neurosci Res. 1981, 6: 741-748. 10.1002/jnr.490060608.CrossRefPubMed
13.
Sun YE, Martinowich K, Ge W: Making and repairing the mammalian brain – signaling toward neurogenesis and gliogenesis. Semin Cell Dev Biol. 2003, 14: 161-168. 10.1016/S1084-9521(03)00007-7.CrossRefPubMed
14.
He F, Sun YE: Glial cells more than support cells?. The Int J of Biochemistry and Cell Biol. 2007, 39: 661-665. 10.1016/j.biocel.2006.10.022.CrossRef
Sallinen SL, Sallinen PK, Haapasalo HK, Helin HJ, Helén PT, Schraml P, Kallioniemi OP, Kononen J: Identification of differentially expressed genes in human gliomas by DNA microarray and tissue chip techniques. Cancer Res. 2000, 60 (23): 6617-6622.PubMed
17.
Dirks PB: Glioma migration: clues from the biology of neural progenitor cells and embryonic CNS cell migration. Journal of Neuro-Oncology. 2001, 53: 203-121. 10.1023/A:1012273922478.CrossRefPubMed
Paulus W, Tonn J: Basement membrane invasion of glioma cells mediated by integrin receptors. J Neurosurg. 1994, 80: 515-519.CrossRefPubMed
20.
Giese A, Loo MA, Tran N, Haskett D, Coons SW, Berens ME: Dichotomy of astrocytoma migration and proliferation. Int J Cancer. 1996, 67: 275-282. 10.1002/(SICI)1097-0215(19960717)67:2<275::AID-IJC20>3.0.CO;2-9.CrossRefPubMed
21.
Pederse PH, Marienhagen K, Mork S, Bjerkvig R: Migratory pattern of fetal rat brain cells and human glioma cells in the adult rat brain. Cancer Res. 1993, 53: 5158-5165.
22.
Nowell PC: The clonal evolution of tumor cell populations. Science. 1996, 194: 23-28. 10.1126/science.959840.CrossRef
23.
Boveri T: The Origin of Malignant Tumors. 1929, Baltimore: Williams and Wilkins, Co./Waverly Press
Jacobsen BM, Harrell JC, Jedlicka P, Borges VF, Varella-Garcia M, Horwitz KB: Spontaneous fusion with, and transformation of mouse stroma by, malignant human breast cancer epithelium. Cancer Res. 2006, 66 (16): 8274-8279. 10.1158/0008-5472.CAN-06-1456.CrossRefPubMed
Freshney RI: Culture of animal cells: a manual of basic technique. 1994, Wiley-Liss, 486-3
28.
Bradford M: A rapid and sensitive method for the quantitation of microgram quantities of protein utilizing the principle of protein dye-binding. Anal Biochem. 1976, 72: 248-254. 10.1016/0003-2697(76)90527-3.CrossRefPubMed
29.
Laemmli UK: Cleavage of structural proteins during the assembly of the head of bacteriophage T4. Nature. 1970, 227: 680-685. 10.1038/227680a0.CrossRefPubMed
30.
Fernandez E, Vicente A, Zapata A, Brera B, Lozano JJ, Martinez C, Toribio ML: Establishment and characterization of cloned Human Thymic epithelial cell lines. Analysis of adhesion molecule expression and cytokine production. Blood. 1994, 83: 3245-3254.PubMed
31.
Fujisawa H, Kurrer M, Reis RM, Yonekawa Y, Kleihues P, Ohgaki H: Acquisition of the glioblastoma phenotype during astrocytoma progression is associated with loss of heterozygosity on 10q25-qter. Am J Pathol. 1999, 155 (2): 387-94.CrossRefPubMedPubMedCentral
32.
Beghini A, Magnani I, Roversi G, Piepoli T, Di Terlizzi S, Moroni RF, Pollo B, Fuhrman Conti AM, Cowell JK, Finocchiaro G, Larizza L: The neural progenitor-restricted isoform of the MARK4 gene in 19q13.2 is upregulated in human gliomas and overexpressed in a subset of glioblastoma cell lines. Oncogene. 2003, 22 (17): 2581-2591.CrossRefPubMed
33.
Kruse CA, Varella-Garcia M, Kleinschimidt-Demasters BK, Owens GC, Spector EB, Fakhrai H, Savelieva E, Liang B: Receptor expression, cytogenetic and molecular analysis of six continuous human glioma cell lines. In vitro cell Dev Biol. 1998, 34: 455-462. 10.1007/s11626-998-0078-x.CrossRef
34.
Jung CS, Foerch C, Schänzer A, Heck A, Plate KH, Seifert V, Steinmetz H, Raabe A, Sitzer M: Serum GFAP is a diagnostic marker for glioblastoma multiforme. Brain. 2007, 130: 3336-41. 10.1093/brain/awm263.CrossRefPubMed
35.
Louis DN: A molecular genetic model of astrocytoma histopathology. Brain Pathol. 1997, 7 (2): 755-64. 10.1111/j.1750-3639.1997.tb01062.x.CrossRefPubMed
36.
Candolfi M, Curtin JF, Nichols WS, Muhammad AG, King GD, Pluhar GE, McNiel EA, Ohlfest JR, Freese AB, Moore PF, Lerner J, Lowenstein PR, Castro MG: Intracranial glioblastoma models in preclinical neuro-oncology: neuropathological characterization and tumor progression. J Neurooncol. 2007, 85 (2): 133-48. 10.1007/s11060-007-9400-9.CrossRefPubMedPubMedCentral
37.
Mehler MF, Marmur R, Gross R, Mabie PC, Zang Z, Papavasiliou A, Kessler JA: Cytokines regulate the cellular phenotype of developing neural lineage species. Int J Dev Neurosci. 1995, 13: 213-240. 10.1016/0736-5748(94)00060-G.CrossRefPubMed
38.
Yoon M, Moir RD, Prahlad V, Goldman RD: Motile Properties of Vimentin Intermediate Filament Networks in Living Cells. J Cell Biol. 1998, 143 (1): 5147-157. 10.1083/jcb.143.1.147.CrossRef
39.
Rutka JT, Smith SL: Transfection of Human Astrocytoma Cells with Glial Fibrillary Acidic Protein Complementary DNA: Analysis of Expression, Proliferation, and tumorigenicity. Cancer Res. 1993, 53 (15): 3624-3631.PubMed
40.
Wilhelmsson U, Eliasson C, Bjerkvig R, Pekny M: Loss of GFAP expression in high-grade astrocytomas does not contribute to tumor development or progression. Oncogene. 2003, 29;22 (22): 3407-11. 10.1038/sj.onc.1206372.CrossRef
41.
Bohn W, Wigers W, Beuttenmüller M, Traub P: Species-specific recognition patterns of monoclonal antibodies directed against vimentin. Exp Cell Res. 1992, 201: 1-7. 10.1016/0014-4827(92)90341-5.CrossRefPubMed
42.
Ciesielski-Treska J, Goetschy JF, Aunis D: Proteolytic degradation of vimentin and glial fibrillary acidic protein in rat astrocytes in primary culture. Eur J Biochem. 1984, 138 (3): 465-71. 10.1111/j.1432-1033.1984.tb07939.x.CrossRefPubMed
43.
Planchenaul T, Costab S, Fagesb C, Richeb D, Charrière-Bertranda C, Perzelovac A, Barlovatz-Meimona G, Tardyb M: Differential expression of laminin and fibronectin and of their related metalloproteinases in human glioma cell lines: relation to invasion. Neuroscience Letters. 2001, 299: 140-144. 10.1016/S0304-3940(00)01787-0.CrossRef
44.
Uhm JH, Gladson CL, Rao JS: The role of integrin in the malignant phenotype of gliomas. Frontiers in Biosciences. 1999, 4 (15): 188-199. 10.2741/Uhm.CrossRef
45.
Brinkerhoff CJ, Linderman JJ: Integrin Dimerization and Ligand Organization: Key Components in Integrin Clustering for Cell Adhesion. Tissue Eng. 2005, 11 (5–6): 865-876. 10.1089/ten.2005.11.865.CrossRefPubMed
46.
Guo HB, Lee I, Kamar M, Akiyama SK, Pierce M: Aberrant N-glycosylation of beta1 integrin causes reduced alpha5beta1 integrin clustering and stimulates cell migration. Cancer Res. 2002, 62 (23): 6837-6845.PubMed
47.
Gao CF, Furge K, Koeman J, Dykema K, Su Y, Cutler ML, Werts A, Haak P, Woude GFV: Chromosome instability, chromosome transcriptome, and clonal evolution of tumor cell populations. PNAS. 2007, 22 (104): 8995-9000. 10.1073/pnas.0700631104.CrossRef
