Background
Although a number of chemotherapeutic treatments have been shown to be effective at inhibiting or eliminating cancer cell growth in preclinical studies, clinical applications are often limited due to the toxic side effects associated with anticancer drugs. Patients are often unable to tolerate the level of a drug needed to effectively eliminate malignant cells while levels that can be tolerated are insufficient therapeutically. As a result, chemoresistance and subsequent tumor recurrence are often the outcome of such therapies. An example of this all too common event is the use of taxanes (paclitaxel and its semi-synthetic analogue, docetaxel) in the treatment of a variety of cancers including ovarian, breast, prostate, and non-small cell lung cancers [
1,
2]. While surgery along with taxane- and platinum-based chemotherapy for advanced ovarian cancer has allowed up to 80% of women to achieve a clinical response [
3], cancers in most patients initially diagnosed with late stage disease eventually recur.
Development of methods to circumvent resistance may ultimately improve the impact of adjuvant therapy, resulting in prolonged disease-free intervals and survival. Novel targeted therapies that interfere with specific molecular signaling pathways affecting cancer cell survival are being developed as potential treatment options to render cancer cells more sensitive to cytotoxic chemotherapy. Targeted therapies that increase cancer cell sensitivity to chemotherapies offer the benefits of lowering unwanted side effects and increasing the likelihood of destroying resistant cells while avoiding healthy cells where there is little or no expression of the targeted entity.
Recent studies have shown that sensitivity of ovarian cancer cells to the taxane, paclitaxel, is enhanced when the drug is administered in combination with an inhibitor of EGFR. EGFR and its ligand, epidermal growth factor (EGF), play critical roles in the progression of ovarian cancer through their effects on cellular proliferation, apoptosis, angiogenesis, and metastasis [
4‐
6]. EGFR is overexpressed or dysregulated in many solid tumors [
7‐
10], and high levels are expressed in 33-98% of all epithelial ovarian cancers [
11‐
14]. Their high expression is believed to mitigate the effectiveness of taxane chemotherapy by inhibiting cell division and apoptosis [
15‐
17]. Reports of inhibition of EGFR with tyrosine kinase inhibitors (TKI) [e.g. gefitinib (Iressa)] and monoclonal antibodies (e.g. cetuximab) have demonstrated that silencing of receptor activity increases chemosensitization of tumor cells including ovarian cancer cells [
6,
18‐
22]. While targeting EGFR as well as other members of the human EGFR (HER) family has proven successful, not all tumors that are expected to respond to these agents do so. Often, emergence of drug resistance occurs either by targeted mutation [
23,
24] or induction of alternative signaling pathways [
24,
25]. These results highlight the need for further targeted approaches.
Based on these findings, we sought to determine if siRNA against EGFR could be selectively delivered to ovarian cancer cells using a nanoparticle carrier. Targeted cancer therapy by RNA interference (RNAi) is a relatively new approach, and silencing EGFR by RNAi has already shown promising results [
26‐
30]. We report here application of a novel and highly efficient method for the targeted delivery of EGFR siRNA to ovarian cancer cells. The method is based on core/shell hydrogel nanoparticle (nanogel) siRNA carriers, which represent a convenient and versatile structure for targeted drug delivery. The reader is referred to work from our groups for more detailed information regarding the nanocarrier [
26,
31,
32]. These core/shell nanogels are composed mainly of poly(alkylacrylamides), which can be easily synthesized via multi-stage, free-radical initiated precipitation polymerization [
31]. In this fashion, a porous hydrogel core appropriate for the entrapment of macromolecular therapeutics can be coated with a porous hydrogel shell that displays the appropriate chemoligation sites for the attachment of targeting ligands. We used a previously described 12 amino acid peptide (
YSAYPDSVPMMS or YSA) [
33] coupled to the surface of ~100-nm diameter core/shell nanogels [composed of poly(
N-isopropylmethacrylamide) (pNIPMAm) cross-linked with
N, N'-methylene(bisacrylamide)] [
26,
34] to permit cell-specific targeting, and the subsequent delivery of high concentrations of EGFR siRNA. The YSA peptide mimics the ligand ephrin-A1, which binds to the erythropoietin-producing hepatocellular (Eph) A2 receptor, while the core/shell nanogel offers an efficient vehicle for cell entry, a protective environment for the siRNA, and a depot for its controlled release. Delivery of nanogel-loaded EGFR siRNA to EphA2 positive cells resulted in the loss of EGFR expression followed by a significant increase in the sensitivity of the targeted cells to docetaxel. Our results indicate that this approach may lead to considerable improvements in the treatment of ovarian and other cancers by increasing the efficacy of chemotherapy while simultaneously reducing the associated negative side effects.
Methods
All materials were purchased from Sigma-Aldrich (St Louis, MO) and used as received unless otherwise noted.
Nanogel synthesis
For the present studies, we utilized a nanogel structure that we have previously shown to have excellent siRNA encapsulation and release properties in the context of
in vitro delivery [
26]. The synthesis of the nanogels has been described previously [
26,
35]. Briefly, nanogel core particles were synthesized by free-radical precipitation polymerization using a molar composition of 98%
N-isopropylmethacrylamide (NIPMAm), 2%
N, N'-methylenebis(acrylamide) (BIS) and a small amount (~0.1 mM) acrylamidofluorescein (AFA) to render the nanogels fluorescent for visualization. The core nanogels were then used as seeds for the addition of a hydrogel shell [
31,
35]. The shell composition was 97.5% NIPMAm, 2% BIS, and 0.5% aminopropylmethacrylamide (APMA, Polysciences, Warrington, PA). The APMA co-monomer was included to provide chemoligation sites for peptide immobilization.
Peptide conjugation
The YSA peptide (GenScript Corporation, Piscataway, NJ) was conjugated to the nanogels via maleimide coupling to the cysteine residue on the C-terminal end of the peptides, as described [
26]. Maleimide-functionalized nanogels were prepared via EDC coupling of ε-maleimidocaproic acid (EMCA) to the primary amines in the nanogel shell. Peptide coupling was performed by introducing the YSA peptide in a 1:1 molar ratio with amine (YSA molecular weight = 1450.66 g/mol). The YSA peptide was then conjugated to the nanogels via maleimide coupling to the cysteine residue on the C-terminal end of the peptides.
Cell culture
Hey cells were provided by Gordon W. Mills, Department of Systems Biology, the University of Texas, M. D. Anderson Cancer Center. Hey cells were cultured in RPMI 1640 (Mediatech, Manassas, VA) supplemented with 10% v/v heat-inactivated fetal calf serum (Invitrogen, Carlsbad, CA), 2 mM L-glutamine (Mediatech), 10 mM HEPES buffer (Mediatech), penicillin (100 U/ml), and streptomycin (100 μg/mL). SK-OV-3 cells were from the National Cancer Institute and were propagated in McCoy's 5A with L-glutamine (Mediatech) supplemented with 10% v/v heat-inactivated fetal calf serum (Atlanta Biologicals, Lawrenceville, GA), penicillin, and streptomycin (Mediatech).
RNA encapsulation
Hydrogels were loaded with siRNA as previously described [
26]. Briefly, lyophilized nanogels were reswollen in the presence of the siRNA, thereby imbibing the solute within the hydrogel network. In a typical procedure, a 20 μM solution (250 μL) of EGFR siRNA (Dharmacon, Lafayette, CO) was prepared in phosphate buffered saline (PBS). Nanogels were resuspended in this mixture at a concentration of 4 mg per 250 μL of siRNA solution and allowed to shake overnight at room temperature. After the siRNA was encapsulated in the nanogels, they were centrifuged and resuspended to a final concentration of 10 mg/mL in cell culture medium or PBS. Based on this procedure, the final concentration of siRNA was determined to be 16.6 μg siRNA/mg of nanogels. For experiments using a non-specific siRNA, siGLO (Dharmacon) was incorporated into nanogels at the same concentration described for EGFR siRNA.
Immunoblotting
Hey or SK-OV-3 cells were plated into 6-well cell culture plates (5 × 10
5 cells/well), and the cells allowed to adhere overnight at 37°C in a 5% CO
2 atmosphere. After washing the wells with PBS and replacing the medium, EGFR siRNA-loaded/YSA-conjugated nanogels were added to the wells. Cells were incubated for four hours, washed with PBS, and fresh medium was added to the cells. The cells were incubated at 37°C and 5% CO
2 in wells for 24, 48, 72, 96, and 120 hours. Control wells were set up to include non-targeted/siRNA-encapsulated pNIPMAm particles, unloaded pNIPMAm particles, YSA alone, and untreated cells. Cells were lysed after the designated time points, and immunoblotting was carried out as described [
26]. To determine the optimal concentration of EGFR-siRNA needed for efficient reduction of EGFR expression, the nanogel loading procedure described above was used, but the concentration of particles delivered to each well was altered. The initial concentration of siRNA-encapsulated particles (1 mg/mL of nanogels/5 × 10
5 cells) used for the time point experiments was added to the first well. The concentration of subsequent wells was reduced by 10 fold each, resulting in nanogel concentrations of 100, 10, and 1 μg/mL per 5 × 10
5 cells. After four hours of incubation with the nanogels, the cells were washed with PBS, and the medium was replaced. The cells were then incubated for an additional 48 hours, and the samples prepared for immunoblotting as described [
26].
Treatment with docetaxel
Hey or SK-OV-3 cells were plated in 96-well cell culture plates at a concentration of 1 × 104 cells/well. Hey or SK-OV-3 cells were subjected to nanogel delivery of siRNA at nanogel concentrations of 1000, 100, 10, and 1 μg/mL. Forty-eight hours after siRNA delivery, docetaxel was added to Hey or SK-OV-3 cells at concentrations ranging from 0.01-1000 nM. Treatment wells were set up in triplicate, and the cells were incubated with docetaxel for an additional 4 days. After treatment, the cells were washed with PBS, and 100 μL of medium was added back to the wells. To this, 10 μL of Tox8 was added to determine cell viability. The cells were incubated with the Tox8 reagent according to the manufacturer's instructions. The fluorescence was measured (λem = 560 nm, λex = 590 nm) by a Spectramax Gemini Fluorescence Microplate Reader (Molecular Devices, Sunnyvale, CA). Wells without cells but with Tox8 were used as controls and subtracted from all treatments as background. Each experiment was performed in duplicate.
Statistical analysis
Statistical analysis of the immunoblot data was performed using a non-parametric ANOVA (Kruskal Wallis) test. If significance was indicated, a Dunn's post test was used to determine significance between groups. Statistical analysis of siRNA-loaded nanogels plus docetaxel treated Hey or SK-OV-3 cells was compared to all controls (pNIPMAm, YSA-pNIPMAm, YSA peptide alone, and untreated cells). To determine significance between groups, a one-way ANOVA test was performed. If significance was indicated, a Tukey post test was performed to determine significance between sample groups. In all cases, significance was defined as P < 0.05.
Discussion
Novel therapies that interfere with specific molecular signaling pathways have potential as treatment options since they render cancer cells more sensitive to cytotoxic therapy. Although the role of EGFR in altering tumor chemosensitivity has not yet been fully elucidated, preclinical studies have suggested that blockade of EGFR, and the resulting reversal of chemoresistance in many tumor types is a viable strategy for treatment of cancers where frontline therapies have failed to induce a cure. Chemosensitization by EGFR inhibition was demonstrated in early studies using blocking antibodies in combination with cisplatin or doxorubicin in human tumor xenografts [
37,
38]. This same effect was later observed using small TKIs such as gefitinib (Iressa) [
6,
18,
19,
21]. Silencing of EGFR by RNAi is an alternative to anti-EGFR therapy, and this approach has already shown promising results [
26‐
30]. However, further advances must be made to overcome problems with delivery and to insure specific delivery to the cells of interest.
While we previously demonstrated the specificity of YSA-targeted siRNA-loaded nanogels to cells expressing EphA2 [
26], the studies presented here serve as further validation of EphA2 as a target for translatable therapeutic strategies. The EphA2 receptor is overexpressed in a variety of cancers including ~75% of ovarian malignancies, and expression of the receptor is associated with poor prognosis, increased metastasis, and decreased survival [
39‐
41]. EphA2 shows limited expression in adults, with expression restricted to a few epithelial tissues [
42]. Thus, due to its expression pattern, localization, and functional importance in treatment outcome, EphA2 is an attractive target for therapeutic agents in ovarian as well as other cancers [
43]. Several approaches have been used to target EphA2 for cancer therapy either by taking advantage of the tumor-promoting function of EphA2 to modulate cell behavior and suppress tumor growth, or using EphA2 as a means to deliver agents, such as exogenous drugs, to tumor cells and the tumor microenvironment [
44‐
47]. While these results demonstrate reduced tumor growth and limited metastatic spread, effectiveness of these treatments may depend upon tumor type and whether a particular tumor is dependent on EphA2-mediated pathways [
48].
In this context, we noticed that treatment of Hey cells with the YSA peptide alone showed diminished EGFR expression when compared to untreated controls (Figures
2A and
2B) in some studies. Furthermore, Hey cells treated with the YSA peptide alone also showed an increased sensitivity to docetaxel when compared to untreated controls (Figure
5B). These differences were significant (P < 0.05) at docetaxel doses of 1 nM and higher. Interestingly, although we demonstrated silencing of EGFR with low doses of siRNA-loaded nanogels (10 μg/mL), the doses of docetaxel needed for chemosensitization in nanogel treated Hey cells were extremely low (≥1 nM). In addition, differences in chemosensitivity were not observed between low and high doses in our study even though presented results (Figure

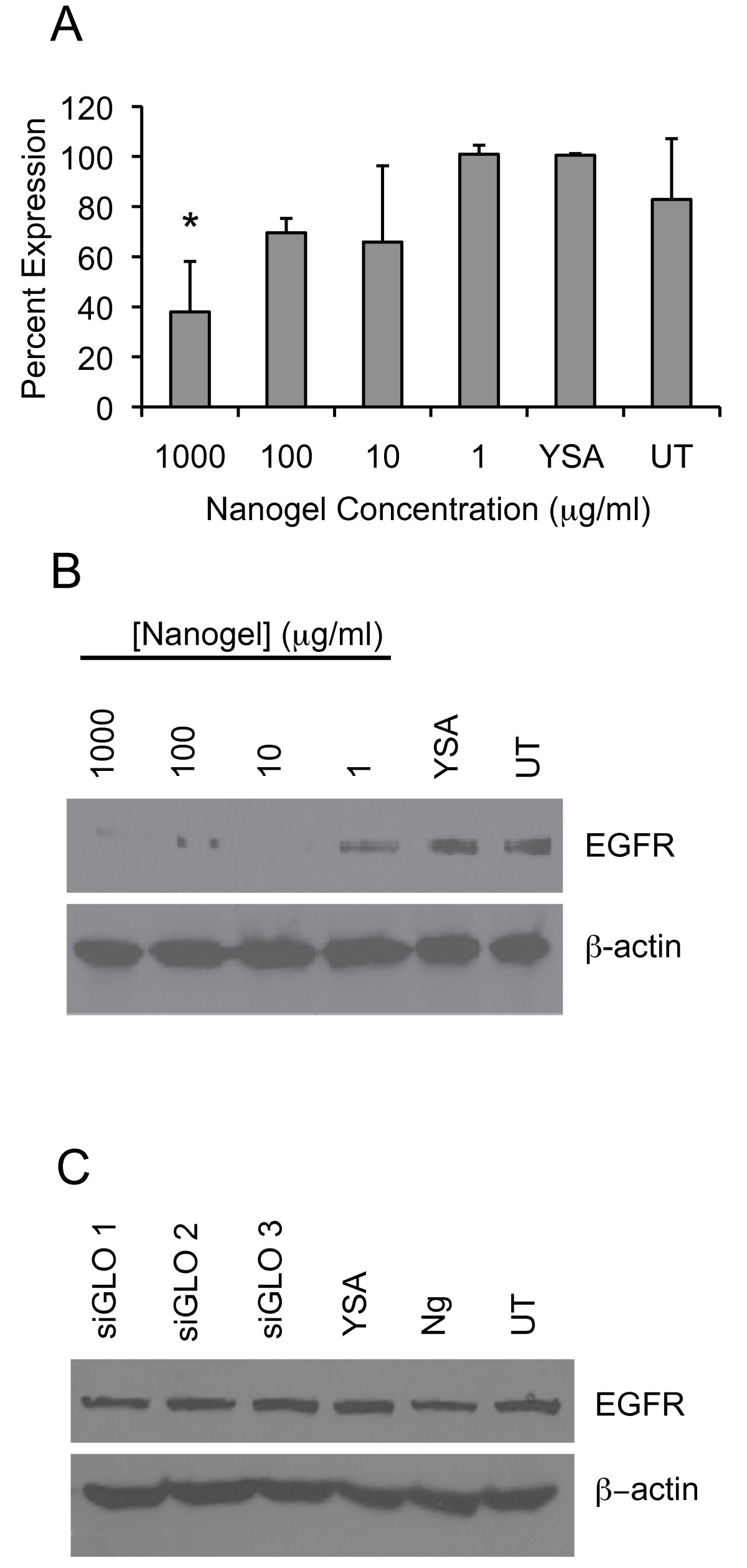

3A and
3B) indicate that different levels of EGFR reduction were achieved depending upon the concentration of siRNA-loaded nanogels delivered. One possible explanation for this may be oncogene addiction where cancer cells are dependent upon or 'addicted' to one or several genes for maintenance of malignant phenotype and cell survival. Evidence for oncogene addiction to EGFR and members of the EGFR family has been described both at the cellular and clinical level [
49]. The reader is referred to a review by Weinstein and Joe for a more in depth description behind the mechanisms of oncogene addiction [
49].
Our results indicate that activation of EphA2 by the YSA peptide [
33] and subsequent EphA2 degradation (Dickerson, unpublished) may lead to a reduction in EGFR expression indicating cross-talk between the two receptor signaling pathways. In fact, two recent studies have shown that EphA2 interacts with members of the EGFR receptor family, and these interactions may be important for targeted therapies involving EphA2 and EGFR [
36,
50]. Mice harboring ErbB2 (a member of the EGFR family) in mammary epithelium were sensitive to inhibition of EphA2 when compared to controls without ErbB2. EphA2 formed a complex with ErbB2 in both human and murine breast carcinoma cells, leading to enhanced signaling through Ras-MAPK activation and ultimately promoting tumor progression [
50]. In addition, activated EGFR and the constitutively active EGFR type III deletion mutant (EGFRvIII) were shown to induce the expression of EphA2 in mammalian cell lines [
36]. Loss of EphA2 expression reduced cell motility of EGFR-overexpressing cell lines. Miao et al [
51] recently presented evidence that EphA2 serves as a common downstream effector molecule for growth factor signaling, including signaling through EGF and EGFR providing further evidence of an EGFR-EphA2 interaction. As a result, it is possible that loss of EphA2 may alter EGFR expression levels. Thus, the interaction of EphA2 with members of the EGFR family indicates a functional role for EphA2 in EGFR-expressing cancer cells. In our system, loss or reduction of EphA2 through interaction with YSA-functionalized nanogels may provide an enhanced effect over delivery of EGFR siRNA alone leading to a dual-targeting strategy for chemosensitization of ovarian tumors. While we did not observe reduction of EGFR in all experiments presented, the result is nonetheless intriguing and is under further investigation.
The ability of siRNAs to potently but reversibly silence genes
in vivo has made them particularly well suited as a drug therapeutic. However, poor stability under physiological conditions limits the utility of systemic delivery of siRNA, and its high molecular weight (~13 kDa) and polyanionic nature prevent transport across the cell membrane, further compounding the problem of therapeutic application. Thus, delivery represents the main hurdle for broader development of siRNA therapeutics. To our knowledge, the work presented here along with our previous studies [
26] provides the first description using targeted, poly(alkylacrylamide)-based nanogels for siRNA delivery. Furthermore, the core/shell nanogel delivery system employed here is readily amendable to selective surface functionalization by a variety of targeting molecules, offers a protective environment for sensitive cargo, and shows excellent targeting uptake and delivery in serum containing medium. The nanogel particles are also exceedingly simple to load, and extremely high (>90%) degrees of siRNA incorporation are observed. These properties and the low toxicity levels indicated thus far by this formulation, along with the low immunotoxcity demonstrated recently by Li et al [
52], indicate the promise of overcoming some of the final obstacles hindering siRNA driven therapeutic strategies. Future studies investigating the
in vivo delivery of siRNAs to tumors using nanogels, and the effect on chemosensitization will aid in the refinement of targeted siRNA delivery for treatment of ovarian cancer.
Competing interests
The authors declare that they have no competing interests.
Authors' contributions
EBD, WHB, LAL, and JFM conceived the study. EBD, WHB, and MHS designed and carried out the studies. WHB and MHS synthesized and characterized the nanogels. LBK carried out experiments and assisted in data analysis. EBD was responsible for statistical analysis. EBD, LAL, and JFM were responsible for preparation of the manuscript. All authors read and approved the final manuscript.
