Comparison of the accuracy of the image registration methods for the impressions of edentulous jaws
- Open Access
- 01.04.2025
- Research
Erschienen in:
Abstract
Introduction
The physiological structure of teeth and edentulous patients varies greatly. In terms of chewing function, patients with teeth can effectively chew food through tooth cutting, tearing, grinding and other actions, which is conducive to the subsequent digestion process. Dentulous patients have missing teeth, resulting in a large reduction in chewing efficiency, and food often can not be fully chewed, increasing the digestive burden of the gastrointestinal tract. In terms of oral structure, the existence of teeth maintains the normal shape and space of the oral cavity, which can support the lips and cheeks, and maintain the fullness of the face. The alveolar bone in edentulous patients will gradually be absorbed after the tooth is missing, and the height of the alveolar ridge decreases and the width becomes narrowed. This change changes the anatomy of the oral cavity. In terms of the oral microbial environment, in the mouth with teeth, there is a complex microbial community on the tooth surface, which is normally in a relatively balanced state. The habitat environment of microorganisms in the mouth of edentulous patients has changed greatly, and the species and proportion of microorganisms have also changed, which may be more likely to breed some opportunistic pathogens, increasing the risk of oral infection. Studying the oral physiological characteristics of teeth in the presence of teeth can provide reference for simulating the chewing function of natural teeth. In terms of diagnosis, the diagnosis of oral diseases in patients with teeth is relatively complex, so the types of dental lesions need to be considered comprehensively, and the symptoms and signs of different dental lesions are very different.
In past, the manual model measurement was mostly used to study the morphological differences of edentulous jaw impressions or models, that offered the advantage of being intuitive but had the drawback of being capable only of measuring linear distances or curve shapes. Moreover, these methods are limited by the location of the sampling points, resulting in the loss of important information and making it impossible to conduct comprehensive quantitative 3-dimensional deviation comparison studies [1]. In recent years, many conveniences have been provided for the quantitative evaluation of dental model quality through the development of computer-aided 3D model reconstruction and measurement techniques [2]. In 2019, Jung [3] et al. compared the effectiveness of traditional impression method, simplified closed-mouth impression method and intraoral scanning impression method in edentulous patients, and evaluated them by three-dimensional analysis software. Si-Han C et al. [4]also studied the accuracy of intraoral scanning of complete dentition in reverse engineering software. This method is also commonly used for registration, point cloud stitching and alignment of scanning data of multiple models with overlapping regions.However, at present, there are few studies on registration methods for edentulous jaw models with insignificant curvature changes.The most important prerequisite for quantitative deviation research between two 3D models was accurate registration that was consistent with clinical data. The registration tools for dental models mostly involved reverse engineering software such as Geomagic, Imageware, and specialized dental software such as 3Shape. Geomagic software was the most commonly used software according to the literature. It provides two registration methods: best fit alignment and manual multi-point registration followed by global registration. However, there are few studies on how to choose a registration method. This study applied two registration methods to align open and closed-mouth edentulous impression models of the same patient and compared the 3D deviation data to explore the exact registration methods suitable for edentulous patients.
Anzeige
Materials and methods
Main experimental equipment and software
Shape D900 model scanner (3 shape company, Denmark).
Geomagic Control 2014 Reverse Engineering Software (Raindrop Company, USA).
Obtaining edentulous jaw impressions and models
This study was reviewed and approved by the Biomedical Ethics Committee of Dalian Stomatological Hospital (DLKQLL2018011) and strictly complied with the World Medical Association Declaration of Helsinki (version 2013). Using a convenient sampling method, all cases that met the inclusion and exclusion criteria from July 2022 to December 2022 were included in the study. Participants ranged in age from 60 to 90 years. Patients without tempo-mandibular joint disorders, mucosal diseases, or occlusal abnormalities were included, a total of 14 people including 12 patients with complete dentition loss and 2 patients with only maxillary single dentition loss. All participants signed an informed consent before clinical operation. Two impression techniques, open-mouth impressions (Fig. 1) and closed-mouth impressions (Fig. 2), were applied to take impressions on each patient. 14 pairs of maxillary models and 12 pairs of mandibular models were subsequently obtained.These samples are highly representative cases after rigorous screening. It shows a high degree of consistency and specificity in a specific research category, and the information contained is extremely high enough to accurately reflect key characteristics and trends, which is not simply comparable. And, through the advanced statistical model and fine analysis method, can deep dig the inherent law, effectively make up for the relative shortage of sample size, which still can conclude with highly scientific and reliable, enough to provide valuable reference in related clinical field and guide these samples are strictly screening of typical cases. It shows a high degree of consistency and specificity in a specific disease or research category, and the information contained is extremely high enough to accurately reflect key characteristics and trends, which is not simply comparable. In addition, through advanced statistical models and fine analysis methods, the internal laws can be deeply explored and effectively make up for the relative shortage of sample size, so that highly scientific and reliable conclusions can still be drawn, which is enough to provide valuable reference and guidance in relevant clinical fields.
Fig. 1
Open-mouth impression. Left: maxilla, right: mandible
Anzeige
Fig. 2

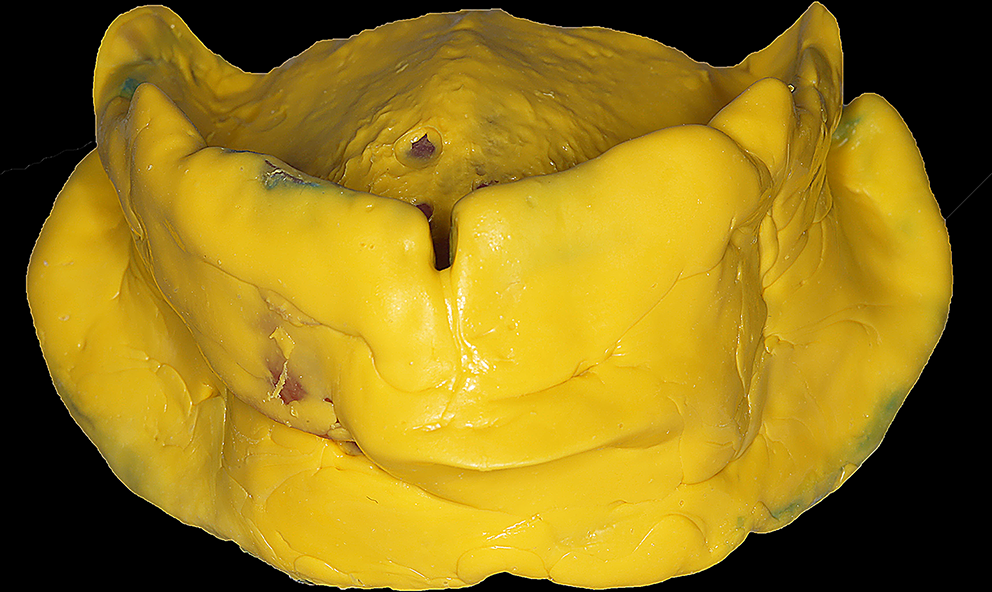

Closed-mouth impression
