Advanced hybrid closed loop (AHCL) systems currently represent the most advanced modality of insulin therapy.
Aim
To compare the night-time (from 00 to 07 a.m.) effectiveness in achieving recommended glycemic targets of three different AHCL systems in adults with type 1 diabetes (T1D).
Methods
We retrospectively evaluated 55 adults with T1D (mean age 41 ± 16 years, male 40%, diabetes duration 19.4 ± 11.4 years, BMI 24.1 ± 4.1 kg/m2) with similar glycemic control (GMI 7.0–7.4%). Twenty-two participants were using the Minimed 780G system, 18 the Tandem t:slim X2 with Control-IQ system and 15 the DBLG1 system.
Continuous glucose monitoring derived metrics and insulin requirement of 14 consecutive nights were analyzed.
Results
All three groups achieved the recommended mean TIR > 70%, mean TBR < 4%, and mean CV < 36% with a similar insulin requirement (Minimed 780G system: TIR 73.9 ± 11.2%, TBR 0.9 ± 1.2%, CV 29 ± 6.7%; Tandem t:slim X2 with Control-IQ system: TIR 74.1 ± 11.1%, TBR 1.1 ± 1.0%, CV 34.5 ± 6.6%; DBLG1 System TIR 71.7 ± 11.3%, TBR 1.4 ± 3.7%, CV 32.4 ± 7.1%). Tight TIR% (70–140 mg/dl) was significantly higher (p < 0.01) in the Tandem t:slim X2 with Control-IQ group (51.5 ± 9.8%) when compared to Minimed 780G group (42.1 ± 13.7%) and DBLG1 System (40.1 ± 10.5%). In all three groups the insulin infusion similarly decreased from midnight to 05.00 am and then increased.
Conclusions
All the three AHCL systems achieved the recommended TIR, TBR and CV without difference in insulin requirement. The Tandem Control-IQ system obtained a higher tight TIR.
Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.
Introduction
Advanced hybrid closed-loop (AHCL) systems represent the state of art of insulin therapy in people with type 1 diabetes (T1D). They combine three components: a continuous subcutaneous insulin pump, a sensor for continuous glucose monitoring (CGM), and a control algorithm that constantly analyzes the sensor-measured interstitial glucose and adjusts the rate of basal insulin accordingly. Manual meal boluses are still required.
Currently, the Italian National Health System allows funded access to several AHCL systems approved for adults: the MinimedTM 780G system (Minimed Medtronic, Northridge, California, USA), the Tandem t:slim X2 Control IQTM system (Control-IQ technology, Tandem Inc., San Diego, CA, USA) the Diabeloop Generation 1 (DBLG1® system, Grenoble, France), and the CamAPS FX app (CamDiab, Cambridge, UK).
Anzeige
These systems have demonstrated in several RCTs [1‐3] and real-world studies [4‐7] to better achieve and maintain glycemic targets in people with type 1 diabetes compared to multiple dose insulin (MDI) therapy, conventional continuous subcutaneous insulin infusion (CSII) or to sensor-augmented pump (SAP) with predictive low-glucose suspend systems. Few, most pediatric, studies compared the real-life efficacy of different AHCL systems [8‐10]. However, in everyday real life, many confounders can make it difficult to compare different AHCL systems, such as lifestyle during the day, the precision of the insulin bolus at meals, the degree of physical activity and, last but not least, differences in the overall degree of glycemic control between diabetic subjects.
Precisely for this reason we decided to compare the effectiveness of AHCL systems with different control algorithms in a group of patients with similar glycemic control and only during the night-time hours to minimize confounding effects.
Therefore, the aim of this study was to compare the effectiveness of three different AHCL systems in adults with T1DM with an almost good glycemic control in achieving the recommended glycemic targets at night-time (00:00 to 07:00).
Materials and methods
We retrospectively evaluated 55 adults with type 1 diabetes mellitus (T1DM) followed by the Unit of Endocrine Diseases and Diabetology, ASST Papa Giovanni XXIII (Bergamo, Italy), who were already using an AHCL system for at least 6 months.
Anzeige
Inclusion criteria was a similar daily glycemic control with a Glucose Management Index (GMI) between 7.0% and 7.4% in the last 3 months before the night-time comparison. Furthermore, all subjects had dinner before 9 pm and did not start breakfast before 7am during the 14-day study period.
Twenty-two were using the Medtronic MinimedTM 780G system composed by an insulin pump containing a Predictive Integrative Derivative (PID) algorithm (SmartGuard algorithm) and by Guardian G4 sensor; 18 were using a system combining an insulin pump Tandem t:slim X2 integrated with a Model Predictive of Control (MPC) algorithm and a Dexcom G6 continuous glucose monitoring sensor (Dexcom Inc., San Diego, CA, USA), and 15 were using a system combining an insulin pump Accu-Chek Insight (Roche Diabetes CARE, Basel, Switzerland), a Dexcom G6 continuous glucose monitoring device and a Model Predictive Control algorithm (Diabeloop Generation 1) contained in a controller handset.
Demographic, anamnestic, and clinical data of the participants [i.e., age, gender, weight, height, body mass index (BMI), duration of diabetes], were obtained from the electronic medical record.
Data regarding percentage time spent in hypoglycemic (TBR < 54 and TBR 54–69 mg/dl), euglycemic (TIR 70–180 mg/dl and tight TIR 70–140 mg/dl), and hyperglycemic (TAR 181–250 and TAR > 250 mg/dl) ranges, CGM-measured mean glucose concentration, glucose management indicator (GMI), coefficient of variation (CV) of CGM-measured glucose concentrations, percentage of sensor use, and insulin infusion of 14 consecutive days were downloaded from the platforms Carelink,, Glooko-Diasend and Yourloops.
The participants were categorized in three groups according to the AHCL system they were using (Minimed 780G group, Control-IQ group and DBLG1 group).
Outcomes
Main outcomes were the differences between the three groups in CGM metrics and in insulin infusion in the night-time period from 00:00 to 07:00.
Statistical analysis
Data are shown as mean ± SD.
All p values are two sided. A p value < 0.05 was considered significant.
Anzeige
All variables were tested to evaluate whether they were normally distributed using the Kolmogorov–Smirnov test. Depending on the distribution, comparison tests were performed using analysis of variance ANOVA (normally distributed data) and Kruskal–Wallis (non-normally distributed data).
To analyze insulin dosage changes over night, we employed a panel data regression model to examine temporal variations. The first time-interval (00:00 to 01:00) served as the reference parameter. We calculated predicted margins to estimate the changes over time and employed a parameter test to assess the influence of the time of day on insulin dosage.
To assess nocturnal variations in insulin dosage across the three AHCL systems, we compared the administered insulin doses within each hourly interval (00:00 to 01:00, 01:00 to 02:00, …) using the Kruskal–Wallis test.
Analyses were carried out with Stata.
Anzeige
The study was performed in accordance with the Helsinki Declaration of 1964 and its later amendments and agreed with national regulations. It was approved by the local ethical committee and written informed consent to use the clinical and biochemical data was obtained from each participant.
Results
Baseline demographic and clinical characteristics of the three groups are shown in Table 1.
Table 1
Baseline demographic, clinical characteristics and CGM metrics (during the 14-day study period) of participants
All participants
(n = 55)
Minimed780 G group
(n = 22)
Control-IQ group
(n = 18)
DBLG1 group
(n = 15)
P
Age (years)
41.2 ± 15.6
47.6 ± 14.9
34.6 ± 12.4
39.8 ± 16.7
0.03*
Sex (female), n(%)
33 (60)
14 (63,6)
11 (61,1)
8 (53,3)
0.82
BMI (kg/m2)
24.1 ± 4.1
23.8 ± 4
24 ± 3.7
24.7 ± 5
0.90
Age of onset T1D (years)
21.8 ± 14
23.3 ± 13.6
17.7 ± 11.5
24.5 ± 5
0.31
T1D duration (years)
19.4 ± 11.4
24.3 ± 13.2
16.9 ± 7.1
15.3 ± 10.5
0.03°
Insulin Daily dose (U/kg)
0.6 ± 0.3
0.6 ± 0.3
0.6 ± 0.2
0.6 ± 0.3
0.73
Glucose Management Indicator %
7.2 ± 0.1
7.2 ± 0.1
7.2 ± 0.2
7.2 ± 0.1
0.48
TIR % (70–180 mg/dl)
66.6 ± 5.1
66.2 ± 4.8
67.1 ± 5.6
66.7 ± 5.1
0.86
TAR % (181–250 mg/dl)
24.6 ± 3.9
25.5 ± 3.6
24.2 ± 4
23.8 ± 4
0.38
TAR % (> 250 mg/dl)
7.7 ± 2.9
7.4 ± 2.9
7.8 ± 3.3
8.1 ± 2.5
0.76
TBR % (69–54 mg/dl)
1 ± 0.8
0.8 ± 0.8
0.8 ± 0.9
1.1 ± 0.8
0.75
TBR % (< 54 mg/dl)
0,1 ± 0,4
0,1 ± 0,3
0,1 ± 0,2
0,3 ± 0,7
0.73
Sensor mean glucose (mg/dl)
162.9 ± 6.1
163.5 ± 5.3
161.8 ± 7.2
163.5 ± 6
0.64
Coefficient of variation %
33.1 ± 4.6
33.3 ± 4.7
34.8 ± 4.2
31.3 ± 4.3
0.10
Sensor use %
95.6 ± 4.9
93,3 ± 5.8
98.1 ± 1.49
96 ± 4.9
< 0.001*°
Auto mode (smart guard) %
95 ± 7.9
95.8 ± 4.9
91.4 ± 14.8
95.3 ± 6.9
0.28
Data are expressed as mean ± SD unless otherwise indicated
Statistically significant difference between Minimed 780G and Contro-IQ: *, between Minimed 780G and DBLG1: °
Although the subjects in the Diabeloop group and especially those in the Control-IQ group were younger than those in Minimed 780G group, the 3 groups were similar with regard to BMI, age at onset and duration of diabetes, and daily insulin requirement. As per the inclusion criterion, the CGM metrics were comparable in the 3 groups at the time of the 14 days of the study period.
The CGM metrics, the insulin requirement, and the percentage of sensor and of automatic mode use in the 14 days of the study did not differ between the three groups (Table 1).
Anzeige
Night-time period
The trend of glucose was similar in the three groups with a progressive reduction from 00:00 to 06:00 (Fig. 1A, B and C).
Fig. 1
Night-time glucose trend in aHCL participants. A: Night-time glucose control in Medtronic 780G group. B: Night-time glucose control in DBLG1 group. C: Night-time glucose control in Control-IQ group
The Control-IQ group spent a significantly (p = 0.007) higher percentage of time in tight TIR (51.5 ± 9.8%) compared to the Minimed 780G group (42.1 ± 13.7%) and the DBLG1 group (40.1 ± 10.5%) (Table 2).
Table 2
Night-time CGM metrics in all paticipants, in Minimed 780G group, in Control-IQ group and in DBLG1 group
Overnight
0–1
1–2
2–3
3–4
4–5
5–6
6–7
P
Tight TIR % (70–140 mg/dl)
Total
44.6 ± 12.5
25.0 ± 16.9
29.0 ± 16.0
38.5 ± 16.7
45.1 ± 17.3
53.7 ± 18.4
59.4 ± 20.4
61.8 ± 20.1
< 0.01
Minimed 780G
42.1 ± 13.7
21.3 ± 15.3
25.6 ± 13.5
34.1 ± 17.1
39.8 ± 18.8
51.1 ± 20.5
59.9 ± 21.3
62.3 ± 19.6
< 0.01
Control-IQ
51.5 ± 9.8
28.8 ± 16.3
33.0 ± 18.1
43.4 ± 15.2
51.7 ± 14.1
62.5 ± 11.7
69.6 ± 14.2
70.9 ± 17.1
< 0.01
DBLG1
40.1 ± 10.5
26–0 ± 19.4
29.0 ± 16.7
38.8 ± 17.1
45.1 ± 16.9
46.7 ± 18.5
46.3 ± 19.2
50.1 ± 19.3
< 0.01
P
0.01*#
0.35
0.34
0.21
0.09
0.03*#
< 0.01#
0.01#
TIR % (70–180 mg/dl)
Total
73.4 ± 11.1
53.0 ± 18.3
60.2 ± 18.9
68.9 ± 17.5
75.9 ± 14.0
82.1 ± 11.5
86.4 ± 11.3
87.2 ± 12.6
< 0.01
Minimed 780G
73.9 ± 11.2
51.7 ± 16.8
59.9 ± 19.3
68.4 ± 18.6
75.4 ± 13.8
83.6 ± 10.4
89.3 ± 9.2
88.6 ± 9.4
< 0.01
Control-IQ
74.1 ± 11.1
52.8 ± 19.9
61.0 ± 20.4
68.6 ± 17.3
76.7 ± 11.9
83.6 ± 10.3
87.3 ± 11.1
88.3 ± 9.7
< 0.01
DBLG1
71.7 ± 11.3
55.0 ± 19.5
59.7 ± 18.0
69.8 ± 17.5
75.6 ± 17.2
77.8 ± 13.8
81.1 ± 13.1
83.6 ± 18.6
< 0.01
P
0.82
0.87
0.98
0.97
0.95
0.25
0.08
0.42
TAR % 181–250 mg/dl)
Total
19.9 ± 8.3
32.2 ± 15.5
28.1 ± 13.1
24.0 ± 13.4
18.3 ± 10.2
13.4 ± 8.8
8.7 ± 8.4
7.7 ± 9.9
< 0.01
Minimed 780G
20.7 ± 9
37.2 ± 17.2
31.0 ± 13.9
25.4 ± 13.5
19.5 ± 10.0
14.2 ± 9.1
7.2 ± 7.4
6.6 ± 6.4
< 0.01
Control-IQ
18.5 ± 6.8
31.8 ± 13.0
27.2 ± 12.8
23.9 ± 12.9
17.5 ± 8.5
11.8 ± 7.5
7.9 ± 7.5
6.8 ± 8.1
< 0.01
DBLG1
20.4 ± 9.3
25.3 ± 13.8
25.0 ± 12.0
22.2 ± 14.5
17.4 ± 12.5
14.1 ± 10.1
12.0 ± 10.2
10.4 ± 15.0
< 0.01
P
0.74
0.07
0.38
0.80
0.77
0.69
0.21
0.91
TAR % (> 250 mg/dl)
Total
5.7 ± 5.1
11.5 ± 8.2
8.8 ± 8.6
5.9 ± 7.8
4.6 ± 7.3
3.4 ± 5.9
2.8 ± 5.0
2.8 ± 4.6
< 0.01
Minimed 780G
4.5 ± 4.8
10.2 ± 7.8
7.8 ± 8.6
5.2 ± 9.2
3.7 ± 8.1
1.3 ± 2.7
1.7 ± 3.4
2.0 ± 4.3
< 0.01
Control-IQ
6.3 ± 5.9
14.3 ± 9.1
10.8 ± 9.5
6.6 ± 7.1
4.8 ± 7.4
3.1 ± 5.8
2.4 ± 5.2
2.3 ± 3.5
< 0.01
DBLG1
6.5 ± 4.7
9.9 ± 7.2
8.0 ± 7.7
6.1 ± 6.6
5.9 ± 6.2
6.7 ± 8.0
5.0 ± 6.1
4.5 ± 5.8
0.43
P
0.30
0.20
0.35
0.42
0.30
0.03°#
0.08
0.91
TBR % (69–54 mg/dl)
Total
0.7 ± 1.2
0.6 ± 1.4
1.1 ± 2.6
0.7 ± 2.1
0.7 ± 1.5
0.8 ± 1.8
0.8 ± 1.7
0.6 ± 1.5
0.95
Minimed 780G
0.7 ± 0.9
0.6 ± 1.3
1.3 ± 2.4
0.6 ± 1.1
0.8 ± 1.7
0.8 ± 1.7
1.7 ± 3.4
0.4 ± 1.5
0.99
Control-IQ
0.8 ± 0.8
0.6 ± 1.2
0.6 ± 1.0
0.5 ± 0.8
0.8 ± 1.3
1.2 ± 2.5
1.3 ± 2
0.8 ± 1.8
0.78
DBLG1
0.8 ± 1.9
0.7 ± 1.9
1.2 ± 3.9
1.2 ± 3.7
0.5 ± 1.3
0.3 ± 0.5
0.7 ± 1.6
0.5 ± 1.2
0.95
P
0.56
0.21
0.66
0.89
0.63
0.84
0.30
0.47
TBR % (< 54 mg/dl)
Total
0.3 ± 1.0
0.5 ± 1.9
0.3 ± 0.9
0.3 ± 1.0
0.4 ± 1.7
0.4 ± 1.8
0.2 ± 1.0
0.1 ± 0.5
0.99
Minimed 780G
0.2 ± 0.4
0.3 ± 1.3
0.0 ± 0.1
0.2 ± 0.9
0.6 ± 2.0
0.0 ± 0.1
0.0 ± 0.0
0.0 ± 0.0
0.99
Control-IQ
0.3 ± 0.3
0.5 ± 1.3
0.4 ± 1
0.2 ± 0.4
0.2 ± 0.5
0.3 ± 0.7
0.2 ± 0.7
0.3 ± 0.7
0.99
DBLG1
0.6 ± 1.8
0.9 ± 3.0
0.5 ± 1.2
0.6 ± 1.6
0.6 ± 2.2
1.0 ± 3.4
0.7 ± 1.8
0.2 ± 0.7
0.99
P
0.75
0.42
0.67
0.92
0.99
0.78
0.74
0.49
Sensor mean glucose (mg/dl)
Total
155.4 ± 14.5
179.9 ± 22.7
171.1 ± 22.3
161.6 ± 21.9
153.0 ± 20.8
145.5 ± 18.6
139.5 ± 18.0
138.0 ± 19.0
< 0.01
Minimed 780G
155.3 ± 14.0
181.5 ± 17.2
172.5 ± 18.3
163.0 ± 22.3
153.6 ± 21.2
143.8 ± 15.5
136.5 ± 17.0
135.7 ± 18.9
< 0.01
Control-IQ
152.9 ± 15.4
181.0 ± 25.9
172.2 ± 25.2
161.6 ± 21.4
150.0 ± 20.6
139.8 ± 19.6
133.8 ± 16.1
132.5 ± 14.8
< 0.01
DBLG1
158.5 ± 14.4
176.2 ± 26.6
170.0 ± 25.3
159.4 ± 23.3
155.7 ± 21.2
154.8 ± 19.1
150.8 ± 17.5
147.9 ± 21.0
0.01
P
0.54
0.76
0.94
0.89
0.73
0.06
0.01°#
0.047#
Coefficient of variation %
Total
31.7 ± 7.1
29.1 ± 9.0
28.9 ± 8.5
29.0 ± 8.1
28.5 ± 8.6
27.3 ± 9.7
26.4 ± 11.4
25.2 ± 9.4
0.06
Minimed 780G
29.0 ± 6.7
26.9 ± 9.8
27.2 ± 8.7
25.7 ± 7.8
24.5 ± 6.7
22.4 ± 6.3
23.0 ± 8.1
24.0 ± 8.5
0.42
Control-IQ
34.5 ± 6.6
31.3 ± 8.0
31.1 ± 8.2
32.0 ± 6.2
32.0 ± 7.0
30.5 ± 10.9
27.9 ± 12.6
26.8 ± 10.3
0.38
DBLG1
32.4 ± 7.1
29.9 ± 8.8
28.8 ± 8.3
30.1 ± 9.2
30.2 ± 10.6
30.8 ± 9.7
29.5 ± 13.6
25.0 ± 9.8
0.75
P
0.0507
0.29
0.38
0.04*
0.01*
0.01°*
0.19
0.66
Statistically significant difference between Minimed 780G and Contro-IQ: *, between Minimed 780G and DBLG1: °, between Control-IQ and DBLG1: #
The CV of CGM-measured glucose concentrations was lower, close to statistical significance (p = 0.0507), in the Minimed 780G group (29 ± 6.7%) compared to Control-IQ group (34.5 ± 6.6%) and DBLG1 group (32.4 ± 7.1%).
The other CGM metrics did not differ between the three groups (Table 2).

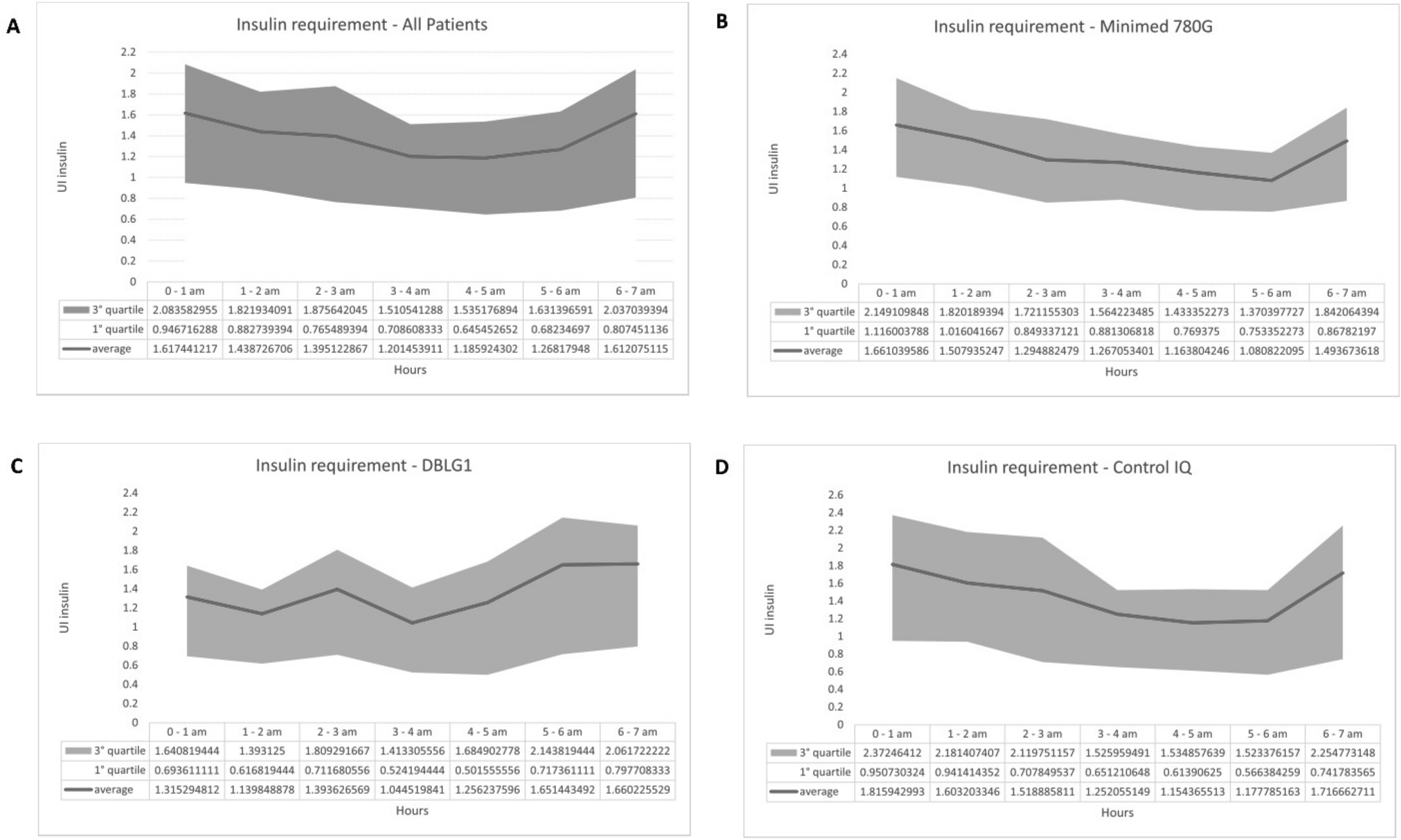

The insulin requirement did not significantly differ between the three groups, except between 5 and 6 am when it was greater in Diabeloop group (Table 3).
Table 3
Nocturnal changes in insulin infusion in three groups using different AHCL systems
AHCL system
00.00–01.00
01.00–02.00
02.00–03.00
03.00–04.00
04.00–05.00
05.00–06.00
06.00–07.00
Total
Minimed 780G group
1.6610396
1.5079352
1.2948825
1.2670534
1.1638042
1.0808221
1.4936736
9.469210
Control-IQ group
1.815943
1.6032033
1.5188858
1.2520551
1.1543655
1.1777852
1.7166627
10.238901
DBLG1 group
1.3152948
1.1398489
1.3936266
1.0445198
1.2562376
1.6514435
1.6602255
9.4611967
p value*
0.95
0.73
0.38
0.88
0.37
0.03
0.32
0.31
AHCL advanced hybrid closed-loop system
*Assessed using Kruskal–Wallis test
A regression analysis was performed to explore the nocturnal variation in insulin dosage across different hours of the night in all 55 patients, utilizing a panel data model (Table 4A).
Table 4
Nocturnal changes in insulin infusion in all participants, in DBLG1 group, in Minimed 780G group and in Control-IQ group
A. Nocturnal changes in insulin infusion in all patients—mixed-effects model
Hours
Coefficient
95% conf. interval
p value
01.00–02.00
− 0.178
− 0.3666 to − 0.009
0.062
02.00–03.00
− 0.222
− 0.410 to − 0.034
0.020
03.00–04.00
− 0.415
−0.603 to − 0.228
0.000
04.00–05.00
− 0.431
−0.619 to − 0.243
0.000
05.00–06.00
− 0.349
−0.537 to − 0.161
0.000
06.00–07.00
− 0.053
−0.193 to − 0.182
0.955
Likelihood ratio test p value = 0.000
Parameter test p value = 0.000
B. Nocturnal changes in insulin infusion comparing the three AHCL systems
AHCL system
00.00–01.00
01.00–02.00
02.00–03.00
03.00–04.00
04.00–05.00
05.00–06.00
06.00–07.00
Total
DBLG1 group
1.3152948
1.1398489
1.3936266
1.0445198
1.2562376
1.6514435
1.6602255
9.4611967
Minimed 780G group
1.6610396
1.5079352
1.2948825
1.2670534
1.1638042
1.0808221
1.4936736
9.469210
Control-IQ group
1.815943
1.6032033
1.5188858
1.2520551
1.1543655
1.1777852
1.7166627
10.238901
p value*
0.95
0.73
0.38
0.88
0.37
0.03
0.32
0.31
*Kruskal–Wallis
The mixed-effects model revealed significant variability in insulin dosage associated with different hours of the night (Likelihood ratio test p < 0.001). The estimated coefficients for each hour represent the change in insulin dosage compared to the reference hour (00.00–01.00).
These data suggest that the time of night significantly influences insulin dosage (Fig. 2A illustrate the trend of insulin administration throughout the night in all patients). The significant negative coefficients associated with hours 02.00 to 06.00 suggest that this time interval is linked to a decrease in the insulin dosage compared to the 00.00–01.00-time interval.
Fig. 2
Trend of insulin administration throughout the night in all participants, in Minimed 780G group, in DBLG1 group and incontrol-IQ group
Comparing the total nighttime insulin dosage administered by the three systems, there are no significant differences. However, upon analyzing specific hours of the night (Table 4), it is noteworthy that DBLG1 group exhibits a significantly higher insulin dosage administered between 05:00 and 06:00 compared to the other systems (p = 0.03), specifically 52% higher than Medtronic and 41% higher than Tandem (Fig. 2 in B, C and D shows the trend of insulin administration throughout the night across the three aHCL systems).
The hourly coefficient of variation (CV) of exogenous insulin delivery during night-time was calculated to quantity intraperson variability of insulin requirements in all participants, and in the 3 groups. The mean of intraperson variability of insulin requirement was high and similar in all hours of night-time period without difference between the three groups (Table 4).
Discussion
To our knowledge this is the first study comparing the efficacy of three AHCL systems in optimizing glycemic control over the night-time period.
Minimed 780G group used a PID algorithm unlike group Control-IQ and DBLG1 that used a MPC algorithm.
Recently Kang et al. [11] performed a meta-analysis of randomized controlled trials of three different algorithms (MPC, PID, and Fuzzy) compared to conventional insulin therapy. The MPC algorithm-based artificial pancreas system was associated with a higher increase in TIR ([MD], 12.57%, 95% CI [9.63, 15.50] p < 0.00001) than the PID algorithm-based artificial pancreas system ([MD], 9.59%, 95% CI [− 3.67, 22.85] p < 0.00001). On the other hand, the reduction in TBR was higher in studies using the PID ([MD], − 5.24%, 95% CI [− 16.06, 5.58] p < 0.00001) algorithm than in studies using the MPC ([MD], − 1.12%, 95% CI [− 1.50 to − 0.75] p < 0.00001) algorithm.
In a recent study Bassi et al. [9] retrospectively compared 1-year use of Tandem Control-IQ vs Minimed 780G in 76 adult and pediatric subjects with T1DM. The use of both AHCL systems led to a significant and rapid improvement of glycemic control lasting for up 12 months. Unlike in Kang’s meta-analysis, subjects using Minimed 780G with a PID algorithm obtained a higher TIR (71% vs 68%; p = 0.001) and lower TAR > 250 mg/dl (4.5% vs 9%, p = 0.009), average sensor glucose (148.5 vs 162 mg/dl, p < 0.001), and standard deviation (50 vs 58 mg/dl, p = 0.031) than users Tandem Control-IQ system with a MPG algorithm. Similarly, a prospective multicenter study, including 150 adolescents and adults with type 1 diabetes found that two AHCL (Medtronic 780G and Tandem Control-IQ) were able to provide a similar improvement in glucose control with no superiority of one system over the other [12].
However, to compare properly multiple AHCL systems it is necessary to reproduce similar conditions. As such, we evaluated adult individuals with a similar basal glucose control (HbA1c 53–58 mmol/mol or 7–7.5%): the mean GMI during the study was 55 mmol/mol (7.2%) in all three groups. The overall CGM metrics and the insulin requirement did not differ in the three group regardless of type of system and algorithm used.
We chose as main outcomes the overnight differences in CGM metrics between the three AHCL systems, because night-time data are more reproducible as there is fewer confounding external factors, such as food intake and physical activity.
In a randomized, crossover trial study Pinsker and coll. compared the efficacy of a PID vs a MPC algorithm in overnight glucose control after a standard 65 g-dinner in 20 adults with T1DM. Each participant performed two supervised 27.5 h sessions using a PID and a MPC algorithm. Overnight glucose control was excellent with both algorithms, showing similar CGM metrics [13].
Moreover, in our study the overnight glucose control was adequate and the recommended CGM targets were obtained with all three AHCL systems. The Control-IQ group showed a significantly higher percentage of time spent in tight time in range compared to other two groups. It is notable that Control-IQ technology has a “Sleep Activity Mode” to optimize glycemic control overnight. If the user activates this mode the algorithm uses a glucose target range of 112.5–120 mg/dL instead of 112.5–160 mg/dL and increases the basal insulin infusion when the predicted glucose value is > 120 mg/dL [14].
In another retrospective study the use of the Sleep Activity Mode did not lead to an increase in TIR in a pediatric population treated with Tandem–Control-IQ. However, unlike in our study the Authors did not evaluate tight TIR [15].
Sensor glucose values and insulin requirement followed a similar trend in all three groups, both decreased from midnight to 5 am. After 5 am sensor glucose values were unchanged, but insulin infusion increased displaying a reduction in insulin sensitivity in the period 4–8 a.m. as compared to the period after midnight to 3 a.m. in people with T1DM. Pioneering studies showed a reduction in insulin sensitivity in the period 4–8 a.m. in people with T1DM [16, 17].
Across the entire cohort of patients, a discernible trend indicates a decrease in insulin requirements from midnight to 6 a.m., with a more pronounced decline observed between 02:00 and 06:00. Beyond 6 a.m., there is a subsequent increase in insulin requirements.
Similarly, in non-diabetic patients, insulin secretion tends to decrease during sleep. Specifically, in the first half of the night, a reduction in insulin production may be observed as the body adapts to the diminished need for insulin in the absence of food intake. Subsequently, towards the early morning hours, endogenous insulin production may gradually increase in anticipation of the expected metabolic activity upon waking.
AHCL systems, by mimicking the physiological production of insulin, allow for optimal management of nocturnal glycemia.
A retrospective study analyzed overnight, daytime, and total insulin requirement in 32 adults with T1DM showing that overnight insulin requirements were significantly more variable (CV 31%) than daytime amounts (CV 22%) [18].
In our study the observation of an interindividual coefficient of hourly insulin requirement greater than 50% in 14 nights of observation confirms the mechanism that leads to the superiority of the aHCL system compared to traditional MDI therapy and explains the frequent difficulty of people with type diabetes 1 to obtain good glycemic control without hypoglycemia during the nocturnal period.
The main limitations of our real-life study are the retrospective design and the low number of participants. A randomized prospective study is needed to confirm our data.
In conclusion, all the three AHCL systems were equally able to achieve the recommended targets for CGM metrics overnight in adults with T1DM. The Tandem Control-IQ system obtained a higher tight TIR.
Acknowledgements
The authors thank the participants whose data were included in this study.
Declarations
Conflict of interest
No competing financial interests exist.
Informed consent
Written informed consent to use the clinical and biochemical data was obtained from all participants.
Ethical standard statement
All procedures performed in this study involving human participants were in accordance with the Ethical Standard of the Institutional and National Research Committee and with the 1964 Helsinki Declaration and its later amendments or comparable ethical standard. The study was approved by the Local Ethical Committee.
Open Access This article is licensed under a Creative Commons Attribution 4.0 International License, which permits use, sharing, adaptation, distribution and reproduction in any medium or format, as long as you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons licence, and indicate if changes were made. The images or other third party material in this article are included in the article’s Creative Commons licence, unless indicated otherwise in a credit line to the material. If material is not included in the article’s Creative Commons licence and your intended use is not permitted by statutory regulation or exceeds the permitted use, you will need to obtain permission directly from the copyright holder. To view a copy of this licence, visit http://creativecommons.org/licenses/by/4.0/.
Publisher's Note
Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.
Unsere Produktempfehlungen
e.Med Interdisziplinär
Kombi-Abonnement
Für Ihren Erfolg in Klinik und Praxis - Die beste Hilfe in Ihrem Arbeitsalltag
Mit e.MedInterdisziplinär erhalten Sie Zugang zu allen CME-Fortbildungen und Fachzeitschriften auf SpringerMedizin.de.
Mit e.Med Innere Medizin erhalten Sie Zugang zu CME-Fortbildungen des Fachgebietes Innere Medizin, den Premium-Inhalten der internistischen Fachzeitschriften, inklusive einer gedruckten internistischen Zeitschrift Ihrer Wahl.
Mit e.Med Allgemeinmedizin erhalten Sie Zugang zu allen CME-Fortbildungen und Premium-Inhalten der allgemeinmedizinischen Zeitschriften, inklusive einer gedruckten Allgemeinmedizin-Zeitschrift Ihrer Wahl.
Comparison of the night-time effectiveness in achieving glycemic targets in adults with type 1 diabetes of three advanced hybryd closed-loop systems
Verfasst von
Nicolò Diego Borella
Antonio Ferramosca
Giona Castagna
Silvia Ippolito
Sara Ceresoli
Antonio Taverna
Beatrice Sonzogni
Roberto Trevisan
Giuseppe Lepore
Bergenstal RM, Nimri R, Beck RW et al (2021) A comparison of two hybrid closed-loop systems in adolescents and young adults with type 1 diabetes (FLAIR): a multicentre, randomised, crossover trial. Lancet 397(10270):208–219. https://doi.org/10.1016/S0140-6736(20)32514-9CrossRefPubMedPubMedCentral
2.
Choudhary P, Kolassa R, Keuthage W et al (2022) Advanced hybrid closed loop therapy versus conventional treatment in adults with type 1 diabetes (ADAPT): a randomised controlled study. Lancet Diabetes Endocrinol 10(10):720–731. https://doi.org/10.1016/S2213-8587(22)00212-1CrossRefPubMed
3.
Beck RW, Kanapka LG, Breton MD et al (2023) A meta-analysis of randomized trial outcomes for the t:slim X2 insulin pump with control-IQ technology in youth and adults from age 2 to 72. Diabetes Technol Ther 25(5):329–342. https://doi.org/10.1089/dia.2022.0558CrossRefPubMedPubMedCentral
Benhamou PY, Adenis A, Lebbad H et al (2023) One-year realworld performance of the DBLG1 closed-loop system: datafrom 3706 adult users with type 1 diabetes in Germany. Diabetes Obes Metab 25(6):1607–1613. https://doi.org/10.1111/dom.15008CrossRefPubMed
6.
Silva JD, Lepore G, Battelino T et al (2022) Real-world performance of the MiniMed780G system: first report of outcomes from 4120 users. Diabetes Technol Ther 24(2):113–119CrossRefPubMedPubMedCentral
7.
Lepore G, Borella ND, Castagna G et al (2023) Advanced hybrid closed-loop system achieves and maintains recommended time in range levels for up to 2 years: predictors of best efficacy. Diabetes Technol Ther. https://doi.org/10.1089/dia.2023.0261CrossRefPubMed
8.
Schiaffini R, Deodati A, Nicoletti MC, Carducci C, Ciampalini P, Lorubbio A, Matteoli MC, Pampanini V, Patera IP, Rapini N, Cianfarani S (2022) Comparison of two advanced hybrid closed loop in a pediatric population with type 1 diabetes: a real-life observational study. Acta Diabetol 59(7):959–964. https://doi.org/10.1007/s00592-022-01886-zCrossRefPubMed
9.
Bassi M, Patti L, Silvestrini I, Strati M, Ponzano M, Minuto N, Maggi D (2023) One-year follow-up comparison of two hybrid closed-loop systems in Italian children and adults with Type 1 Diabetes. Front Endocrinol 14:1099024. https://doi.org/10.3389/fendo.2023.1099024CrossRef
10.
Santova A, Plachy L, Neuman V, Pavlikova M, Petruzelkova L, Konecna P, Venhacova P, Skvor J, Pomahacova R, Neumann D, Vosahlo J, Strnadel J, Kocourkova K, Obermannova B, Pruhova S, Cinek O, Sumnik Z (2023) Are all HCL systems the same? long term outcomes of three HCL systems in children with type 1 diabetes: real-life registry-based study. Front Endocrinol (Lausanne) 14:1283181. https://doi.org/10.3389/fendo.2023.1283181CrossRefPubMed
11.
Kang SL, Hwang YN, Kwon JY, Kim SM (2022) Effectiveness and safety of a model predictive control (MPC) algorithm for an artificial pancreas system in outpatients with type 1 diabetes (T1D): systematic review and meta-analysis. Diabetol Metab Syndr 14(1):187. https://doi.org/10.1186/s13098-022-00962-2CrossRefPubMedPubMedCentral
12.
Beato-Víbora PI, Chico A, Moreno-Fernandez J, Bellido-Castañeda V, Nattero-Chávez L, Picón-César MJ, Martínez-Brocca MA, Giménez-Álvarez M, Aguilera-Hurtado E, Climent-Biescas E, Azriel-Mir S, Rebollo-Román Á, Yoldi-Vergara C, Pazos-Couselo M, Alonso-Carril N, Quirós C (2024) A multicenter prospective evaluation of the benefits of two advanced hybrid closed-loop systems in glucose control and patient-reported outcomes in a real-world setting. Diabetes Care 47(2):216–224. https://doi.org/10.2337/dc23-1355CrossRefPubMed
13.
Pinsker JE, Lee JB, Dassau E et al (2016) Randomized crossover comparison of personalized MPC and PID control algorithms for the artificial pancreas. Pinsker JE Diabetes Care 39:1135–1142. https://doi.org/10.2337/dc15-2344CrossRefPubMed
Bending JJ, Pickup JC, Collins AC, Keen H (1985) Rarity of a marked “dawn phenomenon” in diabetic subjects treated by continuous subcutaneous insulin infusion. Diabetes Care 8:28–33CrossRefPubMed
17.
Perriello G, De Feo P, Torlone E et al (1991) The dawn phenomenon in type 1 (insulin-dependent) diabetes mellitus: magnitude, frequency, variability, and dependency on glucose counterregulation and insulin sensitivity. Diabetologia 34:21–28CrossRefPubMed
18.
Ruan Y, Thabit H, Leelarathna L et al (2016) Variability of insulin requirements over 12 weeks of closed-loop insulin delivery in adults with type 1 diabetes. Diabetes Care 39(5):830–832. https://doi.org/10.2337/dc15-2623CrossRefPubMed
Eine große chinesische Kohortenstudie unterstreicht die Bedeutung von vier zentralen Risikofaktoren – systolischem Blutdruck, LDL-Cholesterin, Nüchternglukose und BMI – für die Prävention einer chronischen Niereninsuffizienz bei Patienten mit Hypertonie. Jede zusätzlich kontrollierte Komponente senkte das CKD-Risiko um 18%.
Für die künstliche Beatmung lassen sich einfache Grundregeln formulieren. Dennoch ist Fachexpertise gefragt, um ventilatorinduzierten Lungenschäden vorzubeugen. In der klinischen Praxis können dabei drei pragmatische Handlungsempfehlungen helfen.
Das Spiropyrimidintrion-Antibiotikum Zoliflodacin hat sich in einer Studie zur Therapie der urogenitalen Gonorrhö einer Kombination von Ceftriaxon und Azithromycin als ebenbürtig erwiesen. Dabei hat die neue Substanz einige Vorteile auf ihrer Seite.
Medien sind überall – und Kinder kommen oft schon früh mit Smartphone, Tablet und Fernseher in Berührung. Eine deutsche Leitlinie versucht dem Wunsch nach Orientierung gerecht zu werden. Doch welche Empfehlungen sind überhaupt realistisch? Medienexpertin Frau Dr. Iren Schulz ordnet im Podcast die Kritikpunkte ein und erläutert den aktuellen Wissensstand zur „gesunden“ Bildschirmzeit.
