Correlation of NF-κB signal pathway with tumor metastasis of human head and neck squamous cell carcinoma

This study was approved by the Institutional Review Board of the Ninth People's Hospital, Shanghai Jiao Tong University School of Medicine. All specimens for this study were obtained from surgical samples with pathological diagnosis and informed consent. The paraffin-embedded tissue blocks were selected based on patient diagnosis: primary tumors without lymph node involvement (Tn), primary tumors with lymph node involvement (Tm) and the tissues of their paired metastatic lymph node (Lm). There were a total of 30 specimens in each group (Table 1). Patients who were previously treated (radiotherapy or chemotherapy) for the index tumor or another head and neck primary tumor within the past five years were excluded. The tumor size, nodal metastases and distant metastases (TNM) classification of all tumors was according to the International Union Against Cancer. The clinical information was obtained from the surgical pathology files in the hospital. The relevant clinical parameters, including age, gender, alcohol use, smoking habits, original primary tumor site and pathology stage, are listed in Table 2.

NF-κB p65 expression in the tissue specimens was determined using a mouse monoclonal anti-human NF-κB p65 antibody (Sigma-Aldrich). Mouse IgG at a 1:100 dilution was used as a negative control. Immunohistochemical analysis of formalin-fixed, paraffin-embedded human specimens was performed according to a modified procedure. Briefly, after deparaffinization with xylene and rehydration with ethanol, endogenous peroxidase activity was blocked by incubating the slides in 3% hydrogen peroxide in methanol for 15 minutes. To retrieve the antigens, the tissue slides were heated in a microwave oven in 100 mM sodium citrate buffer (pH 6.0) for 10 minutes and then cooled to room temperature for 20 minutes. Cover tissue sections with 3-4 drops of protein block buffer (DAKO) and incubate slides for 15 minutes in humid chamber at room temperature. After being washed in phosphate-buffered saline (PBS), the slides were incubated with a 1:50 dilution of the anti-NF-κB p65 antibody overnight at 4°C. The next day, the slides were washed with PBS and incubated with a horseradish peroxidase (HRP)-conjugated affinity purified goat anti-mouse IgG (H+L) secondary antibody for one hour at room temperature and with a biotin-avidin peroxidase conjugate (ABC kit, Vector Laboratories) for 15 minutes at room temperature. The substrate (0.1% 3,3 - diaminobenzidine solution; Sigma, St. Louis, MO) was then added in PBS with 0.01% hydrogen peroxide. Finally, the slides were counterstained with hematoxylin (Vector Laboratories) for 50 seconds and then observed using light microscopy. The immunoreactivity of the tissue was estimated by counting the number of nuclear staining-positive cells per 1 000 tumor cells. Independent counts were made by three pathologists with no prior knowledge of the clinical information. The specimens were divided into five groups: > 80% nuclear staining-positive cells, 50%-80% nuclear staining-positive cells, 30%-49% nuclear staining-positive cells, 10%-29% nuclear staining-positive cells and < 10% nuclear staining-positive cells.

Tca8113, a human SCCHN cell line, was derived from a patient with a tongue squamous cell carcinoma. The Tb cell line was selected from the Tca8113 cell line using a combination of selection in vivo and clone selection in vitro. Compared to non-metastatic Tca8113, the Tb cell line demonstrated an increased (up to 100%) metastasis rate in an experimental lung metastasis model using nude mice. In contrast, TL cells, another derivative of the Tca8113 cell line, possess high metastatic potential to regional lymph nodes. The TSCC cell line is a non-metastatic cell line established at Wuhan University. The OSC-4 cell line has a strong invasion tendency and was developed at Kochi University, Japan. All five of these cell lines were maintained in RPMI 1640 with 10% fetal bovine serum (FBS) supplemented with 1 mM L-glutamine, 100 U/ml penicillin and 100 U/ml streptomycin and were kept at 37°C and 5% CO₂.

Cells were treated with 50 ng/mL tumor necrosis factor-α (TNFα; Cytolab, Peprotech ASIA) for the indicated time. The cells were then harvested and washed twice with PBS. The cells were pelleted and lysed with lysis buffer containing 1% Nonidet P-40, 5% sodium deoxycholate, 1 mM PMSF, 100 mM sodium orthovanadate and 1% protease inhibitor cocktail (Sigma-Aldrich, USA). The protein concentration was determined using the bicinchoninic acid (BCA) Protein Assay Kit according to the manufacturer's protocol (Pierce), and the cell extracts were stored at -80°C until use. Before loading, the protein samples were boiled in sample buffer [62.5 mM Tris-HCl (pH 6.8), 10% (w/v) glycerol, 100 mM DTT, 2.3% SDS, 0.002% bromophenol blue] for 10 minutes. The samples were separated in a 10% SDS-PAGE gel and transferred to a polyvinylidene difluoride membrane (Amersham Pharmacia Biotech, Arlington Heights, IL). The membranes were blotted with 5% fat-free milk overnight at 4°C and probed with the primary antibodies. The immunocomplexes were visualized using an HRP-conjugated goat anti-rabbit or anti-mouse antibody (Promega) and ECL plus reagents (Amersham Pharmacia Biotech, Arlington Heights, IL). The anti-IκBα, anti-phospho-IκBα (serine 32) and anti-phospho-NF-κB p65 (serine 536) polyclonal antibodies were from Cell Signaling Technology, while the anti-MMP9 and anti-VEGF antibodies were from Santa Cruz Biotech (CA, USA).

The SCCHN cells (2×10⁵) were plated in a 6-well dish and transfected with the 2× NF-κB-luciferase plasmid using Lipofectamine 2 000 according to the manufacturer's instructions (Invitrogen Life Technologies). The cells were co-transfected with the pPenilla Renilla luciferase reporter to normalize for transfection efficiency. Six hours after transfection, the transfection medium was replaced with growth medium, and the cells were incubated at 37°C for an additional 48 hours. A second group of cells was treated with TNFα (50 ng/ml) for 12 hours, and the luciferase activity was measured using the Dual Luciferase System (Promega, USA).

DNA-binding assays were carried out using nuclear extracts isolated from cells in the log phase of growth. The nuclear extracts were isolated using NE-PER Nuclear and Cytoplasmic Extraction Reagents (Pierce, USA). Synthetic complementary oligonucleotides were 3'-biotinylated using a Biotin 3'-End DNA Labeling Kit (Pierce) according to the manufacturer's instructions and annealed for two hours at room temperature. The sequence of the oligonucleotides used is: 5'-AGTTGAGGGGACTTTCCCAGGC-3' and 3'-TCAACTCCCCTGAAAGGGTCCG-5', which contains a putative binding site for wild-type NF-κB. Meanwhile, the other sequence of the oligonucleotides used is: 5'-AGTTGAGGCGACCTTTAAAAGGC-3' and 3'-TCAACTCCCCTGAAAGGGTCCG-5', which contains a mutant NF-κB binding site as the underline shown. The binding reactions were carried out for 20 minutes at room temperature in the presence of 50 ng/μL poly(dI-dC), 0.05% Nonidet P-40, 5 mM MgCl₂, 10 mM EDTA and 2.5% glycerol in 1× binding buffer (LightShift Chemiluminescent EMSA Kit, Pierce) using 20 fmol of the biotin- labeled target DNA and 5 μg of the nuclear extract. As controls, lane 1 contained only the biotin-end-labeled probe and lane 2 contained the labeled mutant probe only. For the unlabeled and mutant probe competition, extracts were pre-incubated with a 100-fold excess of the unlabeled probe before the addition of the labeled probe (lane 3 and lane 4). Both the biotin-end-labeled probe and the nuclear extracts were added to lane 10 as a positive control. Reactions were loaded into a native 4% polyacrylamide gel (pre-ran for 60 minutes) in 0.5 × Tris borate/EDTA, ran at 100 V and transferred onto a positively charged nylon membrane (Hybond-N⁺) in 0.5 × Tris borate/EDTA at 100 V for 30 minutes. The transferred DNA was immediately cross-linked to the membrane for 15 minutes on a UV transilluminator equipped with 312 nm bulbs and detected using HRP-conjugated streptavidin (LightShift Chemiluminescent EMSA Kit) according to the manufacturer's instructions.

Cells were stimulated with either 50 ng/mL TNFα for 30 minutes, 100 μM pyrrolidine dithiocarbonate (PDTC) or 10 μM BAY 11-7085 for 1 hour. Two additional groups were treated with PDTC or BAY 11-7085 for 30 minutes and then TNFα was added for an additional 30 minutes. After incubation, the cells were fixed with 4% formaldehyde and permeabilized with 0.1% Triton X-100. After blocking in 3% BSA for 30 minutes, the cells were incubated for one hour with an anti-human p65 antibody (Santa Cruz, clone F-6, dilution 1:100), then washed and incubated for 30 minutes with an Alexa Fluor 488-conjugated anti-mouse IgG F(ab')₂ fragment (Invitrogen Molecular Probe, dilution 1:200) at room temperature in the dark. The cells were washed three times with PBS containing 0.02% Tween 20 and mounted in aqueous mounting medium containing 0.5 mg/ml 40-6-diamidino-2-phenylindole to stain the nuclei. Three random visual fields at a 200 × magnification were observed using a Leica TCS SP2 confocal spectral microscope.

The effect of NF-κB activation on cell migration was examined using Matrigel Invasion Chambers, as suggested by the manufacturer (BD Bioscience). The upper surface of the chamber contained the transwell filter (8 μm pores) coated with Matrigel, fibronectin and vitronectin. Cells (1×10⁵) were collected and placed in the upper chamber with 50 ng/ml TNFα, 100 μM PDTC or 10 μM BAY 11-7085. Treated cells with the vehicles of above reagents were used as a control. The cells were incubated for 24 hours in a humidified tissue culture incubator at 37°C and 5% CO₂. The next day, a cotton-tipped swab was used to remove the non-invading cells by applying gentle but firm pressure while moving the tip around the membrane surface. The cells on the lower surface of the insert were stained with hematoxylin for 10 minutes. The number of invading cells was counted using a microscope at a 400× magnification, and the mean number of cells per field in five random fields was recorded. The extent of cell invasion is expressed as the fold increase in the total number of cells on the lower surface of the chamber in the treated samples compared to the total number of invading cells in the untreated samples.

Female 4- to 5-week-old nu/nu Balb/C mice (18-20 g) were maintained in a specific pathogen-free animal facility of the Laboratory of Animal Experiment Affilited to Ninth People's Hospital, Shanghai Jiao Tong University School of Medicine. There were 10 mice in each group. Logarithmically growing Tb cells were harvested and injected into the tail vein of the mice at a dose of 2×10⁶ cells per mouse. The mice were injected intraperitoneally (i.p) with PDTC (Sigma-Aldrich) at a concentration of 1 mM/kg/day in 100 μl of PBS for 14 days beginning on the day of the injection of the Tb cells. Control animals received 100 μl of PBS alone. The mice were checked daily for weight loss and trouble breathing as a sign of massive lung metastases. All the mice were euthanized when the control mice lost 30% of their body weight due to lung metastasis (an average of six weeks after the tail vein injection). The lungs were excised and collected in PBS, and the lung weight was determined for each individual animal. For histological analysis of metastasis, the lungs were immersed in 10% neutral buffered formalin before paraffin embedding and sectioning. Sections (5 μm thick) were stained using hematoxylin and eosin (H&E) and evaluated. The total number of metastases per lung was determined by collection of serial lung sections, selection of sections approximately 0.3 mm apart and counting the number of metastatic lesions. Large metastatic lesions that appeared in more than one section were only counted once.

Female 4- to 5-week-old Balb/C^nu/nu mice were maintained as described above. The mice were divided into three groups: a control group, a PDTC group and a BAY 11-7085 group, with five mice in each group. Logarithmically growing TL cells were harvested and injected into the foot pads of the mouse at a dose of 2×10⁶ cells for each foot pad. Three weeks after injection, the mice were injected intraperitoneally (i.p) with either 50 mM/kg/day of PDTC (Sigma-Aldrich) or 5 mM/kg/day of BAY 11-7085 (Calbiocham) in 100 μl PBS for 14 days. Control animals received 100 μl PBS alone. The mice were checked daily for weight loss and popliteal fossa lymph node metastasis. All the mice were euthanized an average of nine weeks after injection. For histological analysis of metastasis, the popliteal fossa lymph nodes were excised and immersed in 10% neutral-buffered formalin before paraffin embedding and sectioning. Sections (5 μm thick) were processed for H&E staining and histological evaluation. The number of lymph nodes with metastases was determined by three pathologists.

Tca8113 and TL cells (1×10⁶) treated with TNFα (50 ng/ml), PDTC 100 μM and BAY 11-7085(10 μM) alone or with TNFα plus PDTC or plus BAY 11-7085 for 24 hours were labeled with FITC-conjugated Annexin V and propidium iodide (PI) using the Annexin V-FITC/PI Apoptosis Detection Kit (BD Pharmingen) according to the manufacturer's protocol. The stained cells were analyzed using flow cytometry (FACScalibur, Becton Dickinson, Rutherford, NJ) to distinguish between viable (Annexin V-/PI-), early apoptotic (Annexin V+/PI-), late apoptotic (Annexin V+/PI+) or dead (Annexin V-/PI+) cells. The apoptotic rate was calculated as the percentage of early apoptotic cells plus the percentage of late apoptotic cells.

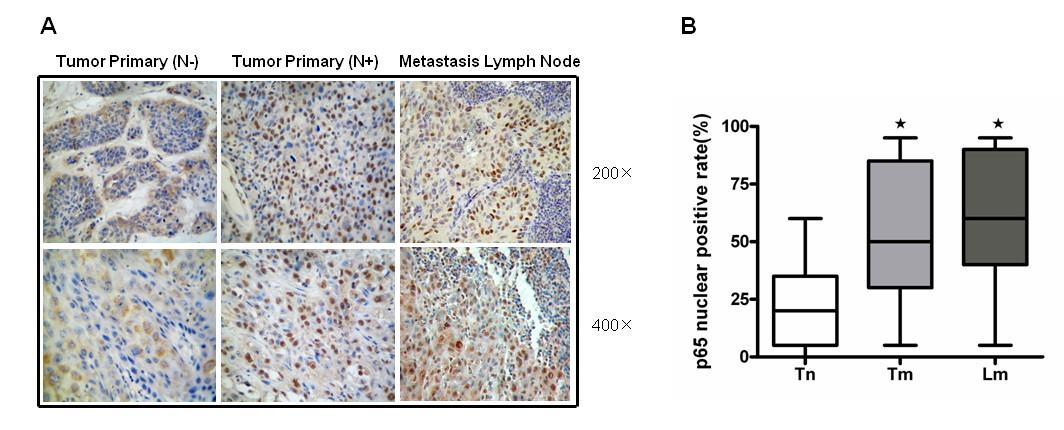

The expression of NF-κB p65 in primary SCCHN tumors and lymph node metastases was examined using immunohistochemistry. The clinical parameters of the patients are shown in Table 1. The tissue samples included 30 primary tumors with lymph node involvement (Tm), along with their lymph node contain metastases (Lm), and 30 primary tumors without lymph node involvement (Tn) specimens. No significant differences were found in age (t = 0.5600, p = 0.5776), gender (χ² = 1.763, p = 0.184), alcohol use (χ² = 0.287, p = 0.592), smoking habit (χ² = 2.052, p = 0.152) or tumor site (χ² = 2.400, p = 0.121) between the patients in the Tn group or the Tm/Lm groups (Table 2). As the translocation of p65 from the cytoplasm to the nucleus is required for NF-κB/relA signaling, the specimens were evaluated for nuclear p65 expression. As shown in Fig. 1a, p65 was markedly expressed in almost all of the SCCHN specimens. Positive nuclear staining was observed in 23% and 52% of primary tumors without lymph node involvement and primary tumors with lymph node involvement, respectively. Of the three groups, nuclear staining for p65 was most prevalent in lymph node contain metastases (61%) (Fig. 1b). The nuclear expression of NF-κB p65 was significantly different between the Tn, Tm and Lm groups (Wilcoxon rank-sum test; χ² = 37.489, df = 2, p = 0.001) (Fig. 1b). As half of the SCCHN samples were tongue squamous cell carcinoma, the statistic analysis was taken for squamous cell carcinoma in tongue and in other sites of head and neck individually. The similar results showed that the nuclear positive rates of NF-κB p65 in Lm and Tm groups were higher than Tn group (Wilcoxon rank-sum test; χ² = 14.573, df = 2, p = 0.001 in tongue group and χ² = 22.425, df = 2, p = 0.0001 in other site of head and neck group, respectively). These data demonstrate that NF-κB/relA activity can be correlated with SCCHN metastasis.

Bild vergrößern

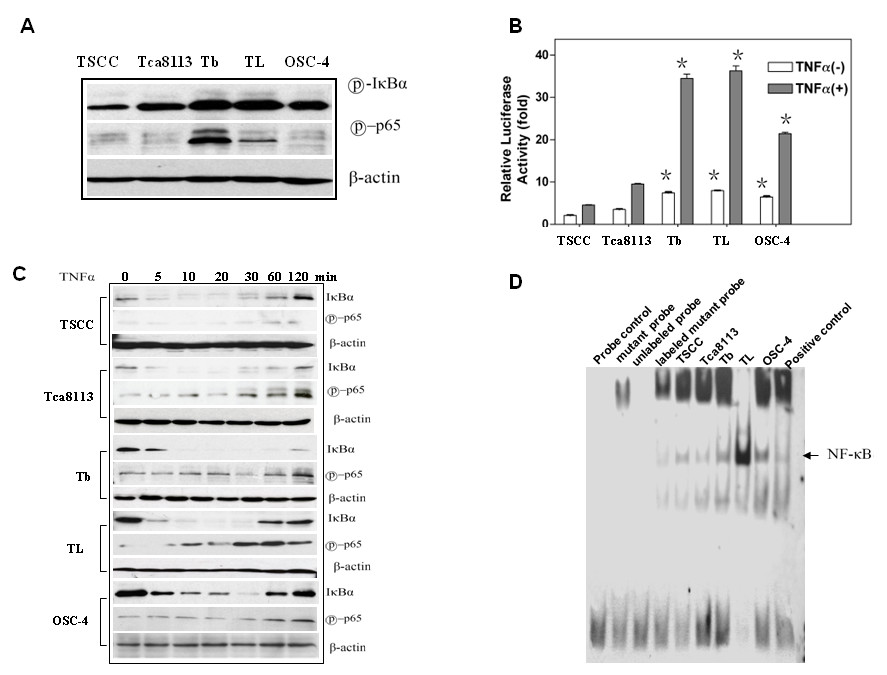

To determine whether constitutive NF-κB/relA activity was present in SCCHN cells, we used a western blot to determine the level of phospho-IκBα in a number of SCCHN cells lines. The level of phospho-IκBα was high in the highly metastatic cell lines (Tb, TL and OSC-4), and phospho-p65 was highly expressed in the Tb and TL cell lines (Fig. 2a). Next, we co-transfected a 2× NF-κB-Luc reporter and a pPenilla Renilla reporter into these five SCCHN cell lines and assayed luciferase activity. As shown in Fig. 2b, the basal NF-κB promoter activity was significantly higher in the metastatic cell lines (Tb, TL, and OSC-4). When the cells were treated with TNFα, NF-κB promoter activity was further increased in the highly metastatic cell lines. Moreover, as detected using a western blot, IκBα was degraded more quickly in the Tb and TL cell lines. The constitutive NF-κB activities were significantly increased by the stimulation of TNFα in the Tb and TL cell lines (Fig. 2c). To confirm the high constitutive NF-κB activity in the highly metastatic cell lines, an EMSA was performed using nuclear extracts. While all of the five SCCHN cell lines showed NF-κB DNA-binding activity (Fig. 2d), the DNA binding was significantly higher in the highly metastatic cells lines (Tb, TL and OSC-4) compared to the cells with lower metastatic potential (TSCC and Tca8113).

Bild vergrößern

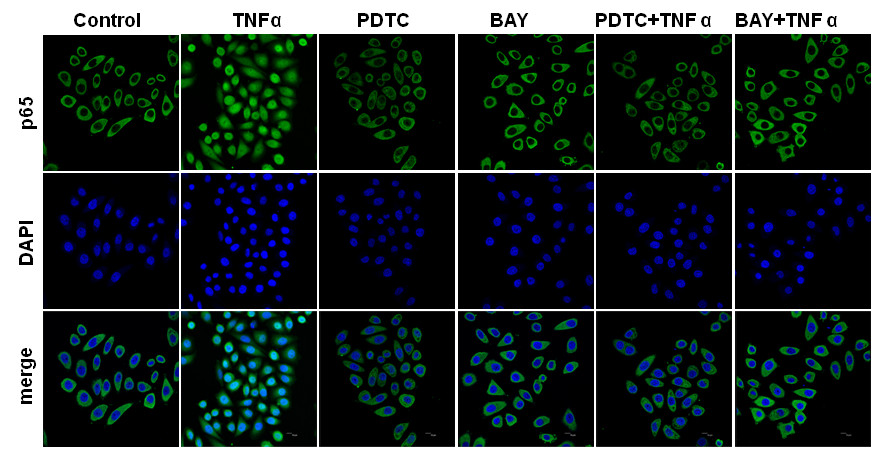

In order to use nuclear localization of p65 as a surrogate for NF-KB activity, the subcellular localization of NF-κB p65 was evaluated using immunofluorescence and confocal microscope. As shown in Fig. 3, the NF-κB activity was significantly higher in TL cells when treated with TNFα. TNFα promoted the rapid nuclear localization of p65. Whereas in PDTC- or BAY 11-7085-treated cells, TNFα stimulation could not promote the translocation of p65 from the cytoplasm to the nucleus.

Bild vergrößern

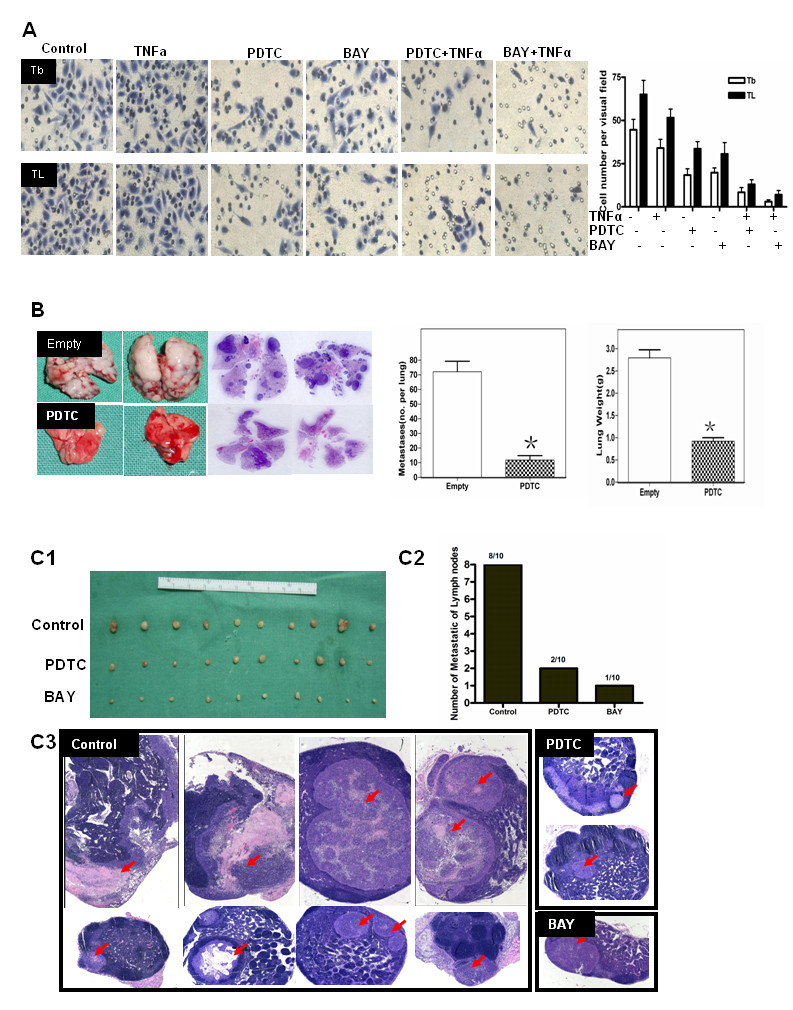

The effect of NF-κB activity on the migration of the highly metastatic SCCHN cell lines was evaluated using established an in vitro assay system. Tb and TL cell migration was inhibited 26.2% and 31.4%, respectively, when treated with PDTC and was inhibited 24.8% and 34.4%, respectively, when treated with BAY 11-7085 (Fig. 4a). Moreover, the migration of Tb cells was inhibited 36.2% and 41.6% when the cells were treated with either PDTC and TNFα or BAY 11-7085 and TNFα, respectively. TL cell migration was inhibited 52.0% and 58.0% following treatment with PDTC and TNFα or BAY 11-7085 and TNFα, respectively. Both PDTC and BAY 11-7085 produced a significant decrease in tumor cell migration (p = 0.001), and TNFα stimulation further decreased cell migration when the NF-κB pathway was inhibited (p < 0.05).

Bild vergrößern

To determine the effect of the NF-κB pathway on metastasis, Tb cells were injected into the lateral tail vein of mice, and these mice were treated with PDTC or with PBS (control) for two weeks. Six weeks after injection, both the PDTC-treated group and the control group developed metastases (Fig. 4b). Additionally, the Tb-PDTC group had significantly fewer (p = 0.0002) metastases (average number of 11.8 metastases per lung) than the control group (average number of 72.2 metastases per lung; Fig. 4b, left and middle panels). Additionally, the mice injected with Tb cells and treated with PDTC to block NF-κB activity showed a two-fold decrease in lung weight (Fig. 4b, right panel; p = 0.0002).

To further characterize the effect of NF-κB activity of metastasis, TL cells were injected into the hibateral foot pads of mice. The mice were either treated with PBS (control) or treated with PDTC or BAY 11-7085 for two weeks. Nine weeks after injection, the number of lymph nodes containing metastases was counted by three pathologists (Fig. 4c). In the control group, eight lymph nodes were positive for lymph node metastases, whereas two of the lymph nodes in the PDTC group had metastases, and one lymph node in the BAY 11-7085 group contained a metastasis (Fig. 4c2). These results demonstrate that decreased NF-κB activity leads to suppression of tumor metastasis.

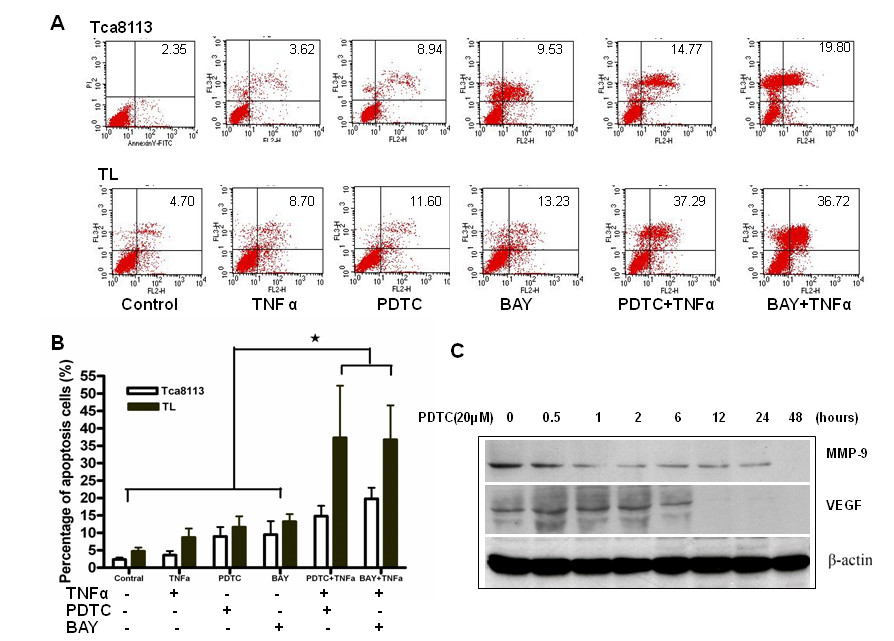

To determine whether inhibition of NF-κB by PDTC or BAY 11-7085 increases the percentage of apoptotic cells and renders metastatic cancer cells sensitive to TNFα-mediated killing, apoptosis was measured using Annexin V staining following treatment with PDTC, BAY 11-7085 and/or TNFα (Fig. 5a). The rate of apoptosis in Tca8113 cells treated with PDTC or BAY 11-7085 reached to 6.59% and 7.18% from 2.62%, respectively, and the rate reached to 6.90% and 8.53% from 5.83% in TL cells treated with PDTC or BAY 11-7085, respectively (Fig. 5b). The percentage of apoptotic TL cells following treatment with PDTC or BAY 11-7085 was not significantly greater than either the control group or the TNFα treated group (p > 0.05). However, Tca8113 and TL cells treated with PDTC or BAY 11-7085 were more sensitive to TNFα-mediated killing (p = 0.0003) compared to the cells treated with TNFα alone. Significant differences in the apoptotic rate were found between the cells with lower metastatic potential (Tca8113) and the cells with higher metastatic potential (TL) after treatment with PDTC or BAY 11-7085 (p = 0.0120).

Bild vergrößern

Genes, such as vascular endothelial growth factor (VEGF) and matrix metalloproteinase-9 (MMP9), have been reported to be linked to tumor metastasis, and NF-κB binding sites have been identified in their promoters. Therefore, we examined whether PDTC treatment down-regulated VEGF and MMP9 expression in metastatic SCCHN cells. Tb cells were treated with PDTC for the indicated times and whole-cell extracts were prepared and analyzed using a western blot. PDTC treatment inhibited VEGF and MMP9 expression in a time-dependent manner (Fig. 5c). Similar results were found in TL cells treated with PDTC or BAY 11-7085 (data not shown).
