Comparing machine learning algorithms for predicting COVID-19 mortality

This stage contained the identification of the proposed features in predicting mortalities in the patients with COVID-19. At the first step, the most relevant clinical features were determined using an extensive literature review in scientific databases. Then, a questionnaire was designed through derived features (predictors) that belonged to the patient’s demographics, risk factors, clinical manifestation, laboratory tests, and therapeutic classes. The content validity of the questionnaire was assessed by an expert panel including two infectious diseases specialists and two virologists. In addition, a test–retest (at 10-day interval) was done to evaluate the reliability of the questionnaire. Finally, the proposed clinical features were validated using a two-round Delphi survey by a group of multidisciplinary expert team, including five infectious diseases specialists, three epidemiologists, and two virologists. The experts were asked to review the initial list of the parameters to score each item according to their importance in predicting COVID-19 mortality based on a 5-point Likert scale, ranging from 1 to 5, where 1 indicates “not important” and 5 indicates “highly important”. Only the features with the average score of 3.75 (70%) and higher were allowed in the study.

After performing a literature review coupled with a two-round Delphi survey, based on finalized feature set, data from laboratory-confirmed COVID-19 hospitalized patients (n = 1500) were extracted from a database registry in Ayatollah Taleghani Hospital, affiliated to Abadan University of Medical Sciences, which is a central hospital for COVID-19 diagnosis and treatment in the southwest of Khuzestan Province, Iran. The time frame of this study was from February 9, 2020, to December 20, 2020. During this period, 10,800 suspected cases with COVID-19 were referred to Ayatollah Taleghani Hospital’s Ambulatory and Emergency Departments. Of those, 2,394 cases were introduced as confirmed COVID-19 by real-time polymerase chain reaction (RT-PCR) test. Only the hospitalized patients who were diagnosed with positive RT-PCR tests were included in our study (see Fig. 1). All the data were checked by two health information management experts (MSH and HK-A) and a third researcher (KHM) adjudicated any variance in interpretation between the two primary reviewers. For different interpretations and missing data, we contacted the physicians who completed the form and the patient or their family members to review and supplement data. Finally, all the collected data were entered into an Excel file.

The outcome variable was deceased representing in-hospital mortality with COVID-19 and had a twofold distribution: “Yes” if the patient is deceased or “No” otherwise.

Patients who were lower than 18 years of age were excluded. These patients should be included in the scope of pediatric exploration. Patients discharged from the emergency department were excluded because their outcomes were unknown. We obtained de-identified data from 1626 patients in the Abadan CoV registry database. 116 incomplete case records which had many missing data (more than 70%) were excluded from the investigation. Also, the remaining missing values were imputed with the mean or mode of each variable. Noisy and abnormal values, errors, duplicates, and meaningless data were checked by two health information management (HIM) experts (MSH and HKH) in collaboration with two infectious diseases and hematology specialists. For different interpretations about data preprocessing, we contacted the corresponding physicians. The final sample size used in this analysis was 1,500 hospitalized patients who were over 18 years old. For detailed exclusions, a schematic of all the study inclusion criteria is shown in Fig. 1.

One of the key barriers to ML algorithms is the imbalanced data problem. This occurs when the classes are not categorized equally. In the selected dataset, the amount of data in outcome classes is significantly imbalanced and it contains more samples related to the alive class (1386 cases), while the death class is much smaller (only 114 cases). Accordingly, the trained models are often delivering prejudiced results towards overriding class and the ML models are much more possible to categorize new observations to the majority class. In this study, to handle the class imbalance, the synthetic minority over-sampling technique (SMOTE) method was used in the imbalanced-learn toolbox to balance the dataset (https://​imbalanced-learn.​org/​stable/​).

Feature selection is a technique commonly used in forecasting, pattern recognition, and classification modeling to lessen the dimensions and intricacy of the dataset by discarding irrelevant and redundant features. In this study, feature selection was performed to set up a model and order the input features according to their importance concerning the specific problem or target classes [20, 24]. Many feature selection methods have been suggested to select suitable features for predictive models, including Information GainRatio Attribute evaluation (GA), Forward Elimination, Backward Elimination, and One Rule Attribute Evaluation (ORAE) [25]. In this study, the GA method in Waikato Environment for Knowledge Analysis (Weka) (v3.9.2) software was used to select the features. This method measures the importance of features with respect to target class on the basis of gain ratio [25, 26]. It can be calculated by the following formula,where Class = Binary outcome (DN/absence of nephropathy), features = Evaluated parameter (BP, GFR, HbA1c, UACR, etc.), also seen as risk factor.

The predictive classifier models were developed for accurately predicting COVID-19 mortality. In the modeling stage, to select the appropriate ML algorithms, the related studies in this field were reviewed [10, 11, 15, 18, 23, 27‐31] along with considering the type and quality of the selected dataset. To construct the mortality prediction model, we applied seven ML algorithms including the J48 decision tree, random forest (RF), k-nearest neighborhood (k-NN), multi-layer perceptron (MLP), Naïve Bayes (NB), eXtreme gradient boosting (XGBoost), and logistic regression (LR). The SPSS software (version 23) was used to analyze the data. Finally, the algorithms were implemented using Weka (v3.9.2) software to analyze and calculate the curves and criteria, and draw the confusion.

We apply WEKA’s EXPLORER module to determine the optimal hyperparameters for all models used. The hyperparameters selected were those that attained the best performance values. A tenfold cross-validation process system was used for evaluating the performance and general error of whole classification models. By using WEKA’s EXPERIMENTER module, running all models ten times, and using repeated tenfold cross-validation, to ease comparing of the predictive performance based on the various evaluation measures that are available in WEKA [32, 33]. In tenfold cross-validation process, the original samples are randomly partitioned into 10 sub-samples of about equal size. One of the 10 sub-samples was applied as the validation dataset for testing the models, and the remaining 9 sub-samples were applied as training datasets. The cross-validation method was then repeated 10 times with one of the 10 sub-samples applied sequentially for each validation. Finally, the validation results from ten experimental models are then mixed to render the performance metrics (sensitivity, specificity, accuracy, precision, and ROC) derived from testing only [34, 35]. In the other hand, the results of the performance metrics are computed as an average of these ten runs [36‐39]. In general, stratified tenfold cross-validation is proposed for estimation accuracy as a result of its relatively low-level bias and variety.

It should be noted that the ten-fold cross-validation is a widely applied and preferred validation technique in machine learning and data mining due to differing from the conventional split instance method. This method assisted to reduce the deviation in prediction error; increases the use of data for both training and validation, without overfitting or overlap between the test and validation data; and protectors against experiment theory proposed by arbitrarily split data [40].

Model performance evaluation is a fundamental part of building an effective ML model. The predictive models were evaluated using confusion matrix performance metrics (Table 1). In order to evaluate the predictive models, we applied some evaluation measures metrics including accuracy, specificity, precision, sensitivity, and receiver operating characteristic (ROC) chart criteria to measure the model’s performance. Finally, all these evaluation criteria were compared in terms of the performance to get the best model for predicting the COVID-19 moralities (Table 2).

This study was approved by Ethical Committee Board, Abadan University of Medical Sciences (code: IR.ABADANUMS.REC.1400.008). In order to protect the privacy and confidentiality of the patients, we concealed the unique identifying information of all the patients in the process of data collection.

After conducting a comprehensive literature review along with a two-round Delphi survey, 54 clinical features were identified as probable predictors for determining the mortality risk of COVID-19 patients. In the next step, the degree of each factor in predicting COVID-19 hospitalized mortality based on GA method evaluation was calculated. Based on this method of 54 clinical features that remained until this step, 16 features were excluded from the study and 38 predictors were chosen as the input for the ML algorithms (Table 3). These features were divided into six categories, including demographics, risk factors, clinical manifestations, laboratory tests, and therapeutic plans.

In the selected feature list, dyspnea and platelet count with the correlation coefficient of 0.5532 and 0.0210, respectively, gained the highest and lowest importance for predicting the COVID-19 mortality (Table 4).

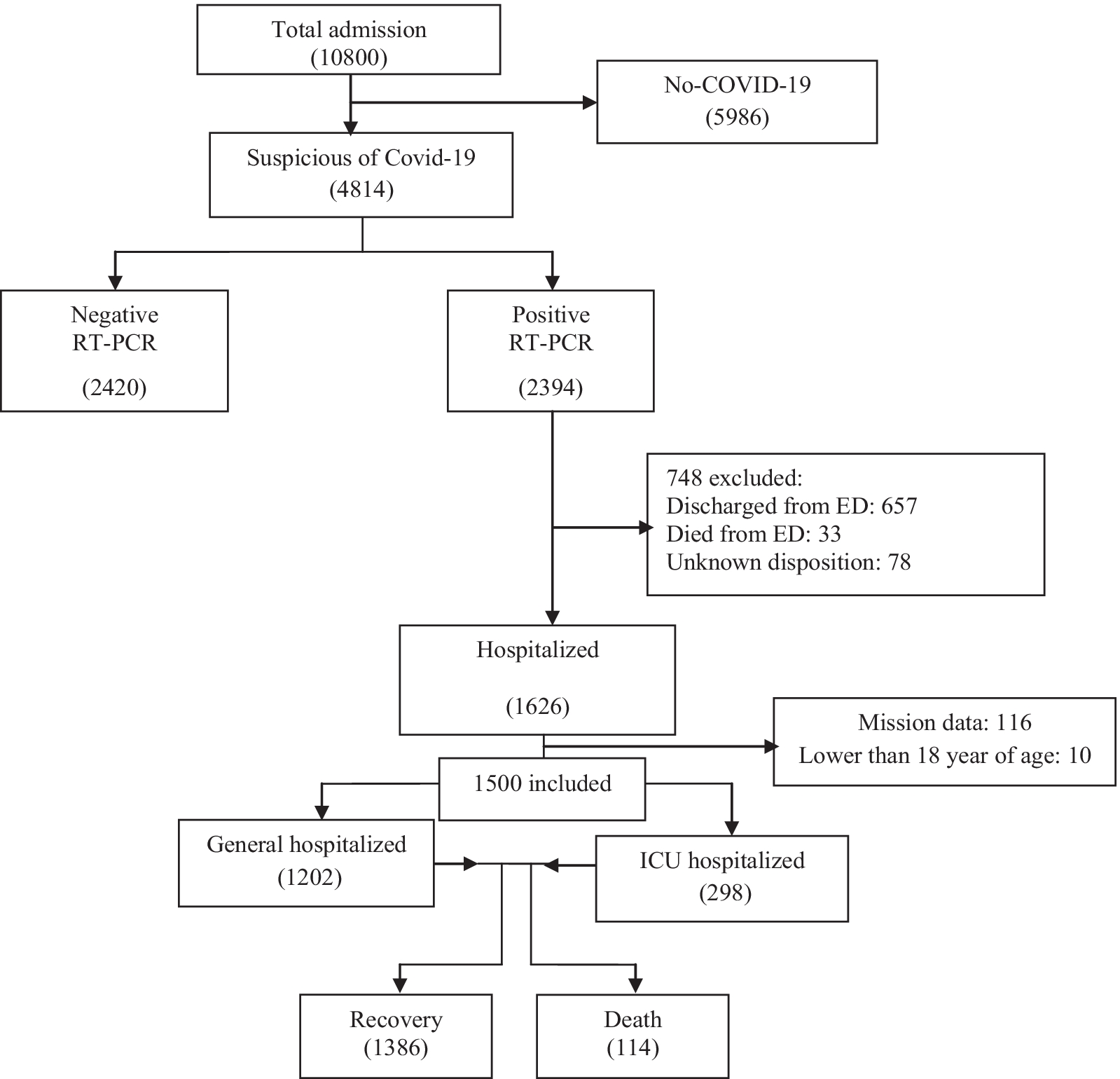

We obtained data from 1626 patients in the Abadan CoV registry database. One hundred and sixteen incomplete records which had many missing data (more than 70%) were excluded from the analysis. The final sample size used in this analysis was 1500 adult patients (over 18 years old) who were hospitalized in the hospital. For the detailed exclusions, see Fig. 1. It should be noted that Fig. 1 was designed and created by the authors according to the steps taken to select the patients.

After applying the exclusion criteria and quantitative analysis of case records, the number of 1500 hospitalized COVID-19 patients met eligibility. 836 patients (55.74%) were male and 664 (44.26%) were women, and the median age of the participants was 57.25 years old (interquartile 18–100). In total, 298 (19.87%) were hospitalized in ICU and 1202 (80.13%) were in general wards. Of these, 1386 (92.4%) recovered and 114 (7.6%) deceased (Table 5).

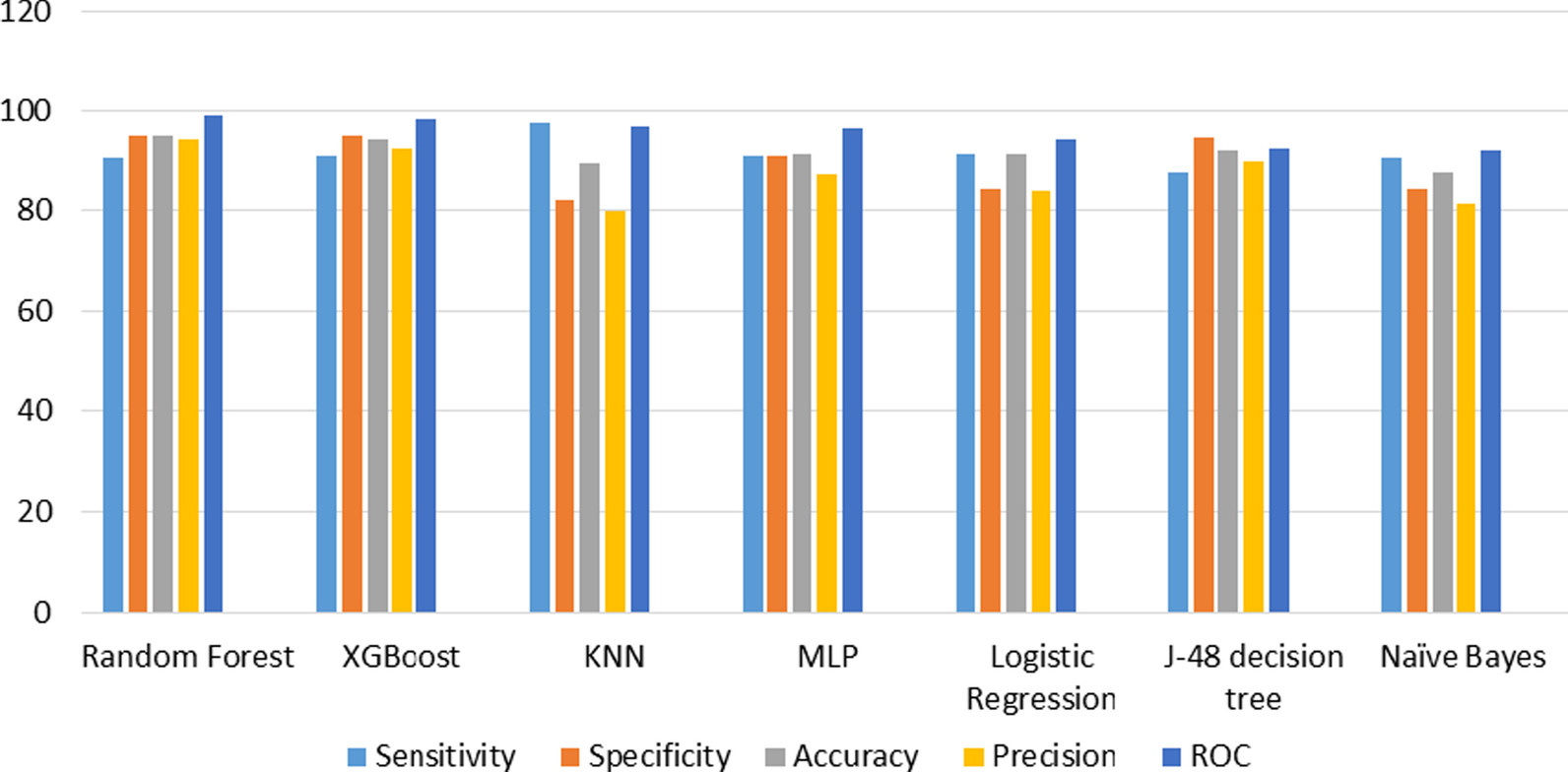

After selecting the best feature subset, we used various ML algorithms to build a predictive model. In this research, seven ML algorithms, including J48, MLP, XGBoost, RL, k-NN, RF, and NB, were trained for developing COVID-19 mortality prediction models. Then, the performance of each developed model was evaluated using sensitivity, specificity, accuracy, precision, and ROC of the performance metrics (Table 6). As shown in this table, the RF algorithm reaching 90.70% sensitivity, 95.10% specificity, 95.03% accuracy, 94.23% precision, and ROC value of 99.02% yielded better capability in predicting COVID-19 in-hospital mortality than other ML algorithms. Figure 2 depicted the performance metrics of the selected ML algorithms.

The results of comparing the area under the ROC curve for the selected ML algorithms are shown in Fig. 3.

Also, based on the ROC, the Naïve Bayes algorithm attained the worst performance with the sensitivity of 90.44%, specificity of 84.31%, accuracy of 87.47%, precision of 81.32%, and ROC of 92.05%.

Our work had several limitations that must be considered. First, this was a retrospective study design with the documented data that were irregular or imbalanced; thus, we balanced them by eliminating noise and inadequate records as much as possible from the dataset. To solve the imbalanced dataset problem, in which the number of records related to the dead class was significantly lower than the recovery or alive (144 vs 1386), different criteria were considered to measure the performance of each ML algorithm. Also, by using the SMOTE, the bias was minimized via class balancing. Another limitation was that it was conducted in a single-center registry database, which may limit the generalizability of the developed models. However, the ABADANUMS CoV registry is a database collected at a designated hospital in Abadan city that delivers special healthcare services to COVID-19 patients. Nonetheless, we will use multi-center data to perform the external validation of the proposed model for enhancing the widespread prediction. Other features concerning the lung CT or radiology images could have been included. However, consistent with the purpose of the current research, considering only the routine clinical features of the patients while being admitted would suffice. Although the constraint of using data at admission inspires the usage of the model in patient triage, events that happened during a patient hospitalization period may drive their clinical course ahead of the previous likelihood, which cannot be apprehended by routine admission features. We believed a real-time or incessantly updating modeling method would be better matched for this as a future direction. Furthermore, we do not have information about the time span from symptom beginning to admission, which might have had an influence on the features that we sampled on hospital admission. Thus, the dynamic variations of some significant features must be followed up to better and timely recognize patients at higher risks of poor outcomes.

Finally, in the present study, patients who were less than 18 years of age and patients discharged from the emergency department were excluded from the study. If these people were included in the study, different results might have been obtained.
