Respiratory effects of lung recruitment maneuvers depend on the recruitment-to-inflation ratio in patients with COVID-19-related acute respiratory distress syndrome

Acute respiratory distress syndrome (ARDS) is characterized by increased pulmonary vascular permeability, alveolar edema, and loss of aerated lung. Severe hypoxemia and impaired pulmonary compliance are the main clinical features of ARDS. We estimate that prevalence of ARDS (according to the 2012 Berlin definition) is 10% in the ICU and 40% among ventilated patients [1, 2]. Over the last few decades, optimized ventilator management (with a reduction in tidal volume), the use of a higher positive end-expiratory pressure (PEEP), and prone positioning have enabled a reduction in the mortality rate [3‐8]. In addition to PEEP, lung recruitment maneuvers (LRMs) might beneficial in routine practice; the transpulmonary pressure is transiently increased, in order to fully recruit collapsed alveoli and improve oxygenation [9]. In ARDS, the response to positive pressure (PEEP or LRM) is hard to predict because it depends on lung recruitability and varies considerably from one patient to another. Moreover, increasing the PEEP or performing an LRM can be harmful—especially in patients with low recruitability. Indeed, applying an excessive PEEP may induce lung overdistention and thus left and/or right cardiac dysfunction. Therefore, predicting the response and tolerance to positive pressure is a major challenge for clinicians. There are no simple, accurate tools for the clinical assessment of lung recruitability. Computed tomography, ultrasound and electrical impedance tomography are promising but are complex to apply at the bedside. Recently, a single-breath maneuver with measurement of the recruitment-to-inflation (R/I) ratio has been developed to (i) evaluate the potential for lung recruitment and (ii) identify patients who could benefit from the application of positive pressure [10]. Several studies used the R/I ratio to assess lung recruitability in COVID-19-related ARDS [11‐13]. Results suggested a high lung recruitability, with a great variability between patients and studies. We supposed that LRMs lead to different effects on respiratory mechanisms, gas exchange and hemodynamics, depending on the potential for lung recruitment.

The objective of the present study was to determine whether or not the R/I ratio could differentiate between patients according to the change in lung mechanics during the LRM.

Study population: Patients undergoing mechanical ventilation for COVID-19-related ARDS in the intensive care department at Amiens University Medical Center (Amiens, France) between March 1st and November 30th, 2020. The study was approved by the local institutional review board (CPP Nord-Ouest II, Amiens, France; reference: CEERNI 110). All patients met the Berlin definition for ARDS and were positive for SARS-CoV-2 RNA in a real-time PCR assay of a nasopharyngeal swab. We excluded patients with an arterial oxygen partial pressure (P_aO₂) to fractional inspired oxygen (F_iO₂) ratio above 150 mmHg and those with pneumothorax, pneumomediastinum, or hemodynamic instability (defined as an increase in vasoactive drug levels in the previous six hours).

Ventilation strategies: All patients were ventilated in volume-control mode using V500 (Drager, Lübeck, Germany) or Servo i (Maquet, Solna, Sweden) systems. Sedation and analgesia were achieved with continuous intravenous infusion of midazolam or propofol. Neuromuscular blockade was obtained through the continuous intravenous infusion of cisatracurium. The tidal volume was set to 6 mL per kilogram of predicted body weight, and the pressure plateau was kept below 28–30 cmH₂O. The F_iO₂ level was adjusted to achieve peripheral oxygen saturation (S_pO₂) of 88–92%.

Recruitment-to-inflation ratio: Given that an airway opening pressure (AOP) can prompt the misinterpretation of respiratory mechanics data, we detected and measured this variable during a prolonged inhalation with a 5 L/min inspiratory flow. Next, we measured the recruitment-to-inflation (R/I) ratio, as described by Chen et al. [10]. During a single breath, we abruptly decreased the PEEP (from 15 cmH₂O or the AOP + 10 cmH₂O to 5 cmH₂O or the AOP) and measured the induced change in end-expiratory lung volumes (ΔEELV). We calculated the recruited volume (ΔV_rec) as the difference between the measured ΔEELV and the predicted ΔEELV (i.e., the compliance at low PEEP multiplied by the change in PEEP). The ΔV_rec divided by the change in PEEP gave the recruited lung’s compliance (C_rec). The R/I ratio was defined as the ratio between the C_rec and the respiratory system compliance (C_rs) at low PEEP. The higher the R/I ratio, the more the compliant the recruited lung is, and therefore, the greater the volume recruited compared to the hyperinflated volume. Conversely, the lower the R/I ratio, the higher the risk of overdistention without benefit in terms of recruitment during PEEP increase. High recruitability was defined as an R/I ratio above the median for the population [10].

Lung recruitment protocol: We performed a stepwise LRM in pressure-control mode and with a driving pressure of 15 cmH₂O (see in the Additional file 1: Fig. E1). Starting at 20 cmH₂O, the PEEP was increased in 5 cmH₂O steps to 40 cmH₂O, with each step lasting 2 min. The safety endpoints for interruption of the LRM were a S_pO₂ under 88% or a decrease of more than 20% in the heart rate or mean arterial pressure. The LRM was immediately followed by a decremental PEEP titration (2 cmH₂O every 2 min) from 25 cmH₂O until the PEEP level chosen by the clinician before the LRM. Data were collected just before and then after the LRM, at the same PEEP level. Another LRM was then performed, and the PEEP was reset to the optimal level (i.e., a lower PEEP for the highest S_pO₂). To avoid interference with the immediate effect of LRM, the P_aO₂/F_iO₂ ratio and the ventilator ratio (VR) were measured in the 3 h following the LRM, at the optimal PEEP level. The esophageal pressure measurement and VR calculation are described in the Additional file 1 (see Method E1 and E2).

Statistical analysis: Data were quoted as the median [interquartile range (IQR)] or the frequency (percentage), as appropriate. For comparisons of categorical variables, we used a chi-square test or Fisher’s exact test, as appropriate. For normally and non-normally distributed continuous variables, we used Student’s t test and the Mann–Whitney test, respectively. The correlation between the R/I ratio and the change in C_rs was assessed with Spearman’s rho. All statistical analyses were performed using GraphPad Prism software (version 8.0.0, GraphPad Software, San Diego, CA, USA). The threshold for statistical significance was set to p < 0.05.

Between March and December 2020, a total of 41 patients with COVID-19-related ARDS met the inclusion criteria (see Additional file 1: Fig. E2). Eleven patients were excluded because of a P_aO₂/F_iO₂ ratio above 150 (n = 9), or pneumodiastinum (n = 2). Our final analysis therefore covered 30 patients, whose main characteristics are summarized in Table 1. The median [IQR] R/I ratio was 0.62 [0.42–0.83]. Details of LRM tolerability are given in the Additional file 1 (see Table E1).

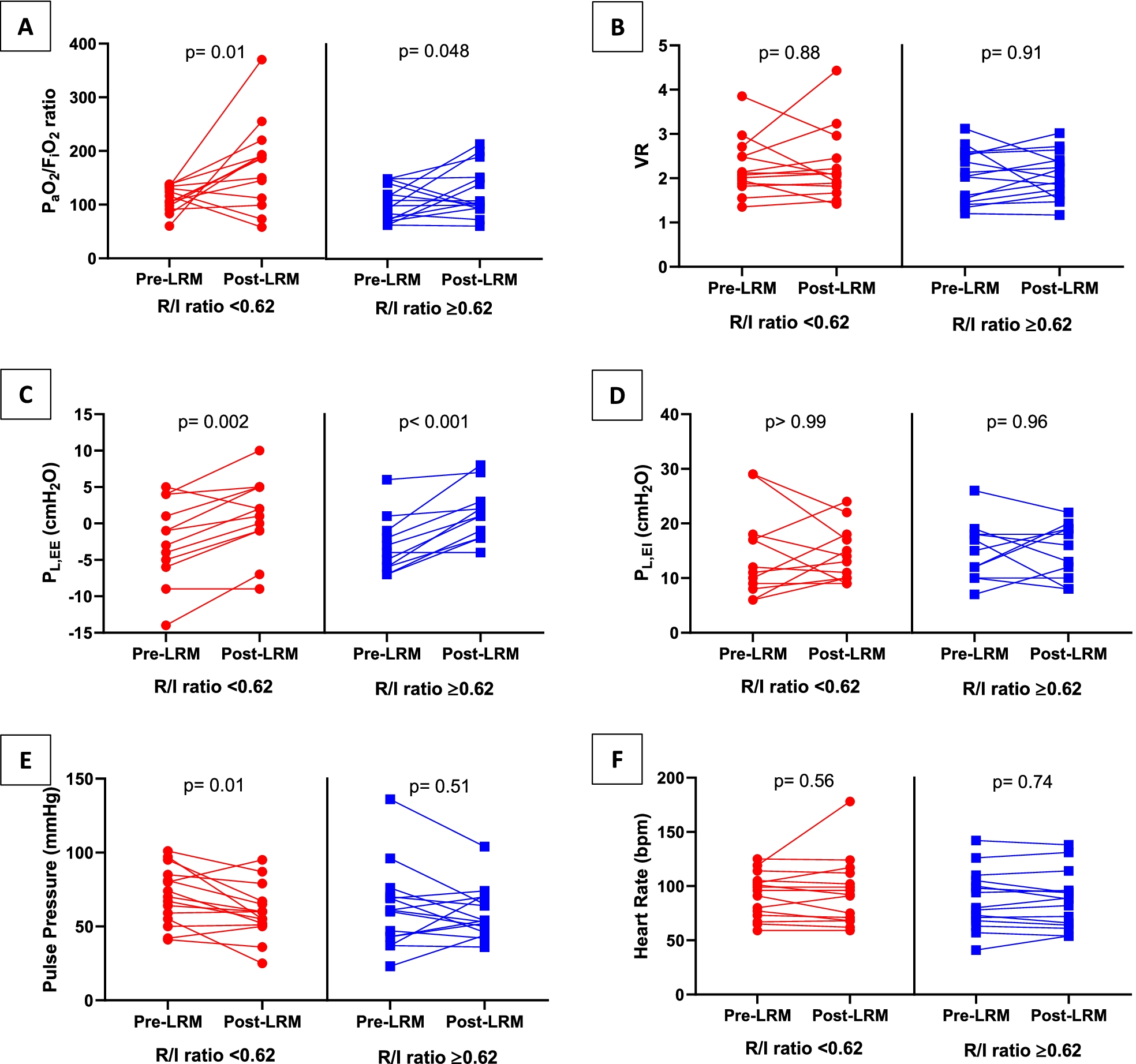

We conducted a physiology-based study of gas exchanges, lung mechanics, and hemodynamic status. We observed a significant increase in the P_aO₂/F_iO₂ ratio during the LRM in patients with low lung recruitability and in those with high lung recruitability (especially when we focused on patients with positive P_L,EE after LRM, see Table E2). However, the mechanisms behind this improvement in oxygenation depend on each patient’s potential for alveolar recruitment, as measured by the R/I ratio.

The severe impairment of oxygenation in ARDS is caused by a marked decrease in aerated lung, which leads to ventilation-perfusion mismatches and an increase in the shunt fraction. Mechanical ventilation with sufficient PEEP is intended to recruit alveoli and prevent their collapse. Furthermore, LRMs are associated with better oxygenation and without influencing the mortality rate [14‐17]. LRMs promote alveolar recruitment by transiently increasing the transpulmonary pressure and reopening non-aerated or poorly aerated alveolar units [18]. Due to lung heterogeneity in ARDS, the LRM can sometimes be associated with hyperinflation of lung parts that are already open (i.e., the “baby lung”) and hemodynamic instability [14]. In 2017, the multicenter ART trial randomized 1010 patients with moderate-to-severe ARDS and found a higher mortality rate in those exposed to LRMs [9]. Consequently, the risk/benefit ratio of LRMs in ARDS is still subject to debate; the latest guidelines suggest that LRMs should be considered for selected patients but do not provide further details [19‐21]. Hence, there is a need to identify factors that predict a response to LRMs in patients with ARDS. The severity of ARDS (according to the P_aO₂/F_iO₂) or the type (pulmonary vs. non-pulmonary) fails to identify LRM responders [9, 22]. Likewise, the LIVE study failed to show a benefit of personalized ventilation and LRMs as a function of the lung morphology on a CT scan (diffuse vs. focal) [23]. The R/I ratio is a new bedside tool that might help to distinguish between patients with low and high lung recruitment potentials [10]. The ratio expresses the relationship between the compliances of recruited lung and ventilated lung at low PEEP; the higher the R/I ratio, the greater the recruited volume compared to the overdistended volume. Conversely, a low R/I ratio is associated with a greater risk of hyperinflation and a lack of benefit in terms of recruitment during the PEEP increase. In our study, the performance of R/I ratio to predict increase in C_rs after LRM was promising. More importantly, increase in C_rs was predictable in patients with R/I ratio above 0.8 (25% of the study population). These very selected patients with very high lung recruitability based on R/I ratio (> 0.8) might benefit from LRM. Altogether, these results support an individual used of LRM based on R/I ratio and a confirmation in larger studies is needed.

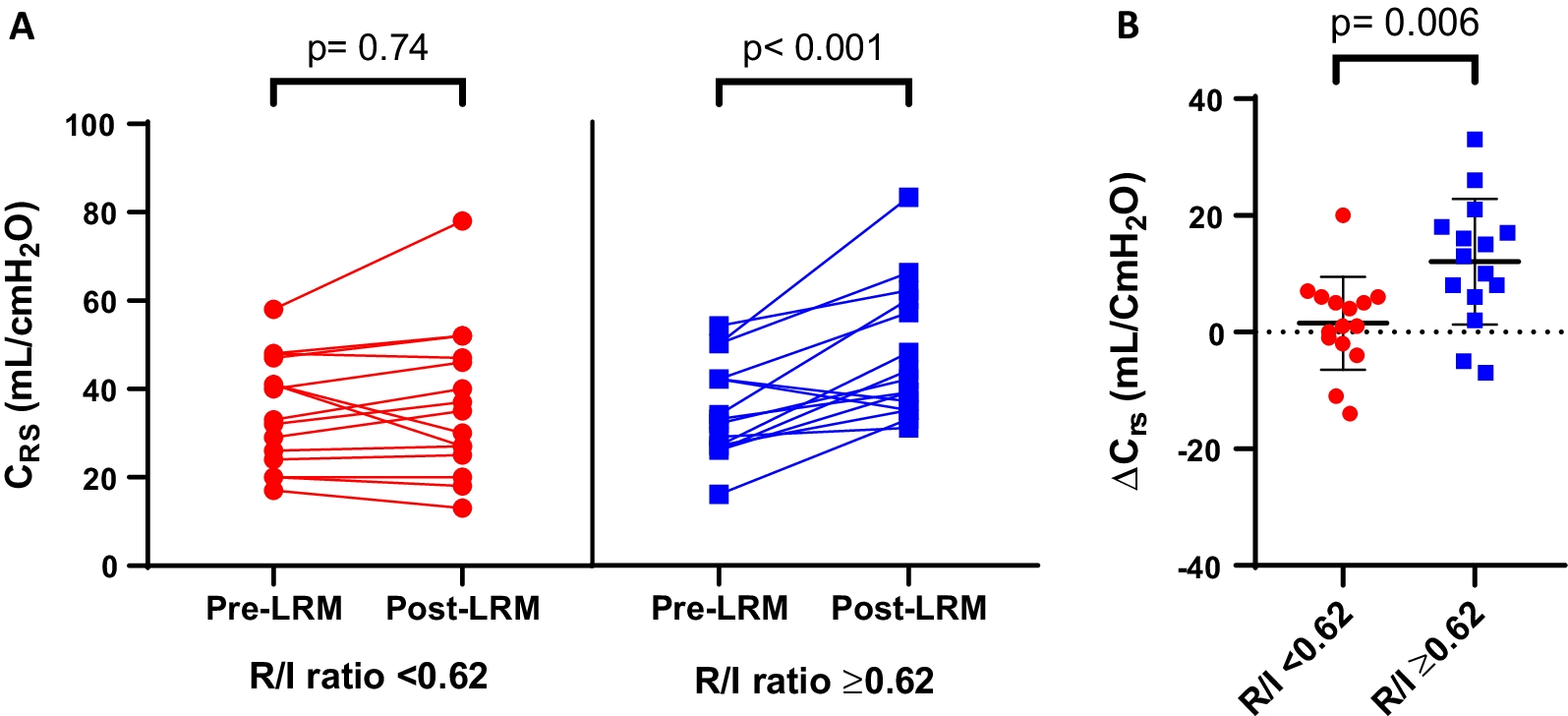

In patients with high lung recruitability, we observed an increase in oxygenation due to a significant increase in C_rs. We also observed a significant increase in the P_L,EE. Only four patients with high recruitability still had a negative P_L,EE (a marker of derecruitment in dependent zones) after the LRM. Taken as a whole, these results indicate a decrease in non-aerated lung tissue in these patients, which in turn decreased the intrapulmonary shunt (Q_s/Q_t) [24]. In patients with low lung recruitability, the increase in P_aO₂/F_iO₂ was not associated with a significative increase in C_rs. Conversely, the LRM induced a decrease in C_rs in 5 (33%) patients with low lung recruitability. However, we found a significant decrease in pulse pressure—a surrogate of cardiac output. Thus, the increase in oxygenation might be related to a reduction in Q_s/Q_t without an increase in aerated lung tissue [19]. Interestingly, we did not find any signs of overdistention after the LRM because (i) none of the patients had a P_L,EI above 25 cmH₂O, and (ii) the VR (a surrogate marker of dead space) did not change significantly with the LRM. However, the negative cardiovascular impact of LRMs had already been reported—even in the absence of alveolar hyperinflation. By modifying the lung volume and intrathoracic pressure, LRMs decrease venous return (especially in cases with concomitant hypovolemia) and right ventricular (RV) preload and increase the RV afterload. Consequently, the left ventricular preload is reduced, which in turn decreases the cardiac output [25, 26]. Hypotension requiring increased vasopressor use during the procedure occurred in 13% of the patients in the PHARLAP study, while severe hypotension leading to the interruption of LRM occurred in 11% of patients in the ART trial [9, 22]. We can therefore assume that the increase in oxygenation observed in these patients was explained (at least in part) by a reduction in cardiac output and thus a decrease in Q_s/Q_t [24, 27].

PEEP-induced changes in lung aeration as a function of the R/I ratio have not been extensively studied. Our group has used transesophageal echography to demonstrate the significant re-aeration of the lower lobes (where consolidations predominate) in high recruiters only [28]. This is consistent with Stevic et al.’s transthoracic echography study of the lung ultrasound (LUS) aeration score [11]. The LUS aeration score for posterior (dependent) lung regions was greater in high recruiters than in low recruiters. In contrast, there was no intergroup difference in the LUS aeration score for anterior (non-dependent) lung regions. Interestingly, the R/I ratio is also correlated with the response to a move to the prone position—another established method for lung recruitment. Cour et al. found a strong, significant correlation between the R/I ratio and the change in C_rs during a move from the supine position to the prone position [12]. This response depended on the R/I ratio, as only high recruiters showed a significant increase in C_rs, which persisted after repositioning in the supine position.

Our study had several limitations. Firstly, we did not directly assess the effect of LRM on end-expiratory lung volume, cardiac output and intrapulmonary shunt; hence, we cannot confirm the suggested hypotheses. Secondly, various other LRM techniques have been described: sustained continuous positive airway pressure, extended sigh, and pressure-controlled ventilation with progressive increases in PEEP maintaining a pressure driving pressure. The LRMs’ effects might depend on the pressure level reached and/or the duration of exposure. The level of pressure needed to open atelectactic lung cannot be calculated precisely, and 40 cmH₂O might not suffice [29].

During an LRM, the mechanisms related to an increase in P_aO₂/F_iO₂ ratio depend on the potential for lung recruitment. Patients with high lung recruitability presented a significant increase in C_rs, indicating a gain in ventilated area. Patients with low lung recruitability presented a significant decrease in pulse pressure, suggesting a drop in cardiac output and therefore in intrapulmonary shunt. The R/I ratio (an easy-to-use bedside tool for assessing lung recruitability) might help clinicians to identify patients in whom an LRM will lead to an increase in C_rs. Further studies are needed to confirm our present findings.
