Erschienen in: European Journal of Trauma and Emergency Surgery 4/2021

Open Access 01.10.2020 | Review Article

Current treatment and outcomes of traumatic sternovertebral fractures: a systematic review

verfasst von: Dorine S. Klei, F. Cumhur Öner, Luke P. H. Leenen, Karlijn J. P. van Wessem

Erschienen in: European Journal of Trauma and Emergency Surgery | Ausgabe 4/2021

Abstract

Purpose

Combined sternal and spinal fractures are rare traumatic injuries with significant risk of spinal and thoracic wall instability. Controversy remains with regard to treatment strategies and the biomechanical need for sternal fixation to achieve spinal healing. The present study aimed to assess outcomes of sternovertebral fracture treatment.

Methods

A systematic review of literature on the treatment of traumatic sternovertebral fractures was conducted. Original studies published after 1990, reporting sternal and spinal healing or stability were included. Studies not reporting treatment outcomes were excluded.

Results

Six studies were included in this review, with a total study population of 98 patients: 2 case series, 3 case reports, and 1 retrospective cohort study. 10 per cent of sternal fractures showed displacement. Most spinal fractures were located in the thoracic spine and were AOSpine type A (51%), type B (35%), or type C (14%). 14 per cent of sternal fractures and 49% of spinal fractures were surgically treated. Sternal treatment failure occurred in 5% of patients and biomechanical spinal failure in 8%. There were no differences in treatment failure between conservative and operative treatment.

Conclusion

Literature on traumatic sternovertebral fracture treatment is sparse. Findings indicate that in most patients, sternal fixation is not required to achieve sternal and spinal stability. However, results of the current review should be cautiously interpreted, since most included studies were of poor quality.
Hinweise

Electronic supplementary material

The online version of this article (https://​doi.​org/​10.​1007/​s00068-020-01505-y) contains supplementary material, which is available to authorized users.

Background

Combined sternal and spinal fractures, also known as ‘sternovertebral’ fractures, are rare injuries with an estimated incidence of 0.64% in traffic victims [1] and 1% in trauma patients admitted to a level-1 trauma centre [2]. These injuries are primarily caused by a combination of direct impact and indirect flexion-compression or flexion-rotation forces, due to high deceleration in motor vehicle accidents [1, 37]. In literature, the thoracic spine is regarded as the preferential location for sternovertebral fractures [1, 4, 712]. However, concomitant cervical or lumbar spinal fractures with an incidence similar to or higher than thoracic spinal fractures are also reported [1, 2, 46, 1320]. Associated injuries markedly increase morbidity and mortality [1, 2, 57, 1214, 18, 19, 21, 22].
The relationship between spinal, sternal, and rib fractures is well-established. According to the four-column spine model, the thoracic cage, composed of sternum and ribs, acts as the crucial fourth column of mechanical support and stability for the thoracic spine [8, 23]. Sternovertebral fractures might therefore severely impair spinal and thoracic wall instability.
Few studies have addressed treatment methods and outcomes of sternovertebral fractures, and most had a small patient population; a retrospective cohort study conducted at our level-1 trauma centre is the largest study to date [2]. Uniform treatment strategies are lacking. Most sternal fractures are safely managed conservatively, but surgery might be indicated in case of (secondary) dislocation (≥ 1 sternal width), sternal instability or deformity, severe pain leading to respiratory insufficiency, and fracture non-union [2426]. Indications for spinal fixation are unstable fractures and fractures with associated spinal cord injury [27, 28]. However, in case of combined sternovertebral fractures, sternal fixation might biomechanically be crucial to achieve sternal and spinal fracture healing. Some authors argued that treatment depends on spinal fracture level [1] or that fixation of both sternal and spinal fractures is imperative for adequate spinal support [26]. Others postulated that spinal fixation alone is sufficient [2, 10].
In short, standardised treatment recommendations for sternovertebral fractures are lacking. The aim of the present study was to conduct a systematic review of literature and provide an overview of the outcomes of sternovertebral fracture treatment.

Methods

Academic search engines PubMed and Embase/MEDLINE were searched with the terms ‘sternum’, ‘spine’, ‘fracture’, ‘dislocation’, ‘injury’, ‘treatment’, and their respective synonyms, both as free entry terms and Mesh (PubMed) and Emtree (Embase/MEDLINE) terms (online Appendix A). The term ‘dislocation’ was added to our search terms to expand the scope of our literature search, since sternal and spinal dislocations generally concern fracture-dislocations. No filters or language restrictions were applied to the literature search.
Primary and secondary outcome parameters were formulated for the assessment of included articles (Table 1). Original studies published after 1990, consisting of adult patients with combined traumatic sternovertebral fractures, reporting at least one primary outcome parameter for both the sternal and spinal fractures, were included in this review. Studies that did not fulfil these inclusion criteria, studies for which no full-text was available, studies focusing on sternal fractures due to cardiopulmonary resuscitation, and review studies were excluded. Due to the limited available research, all study types were eligible for inclusion. Included studies were assessed for cross-references.
Table 1
Parameters for the assessment of included articles
Study characteristics

Publication year

Journal

Country

Study type

Study period

Number of included patients

Length of follow-up
Patient characteristics
General
Age

Gender

Injury mechanism

Associated injuries

Comorbidities

Sternal injury
Type of injury

Location

Dislocation

Spinal injury
Location

AOSpine-classification (A / B / C)

Neurological deficit
Treatment methods

Primary treatment (surgical or conservative)

Conservative treatment method (if applicable)
Treatment outcomes
Primary outcome parameters
Sternal treatment failure

Spinal treatment failure

Secondary outcome parameters
ICU admission

Pneumonia

Wound infection

Hospital length of stay
MS-joint manubriosternal joint, ICU intensive care unit
The quality of included studies was assessed using the MINORS quality assessment criteria, a validated methodological index for non-randomised studies [29]. In the MINORS-assessment, a score of 2 points is awarded for a reported and adequate criterion, 1 point for a reported but inadequate criterion, and 0 points for a non-reported criterion. For case series and case reports, only the eight criteria for non-comparative studies were used (with a maximum score of 16 points). For the retrospective cohort study, the four criteria for comparative studies were added (with a maximum score of 24 points). For quality assessment, appropriate endpoints for treatment outcome were defined as reported fracture healing (confirmed by radiographic analysis or directly seen at re-operation), report of a clinically healed fracture, or reported increase in spinal angulation or loss of vertebral height; primary outcome parameters had to be reported for all included patients. An appropriate follow-up period was defined as ≥ 3 months.
Finally, the parameters in Table 1 were extracted from the included studies. Treatment failure was defined as reoperation (after primary surgical treatment), operation secondary after conservative treatment, a surgical indication due to secondary dislocation or non-union, or unreported treatment outcomes. For spinal fractures, a distinction was made between technical treatment failure (malpositioned screws or pain because of osteosynthesis materials) and biomechanical failure. Unstable fractures were defined as AOSpine type B or type C fractures. Two authors (DK and KW) independently performed the literature search and quality assessment. In the event of disagreement, joint re-assessment of the relevant study resulted in final consensus.

Statistical analysis

Statistical analysis was performed using R Statistics (an open-source integrated development environment for statistical computing). Subgroup analysis was carried out for the four different treatment groups. Normality of continuous variables was assessed through Kernel density scores. For normal distributions, values were calculated as mean (range); for non-normal distributions, outcomes were expressed as median [interquartile range, IQR]; significant differences were determined with a one-way ANOVA or Kruskal–Wallis Rank Sum Test, respectively. For categorical variables, outcomes were calculated as number (percentage); because of small group sizes, significant differences were identified using Fisher’s exact test. A two-sided P value of < 0.05 was considered statistically significant.

Results

Search results

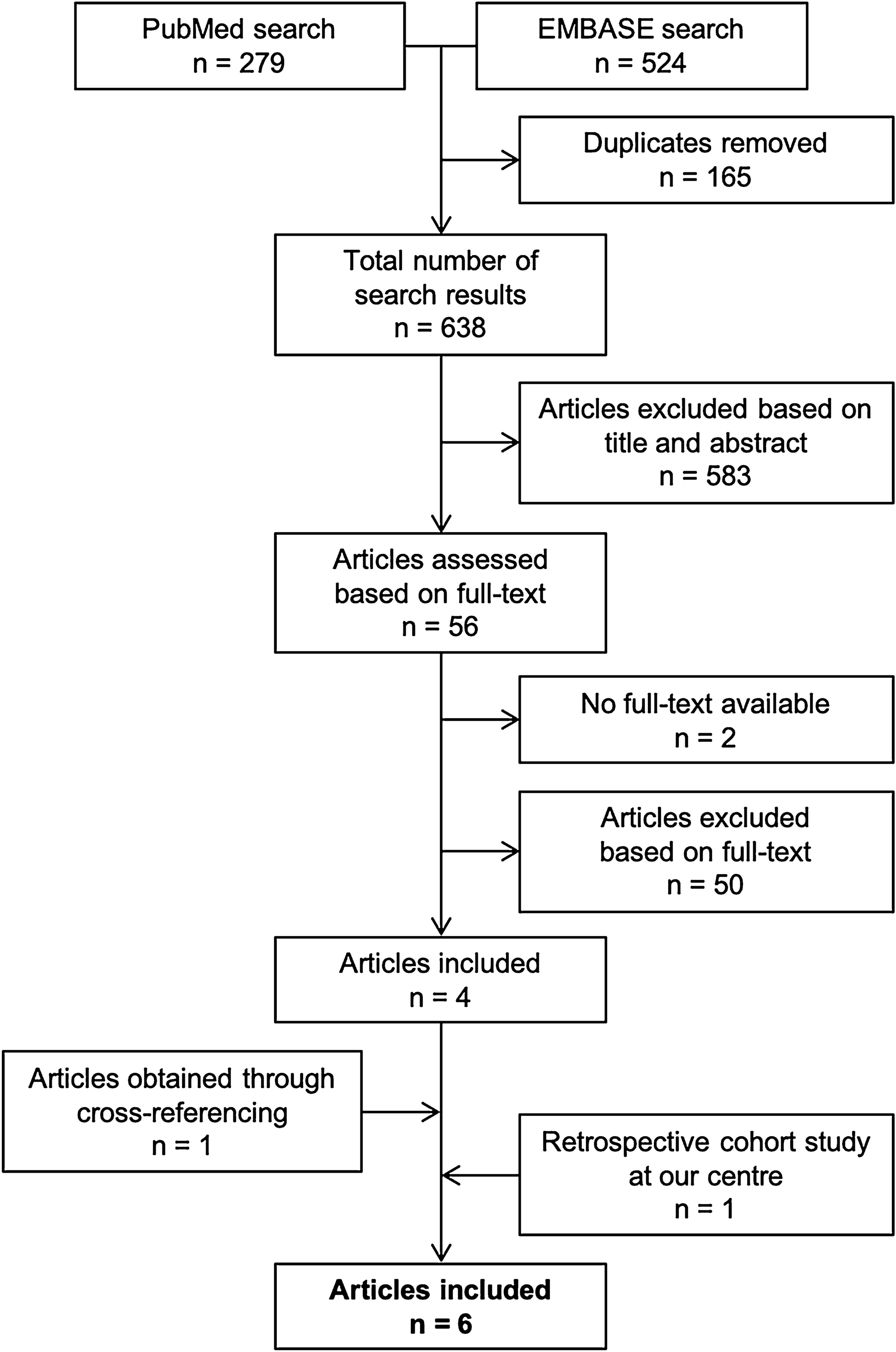

The literature search was performed on 22 February 2020. The PubMed search resulted in 279 hits and the Embase/MEDLINE search yielded 524 hits, resulting in a total of 803 hits. After removal of 165 duplicates, 638 studies were assessed based on title and abstract. 583 articles did not fulfil the inclusion criteria and were therefore excluded. 56 studies were assessed based on full-text, of which 4 studies were included in the current review. For two studies, no full-text article was available and these studies were therefore excluded. Cross-referencing yielded one additional included study. The results of a retrospective cohort study conducted at our level-1 trauma centre, which appeared online in February 2020, were also included in the analysis (Fig. 1).

Quality assessment

For case reports and case series, the total quality score ranged from 3 to 6 out of 16 points. The retrospective cohort study scored 17 out of 24 quality points. Several criteria, such as prospective data collection, unbiased measurement of study end points, and prospective calculation of study size, were not reported by any study (Table 2).
Table 2
MINORS quality assessment
Study
Clearly stated aim
Inclusion consecutive patients
Prospective data collection
Appropriate endpoints to the aim
Unbiased
Study endpoint
Appropriate follow-up period
Loss to follow-up < 5%
Prospective calculation of study size
Adequate control group
Contemporary groups
Baseline equivalence of groups
Adequate statistical analysis
Total quality score
Jiang et al. [11]
1
N/a
0
2
0
2
N/a
N/a
N/a
N/a
N/a
N/a
5 / 16
Klei et al. [24]
2
2
0
2
0
2
2
0
2
2
1
2
17 / 24
Krinner et al. [3]
1
0
0
1
0
2
2
0
N/a
N/a
N/a
N/a
6 / 16
Labbe et al. [10]
1
0
0
2
0
0
0
0
N/a
N/a
N/a
N/a
3 / 16
Regauer et al. [26]
1
N/a
0
2
0
2
N/a
N/a
N/a
N/a
N/a
N/a
5 / 16
Sarkeshik et al. [33]
1
N/a
0
1
0
2
N/a
N/a
N/a
N/a
N/a
N/a
4 / 16
MINORS criteria: 0 = not reported, 1 = reported but inadequate, 2 = reported and adequate. N/a, not applicable
For case reports and case series, the eight criteria for non-comparative studies were used (maximum total score of 16 points). For the retrospective cohort study, four criteria for comperative studies were added (maximum total score of 24 points)

Study characteristics

Studies were published from 2009 to 2020. Two studies were case series, three were case reports, and one was a retrospective cohort study. Study periods ranged from 3 to 10 years, with a total study period of 16 years and 5 months. Together, the studies comprised 119 patients. Treatment outcomes were reported for 98 patients; these patients were included in our analysis. Follow-up length ranged from 6 to 32 months, but was not reported by Labbe [10] (Table 3).
Table 3
Characteristics of included studies
Study
Study type
Study period
Number of patients
Follow-up length
Jiang et al. [11]
Case report
1
14 months
Klei et al. [24]
Retrospective cohort
10 years
73
13 (6–22) months
Krinner et al. [3]
Case series
3 years and 5 months
11
Labbe et al. [10]
Case series
3 years
32 (treatment outcomes for 11)
24 months
Regauer et al. [26]
Case report
1
32 months
Sarkeshik et al. [33]
Case report
1
12 months
Total
Case report
(n = 3)
16 years and 5 months
Total number of patients
119
Range 6 – 34 months

Case series
(n = 2)

Included in analysis
98


Retrospective cohort
(n = 1)

–, unknown

Patient characteristics

98 patients were included in analysis. There were four treatment combinations: conservative treatment for both sternum and spine (SternumCONS/SpineCONS, n = 43), conservative treatment for sternum and operative treatment for spine (SternumCONS/SpineOP, n = 41), operative treatment for sternum and conservative treatment for spine (SternumOP/SpineCONS, n = 7), and operative treatment for both sternum and spine (SternumOP/SpineOP, n = 7) (Table 4).
Table 4
Patient characteristicsa

Overall
n = 98
Sternum CONS
Spine CONS
n = 43
Sternum CONS
Spine OP
n = 41
Sternum OP
Spine CONS
n = 7
Sternum OP
Spine OP
n = 7
p value
Age in years, mean (range)
49
(16–93)
52
(24–93)
43
(16–76)
52
(27–73)
57
(19–85)
0.044*
Gender (male)
69
(70)
34
(79)
28
(68)
3
(43)
3
(43)
0.164
Mechanism of injury, n (%)

0.013*
 Fall ≤ 3 m
13
(13)
1
(2)
8
(20)
2
(29)
2
(29)

 Fall > 3 m
19
(19)
7
(16)
10
(24)
0

2
(29)

 Traffic
62
(63)
34
(79)
21
(51)
5
(71)
2
(29)

 Other
4
(4)
1
(2)
2
(5)
0

1
(14)

Sternal fracture characteristics

Injury type, n (%)

0.561
 Fracture
97
(99)
43
(100)
40
(98)
7
(100)
7
(100)

 Subluxation
1
(1)
0

1
(2)
0

0

Number of sternal fractures, n (%)

0.099
 1 fracture
83
(85)
40
(93)
33
(81)
5
(71)
5
(71)

 2 fractures
15
(15)
3
(7)
8
(20)
2
(29)
2
(29)

Sternal fracture location, n (%) b

 Manubrium
42
(43)
24
(56)
13
(32)
3
(43)
2
(29)
0.138
 MS-joint
16
(16)
1
(2)
11
(27)
1
(14)
3
(43)
0.001*
 Sternal body
54
(55)
20
(47)
25
(61)
5
(71)
4
(57)
0.485
 Xiphoid process
1
(1)
1
(2)
0

0

0

1.000
Dislocation of sternal fracture, n (%)
10
(10)
1
(2)
6
(15)
0

3
(43)
0.010*
Spinal fracture characteristics

AOSpine classification, n (%)

 < 0.001*
 A
50
(51)
36
(84)
6
(15)
7
(100)
1
(14)

 B
34
(35)
6
(14)
25
(61)
0

3
(43)

 C
14
(14)
1
(2)
10
(24)
0

3
(43)

Spinal fracture location, n (%) c

 Upper cervical (C0-C2) d
2
(2)
1
(2)
0

1
(14)
0

0.267
 Cervical subaxial (C3-C7)
15
(15)
12
(28)
3
(7)
0

0

0.037*
 Upper thoracic (T1-T4)
22
(22)
8
(19)
9
(22)
3
(43)
2
(29)
0.437
 Thoracic (T5-T9)
28
(29)
7
(16)
15
(37)
3
(43)
3
(43)
0.083
 Thoracolumbar (T10-L2)
37
(38)
19
(44)
15
(37)
1
(14)
2
(29)
0.485
 Lower lumbar (L3-L5) d
2
(2)
2
(5)
0

0

0

0.629
Neurological status, n (%)

 < 0.001*
 Neurological deficit (N1–N4)
21
(21)
1
(2)
17
(42)
0

3
(43)

 Unknown (NX)
2
(2)
1
(2)
1
(2)
0

0

Associated injuries

Associated thoracic injuries, n (%)
82
(83)
36
(84)
34
(83)
6
(86)
6
(86)
1.000
 Rib fracture
70
(71)
30
(70)
30
(73)
5
(71)
5
(71)
0.979
 Clavicular fracture
19
(19)
8
(19)
7
(17)
2
(29)
2
(29)
0.768
 Lung contusion
39
(40)
24
(56)
13
(32)
1
(14)
1
(14)
0.022*
 Pneumothorax
40
(41)
19
(44)
18
(44)
2
(29)
1
(14)
0.479
 Haemothorax
25
(26)
9
(21)
13
(32)
1
(14)
2
(29)
0.628
 Cardiac contusion
7
(7)
3
(7)
4
(10)
0

0

0.905
 Other thoracic injuries
23
(24)
10
(23)
8
(20)
2
(29)
3
(43)
0.581
Other associated injuries, n (%)
50
(51)
24
(56)
22
(54)
2
(29)
2
(29)
0.374
 Cerebral injury
18
(18)
7
(16)
10
(24)
0

1
(14)
0.519
 Abdominal injury
22
(22)
14
(33)
8
(20)
0

0

0.099
 Extremity injury
41
(42)
19
(44)
18
(44)
2
(29)
2
(29)
0.793
FU in months, median [IQR]
17
(8–24)
12
(5–25)
17
(8–23)
24
(17–24)
24
(24–24)
0.072
CONS conservative treatment, OP operative treatment, MS-joint manubriosternal joint, IQR interquartile range, FU follow-up duration
*Statistically significant difference (p < 0.05)
aDue to rounding off, percentages might not add up to 100%
bSternal fracture location is displayed as the percentage of patients with a sternal fracture in a particular location. 15 patients had two sternal fractures and were counted in two groups
cSpinal fracture location is displayed as the percentage of patients with a spinal fracture in a particular location. 8 patients had spinal fractures of similar severity in multiple spinal levels and were counted in two groups
dPatients with only upper cervical or lower lumbar spinal fractures were not included in any study. However, four patients had upper cervical or lower lumbar fractures in combination with other spinal fractures
Patients in the SternumCONS/SpineOP group were younger and patients in the SternumOP/SpineOP group were older than patients in the other treatment groups (p = 0.044). Many patients (79%) in the SternumCONS/SpineCONS group had a traffic accident, while only one patient in this group fell from ≤ 3 m height (p = 0.013).
In the SternumOP/SpineOP group, significantly more patients had a manubrial fracture and/or a sternal fracture dislocation (p = 0.001 and p = 0.010, respectively). In the SternumCONS/SpineCONS group, more patients had a type A spinal fracture, while in the SternumCONS/SpineOP group, more patients had a type B fracture (p < 0.001). Patients in the SternumCONS/SpineCONS group were more likely to have a subaxial spinal fracture (p = 0.037). Patients with isolated upper cervical or lower lumbar spinal fractures were not included in any study; however, four patients had upper cervical or lower lumbar fractures in combination with other spinal fractures and were thus included in our analysis.
In the SternumCONS/SpineOP group, more patients had a neurological spinal deficit, in contrast to patients in the conservative spinal treatment groups where only one patient had spinal cord injury (p < 0.001). Patients in the SternumCONS/SpineCONS group were more likely to have a pulmonary contusion compared to patients in other treatment groups (p = 0.022).
There were no statistical differences in sternal injury type, number of sternal fractures, associated other injuries, or follow-up duration between the treatment groups. Most studies did not provide information on pre-existent comorbidities and ICU admission; these parameters were excluded from analysis (Table 4).

Treatment methods

In 84 patients (86%), the sternal fracture was conservatively treated. 14 patients (14%) underwent sternal fixation: indications were persistent severe chest discomfort (n = 1), a combination of respiratory insufficiency due to flail chest, thoracic wall deformity, and sternal dislocation (n = 1), two sternal fractures in combination with multiple bilateral rib fractures (n = 1), or for general biomechanical support (n = 11). The latter was defined by Krinner [3] as a surgical indication formulated by Harston [30]; however, it was not further specified which indication applied to which patient.
50 patients (51%) received conservative treatment for their spinal fractures, consisting of haloframe (n = 7, 14%) or other treatment (n = 42, 86%), such as a Philadelphia collar or no additional treatment. 48 patients (49%) underwent spinal surgery. Of the 49 patients with unstable spinal fractures, 42 (86%) were surgically treated and 3 patients were treated with haloframe because of subaxial cervical fractures. Four patients were treated conservatively despite unstable spinal fractures: one patient had a benign neglect policy due to old age, one had severe psychiatric disease upon hospital admission, one had a unilateral facet fracture, and one patient could not afford spinal surgery. One patient with a neurological deficit was treated conservatively, because of a spinal cord lesion in the presence of a stable type A spinal fracture (Table 5).
Table 5
Treatment methods and outcomesa
Sternal fractures
Overall
n = 98
Sternum CONS
Spine CONS
n = 43
Sternum CONS
Spine OP
n = 41
Sternum OP
Spine CONS
n = 7
Sternum OP
Spine OP
n = 7
p value
Primary sternal treatment, n (%)

Conservative
84
(86)

Operative
14
(14)

Sternal treatment failure, n (%)
5
(5)
3
(7)
2
(5)
0

0

1.000
Secondary operation
2
(2)
1
(2)
1
(2)

Surgical indication
1
(1)
0

1
(2)

Unknown treatment outcome
2
(2)
2
(5)
0

Spinal fractures

Primary spinal treatment, n (%)

Conservative
50
(51)

Operative
48
(49)

Conservative treatment method, n (%)

Haloframe
7
(14)
6
(14)

1
(17)

Other
42
(86)
37
(86)

5
(83)

Spinal treatment failure, n (%)

Overallb
11
(11)
5
(12)
6
(15)
0

0

0.786
Biomechanical failure
8
(8)
5
(12)
3
(7)
0

0

0.921
Reoperation
2
(2)

2
(5)

0

Secondary operation
4
(4)
3
(7)
1
(2) f
0

Treatment refusal
2
(2)
2
(5)
0

Other treatment outcomes

Pneumonia, n (%)c
29
(30)
14
(33)
15
(37)
0

0

0.068
Wound infection, n (%) c,d
6
(10)
1
(2)
5
(12)
0

0

0.602
Hospital LOS in days, median [IQR]e
17
[8–24]
12
[5–25]
17
[8–23]
24
[17–24]
24
[24–24]
0.072
CONS conservative treatment, OP operative treatment, LOS length of stay, IQR interquartile range
*Statistically significant difference (p < 0.05)
aDue to rounding off, percentages might not add up to 100%
bOverall treatment failure included technical failure (malpositioned screws and pain due to osteosynthesis materials)
cOnly reported by Klei et al. [24]
dWound infection in conservative treatment group was caused by a haloframe pintract infection
eNot reported by Labbe et al. [10], Regauer et al. [26], and Jiang et al. [11]
fThis patient was included in the operative spinal treatment group due to his thoracic fracture, but secondary dislocation of a conservatively treated odontoid fracture occurred

Treatment outcomes

Sternal treatment failure occurred in five patients (5%). Of these patients, three were treated conservatively for both their sternal and spinal fracture (SternumCONS/SpineCONS group). One patient underwent secondary operation due to dislocation of a sternal body fracture, in combination with increasing kyphosis of the thoracic spine (for which he refused treatment); two patients had unknown treatment outcomes for their sternal fracture. The other two patients with sternal treatment failure were included in the SternumCONS/SpineOP group. One patient underwent secondary operation due to secondary sternal dislocation. One patient had a missed fracture-dislocation of the manubriosternal joint, which subsequently showed secondary dislocation and non-union (Tables 5 and 6).
Table 6
Treatment failure

Sternal fracture
Spinal fracture
Treatment group
Spinal treatment indication
Sternal treatment failure
Spinal treatment failure
1
MS-joint
T3-4:A;N0
SternumCONS/SpineCONS
Stable
Unknown outcome
Treatment refusal (increasing kyphosis)
2
Body with dislocation
T4-8:B2;N0
SternumCONS/SpineCONS
Unstable (treatment refusal)
SecOP (secondary dislocation)
Treatment refusal (increasing kyphosis)
3
Body
T3:A1;T5:A1;N0
SternumCONS / SpineCONS
Stable
Unknown outcome
4
Body
C4-C5:B2;N0
SternumCONS / SpineCONS
Unstable (haloframe)
SecOP (secondary dislocation)
5
Manubrium
C2:A(dens);T9:A1;N0
SternumCONS / SpineCONS
Stable
SecOP (secondary dislocation of dens)
6
Manubrium and body
T3-T6:B2;T4:A1;T5:A3;N0
SternumCONS / SpineCONS
Unstable (psychiatric illness)
SecOP (secondary dislocation)
7
Body
T3-T5:B2;T4:A2;N0
SternumCONS / SpineOP
Unstable
SecOP (secondary dislocation)
ReOP (secondary dislocation)
8
MS-joint and body
L2:B1;N0
SternumCONS / SpineOP
Unstable
SurgInd (secondary dislocation and NU)
9
Body
T6-T7:B2;T7:A2;N0
SternumCONS / SpineOP
Unstable
ReOP (non-union)
10
Manubrium
C2:A;T4-T6:B2;T4:A1;T5:A3;N3
SternumCONS / SpineOP
Unstable
SecOP (secondary dislocation of dens)
MS-joint manubriosternal joint, CONS conservative treatment, OP operative treatment, SecOP secondary operation, SurgInd surgical indication, ReOP re-operation, NU non-union
Overall, 11 patients (11%) displayed spinal treatment failure. Biomechanical spinal treatment failure occurred in eight patients (8%). Technical failure occurred in three patients who underwent re-operation due to malpositioned screws (n = 2) and severe pain from pedicle screws (n = 1). Five of the eight patients with biomechanical spinal failure were included in the SternumCONS/SpineCONS group. Three patients had a secondary operation due to secondary dislocation; however, in one of these patients this secondary dislocation occurred in an associated odontoid fracture. Two patients refused treatment despite increasing spinal kyphosis with a surgical indication. Based on the AOSpine surgical algorithm, one patient who refused treatment and one patient with secondary dislocation of a conservatively treated unstable spinal fracture, should have undergone primary surgical treatment due to unstable fractures [31]. The other three patients with biomechanical failure were part of the SternumCONS/SpineOP group. Two had secondary dislocation resulting in reoperation and secondary operation, respectively. One patient was surgically treated for his unstable thoracic spinal fractures, but showed secondary dislocation of a conservatively treated odontoid fracture which resulted in secondary operation. Notably, three patients displayed both sternal and spinal treatment failure (Tables 5 and 6).
29 patients (30%) developed a pneumonia during their hospital stay. Six patients (10%) had a wound infection, of whom one patient had a haloframe pin tract infection (pneumonia and wound infection were only reported by Klei [2]). Median hospital length of stay was 17 days (IQR 8–24 days), but was not reported by Labbe [10], Regauer [26], and Jiang [11].
There were no significant differences whatsoever in treatment outcomes between the treatment groups (Table 5).

Discussion

In the present systematic review of sternovertebral fracture treatment, five patient (5%) showed sternal treatment failure and eight patients (8%) displayed biomechanical spinal treatment failure. Only 14 patients (14%) underwent sternal fixation; the majority of patients received conservative sternal treatment. Notably, sternal treatment failure only occurred after conservative sternal treatment. However, sternal treatment failure was perhaps overestimated, since two patients with unknown treatment outcomes were counted as treatment failure, and one patient had a missed fracture that should have been treated surgically. Moreover, most indications for sternal fixation could not be verified and some might have been superfluous.
Spinal treatment failure was likely overestimated as well. Of the eight patients with biomechanical spinal failure, two showed secondary dislocation of an associated odontoid fracture, which might not biomechanically be influenced by a sternal fracture. Spinal treatment strategies were largely based on the presence of unstable spinal fractures and neurological deficits. In retrospect, based on the AOSpine surgical algorithm, two patients with spinal failure should have undergone primary operative treatment for unstable spinal fractures; however, one patient refused treatment and in one patient, stability of the spinal fracture was likely misinterpreted.
There were no significant differences in sternal and spinal treatment outcomes between the treatment groups. The findings of this systematic review therefore suggest that sternal fixation is not imperative to achieve sternal and spinal healing, provided that the generally accepted indications for sternal fixation [30] and the AOSpine surgical algorithm for unstable spinal fractures are followed [31].
Sternovertebral fractures are rare injuries [1, 2, 15, 22]. Few studies have been published on these injuries and their treatment. In a period of almost 30 years, 6 studies were published with mostly few patients; the largest study was a cohort study conducted at our level-1 trauma centre and included 73 patients. To date, no systematic review has been conducted on this topic.
The majority of sternal injuries were located at the sternal body (55%) or the manubrium (43%). Ten patients (10%) showed a sternal dislocation. Although dislocation is considered an indication for sternal fixation [25], seven of these patients received conservative sternal treatment. Only one of them showed sternal treatment failure, perhaps suggesting that indications for sternal fixation [30] should be revised.
The majority of patients had spinal fractures of the thoracic and thoracolumbar spine (96%), due to the fact that all studies excluded patients with isolated cervical and lower lumbar fractures. Although the association between sternal and thoracic spinal fractures is widely assumed in literature [1, 4, 79, 12], the distribution of spinal fractures over the different spinal regions has not been established unambiguously [1, 2, 46, 1320]. For instance, in our own cohort study, 14 out of 87 sternovertebral fracture patients (16%) had only upper cervical and/or lower lumbar fractures [2]. The location and severity of spinal fractures might depend on the location of the corresponding sternal fracture [5, 32].
This systematic review was based on six studies, five of which had a low quality score. Although the applicability of MINORS criteria to case reports might be limited, case reports and case series are known for potential selection and reporting bias, which was reflected in the quality scores. Studies had a heterogeneous study population and different treatment strategies: for instance, all sternal fractures described by Labbe [10] were conservatively managed, while sternal fractures reported by Krinner [3] were surgically treated. The latter study only reported treatment outcomes for 11 out of 32 patients who underwent sternal fixation, reflecting the risk of reporting bias. Some treatment groups were therefore highly skewed by a single study. The diverse treatment choices, without clear surgical indications, reflect a lack of evidence and standardised treatment guidelines. Moreover, the occurrence of pneumonia and wound infection was only reported in our own cohort study and therefore limited to the SternumCONS/SpineCONS and SternumCONS/SpineOP treatment groups [2].
In conclusion, limited studies have been published on the treatment of sternovertebral fractures and randomised trials are lacking. Six studies were included in the current review, with a total of 98 patients. Most studies were of low quality and had heterogeneous treatment strategies. Therefore, results should be interpreted with caution. Despite these limitations, treatment outcomes did not significantly differ between treatment groups. These findings indicate that for most patients with sternovertebral fractures, conservative sternal treatment is safe and effective. Sternal fixation is not essential to achieve sternovertebral stability provided that spinal fractures are treated according to the AOSpine surgical algorithm.

Compliance with ethical standard

Conflict of interest

All authors declare that they have no conflict of interest.

Ethical approval

Not applicable.
Not applicable.
Not applicable.

Code availability

Not applicable.
Open AccessThis article is licensed under a Creative Commons Attribution 4.0 International License, which permits use, sharing, adaptation, distribution and reproduction in any medium or format, as long as you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons licence, and indicate if changes were made. The images or other third party material in this article are included in the article's Creative Commons licence, unless indicated otherwise in a credit line to the material. If material is not included in the article's Creative Commons licence and your intended use is not permitted by statutory regulation or exceeds the permitted use, you will need to obtain permission directly from the copyright holder. To view a copy of this licence, visit http://​creativecommons.​org/​licenses/​by/​4.​0/​.

Unsere Produktempfehlungen

e.Med Interdisziplinär

Kombi-Abonnement

Für Ihren Erfolg in Klinik und Praxis - Die beste Hilfe in Ihrem Arbeitsalltag

Mit e.Med Interdisziplinär erhalten Sie Zugang zu allen CME-Fortbildungen und Fachzeitschriften auf SpringerMedizin.de.

e.Med Orthopädie & Unfallchirurgie

Kombi-Abonnement

Mit e.Med Orthopädie & Unfallchirurgie erhalten Sie Zugang zu CME-Fortbildungen der Fachgebiete, den Premium-Inhalten der dazugehörigen Fachzeitschriften, inklusive einer gedruckten Zeitschrift Ihrer Wahl.

Neuer Inhalt

Print-Titel

Anhänge

Electronic supplementary material

Below is the link to the electronic supplementary material.
Literatur
9.
Zurück zum Zitat Gopalakrishnan KC, El Masri WS. Fractures of the sternum associated with spinal injury. J Bone Jt Surg. 1986;68:178–81.CrossRef Gopalakrishnan KC, El Masri WS. Fractures of the sternum associated with spinal injury. J Bone Jt Surg. 1986;68:178–81.CrossRef
12.
Zurück zum Zitat Huang Z, Chen F, Huang J, Jian G, Gong H, Xu T, et al. Treatment of middle-super thoracic fractures associated with the sternum fracture. Int J Clin Exp Med. 2015;8:9751–7.PubMedPubMedCentral Huang Z, Chen F, Huang J, Jian G, Gong H, Xu T, et al. Treatment of middle-super thoracic fractures associated with the sternum fracture. Int J Clin Exp Med. 2015;8:9751–7.PubMedPubMedCentral
17.
Zurück zum Zitat Recinos G, Inaba K, Dubose J, Barmparas G, Teixeira PGR, Talving P, et al. Epidemiology of sternal fractures. Am Surg. 2009;75:401–4.CrossRef Recinos G, Inaba K, Dubose J, Barmparas G, Teixeira PGR, Talving P, et al. Epidemiology of sternal fractures. Am Surg. 2009;75:401–4.CrossRef
18.
Zurück zum Zitat Oyetunji TA, Jackson HT, Obirieze AC, Moore D, Branche MJ, Greene WR, et al. Associated injuries in traumatic sternal fractures: a review of the national trauma data bank. Am Surg. 2013;79:702–5.CrossRef Oyetunji TA, Jackson HT, Obirieze AC, Moore D, Branche MJ, Greene WR, et al. Associated injuries in traumatic sternal fractures: a review of the national trauma data bank. Am Surg. 2013;79:702–5.CrossRef
20.
Zurück zum Zitat Brookes JGJG, Dunn RJRJ, Rogers IRIR. Sternal fractures: a retrospective analysis of 272 cases. J Trauma. 1993;35:46–544.CrossRef Brookes JGJG, Dunn RJRJ, Rogers IRIR. Sternal fractures: a retrospective analysis of 272 cases. J Trauma. 1993;35:46–544.CrossRef
23.
Zurück zum Zitat Berg EE. The sternal-rib complex: a possible fourth column in thoracic spine fractures. Spine (Phila Pa 1976). 1993;18:1916–9.CrossRef Berg EE. The sternal-rib complex: a possible fourth column in thoracic spine fractures. Spine (Phila Pa 1976). 1993;18:1916–9.CrossRef
32.
Zurück zum Zitat Schulz-Drost S, Krinner S, Oppel P, Grupp S, Schulz-Drost M, Hennig FF, et al. Fractures of the manubrium sterni: treatment options and a possible classification of different types of fractures. J Thorac Dis. 2018;10:1394–405.CrossRef Schulz-Drost S, Krinner S, Oppel P, Grupp S, Schulz-Drost M, Hennig FF, et al. Fractures of the manubrium sterni: treatment options and a possible classification of different types of fractures. J Thorac Dis. 2018;10:1394–405.CrossRef
Metadaten
Titel
Current treatment and outcomes of traumatic sternovertebral fractures: a systematic review
verfasst von
Dorine S. Klei
F. Cumhur Öner
Luke P. H. Leenen
Karlijn J. P. van Wessem
Publikationsdatum
01.10.2020
Verlag
Springer Berlin Heidelberg
Erschienen in
European Journal of Trauma and Emergency Surgery / Ausgabe 4/2021
Print ISSN: 1863-9933
Elektronische ISSN: 1863-9941
DOI
https://doi.org/10.1007/s00068-020-01505-y

Weitere Artikel der Ausgabe 4/2021

European Journal of Trauma and Emergency Surgery 4/2021 Zur Ausgabe

Arthropedia

Grundlagenwissen der Arthroskopie und Gelenkchirurgie. Erweitert durch Fallbeispiele, Videos und Abbildungen.
» Jetzt entdecken

Update Orthopädie und Unfallchirurgie

Bestellen Sie unseren Fach-Newsletter und bleiben Sie gut informiert.
