Introduction
Hepatocellular carcinoma (HCC) is one of the most prevalent and lethal cancers worldwide (Brown et al.
2023; Singal et al.
2023). In China, the incidence and mortality of HCC are approximately 410 and 391 per 100,000 population (Cao et al.
2021). Advanced HCC refers to the stage with portal vein invasion and/or extrahepatic disease, well-preserved liver function, and good physical performance (Vogel et al.
2022). For patients with advanced HCC, the recommended standard treatment according to the guidelines in China is transarterial chemoembolization (TACE) with or without systematic therapy, which includes tyrosine kinase inhibitors (TKIs) (such as sorafenib, lenvatinib, and donafenil), chemotherapy based on oxaliplatin, and atezolizumab plus bevacizumab (Chen et al.
2020a,
b; Xie et al.
2023a,
b). However, the outcomes of these patients are still not satisfactory (Chen et al.
2022a,
b; Wang et al.
2022; Zanuso et al.
2023).
Apatinib is an oral-administrated TKI that selectively inhibits vascular endothelial growth factor (VEGF) receptor 2 to exert anti-tumor effects (Li et al.
2022a,
b). Apatinib is originally served as a therapeutic agent for gastric cancer, while recent studies have revealed that it also shows potential for treating other cancers including non-small cell lung cancer, breast cancer, and gastric cancer (Geng and Li
2015; Xue et al.
2018; Liu et al.
2020a; Li et al.
2022a,
b). In HCC, apatinib is regarded as the second-line systemic treatment, and its combination with TACE is also recommended for the treatment of advanced HCC (Xie et al.
2023a,
b). Immune checkpoint inhibitors (ICIs), such as atezolizumab, camrelizumab, and sintilimab, are able to activate the anti-tumor immune response and thus serving as a treatment modality for advanced cancers (Cheu and Wong
2021; Harkus et al.
2022). Interestingly, apatinib ICI could improve the survival of patients with HCC (Yuan et al.
2020; Xu et al.
2021; Chen et al.
2022a,
b; Li et al.
2022a,
b). It is also reported that TACE induces immunogenic tumor cell death in patients with HCC, which provides the theoretic basis for combining TACE with ICIs (Yuan et al.
2020). Based on these information, it could be speculated that apatinib combined with TACE and ICIs may serve as a potential treatment for advanced HCC. However, only three studies have explored this issue (Liu et al.
2023; Sun et al.
2023; Xia et al.
2023). Therefore, more evidence is needed to further verify the treatment potential of apatinib combined with TACE and ICIs for advanced HCC and to facilitate its clinical application.
The current study intended to compare the treatment response, survival, and adverse events in patients with advanced HCC who received apatinib combined with TACE and ICIs and those who received apatinib combined with TACE.
Methods
Patients
This study retrospectively screened 90 advanced HCC patients treated with apatinib combined with TACE (A-TACE, as A-TACE group) or ICIs plus A-TACE (IA-TACE, as IA-TACE group) from May 2020 to July 2023. The inclusion criteria were: (i) firstly diagnosed as HCC by the American Association for the Study of Liver Diseases (Marrero et al.
2018); (ii) adult patients (≥ 18 years old); (iii) Child-Pugh stage of A or B; (iv) Eastern Cooperative Oncology Group performance status (ECOG PS) of 0 to 1; (v) Barcelona Clinic Liver Cancer (BCLC) stage of C; (vi) received at least one cycle of IA-TACE or A-TACE treatment; (vii) had at least one available data of best response by Modified Response Evaluation Criteria in Solid Tumors (mRECIST) guideline (Lencioni and Llovet
2010). The exclusion criteria were: (i) had a history of other cancer; (ii) received previous cancer treatment; (iii) had missing follow-up data. This study gained approval from the Ethics Committee. All patients, or their families, have given their informed consent.
Data collection
Clinically relevant characteristics were collected, which contained age, sex, hepatitis B virus (HBV), liver cirrhosis, ECOG PS, Child-Pugh stage, maximum tumor diameter, portal vein invasion, extrahepatic disease, BCLC stage, China liver cancer (CNLC) stage, alpha-fetoprotein (AFP), albumin (ALB), total bilirubin (TBIL), alanine aminotransferase (ALT), aspartate aminotransferase (AST), alkaline phosphatase (ALP), programmed cell death ligand 1 combined positive score (PD-L1 CPS), and times of TACE.
Treatment information was screened, and the conventional treatment regimen was as follows: within 7 days after traditional TACE, apatinib combined with or without ICI was initiated. ICI type contained camrelizumab, sintilimab, atezolizumab, and tislelizumab. The dosage of apatinib was 250 mg/day until intolerance or disease progression, and the dose could be reduced to 250 mg/2 days depending on the patient’s disease or physical condition. The dosage of ICI was as follows: 200 mg/cycle for programmed cell death-1 (PD-1) inhibitors, and 1200 mg/cycle for PD-L1 inhibitors, both with a 21-day cycle until intolerance or disease progression.
Clinical response data were collected, which was evaluated at the 2/4/6/8 cycles after conventional treatment initiation, followed by evaluations every 3 months. The best response was screened for analysis. Besides, the disease progression or death conditions were collected to calculate accumulating progression-free survival (PFS) or overall survival (OS) rates. Adverse events were also collected.
Data analysis
Continuous characteristics were compared using the Mann-Whitney U test or independent-sample T-test, and categorical characteristics were compared via the χ2 test or Fisher’s exact test between groups. The accumulating PFS rate and accumulating OS rate were graphed by the Kaplan-Meier method, in which the Log-rank test was utilized to compare those rates between groups. To identify factors related to PFS and OS, univariate and backward-multivariate Cox regression models were conducted. The univariate Cox regression model was also used to compare PFS or OS between patients who received IA-TACE and A-TACE in different subgroups. Data analyses were performed by SPSS v.26.0 (IBM, America). Statistical significance was considered to be achieved when the P < 0.05 (two-sided).
Discussion
TACE exerts anti-tumor effects through combining the blockage of tumor-feeding arteries using microparticles or microspheres and locoregional chemotherapeutic agents (Hatanaka et al.
2023). However, the blockage of tumor-feeding artery would induce hypoxia in the tumor, which would promote the secretion of VEGF to enhance angiogenesis, thus inducing tumor progression and metastasis (Rhee et al.
2016). When TACE is combined with apatinib, the VEGF receptor signaling would be inhibited, subsequently suppressing the progression and metastasis of the tumor, which could yield a promoted treatment efficacy (Liu J, Xu, et al.
2020). Regarding the rationale for combining apatinib with ICIs, it is reported that VEGF could induce the exhaustion of CD8
+ cytotoxic T cells to suppress anti-tumor immunity (Kim et al.
2019). Therefore, apatinib could provide a better immune microenvironment for ICIs, thus promoting the treatment efficacy of ICIs. In terms of TACE and ICIs, previous studies report that TACE could induce immunogenic cell death, thus providing a more favorable immune microenvironment for ICIs (Chang et al.
2019). Based on these theories, several studies have explored the efficacy of TACE combined with apatinib and ICIs in patients with advanced HCC (Zhu et al.
2022; Duan et al.
2023; Liu et al.
2023; Xia et al.
2023). These studies report that the ORR in patients with advanced HCC who receive TACE combined with apatinib and ICIs ranges from 43.2 to 53.6%, and the DCR ranges from 67.6 to 88.4%. Our study revealed that in IA-TACE group, the ORR was 57.9% and the DCR was 86.8%. These data were similar to those of previous studies (Zhu et al.
2022; Duan et al.
2023; Liu et al.
2023; Xia et al.
2023). In addition, our study also found that the treatment response was numerically higher in IA-TACE group compared with A-TACE group, but did not reach statistical significance. The possible explanations were: (1) as mentioned above, TACE, ICIs, and apatinib, either two of them showed synergistic anti-tumor effects (Chang et al.
2019; Kim et al.
2019; Liu J, Xu, et al.
2020), which resulted in a better treatment efficacy compared with TACE combined with apatinib; (2) the sample size of this study was relatively small, which might restrict the statistical power.
The overall survival of patients with advanced HCC is still unfavorable and searching for potential treatments with survival benefits in these patients is urgent (Elderkin et al.
2023). Previous studies report a median PFS of 6.9 to 14.0 months and a median OS of 15.4 to 24.5 months in advanced HCC who receive TACE combined with apatinib and ICIs (Zhu et al.
2022; Duan et al.
2023; Liu et al.
2023; Sun et al.
2023; Xia et al.

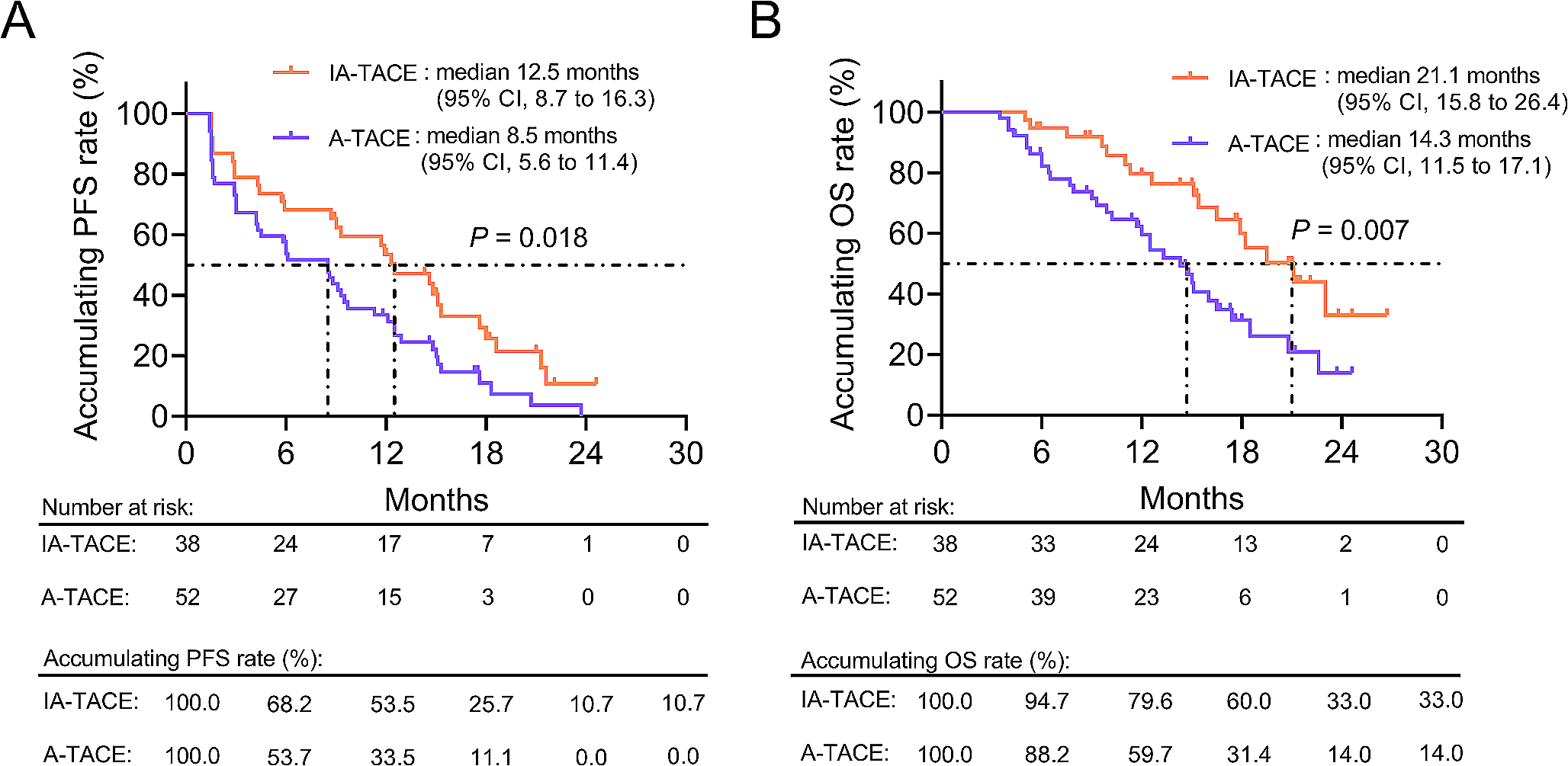

2023). The current study showed that the median PFS was 12.5 months (95% CI: 8.7 to 16.3 months) and the median OS was 21.1 months (95% CI: 15.8 to 26.4 months) in IA-TACE group, which was in accordance with these previous studies (Zhu et al.
2022; Duan et al.
2023; Liu et al.
2023; Sun et al.
2023; Xia et al.
2023). Meanwhile, our study also revealed that PFS and OS were both improved in IA-TACE group compared with A-TACE group, which was also in line with previous studies (Zhu et al.
2022; Duan et al.
2023; Liu et al.
2023; Sun et al.
2023; Xia et al.
2023). Moreover, IA-TACE (vs. A-TACE) was independently associated with better PFS and OS. These findings suggested the survival benefit of TACE combined with apatinib and ICIs for patients with advanced HCC. The explanation for these findings was that as mentioned above, TACE combined with apatinib and ICIs yielded a better treatment efficacy, which directly resulted in a more favorable survival outcome. The multivariate Cox regression model also revealed that male sex was independently associated with shorter PFS. The possible explanation was that the sample size of this study was small, and the predominant of patients in the current study were males; therefore, the occasional cases may affect the results of multivariate Cox regression models. It was also found that times of TACE was independently associated with longer PFS and OS, which was similar to the findings of a previous study (Wang et al.
2023). It should be clarified that the multivariate Cox regression model could not clarify the causality between dependent and independent variables. It is more likely that patients with longer PFS and OS could receive more times of TACE.
The safety of anti-tumor agents is noteworthy since patients with cancers are unable to benefit from them if intolerance occurs. The most commonly occurring adverse events of TACE, apatinib, and ICIs are fever, abdominal pain, hypertension, hand-foot syndrome, and nausea and vomiting (Geng et al.
2018; Lawson et al.
2023; Curkovic et al.
2024). According to previous studies, TACE combined with apatinib and ICIs shows comparable safety with TACE combined with apatinib (Zhu et al.
2022; Duan et al.
2023; Liu et al.
2023; Sun et al.
2023; Xia et al.
2023). Our study also revealed similar findings, that the incidences of most adverse events were comparable between groups. Only the incidence of RCCEP was higher in IA-TACE group compared with A-TACE group (10.5% vs. 0.0%). RCCEP is a common immune-related adverse event of camrelizumab (Chen et al.
2020a,
b). It is associated with the vascular neogenesis effect of camrelizumab, which is mild and manageable (Chen et al.
2020a,
b).
Several limitations of this study should be mentioned. First, the retrospective design of this study might induce bias in the results, and the findings of this study should be verified by randomized, controlled trials. Second, the sample size of this study was not large enough, and further large-scale studies should be conducted. Third, this study only enrolled patients with advanced HCC; thus, the findings of this study might not be applicable in patients with intermediate stage HCC but not able or unwilling for tumor resection. Fourth, the activity of HBV or status of hepatitis C virus (HCV) was not available, and thus the association of HBV activity and HCV with treatment response should be further investigated.
