The purpose of this study was to assess the efficacy of the renewed dynamic collimator in a third-generation dual source CT (DSCT) scanner and to determine the improvements over the second-generation scanner.

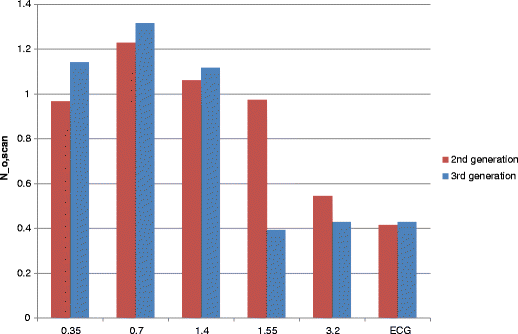

Collimator efficacy is defined as the percentage overranging dose in terms of dose–length product (DLP) that is blocked by the dynamic collimator relative to the total overranging dose in case of a static collimator. Efficacy was assessed at various pitch values and different scan lengths. The number of additional rotations due to overranging and effective scan length were calculated on the basis of reported scanning parameters. On the basis of these values, the efficacy of the collimator was calculated.

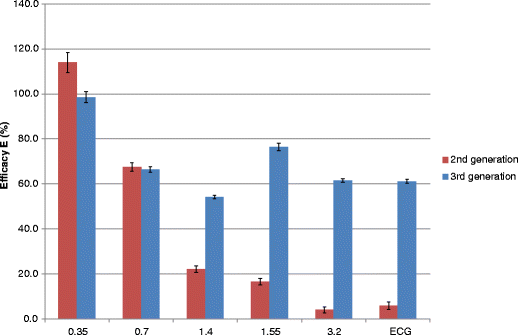

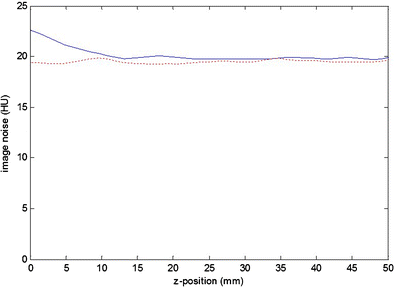

The second-generation scanner showed decreased performance of the dynamic collimator at increasing pitch. Efficacy dropped to 10% at the highest pitch. For the third-generation scanner the efficacy remained above 50% at higher pitch. Noise was for some pitch values slightly higher at the edge of the imaged volume, indicating a reduced scan range to reduce the overranging dose.
The improved dynamic collimator in the third-generation scanner blocks the overranging dose for more than 50% and is more capable of shielding radiation dose, especially in high pitch scan modes.
• Overranging dose is to a large extent blocked by the dynamic collimator
• Efficacy is strongly improved within the third-generation DSCT scanner
• Reducing the number of additional rotations can reduce overranging with increased noise
Tzedakis A, Damilakis J, Perisinakis K, Stratakis J, Gourtsoyiannis N (2005) The effect of z overscanning on patient effective dose from multidetector helical computed tomography examinations. Med Phys 32:621 CrossRef
National Electrical Manufacturers Association (2011) Digital imaging and communications in medicine (DICOM) Part 16: content mapping resource. NEMA, Rosslyn
Commision iE (2012) European standard IEC 60601-2-44 Amendment 1
Tang X, Hsieh J, Dong F, Fan J, Toth TL (2008) Minimization of over-ranging in helical volumetric CT via hybrid cone beam image reconstruction–benefits in dose efficiency. Med Phys 35:3232–3238 CrossRef
- Efficacy of a dynamic collimator for overranging dose reduction in a second- and third-generation dual source CT scanner
Marcel L. Dijkshoorn
Marcel van Straten
- Springer Berlin Heidelberg
