Evaluation of Ultra-High Molecular Weight Polyethylene (UHMWPE) Implants in Orbital Fracture Reconstruction: A Multicenter Cohort Study

Facial trauma is often associated with orbital fractures due to the delicate anatomical structures of the orbit [1]. Consequently, orbital fractures require prompt and precise surgical intervention to restore orbital volume and support the orbital soft tissues to prevent complications such as diplopia, enophthalmos, or even vision loss [2]. Traditional methods of orbital fracture repair include the use of autogenous bone grafts [3, 4], titanium implants [5] and absorbable plates [6]. However, these techniques have limitations such as donor site morbidity, implant palpability, and difficulty in contouring to the patient’s anatomy.

In recent years, there has been a growing interest in the use of biomaterials in surgery, driven by advances in materials science, surgical techniques, and patient outcomes research. Among these biomaterials, ultra-high molecular weight polyethylene (UHMWPE) has emerged as a promising alternative due to its unique combination of mechanical properties and biocompatibility. Its highly porous structure and long polymer chains contribute to its wear resistance and low coefficient of friction, making it suitable for applications involving repetitive sliding movements, in this case the ocular muscles, and providing optimal conditions for potential vascularization and osteointegration. With a molecular weight ranging from 3.5 to 7.5 million g/mol, UHMWPE exhibits exceptional strength and toughness [7]. In the context of orbital fracture reconstruction, its customizability allows precise replication of the patient’s anatomy, ensuring optimal fit and contour of the implant. In addition, its mechanical strength provides sufficient support for the orbital contents while allowing for physiological movement, minimizing the risk of implant failure or dislocation seen with other biomaterials, including the widely used polydioxanone sheets [8]. These properties make it an attractive choice for craniofacial implants. The present study is the first multicentre study to provide a comprehensive overview of orbital fracture reconstruction in trauma patients using UHMWPE implants.

A total number of 50 patients were included in this study, 22 females and 28 males. The age ranged from 21 to 97 years, with a mean age of 56.8 years. Fractures involved the right orbit in 29 patients, the left orbit in 19 patients and both orbits in 2 patients. 46 (92%) of the fractures were orbital floor fractures, 1 fracture was an isolated medial wall fracture and the remaining 3 fractures were isolated orbital roof fractures. Zygomatic involvement was documented in 34 cases (68%). On the first postoperative day, 7 patients had unremarkable local findings, 2 patients reported local irritation of the affected area, and 40 patients had swelling. Only one patient had significant swelling due to dual antiplatelet therapy. No major complications such as bleeding, surgical site infection, implant dislocation or visual disturbances were documented during the immediate post-operative hospital stay. 4 patients failed to undergo a post-operativ imaging thus were not incluced in the volumetric analysis.

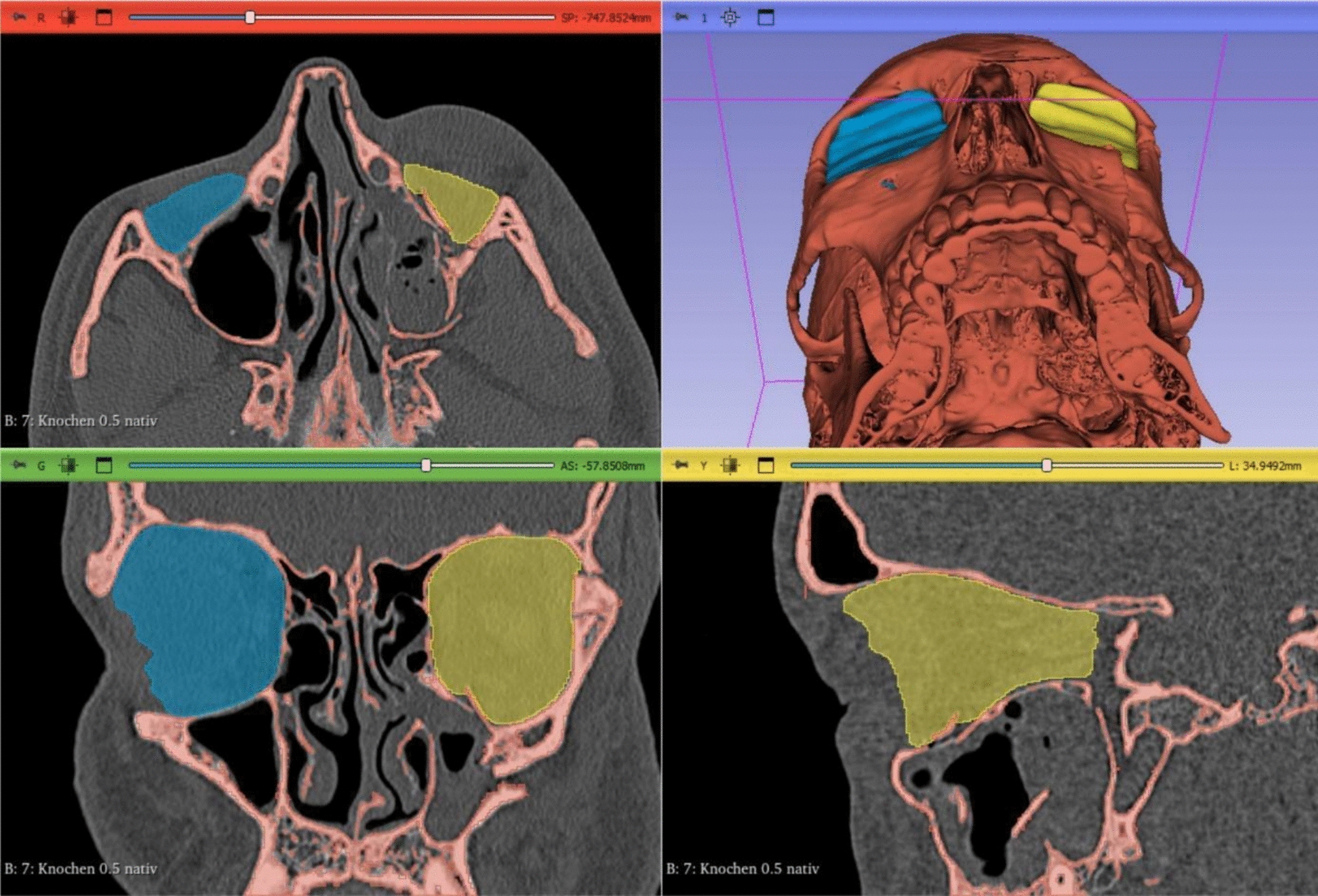

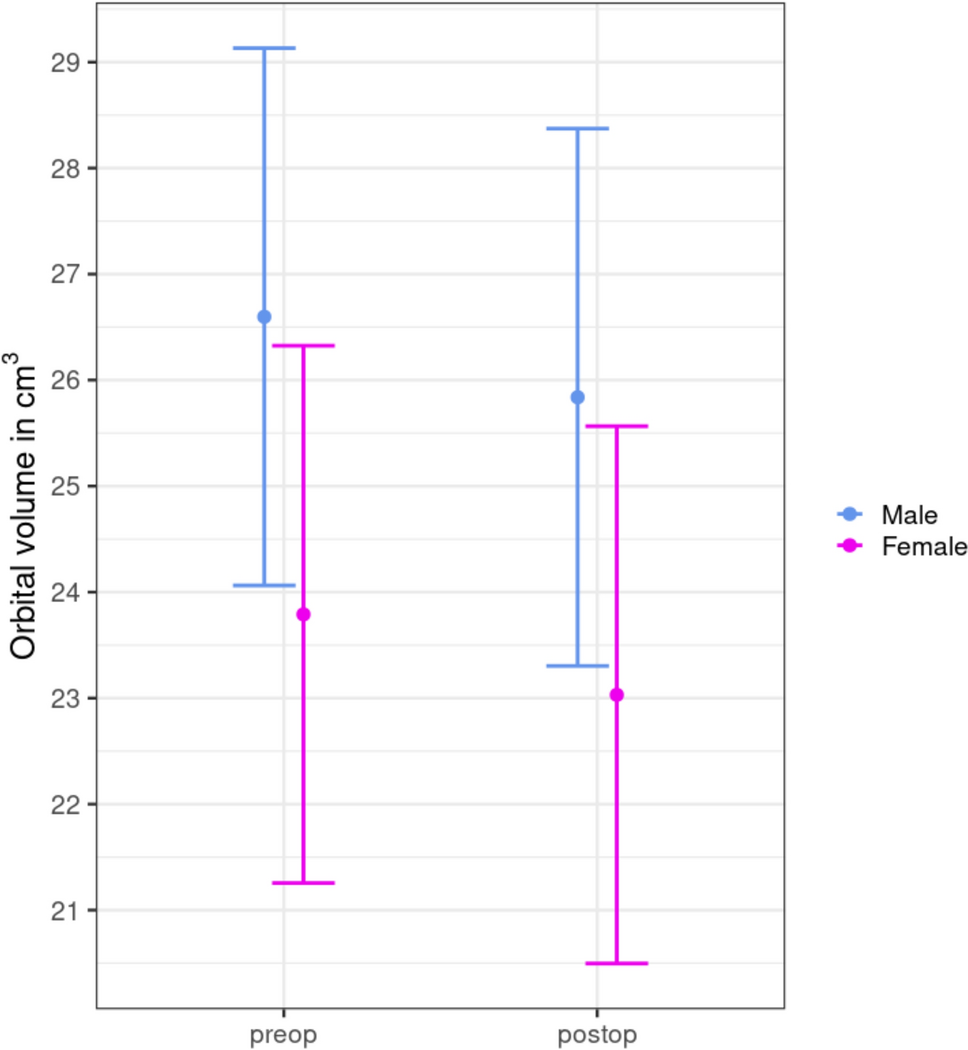

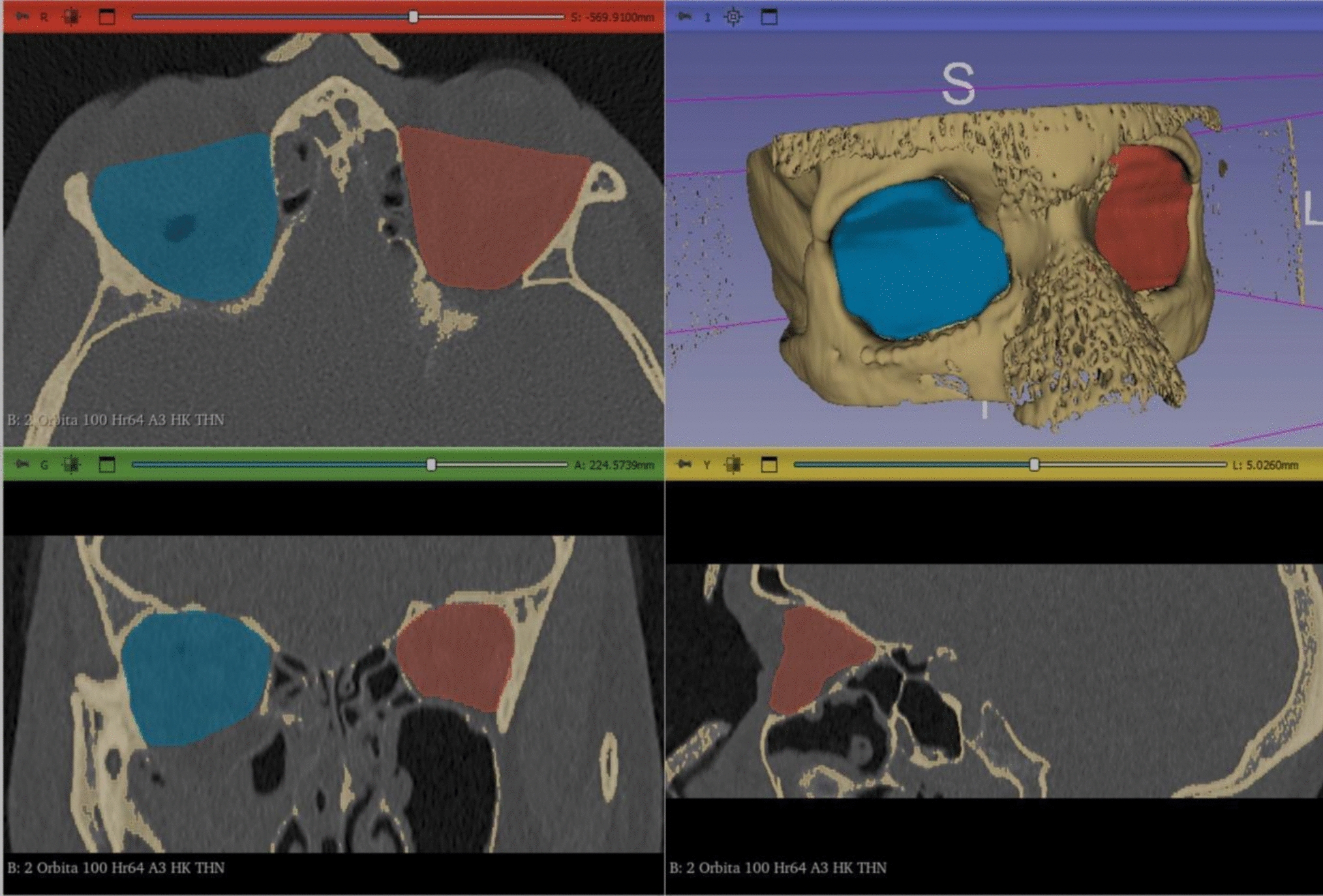

The mean volume ± standard deviation (SD) of all injured orbits before surgery was 23.64 ± 2.69 cm³ for female patients and 26.47 ± 3.50 cm³ for male patients. The mean orbital volume (OV) ± standard deviation (SD) of the reconstructed orbits was 22.92 ± 2.67 cm³ for female patients and 25.66 ± 3.35 cm³ for male patients. The mean OV ± (SD) of the intact orbits before surgery was 23.04 ± 2.56 cm³ for female patients and 25.39 ± 3.32 cm³ for male patients. Postoperatively, the mean OV ± (SD) was 22.77 ± 2.51 and 25.26 ± 3.13 cm³, respectively. The mean absolute volume difference ± (SD) of the fracture site compared to the reconstructed orbit was 1.15 ± 0.99 cm³ in female patients and 1.16 ± 0.72 cm³ in male patients. In comparison, the mean absolute difference of the healthy OV was 0.61 ± 0.53 cm³ in females and 0.63 ± 0.53 cm³ in males.

Considering these results, the difference between the orbital volume of the affected site preoperatively and the reconstructed orbit was highly statistically significant (p < 0.001), whereas the difference on the healthy site preoperatively and postoperatively was not statistically significant (p = 0.54).

This study presents the first multicentre cohort of patients with adequately reconstructed orbital fractures after trauma using UHMWPE implants. We aimed to evaluate the outcome of orbital reconstruction with Ultra High Molecular Weight Polyethylene (UHMWPE) implants by measuring the difference in orbital volume before and after the surgery in a clinical setting.

Orbital fractures represent a significant subset of craniofacial injuries [12, 13], and while small fractures can be managed conservatively, surgical intervention is often required to restore orbital anatomy and function [14]. Although the ideal material for reconstruction remains controversial, the following characteristics are widely accepted to provide the best results. The material should be biocompatible and non-carcinogenic. It should conform to the patient’s anatomy and retain its new shape. If alloplastic, the material should be inexpensive and readily available. It should not promote microbial growth or be allergenic, and it should be rigid enough to support the orbital contents.

Autogenous implants remain a viable option due to their biocompatibility, but donor site morbidity, harvesting time, and cosmetic concerns are some of the drawbacks that limit their potential [15, 16].

There are a variety of alloplastic materials available for orbital floor reconstruction, but to date, none seems to combine all of the above characteristics to make it an ideal material [17, 18]. PDS and Polyglactin 910/PDS (Ethisorb) patches, two widely used materials, have been shown to be associated with increased infection rates, as well as inferior globe position and progressive enophthalmos due to their flexible nature, thus recommending overcorrection of the globe during surgery [8, 19, 20]. Therefore, PDS is preferred for reconstruction of small defects [21] and 910/PDS for small to moderate defects (maximum 2 × 2 cm) [22]. Polypropylene mesh, a material commonly used in abdominal surgery that can be both resorbable and non-resorbable, is a viable alternative for medium-sized orbital floor fractures, but studies report persistent diplopia and enophthalmos in some cases [23, 24]. Titanium mesh, a stiffer and more stable material, has traditionally been used for larger defects [25, 26], but orbital adhesion with subsequent ocular motor dysfunction has been reported [27‐29], and it interferes with radiographic examination and causes weathering sensations due to its metallic nature [30].

UHMWPE is a polymer that differs from the more familiar high-density polyethylene (HDPE) in terms of molecular weight and average chain length. In addition to its mass, the molecular structure of the polymer plays an important role in its physical and chemical properties. Its interconnected pore network allows rapid infiltration by the host tissue and promotes osteointegration, resulting in a reduced risk of implant migration and excellent long-term stability [7]. A meta-analysis of case series studies by Schellini et al. highlighted the advantages of porous polyethylene implants in the orbital region, demostrating a lower risk of implant exposure [31]. The extensive use of UHMWPE in weight-bearing anatomical regions such as hip and knee arthroplasty undoubtedly demonstrates its toughness and biocompatibility [32]. Therefore, it’s mechanical strength provides sufficient support for the orbital contents, yet its thermoplastic nature ensures optimal conformability to the patient’s anatomy [33, 34], resulting in precise orbital reconstruction. Our clinical results mirror those of our previous study in cadavers, with favourable results in terms of orbital volume restoration and functional improvement [10].

There are several potential complications that may arise due to the non-resorbable character of the implant, such as implant migration or long-term tissue response. From the three most popular alloplastic materials (porous polyethylene sheets PPE, Polypropylene mesh and Titanium implants), studies report superior outcomes with fewer complications using porous polyethylene sheets like marPOR-implant. Ghafar et al. studied 24 patients who received PPE sheets for reconstruction of orbital floor fractures, none of whom required reoperation or showed Signs of implant displacement [35]. Lupi et al. used UHMWPE in 32 patients with no implant migration, extrusion or enophthalmos [36]. Krishna et al. used PPE implant in 12 patients with fractures of the orbital floor and within the 1-year follow-up no implants were extruded and there were no signs of inflammatory reactions [37]. While our study demonstrated the effectiveness of UHMWPE implants to restore the volume in orbital fracture reconstruction and although no major complications were observed during the immediate post-operative period, a long-term follow-up is required to further ensure the implants overall efficacy.

The main limitation of this study is the use of only one specific orbital implant; therefore, no comparison between different implants can be made. Additionally, its radiolucency can be proven challenging to determine the exact position of the implant. While the immediate post-operative CT scans in this study allowed a sufficient differentiation due to the contrast with the surrounding bone and post-operative emphysema and oedema around the implant, future research could explore modifications to the implant material, such as the incorporation of radio-opaque additives to enhance its visibility and allow long-term monitoring.

Despite these considerations, the results of this study support the short-term safety of UHMWPE implants and concludes that marPOR-Implant is a reliable alternative material for orbital fracture reconstruction. UHMWPE offers several distinct advantages such as long-term stability, exceptional strength, and biocompatibility. In addition, it is easy to handle, contour, and process to the patient’s unique anatomy, resulting in accurate orbital volume restoration.
