Expression of ZIC family genes in meningiomas and other brain tumors

All sampling procedures for human brain tumors were performed according to the Ethics Guidelines for Human Genome/Gene Analysis Research published by the Japanese Ministry of Education, Culture, Sports, Science and Technology http://www.lifescience.mext.go.jp/files/pdf/40_213.pdf. C57BL/6J mice were purchased from Nihon SLC (Shizuoka, Japan). Animal experiments were approved by the Animal Experiment Committee of the RIKEN Brain Science Institute.

RNA samples were prepared from human brain tumors using TRIZOL (Invitrogen, Carlsbad, CA, USA). Total RNA from human whole brain, liver, lung, kidney, and kidney tumor was purchased from Clontech (Mountain View, CA, USA). All RNA samples were treated with RNase-free DNase I (Promega, Madison, WI, USA) before the reverse transcription reaction. Reverse transcription and PCR were performed using ThermoScript reverse transcriptase (Invitrogen) and TaKaRa Ex Taq Hot Start Version (TAKARA BIO, Shiga Japan), respectively. The accession numbers, primer sequences, the size of PCR products, and number of PCR cycles were as follows: ZIC1 (NM_003412), 5'-GGCCCGGAGCAGAGTAAT-3' and 5'-AGCCCTCAAACTCGCACTT-3' (229 bp, 26 cycles); ZIC2 (NM_007129), 5'-CCCTTCAAGGCCAAATACAA-3' and 5'-TGCATGTGCTTCTTCCTGTC-3' (218 bp, 26 cycles); ZIC3 (NM_003413), 5'-GCAAGTCTTTCAAGGCGAAG-3' and 5'-CATGCATGTGCTTCTTACGG-3' (225 bp, 28 cycles); ZIC4 (NM_032153), 5'-GCCCTTCAAAGCCAAATACA-3' and 5'-GCCCTCGAACTCGCATC-3' (172 bp, 28 cycles); ZIC5 (NM_033132), 5'-TCTGCTTCTGGGAGGACTGT-3' and 5'-GGGAATGTTTCTTCCGATCA-3' (252 bp, 28 cycles); and ACTB (NM_001101), 5'-CAACCGCGAGAAGATGACC-3' and 5'-TCCAGGGCGACATAGCACA-3' (324 bp, 22 cycles). Each PCR cycle consisted of 1 min at 94°C, 30 s at 62.5°C, and 1 min at 72°C. RT-PCR product was harvested during the log-linear phase of the amplification curve at the PCR cycles indicated above. The PCR products were separated by electrophoresis in a 2.0% agarose gel and quantified by densitometry of ethidium bromide-stained bands using ImageJ version 1.33 http://rsb.info.nih.gov/ij/. The transcript amounts were normalized to ACTB. The results are indicated as relative values to the transcript amount in whole brain total RNA. The means of the three independent RT-PCR experiments are indicated. The absence of amplified products in RNA samples that had not been reverse transcribed was confirmed at the cycles indicated (data not shown).

The meningioma microarray results of Keller et al. [11] were obtained from the Gene Expression Omnibus (GEO) repository ftp://ftp.ncbi.nih.gov/pub/geo/DATA/supplementary/series/GSE12530/GSE12530_RAW.tar; the data included 24 meningioma and two dura mater controls profiled on GE Healthcare/Amersham Biosciences CodeLink Human Whole Genome Bioarrays. Following probes (ID_REF) were subjected for the analysis: ZIC1, 228079; ZIC2, 56068; ZIC3, 387012; ZIC4, 456009; ZIC5, 80028. For each gene, expression level in meningioma was indicated relative to the expression level in normal dura mater.

The expression vectors were transfected into NIH3T3 cells or 293T cells using TransIT-LT1 transfection reagent (Mirus, Madison, WI, USA). For protein immunoblot, the transfected cells were lysed in sodium dodecyl sulfate - polyacrylamide gel electrophoresis (SDS-PAGE) loading buffer. The proteins were separated by SDS-PAGE and transferred to polyvinylidene di?uoride membranes. The membranes were first incubated with 5% skim milk in phosphate-buffered saline (PBS) containing 0.1% Tween20 (PBST) for 1 h to block non-specific binding, and then incubated with either rat monoclonal anti-HA tag antibody (3F10, 1:4000), rabbit polyclonal anti-Zic2 antibody [CXY2, [12]], mouse monoclonal anti-Zic1 antibody [ZC26, [8]], or rabbit polyclonal anti-ZIC4 antibody (ProteinTech Group, Chicago, IL, USA) diluted in the blocking buffer, at 4°C overnight. Membranes were then washed in PBST for 1 h, and incubated for 1 h with horseradish peroxidase-conjugated anti-rabbit, anti-rat, or anti-mouse antibodies (Jackson ImmunoResearch Laboratories, West Grove, PA, USA). After re-washing with PBST, the bound antibodies were detected using enhanced chemiluminescence Western blot detection reagent (GE Healthcare, Buckinghamshire, UK).

Immunofluorescence staining was performed as described previously [4, 13]. Immunohistochemical staining of human brain tumor specimen was performed as described [8] and briefly described below. Formaldehyde-fixed, paraffin embedded sections (3 to 6 μm) were prepared using a standard procedure [8]. The antigen retrieval was performed by autoclaving the dewaxed, hydrated tissue specimens in 10 mM sodium citrate (pH 6.5) at 121°C for 5 min. The sections were further incubated in 0.3% hydrogen peroxide for 10 min to inactivate the endogenous peroxidase-like activity. Blocking of non-specific binding was performed by immersing the specimens in a PBST containing 1% skim milk and 2% normal goat serum for 30 min at room temperature. The primary antibodies used in the immunohistochemical staining were anti-ZIC (CXY2, ZC26, and anti-ZIC4) anti-vimentin (Nichirei Biosciences, Tokyo, Japan), anti-EMA (Dako, Glostrup, Denmark), and anti-chondroitin sulfate proteoglycan (CS56, Sigma-Aldrich, St. Louis, MO, USA).

The sections were incubated at 4°C overnight in blocking buffer containing appropriately diluted primary antibodies (CXY2, 1:2000; ZC26, 1:500; anti-ZIC4, 1:400; anti-vimentin, 1:300; anti-EMA, 1:4). The bound primary antibodies were detected by immunoperoxidase reaction using VECTASTAIN Elite ABC kit (Vector Laboratories, Burlingame, CA, USA) and 3,3'-Diaminobenzidine (DAB) as a substrate. The double labeling was carried out by sequential primary antibody incubation and detection using two different chromogens, DAB and DAB-Nickel. Digital images were obtained using the NanoZoomer Digital Pathology C9600 (Hamamatsu Photonics, Shizuoka, Japan) image scanner and analyzed using the NDPViewer software (Hamamatsu Photonics).

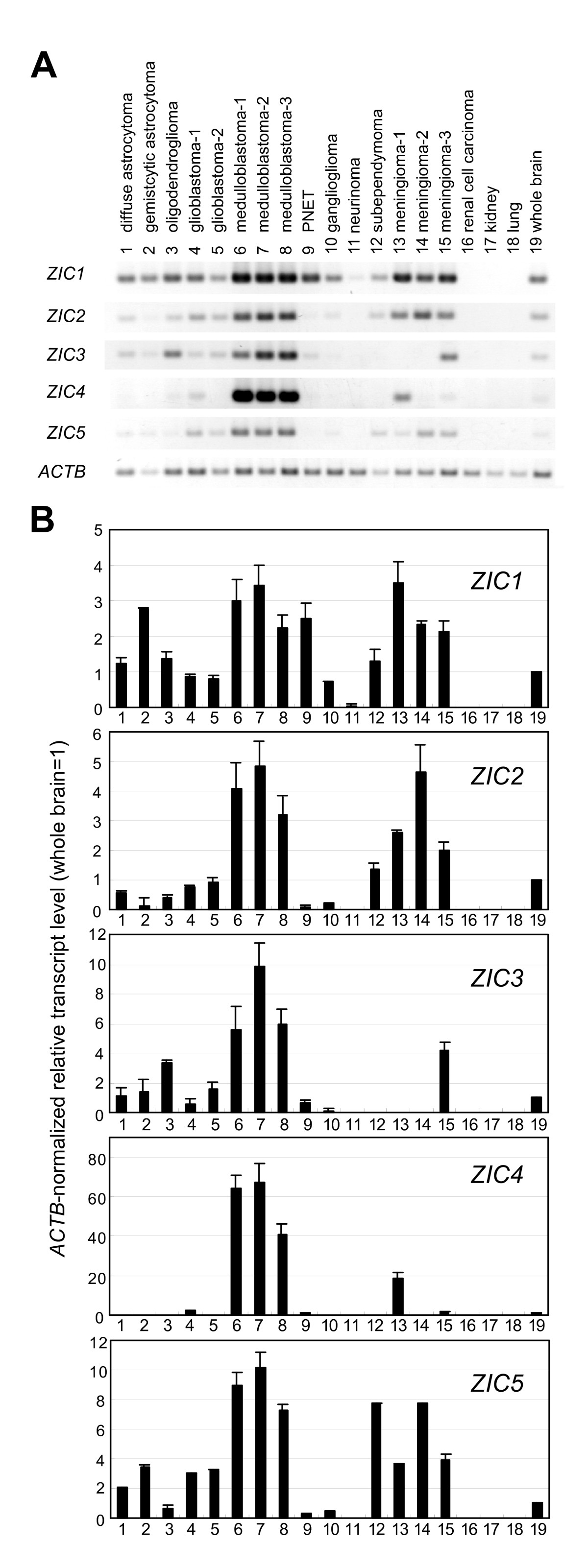

We first examined the mRNA levels of the five ZIC genes in various types of brain tumors including astrocytoma, oligodendroglioma, glioblastoma, medulloblastoma, primitive neuroectodermal tumor, ganglioglioma, neurinoma, subependymoma, and meningioma (Figure 1, Table 1). A semi-quantitative RT-PCR analysis was performed using ZIC gene specific primer sets and cDNA synthesized from brain tumor RNA. The most consistent feature of ZIC expression was the high level of all five ZIC transcripts in the three medulloblastoma cases, when compared to their level in whole brain; the relative amounts varied from 2- to 3-fold for ZIC1 to 40- to 70-fold for ZIC4. In the three meningioma cases, the ZIC1, ZIC2 and ZIC5 mRNA levels were 2- to 3.5- fold, 2- to 4.7- fold, and 3- to 8-fold higher, respectively, than those in the whole brain. The ZIC3 and ZIC4 mRNA levels were higher in meningioma than in whole brain in one out of the three cases.

Bild vergrößern

We next evaluated ZIC1-5 mRNA levels in meningioma of various histological grades. For this purpose, we utilized a recent study in which a total of 24 meningioma cases and two normal dura mater tissue samples were subjected to microarray analysis [11]; the cases comprised eight benign (WHO Grade I), eight atypical (WHO Grade II) and eight malignant (WHO Grade III) tumors. For each ZIC gene, the mRNA level in meningioma relative to the level in normal dura mater was deduced from the published data (Figure 2). The mRNA levels of ZIC1, ZIC2 and ZIC5 were higher in meningioma than in dura mater. ZIC1 levels were significantly higher in Grade II tumors (5.0 fold) than in Grade I tumors (1.7 fold) (P = 0.027, Welch's t-test).

Bild vergrößern

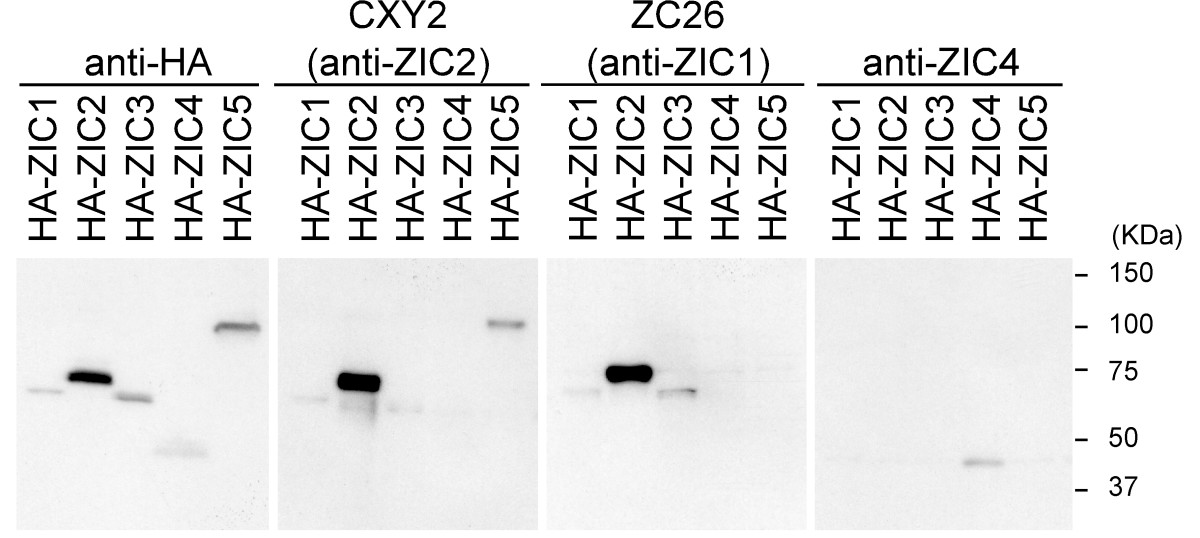

For the immunohistochemical detection of human ZIC proteins, we used three anti-ZIC antibodies. Anti-Zic2 polyclonal antibody (CXY2) and anti-Zic1 monoclonal antibody (ZC26) recognize the C-terminal regions of mouse Zic2 and Zic1, respectively. Anti-ZIC4 polyclonal antibody was raised against a peptide corresponding to human ZIC4 sequence. We first checked each antibody's specificity by protein immunoblot analysis (Figure 3) and immunofluorescence staining (Additional file 1) of the N-terminally epitope-tagged human ZIC1-5 proteins produced in mammalian cells. In both assays, CXY2, ZC26, and anti-ZIC4 recognized ZIC1/ZIC2/ZIC3/ZIC5, ZIC1/ZIC2/ZIC3, and ZIC4, respectively. The combinatorial use of these three antibodies was expected to cover all five ZIC proteins.

Bild vergrößern

We then applied these antibodies to the immunostaining of paraffin-embedded brain tumor sections from patients, in order to examine whether ZIC-like immunoreactivity is present in meningioma (Table 2). Both CXY2 and ZC26 gave ZIC-like signals in the cell nuclei of all 23 meningioma cases. The staining intensity was generally higher for CXY2; but there was no obvious difference between CXY2 and ZC26 in terms of the distribution of the signals across tissues (data not shown). By contrast, anti-ZIC4 staining did not produce clear nuclear staining in the meningioma cases. The anti-ZIC4 antibody generated weak cytoplasmic staining in a subset of cells (data not shown). We excluded the cytoplasmic staining from the current analysis because we did not observe any obvious cytoplasmic localization of epitope-tagged ZIC4 protein in cultured cells (Additional file 1). All three anti-ZIC antibodies gave clear nuclear signals in the four medulloblastoma cases (Table 2), consistent with the RT-PCR results.

The histological subtypes of meningiomas included in this study were meningothelial meningioma (Figure 4A, B), fibrous meningioma (Figure 4C, D), transitional (mixed) meningioma (Figure 4E, F), psammomatous meningioma (Figure 4G, H), atypical meningioma (Figure 5A-C) and anaplastic meningioma (Figure 5D-I). CXY2/ZC26-positive signals were detected broadly in the tumor cell nuclei of each histological type (CXY2: Figure 4B, D, F, H, and Figure 5B, C; ZC26: data not shown), and overlapped with two meningioma molecular markers, vimentin and EMA (Figure 5D-I). There was no discernable difference between the intensity of staining among the different histological grades.

Bild vergrößern

Bild vergrößern

We performed immunohistochemical staining of other types of brain and intracranial tumors as references (Table 2). In glioblastoma multiforme, no ZIC-like signals were detected, with the exception of one of the four cases that showed a weak signal for ZC26. Two out of four hemangioblastomas stained weakly with CXY2. A primitive neuroectodermal tumor and an atypical teratoid rhabdoid tumor were CXY2-immunopositive.

To examine whether the presence of ZIC proteins in meningioma relates to the tumor's proposed histogenesis, we examined the localization of ZIC-like signals in normal tissue adjacent to the tumor tissue. When we examined the meningeal tissues, CXY2-positive signals were detected in arachnoid cells that express vimentin, but were not detected in the dura mater (Figure 6A, B, E, F). ZIC4-positive signals were not detected in arachnoid or dura mater cells (data not shown). By comparison, all three of the anti-ZIC antibodies gave clear signals in the cell nuclei of cerebellar granule neurons (Figure 6C, D, G, H), from which medulloblastomas are considered to be derived.

Bild vergrößern

We also explored the distribution of Zic proteins in meningeal cells during development, using mouse as a model. Mouse Zic proteins are present in meningeal cell progenitors as early as when the primitive meninx tissue appears (Figure 7A, [4]). CXY2-positive cells in the meningeal layer were vimentin-positive along the course of development (Figure 7E, F). After chondrogenic differentiation of the outer layers had occurred (Figure 7B, C, F, G), CXY2-positive signals were interposed between the neuroepithelial cells and the chondrogenic region, as delineated by CS56 staining (indicating the distribution of chondroitin sulfate proteoglycan, Figure 7C, G), and were limited to the arachnoid layer. The CXY2-positive signals were also detected in the mature arachnoid cells (Figure 7D, H), similar to our observation in the human adult meningeal membrane (Figure 6A, B, E, F).

Bild vergrößern

The distribution of ZIC-like immunopositive signals in meningiomas may reflect the property of the arachnoid cells from which meningiomas arise. Since Zic proteins play an essential role in the proliferation of meningeal cell progenitors [4], we consider it possible that ZIC proteins are involved in the proliferation of meningioma cells. This is consistent with our observation that ZIC1, ZIC2 and ZIC5 mRNA levels are higher in meningiomas than in normal brain tissues. We suggest that studies to elucidate the involvement of ZIC genes in the meningioma tumor cell proliferation would be beneficial.

Antibodies against EMA, vimentin and Ki-67 have been used to provide histopathological differential diagnoses of meningioma and to estimate its malignancy grade [1]; however, no molecular marker that is specific for meningiomas has been described to date. Although additional studies in more cases of various brain tumors are needed, detection of ZIC proteins in meningioma will be helpful for diagnoses in extraaxial brain tumors.

In terms of meningeal expression of ZIC genes, a previous in situ hybridization study [4] indicates that mouse Zic1 and Zic2 are strongly expressed in the embryonic meningeal cells and its precursors. Our study confirms these results and clarifies that the expression of Zic genes continues during development in the arachnoid cell lineage in mouse. We detected immunoreactive Zic/ZIC proteins in meningeal cells in both mouse and human adult brains. Although the physiological role of ZIC proteins in the adult meningeal cells has not been clarified, ZIC proteins might be involved in the maintenance of cell properties of differentiated arachnoid cells, analogous to their role in meningeal cell differentiation in mouse development.

A major finding of this study is the differential expression of members of the human ZIC gene family in various brain tumor types. RT-PCR analysis revealed that ZIC4 expression is highly enhanced in medulloblastoma, in a sharp contrast to the expression levels in whole brain, while ZIC1, ZIC2 and ZIC5 are expressed both in the meningioma and medulloblastoma. The results of the immunoscreening are consistent with the RT-PCR results in that ZIC4-like nuclear staining was almost limited to the medulloblastoma cases. Although we detected low amounts of ZIC4 transcript in one of the three-meningioma cases, the immunoreactive ZIC4 protein level in this sample was below the limit of detection (data not shown). The distinctive expression profile of ZIC4 highlights its usefulness as a molecular marker for brain tumor pathology.

Interestingly, in a cohort of patients with small cell lung carcinoma, one of the most aggressive tumors known, autoantibodies to ZIC2 are present in 28% of patients, and the presence of these autoantibodies is associated with less aggressive clinical parameters such as a better response to initial therapy [14]. Autoantibodies in small lung cell carcinoma patients show cross-reactivity among ZIC1, ZIC2, and ZIC4 proteins [15], suggesting that immunoreactivities of the autoantibodies are directed primarily against the conserved zinc finger domains of ZIC [16]. Furthermore, ZIC autoantibodies have been detected in patients with both small cell lung carcinoma and paraneoplastic neurological syndrome, although it is not clear whether the immune response to ZIC proteins is pathogenically related to the development of the neurological syndrome [16]. In small cell lung carcinoma, it is important that the expression of ZIC proteins, and the usability of ZIC autoantibodies as a diagnostic tool, are further clarified. Therefore, comprehensive studies that examine each of the five members of the ZIC family proteins, and their corresponding autoantibodies are required.

Our findings, together with those of previous studies [8‐10], demonstrate the importance of ZIC proteins in clinical oncology. Future studies will require improved ZIC protein- or anti-ZIC antibody-detection systems. We suggest that the anti-ZIC antibodies and the full-length ZIC1-5 expression vectors described in this study will be useful for this purpose.
