Fractal dimension of chromatin is an independent prognostic factor for survival in melanoma

Malignant melanoma is a highly aggressive neoplasia of the skin with a constant and rapidly increasing incidence in the last decades [1] Prognostic factors are currently based on clinical data and morphologic examination (including variables such as tumor thickness, mitotic rate, etc.) [1‐3], which are reliable and reproducible. Other prognostic markers, however, which are not yet used in daily practice, might add important information and thus improve prognosis, treatment, and survival. Therefore a search for new prognostic factors is desirable. For this purpose, traditional or new immunohistochemical markers, gene expression arrays, comparative genomic hybridization and mutational profiling have been applied [1, 4‐9]. Most of these techniques are sophisticated and expensive, requiring specially equipped laboratories with a trained staff, Detailed morphological analysis of the nuclei in histological or cytological preparations can give important information on cell physiology and, furthermore, can be of considerable great diagnostic and prognostic importance [10‐22]. Physiologic or pathologic changes of the cell accompany changes of the chromatin arrangement [21, 22]. In particular, neoplastic growth induces important modifications, not only of the DNA, but also of the composition and distribution of the histone and non-histone nuclear proteins, thus provoking alterations of the distribution of heterochromatin in the nucleus. Nuclear texture features have been studied as prognostic markers in neoplasias [11, 21, 22]. The resources available in commercial softwares are usually restricted to basic morphometric parameters such as diameter, area and perimeter, which cannot adequately measure texture features of nuclei.

An important aspect of texture analysis is the determination of fractality, since this feature characterizes the complexity of a structure not revealed by classical morphometry based on Euclidean geometry. Recent studies have shown the fractal nature of nuclear chromatin and of the surrounding nucleoplasmic space [23‐25]. Fractals are self-similar structures, i.e. they exhibit similar features at different magnifications, in a scale-invariant manner. Previous studies have shown that fractal characteristics of nuclear chromatin are of prognostic importance in neoplasias [21, 26‐29]. Therefore we have investigated whether the fractal dimension of nuclear chromatin measured in routinely stained histological preparations of melanomas can be of prognostic survival value.

The study involved 41 women and 30 men. The median follow-up was 104 months (8 -160). Fifteen patients died from disseminated disease. Primary tumors were located in the trunk in 47.1% patients, 44.1% in the extremities, and 8.8% in the head and neck. Tumor thickness, measuring 1.05 -17.0 mm (median 2.35 mm), was a significant adverse prognostic factor in the univariate Cox regression ( B = 0.1623; p = 0.0007). The Clark level ranged from 2 to 5, and was also a significant adverse prognostic factor ( B = 1.1574; p = 0.0011). At diagnosis, patients had a median age of 55 years (14-89). Age was not a prognostic factor in the univariate proportional hazard model (p > 0.10). Eight patients had lymph node metastases and 3 patients hematogenic metastases at diagnosis, but their survival was not statistically worse (p > 0.1 in both cases). The median mitotic rate was 1.875/mm² (0-32.5/mm²). The mitotic rate was significantly correlated with tumor thickness (r = 0.54; p < 0.0001) and revealed to be a negative prognostic factor (B = 0.0744. p = 0.007). The nuclear area (median value: 81.3 micra²; range 33.7 to 139.3) was also correlated both with the tumor thickness (r = 0.405; p = 0.00045) and the mitotic rate (r = 0.31; p = 0.008), and was a significant unfavorable prognostic factor (B = 0.0212; p = 0.0274).The form factor (median: 0.706 ranging from 0.57.3-0.807) was negatively correlated with tumor thickness (r = -0.431; p < 0.0001 ) and mitotic rate (r = -0.28; p = 0.016), but was of no prognostic relevance (p = 0.417). The fractal dimension of the chromatin structure ranged from 2.01 to 2.082 with a median of 2.06. The median of the R² values, which represent the goodness-of-fit of the regression lines, was 0.9998 (range 0.9989 - 0.9999). In each case, between 96% and 100% of the nuclei revealed normal distribution of the residuals. The fractal dimension was significantly correlated both with tumor thickness (r = 0.482; p < 0.0001) and the mitotic rate (r = 0.342; p = 0.002) and was a negative prognostic factor for survival (B = 73.9; p = 0.0091). We also ran a multivariate Cox regression, stratified for the presence or absence of metastases at diagnosis, and including all variables with p < 0.05 in the univariate models. The final regression included only Clark level (B = 1.0427; p = 0.0036) and fractal dimension of the chromatin (B = 55.169; p = 0.05) as independent prognostic factors.

The relevance of tumor thickness, Clark's level and the mitotic rate, which are well known prognostic factors in the literature [1, 2, 34], were confirmed in this study. But we could not demonstrate the presence of lymph node or hematogenic metastases as significant prognostic factors. This is certainly due to the very small number of patients with stage III or IV, so that the statistical test power was too low to show significant differences. Nevertheless, to eliminate even minor influences of metastases on the proportional hazard model, we stratified the Cox regression for the presence of metastases. The main emphasis of our investigation was to test karyometic variables being as prognostic factors.

The use of computerized image analysis has contributed to an objective description of melanoma cells and decreased substantially inter-observer variation. Objective measurement of nucleolar organizer regions (AgNORs), proliferating cell nuclear antigen (PCNA) and Ki-67, nuclear DNA content or karyometric variables such as chromatin compactness, and nuclear size and shape, have been used for differential diagnosis between melanomas and several forms of melanocytic nevi [35‐37].

Karyometric differences between benign and malignant melanocytic lesions reflect alterations at the genetic and epigenetic level during the progression from common melanocytic nevi to dysplastic nevi to melanoma. This process involves dynamic changes in the genome produced by mutations through gain of oncogene function or loss of action of tumor suppressor genes. But many additional alterations of gene expression can be found during tumor progression, passing from the radial to the vertical growth phase and finally to the metastatic phenotype [1]. Abnormalities in mitotic regulators such as RASSF1A and Aurora kinases promote chromosomal instability on melanoma cells [38]. Comparative genomic hybridization revealed a higher number of genetic alterations in primary melanomas which developed metastases within one year after surgery compared to tumors that did not metastasize [39]. Thus the aggressive behavior of melanoma seems to be associated with an accumulation of multiple genetic alterations.

The nucleus is organized at three hierarchical levels: the organization of nuclear processes, the higher-order organization of the chromatin fiber, and the spatial arrangement of genomes within the nuclear space. Structure and function interact mutually in a dynamic way. There is increasing evidence for self-organization of nuclear architecture and function at all levels of organization leading to a high degree of structural complexity in the mammalian cell nucleus [40]. Chromatin is separated into two distinct conformations: euchromatin, which is uncondensed and the much denser heterochromatin, which is considered to be transcriptionally less active. Recent investigations are challenging this concept, demonstrating that chromatin structure is correlated with gene density, rather than activity. According to them, decondensed chromatin is representing gene-rich and condensed chromatin gene-poor regions [41]. Mascolo et al [42] demonstrated that overexperession of the chromatin assembly factor-1 which promotes histone incorporation into chromatin, was associatied with a higher risk to develop metastases. Based on these studies we may hypothesize that the chromatin organization of aggressive melanomas with an increased number of genetic and epigenetic alterations should be different from those with a more benign clinical course. The characteristics of the nuclear architecture, as seen by the pathologist in routine sections, reflect genomic and non-genomic changes in both the structure of DNA and chromatin [43]. Taking together all these studies, we may expect that changes of nuclear shape, size and chromatin texture would accompany tumor progression and the transformation to a more aggressive phenotype.

Our karyometric measurements corroborate this hypothesis. With increasing tumor thickness, i.e. vertical growth, the nuclear area enlarged and the form factor decreased, i.e. the nuclei tended to loose their roundedness. In the univariate Cox regression, nuclear area was also a significantly negative prognostic factor, i.e., the ability to metastasize was higher in melanomas with larger nuclei. This result confirms a previous study, which showed that the mean nuclear volume of primary melanomas with subsequent metastatic course was larger than tumors that did not metastatize [44]. Talve et al [45] observed in aneuploid melanomas a correlation of tumor thickness with nuclear size and increased genetic instability. The nuclear size in our investigation was also positively correlated with the fractal dimension of the chromatin architecture of the nuclei.

The fractal concept of self-similar structures was introduced by Mandelbrot [46]. Paumgartner et al. [47] applied it to microscopic images in biology and medicine. Grosberg et al [48] postulated that folded polymers should be fractals. During condensation, a polymer is repeatedly subjected to the self-similar process of crumpling, and this applies also to chromatin. Thus, the condensed polymer becomes finally a fractal. In that way a long polymer can be packed in a small volume without entanglements, which facilitates unravelling when necessary and is therefore an advantage for cell physiology [49]. Recent experimental studies showed indirect evidence for the fractal nature of DNA, nuclear chromatin and the surrounding nucleoplasmic space [23‐25]. Our results gave evidence for the fractal nature of nuclear chromatin stained by haematoxylin in paraffin sections of melanoma cells.

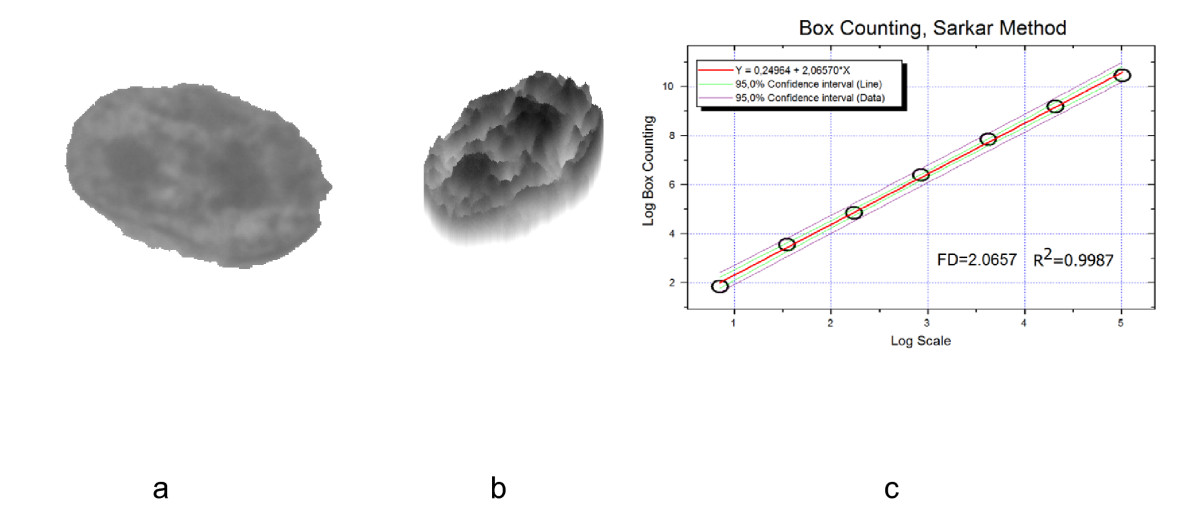

The question whether a given structure should be considered as fractal, is linked not only to its scaling characteristics, which follow power laws. The goodness-of fit of the linear regression in the log-log plot is essential. The observed values should lie as close as possible on the straight regression line, where the slope gives an estimate of the fractal dimension. This condition was fulfilled since the R² values of the regression were allways > 0.99. Moreover, the histograms of the residuals, which are scattered around this line should follow a normal distribution [21, 32, 50]. In our study, between 96% and 100% of the nuclei per case had Gaussian distribution of the residuals. Therefore we are authorized to apply the concept of fractality and calculate the fractal dimension.

We are measuring the fractal dimension of a rough and irregular surface, The dimension of a plane surface is 2 and that of a cube 3. In an intuitive way one can interpret the fractal dimension of a rough, "landscape-like" surface as being in between the dimensions of a plane and of the cube, therefore 2 < FD < 3. The fractal dimension is equivalent to the slope of the regression line which depends on the number of intercepts of the surface with the boxes. A "smoother" surface has less intercepts and therefore a lower FD than a "rougher" surface. The fractal dimension was an independent adverse prognostic factor for survival in malignant melanomas. In other words, melanomas with a "rougher" surface had a bad prognosis. A more aggressive behaviour is usually found in genetically unstable neoplasias with a higher number of genetic or epigenetic changes, which provoke a more complex chromatin rearrangement, revealing an increased number of darker and lighter areas.

Previous studies demonstrated an association between higher FD values of the nucleus and worse prognosis in multiple myelomas [29], squamous cell carcinomas of the oral cavity [26] and in squamous cell carcinomas of the larynx [28].

Tumor thickness, nuclear size, mitotic index and fractal dimension have all been positively correlated with each other in this study. Nevertheless, the stepwise procedure in the multivariate Cox regression selected the fractal dimension and the Clark level as independent variables that built up the best proportional hazard model explaining patients' survival. This implies that the complexity of chromatin distribution contains relevant prognostic information which is independent of the Clark level. Since this investigation was based on a relatively small number of patients, it should be followed by confirmatory studies.

Our study showed that the chromatin texture of hematoxylin-eosin stained nuclei in paraffin sections of melanoma cells can be described as a fractal. The increased nuclear fractal dimension found in the more aggressive melanomas is the mathematical equivalent of a greater complexity of their chromatin architecture. We conclude that there is strong evidence that the fractal dimension of the nuclear chromatin texture is a new and promising variable in prognostic models of malignant melanomas.
