Escherichia coli, the gastrointestinal commensal, is also known to cause ocular infections such as conjunctivitis, keratitis and endophthalmitis. These infections are normally resolved by topical application of an appropriate antibiotic. But, at times these E. coli are resistant to the antibiotic and this could be due to formation of a biofilm. In this study ocular E. coli from patients with conjunctivitis, keratitis or endophthalmitis were screened for their antibiotic susceptibility and biofilm formation potential. In addition DNA-microarray analysis was done to identify genes that are involved in biofilm formation and antibiotic resistance.
Results
Out of 12 ocular E. coli isolated from patients ten isolates were resistant to one or more of the nine antibiotics tested and majority of the isolates were positive for biofilm formation. In E. coli L-1216/2010, the best biofilm forming isolate, biofilm formation was confirmed by scanning electron microscopy. Confocal laser scanning microscopic studies indicated that the thickness of the biofilm increased up to 72 h of growth. Further, in the biofilm phase, E. coli L-1216/2010 was 100 times more resistant to the eight antibiotics tested compared to planktonic phase. DNA microarray analysis indicated that in biofilm forming E. coli L-1216/2010 genes encoding biofilm formation such as cell adhesion genes, LPS production genes, genes required for biofilm architecture and extracellular matrix remodeling and genes encoding for proteins that are integral to the cell membrane and those that influence antigen presentation are up regulated during biofilm formation. In addition genes that confer antimicrobial resistance such as genes encoding antimicrobial efflux (mdtM and cycA), virulence (insQ, yjgK), toxin production (sat, yjgK, chpS, chpB and ygjN), transport of amino-acids and other metabolites (cbrB, cbrC, hisI and mglB) are also up regulated. These genes could serve as potential targets for developing strategies for hacking biofilms and overcoming antibiotic resistance.
Conclusions
This is the first study on global gene expression in antibiotic resistant ocular E. coli with a potential to form biofilm. Using native ocular isolates for antibiotic susceptibility testing, for biofilm formation and global gene expression is relevant and more acceptable than using type strains or non clinical strains which do not necessarily mimic the native isolate.
The online version of this article (doi:10.1186/s13099-017-0164-2) contains supplementary material, which is available to authorized users.
Abkürzungen
VTEC
verotoxigenic
EHEC
entero-haemorrhagic
EIEC
entero-invasive
ExPEC
extra-intestinal pathogenic
UPEC
uro-pathogenic
TCP
tissue culture plate
BHI
brain–heart infusion
TSB
tryptic soy broth
SEM
scanning-electron microscopy
CLSM
confocal laser scanning microscope
MHA
Mueller–Hinton agar medium
MIC
minimum inhibitory concentration
CLSI
Clinical and Laboratory Standards Institute
EUCAST
European Committee on Antimicrobial Susceptibility
PLIER
probe logarithmic intensity error estimation
GEO
Gene Expression Omnibus
COG
Clusters of Orthologous Groups
DAVID
Database for Annotation, Visualization and Integrated Discovery
KEGG
Kyoto Encyclopedia of Genes and Genomes
Background
Escherichia coli, is a coliform bacterium that occurs as a commensal in the gut of humans and other warm blooded mammals [1] and exhibits high degree of genotypic and phenotypic diversity. A few of them are pathogenic [2, 3] and include the verotoxigenic (VTEC), entero-haemorrhagic (EHEC, a subclass of the VTEC class), entero-invasive (EIEC) and uro-pathogenic/extra-intestinal pathogenic (UPEC/ExPEC) classes and are harmful to their hosts [3, 4]. E. coli also inhabits different environmental niches viz., soil, water, sediment, food, abiotic and biotic surfaces [5] like the surface of the eye and the inner surface of the eye lids. But, E. coli is not the only bacterium on the ocular surface and includes several other Gram-negative bacteria (Neisseria spp., Pseudomonas aeruginosa and Haemophilus influenzae) [6, 7], Gram-positive bacteria (Staphylococcus epidermidis, S. aureus, Corynebacterium spp., Streptococci spp., and Propionibacterium acnes), fungi (Fusarium solani, Cladosporium sphaerospermum, Acremonium implicatum, Candida albicans and Aspergillus fumigatus) [8‐10] and viruses. More recently using non-cultivable molecular techniques based on 16S rRNA gene sequencing a greater bacterial diversity has been observed associated with the eye [11‐14]. In all these studies the diversity of bacteria was very different and genera Staphylococcus, Corynebacterium, Propionibacterium and Streptococcus were the only common genera. Thus based on these studies it is difficult to conclude as to what constitutes the ocular surface microbiota (or a core microbiome) or whether the microbiota are only transiently present [15].
Characterising the ocular microbiome is important because following trauma or under immuno-compromised conditions these ocular microbiota may cause infection of the eye (such as keratitis, endophthalmitis, orbital cellulitis etc.) often leading to loss of vision. But, ocular infections such as conjunctivitits and keratitis may also originate from dirty fingers and contaminated contact lenses. Normally the infection is resolved following treatment with antifungal/antibacterial agents. However, over the years many of these organisms have become resistant to drugs. In preliminary studies carried out at the Jhaveri microbiology centre at L V Prasad Eye Institute (a tertiary eye care center), Hyderabad, India, several corneal pathogens were observed to be tolerant to one or more ocular antibiotics thus implying the emergence of tolerant strains [16]. Resistance to drugs may be linked to biofilm formation. Bacteria in a biofilm exhibit increased resistance to antibiotics due to binding of the antibiotics to the extracellular polymeric substances (EPS), due to production of enzymes that inactivate antibiotics, due to nutrient and oxygen limitation, due to increase in the efficiency of efflux pumps and due to up regulation of drug resistance-associated genes [17, 18].
Anzeige
Bacteria have been reported to form biofilm on contact lenses, intraocular lenses, lid implants, orbit implants, socket implants, scleral buckles and suture material [19, 20]. P. aeruginosa, S. epidermidis, Streptococcus spp. and Enterobacter have been identified to be a part of the biofilm [18]. Katiyar et al. [21] demonstrated that 85% of the isolates from intraocular lenses represented by P. aeruginosa, Staphylococcus aureus, S. epidermidis, Micrococcus luteus, S. marcescens, Neisseria spp., Moraxella spp., Bacillus spp., E. coli, Proteus mirabilis, Enterobacter agglomerans and Klebsiella spp., exhibited the potential to form biofilms and were resistant to antibiotics.
Information on genes that are differentially regulated during biofilm formation and correlating the results to increased resistance to antimicrobials have not been studied in ocular bacteria. With this in view, in the present study ocular isolates of E. coli which are known to cause about 1.1% of the total ocular infections [22] such as keratitis [23], endophthalmitis [24, 25], conjunctivitis [6], pan-ophthalmitis [26] and eyelid abscess [27], were used as model systems to investigate antibiotic susceptibility and biofilm formation potential. In addition global gene expression was studied by DNA-microarray analysis to identify genes that are involved in biofilm formation and antibiotic resistance. This approach using the native ocular isolates for global gene expression is relevant considering that studies have indicated that use of type strains (or non clinical strains) may not be the right approach to understand antibiotic resistance in a biofilm forming microorganism [28, 29]. Since the type strains of the same species need not necessarily mimic exactly the native isolate. The results of this study would unravel the identity of genes that are differentially regulated during biofilm formation and identify differentially regulated genes related to increased resistance to antimicrobials.
Methods
Collection of samples and bacterial identification
The Jhaveri Microbiology Centre of the Prof. Brien Holden Eye Research Centre at the L V Prasad Eye Institute, Hyderabad, India receives over 4000 clinical samples per annum from patients with eye infections. These samples are processed for the detection of bacteria and fungi and subsequently the cultures are purified, identified and preserved in tryptone soya broth with 30% glycerol at −80 °C. This study used 12 E. coli isolates preserved between 2010 and 2014. All preserved isolates of bacteria were cultured on 5% sheep blood agar medium at 37 °C. A pure homogenous culture obtained after repeated streaking was then subjected to Vitek 2 compact (bioMérieux, France) analysis for identification of the bacterium. Tests were performed according to the manufacturer’s instructions and the cultures were identified with the database of the instrument.
Biofilm detection
The potential to form a biofilm was assessed in 12 ocular isolates of E. coli using the microtiter/tissue culture plate (TCP) method [30]. In the TCP or crystal violet method a single colony of the bacterium was inoculated into 5 ml medium of brain–heart infusion (BHI) and tryptic soy broth (TSB) (HiMedia Laboratories, Secunderabad, India) separately and incubated overnight. The culture was then adjusted to 0.5 McFarland units, diluted 100-fold and 100 µl of the diluted inoculum was dispensed into a single well of a 96 well plate (Thermo Fisher Scientific, Nunclon™, Denmark) containing 100 µl of fresh medium. The plate was then incubated at 37 °C for 72 h. The broth was then discarded by inverting the plate and gently tapping it after which it was washed thrice with 200 µl of phosphate buffered saline (PBS, Sigma-Aldrich Corporation, St. Louis, MO, USA) and allowed to dry for 30 min. The bacteria in the biofilm adhering to the plate were then stained with 200 µl of 0.1% Crystal violet for 30 min and the Crystal violet associated with the cells was then extracted with 200 µl of ethanol and quantified spectrophotometrically at 595 nm [30]. Visually, wells without the inoculum (control) and wells with bacteria that did not possess the potential to form biofilm were white to pale blue in colour. But, wells inoculated with bacteria which have a potential to form a biofilm are moderate to dark blue in colour indicative of biofilm formation. Wells without cells inoculated served as the control and the OD was <0.1 at 595 nm and was deducted from the biofilm positive strains (OD > 0.3 at 595 nm) and the biofilm negative strains (OD < 0.3 at 595 nm).
Anzeige
The TCP method was used to ascertain the optimum temperature and pH required for biofilm formation using two different media. The 12 ocular E. coli isolates were either incubated at 30 or 37 °C in BHI or TSB and the pH of the medium was adjusted to 5, 6, 7, 8 or 9 and incubated for 72 h. Following crystal violet staining the biofilm was quantified as above by recording the absorbance at 595 nm.
Visualization of biofilm by scanning-electron microscopy (SEM) and confocal laser scanning microscope (CLSM)
A single colony of E. coli L-1216/2010 was incubated overnight at 37 °C in BHI or TSB. The culture was then adjusted to 3 McFarland with the medium and then 20 µl of 3 McFarland culture was made up to 200 µl using the same medium and transferred on to a sterile glass cover slip (10 × 10 mm) and placed in the 12 well plate (Thermo Fisher Scientific, Nunclon™, Denmark) and incubated for different time intervals (24, 48 and 72 h.) at 37 °C. After incubation, the adhering biofilm was washed, fixed with 2.5% glutaraldehyde solution for 2 h, washed thrice with distilled water and dehydrated through a graded series of ethanol (10, 25, 50, 70, 90, and 100%) for 20 min in each grade. Finally, the biofilms were air dried at 37 ± 1 °C for 24 h. Prior to visualisation of the biofilm using a SEM (HITACHI-Model S-3400N, Japan) the biofilms were metalized by gold sputtering for 45 s in a High Vacuum Evaporator (SC7620 PALARON Sputter Coater).
Escherichia coli biofilms of strain L-1216/2010 were also visualized by CLSM. The biofilms were grown for 24, 48 and 72 h as above, washed twice gently with autoclaved water and the adhering biofilm fixed with 4% formaldehyde (Himedia-Secunderabad, India) for 45 min. The fixed biofilms were then washed twice with autoclaved water and stained with 200 µl of 1.67 µM Syto®9 nuclear fluorescent dye (Thermo Fisher Scientific, USA) for 30 min. The stained biofilms were washed again with autoclaved water and mounted on a glass slide using mounting media (Thermo Fisher Scientific, USA). Confocal images were taken using Zeiss confocal laser scanning microscope (LSM 510). Argon Laser was excited at 450–490 nm, a 40× objective was used set at Zoom 2.
Antibiotic susceptibility of ocular E. coli
The susceptibility of the 12 clinical isolates of E. coli to different antibiotics as listed in Table 1 was determined on Mueller Hinton agar medium (MHA-Himedia) by Kirby Bauer disc diffusion method as per CLSI 2012 guidelines [31] to determine the susceptibility of the isolates to different antibiotics. In addition the minimum inhibitory concentration (MIC) of the antibiotic required to inhibit the growth of the 12 isolates was determined by the micro-dilution method. For this purpose, overnight grown culture from the BHI medium was adjusted to 0.5 McFarland and 200 µl was transferred into each well of the 96 well plate and incubated at 37 °C for 16 h as described by The European Committee on Antimicrobial Susceptibility Testing (EUCAST) in 2003 [32] in the presence of the antibiotic. At the end of the incubation period OD 595 nm was determined. Each antimicrobial concentration was tested thrice and the mean values are presented. All the antibiotics were obtained from commercial sources. The susceptibility of E. coli isolate L-1216/2010 was also determined after the formation of the biofilm. In this experiment, overnight grown culture from then BHI medium was adjusted to 0.5 McFarland and 200 µl was transferred into each well of the 96 well plate and incubated at 37 °C for 48 h for biofilm formation. Planktonic cells were discarded, bound cells washed with milliQ water and then the antibiotic (dissolved in BHI medium) of a specific concentration was added to the biofilm and incubated for 16 h. The capability of the bacterium to form biofilm was monitored in the absence and the presence of different antibiotics at different concentrations by the crystal violet method. The concentration of the antibiotic that inhibited the formation of the biofilm was determined. E. coli isolate L-1216/2010 in the planktonic phase (where in antibiotics were added after 24 h of growth) and non-biofilm forming E. coli (L-1339/2013) were used as controls for this experiment.
Table 1
Resistance profile of 12 ocular E. coli to nine antibiotics by the Kirby–Bauer disc diffusion method and their biofilm forming potential by and the tissue culture plate (TCP) method
S. no
E. coli strain
Ocular sample
Patient diagnosis
Resistance to antibiotics (µg/disc)
Biofilm production by TCP method ±
1
L-1339/2013
Conjunctival swab
Conjunctivitis
Ce, Cef, Ci, Ga, Ge, Mo, Of
−
2
L-1216/2010
Vitreous
Endophthalmitis
Ci
+
3
L-2561/2013
Vitreous
Endophthalmitis
None
+
4
L-1920/2011
Corneal scraping
Keratitis
Am, Ce, Cef, Ch, Ci, Ga, Ge, Mo, Of
+
5
L-3781/2010
Vitreous
Endophthalmitis
Ce
+
6
L-3484/2010
Vitreous
Endophthalmitis
None
−
7
L-1573/2013
Vitreous
Endophthalmitis
Ci, Mo, Of
+
8
L-494/2011
Vitreous
Endophthalmitis
Am, Ce, Cef, Ci, Ga, Ge, Mo, Of
+
9
L-223/2014
Corneal scraping
Keratitis
Ce, Cef, Ci, Ga, Mo, Of
+
10
L-304/2014
Corneal scraping
Keratitis
Ce, Cef
+
11
L-811/2014
Lacrimal sac
Dacryocystitis
Ce, Cef, Ci, Ga, Ge, Mo, Of
+
12
L-823/2014
Corneal scraping
Keratitis
Cef
+
The antibiotics used are (µg/disc): Am amikacin (30), Ce ceftazidime (30), Cef cefuroxime (30), Ch chloramphenicol (30), Ci ciprofloxacin (5), Ga gatifloxacin (5), Ge gentamicin (10), Mo moxifloxacin (5) and Of ofloxacin (5)
+, biofilm positive strains (black colonies); −, biofilm negative strains (red or pink colonies). biofilm positive strains (OD > 0.3 at 595 nm); −, biofilm negative strains (OD < 0.3) at 595 nm. The OD of the control wells was deducted in each case
DNA microarray analysis
RNA was extracted from biofilm cells and non-biofilm cells incubated for 72 h at 37 °C in BHI broth. For biofilm cells, E. coli (L-1216/2010) cells were allowed to grow and attach to plastic petri plates for 72 h (100 mm diameter containing 15 ml medium). After 72 h the planktonic cells were removed and only cells that were attached to the petri plate were considered as the biofilm cells and scrapped from the petriplate and were collected in a Falcon tube. The non-biofilm E. coli L-1339/2013 was used as the control. Cells of E. coli L-1339/2013 were allowed to grow for 72 h, centrifuged at 10,000 rpm in a microcentifuge (Eppendorf, New York, USA) and the pellet was collected. The pellets of the biofilm cells and non-biofilm cells were suspended separately in 1 ml of ice cold phosphate buffer (pH 7.2) to which 3 ml of RNAlater® (Invitrogen BioServices India Pvt. Ltd, Bangalore 560 066, India) was added and the suspensions incubated for 30 min. Collection of cells to the addition of RNAlater® was completed within 15 min. Extraction of total RNA, cDNA synthesis and DNA microarray analysis of all the six samples was done as described in our previous paper [33]. Briefly for this, the total RNA from the samples was extracted using Qiagen RNeasy mini-prep kit. This is followed by cDNA synthesis from the RNA (6 μg) by reverse transcription process using the first strand cDNA synthesis kit (Invitrogen Bioservices India Pvt. Ltd., Bangalore). Then the cDNA was fragmented with DNAse 1 (Promega Corporation, Madison, USA) and then labelled with biotin at the 3′ end using the labelling reagent from Affymetrix (CA, USA) and Terminal transferase enzyme (Promega). E. coli Genome 2.0 gene chip arrays were used for the DNA microarray study (Affymetrix CA, USA). The chip contained the complete genome of four E. coli strains (viz., non-pathogenic E. coli K12 MG1655, uropathogenic E. coli strain CFT073 and enterohemorrhagic E. coli O157:H7 strains EDL 933 and Sakai). The gene chip consists of approximately 10,000 probe sets for the 20,366 genes of all the four strains of E. coli. Three biological replicates were used for each condition of the experiment. The fragmented and labeled cDNA of E. coli cells from each biological replicate were processed independently and hybridized with DNA microarray chip. Thus for each condition of the experiment three DNA microarray chips were used. Microarray chips were then scanned using Affymetrix 428 Array Scanner and GCOS software to obtain images of the chips and further processed to get the florescent intensity of the probe sets. The fluorescent intensities were generated for the hybridized probes for each of the DNA microarray chips separately and analysed. The fluorescent intensity images were then normalized for background correction and data was analyzed using Gene Spring 12.5 software. To identify the significantly differentially regulated genes we have normalized the data of all biological replicates of both biofilm and non-biofilm E. coli cells by using PLIER (probe logarithmic intensity error estimation) followed by statistical analysis such as unpaired T test and P value calculation. Genes that exhibited ≥2.0-fold increase or decrease (biofilm cells versus non-biofilm cells) in expression and P ≤0.05 were considered as significantly differentially regulated genes. The microarray data was submitted to Gene Expression Omnibus (GEO) web deposit of National Centre for Biotechnology Information (NCBI, Maryland, USA) with an accession number GSE77872.
Annotation of the genes
The differentially regulated genes were classified based on their function using Clusters of Orthologous Groups (COG), a software annotation pipeline associated with the Prokaryotic Genome Analysis Tool (PGAT) [34]. The COG protein database was generated by comparing predicted and known proteins in all completely sequenced microbial genomes to infer sets of orthologs. Various sets of differentially expressed genes based on their functionality were analysed for their interactions using GeneMANIA cytoscape plugin network analysis web tool [35]. Using GeneMANIA we performed all the possible default network interactions available for E. coli viz., co-expression, genetic interactions, protein interactions and other interactions. When the gene list exceeded more than 100 Cytoscape plugin was employed to derive the networks.
Validation of microarray data by real time PCR (RT-PCR)
Expression of the genes ydcT, ECS1633, yjcQ, ompC, perM, waaL, focA, fliC and oprR was validated by RT-PCR following the protocol described in our previous paper [33]. The RT-PCR reactions were performed in triplicate. Relative expression of genes was calculated by ΔΔCT method. Expression of 16S rRNA gene was used as an internal standard. All values reported represent the mean of three independent experiments.
Results
Ocular isolates of E. coli and antibiotic susceptibility
Twelve E. coli isolates used in this study were isolated from keratitis (corneal scrapings), conjunctivitis (conjunctival swabs), endophthalmitis (vitreous fluid) or dacryocystitis (lacrimal sac pus) patients visiting the L. V. Prasad Eye Institute (LVPEI), Hyderabad, India, between the year 2010 and 2014 (Table 1; Additional file 1: Table S1). The demographic profile of the patients along with some clinical details is shown in the Additional file 1: Table S1. The patients were diagnosed and treated as per the institutional protocol. Visual acuity at presentation and at last follow up is also given in the Additional file 1: Table S1.
Anzeige
The antibiotic susceptibility results of the 12 ocular E. coli isolates (Table 1) indicated that except two isolates (L-3484/2010 and L-2561/2013) from the vitreous which were susceptible to all the antibiotics tested the remaining ten isolates were resistant to at least one or more antibiotics. Isolate (L-1920/2011) from corneal scrapings was the only isolate that showed resistance to all the antibiotics.
Biofilm potential of ocular isolates of E. coli
In the microtiter/tissue culture plate (TCP) method ten isolates were positive for biofilm formation and showed an OD >0.3 at 595 nm compared to the negative strains whose OD was consistently <0.3 at 595 nm (Table 1; Additional file 2: Figure S1). The best biofilm forming isolate L-1216/2010 by the TCP method had an OD of 3.4 after 72 h of growth. The optimum conditions for biofilm formation as determined by the TCP method for all the isolates was 37 °C at pH 7.3 when grown on BHI or TSB medium and incubated for 72 h. Growth and biofilm formation in E. coli strains was repeated three times under optimum conditions. All future experiments related to antibiotic susceptibility of the biofilm and the genes that are differentially regulated were done with L-1216/2010 which formed a biofilm and L-1339/2013 which did not form a biofilm as the control under the above optimum conditions.
Biofilm of ocular E. coli L-1216/2010 was also visualised by scanning electron microscopy (HITACHI-Model S-3400 N, Japan) (Fig. 1a–c). The scanning electronic microscopic images revealed that at 24 h cells were attached to the substratum and were evenly spread and the morphology of the cells was discernible. By 48 h the cells were entangled in the EPS and by 72 h a luxuriant biofilm was formed and the cells were totally covered within the biofilm and individual cells were not clearly visible. Biofilm formation in ocular E. coli L-1216/2010 was also confirmed by using a Zeiss confocal laser scanning microscope. The results clearly indicated an increase in the thickness of the biofilm with growth. The biofilm increased in thickness from 5.30 μm after 24 h to 15.01 μm at 72 h of growth (Fig. 1d–f).

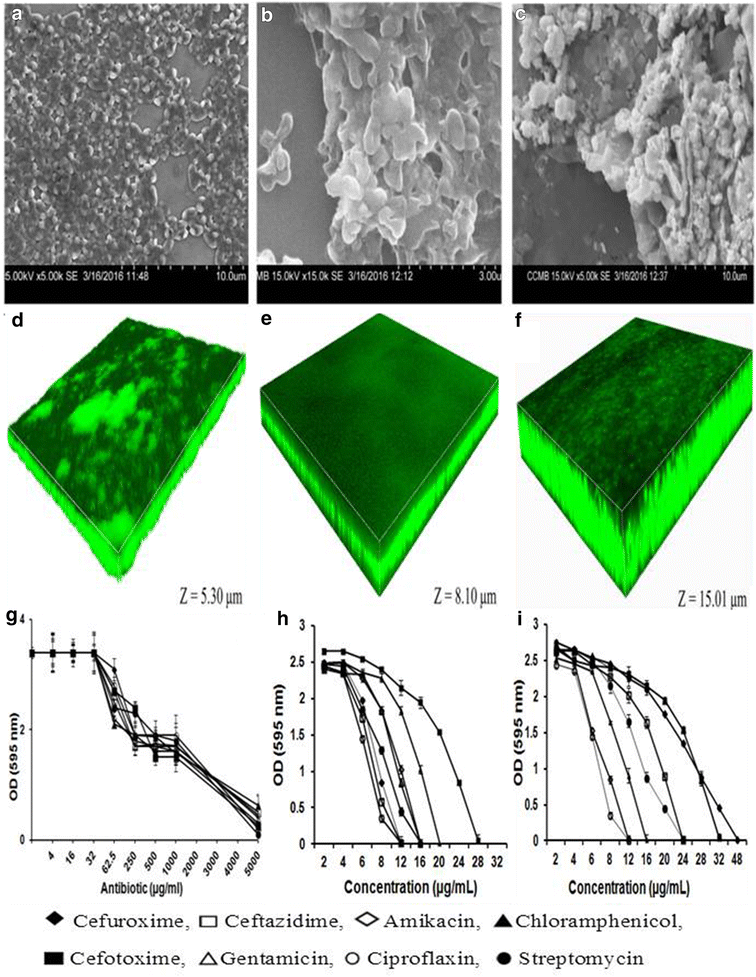

Fig. 1
Biofilm forming potential in ocular E. coli L-1216/2010 as monitored by scanning electron microscopy after 24 (a), 48 (b) and 72 (c) h of biofilm growth and by confocal scanning laser microscopy after 24 (d), 48 (e) and 72 (f) h of biofilm growth. In d–f, the biofilm was stained with Syto9. The Z axis indicates the thickness of the biofilm which is 5.30, 8.10 and 15.01 μm after 24, 48 and 72 h of biofilm growth. g Represents the susceptibility of ocular E. coli L-1216/2010 in the biofilm phase, h represents the susceptibility of ocular E. coli L-1216/2010 in the planktonic phase and i represents the susceptibility of non-biofilm forming E. coli L-1339/2013 to different concentrations of antibiotics
×
The antibiotic susceptibility of biofilm of ocular E. coli L-1216/2010 was determined after allowing the cells to form a biofilm for 48 h. Three biological replicates of ocular E. coli L-1216/2010 were used for this process. The results indicated that E. coli L-1216/2010 in the biofilm phase required >5 mg/ml antibiotic to exhibit total susceptibility to the tested antibiotics where as planktonic cells of E. coli 1216/2010 (Fig. 1h) and E. coli L-1339/2013 (Fig. 1i) and the remaining ten strains of ocular E. coli were less tolerant and exhibited no growth at concentrations ranging from 0.005 to >0.064 mg/ml depending on the antibiotic tested (Fig. 1g–i; Table 2).
Table 2
Minimum inhibitory concentrations of antibiotics against 12 ocular E. coli isolates
E. coli strain
Sample
Amikacin
Ceftazidime
Cefuroxime
Chloramphenicol
Ciprofloxacin
Gentamicin
Streptomycin
Cefotaxime
Antibiotics MIC (µg/ml)
L-1339/2013
Conjunctival swab
12
24
48
16
12
32
24
32
L-1216/2013
Vitreous
16
12
28
20
12
12
16
16
L-2561/2013
Vitreous
6
2
4
4
0.5
2
12
1
L-1920/2011
Corneal scraping
64
16
32
32
12
16
8
12
L-3781/2010
Vitreous
12
16
8
6
0.5
2
16
16
L-3484/2010
Vitreous
12
2
4
6
1
2
8
2
L-1573/2010
Vitreous
6
4
8
4
4
4
8
1
L-494/2011
Vitreous
64
16
32
6
8
16
12
12
L-223/2014
Corneal scraping
12
24
48
8
4
4
16
32
L-304/2014
Corneal scraping
6
24
32
6
0.5
2
8
1
L-811/2014
Lacrimal sac
6
16
32
4
4
32
12
32
L-823/2014
Corneal scraping
6
2
24
2
0.5
4
6
1
Anzeige
Expression of genes in E. coli biofilm forming cells
Analysis of the microarray data indicated that in the biofilm forming ocular E. coli (L-1216/2010) cells after 72 h of biofilm formation, hundreds of genes were significantly differentially expressed with a fold change >2 (P < 0.05) compared to the non biofilm cells of E. coli L-1339/2013 (Fig. 2a). It was noted that 1292 (426 up and 866 down regulated) genes were significantly differentially regulated in the biofilm forming E. coli (L-1216/2010) cells compared to the non-biofilm forming E. coli L-1339/2013 cells. The cluster analysis (Fig. 2b) and heat maps (Fig. 2c) of the microarray data generated using mRNA of three biological replicates of biofilm cells of E. coli L-1339/2013 (BF1, BF2, BF3) and non biofilm forming cells from three biological replicates of E. coli L-1339/2013 (N1, N2, N3) also clearly showed that the biofilm cells were different from the non-biofilm cells (Fig. 2b, c). The Principal Component analysis also confirmed that the biofilm cells are more closely related and are less related to the non-biofilm cells (Fig. 2d).
Fig. 2
Differential gene expression in f E. coli (L-1216/2010) with potential to form biofilm versus non-biofilm forming cells of E. coli (L-1339/2013) grown for 72 h. In a, in the volcano plots genes that are represented on the right side of the volcano-axis are up regulated and those that are on left side of the axis are down regulated. In b, cluster analysis of biofilm forming E. coli (L-1216/2010) with non-biofilm forming cells of E. coli (L-1339/2013). In c, heat map analysis shows that the biofilm cells (BF1–BF3) are less related to non-biofilm cells (N1–N3) of E. coli. Principal component analysis (d)
×
Functional annotation of differentially expressed genes in E. coli biofilm forming cells
Functional annotations and cluster categorization of the genes was done using DAVID, KEGG and COG analysis [33, 34]. Genes that could not be annotated and the duplicate genes were removed from the differentially expressed gene list of microarray data. This resulted in differential expression of a total of 1060 (385 upregulated and 675 downregulated) genes (Additional file 3: Table S2, Additional file 4: Table S3). Using COG all the genes could be categorized into four main categories viz., cellular processes and signaling, information storage and processing, metabolism and poorly characterized or unknown genes (Table 3). Each category included a number of sub-categories and the differentially regulated genes (up and down regulated) were compared at the sub-category level with data obtained in this study and three earlier studies (Table 3).
Table 3
Comparison of the differentially regulated genes in this study and three earlier studies based on COG sub-categories
O. Post-translational modification, protein turnover, and chaperones
13
13
13
7
25
56
8
11
T. Signal transduction mechanisms
5
0
11
3
12
2
7
5
U. Intracellular trafficking, secretion, and vesicular transport
NA
NA
28
1
2
17
8
19
V. Defense mechanisms
NA
NA
4
0
1
0
1
0
Sub-total
39
23
97
20
48
106
59
82
Information storage and processing
A. Transcription, RNA processing and modification
11
5
17
7
44
8
12
6
L. Replication, recombination and repair
10
7
5
1
17
14
16
10
Sub-total
21
12
22
8
61
22
28
16
Metabolism
C. Energy production and conversation
23
9
23
16
12
34
12
18
E. Amino acid transport and metabolism
9
22
20
15
5
36
20
17
F. Nucleotide transport and metabolism
0
3
8
1
6
8
5
5
G. Carbohydrate transport and metabolism
16
22
27
5
13
23
26
12
H. Coenzyme transport and metabolism
3
5
6
1
9
14
5
7
I. Lipid transport and metabolism
7
0
5
3
3
8
2
5
P. Inorganic ion transport and metabolism
12
6
24
9
14
7
4
8
Q. Secondary metabolites biosynthesis, transport and catabolism
2
1
5
0
2
7
5
2
Sub-total
72
68
118
50
64
137
79
74
Unknown and general prediction only
121
86
53
6
57
23
24
29
Total
253
189
290
84
230
288
190
201
The figures in each column indicate the number of genes up or down regulated in each category. Comparison between the four studies in terms of genes up or down regulated are not anticipated to be identical but the trends may be similar. For instance the number of genes up or down regulated when ABU E. coli is compared with ocular E. coli is similar for category V, L, F and I. Such comparisons could also be done between ocular E. coli and the other two strains of E. coli
Validation of DNA microarray results
Expression of few of the genes that were differentially regulated in the sessile biofilm cells was validated by RT-PCR. In accordance with DNA microarray results genes ydcT, ECS1633, yjcQ, ompC, perM and waaL showed increased expression (P < 0.05) whereas genes focA, fliC and oprR showed decreased expression (P < 0.05) in E. coli (L-1216/2010) with potential to form biofilm compared with E. coli (L-1339/2013) that does not form a biofilm (Fig. 3a, b).

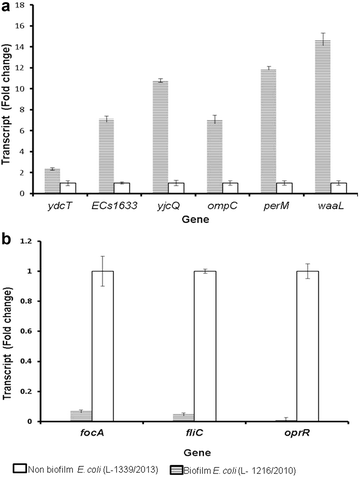

Fig. 3
