Human mammary fibroblasts stimulate invasion of breast cancer cells in a three-dimensional culture and increase stroma development in mouse xenografts

The BJ fibroblast cell line (established from normal human foreskin) was obtained from the American Type Culture Collection (Rockville, MD, USA). The HMF3s fibroblast cell line, established from healthy mammary tissue [19], was a gift from Professor Mike O'Hare (Ludwig Institute, London, UK). The breast cancer cell lines MCF7 and MCF7S1 (a highly tumour-necrosis factor (TNF)-α sensitive derivative of MCF7), were gifts from Marja Jäättela (Apoptosis Laboratory, Danish Cancer Society, Denmark) [20].

All cell lines were grown in Dulbecco's Modified Eagle's Medium (DMEM) supplemented with 10% fetal calf serum (FCS), penicillin (200 U/ml), and streptomycin sulphate (100 U/ml) in a humidified incubator supplied with 5% CO₂. Conditioned media (CM) were produced by growing an appropriate cell line in a T75 flask in 15 ml of fresh growth media for 48 h followed by sterile filtration (0.45 μm filter). Cells treated with CM were analysed after 48 h of culturing and were subsequently collected for Western blot analysis using lysis buffer (50 nM Tris-Cl, pH 6.8, 2% sodium dodecyl sulphate [SDS], 0.1% bromophenol blue, 10% glycerol, and 100 mM dithiothreitol). Cell lysate samples for Western analysis were normalised to the total protein content determined by scanning of a Coomassie brilliant blue R-250 stained SDS-PAGE gels. The treatment of cells with CM was repeated four times.

The length of fibroblasts treated with standard growth media or tumour cell CM was determined by manual measurement in the Fujifilm MultiGauge software allowing for measurement of irregular shaped cell lengths.

The proportion of scattered tumour cells in the populations treated with DMEM or fibroblast CM was determined by manual classification. Tumour cells were classified as scattered when a visual absence of cell-cell contact was observed.

6 randomly selected fields at 100× magnification were selected for analysis for each cell type in all setups. Each field contained in average 60 fibroblasts or 530 tumour cells to be included in the analysis.

Intact female Balb/c nu/nu mice were injected with 4 × 10⁶ cells per cell line in the R2 mammary fat. 10 animals were used per group and selected groups were supplied with oestrogen in the drinking water 6 days prior to the injection of cells (0.67 μg/ml). This was continued for the entire experiment. Tumours were manually measured throughout the experiment in two dimensions, and the volume was calculated using the ellipsoid formula: volume = 1/2 * a * b² (a = length, b = width) [21]. Animals were sacrificed at a sign of illness or after 100 days at termination of the experiment. All animal experiments were approved by the Animal Welfare Inspectorate at the Danish Ministry of Justice (ref. 2007/561-1395).

All animals with a palpable mass that upon histological examination of random tumour sections did not contain cancer cells were discarded from the analysis and the observed growth was considered an inflammatory response to the injection.

TIFs were produced by cutting the tumours into smaller 1 mm-sized pieces followed by 2 h incubation at 37°C in phosphate-buffered saline (PBS; 1:20 w/v ratio) as originally described by Celis et al., 2004 [22]. Prior to analysis, the samples were normalized to the total protein content measured by OD₂₈₀.

Cells were fixed for 20 min in 4% paraformaldehyde followed by membrane permeabilisation with 0.2% Triton X-100 for 2 min. The following primary antibodies were incubated for 1 h at RT: Vimentin (NeoMarker clone Ab-2, 1:1000 dilution), S100A4 (isolated as described in [23], 1:1500 dilution), oestrogen receptor (ER; NeoMarker clone SP1, 1:500 dilution), E-cadherin (Abcam clone decma-1, 1:800 dilution), and pan-cytokeratins (DAKO #Z0622, 1:500 dilution). Alexa Fluor 488 goat anti-rabbit and Alexa Fluor 568 goat anti-mouse were used as secondary antibodies (1:1000 dilution for 1 h incubation at RT). Cells were nuclear stained with 4',6-diamidino-2-phenylindole (DAPI) following mounting with ProLong^® Gold antifading media (Invitrogen). Fluorescent images were acquired with a Zeiss AxioImager confocal microscope, and photographs were processed using Zeiss Zen2008 software.

Formalin-fixed paraffin-embedded tissue sections were immunostained ON with the following antibodies: ER (NeoMarker clone SP1, 1:500 dilution), progesterone receptor (PgR) (NeoMarker clone SP2, 1:500 dilution), Laminin (Sigma #L-0303, 1:200 dilution), Fibronectin (NeoMarker #RB-077-A0, 1:500 dilution), S100A4 pAb [23] 1:2000 dilution, F4/80 (Accurate Chemicals clone A3-1, 1:2000 dilution) and prolyl-4-hydroxylase (DAKO #M0877, 1:400 dilutions). Immunostaining was performed according to the protocol of the manufacturer. The EnVision⁺ horseradish peroxidase (HRP)-labeled detection system (DAKO) was utilized as the detection system. For staining with F4/80 antibody, the tyramide signal amplification biotin system was used for detection (PerkinElmer). All slides were counterstained with Mayers hematoxylin.

In order to quantify the proportion of PgR positive cells, 10 random fields at 200× magnification per section were analysed resulting in classification of 1500 cells per tumour in average.

The experimental setup for this assay is described in detail in Ambartsumian et al., 2006 [24]. Briefly, cells were incubated overnight to form clumps on an inverted lid in hanging droplets containing 4 × 10⁴ or 6.5 × 10⁴ cells (fibroblasts and cancer cells, respectively) suspended in normal growth media. The formed cell aggregates were manually transferred to a layer of polymerized Matrigel™ (growth factor-reduced, BD) mixed 1:1 with serum-free DMEM prior to use. The aggregate was covered with a sealing layer of Matrigel mix and incubated at 37°C for polymerization after which DMEM with 10% FCS and pen/strep supplements was added. The extent of outgrowth was followed for 5-6 days, and media were changed to 0% FCS conditions 24-48 h prior to harvest. The experiments were repeated at least six separate experiments. A neutralizing IL-6 antibody (R&D systems #MAB2061) was added to co-cultures at a concentration of 1 μg/ml. Pure IL-6 (Sigma, I-1394) in concentrations of 20-50 ng/ml was added to mono-cultures of cancer cells. Experiments were repeated four times.

Proteins were detected using a standard Western blot procedure after separation by SDS-polyacrylamide electrophoresis. Primary antibodies were incubated ON according to the suppliers' instructions: MMP-2 (NeoMarker Ab-2, 1:600 dilution), MMP-9 (NeoMarker clone Ab-5, 1:400 dilution), and affinity purified rabbit anti-S100A4 [23] (1:2000 dilution). HRP-conjugated rabbit anti-mouse or goat anti-rabbit antibodies (DAKO diluted at 1:2000) and ECL-plus chemiluminescent substrate (Amersham) were used for visualisation.

Zymography gels were produced from standard 12% SDS-acrylamide gels containing gelatine or β-casein protein at a concentration of 1.2 mg/ml. The gels were pre-run before loading of serum-free CM and run overnight at 4°C at 50 V. Gels were briefly washed and incubated at 37°C overnight for gel degradation (washing buffers: 2 × 30 min with 50 mM Tris-HCl pH 7.5, 2.5% Triton X-100 and 2 × 10 min in 50 mM Tris-HCl pH 7.5. Incubation buffer: 50 mM Tris-HCl Ph 7.5, 0.15 M NaCl, 10 mM CaCl₂, 0.1% Triton X-100, 0.02% NaN₃). Gels were stained in Coomassie brilliant blue R-250 solution and subsequently destained in 10% acetic acid. An LAS-1000 analyser and the MultiGauge software from Fuji Film were used to process the images.

A standard ratio of the volume of media to the number of cells was used to produce CM in both 2D and 3D culture experiments enabling us to compare them for cytokine production.

Membrane-based cytokine arrays from RayBiotech (C series 1000, detecting 120 and 96 different human [array VI and VII] and mouse [array III and IV] cytokines, respectively) were used to analyse CM from the 3D model and mouse TIFs. The protocol supplied by the manufacturer was followed with slight modifications. Membranes were blocked for 30 min with protein-free blocking buffer (ThermoScientific), and 1 ml sample was added per membrane and incubated overnight at 4°C. Biotin-conjugated secondary antibodies and HRP-conjugated streptavidin supplied in the kit were both diluted in the protein-free blocking buffer and incubated with membranes for 2 h at room temperature before detection using Amersham ECL™ Advance (Amersham). Spot intensities were quantified by Image Quant TL software by normalization to the background and positive controls.

Sandwich ELISAs specific for murine S100A4 were performed according to the assay previously described by Ambartsumian et al., 2001 [25] to measure the concentration of S100A4 protein in mouse TIFs.

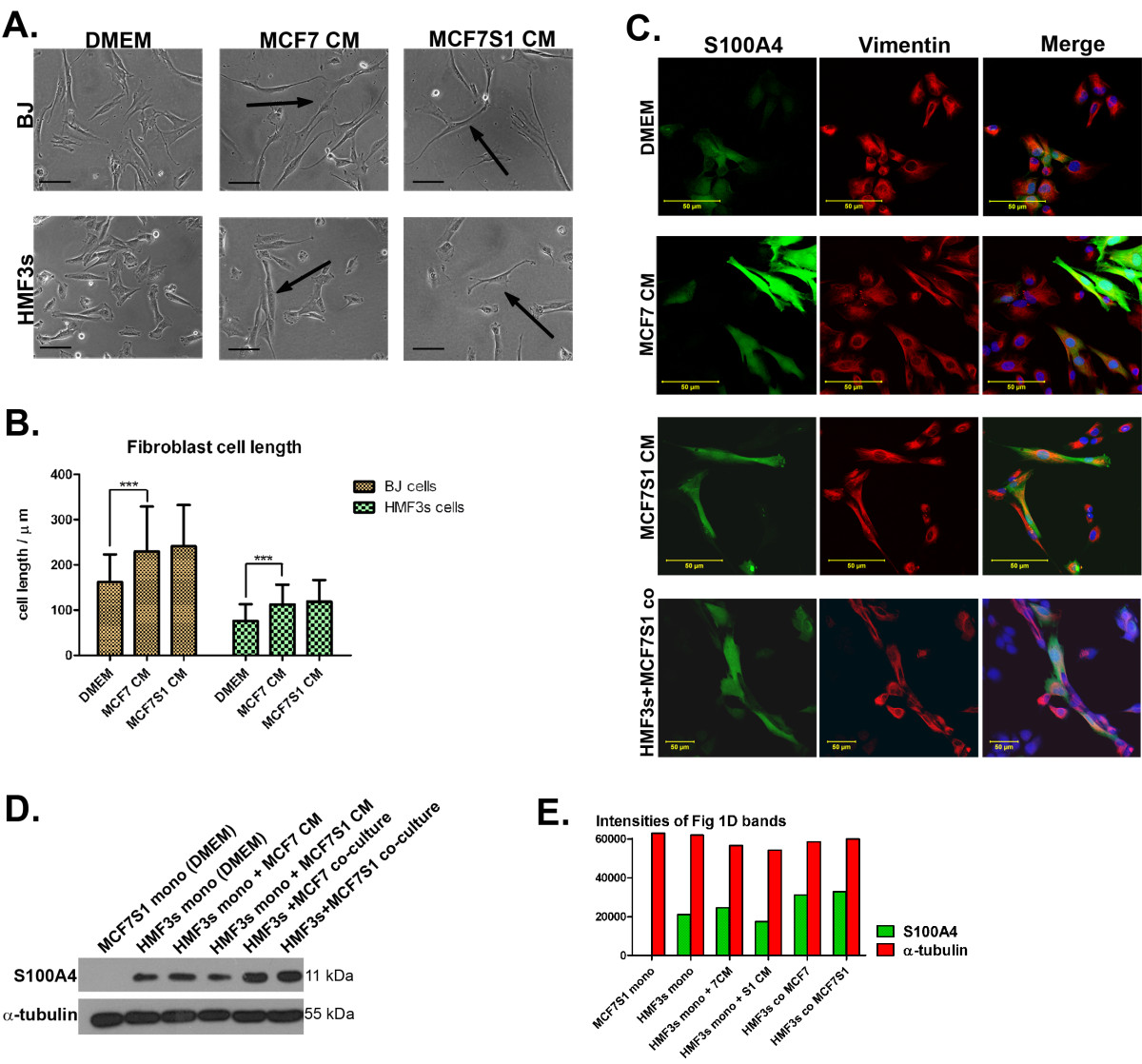

To study the effect of fibroblasts on breast cancer cells, we co-cultured human mammary (HMF3s) or foreskin-derived (BJ) fibroblast cell lines with two variants of the oestrogen-dependent breast cancer cell line, MCF7 and its derivative MCF7S1. Alternatively we cultivated these cells in the CM from tumour cells and fibroblasts respectively. Exposure of both fibroblast cell lines to CM conditioned for 48 h by tumour cells induced significant cell elongation (Fig. 1A). Both cancer cell lines produced factors that stimulate elongation of fibroblasts, but the MCF7S1 cells exhibited a more pronounced effect. Calculation of the increase in cell length showed that MCF7S1 CM induced a 49.3% and 55.8% increase in cell length of BJ and HMF3s fibroblasts respectively, whereas CM from MCF7 cells induced elongation by 42.0% (BJ) and 47.7% (HMF3s) respectively (Fig. 1B).

Bild vergrößern

A similar elongating effect was observed when fibroblasts were co-cultured with tumour cells (Fig. 1C, lower panel). Elongation of HMF3s fibroblasts was accompanied by increased S100A4 expression, which is known to be expressed in activated fibroblasts [23] (Fig. 1C). Western blot analysis of cell lysates obtained after treatment of cells with CM from cancer cells, as well as from co-culturing of fibroblasts with cancer cells, confirmed this observation (Fig. 1D).

Conversely, exposure of tumour cells to CM from fibroblasts stimulated scattering of the cells which otherwise grew in characteristic clusters (Fig. 2A, left). The arrows in Fig. 2A show examples of highly scattered cells detached from clusters and with protrusions on the cell surface. Calculation of the proportion of scattered cells showed that cancer cells were more responsive to HMF3s CM (Fig. 2B) compared to both BJ CM and DMEM growth media. These results suggest that orthotopic factors from the mammary fibroblasts affect breast cancer cells differently than those derived from skin. Fig. 2C shows cell-specific staining of HMF3s fibroblasts and MCF7S1 cancer cells against vimentin and cytokeratins, respectively. These markers are used to distinguish cell types in co-cultures (Fig. 2C, right panel) showing fibroblast elongation and cancer cell scattering compared with the mono-cultures (Fig. 2C, two images in left panel). Cancer cells reorganise into clusters separated by streaks of fibroblasts when the co-cultures become denser (Fig. 2C, lower right panel). Immunofluorescent staining demonstrated that morphological changes of tumour cells were accompanied by the decrease of E-cadherin, a hallmark of the epithelial-mesenchymal transition (EMT) [26] (Fig. 2D). The data indicate that soluble factors produced by fibroblasts induce an EMT-like state in cancer cells. Conversely, factors produced by cancer cells induce morphological changes in fibroblasts.

Bild vergrößern

To investigate whether soluble factors produced by fibroblasts are able to induce changes in tumour cells, we studied the behaviour of tumour cells and fibroblasts grown in 3D Matrigel as a support matrix without direct contact between the two cell types. This was achieved by generating individual fibroblast and tumour cell aggregates which were placed into a thick Matrigel layer separate from each other (at a distance of 0.5-2 mm). MCF7S1 and HMF3s cells exhibit a stronger mutual response when grown under conventional 2D culturing conditions; therefore, we chose these two cell lines for further analysis. The MDA-MB-231 and ZR-75-1 cell lines were also tested in the 3D Matrigel model and gave similar results (data not shown). Neither HMF3s nor MCF7S1 cell aggregates showed any signs of invasive growth when grown in mono-cultures (Fig. 3A and 3B). In contrast, co-cultures of MCF7S1 and HMF3s cells demonstrated clear signs of invasive growth into the Matrigel (Fig. 3D). In most cases, we observed a clear tendency toward site-directed growth. Fibroblast CM also stimulated MCF7S1 cells to invade the gel, which again confirms the importance of secreted factors (Fig. 3C). Co-culture of fibroblasts with MCF7S1 cells also led to expression of S100A4 at the leading edge of the fibroblast aggregate (Fig. 3E). This observation was confirmed by Western blot analysis of cell lysates obtained from 3D cultures (Fig. 3F), where a 2-fold upregulation of S100A4 was observed in 3D co-cultures compared to fibroblasts in mono-cultures (green bars in Fig. 3G). MCF7S1 cells did not express the S100A4 protein.

Bild vergrößern

The ability of fibroblast CM to stimulate the invasion of tumour cells into the 3D matrix indicated that secreted factors produced by these cells in response to the 3D culture conditions may be sufficient to induce the observed invasiveness of tumour cells. Therefore, we analysed a range of cytokines produced by tumour cells and fibroblasts grown in different culture conditions (Fig. 4A). The cytokine protein microarray, which is able to detect 120 different cytokines, showed that mono-cultures of tumour cells and fibroblasts are induced to produce increased amounts of cytokines when cultured in 3D Matrigel compared with traditional 2D conditions (Fig. 4A, numbered cytokines in 3D mono cultures). This was especially clear with HMF3s fibroblasts, in which upregulation of cytokines, such as granulocyte chemotactic peptide (GCP)-2, interleukin (IL)-6, IL-8, tissue inhibitor of metalloproteinases (TIMP), growth-related oncogene (GRO), and monocyte chemoattractant protein (MCP)-1, was documented. MCF7S1 cells upregulated the production of MCP-1, TIMP1, epithelial neutrophil activating protein (ENA)-78, and IL-6R and downregulated stroma-derived factor (SDF)-1 and macrophage-stimulating protein (MSP)-α in 3D growth. Co-culturing of tumour cells and fibroblasts in 3D conditions did not result in the appearance of new cytokines; rather, the amounts of certain cytokines already upregulated in 3D mono-cultures, such as GCP-2, IL-6, amphiregulin, GRO/GRO-α, IL8, and MSP-α, were further increased (Fig. 4B). Additional data on differential expression of cytokines is shown in the Additional file 1.

Bild vergrößern

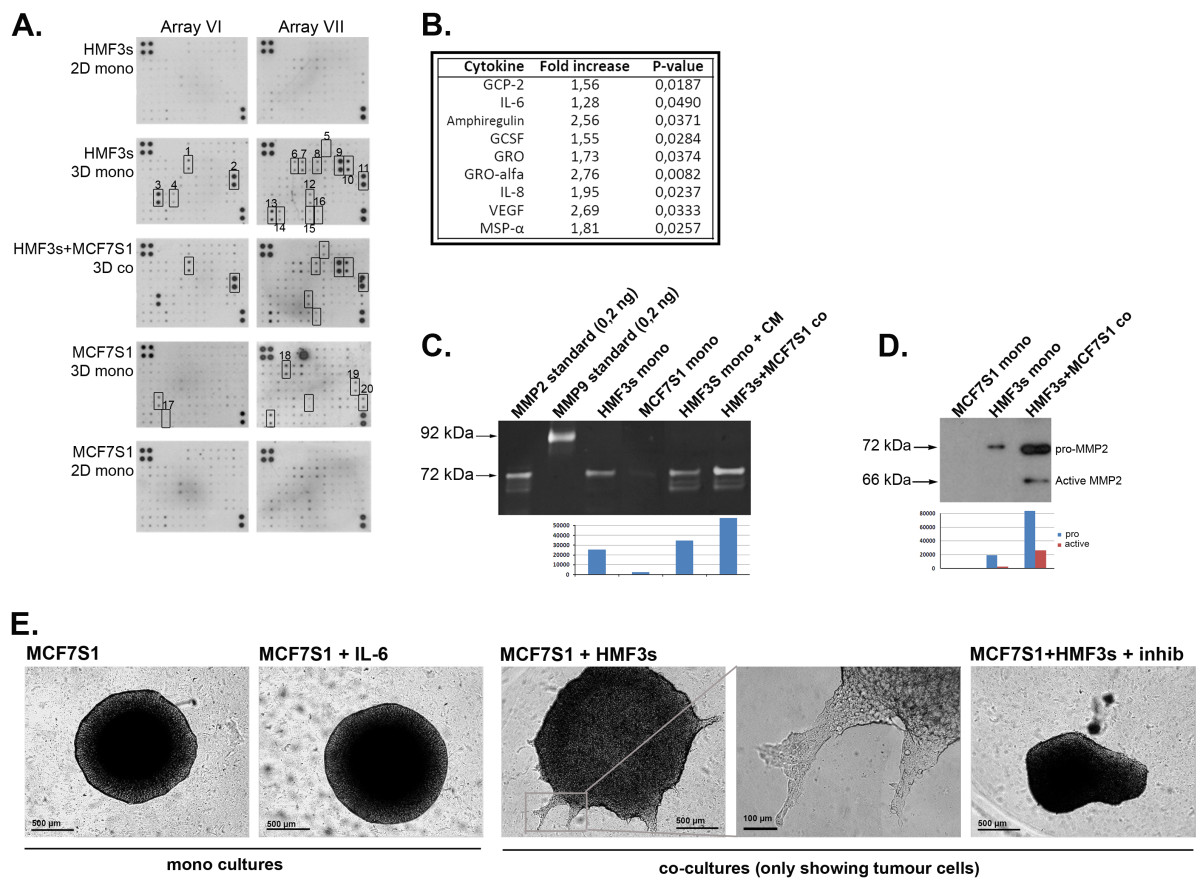

To test the input of identified cytokines in stimulation of invasion we chose IL-6 because of its well known association to tumour progression [27]. IL-6 was added to tumour cells in 3D cultures but we failed to observe any stimulation of tumour cell invasion (Fig. 4E). In contrast to that, addition of a neutralizing anti-IL-6 antibody completely abolished the stimulation of tumour cell invasion induced by fibroblasts in co-cultures. This indicates that IL-6 is essential but not sufficient alone to stimulate fibroblast induced invasion of tumour cells.

The IL-6 antibody had no effect on invasion of fibroblasts in the co-culture (data not shown).

Although the shift from 2D to 3D growth conditions of fibroblasts and tumour cells led to a dramatic increase in cytokine production, such a change did not result in the invasive behaviour of these cells in mono-culture, whereas co-culturing of these cells markedly stimulated invasion of both cell types.

One of the functions of stroma fibroblasts is to produce ECM-degrading enzymes, thereby stimulating cancer cell invasion [28]. Consequently, we hypothesized that the invasive growth we observed in 3D co-cultures could be mediated by activation of matrix-degrading proteinases. The CM obtained from 3D co-cultures was therefore analysed for the presence of protease activity by gelatine zymography. CM from MCF7S1 mono-cultures did not contain any detectable proteolytic activity, whereas CM from HMF3s mono-cultures exhibited gelatinolytic activity to match the MMP-2 standard of 72 kDa (Fig. 4C). Casein-based zymographies were also performed but generally showed only very little activity (data not shown). Co-cultured cells revealed intensification of the 72 kDa bands as well as the appearance of lower molecular weight bands (Fig. 4B). We propose that these lower molecular weight bands correspond to the active form of MMP2. To verify the upregulation of MMP-2, we performed Western blot analysis of CM from 3D mono- and co-cultures with MMP-2-specific antibodies, confirming MMP-2 as the activated protease (Fig. 4D). Gelatine zymography was also performed with CM from mono-and co-cultures of HMF3s and MCF7S1 cells grown in 2D conditions. Although CM from HMF3s cells in 2D contained MMP-2 protease activity, it was only slightly upregulated upon co-culturing with MCF7S1 cells compared to the 3D co-culture conditions, and no additional bands appeared in 2D (data not shown).

Our data demonstrated that factors produced by fibroblasts stimulated invasion of MCF7S1 tumour cells in 3D Matrigel. We therefore proposed that fibroblasts may be able to affect MCF7S1 tumour growth in an orthotopic mouse model. MCF7S1 cells grafted into mice require oestrogen to maintain growth [29]; oestrogen-independent growth of these cells is an indicator of their progressed state [30]. To test whether the presence of fibroblasts could render MCF7S1 cells ability to grow in the absence of oestrogen, MSF7S1 cells in combination with HMF3s were orthotopically implanted into mammary fat pads of Balb/c nu/nu mice with and without oestrogen supplementation.

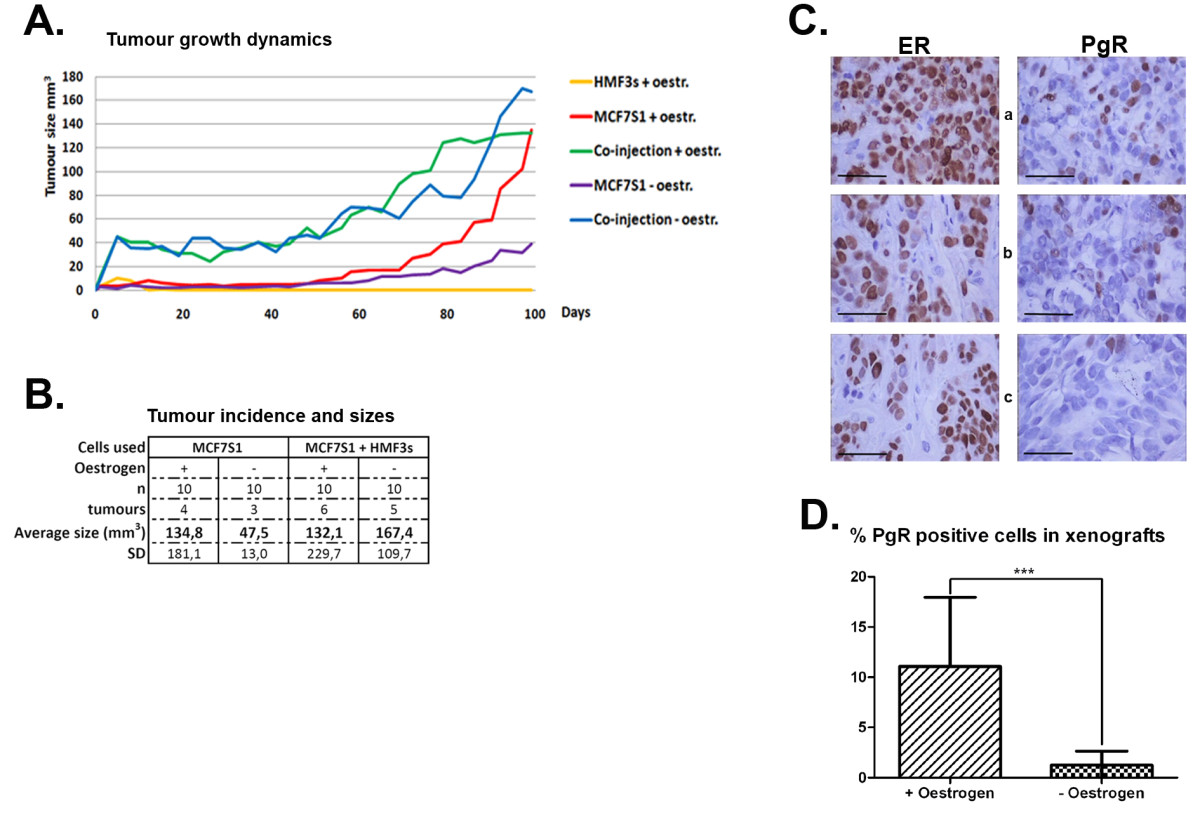

The dynamics of tumour growth were monitored for 100 days. We were able to document the steady growth of tumours when MCF7S1 cells were implanted together with HMF3s fibroblasts, both with and without oestrogen supplementation (Fig. 5A). In the presence of oestrogen, HMF3s fibroblasts provided MCF7S1 cells with additional growth capabilities by the acceleration of tumour growth initiation as compared to the tumours developed without HMF3s cells (Fig. 5A). Fig. 5B shows that the average sizes of tumours developed in mice injected with MCF7S1 + HMF3s cells were similar at the time of termination of the experiment independent of the presence of supplemented oestrogen. At post mortem analysis, tissue sections obtained from the regions with palpable tumour-like mass detected in the control group injected with MSF7S1 cells without estrogen supplementation (Fig 5B) revealed absence of tumour cells.

Bild vergrößern

We were not able to detect metastasis in the lungs of mice from any experimental groups.

We next performed immunohistochemical staining of tumour sections with antibodies against ER and PgR (Fig. 5C). ER expression was similar in the tumour sections obtained from mice from all experimental groups. In contrast, tumours that developed in mice implanted with MCF7S1 + HMF3s cells without oestrogen showed significant downregulation of PgR, a well-known downstream target of ER [31] (Fig. 5C and 5D). Downregulation of PgR expression therefore indicated that at the time of sacrifice, the levels of oestrogen, endogenous or produced by the grafted cells, at the site of implantation were below the concentration required to induce PgR expression. We therefore assumed that the growth of MSF7S1 cells co-injected with HMF3s fibroblasts was supported by the production of other factors rather than increased oestrogen production in the mouse.

We attempted to detect the presence of HMF3s human fibroblasts in MCF7S1 + HMF3s tumours. Immunostaining of tumour sections with human fibroblast-specific prolyl-4-hydroxylase antibodies [32] did not reveal the presence of any positive cells (Fig. 6B). HMF3s fibroblasts stained positive for prolyl-4-hydroxylase in cell cultures (Fig. 6C, left) and the marker also detects fibroblasts in human breast tumour tissue (Fig. 6C, right).

Bild vergrößern

Immunostaining of tumour sections with anti-S100A4 polyclonal antibodies that recognise both human and murine S100A4 revealed the presence of numerous S100A4-positive cells in the stroma. Some of these cells had an elongated morphology (notice green arrows in Fig. 6A and yellow arrows in Fig. 6B), and we presume that these were mouse fibroblasts replacing human cells in the course of tumour development. S100A4-positive cells were increased in MCF7S1 + HMF3s tumours compared with MCF7S1 tumours (Fig. 6A). Other S100A4-positive cells had morphologically rounded features and were likely to be immune cells (red arrows in Fig. 6A).

Immunohistochemical staining with mouse macrophage-specific F4/80 antibodies showed that mouse macrophages were much more abundant in MCF7S1 + HMF3s tumours compared with MCF7S1 tumours (Fig. 6A, lower panel), suggesting that augmented development of mouse-derived stroma produces soluble factors that support oestrogen-independent growth of MCF7S1 tumour cells.

Immunohistochemical staining of tumour sections for the components of ECM; fibronectin and laminin, showed that in contrast to MCF7S1 tumours, MCF7S1 + HMF3s tumours contained an extremely well-developed ECM (Fig. 6A).

All this indicates that the tumour stroma of MCF7S1 + HMF3s tumours was much more developed.

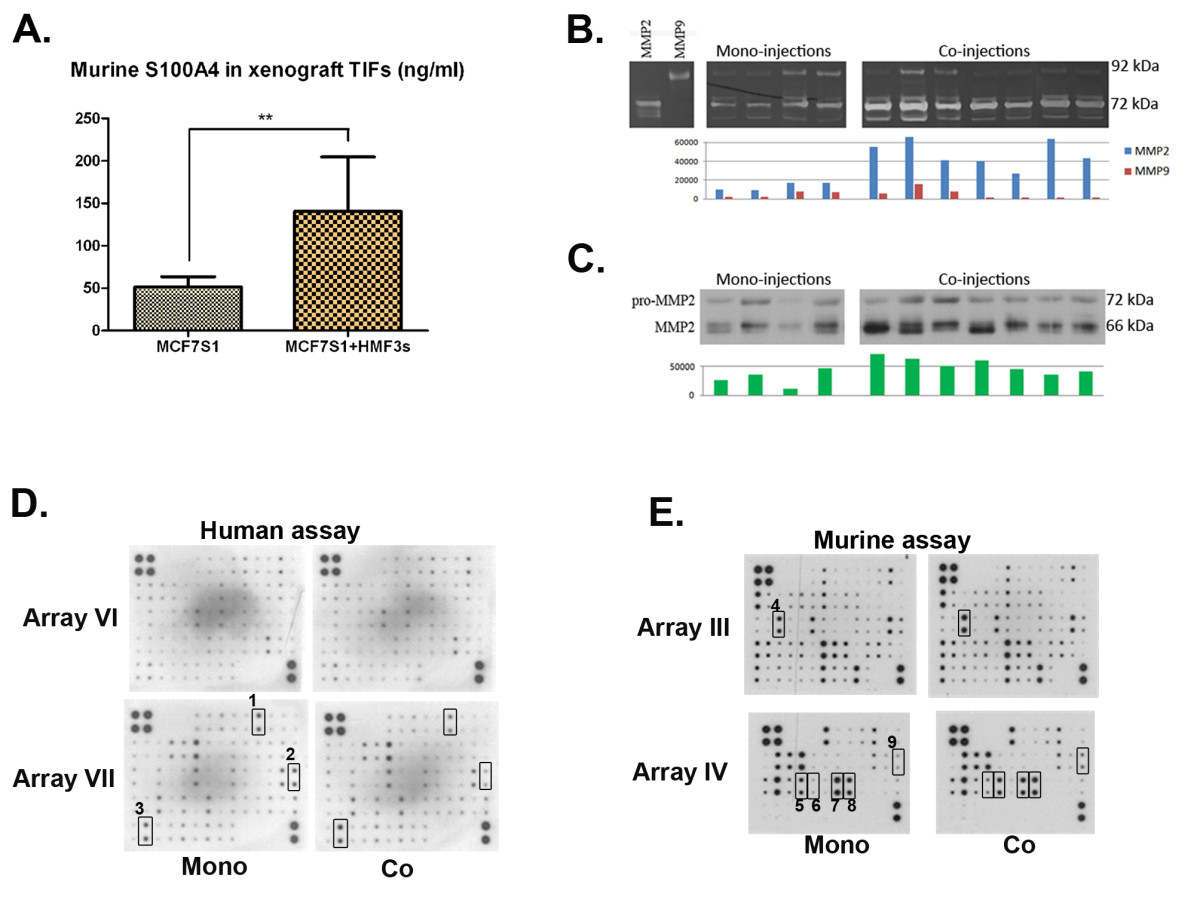

The metastasis-related protein S100A4, which is known to be produced by stroma cells, has been linked to both angiogenesis and the invasion of tumour cells as an extracellular factor [25, 33]. Therefore, we investigated whether increased numbers of observed S100A4-positive stroma cells correlated with its secretion by analysing TIFs using an S100A4 mouse-specific sandwich ELISA. Fig. 7A shows an increased concentration of S100A4 in TIFs from MCF7S1 + HMF3s tumours compared with MCF7S1 tumours. The murine S100A4 concentration in TIFs from mice injected with cancer cells alone ranged from 39.4 to 60.3 ng/ml (mean, 51.5 ± 12.2 ng/ml). TIFs from MCF7S1 + HMF3s ranged from 60.0 to 241.3 ng/ml (mean, 161.5 ± 62.0 ng/ml), resulting in a significant increase in S100A4 release (p = 0.01). The average murine S100A4 concentration in TIFs from MCF7S1 + HMF3s tumours was 2.5-3-fold higher than in TIFs from MCF7S1 tumours. TIFs were also investigated using a human-specific sandwich ELISA assay, but no human S100A4 was detected.

Bild vergrößern

We next investigated protease activity present in TIFs from MCF7S1 and MCF7S1 + HMF3s tumours. Gelatin zymography revealed several major and minor bands, of which two coincided with the MMP-2 and MMP-9 standards (Fig. 7B, upper panel). Quantification of the intensity of the MMP-2-specific bands showed increased activity of MMP-2 in TIFs isolated from MCF7S1 + HMF3s tumours (Fig. 7B, lower panel). MMP-2 upregulation was confirmed by Western blot analysis with MMP-2-specific antibodies (Fig. 7C). MMP-9 activity in co-injection xenografts was not found to be different from mono-injections.

We observed an enhancement of cytokine release in the 3D model in co-culture conditions, and we compared this cytokine release in tumours to determine whether the fibroblasts were also able to stimulate cytokine production in vivo. Human-specific cytokine microarray analysis revealed that TIFs from MCF7S1 or MCF7S1 + HMF3s tumours generally contained low levels of human cytokines compared with the 3D model (Fig. 7D). TIFs from MCF7S1 + HMF3s tumours contained slightly lower levels of IL-8 and basic fibroblast growth factor (bFGF) and increased levels of TIMP-1 (cytokine numbers 1, 2, and 3, respectively).

In contrast, a similar analysis performed using a mouse-specific cytokine microarray revealed that TIFs from MCF7S1 + HMF3s xenografts contained increased amounts of numerous mouse-specific cytokines, in particular resistin, IL-6, and MMP-2 (Fig. 7E, cytokine no. 6, 4, and 9, respectively). The level of pro-MMP-9 was lowered in TIFs from co-injection xenografts (Fig. 7E, cytokine no. 5).

We assume, therefore, that stimulation of MCF7S1 cell growth triggered by human fibroblasts in an orthotopic mouse model is dependent on the pronounced development of host-derived stroma that supply tumour growth by the mouse-derived cytokines, S100A4 and MMPs.
