Background
It is clear that the tumor microenvironment influences the rate of cell proliferation and may have a profound effect on tumor progression and resistance to therapy [
1,
2]. As a result of variable blood flow (oxygen supply) and rapid utilization of glucose within solid tumors (oxygen utilization), most tumor cells are subjected to a microenvironment that is hypoxic and may be hypoglycemic. These conditions likely contribute to tumor transformation and growth [
3,
4]. Regional tumor hypoxia develops in the early stages of carcinogenesis before tumor metastasis, even non-invasive tumors may be hypoxic [
5,
6]. Hypoxia is quite common in breast cancer where it has been related to poor prognosis [
7] with increased risk for tumor recurrence and metastasis [
8].
Transformed cells demonstrate increased levels of glycolysis, which are associated with increased levels of glycolytic enzyme mRNA and protein [59]. This results in the production of, large amounts of lactic acid (Warburg Effect) [
10,
11]. This increase in glycolytic metabolism, mediated by Hif-1α and c-myc [
12], provides transformed cells with a selective growth advantage by circumventing the normal oxygen dependency for ATP production. Although the changes associated with increased glycolytic enzyme mRNA and protein levels [
5,
9] have been well documented, the exact mechanisms leading to increased glycolysis and abnormal tumor cell growth under hypoxic conditions are not completely understood.
Because of its frequent overexpression in transformed cells, stimulatory effect on cell growth [
13], and ability to upregulate the transcription of several glycolytic enzymes [
14] the "early response" gene, c-myc, has been implicated in adaptation of transformed cells to hypoxia [
15]. C-Myc is known to be overexpressed in approximately 70% of all human tumors [
12]. One of the enzymes whose expression is upregulated by c-myc is α-enolase (48 KDa), which catalyzes the conversion of 2-phosphoenolpyruvate from 2-phosphoglycerate [
16].
α-Enolase is also a hypoxic stress protein, which may contribute to hypoxic tolerance of tumors by increasing anaerobic metabolism [
17]. Its overexpression in tumors at the RNA and protein level has been associated with progression of tumors and poor patient survival [
18,
19].
Interestingly, α-enolase mRNA also gives rise to a shorter (37 KDa) alternative translation product, c-myc binding protein (MBP-1). In contrast to α-enolase, MBP-1 is a DNA binding protein and does not have enolase activity. MBP-1 is preferentially localized in the cell nucleus and negatively regulates c-myc transcription by binding to the P
2 promoter [
20‐
22], the predominant c-myc promoter in normal and transformed cells [
23]. Constitutive overexpression of MBP-1 reduces invasiveness and colony formation in breast cancer cells, suppresses tumor formation in nude mice [
24], and regresses lung tumor growth [
25], indicating that it functions as a tumor suppressor. Thus, the interactions between α-enolase, MBP-1, and c-myc represent an important regulatory intersection between energy metabolism and growth control.
Cell proliferation and induction of the hyperglycolytic state are regulated by levels of MBP-1 expression and its binding to the c-myc P
2 promoter in response to changes in glucose concentration [
26]. However, the differential translation of α-enolase and MBP-1 and its relation to the control of cell growth and metabolism under hypoxia has not been characterized. To examine the regulation of α-enolase and MBP-1 by a hypoxic microenvironment, MCF-7 breast cancer cells were cultured under hypoxic (1% O
2) growth conditions in low (1 nM), physiological (5 mM), or high glucose (25 mM). The levels of expression of α-enolase, MBP-1, and c-myc were compared to cell proliferation and lactate production. This study provides a new mechanism for the regulation of cell growth and metabolism of transformed cells under hypoxia, demonstrating that induction of α-enolase mRNA, preferential translation of α-enolase over MBP-1, and inhibition of MBP-1 function may all be involved in both promoting survival of MCF-7 cells and stimulating cell growth under substrate limitation.
Discussion
Even in the presence of adequate oxygen, transformed cells metabolize the majority of the glucose they take up through glycolysis [
29]. This results in an "addiction" to glucose as the source of ATP production, while available lipids and amino acids are redirected for use in anabolic synthesis [
30]. C-Myc regulates many genes that are responsible for these metabolic differences between normal and malignant cells. However, the exact molecular mechanism by which the "aerobic glycolysis" of cancer cells (Warburg effect) offers a selective growth advantage for tumors remains unclear.
We have previously reported that the alternative translation product of the glycolytic enzyme α-enolase, MBP-1, functions as a tumor suppressor because of its ability to bind to the c-myc promoter and downregulate c-myc mRNA and inhibit cellular proliferation [
31]. Recently, we determined that both expression and function of MBP-1 are regulated by alterations in exogenous glucose concentrations and correspond to changes in cell proliferation and lactate production [
26]. However, the differential translation of α-enolase and MBP-1 and its relation to the control of cell growth and metabolism under hypoxia have not been characterized.
The c-myc oncogene plays an important role during the cellular response to hypoxia to help achieve oxygen homeostasis which is required for cell survival, promoting glucose transport and enhanced glycolysis [
32]. The α-enolase gene, which encodes a glycolytic enzyme (α-enolase) whose expression is stimulated by c-myc, and a DNA binding protein (MBP-1), which binds the c-myc promoter and downregulates c-myc expression, is in a unique position to integrate the cellular response to hypoxia. Our data support the hypothesis that preferential translation of α-enolase and inhibition of MBP-1 function play a role in the adaptation of MCF-7 cells to low oxygen, particularly under low glucose conditions. This adaptation is likely to be critical for the progression and metastasis of tumor cells.
The role of MBP-1 in the hypoxic response is evidenced in several ways. Hypoxic MCF-7 cells have a normal growth rate, except in low glucose, suggesting that they have developed molecular adaptations to hypoxia. This suggests that in these transformed cells, enhanced glucose utilization allows proliferation, even in hypoxic conditions. This is reflected in the increased lactate production by the hypoxic cells in normal and high glucose concentrations compared to normoxia. On the other hand, hypoxic cells grown in low glucose demonstrated both a decreased growth and rate of lactate production.
It has been previously reported that expression of α-enolase is stimulated by hypoxic conditions and that this increase is mediated by both c-myc and Hif-1α since the Hif-1α binding site in the α-enolase promoter (ChoRE, carbohydrate response element) overlaps with the c-myc E-box binding site [
33]. As a glycolytic pathway enzyme, this stimulation serves to increase the overall level of glycolysis in response to low oxygen availability. However, in contrast to the other glycolytic pathway enzymes, the α-enolase gene also encodes a tumor suppressor gene, MBP-1, which downregulates c-myc expression [
20]. Our data confirms that hypoxia stimulates α-enolase mRNA levels at all glucose concentrations compared to normoxia. This increase was more pronounced in hypoxic cells grown in low (6-fold) and high (3-fold) glucose concentrations. The increase in α-enolase mRNA in response to hypoxia at all glucose concentrations resulted in a corresponding increase in α-enolase protein and the α-enolase/MBP-1 ratio compared to normoxia. Since lactate production increased in the medium of the 5 mM and 25 mM hypoxia groups concurrently with the rise in α-enolase mRNA and protein expression suggests a possible contribution of α-enolase to the hyperglycolytic rate of cancer cells.

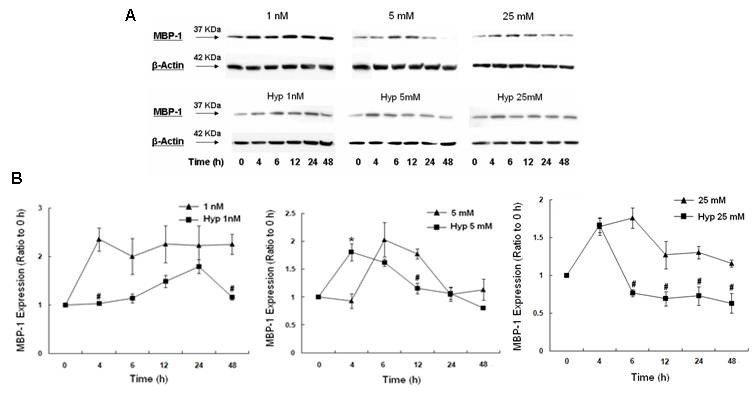

MCF-7 cells grown in normoxic conditions with low glucose demonstrated an early (4 h) increase in MBP-1 expression [
26] which was accompanied by a striking increase in MBP-1 binding activity to the c-myc promoter by EMSA analysis. On the other hand, hypoxic cells had an attenuated MBP-1 response at all glucose concentrations compared to normoxia. In accordance with the attenuated changes in MBP-1 protein expression in hypoxic cells, binding of MBP-1 to the c-myc P
2 promoter was unchanged in relation to the 0 h control. In contrast, hypoxic cells grown in physiologic or high glucose demonstrated a short-lived increase in MBP-1 expression at 4-6 h. This was followed by a return to baseline levels and a marked decrease of MBP-1 binding to the c-myc P
2 promoter, corresponding to a steady increase in proliferation through 48 h. MCF-7 cells exposed to physiological or high glucose with hypoxia are rapidly proliferating and metabolizing glucose. An early increase in MBP-1 expression may serve to initially limit cell proliferation to allow for upregulation of alternative metabolic pathways leading to production of lactate. This strong inverse correlation between MBP-1 expression levels and rate of cellular proliferation is consistent with previous reports that it functions as a tumor suppressor in breast and prostate cancer cells [
24,
34].
Although the absolute concentration of α-enolase protein was higher than MBP-1 under all conditions, the relative levels of translation of the two enolase gene products were quite different. Initially, under conditions of normal and high glucose, in the presence of increased α-enolase mRNA, the concentration of MBP-1 was increased over α-enolase, suggesting preferential translation of MBP-1. On the other hand, initially at low glucose concentrations, MCF-7 cells had similar increases in α-enolase and MBP-1, suggesting that these cells, under considerable metabolic stress increased the level of both gene products. However, at 48 h, α-enolase was preferentially translated above the levels measured for normal and high glucose.

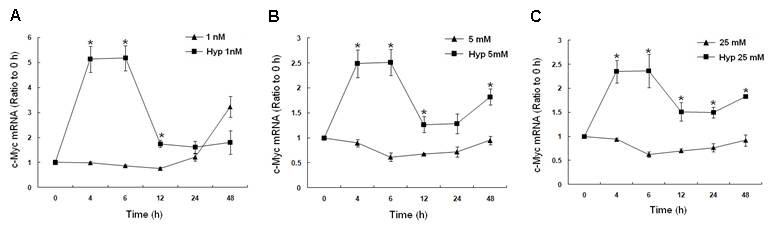

In general, hypoxic cells demonstrated changes in c-myc mRNA which were consistent with their levels of MBP-1 expression and c-myc promoter binding. For example, in hypoxic cells grown in low glucose, the failure of these cells to generate an early increase in MBP-1 allowed the corresponding robust 5-fold increase in c-myc expression. This is consistent with studies which have shown regulation of c-myc mRNA by MBP-1 expression and binding to the c-myc P
2 promoter in normoxic cells [
26]. These results are consistent with the role of c-myc as an "early response" gene whose transcript is stimulated immediately with hypoxia (2-6 fold depending on the tissue type) [
35].

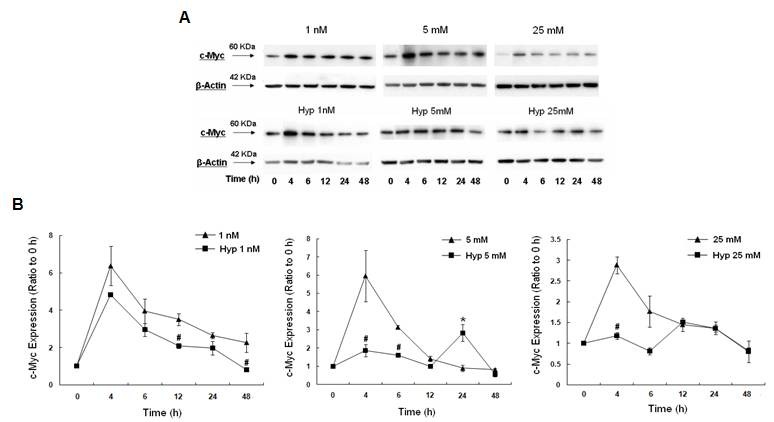

On the other hand, c-myc protein expression also paralleled c-myc transcript levels in cells grown in 5 mM glucose and hypoxia. The failure of these cells to mount an early MBP-1 response allowed a 2-fold increase in c-myc mRNA, which corresponded to a 2-fold increase in protein expression and resulted in cellular proliferation. Together, these results suggest that hypoxia in the presence of low glucose attenuates translation of MBP-1 and disrupts MBP-1-mediated regulation of c-myc transcription by inhibiting binding of MBP-1 to the c-myc P
2 promoter. Since c-myc is deregulated in most cancers [
36], inhibition of MBP-1 function may be one mechanism which perpetuates c-myc overexpression at the mRNA and protein level. Inhibition of MBP-1 function may also decrease the susceptibility of cells to apoptosis as shown with human fibroblasts [
37], and carcinoma [
38]. Therefore, loss of MBP-1 function may be an important adaptation which allows transformed cells to survive under limited glucose and oxygen availability.

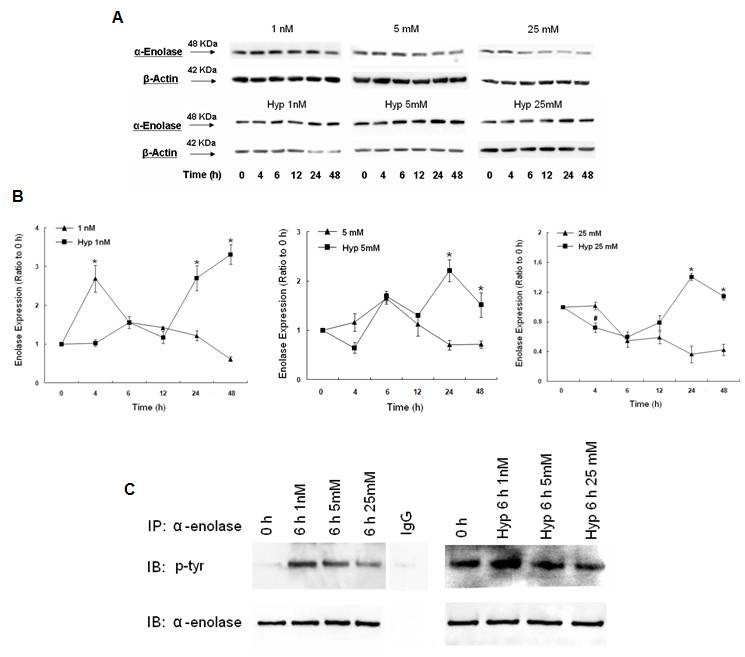

Interestingly, α-enolase is one of only three glycolytic enzymes which undergo tyrosine phosphorylation in transformed cells, however, the significance of this phosphorylation is unknown [
39]. In this study, increased tyrosine phosphorylation of α-enolase was observed in hypoxic cells grown in low and normal glucose levels, corresponding to the early rise in α-enolase protein expression. This may be a mechanism by which transformed cells respond quickly to changes in ATP [
27], although the significance of α-enolase tyrosine phosphorylation remains unclear. Several reports have shown direct correlations between increased expression of enolase both at the RNA and protein level and the progression of tumors [
40]. These results suggest that hypoxia induces preferential translation of α-enolase over MBP-1 and may be important for early tumor cell adaptation to oxidative stress.
Several studies have shown that hypoxia increases the production of ROS and depletes ATP [
41], which may increase c-myc transcription "early c-myc response" [

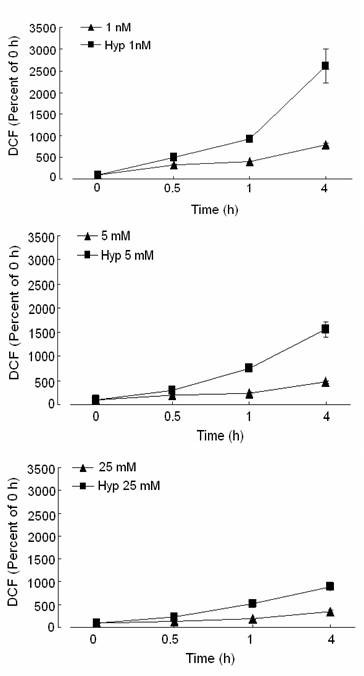

42]. In the current study, hypoxia drastically increased intracellular ROS at all glucose concentrations after 4 h compared to normoxic conditions, corresponding to the robust increase in c-myc mRNA. However, transcript levels of c-myc mRNA after 4 h of hypoxia were particularly elevated for the 1 nM glucose group and corresponded with greater ROS production compared to the 5 mM and 25 mM glucose groups. Since glucose deprivation results in mitochondrial dysfunction and enhances cellular sensitivity to oxidative stress, robust quantities of ROS are produced [
43,
44] resulting in higher levels of c-myc mRNA. Previous studies show that c-myc is markedly upregulated in response to superoxide dismutase deficiency suggesting that early upregulation of c-myc may play a role in helping cells overcome oxidative stress [
45]. In our study, when cells were exposed to 25 mM glucose in a hypoxic environment, ROS production was markedly attenuated. Since high glucose may prevent mitochondrial dysfunction and be protective against hypoxic injury [
46], ROS levels may be correspondingly reduced resulting in lower c-myc transcript levels. Our results suggest that induction of c-myc is dependent on the quantity of ROS produced and the susceptibility of the cells to injury by ROS.
The stimulation of glycolysis in hypoxic cells is driven, in part, by an increased rate of glucose transport [
47]. Consistent with their concordant actions in other aspects of glucose metabolism, the glucose transporter, glut-1, is transactivated by both c-myc and Hif-1α [
15]. Its overexpression correlates with poor prognosis and tumor aggressiveness in cancer patients [

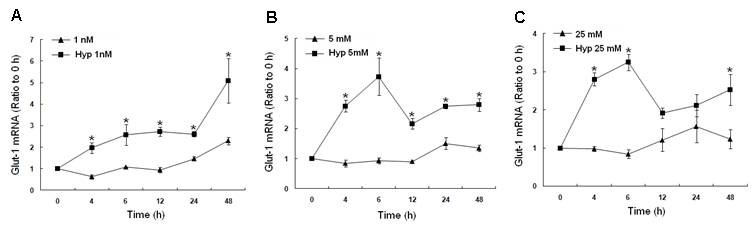

48]. Our results show an early 2-fold increase in glut-1 mRNA in response to hypoxia. This increase was persistent, with increased expression as long as the cells remained hypoxic. Interestingly, hypoxic cells grown in low glucose demonstrated a 3-fold increase in glut-1 mRNA after 48 h of hypoxia compared to normoxia, paralleling the large increase in α-enolase mRNA. At all glucose concentrations, transcript levels of glut-1 after hypoxia were significantly greater than those of normoxic cells [
26].
Methods
Cell Culture
MCF-7 cells were purchased from the American Type Culture Collection (ATCC, USA) and maintained in 5% CO2 at 37°C in DMEM containing 25 mM glucose and 4 mM glutamine supplemented with 10% charcoal stripped FBS and 100 U penicillin/streptomysin. For experiments, cells were plated and allowed to settle overnight. The next day, cells were washed with glucose-free DMEM medium and incubated with DMEM containing 1 nM (low), 5 mM (physiologic), or 25 mM (high) glucose supplemented with 10% dialyzed FBS (Invitrogen) and 100 U penicillin/streptomysin at 37°C in a humidified gas-tight sealed chamber (Billups-Rothenburg, Del Mar, CA) gassed with 1% O2, 5% CO2, and balance N2. Cells were harvested at 0 h (before changing the medium, normoxia control) and at various times and used for subsequent experimental analysis.

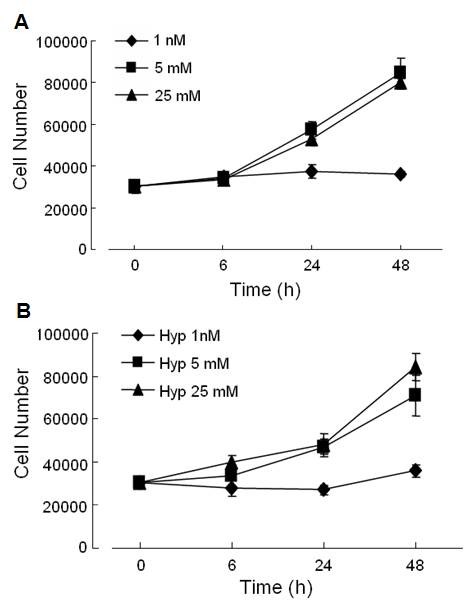

Cell Proliferation Assay
Cells were plated in a 6-well plate at 40% confluence. Cell counts and viability were determined by trypan blue exclusion counting on a hemocytometer at various time intervals.
Cell Cycle Analysis
Cells were plated in a 60 mm plate at a density of 5 × 105 cells/plate. After 48 h of incubation under hypoxia or normoxia, the cells were collected in cold PBS, prepared and stained with the CycleTEST™ Plus DNA Reagent kit (BD Biosciences), which stains isolated nuclei with propidium iodide, and analyzed with a flow cytometer.

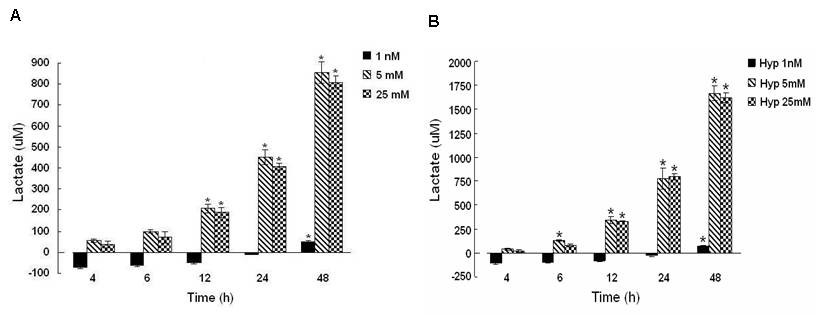

Lactate Assay
Cells were plated in a 6-well plate at a density of 7.5 × 10
4 cells/well in 2 ml of medium. The next day, the medium was suctioned off and cells were rinsed with glucose free/phenol-red free DMEM and incubated in 1 nM, 5 mM, or 25 mM glucose medium (phenol-red free) at 37°C in a humidified chamber gassed with 1% O
2 and 5% CO
2. Medium was collected and lactate concentrations were determined by a previously described method [
26]. This method monitors the NADH product at 340 nm after the NAD-linked conversion of lactate to pyruvate by lactate dehydrogenase with hydrazine trapping of pyruvate to ensure the reaction goes to completion. After 30 min of incubation at 25°C, absorbance was read at 340 nm and compared to a linear lactate standard curve (2-100 μg/ml). Medium blanks showed negligible absorbance.
Analysis of ROS Generation
Generation of ROS in MCF-7 cells were assessed by using the probe 2',7'-dichlorofluorescin diacetate (DCFH-DA) (Sigma Chemical), a lipid-permeable non-fluorescent compound that when oxidized by intracellular reactive oxygen species (ROS), forms the fluorescent compound 2', 7'-dichlorofluorescein (DCF). MCF-7 cells were plated in a 6-well plate at a density of 7.5 × 10
4 cells/well in 2 mls of medium. The next day, the medium was aspirated and cells were rinsed with glucose free/phenol-red free DMEM and incubated in 1 nM, 5 mM, or 25 mM glucose medium (phenol-red free) containing 10 μM DCFH-DA (final concentration from 10 mM stock of DCFH-DA in DMSO) at 37°C in a humidified chamber gassed with 1% O
2 and 5% CO
2 for 0.5, 1, or 4 h. At the designated time of analysis, the medium containing the DCFH-DA was removed and the cells were rinsed with serum-free, phenol-red free medium and lysed with reporter lysis buffer (Promega). The lysates and media were transferred to a black 96-well plate and the fluorescence intensity of DCF was read at 538 nm emission and 485 nm excitation. Due to leakage of DCF across the cell membrane into the medium, DCF fluorescence was measured from the medium and the cells and together represents a qualitative estimation of intracellular ROS formation [
49]. Negative controls containing DMSO instead of DCFH-DA showed negligible fluorescence.
Western Blotting for α-enolase, MBP-1, and c-Myc
Cells were plated in a 60 mm culture dish at a density of 5 × 105/plate and subjected to the experimental protocol as previously mentioned. To prepare protein extracts, cells were collected from each of the three treatment groups and lysed with Mammalian Extraction Reagent (M-PER) (Pierce) containing protease (Complete Mini, Roche) and phosphatase inhibitors (PhosphoStop, Roche). Thirty micrograms of total cell lysate was separated by SDS-PAGE on a 4-15% gradient denaturing gel and electroblotted onto PVDF membranes. Gel transfer efficiency and equal loading of proteins was verified by Ponceau S staining of PVDF membranes. The membranes were blocked for 1 h with 5% nonfat milk in phosphate buffered saline with 0.05% Tween-20 (PBS-T) and incubated overnight at 4 C with an α-enolase (C-19) or c-myc primary antibody (9E10) (Santa Cruz Biotechnology). After washing with PBS-T, the membranes were incubated with a horseradish peroxidase (HRP)-conjugated secondary antibody. Proteins were visualized using standard chemiluminescence (ECL) methods (GE Healthcare). Equal loading of proteins was verified by probing the membrane with a monoclonal β-actin primary antibody (Sigma Chemical). All films were scanned with an optical scanner (Epson Expression 1680) and quantified by measuring the density of each band using UNSCAN-IT software (Silk Scientific, Inc; Orem, UT). To correct for possible unequal loading, each band's density was normalized to its β-actin density. To allow for multiple comparisons between gels, each sample was compared to its respective 0 h that was run on the same gel. Calculation of the ratio of α-enolase to MBP-1 was calculated by dividing the averages of each protein.
Tyrosine Phosphorylation of α-enolase
To evaluate tyrosine phosphorylation of α-enolase, 500 μg of total protein was immunoprecipitated with 5 μg of an anti-enolase goat polyclonal antibody (C-19, Santa Cruz Biotechnology). The protein-antibody-bead complex was washed three times with a buffer containing 1.0 M Tris pH 7.5, 1 M NaCl, 0.5 M EDTA, 1% NP-40, and protease/phosphatase inhibitors. A control reaction was done in which the same amount of IgG (goat) was added in place of anti-enolase antibody. The beads were resuspended in Lammelli loading buffer and heated at 95°C for 5 min and centrifuged for 2 min. The resulting supernatants were separated by SDS-PAGE and transferred to PVDF membranes as described above. For detection of tyrosine phosphorylation of α-enolase, the membranes were blocked for 3 h in 5% BSA in PBS-T and incubated with a monoclonal anti-phosphotyrosine primary antibody (PY-20, Santa Cruz Biotechnology) overnight at 4°C. The membranes were washed and developed as described above. Verification of equal immunoprecipitation of α-enolase was achieved by stripping the membrane and reprobing for total α-enolase using an anti-enolase rabbit polyclonal antibody (H-300, Santa Cruz Biotechnology). Specificity of the immunoprecipitations was demonstrated by the absence of α-enolase in samples immunoprecipitated with goat IgG.
RT-PCR
Total RNA was extracted from MCF-7 cells using TriZol (Invitrogen) reagent according to manufacturer's instructions. RNA purity was determined by A260/A280 ratio and quantified by A260. Preparation of cDNA and forward and reverse primers for α-enolase, c-myc, β-actin, and glut-1 were as previously described [
26]. All primers were designed using Primer Express Software (Applied Biosystems). RT-PCR was performed for a uniform amount of cDNA using the Fast 7500 System (Applied Biosystems). Reactions were diluted 1:2 with SYBR Green I Master Mix (Applied Biosystems) and amplification by PCR was as follows: 1 repetition at 50°C for 2 min, 1 repetition at 95°C for 10 min, and 40 repetitions of 95°C for 15 sec and 60°C for 1 min representing the melting, primer annealing, and primer extension phases of the reaction respectively. A no template control reaction was run for each gene to control for DNA contamination of RNA extracts. Following amplification, a dissociation curve was performed to provide evidence for a single reaction product. Message of α-enolase, c-myc, and glut-1 was compared to the 0 h control to calculate an expression ratio.
Electrophoretic Mobility Shift Assay
To assemble the P
2 promoter of c-myc, a 50 bp oligonucleotide (-52 to +2 relative to the P
2 start site on the c-myc promoter) was radiolabeled using [γ-
32P]-dATP with T
4 polynucleotide kinase (Gibco BRL). It was annealed to its complement by heating at 90 C for 10 min in 20 mM Tris-HCl (pH 7.4), 10 mM Mg Cl
2 and slow cooling to room temperature to form a radiolabeled double stranded probe. Nuclear extracts were prepared as previously described [
50] from samples taken after 4 or 24 h of hypoxia from 1 nM, 5 mM, or 25 mM glucose concentrations. The probe (50,000 cpm) was incubated with 5 μg of nuclear extract in 20 mM Tris-HCl (pH 7.4), 140 mM KCl, 2.5 mM MgCl
2, 1 mM DTT, 8% v/v glycerol, and 0.2 mM PMSF for 30 min at 37 C. In some reactions, 150 nM of the unlabeled competitor MP2 5'-AGGGATCGCGCTGAGTATAAAAGCCGGTTTTCGGGG-3' containing the binding site for MBP-1 or the nonspecific competitor BEE-1 5'-AGCTGTTCTGAGTGGGG GAGGGGGCTGCGCCTGC-3', containing an unrelated consensus sequence, were added before adding the probe to demonstrate specificity. A supershift was performed as described, except that 5 μg of anti-α-enolase polyclonal antibody (Abcam) was added before addition of the probe for 30 min at 4°C. The protein-DNA binding reactions were separated by electrophoresis on a 5% nondenaturing polyacrylamide gel at room temperature in 1× Tris borate-EDTA. Complexes were visualized by autoradiography.
Data Analysis
All values represent mean ± SEM. Differences between normoxic and hypoxic samples were determined by a non-paired t-test (2-tailed). A probability level of p < 0.05 was used to indicate statistical significance.
Competing interests
The authors declare that they have no competing interests.
Authors' contributions
KCS-participated in the design/coordination of the study, performed the experiments, interpreted data, drafted the manuscript.
SDT-participated in the design/coordination of the study, provided technical assistance, interpreted data.
DMM-conceived of the study, participated in the design/coordination of the study, interpreted data, helped draft/revise the manuscript.
All authors read and approved the final manuscript.
