Imaging of Geographic Atrophy: A Practical Approach

Geographic atrophy (GA) secondary to age-related macular degeneration (AMD) is a degenerative disease responsible for severe and irreversible loss of vision in the elderly population [1]. The history of imaging in GA and AMD has evolved with technological advances in retinal diagnostics [2]. A clinical assessment on the basis of fundus examination and color fundus photography was the primary means of diagnosing and monitoring AMD [3]. However, this approach was limited by the resolution of the images and the inability to detect early-stage changes in the retina. The diagnosis and monitoring of GA have been significantly enhanced by imaging technologies over the past few decades, including the need to differentiate GA from mimicking diseases that are not GA and should therefore be managed differently [4].

Fundus autofluorescence (FAF) imaging has been the fundamental imaging modality for GA over the last decades with possibilities of semi-automated quantifications using software such as the RegionFinder [5, 6]. However, with ongoing developments optical coherence tomography (OCT) has gained more and more attention and is now used for most retinal diseases, including GA [7]. Nevertheless, data are still acquired in a nonstandardized manner, even with OCT. With advances, such as artificial intelligence (AI), standardized and reproducible data are becoming more important than ever [2]. Additionally, while previously important for research purposes, objective implementation of standardized imaging protocols is now becoming important in real world clinical management. While there are several reviews for biomarkers in GA including the application of AI to quantify those [2, 8‐13], this practical approach paper offers a perspective on the clinical utilization of imaging methods for GA diagnosis and progression, addressing their advantages and disadvantages. This article is based on previously conducted studies and does not contain any new studies with human participants or animals performed by any of the authors.

With its large number of biomarkers ranging from clinically important to subclinical, GA is a perfect example of a disease needing both imaging and quantitative approaches to diagnosis and follow up. However, when looking at the images, it is important to keep in mind histologic and anatomical correlations to properly interpret what is visible on those images [14, 15], and differentiate the signs characteristics of each imaging modality itself (e.g., choroidal hypertransmission on OCT owing to absent retinal pigment epithelium (RPE)) [16].

In addition, the examiner must understand that some of the imaging is done as a strategy to rule out certain findings that would change the diagnosis and therefore future management, such as macular neovascularization (MNV) or inherited retinal diseases that may require additional genetic counseling [4]. Furthermore, images alone cannot diagnose AMD. While they can increase the accuracy of diagnosing AMD to a remarkably high degree [17], it is also important to consider each patient’s background, age, medical history, relevant medications, and other pertinent factors.

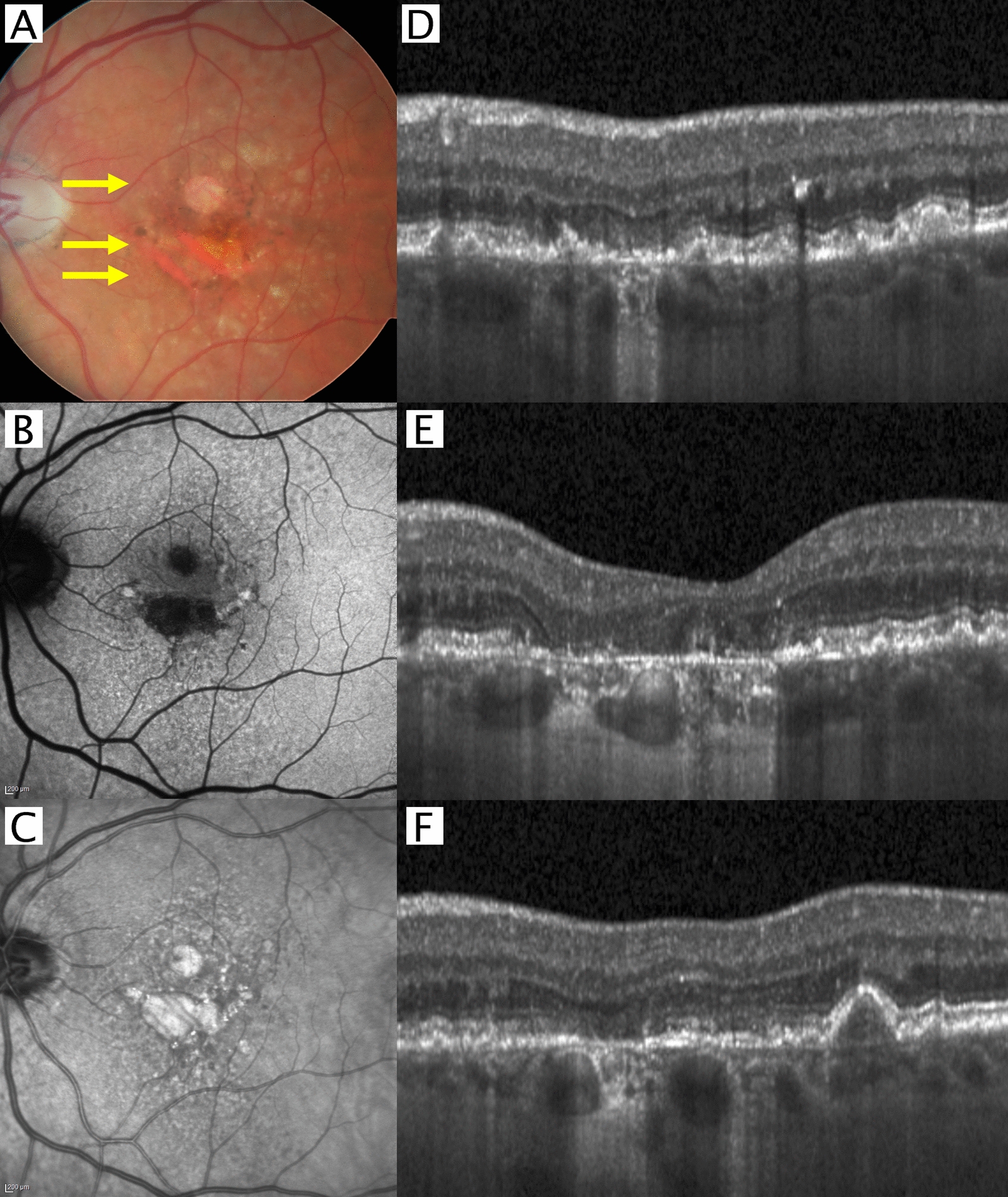

Conventional CFP was established as one of the first ways to diagnose and monitor AMD and the progression of GA. Its advantages are its wide availability and cost-effectiveness for screening and documentation. In addition, because it was one of the first ways to document GA, there are large datasets available to support its use in the development of artificial intelligence algorithms [18, 19]. GA on CFP appears with sharp demarcated areas of atrophy that highlight increased visibility of the choroidal vessels (Fig. 1A). Additionally, it allows for visualization and differentiation of drusen, deposits and other features associated with a different risk for GA progression, providing prognostic information [20]. Conventional CFP typically covers the central 30° area, with a seven-field early treatment diabetic retinopathy study (ETDRS) standard CFP covering approximately 75°. Newer approaches and devices can cover up to 200° of the retina, allowing for ultra-wide field imaging [21]. Features of AMD may also affect the peripheral retina [22].

Bild vergrößern

Fundus autofluorescence (FAF) imaging uses the excitation of fluorophores within the RPE (mainly lipofuscin and melanolipofuscin) and generates an image on the basis of the autofluorescent emission of light reaching the imaging device. Loss of the RPE also results in the loss of fluorophores within the RPE, explaining the hypoautofluorescent appearance of a lesion on FAF. The most used FAF is blue-light FAF (BAF), which uses light at approximately 488 nm. BAF has been routinely used in clinical trials and the area of atrophy can be quantified with software, such as the RegionFinder [5, 6]. However, the blue light is blocked by macular pigment and the involvement of the fovea is often difficult to distinguish (Fig. 1B). Using light in the green spectrum (around 532 nm) or near-infrared (around 787 nm) changes the attracted fluorophores and shift more toward melanin [23, 24].

The confocal scanning laser ophthalmoscope (cSLO) is a powerful instrument with several usages in ophthalmic imaging. In addition to the cSLO, FAF can be acquired using a camera with special filters [25]. While these cameras are often used in routine clinical settings, the cSLO is primarily used in clinical trials because of its higher resolution [25, 26].

Green and near-infrared FAF does not get affected by macular pigment and is therefore less prone to errors in the demarcation of the fovea. Moreover, these latter two imaging modalities excite fewer minor fluorophores that may be present near the border of GA. Conversely, BAF may further stimulate these minor fluorophores, potentially leading to an erroneous definition of the GA area, which may appear smaller than it actually is. Advantages have been made to quantify the signal of blue light FAF with quantitative FAF (qAF) [27‐29], or to investigate the decay of the AF signal using fluorescence lifetime imaging ophthalmoscopy (FLIO) [30], which has been investigated in patients with GA in research settings. Finally, color-coded BAF utilizes shorter-wavelength blue light to excite the retina, further stimulating minor fluorophores that emit in different spectra. This enables color-coded FAF to distinguish minor fluorophores from lipofuscin on the basis of their autofluorescence spectrum. As a result, it has demonstrated the presence of minor fluorophores within the GA lesion, where lipofuscin is otherwise absent [31, 32].

Near-infrared reflectance (NIR) imaging uses tissue reflectance to create a two-dimensional image, often acquired simultaneously to an OCT volume (Fig. 1C–F) [3]. Owing to its longer wavelength in the infra-red spectrum, the signal can penetrate well even in the presence of cataract and deeper into the choroid in comparison to shorter wavelength. While GA appears hypoautofluorescent on FAF, it appears hyperreflectant on NIR owing to decreased signal blocking from the missing RPE with increased reflection from the underlying tissue. Studies have shown good overlap between GA measurements on NIR compared with FAF [33].

Multicolor fundus imaging can be seen as an evolution of CFP. The increased contrast provided by the use of cSLO can improve the quantification of GA [34]. By using three different lasers in multicolor imaging, GA typically appears as a yellowish or whitish area.

Using the same wavelengths as blue and near-infrared AF, dye angiographies can be performed after administration of intravenous fluorescein or indocyanine green, respectively. Conventionally both fluorescein angiography (FA) and indocyanine green angiography (ICGA) are used for the detection of MNV and are not routinely recommended to manage patients with GA, unless MNV is suspected.

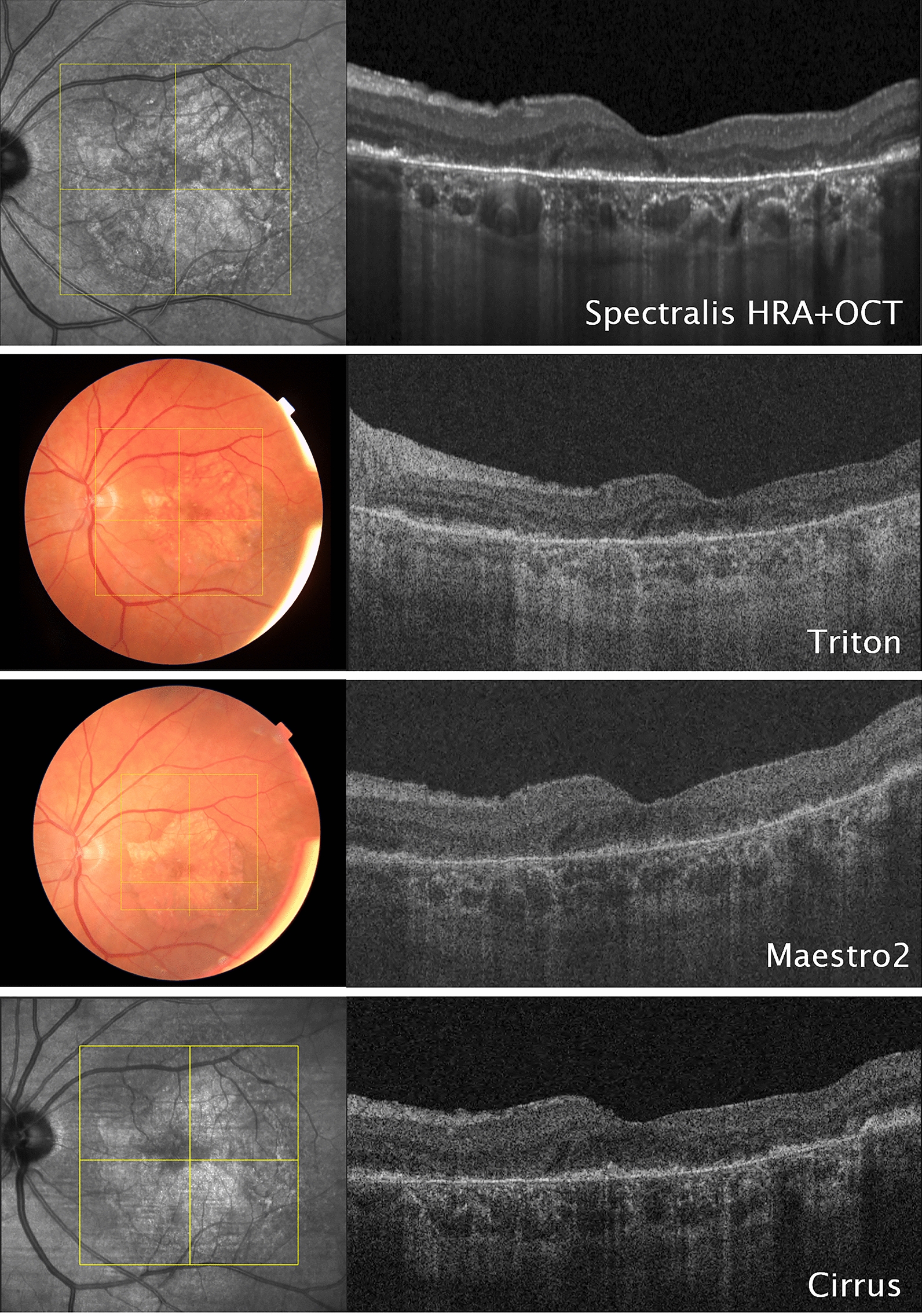

The use of OCT has increased significantly over the last two decades and its success is closely linked with the successful treatment of neovascular AMD [35]. The advances from time-domain OCT to spectral-domain OCT and swept-source OCT have opened a new horizon for biomarker identification and quantification. OCT imaging has therefore become the most frequently used imaging modality in retinal diseases and can be used to assess the progression of GA [7, 36]. However, OCT devices differ in their technical specifications, including differences in imaging protocols and signal-to-noise ratio (SNR) (Fig. 2). OCT has a high accuracy in detecting active MNV by highlighting exudative process within and under the retina, and most often angiography is not necessary to make the diagnosis [37, 38].

Bild vergrößern

A big step in uniting the interpretation of OCT findings regarding GA has been provided by the Classification of Atrophy Meeting (CAM) group. The CAM definition of complete RPE and outer retinal atrophy (cRORA) allows identification of atrophy on the OCT independent from MNV [16, 39]. The biomarkers of interest on OCT are therefore closely related to the definition of cRORA. The absence or irregularity of the RPE and the resulting choroidal hypertransmission, an appearance of increased signal intensity after Bruch’s membrane, are the biomarkers that correlate well with FAF [40, 41]. The integrity of the outer retinal layers is however very individually affected. These layers represent the integrity of the photoreceptor outer and inner segments and are another key feature in the definition of cRORA. The most frequently used measurement is at the level of the ellipsoid zone (EZ). There is evidence that EZ loss outside of the RPE is a marker for increased progression of GA and may also play a role in the assessment of treatment effectiveness [42, 43]. Markers, such as increased density of hyperreflective foci (HRF) around the GA lesion, have been associated with accelerated local progression [44, 45].

An effective way to measure the area of GA is to use the increased reflectivity of the choroid caused by RPE loss. By creating a slab below Bruch’s membrane to capture the hypertransmission (i.e., hypertransmission defects—HyperTDs) and project it into an en face visualization, the area of GA can be easily identified and tracked over time. This method also takes into account that the maximum extent of the lesion may not be seen on one B-scan, but rather across multiple B-scans, which may be helpful in detecting smaller cRORA lesions (Fig. 3) [46].

Bild vergrößern

Novel developments based on conventional OCT technology are adaptive optics OCT, polarization-sensitive OCT, or doppler OCT imaging [47‐49]. However, these are only used in research settings and not readily available as clinical devices.

Non-invasive OCT angiography is based on the detection of moving components within sequential images of static tissue [50]. In the retina, this applies to the blood cells within the vessels as opposed to the surrounding tissue, including the choroid and retina. The static elements can be removed from sequential imaging and the remaining changing information is processed into a network of vasculature, including its three-dimensional anatomy. Compared with dye angiography, OCT angiography is faster, noninvasive, and can separate different plexi on the basis of the segmentation of slabs that include the projected information about the vasculature.

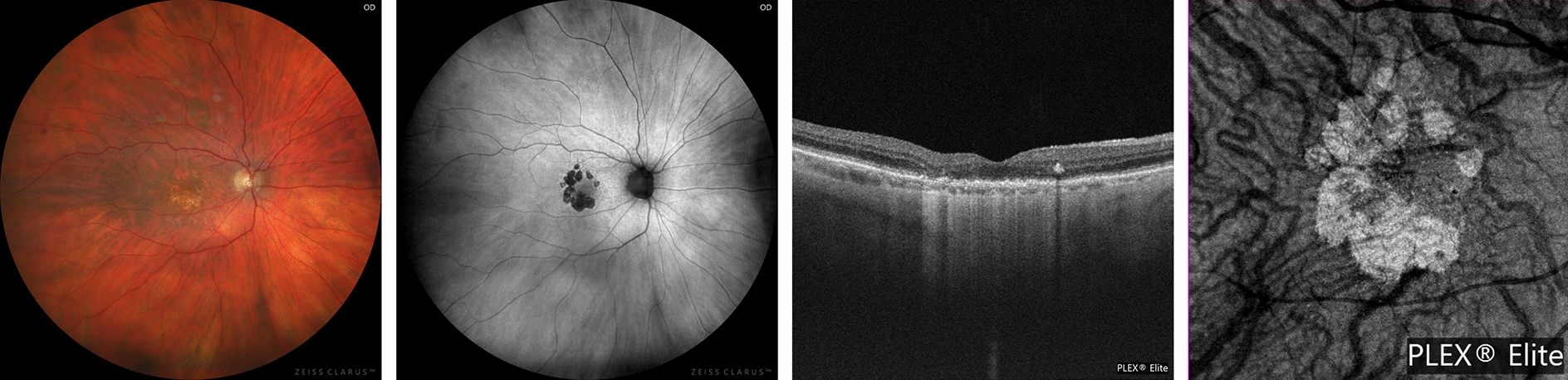

OCT angiography in patients with GA revealed significant reduction of choriocapillaris density around the lesion area, indicating expansion of GA toward areas with more pronounced choriocapillaris degeneration [51, 52]. In clinical practice, OCT angiography is not yet frequently utilized or yet integrated into the routine clinical workflow. When available, OCT angiography is often used to identify (quiescent) MNV in suspect areas, such as shallow PED with double layer signs [53‐55]. Wide-field applications of OCT angiography are available and are becoming increasingly standardized. The use of wide-field OCT angiography has been explored in research settings.

The term GA should be used only in the absence of a history of macular neovascularization (MNV), whereas macular atrophy is the preferred term in such cases. When MNV is present, associated lesions such as fibrosis and hyperpigmentation can make the identification of atrophy more challenging [56, 57]. Fibrosis appears hyperreflective on NIR and multicolor imaging. Therefore, a region with fibrosis but without RPE atrophy (e.g., sub-RPE fibrosis) may be erroneously classified as macular atrophy using these imaging modalities, as this reflectivity is often attributed to RPE atrophy rather than fibrosis alone. Additionally, large areas of hyperpigmentation, which frequently occur in regions of RPE atrophy, can complicate the assessment of atrophy on en face OCT. This is because hyperpigmentation can obscure the associated HyperTDs, making it more challenging to accurately evaluate RPE atrophy. The importance of multimodal imaging for the detection and quantification of fibrosis has been discussed and summarized in recent literature [58, 59].

The practical use of imaging modalities for a disease such as GA must consider its potential to detect disease and monitor its progression with sufficient quality and resolution while balancing benefits, costs and the burden to the patient. Secondly, it must reflect what is known from histopathology to allow better interpretation and improve our understanding of the disease which can enhance communication with the patient. Lastly, imaging must be performed to distinguish GA from different entities and when other diagnoses are suspected, additional testing, e.g., genetic counseling, should be considered. Diagnosis and assessment of progression must also be separated, and a patient might require more diagnostics at the initial presentation in contrast to routine follow up visits.

The use of OCT is strongly encouraged, since it contributes to all aspects of efficient disease identification and monitoring [16]. It usually pairs with a two-dimensional imaging technique which allows better localization of the GA lesion on the posterior pole. Most frequently, a NIR image accompanies the OCT and is often already co-registered. A FAF image is recommended at least at the initial presentation to investigate indicators of other causes of retinal atrophy, e.g., flecks in Stargardt disease. Age and family history must be considered when interpreting such imaging findings.

In the absence of OCT, at least one two-dimensional imaging modality should be acquired while additionally performing fundoscopy to rule out complications such as active MNV with exudation or retinal hemorrhages. If suspicion of MNV is present, MNV should be ruled out or confirmed in alignment with the availability and recommendation of the local standard of care retinal guidelines.

OCT imaging should comprise a scanning pattern dense enough to detect subtle markers of progression. For the Spectralis OCT, a 20 × 20 degree volume with at least 49 B-scans is recommended, but a higher number of B-scans is preferred. Larger volumes might be necessary if the GA lesion extends outside of the 20° area. For most other devices, the conventional 6 × 6 mm volume is of sufficient quality and has enough B-scan density to detect pathognomonic markers. CFP and FAF should cover the 30° area; however, when investigating peripheral changes, 50° images might be helpful as an addition.

There has been an increase in available imaging modalities for GA and while many are worthwhile investigating in research settings, implementation into routine clinical use is less frequently justified. OCT has become the most important imaging modality to diagnose GA, identify progression and estimate progression based on biomarkers or AI-algorithms. In addition, the acquisition of a two-dimensional image, in most cases either CFP, NIR or FAF, is encouraged. Patient-involved decisions are better based on mutual understanding and two-dimensional imaging can be easier to explain and understand, especially for patients with diseases affecting visual function. Care must be taken to correctly interpret findings in association with their histological cause and choose the modality accordingly. In case of uncertainty, the retina specialist must perform additional imaging and tests to secure the right diagnosis, which is most important for clinical trials and during treatment.
