Background
During the past decades, the use of chemotherapeutic drugs in combination with radiotherapy has become a common strategy for the treatment of different solid tumours, improving cancer care dramatically. Combining chemotherapy and radiotherapy has a solid and appealing biologic rationale. Firstly, whereas radiotherapy is aimed at controlling the primary tumour, the cytotoxic drug also eradicates distant micrometastases, a scenario defined as spatial cooperation. Secondly, chemotherapy can possibly enhance the effects of ionising radiation, a process called radiosensitisation [
1].
The availability of several new active compounds has led to the development of promising new combinations. Many of those chemoradiotherapy combinations include antimetabolites, because of their efficacy, their generally well-defined mechanisms of action and mostly manageable toxicities [
2]. In this
in vitro study, we describe for the first time the triple combination of the antimetabolites gemcitabine and pemetrexed with irradiation in two human tumour cell lines.
Gemcitabine (2',2'-difluorodeoxycytidine, dFdC) is a synthetic pyrimidine nucleoside analogue clinically active against a wide variety of solid tumours. Transport of gemcitabine across the plasma membrane is mostly mediated by the human equilibrative nucleoside transporter 1 (hENT1) [
3]. Intracellularly, the prodrug gemcitabine requires phosphorylation and hence activation by deoxycytidine kinase (dCK). The diphosphate (dFdCDP) and triphosphate (dFdCTP) forms of the drug are presumed to be responsible for the cytotoxic effect, as they inhibit ribonucleotide reductase or are incorporated into the DNA, leading to chain termination, respectively [
4].
In addition to its cytotoxic effect, gemcitabine has potent radiosensitising properties, as shown in both preclinical and clinical settings [
5]. The current evidence suggests that accumulation in the S phase of the cell cycle, depletion of dATP pools, reduction of apoptotic threshold, inhibition of DNA synthesis and reduction of DNA repair might contribute to, or might even be essential for gemcitabine-mediated radiosensitisation [
6‐
10]. Recently, Pauwels et al could grant a role for cell cycle perturbations and activation of the extrinsic apoptotic pathway in the radiosensitising effect of gemcitabine [
10]. On the other hand, it has been suggested that radiosensitisation by gemcitabine may be primarily explained by the significant inhibition of DNA repair following combined radiation and gemcitabine treatment. DNA repair pathways using short DNA patches, such as non-homologous end joining and base excision repair, are thought not to play an important role in gemcitabine-mediated radiosensitisation [
9,
11]. Instead, homologous recombination, a long-patch DNA repair pathway, has been argued to be the target for gemcitabine to enhance cellular radiosensitivity [
9]. Moreover, the role of the mismatch repair (MMR) system, an intermediate-patch DNA repair pathway, may be of relevance [
12]. A dramatic increase of nucleotide misincorporations in gemcitabine-treated (MMR deficient) cells was demonstrated, presumably due to dNTP pool imbalances (particularly dATP depletion) [
8,
13]. Van Bree et al showed that MMR proficiency reduced radiosensitisation after 24 h incubation with a low dose of gemcitabine, suggesting that the MMR status might affect the recovery from gemcitabine treatment [
14].
Pemetrexed (multitargeted antifolate, MTA) is a new-generation antimetabolite with antitumour activity against a broad range of human malignancies [
15]. It was approved by the FDA for first-line treatment of inoperable malignant mesothelioma in combination with cisplatin [
16]. Successively, pemetrexed was also investigated in non-small cell lung cancer (NSCLC), where it was FDA-approved as second-line therapy in patients with previously chemotherapy-treated advanced NSCLC [
17], as first-line therapy, in combination with cisplatin, for chemotherapy-naive NSCLC patients [
18], and, very recently, for maintenance treatment of patients with locally advanced or metastatic non-squamous NSCLC whose disease had not progressed after four cycles of platinum-based first-line chemotherapy [
19].
Pemetrexed acts as a multitargeted antifolate by inhibiting multiple key enzymes involved in both pyrimidine and purine synthesis, its primary targets being thymidylate synthase (TS), dihydrofolate reductase (DHFR) and glycinamide ribonucleotide formaldehyde transferase (GARFT). Pemetrexed enters the cell mainly by a reduced folate carrier system. Once inside the cell, pemetrexed is an excellent substrate for the enzyme folylpolyglutamate synthase (FPGS) [
20], which rapidly converts pemetrexed to its active polyglutamate derivatives that have a substantially higher potency for inhibition of TS and GARFT [
21]. It is believed that polyglutamation of pemetrexed plays a profound role in determining both the selectivity and the antitumour activity of this agent.
The ability of pemetrexed to deplete cellular nucleotide pools, to modulate the cell cycle, and to induce apoptosis makes this drug an attractive cytotoxic agent for polychemotherapy regimens and combination with radiotherapy [
22]. In preclinical studies, radiosensitisation by pemetrexed was observed in human colon, breast, cervix and lung carcinoma cells [
23].
In vivo, combination of pemetrexed with fractionated radiotherapy produced additive to greater than additive antitumour activity in murine and human tumour xenografts [
24,
25]. In a phase I study, it was suggested that pemetrexed could be administered at systemically active doses in combination with radiotherapy [
26]. These findings prompted further investigation of the radiosensitising effect of pemetrexed.
The aim of the present study is the exploration of the cytotoxic (and not toxic) effects of combinations of pemetrexed and gemcitabine alone or combined with irradiation using various treatment schedules in two human carcinoma cell lines. Given the three approved indications for pemetrexed in the treatment of NSCLC, we selected the A549 NSCLC cell line. As radiotherapy in combination with gemcitabine is reported to be feasible and highly active in the treatment of locally advanced squamous cell carcinoma of the head and neck (SCCHN) [
27], we also included the CAL-27 SCCHN cell line.
Discussion
Today, the mainstay of cancer treatments consists of surgery, radiotherapy and/or chemotherapy. In daily practice, the combination of radiotherapy and chemotherapy has become a standard treatment and it is associated with improved survival rates in many tumours, thereby favouring multimodal strategies in tumour therapy. A multitude of potential interaction mechanisms between radiotherapy and chemotherapy, including radiosensitisation of tumour cells through drug exposure, may improve treatment results [
38]. Given the reported radiosensitising potential of both gemcitabine [
39] and pemetrexed [
23], this paper, for the first time, describes a preclinical study evaluating the triple combination of pemetrexed, gemcitabine and irradiation.
Concentration-dependent growth inhibition by single agent treatment with gemcitabine or pemetrexed was observed in both A549 lung carcinoma and CAL-27 head and neck carcinoma cell lines, with IC
50 values <1.0 μM in all cases, which is well below the mean peak plasma concentration of both drugs achievable in patients [
40,
41].

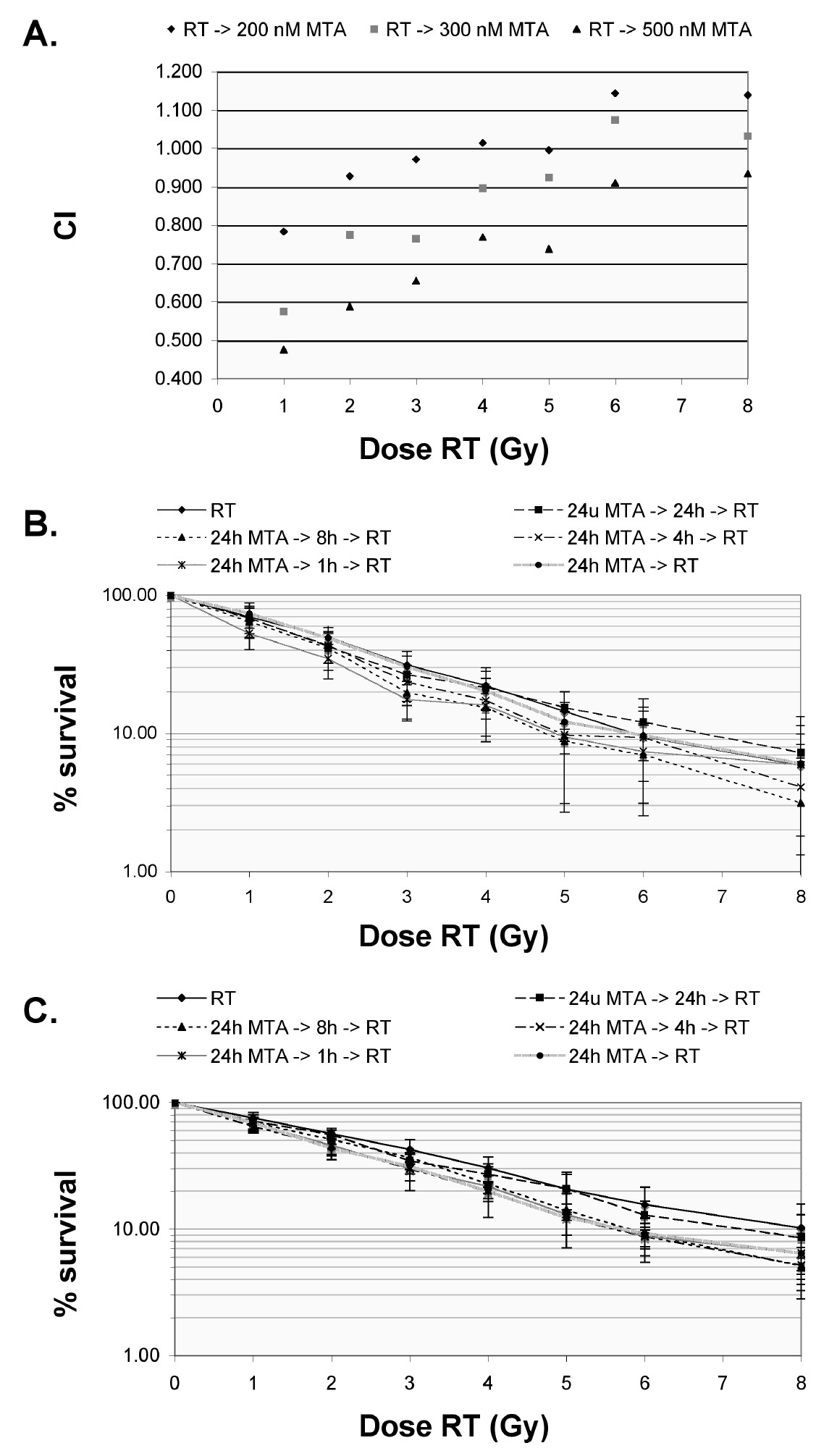

The interaction between pemetrexed and irradiation was examined as a potential strategy to enhance the therapeutic ratio of combined-modality cancer treatment. However, incubation of CAL-27 or A549 cells with 24 h pemetrexed immediately preceding or following irradiation (0-8 Gy) was unable to produce any significant radiosensitisation of the tumour cells. In contrast, Bischof et al demonstrated that a concomitant exposure to ionising radiation and moderately toxic concentrations of pemetrexed (106 nM, 70% survival) inhibited clonogenic survival in excess of independent toxicities in all four human tumour carcinoma cell lines tested, with enhancement ratios ranging from 1.2 (HeLa cervix carcinoma and MCF-7 breast carcinoma cells) to 1.6 (LXI lung carcinoma cells). In WiDr colon carcinoma cells, significant radiosensitisation (DEF 1.8) was only noticed at higher pemetrexed concentrations (636 nM, 85% survival), with a DEF of 1.1 when cells were pretreated with 106 nM pemetrexed (no cytotoxic effect) [
23].
As the timing of irradiation relative to drug application may play an important role in combined modality treatments, tumour cells were irradiated at different time intervals between 24 h pemetrexed treatment and irradiation. Overall, including a time interval between pemetrexed exposure and irradiation seemed favourable to pemetrexed immediately preceding or following radiotherapy, with DEFs up to 1.6 for CAL-27 cells. No readily observable tendency in cell killing was shown over the different time intervals. For both CAL-27 and A549 cells, a 1 h time interval resulted in a clear radiosensitising effect (DEF 1.5). Similarly, no substantial variation in survival fraction could be observed in WiDr colon carcinoma cells when the interval between the start of 2 h pemetrexed exposure and irradiation was varied from -4 h to +10 h [
23]. This finding led to the hypothesis that pemetrexed possibly exerts its radiosensitising potential very rapidly and that this effect pertains after drug removal for an extended period of time (at least 8 hours). Interestingly, a different behavior has been reported for gemcitabine, where the radiosensitising potential gradually decreased with an increasing time interval [
34].

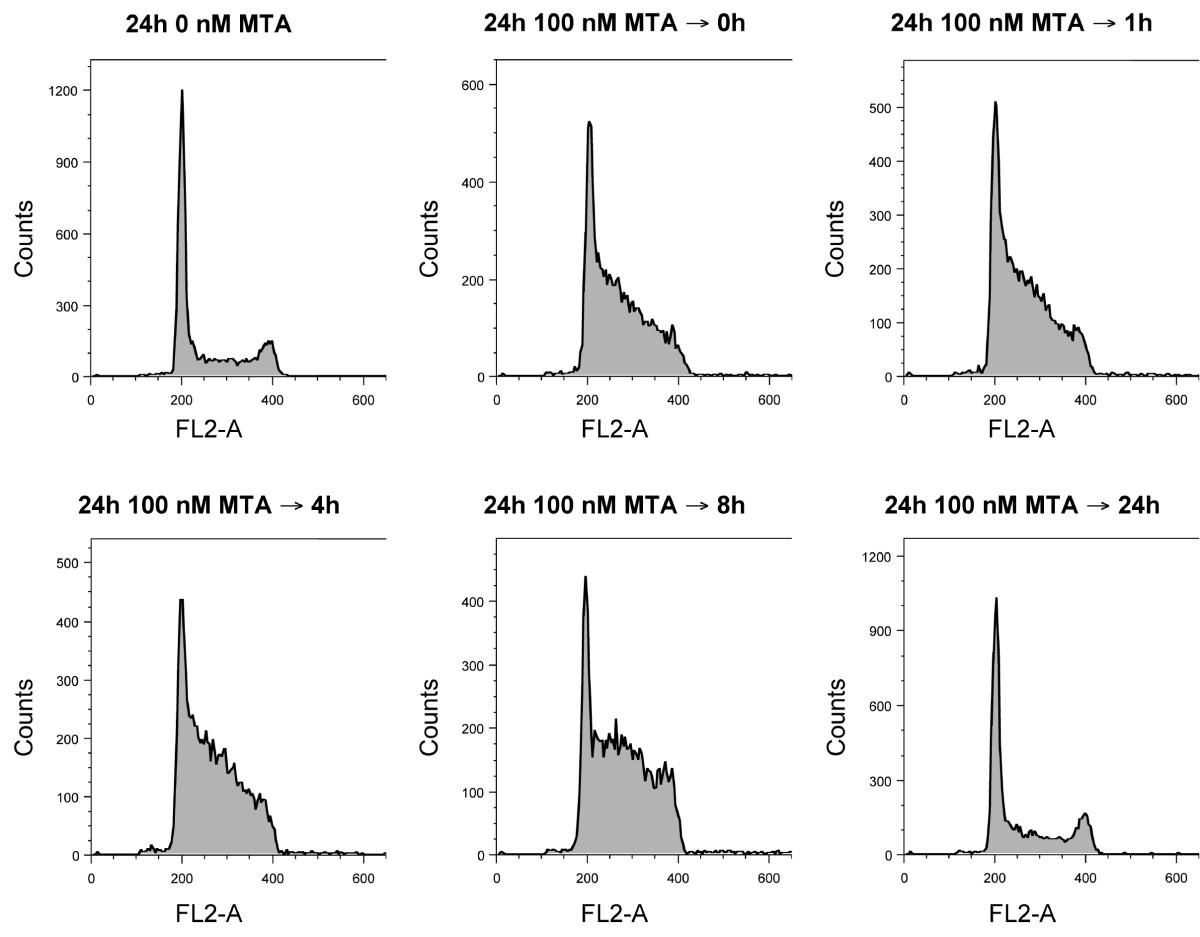

Our findings in CAL-27 and A549 cells, showing S phase accumulation when cells were treated with only slightly toxic concentrations of pemetrexed for 24 h, are consistent with previous data in the A549 cell line [
22,
42]. The S phase accumulation was observed for up to 8 h after drug removal, yet disappeared after 24 h wash out. This implies that the differences in radiosensitisation could not be explained by the pemetrexed-induced S phase accumulation (see also table
1 and
2). Correspondingly, the study by Bischof et al also excluded the S phase enrichment as the primary mechanism for radiosensitisation by pemetrexed [
23]. Moreover, tumour cell apoptosis was not found to be responsible for pemetrexed-induced radiosensitisation in human colon carcinoma cells [
43]. Thus, the differential radiosensitisation induced by pemetrexed cannot be explained at present. A number of causes appear conceivable (such as differences in drug toxicity levels, growth characteristics of the cell lines investigated, levels of drug-inhibited enzymes, or intracellular pemetrexed polyglutamation), and further assessment of the molecular mechanisms underlying the radiosensitising potential of pemetrexed seems crucial.
Our study aimed at investigating the triple combination of gemcitabine, pemetrexed and irradiation. However, a recommended protocol for gemcitabine/pemetrexed combinations differed among previously published
in vitro studies and there was generally no agreement with regard to the preferable treatment schedule. The drug combination has been examined
in vitro with different human tumour cell lines (including colon, bladder and pancreatic cancer, NSCLC, and malignant pleural mesothelioma), resulting in controversial schedule-dependent interactions. Though simultaneous drug administration is the more frequently used and most practical clinical regimen, results from the present and previous
in vitro studies showed that simultaneous exposure to these two antimetabolites did not significantly increase cell kill and thus probably will not improve the clinical therapeutic effect [
42,
44,

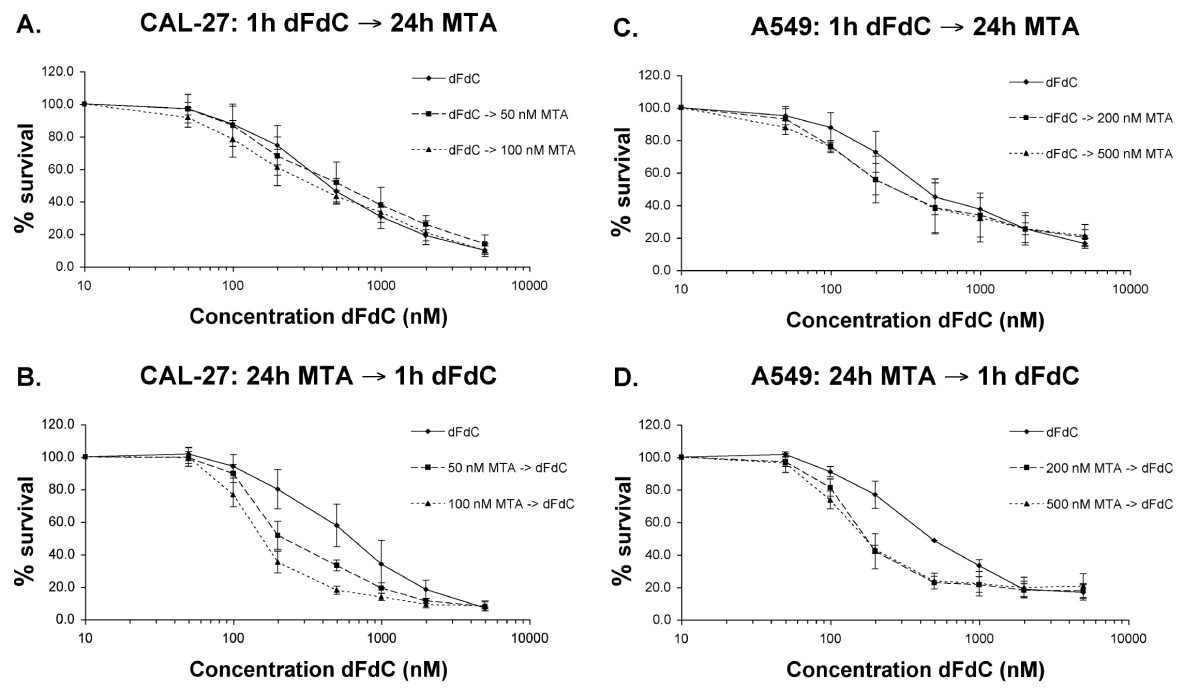

45]. Conversely, we observed that sequential exposure produced a greater cytotoxic effect than that exerted by single-agent use or simultaneous exposure. In particular, as shown by the IC
50 values calculated from survival curves as well as the results from CI analysis in both A549 and CAL-27 cells, a higher synergistic interaction was obtained by pretreatment with 24 h pemetrexed followed by 1 h gemcitabine (24 h MTA → 1 h dFdC) in comparison with the other schedules investigated. These findings are in agreement with previous reported observations in the A549 NSCLC cell line by Giovannetti et al [
22,
30]; for the CAL-27 SCCHN cell line, no previous data are available. In the clinic, a phase I trial in patients with advanced solid tumours suggested that the sequence of gemcitabine administered on days 1 and 8 with pemetrexed administered on day 8, 90 minutes after gemcitabine was well tolerated and recommended for further study [
46]. However, a few years later, the same research group conducted a phase II trial of three schedules of pemetrexed and gemcitabine as front-line therapy for advanced NSCLC. In this trial, the pemetrexed-gemcitabine schedule was less toxic compared with other sequences and, by obtaining a confirmed response rate of 31%, was the only schedule that met the protocol-defined efficacy criteria [
47]. As such, both preclinical and clinical data support the sequential pemetrexed-gemcitabine schedule in NSCLC.
Concerning the molecular basis for pemetrexed-gemcitabine interactions, it has been suggested that the favourable modulation of the cell cycle by pemetrexed may be considered as one of the most important mechanisms underlying the synergistic interaction in the 24 h MTA → 1 h dFdC sequence [
22]. Because gemcitabine is an S phase specific drug, the increase in its activity in this schedule may be the result of the S phase accumulation induced by pemetrexed, which potentially facilitates incorporation of 2',2'-difluoro-deoxycytidine triphosphate into the DNA. As the cell cycle modulation by pemetrexed lasted for several hours after drug removal, but disappeared after 24 h, this may explain why the 24 h MTA → 1 h dFdC seems preferable to the 24 h MTA → 24 h dFdC schedule.
In A549 cells, it has been demonstrated that pemetrexed, at its IC
50 and IC
75 levels, significantly upregulated the hENT1 carrier, potentially facilitating gemcitabine cytotoxicity [
22]. Moreover, being an inhibitor of de novo purine biosynthesis (because of the blockade of the key enzyme GARFT), pemetrexed was shown to increase the expression of dCK as a compensatory mechanism [
22]. The dCK activity of untreated A549 and CAL-27 cells was reported to be highly comparable (resp. 6.02 and 5.02 nmol/h/mg protein) and a weak positive correlation between dCK activity and the radiosensitising effect of gemcitabine has been reported [
48], suggesting that enhancement of hENT1 and dCK expression by pemetrexed in the pemetrexed → gemcitabine sequence strongly supports this combination.
In addition, several studies showed that TS expression is significantly correlated with pemetrexed sensitivity both in a preclinical and clinical setting [
22,
49]. Functional inactivity and mutations of p53 were shown to differentially affect the expression and activity of TS [
50], potentially influencing the response of A549 (wt p53) and CAL-27 (mt p53) cells to pemetrexed-based treatment. Nevertheless, different conclusions regarding the relationship between functional p53 status and sensitivity to pemetrexed have been obtained, possibly depending on the phenotypic/genotypic background of the model system used [
29,
51‐
53]. Similarly, the role of p53 on the ability of gemcitabine to induce a cytotoxic and radiosensitising effect is not yet completely elucidated [
6,
54,
55], making further mechanistic unravelling of the pemetrexed-gemcitabine-radiation combination highly warranted.
When combining pemetrexed and gemcitabine with irradiation, the 24 h MTA → 1 h dFdC → RT regimen showed radiosensitising potential in both cell lines (DEF 1.4 for CAL-27; 1.5 for A549). Other pemetrexed/gemcitabine schedules in combination with radiation also produced additive to synergistic growth inhibition in comparison to monotherapy, and the corresponding DEFs were not significantly different from these obtained with 24 h MTA → 1 h dFdC → RT. However, given the synergistic interaction between 24 h pemetrexed and 1 h gemcitabine, the 24 h MTA → 1 h dFdC → RT turned out to be the preferred schedule for combined administration with radiotherapy in our preclinical model system.
Competing interests
The authors declare that they have no competing interests. Pemetrexed and gemcitabine were kindly provided by Eli Lilly (Indianapolis, USA).
Authors' contributions
AW participated in the design of the study, performed the experiments and the statistical analysis and drafted the manuscript. GP and HL participated in the cell survival experiments and performed cell culture. MB participated in the acquisition of data. PM was involved in the irradiation experiments. BP, FL and JBV participated in the conception, design, and coordination of the study, and revised the manuscript critically. All authors read and approved the final manuscript.
