Open Access 01.12.2024 | Research

Interdisciplinary all-on-four® concept for mandibular jaw in dental education - do students benefit from individual 3d printed models from real patient cases?

verfasst von: Monika Bjelopavlovic, Elisabeth Goetze, Peer W Kämmerer, Herbert Scheller

Erschienen in: International Journal of Implant Dentistry | Ausgabe 1/2024

Abstract

Purpose

Digitalization is assuming increasing significance in dental education, as dental students are increasingly exposed to digital implant planning and contemporary technologies such as 3D printing. In this study, we present a cohort analysis aimed at assessing the potential benefits derived from the utilization of 3D prints to seamlessly translate planned procedures into real-life applications.

Methods

21 dental students participated in a virtual planning and hands-on course across two cohorts (C1: n = 10, C2: n = 11). The virtual implant planning phase involved the placement of four implants on an atrophic lower jaw model. Subsequently, Cohort 1 (C1) executed the implantation procedure on a prefabricated hands-on model, while Cohort 2 (C2) engaged with 3D prints representing their individual implant planning during the hands-on session. Subjective assessments of knowledge, skills, and the perceived utility of 3D prints were conducted through pre- and post-course questionnaires, utilizing a 5-point scale.

Results

In the subjective evaluation, 17 out of 21 participants expressed a positive appraisal of the use of personalized models. Notably, there was no statistically significant improvement in overall knowledge scores; however, there was a discernible increase of 0.5 points in the ratings related to perceived expertise and procedural abilities.

Conclusion

While there was a notable increase in the subjective ratings of knowledge and abilities, no statistically significant difference was observed between the two groups. The consensus among dental students is that individually planned and printed implant models serve as a valuable and effective tool in hands-on courses.
Begleitmaterial
Hinweise

Supplementary Information

The online version contains supplementary material available at https://​doi.​org/​10.​1186/​s40729-024-00528-z.
Monika Bjelopavlovic and Elisabeth Goetze contributed equally to this work.
The paper contains data from the doctoral thesis of Elisabeth Goetze.

Publisher’s Note

Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Background

Dental education has undergone significant transformations over the years, with a notable expansion beyond fundamental prosthetic and conservative dentistry topics to incorporate essential elements of implantology and digital procedures. The ongoing trend towards virtual planning and the integration of additive manufacturing to execute treatment plans for patients necessitates adaptation within contemporary dental education. Consequently, teaching staff are increasingly confronted with the imperative to embrace digital learning and incorporate new technologies, ensuring that dental education remains abreast of the latest advancements in the field.
Throughout the years, implantology has become one of the key concepts used for the dental rehabilitation of edentulous patients. Early integration is recommended to effectively complement traditional prosthetic procedures, highlighting the evolving importance of implantology in the comprehensive education of dental students.
Traditional implant concepts, categorized as forward- and backward-planning [1, 2], involve either implant placement focused on the available bone, irrespective of the subsequent prosthetic plan, or implant planning and placement aligned with the prosthetic plan for eventual prosthetic restoration. The latter approach can be implemented through conventional casts and guides manufactured in the laboratory based on patient impressions. Alternatively, virtual planning can be conducted utilizing a three-dimensional x-ray dataset and, if available, 3D-scans of the intended prosthetics or virtually created teeth [3, 4].
It is acknowledged that 3D-planned surgical guides contribute to enhanced precision in surgical implant placement, irrespective of the user’s experience level [5, 6]. Precise preliminary planning, which includes a template for implantation, holds particular significance for complex cases such as so-called all-on-four® restorations [7, 8]. The restoration of edentulous jaws using dental implants, notably through the full arch concept, signifies a substantial progression in contemporary dental practice [9]. This treatment approach involves the strategic placement of four implants in specific locations within the atrophic jaw, allowing for the support of a full-arch fixed prosthesis. By distributing load-bearing forces effectively, the all-on-four® technique provides stability and functionality, enhancing patient comfort and satisfaction [10, 11]. This treatment modality not only offers a reliable solution for edentulous patients but also minimizes the need for extensive bone grafting procedures, thereby reducing treatment complexity, and improving overall treatment outcomes. Consequently, teaching these potential concepts to an ageing patient population is important in the clinical training of students [12, 13]. Within this treatment, 3D printing presents a viable option for generating surgical guides directly within the dental office, with comparable precision to subtractive milled guides or other commercially available solutions [14]. The inherent advantages of in-office 3D printing, including significantly reduced costs, render 3D-printed models and guides highly valuable assets in the field of implant dentistry [15, 16]. 3D printing has furthermore demonstrated its efficacy as a valuable asset in both dental and medical education. Its utilization can significantly enhance comprehension of intricate anatomical structures and streamline communication and training interactions between educators and students, as highlighted by Oberoi [17]. Notably, 3D printing has been widely accepted and positively evaluated by dental students [1820]. These prints serve as tactile models for simulation, ensuring an authentic haptic experience, while also offering a cost-effective means to produce surgical guides [21].
The integration of traditional implant planning into dental education curricula lacks uniformity, and although initial strides have been made [22], there exists no standardized curriculum for the incorporation of dental implant planning and CAD/CAM-guided implantology utilizing 3D prints [23, 24]. According to the European consensus established by the “Association of Dental Education in Europe,” proficiency in handling pertinent digital data in implantology, including radiology, surgical guides, and diagnostic wax-ups, is identified as a competency goal that should be incorporated into dental education [25]. Notably, the consensus does not explicitly mention familiarity with specific CAD/CAM procedures or virtual planning. The significance of this recommendation is underscored by the observation that, five years after the consensus was formulated, digital procedures and hands-on courses in implantology were infrequently integrated into routine dental curricula [26]. In contrast, the Japanese dental education guidelines advocate for computer-based surgical dentistry as an essential component of dental school education [27], mandating the inclusion of CAD/CAM procedures in dental curricula. This discrepancy highlights the varying emphasis placed on digital technologies in dental education across different regions, underscoring the need for further evaluation and potential standardization to ensure that dental students receive comprehensive training in contemporary techniques and technologies.
In the current landscape of dental education, a survey conducted in Germany in 2011 by the AKWLZ (Arbeitskreis für die Weiterentwicklung in der zahnmedizinischen Lehre = Working group for the further development of teaching in dentistry) and VHZMK (Vereinigung der Hochschullehrer für Zahn-, Mund- und Kieferheilkunde = Association of University Teachers of Dentistry, Oral and Maxillofacial Medicine) revealed that only one CAD/CAM course is regularly integrated into dental university teaching [28]. Conversely, a Canadian survey from 2016 indicated that digital planning and drilling guides are widely implemented across dental education institutions nationwide [29]. Additionally, Koole et al. demonstrated a highly variable approach to didactics in implantology within the United States, with theoretical knowledge being predominantly conveyed, occasionally supplemented by preclinical hands-on experiences, and clinical applications being the least frequently encountered [30]. The topics of CAD/CAM procedures and digitalization were not explicitly analyzed, but the author deemed them highly relevant and suggested further investigation. This observation underscores the prevailing gap between the recommended integration of digitalization and CAD/CAM procedures in dental implantology education and the limited availability of courses addressing these aspects. Furthermore in a German survey study from 2020 shows that undergraduate implantology training as part of dental teaching is perceived very positively by students and postgraduates, but is viewed critically by teachers and practicing dentists [31]. When practical courses are utilized, students report enhanced comprehension, heightened self-awareness, and increased satisfaction [3234]. Students who have undergone practical training exhibit greater confidence and receptiveness towards the utilization of implantology [22]. The motivation and acceptance levels of students significantly impact the success of their learning endeavors. Moreover, translating theoretical concepts into practical experiences facilitates deeper learning by engaging higher cognitive faculties [35, 36]. While the Likert Scale is commonly used to assess such outcomes [37], its suitability may be questioned. Nevertheless, its widespread usage and simplicity make it a popular choice.
The imperative to bolster implantology education in dental schools and equip dental students with CAD/CAM procedures, including the utilization of 3D-printed devices, warrants further investigation. To address this need, we conducted a pilot study aimed at evaluating whether dental students benefit, in terms of acceptance and subjective knowledge acquisition, from virtual planning of dental implants supplemented by fully customized 3D-printed devices in a hands-on course setting using real case patients.

Materials and methods

Study Group

In an exploratory prospective cohort study, a questionnaire evaluation was conducted with dental students participating in an implant course. The study was conducted within the framework of regular dental training at the university medical center, specifically in the department of prosthetics, in collaboration between prosthetics and oromaxillofacial surgery.
Over two consecutive semester terms, students in the regular prosthetic course of the 10th grade (9th semester) were given the opportunity to partake in an implant course. The first semester of participation was designated as cohort 1 (C1, control group), while the subsequent semester involved students participating in the study, designated as cohort 2 (C2, intervention group).

Teaching concept

The course was conducted over two separate days (see Fig. 1). On the first day, students attended theoretical lectures on virtual planning in dentistry, received an introduction to the software program used, and engaged in virtual planning using the Nobel Clinician® system (Nobel Biocare AG, Zürich, Switzerland). Patient data, including cone beam CT (CBCT) scans of the edentulous lower jaw and 3D surface scans of the denture, were obtained from the department’s patient pool and anonymized before being provided to the students. The students were instructed to perform implant planning following the all-on-four® concept, utilizing four implants with laterally angulated positions to fully support a fixed lower jaw denture [38]. On the second day, students received a brief introduction to the guided implant system (Nobel Guide®, Nobel Biocare AG, Zürich, Switzerland) and participated in a hands-on course for implant placement using four implants. In total, all students worked on the same patient case and no dentures were made.
For the intervention group, the planned implant guides from the first day were exported and 3D-printed, along with the lower jaw, using a polymer printer (Stratasys, Eden 260 V, Eden Prairie, Minnesota, US, Material: MED 610®) (Fig. 2). In contrast, the control group utilized prefabricated jaw models and implant guides for the all-on-four® setup. Both the prefabricated models and the 3D-printed models were equipped with a gingiva mask. Both groups utilized the Nobel Guide® system with Nobel Active® dummy implants for implantation following the standard drilling protocol for guided Nobel Active® implants (see Fig. 3).

Questionnaire

A questionnaire was administered both before and after the course days to assess students’ acceptance and knowledge gain. Participation was voluntary, and by completing the questionnaire, students consented to participate in the study. However, course participation was possible without completing the questionnaire.
The study group developed the questionnaire in advance and validated it through a trial run during a previous semester’s student course, with input from dental instructors not involved in the study. Any potential issues, such as vague or imprecise questions, were identified and adjusted accordingly.
Data collection was anonymized. The questionnaire included inquiries into basic demographics (such as age, gender, and implant experience). Self-assessment of knowledge related to 3D planning, CAD/CAM procedures, and implant placement was evaluated before and after the course days using a Likert scale [39] (a 5-point rating scale: 1 = very good, 2 = good, 3 = mediocre, 4 = quite bad, 5 = really bad).
Furthermore, following the first course day, students were assessed for knowledge gain and subjective value regarding self-performed virtual planning using rating scales. After the second course day, students were asked to rate the subjective value of individually printed models based on their own planning using a rating scale.

Statistical analysis

Statistical analysis was done descriptively for demographics and univariate using mean (m), median (md), standard deviation (sd), minimum (min), maximum (max), and quartiles (q). Exploratory data analysis was performed using a Student’s t-test, with a significance level of p < 0.05 considered strong evidence for rejecting the null hypothesis (H0). Given the pilot nature of the study, sample size calculation was not feasible beforehand. Therefore, a post-hoc power analysis was conducted afterward, considering alpha values of 0.1 and 0.05, along with power levels of 70%, 80%, and 90%.

Results

A total of 21 participants were enrolled in the study, with cohort 1 (C1) comprising 11 participants and cohort 2 (C2) comprising 10 participants. The average age of the participants was 27 ± 4 years, with C1 slightly younger at 26 ± 3 years compared to C2 at 28 ± 5 years. The gender distribution was 1:3 (male: female). Responder analysis for the student course, involving 24 students (12 per semester), revealed response rates of 83% and 92%, respectively. However, a non-responder analysis was not conducted. Among the participants, only one individual had a primary medical/dental education. Approximately 57% (12/21) had received prior implant-associated instruction through hands-on courses, while 52% (11/21) had previously assisted in surgical dental implant placements. Moreover, 65% of the students had received some form of training in implantology. Refer to Table 1 for a summary of these demographics.
Table 1
Summary of preliminary education and implantology experience
Item
Overall
n = 21
Control group
n = 10
Intervention group
n = 11
Preceding education
n = 1 (medical doctor)
missing: none
none
n = 1
Previous implantation on model
Yes: 12 (57,1%)
No: 7 (33,3%)
Missing: 2
Yes: 6 (30%)
No: 3 (60%)
Missing: 1
Yes: 6 (54,6%)
No: 4 (36,4%)
Missing: 1
Previous Implantation assisted
Yes: 11 (52%)
No: 9 (43%)
Missing: 1
Yes: 7 (70%)
No: 3 (30%)
Missing: 0
Yes: 4 (36,4%)
No: 6 (54,6%)
Missing: 1
Previous implantation
Yes: 1 (4,8%)
No: 19 (90,5%)
Missing: 1
Yes: 0 (0%)
No: 10 (100%)
Missing: none
Yes: 1 (9,1%)
No: 9 (81,8%)
Missing: 1

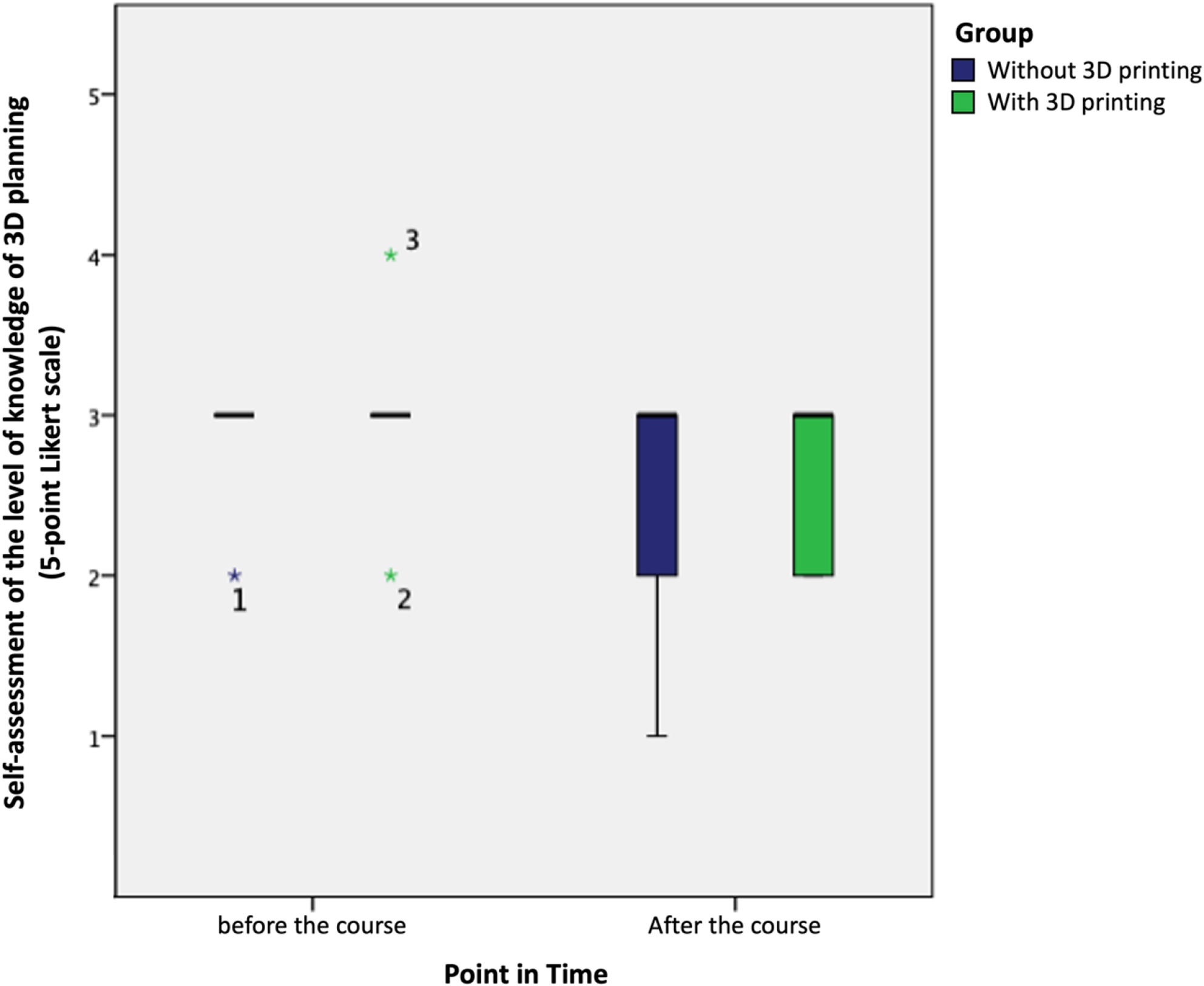

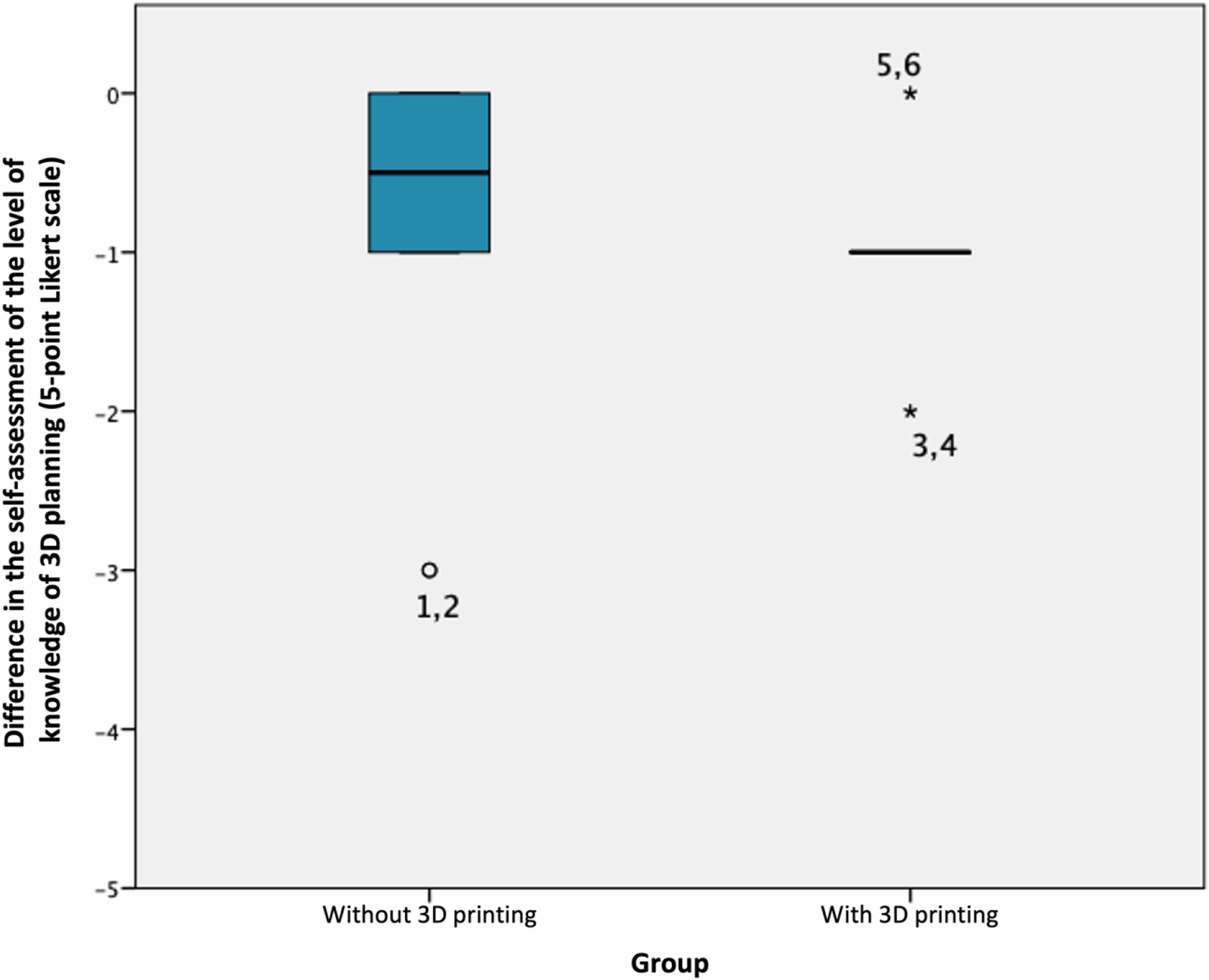

The subjective assessment of knowledge in 3D planning, measured using a Likert scale ranging from 1 (very good) to 5 (really bad), decreased from an average score of 3.0 ± 0.4 before the course to 2.9 ± 1.3 after the course for both cohorts (see Fig. 4). When analyzed by subgroups, both cohorts exhibited a median decrease in expertise ranging from − 0.5 to -1 points (C1: -0.5 points, C2: -1 point) without a statistically significant difference between the groups (p = 0.64) (see Fig. 5). Furthermore, there was no difference in knowledge level observed between students with or without prior implant training, both overall and when compared between C1 and C2.
The initial knowledge level in implantology was 3.3 ± 0.9, which improved to 2.4 ± 0.9 on average after the course. On average, students gained one rating point in practical skills, with C1 showing an improvement of -0.5 points compared to -1 point for C2 (see Fig. 6).
The majority of students (81%) found the use of individualized models in the course to be valuable, regardless of cohort. Additionally, 90.5% expressed a desire for such a course to be implemented in the regular dental curriculum, with 38% preferring an earlier implementation. Refer to Table 2 for a summary of the course evaluation.
Table 2
Summary of course evaluation
Item
Overall
n = 21
Control group
n = 10
Intervention group
n = 11
Individualized model valuable
Yes: 17 (81%)
No: 2 (9,5%)
Missing: 2
Yes: 8 (80%)
No: 2 (20%)
Missing: none
Yes: 9 (81,8%)
No: 0 (0%)
Missing: 2
Desire for implementation of course in regular dental curriculum
Yes: 19 (90,5%)
No: none
Missing: 2 (9,5%)
Yes: 10 (100%)
No: 0 (0%)
Missing: none
Yes: 9 (81,8%)
No: 0 (0%)
Missing: 2
Desire for earlier course integration
Yes: 8 (38,1%)
No: 11 (52,4%)
Missing: 2 (9,5%)
Yes: 4 (40%)
No: 6 (60%)
Missing: 0
Yes: 4 (36,7%)
No: 5 (45,5%)
Missing: 2
A post-hoc analysis was conducted to assess the effect of the low number of participants. Estimating an alpha of 0.05, a power of 80%, and a detectable measurement of 0.5 rating points, a sample size of n = 34 was determined to be necessary.

Discussion

Although the analysis does not corroborate the primary hypothesis suggesting greater subjective knowledge gain among students from an individually planned and model-transferred hands-on course compared to a traditional model course, the present study elucidates several significant observations.
Notably, students’ acceptance of an individualized course is notably high, as evidenced by an 81% acceptance rate in the current study. This finding underscores the potential benefits of implementing such courses, as heightened acceptance among students is recognized to enhance learning capabilities [40]. Despite the absence of statistical significance in the data regarding the usefulness of an individually planned jaw model for implant-course use, students consistently rated the individualized model as helpful and desirable. This subjective perception among students may significantly enhance motivation in learning digital implantology, thereby facilitating the acquisition of application-specific knowledge [22, 41].
Implantology has become an indispensable component of contemporary dental practice, with its principles firmly entrenched in the national learning curriculum for dentists. However, practical implant courses are not universally emphasized. Students appear to recognize this gap, as evidenced by a high proportion (65%) within the study population reporting personal involvement in either planning or assisting with implant procedures. Consequently, it appears that the demand for implantological education remains unfulfilled within dental education programs. A 2021 study showed that students who were allowed to implant under supervision had comparable results to postgraduate dentists [42]. These results are also supported by a study which showed an implant survival rate of 98% for 294 implants placed by students in the University of Kentucky [43]. In both studies, various patient scenarios were employed for training purposes. These studies explored the implantation of four support implants in edentulous patients to facilitate a removable prosthetic denture, as well as single-tooth restorations. Similarly, our study examined the restoration of edentulous patients among students through the implementation of the all-on-four concept®, albeit without subsequent fixed denture—a procedure of highest complexity. Nonetheless, this approach encompasses all essential tools, both theoretically and practically, necessary for comprehensive implantation planning, thus ensuring a proficient execution of the procedure. Studies have indicated that students express a desire for implantology-focused education during their undergraduate dental studies, a sentiment that was positively evaluated by Schweyen et al. [31]. However, the integration of such programs is not constantly detectable. This phenomenon may be attributed in part to economic considerations. Hands-on implant courses are seldom organized without the backing of industrial partners. The expenses associated with machines, burs, dental implants or implant dummies, and jaw models must be taken into account when devising such a course model, particularly given that implants and models are typically single-use items. Many departments lack the resources necessary for the regular implementation of hands-on courses independently [26, 27]. Utilizing low-budget 3D printers presents an opportunity to mitigate costs, as models can be produced more affordably compared to commercially available alternatives [2, 44].
A rough estimation for the current study revealed that costs were approximately €20 per model, inclusive of the gingiva mask, based solely on material expenses. These costs may ostensibly be comparable to a confectioned jaw model but personnel costs and expenses associated with maintaining a printer system were not factored into this calculation. While these additional costs may slightly increase the overall expenditure, leveraging low-budget 3D printers has the potential to significantly reduce the economic burden of hands-on courses, particularly if printing facilities are already available onsite. Consequently, implementing a simulation course may become a more appealing option for dental schools and university departments.
Simulation courses offer a valuable assessment platform for evaluating student proficiency. Moreover, these methods have been shown to enhance student performance and are effective for teaching procedural skills [8]. Additionally, they provide a risk-free environment for students to practice patient-centered applications.
Simulations in medical education must adhere to specific criteria [8], including:
1.
Repeated application feasibility.

2.
Potential for curricular integration.

3.
Adjustability of difficulty levels.

4.
Mappable clinical variation.

5.
Controlled practice environment.

6.
Individualized, active learning.

7.
Adaptability to diverse learning strategies.

8.
Availability of tangible and measurable results.

9.
Internal feedback mechanism for the course.

10.
Validity of the simulation as a surrogate for clinical practice.

For hands-on implant courses, it has been demonstrated that most of these criteria (2, 5, and 7–10) are met [25]. Through the utilization of 3D printed models, it becomes feasible to cost-effectively integrate repeated applications with adjustable difficulty levels, based on real patient cases, into an implant course. This approach facilitates the mapping of clinical variation and allows for individualized learning experiences. From a simulation-didactic standpoint, it appears that a simulation involving self-planned 3D print models would be a valuable addition to dental teaching implant courses.
In the current study, a formative evaluation was not conducted; however, other research teams have demonstrated that similar courses are well-suited for this purpose [27, 37]. Therefore, in future applications, a similar course could potentially be utilized to assess implantological skills and knowledge acquisition, thus warranting consideration for implementation in curricular teaching. Despite the lack of a statistically significant increase in knowledge, the positive perception reported by the students supports this assumption. Nevertheless, before full implementation, it is advisable to reassess the suitability of a course individualized by 3D printing for formative testing. A potential limitation of our study is that students in both cohorts may have exhibited a general satisfaction with the opportunity to participate in an implant course, thereby potentially masking any discernible differences between confectioned jaw models and individual 3D-printed cases. It is conceivable that implementing the implant course earlier in the curriculum, subsequent to students acquiring foundational knowledge with confectioned jaw models, could provide a valuable progression. This approach would afford students the opportunity to practice on their own patients using models, thereby gaining insights into the challenges and constraints inherent in real-world dental practice.

Conclusion

As digitalization continues to play an increasingly significant role in contemporary dental education, the present study sought to investigate whether students subjectively benefit from the translation of self-planned implantation into an individualized 3D-printed model for hands-on courses.
Although the results did not reveal a statistically significant difference between confectioned models and individualized 3D prints in terms of subjective knowledge gain and abilities, students universally perceived individualized planning and hands-on courses as valuable tools in dental education.
The significance of individualized learning objects in hands-on courses is highly appreciated by students, despite the fact that the subjective assessment of knowledge gain or abilities does not appear to increase based on the utilization of such appliances. Further quantitative evaluation may offer a more precise assessment of the benefits of individualized models, such as drilling precision or time-on-task. Consequently, additional research is warranted to address this question comprehensively.

Declarations

The study was conducted according to the guidelines of the Declaration of Helsinki. The study was conducted as part of the quality assurance of teaching and an ethics vote was not required after consultation with the local ethics committee.
Informed consent was obtained from all subjects involved in the study.

Amendments

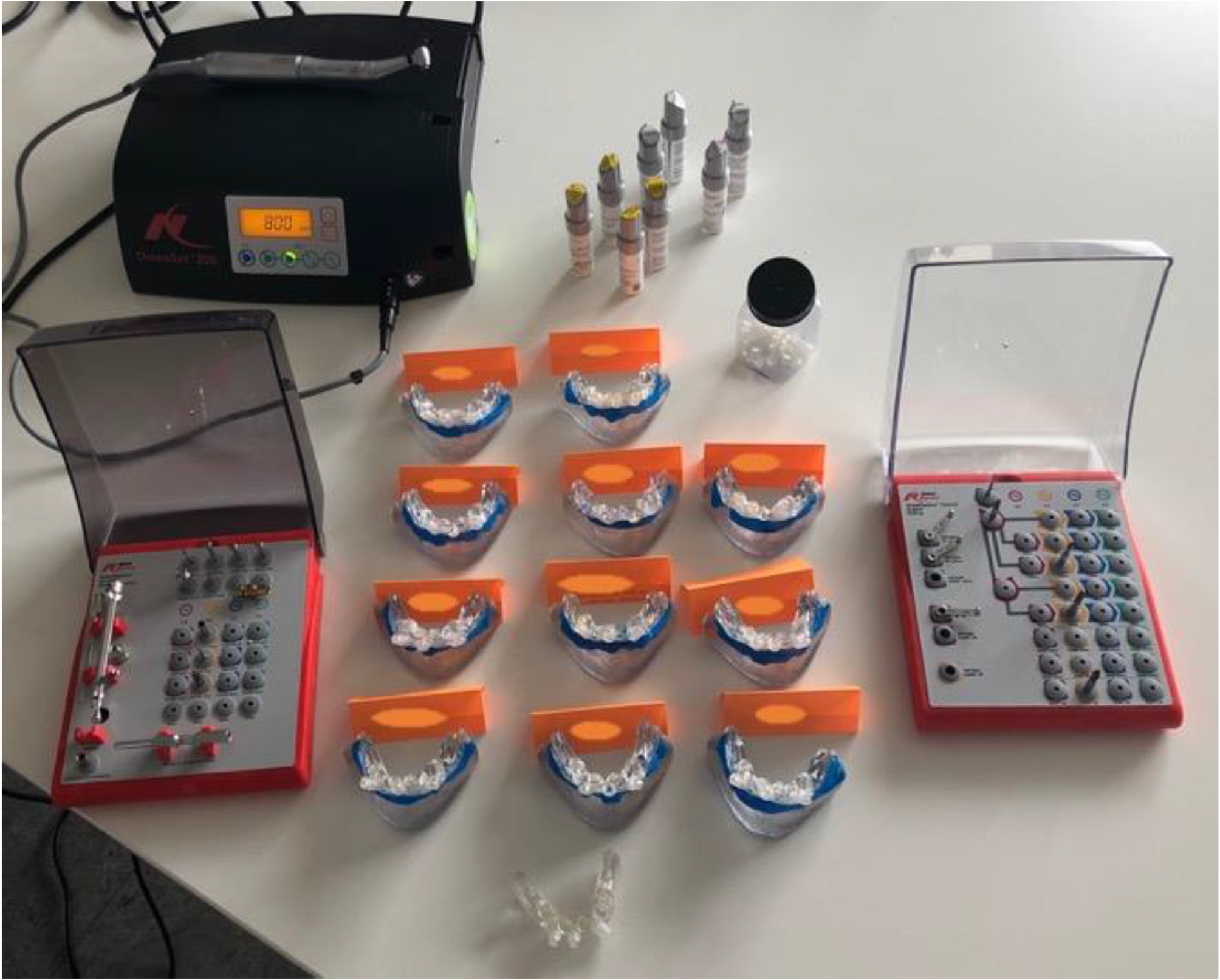

Course materials (laptops, software, drilling machines, burs, dummy implants, confectioned models, and surgical guides) were supplied with the courtesy of Nobel Biocare®. We would like to thank Mrs. Dagmar Wagner for the support.

Conflict of interest

The authors declare no conflict of interest.
Open Access This article is licensed under a Creative Commons Attribution 4.0 International License, which permits use, sharing, adaptation, distribution and reproduction in any medium or format, as long as you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons licence, and indicate if changes were made. The images or other third party material in this article are included in the article’s Creative Commons licence, unless indicated otherwise in a credit line to the material. If material is not included in the article’s Creative Commons licence and your intended use is not permitted by statutory regulation or exceeds the permitted use, you will need to obtain permission directly from the copyright holder. To view a copy of this licence, visit http://​creativecommons.​org/​licenses/​by/​4.​0/​.

Publisher’s Note

Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.
Anhänge

Electronic supplementary material

Below is the link to the electronic supplementary material.
Literatur
1.
Zurück zum Zitat Schubert O, Schweiger J, Stimmelmayr M, Nold E, Güth JF. Digital implant planning and guided implant surgery - workflow and reliability. Br Dent J. 2019;226(2):101–8.CrossRefPubMed Schubert O, Schweiger J, Stimmelmayr M, Nold E, Güth JF. Digital implant planning and guided implant surgery - workflow and reliability. Br Dent J. 2019;226(2):101–8.CrossRefPubMed
2.
Zurück zum Zitat Deeb GR, Allen RK, Hall VP, Whitley D 3rd, Laskin DM, Bencharit S. How accurate are Implant Surgical guides Produced with Desktop Stereolithographic 3-Dimentional printers? J Oral Maxillofac Surg. 2017;75(12):2559. e1- e8. Deeb GR, Allen RK, Hall VP, Whitley D 3rd, Laskin DM, Bencharit S. How accurate are Implant Surgical guides Produced with Desktop Stereolithographic 3-Dimentional printers? J Oral Maxillofac Surg. 2017;75(12):2559. e1- e8.
3.
Zurück zum Zitat Spielau T, Hauschild U, Katsoulis J. Computer-assisted, template-guided immediate implant placement and loading in the mandible: a case report. BMC Oral Health. 2019;19(1):55.CrossRefPubMedPubMedCentral Spielau T, Hauschild U, Katsoulis J. Computer-assisted, template-guided immediate implant placement and loading in the mandible: a case report. BMC Oral Health. 2019;19(1):55.CrossRefPubMedPubMedCentral
4.
Zurück zum Zitat Lanis A, Alvarez Del Canto O, Barriga P, Polido WD, Morton D. Computer-guided implant surgery and full-arch immediate loading with prefabricated-metal framework-provisional prosthesis created from a 3D printed model. J Esthet Restor Dent. 2019;31(3):199–208.CrossRefPubMed Lanis A, Alvarez Del Canto O, Barriga P, Polido WD, Morton D. Computer-guided implant surgery and full-arch immediate loading with prefabricated-metal framework-provisional prosthesis created from a 3D printed model. J Esthet Restor Dent. 2019;31(3):199–208.CrossRefPubMed
5.
Zurück zum Zitat Karami D, Alborzinia HR, Amid R, Kadkhodazadeh M, Yousefi N, Badakhshan S. In-Office guided Implant Placement for Prosthetically Driven Implant surgery. Craniomaxillofac Trauma Reconstr. 2017;10(3):246–54.CrossRefPubMed Karami D, Alborzinia HR, Amid R, Kadkhodazadeh M, Yousefi N, Badakhshan S. In-Office guided Implant Placement for Prosthetically Driven Implant surgery. Craniomaxillofac Trauma Reconstr. 2017;10(3):246–54.CrossRefPubMed
6.
Zurück zum Zitat Skjerven H, Riis UH, Herlofsson BB, Ellingsen JE. In vivo accuracy of Implant Placement using a full Digital Planning Modality and Stereolithographic guides. Int J Oral Maxillofac Implants. 2019;34(1):124–32.CrossRefPubMed Skjerven H, Riis UH, Herlofsson BB, Ellingsen JE. In vivo accuracy of Implant Placement using a full Digital Planning Modality and Stereolithographic guides. Int J Oral Maxillofac Implants. 2019;34(1):124–32.CrossRefPubMed
7.
Zurück zum Zitat Al-Haj Husain N, Molinero-Mourelle P, Janner SFM, Brägger U, Özcan M, Schimmel M, et al. Digital workflow for implant-supported fixed complete dentures based on backwards planning in an edentulous patient. Int J Comput Dent. 2021;24(1):89–101.PubMed Al-Haj Husain N, Molinero-Mourelle P, Janner SFM, Brägger U, Özcan M, Schimmel M, et al. Digital workflow for implant-supported fixed complete dentures based on backwards planning in an edentulous patient. Int J Comput Dent. 2021;24(1):89–101.PubMed
8.
Zurück zum Zitat Papaspyridakos P, De Souza A, Bathija A, Kang K, Chochlidakis K. Complete Digital Workflow for Mandibular Full-Arch Implant Rehabilitation in 3 appointments. J Prosthodont. 2021;30(6):548–52.CrossRefPubMed Papaspyridakos P, De Souza A, Bathija A, Kang K, Chochlidakis K. Complete Digital Workflow for Mandibular Full-Arch Implant Rehabilitation in 3 appointments. J Prosthodont. 2021;30(6):548–52.CrossRefPubMed
9.
Zurück zum Zitat Tallarico M, Meloni SM, Canullo L, Caneva M, Polizzi G. Five-year results of a randomized controlled trial comparing patients rehabilitated with immediately loaded Maxillary Cross-arch fixed Dental Prosthesis supported by four or six implants placed using guided surgery. Clin Implant Dent Relat Res. 2016;18(5):965–72.CrossRefPubMed Tallarico M, Meloni SM, Canullo L, Caneva M, Polizzi G. Five-year results of a randomized controlled trial comparing patients rehabilitated with immediately loaded Maxillary Cross-arch fixed Dental Prosthesis supported by four or six implants placed using guided surgery. Clin Implant Dent Relat Res. 2016;18(5):965–72.CrossRefPubMed
10.
Zurück zum Zitat Gonçalves GSY, de Magalhães KMF, Rocha EP, Dos Santos PH, Assunção WG. Oral health-related quality of life and satisfaction in edentulous patients rehabilitated with implant-supported full dentures all-on-four concept: a systematic review. Clin Oral Investig. 2022;26(1):83–94.CrossRefPubMed Gonçalves GSY, de Magalhães KMF, Rocha EP, Dos Santos PH, Assunção WG. Oral health-related quality of life and satisfaction in edentulous patients rehabilitated with implant-supported full dentures all-on-four concept: a systematic review. Clin Oral Investig. 2022;26(1):83–94.CrossRefPubMed
11.
Zurück zum Zitat Oh SH, Kim Y, Park JY, Jung YJ, Kim SK, Park SY. Comparison of fixed implant-supported prostheses, removable implant-supported prostheses, and complete dentures: patient satisfaction and oral health-related quality of life. Clin Oral Implants Res. 2016;27(2):e31–7.CrossRefPubMed Oh SH, Kim Y, Park JY, Jung YJ, Kim SK, Park SY. Comparison of fixed implant-supported prostheses, removable implant-supported prostheses, and complete dentures: patient satisfaction and oral health-related quality of life. Clin Oral Implants Res. 2016;27(2):e31–7.CrossRefPubMed
12.
Zurück zum Zitat Jordan RA, Bodechtel C, Hertrampf K, Hoffmann T, Kocher T, Nitschke I, et al. The fifth German oral health study (Fünfte Deutsche Mundgesundheitsstudie, DMS V) - rationale, design, and methods. BMC Oral Health. 2014;14:161.CrossRefPubMedPubMedCentral Jordan RA, Bodechtel C, Hertrampf K, Hoffmann T, Kocher T, Nitschke I, et al. The fifth German oral health study (Fünfte Deutsche Mundgesundheitsstudie, DMS V) - rationale, design, and methods. BMC Oral Health. 2014;14:161.CrossRefPubMedPubMedCentral
13.
Zurück zum Zitat McCracken MS, Aponte-Wesson R, O’Neal SJ, Rajdev K. Low-cost implant overdenture option for patients treated in a predoctoral dental school curriculum. J Dent Educ. 2006;70(6):662–6.CrossRefPubMed McCracken MS, Aponte-Wesson R, O’Neal SJ, Rajdev K. Low-cost implant overdenture option for patients treated in a predoctoral dental school curriculum. J Dent Educ. 2006;70(6):662–6.CrossRefPubMed
14.
Zurück zum Zitat Mukai S, Mukai E, Santos-Junior JA, Shibli JA, Faveri M, Giro G. Assessment of the reproducibility and precision of milling and 3D printing surgical guides. BMC Oral Health. 2021;21(1):1.CrossRefPubMedPubMedCentral Mukai S, Mukai E, Santos-Junior JA, Shibli JA, Faveri M, Giro G. Assessment of the reproducibility and precision of milling and 3D printing surgical guides. BMC Oral Health. 2021;21(1):1.CrossRefPubMedPubMedCentral
15.
Zurück zum Zitat Mangano FG, Hauschild U, Admakin O. Full in-Office guided surgery with Open selective tooth-supported templates: a prospective clinical study on 20 patients. Int J Environ Res Public Health. 2018;15(11). Mangano FG, Hauschild U, Admakin O. Full in-Office guided surgery with Open selective tooth-supported templates: a prospective clinical study on 20 patients. Int J Environ Res Public Health. 2018;15(11).
16.
Zurück zum Zitat Bencharit S, Staffen A, Yeung M, Whitley D 3rd, Laskin DM, Deeb GR. In vivo tooth-supported Implant Surgical guides fabricated with Desktop Stereolithographic printers: fully guided surgery is more Accurate Than partially guided surgery. J Oral Maxillofac Surg. 2018;76(7):1431–9. Bencharit S, Staffen A, Yeung M, Whitley D 3rd, Laskin DM, Deeb GR. In vivo tooth-supported Implant Surgical guides fabricated with Desktop Stereolithographic printers: fully guided surgery is more Accurate Than partially guided surgery. J Oral Maxillofac Surg. 2018;76(7):1431–9.
17.
Zurück zum Zitat Oberoi G, Nitsch S, Edelmayer M, Janjić K, Müller AS, Agis H. 3D Printing-Encompassing the facets of Dentistry. Front Bioeng Biotechnol. 2018;6:172.CrossRefPubMedPubMedCentral Oberoi G, Nitsch S, Edelmayer M, Janjić K, Müller AS, Agis H. 3D Printing-Encompassing the facets of Dentistry. Front Bioeng Biotechnol. 2018;6:172.CrossRefPubMedPubMedCentral
18.
Zurück zum Zitat Hanafi A, Donnermeyer D, Schafer E, Burklein S. Perception of a modular 3D print model in undergraduate endodontic education. Int Endod J. 2020. Hanafi A, Donnermeyer D, Schafer E, Burklein S. Perception of a modular 3D print model in undergraduate endodontic education. Int Endod J. 2020.
19.
Zurück zum Zitat Hohne C, Dickhaut N, Schmitter M. Introduction of a new teaching concept for dentin post preparation with 3D printed teeth. Eur J Dent Educ. 2020. Hohne C, Dickhaut N, Schmitter M. Introduction of a new teaching concept for dentin post preparation with 3D printed teeth. Eur J Dent Educ. 2020.
20.
Zurück zum Zitat Hohne C, Schmitter M. 3D printed teeth for the Preclinical Education of Dental Students. J Dent Educ. 2019;83(9):1100–6.CrossRefPubMed Hohne C, Schmitter M. 3D printed teeth for the Preclinical Education of Dental Students. J Dent Educ. 2019;83(9):1100–6.CrossRefPubMed
21.
Zurück zum Zitat Schulz MC, Rittmann L, Range U, Lauer G, Haim D. The Use of Orientation templates and Free-Hand Implant insertion in Artificial Mandibles-An experimental laboratory examination in Fifth-Year Dental Students. Dent J (Basel). 2018;6(3). Schulz MC, Rittmann L, Range U, Lauer G, Haim D. The Use of Orientation templates and Free-Hand Implant insertion in Artificial Mandibles-An experimental laboratory examination in Fifth-Year Dental Students. Dent J (Basel). 2018;6(3).
22.
Zurück zum Zitat Güth JF, Ponn A, Mast G, Gernet W, Edelhoff D. Description and evaluation of a new approach on pre-clinical implant dentistry education based on an innovative simulation model. Eur J Dent Educ. 2010;14(4):221–6.CrossRefPubMed Güth JF, Ponn A, Mast G, Gernet W, Edelhoff D. Description and evaluation of a new approach on pre-clinical implant dentistry education based on an innovative simulation model. Eur J Dent Educ. 2010;14(4):221–6.CrossRefPubMed
23.
Zurück zum Zitat Petrie CS, Nakatani B, Scott JM, Moniz J, Walker MP. A survey of US dental schools on predoctoral implant curricula with emphasis on diagnosing and treating implant complications. J Prosthet Dent. 2021;125(1):126–36.CrossRefPubMed Petrie CS, Nakatani B, Scott JM, Moniz J, Walker MP. A survey of US dental schools on predoctoral implant curricula with emphasis on diagnosing and treating implant complications. J Prosthet Dent. 2021;125(1):126–36.CrossRefPubMed
24.
Zurück zum Zitat Afsharzand Z, Lim MV, Rashedi B, Petropoulos VC. Predoctoral implant dentistry curriculum survey: European dental schools. Eur J Dent Educ. 2005;9(1):37–45.CrossRefPubMed Afsharzand Z, Lim MV, Rashedi B, Petropoulos VC. Predoctoral implant dentistry curriculum survey: European dental schools. Eur J Dent Educ. 2005;9(1):37–45.CrossRefPubMed
25.
Zurück zum Zitat Mattheos N, Albrektsson T, Buser D, De Bruyn H, Donos N, Hjørting Hansen E, et al. Teaching and assessment of implant dentistry in undergraduate and postgraduate education: a European consensus. Eur J Dent Educ. 2009;13(Suppl 1):11–7.PubMed Mattheos N, Albrektsson T, Buser D, De Bruyn H, Donos N, Hjørting Hansen E, et al. Teaching and assessment of implant dentistry in undergraduate and postgraduate education: a European consensus. Eur J Dent Educ. 2009;13(Suppl 1):11–7.PubMed
26.
Zurück zum Zitat Koole S, Vandeweghe S, Mattheos N, De Bruyn H. Implant dentistry education in Europe: 5 years after the Association for Dental Education in Europe consensus report. Eur J Dent Educ. 2014;18(Suppl 1):43–51.CrossRefPubMed Koole S, Vandeweghe S, Mattheos N, De Bruyn H. Implant dentistry education in Europe: 5 years after the Association for Dental Education in Europe consensus report. Eur J Dent Educ. 2014;18(Suppl 1):43–51.CrossRefPubMed
27.
Zurück zum Zitat Homma S, Sasaki H, Furuya Y, Ito T, Yajima Y. Current state of undergraduate education in oral implantology in Japan. Bull Tokyo Dent Coll. 2015;56(2):73–83.CrossRefPubMed Homma S, Sasaki H, Furuya Y, Ito T, Yajima Y. Current state of undergraduate education in oral implantology in Japan. Bull Tokyo Dent Coll. 2015;56(2):73–83.CrossRefPubMed
28.
Zurück zum Zitat Hugger A, Hugger S, Kordass B. [Dental education in Germany: new concepts for the dental curriculum]. Bundesgesundheitsblatt Gesundheitsforschung Gesundheitsschutz. 2011;54(9):1046–51.CrossRefPubMed Hugger A, Hugger S, Kordass B. [Dental education in Germany: new concepts for the dental curriculum]. Bundesgesundheitsblatt Gesundheitsforschung Gesundheitsschutz. 2011;54(9):1046–51.CrossRefPubMed
29.
Zurück zum Zitat Barwacz CA, Avila-Ortiz G, Allareddy V, Tamegnon M, Hoogeveen K. Comparison of Canadian and United States Predoctoral Dental Implant Education. J Can Dent Assoc. 2016;82:g22.PubMed Barwacz CA, Avila-Ortiz G, Allareddy V, Tamegnon M, Hoogeveen K. Comparison of Canadian and United States Predoctoral Dental Implant Education. J Can Dent Assoc. 2016;82:g22.PubMed
30.
Zurück zum Zitat Koole S, De Bruyn H. Contemporary undergraduate implant dentistry education: a systematic review. Eur J Dent Educ. 2014;18(Suppl 1):11–23.CrossRefPubMed Koole S, De Bruyn H. Contemporary undergraduate implant dentistry education: a systematic review. Eur J Dent Educ. 2014;18(Suppl 1):11–23.CrossRefPubMed
31.
Zurück zum Zitat Schweyen R, Al-Nawas B, Arnold C, Hey J. A cross-sectional survey of attitudes towards education in implant dentistry in the undergraduate dental curriculum. Int J Implant Dent. 2020;6(1):26.CrossRefPubMedPubMedCentral Schweyen R, Al-Nawas B, Arnold C, Hey J. A cross-sectional survey of attitudes towards education in implant dentistry in the undergraduate dental curriculum. Int J Implant Dent. 2020;6(1):26.CrossRefPubMedPubMedCentral
32.
Zurück zum Zitat Prasad S, Bansal N. Predoctoral Dental Students’ perceptions of Dental Implant Training: Effect of Preclinical Simulation and clinical experience. J Dent Educ. 2017;81(4):395–403.CrossRefPubMed Prasad S, Bansal N. Predoctoral Dental Students’ perceptions of Dental Implant Training: Effect of Preclinical Simulation and clinical experience. J Dent Educ. 2017;81(4):395–403.CrossRefPubMed
33.
Zurück zum Zitat Schlenz MA, Michel K, Wegner K, Schmidt A, Rehmann P, Wostmann B. Undergraduate dental students’ perspective on the implementation of digital dentistry in the preclinical curriculum: a questionnaire survey. BMC Oral Health. 2020;20(1):78.CrossRefPubMedPubMedCentral Schlenz MA, Michel K, Wegner K, Schmidt A, Rehmann P, Wostmann B. Undergraduate dental students’ perspective on the implementation of digital dentistry in the preclinical curriculum: a questionnaire survey. BMC Oral Health. 2020;20(1):78.CrossRefPubMedPubMedCentral
34.
Zurück zum Zitat Temmerman A, Meeus M, Dhondt R, Wierinck E, Teughels W, Naert I, et al. Oral implant placement and restoration by undergraduate students: clinical outcomes and student perceptions. Eur J Dent Educ. 2016;20(2):73–83.CrossRefPubMed Temmerman A, Meeus M, Dhondt R, Wierinck E, Teughels W, Naert I, et al. Oral implant placement and restoration by undergraduate students: clinical outcomes and student perceptions. Eur J Dent Educ. 2016;20(2):73–83.CrossRefPubMed
35.
Zurück zum Zitat Nkenke E, Vairaktaris E, Bauersachs A, Eitner S, Budach A, Knipfer C, et al. Acceptance of virtual dental implant planning software in an undergraduate curriculum: a pilot study. BMC Med Educ. 2012;12:90.CrossRefPubMedPubMedCentral Nkenke E, Vairaktaris E, Bauersachs A, Eitner S, Budach A, Knipfer C, et al. Acceptance of virtual dental implant planning software in an undergraduate curriculum: a pilot study. BMC Med Educ. 2012;12:90.CrossRefPubMedPubMedCentral
36.
Zurück zum Zitat Anderson L, Krathwohl D, Airasian P, Cruikshank C, Mayer R, Pintrich P, et al. A taxonomy for Learning, Teaching and Assessment - A revision of Bloom’s taxonomy of educational objectives. New York: Addison Wesley Longman, Inc.; 2001. Anderson L, Krathwohl D, Airasian P, Cruikshank C, Mayer R, Pintrich P, et al. A taxonomy for Learning, Teaching and Assessment - A revision of Bloom’s taxonomy of educational objectives. New York: Addison Wesley Longman, Inc.; 2001.
37.
Zurück zum Zitat Voutilainen A, Pitkaaho T, Kvist T, Vehvilainen-Julkunen K. How to ask about patient satisfaction? The visual analogue scale is less vulnerable to confounding factors and ceiling effect than a symmetric likert scale. J Adv Nurs. 2016;72(4):946–57.CrossRefPubMed Voutilainen A, Pitkaaho T, Kvist T, Vehvilainen-Julkunen K. How to ask about patient satisfaction? The visual analogue scale is less vulnerable to confounding factors and ceiling effect than a symmetric likert scale. J Adv Nurs. 2016;72(4):946–57.CrossRefPubMed
38.
Zurück zum Zitat Malo P, Rangert B, Nobre M. All-on-four immediate-function concept with Branemark System implants for completely edentulous mandibles: a retrospective clinical study. Clin Implant Dent Relat Res. 2003;5(Suppl 1):2–9.CrossRefPubMed Malo P, Rangert B, Nobre M. All-on-four immediate-function concept with Branemark System implants for completely edentulous mandibles: a retrospective clinical study. Clin Implant Dent Relat Res. 2003;5(Suppl 1):2–9.CrossRefPubMed
39.
Zurück zum Zitat Komorita SS. Attitude content, intensity, and the Neutral Point on a Likert Scale. J Soc Psychol. 1963;61(2):327–34.CrossRefPubMed Komorita SS. Attitude content, intensity, and the Neutral Point on a Likert Scale. J Soc Psychol. 1963;61(2):327–34.CrossRefPubMed
40.
Zurück zum Zitat Most T, Eitner S, Neukam FW, Wichmann M, Nonhof J, Kreuzwieser T, et al. i.lect, a pre-graduate education model of implantology. Eur J Dent Educ. 2013;17(2):106–13.CrossRefPubMed Most T, Eitner S, Neukam FW, Wichmann M, Nonhof J, Kreuzwieser T, et al. i.lect, a pre-graduate education model of implantology. Eur J Dent Educ. 2013;17(2):106–13.CrossRefPubMed
41.
Zurück zum Zitat Katsaros T, Allareddy V, Elangovan S. Dental Students’ exposure to Periodontal and Implant Placement surgeries in U.S. Dental Schools. J Dent Educ. 2019;83(8):953–8.CrossRefPubMed Katsaros T, Allareddy V, Elangovan S. Dental Students’ exposure to Periodontal and Implant Placement surgeries in U.S. Dental Schools. J Dent Educ. 2019;83(8):953–8.CrossRefPubMed
42.
Zurück zum Zitat Kämmerer PW, Wolf JM, Buttchereit I, Frerich B, Ottl P. Prospective clinical implementation of optional implant treatment into pregraduate dental education-mini implants for retention and support of mandibular overdentures. Int J Implant Dent. 2021;7(1):87.CrossRefPubMedPubMedCentral Kämmerer PW, Wolf JM, Buttchereit I, Frerich B, Ottl P. Prospective clinical implementation of optional implant treatment into pregraduate dental education-mini implants for retention and support of mandibular overdentures. Int J Implant Dent. 2021;7(1):87.CrossRefPubMedPubMedCentral
43.
Zurück zum Zitat Kutkut A, Okeson J. Digital Implant Dentistry Predoctoral Program at University of Kentucky. J Oral Implantol. 2022;48(6):533–40.CrossRefPubMed Kutkut A, Okeson J. Digital Implant Dentistry Predoctoral Program at University of Kentucky. J Oral Implantol. 2022;48(6):533–40.CrossRefPubMed
44.
Zurück zum Zitat Werz SM, Zeichner SJ, Berg BI, Zeilhofer HF, Thieringer F. 3D printed Surgical Simulation models as educational tool by maxillofacial surgeons. Eur J Dent Educ. 2018;22(3):e500–5.CrossRefPubMed Werz SM, Zeichner SJ, Berg BI, Zeilhofer HF, Thieringer F. 3D printed Surgical Simulation models as educational tool by maxillofacial surgeons. Eur J Dent Educ. 2018;22(3):e500–5.CrossRefPubMed
