Intimate partner violence against women among contraceptive users at a primary health care setting in Southern Ethiopia: a facility-based cross-sectional study
- Open Access
- 01.12.2024
- Research
Erschienen in:
Abstract
Background
Despite efforts in progress, gender-based violence is still one of the most serious human rights violations worldwide [1, 2]. According to the United Nations (UN) Declaration on the Elimination of Violence Against Women, gender-based violence is defined as ‘any act of gender-based violence that results in, or is likely to result in but not limited to physical, sexual or psychological harm or suffering to women, whether occurring in public or in private life’ [3]. Globally, one in three (35%) of women experienced either physical and sexual IPV or non-partner sexual violence and 38% of all women murders were perpetrated by an intimate partner [4‐6]. Any behavior within an intimate relationship causes physical, psychological and/ or sexual harms to the women [5, 7‐10].
In sub-Saharan Africa, nearly one-third of ever married women experienced IPV [5, 9], and highly prevalent in Ethiopia that ranging from 20 to 78% [8, 11, 12]. The experience of IPV results in short-, medium-, and long-term consequences on the women’s health [4, 5, 13], which incurred much costs for women, households, society, and the health system [14]. The common consequences related to IPV are unsafe abortion, increased risk of acquiring sexually transmitted infection including HIV [4, 5, 13, 15, 16], homicide, suicide, severe injuries, unwanted or unintended pregnancy that leads to maternal mortality [13, 16], various type of mental health conditions and substance abuse [16]. In addition, IPV caused enormous social and economic costs with negative impacts that are linked with limiting women’s ability and participation on routine income generation activities, and take cares of their children [16].
Anzeige
Women’s experience of IPV is linked with low utilization of modern contraceptives, and affected women’s decision-making and negotiation power [17, 18]. Women’s ability to control their contraceptive choices and ensure reproductive autonomy are crucial to improve contraceptive uptake to reduce preventable maternal death [19]. Women’s experience of IPV associated with several individual-, relationship, community- and societal-level factors [20, 21], including unequal gender power [8], women’s accepting attitude towards justified wife-beating [22‐24], and tolerant community attitude towards inequitable gender norms [24].
Despite the international declaration of women’s rights and national [Ethiopia] policy frameworks and system response, the Constitution of the Federal Democratic Republic of Ethiopia [25] provides fundamental liberties, and safeguard gender equality and women’s human rights. The Criminal Code of Ethiopia under Proclamation No. 414/2004 guarantees equality before the law (Art. 4) and criminalizes any injury and suffering caused to women (Art. 561) [26], the Revised Family Code of Ethiopia specifies among other things conditions of marriage including equal rights of access to- and control-over resources (Art. 42), respect and support between partners (Art. 49), and equal rights in the management of the family (Art. 50) [27]. The government of Ethiopia launched a gender mainstreaming program in different sectors with implementation manual to enforce existing policies [28]. The Ethiopian Ministry of Health has published an implementation guideline to prevent and respond to sexual violence against women and girls in Ethiopia [29], in agreement with other gender-responsive legislation [30‐32]. Nonetheless, IPV remains a serious public health challenge and systematic abuse of human rights in Ethiopia. A considerable number of studies on IPV were conducted in Ethiopia among pregnant women or antenatal care users. But there is a paucity of evidence on the extent of IPV among contraceptive users. Therefore, the main aim of this study was to determine level of IPV and its associated factors among married women who were contraceptive users in the primary health care setting in Adilo Zuria district in southern Ethiopia.
Methods
Study setting and design
A facility-based cross-sectional study was conducted from July 18, 2022 to August 17, 2022. The study was conducted in primary healthcare facilities in Adilo Zuria District, located in Kambata Tambaro Zone, Central Ethiopia Region (part of the former Southern Nation Nationality Peoples), Southern Ethiopia. It is located 267 km South-East of the capital city, Addis Ababa. Adilo Zuria district is one of the newly established district in 2019, comprising seven kebeles (the smallest administrative unit in the Federal Democratic Republic of Ethiopia). Adilo has a total population of 41,047, of which males and females account for 49% and 51%, respectively [33]. According to the district health office report, 794 women visit the district’s family planning clinic on a monthly basis.
Participants and sampling procedure
Married and cohabitating women in reproductive age who were clients for contraceptive services attending primary healthcare facilities at Adilo Zuria district during the data collection period were included in the study. But women who were unable to give information through interview as a result of any physical or mental health conditions were excused from the study. Sample size was determined using a single population proportion formula, considering parameters of 95% confidence level, 50% proportion to get optimum sample size and a margin of error 5%. By adding 10% non-response rate, the final sample size was 422. A systematic sampling procedure was used to recruit the four hundred and twenty-two contraceptive-user women who were included in the study. Contraceptive service performance for the previous three months was reviewed to estimate the number of women used family planning services and registered all health facilities providing the services. The sampling interval was determined using average study population who had visited family planning clinics in the previous three months (794) divided by the total sample size (422) which yields a sampling interval (Kth) of 2 (794/422). The first study participant was selected using lottery method, and consecutive study participants were recruited every two women attending family planning clinic. The calculated sample size was proportionally allocated to each primary healthcare facility (Fig. 1).
Anzeige

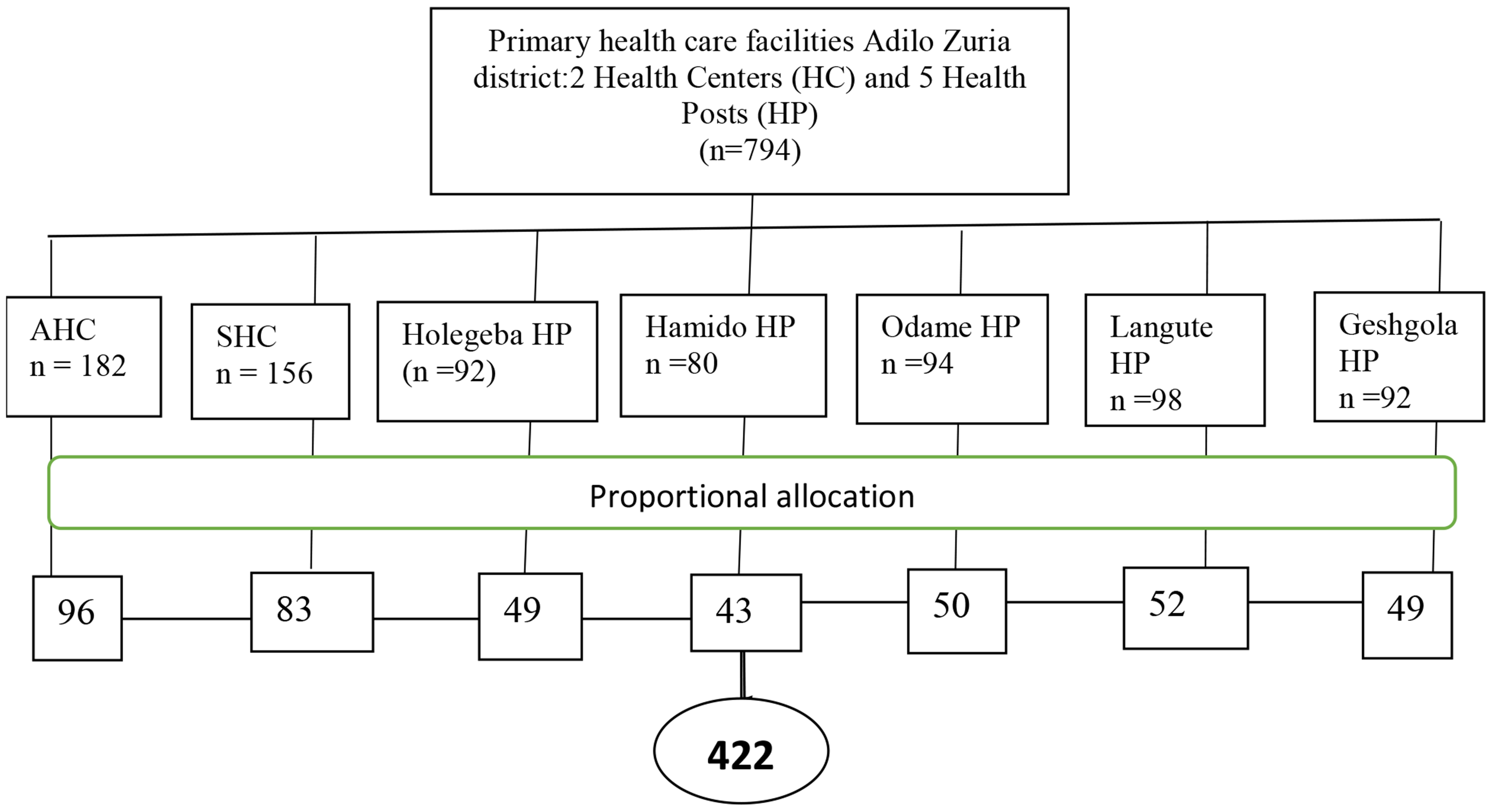

Fig. 1
Schematic presentation of sampling procedure
Data collection method
The data collection tool was adapted from existing literature including the WHO multi-country IPV survey tool [4, 34‐36]. The structured questionnaire used contains socio-demographic characteristics, family related characteristics, and community and societal related characteristics. The questionnaire comprised a total of 22-item, for instance 5 items for physical, 3 items for sexual and 14 items for the psychological IPV assessment. In addition, social support was measured using the Oslo Social Support Scale (OSSS-3) [36]. Training was given to the data collectors and supervisors on the objective of the study, data collection tool and sampling techniques by the principal investigator. The questionnaire was pre-tested by taking 5% of the calculated sample size in one health center in Kedida Gamela District. The IPV assessment tool was recoded into a dichotomous variable to quantify presence and absence of women’s IPV experience during the past 12 months. Data were collected by trained female midwives and nurses through face-to-face interview using local dialect. Regular supportive supervision was given during the data collection period by trained supervisors to ensure the quality of the data.
Measurement of intimate partner violence
The women’s experience of current physical IPV assessed using 5-item tool such as being slapped or something thrown at them that could hurt them, pushed or shoved, hit with a fist or something else that could hurted, kicked, dragged or beaten up, choked or burnt on purpose, being threatened with, having a gun, knife or other weapon in the last 12 months. Of these, if a woman had at least one experience ‘yes’ out of the five items, qualified as being faced with any form of physical violence in the last 12 months. Fourteen items were used to assess the experience of psychological IPV in the last 12 months. Of these, if a woman had at least one response ‘yes’ that woman was qualified as experience psychological violence in the last 12 months. Sexual IPV was assessed using 3-item tool, if a woman gave at least one response ‘yes’ in the last 12 months. Eventually, overall IPV was determined if a woman responded “yes” to at least one of the current physical, sexual or psychological IPV.
Data analysis
The collected data were entered into Epi-Data 4.6 software and exported to SPSS version 26 for analysis. Description statistics (frequencies, proportions, means, and standard deviations) were computed to determine the frequencies of socio-demographic characteristics and the prevalence of IPV. Binary logistic regression was conducted to determine the association of each independent variable with the dependent variable. Independent variables with p-<0.25 in the binary logistic regression analysis were included in the multiple logistic regression analysis. The Hosmer-Lemeshow goodness of fit test was used to check the model’s fitness. Multivariable logistic regression was carried out for adjusted model to control confounders and identify the independent predictors of IPV among contraceptive users. A p-value of less than 0.05 was considered statistically significant, and an adjusted odds ratio (AOR) with a 95% CI was calculated to determine the association.
Results
Study participant’s socio-demographic characteristics
A total of 422 women participated in this study, yielding a response rate of 96% (405/422). The mean age of the participants was 30.1(± 5.49) years. Nearly half (47.7%) of study participants were protestant Christians by religion. Almost half of the participants (49.1%) were housewives by their occupation, and three-fourths (75.1%) of the participants were rural dwellers. The majority (94.6%) of the participants were married (Table 1).
Table 1
Basic profile of women participated in the study in southern Ethiopia, 2022 (n = 405)
Variables | Categories | n | % |
|---|---|---|---|
Women’s age | 15–24 | 59 | 14.6 |
25–34 | 264 | 65.2 | |
35–49 | 82 | 20.2 | |
Women’s religion | Muslim | 113 | 27.9 |
Orthodox | 73 | 18 | |
Protestant | 193 | 47.7 | |
Catholic | 26 | 6.2 | |
Women’s ethnicity | Kambata | 290 | 71.6 |
Halaba | 62 | 15.3 | |
Hadiya | 42 | 10.4 | |
Wolayita | 11 | 2.7 | |
Women’s occupations | House wife | 199 | 49.1 |
Farmer | 80 | 19.8 | |
Government employee | 45 | 11.1 | |
Merchant | 71 | 17.5 | |
Others | 10 | 2.5 | |
Women’s educational status | No formal education | 163 | 40.2 |
Primary education | 147 | 36.3 | |
Secondary education | 53 | 13.1 | |
Higher education | 42 | 10.4 | |
Marital status | Married | 383 | 94.6 |
Cohabiting | 22 | 5.4 | |
Women’s residence | Urban | 101 | 24.9 |
Rural | 304 | 75.1 | |
Women’s income (ETB) | Do not know their income | 187 | 46.2 |
< 2500 | 131 | 32.3 | |
≥ 2500 | 87 | 21.5 |
Partner’s socio-demographic and behavioral characteristics
The mean age of the partners was 37.7 (± 5.47) years. 43% of the partners (n = 176) were farmers by their occupation. One hundred fourteen (28.1%) of the partners had achieved secondary education and above, but 20.7% had not attended formal education. Approximately two-thirds (63.5%) of them had a monthly income of less than two thousand five hundred Ethiopian Birr. More than half (56%) of the partners drank alcoholic beverages at least 1 or 2 times per week, and one hundred seventy-eight (44%) of the partners chewed Khat at least 1 or 2 times per week (Table 2).
Table 2
Socio-demographic characteristics of perpetrators in southern Ethiopia, 2022 (n = 405)
Variable | Categories | n | % |
|---|---|---|---|
Partners age | 25–34 | 115 | 28.4 |
35–44 | 281 | 69.4 | |
≥ 45 | 9 | 2.2 | |
Partners occupation | Farmer | 176 | 43.4 |
Government employee | 70 | 17.3 | |
Merchant | 91 | 22.5 | |
Daily laborer | 68 | 16.8 | |
Partners educational status | No formal | 84 | 20.7 |
Primary | 106 | 26.2 | |
Secondary | 101 | 24.9 | |
Tertiary and beyond | 114 | 28.1 | |
Partners income (ETB) | Do not know | 88 | 21.7 |
< 2500 | 257 | 63.5 | |
> 2500 | 60 | 14.8 | |
Alcohol drinking habit | Yes | 227 | 56.0 |
No | 178 | 44.0 | |
Khat chewing habit | Yes | 178 | 44.0 |
No | 227 | 56.0 |
Anzeige
Social support
Among the study participants, two-thirds (66.4%, n = 269) of them had good social support. One hundred ninety-three (47.7%) of women said that they count more than five people on them if they have great personal problems. Nevertheless, 162 (40%) were uncertain about the interests and concerns people did show in what they do. More than one third (34.3%) of the study participants reported difficulty to get practical help from neighbours if they need help.
Women’s attitudes towards justified wife-beating
Out of the total participants, more than one-third (35.1%, n = 142) of women who were using contraceptives had accepting attitudes towards justified wife-beating (Fig. 2).
Fig. 2
Women’s attitudes towards justified wife-beating in Southern Ethiopia, 2022 (n = 405, *multiple responses were possible)
Community’s attitudes towards gender-norms
Two hundred fifty-four (62.7%) of the study participants said that the wife should respect her partner more than her partner should respect her; 53.1% of the participants responded that a partner or husband beat his spouse or wife if he believes that his wife or spouse is having sex with another man (Fig. 3). Furthermore, almost seven-in-ten (70.4%, n = 285) of women lived in husbands headed households. Two-thirds (66.7%, n = 270) of the women made decisions about contraceptive use without influence from male partners. Almost half (49.4%, n = 200) of women who used contraceptive made decisions about other healthcare services. Nevertheless, more than half (55.8%, n = 226) of them reported that husbands were the decision-makers for the women to attend workshops and other conferences.
Anzeige

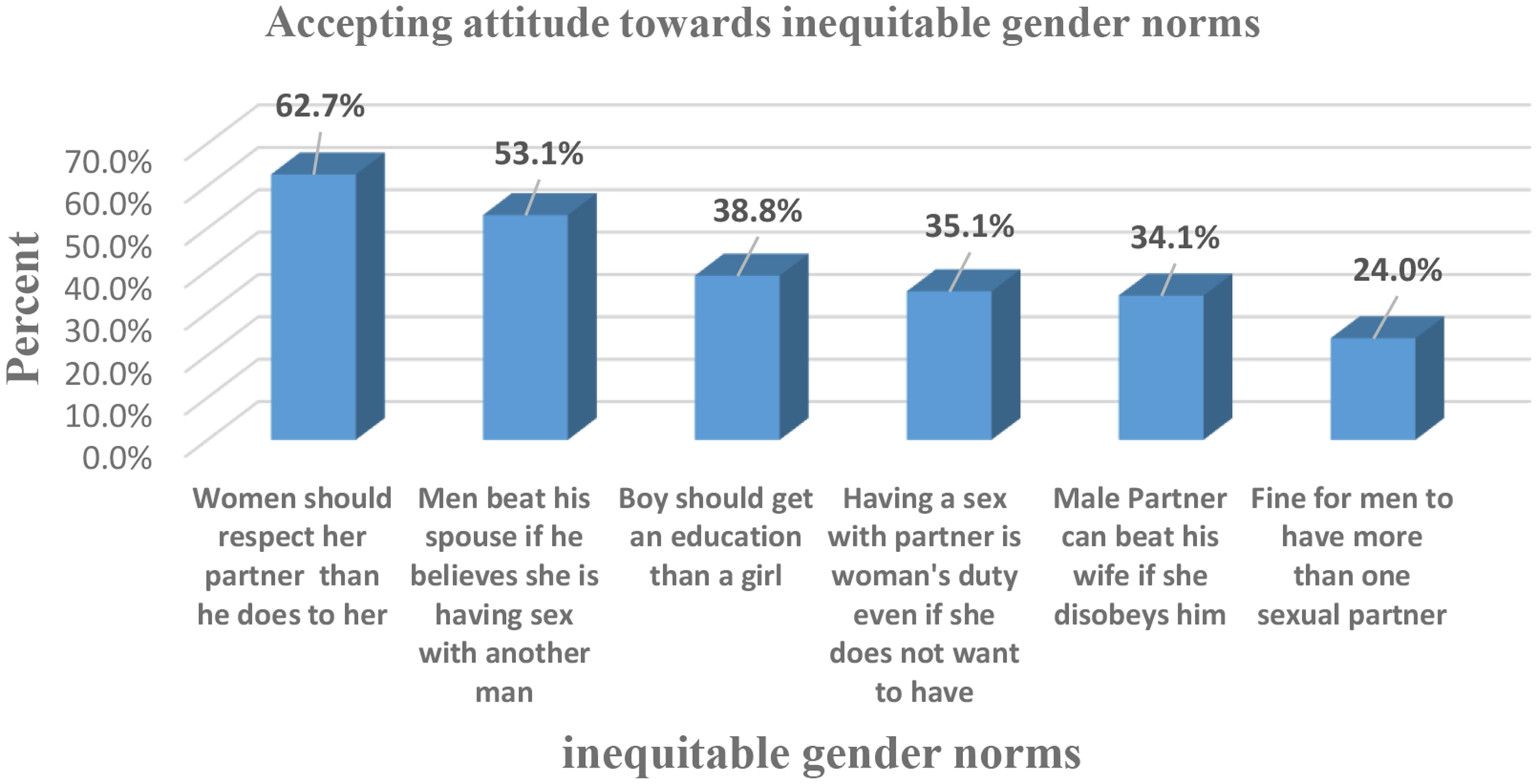

Fig. 3
Community attitude towards gender norms in southern Ethiopia 2022 (n = 405, *multiple responses were possible)
Prevalence of intimate partner violence among contraceptive users
Among the total contraceptive user women included in the study, nearly three-fourths (72.6%, n = 294) of women experienced at least one form of IPV in the last 12 months. Regarding the forms of current IPV among the victims, physical IPV among contraceptive-user women was 38.5% (n = 156). Among these women, 28.6% reported being slapped, kicked, dragged, or beaten by their partner. Women’s experience of current psychological IPV was 39.3% (n = 159). Among these, frightening their partner by look at them aggressively (15.6%, n = 63), and insisted by their partner know where they are at all time (15.1%, n = 61). In addition, women’s experience of current sexual IPV was 31.9% (n = 129). Among this, 31.1% (n = 126) were physically forced to have sex with their husband against their interest, and 10.1% (n = 41) of them had been physically forced by their husband to have sex because they were frightened by what the partner might do if they refuse (Table 3).
Table 3
Women’s experience of different types of IPV in Southern Ethiopia, 2022 (n = 405, *Multiple responses were possible)
Intimate partner violence item in the last 12 months | n | % |
|---|---|---|
Physical IPV | ||
• Being pushed/shake/thrown something | 71 | 17.5 |
• Being slapped, kicked, dragged or beaten | 116 | 28.6 |
• Being punched, hit with fist, or twist arm | 35 | 8.6 |
• Tried to intentionally choke or burn you | 13 | 3.2 |
• Being threatened /attacked with a knife, gun, or any other weapon | 29 | 7.2 |
Overall physical IPV | 156 | 38.5 |
Sexual IPV | ||
• Physically forced to have sex without will/interest | 126 | 31.1 |
• Physically forced with threats you to perform any other sexual acts you did not want to | 41 | 10.1 |
• Forced to do something sexual that was degrading or humiliating | 25 | 6.2 |
Overall sexual IPV | 129 | 31.9 |
Psychological/emotional IPV | ||
• Partner feels jealous/angry if you (talk/talked) to other men | 41 | 10.1 |
• Partner (insists/insisted) on knowing where you (are/were) | 61 | 15.1 |
• Insulted by partner using abusive language that made feel bad | 52 | 12.8 |
• Threatened by partner using stick, belt, knife, gun, or other type of weapon, etc. | 19 | 4.7 |
• Created financial hardship/not trust by partner | 49 | 12.1 |
• Frightened partner by looking at you angrily | 63 | 15.6 |
• Expressed suspicion/accused for unfaithful | 18 | 4.4 |
• Ignored or shown indifference by partner | 20 | 4.9 |
• Deprived from privileges in the family partner | 14 | 3.5 |
• Denied by partner on your basic personal needs | 14 | 3.5 |
• Intentionally not involved in decision-making in the family | 13 | 3.2 |
• Belittled or humiliated you in front of other people | 16 | 4.0 |
• Done things purposively to scare or intimidate | 7 | 1.7 |
• Restricted by partner from going to parent/friends | 32 | 7.9 |
Overall psychological violence | 160 | 39.3 |
Overall prevalence of IPV among contraceptive users | 294 | 72.6 |
Concurrent intimate partner violence
7% of women who used contraceptives experienced concurrent forms of IPV (psychological, physical and sexual) by their intimate partner. The occurrence of concurrent physical and sexual IPV was the most common (9.6%, n = 28) (Fig. 4).
Anzeige

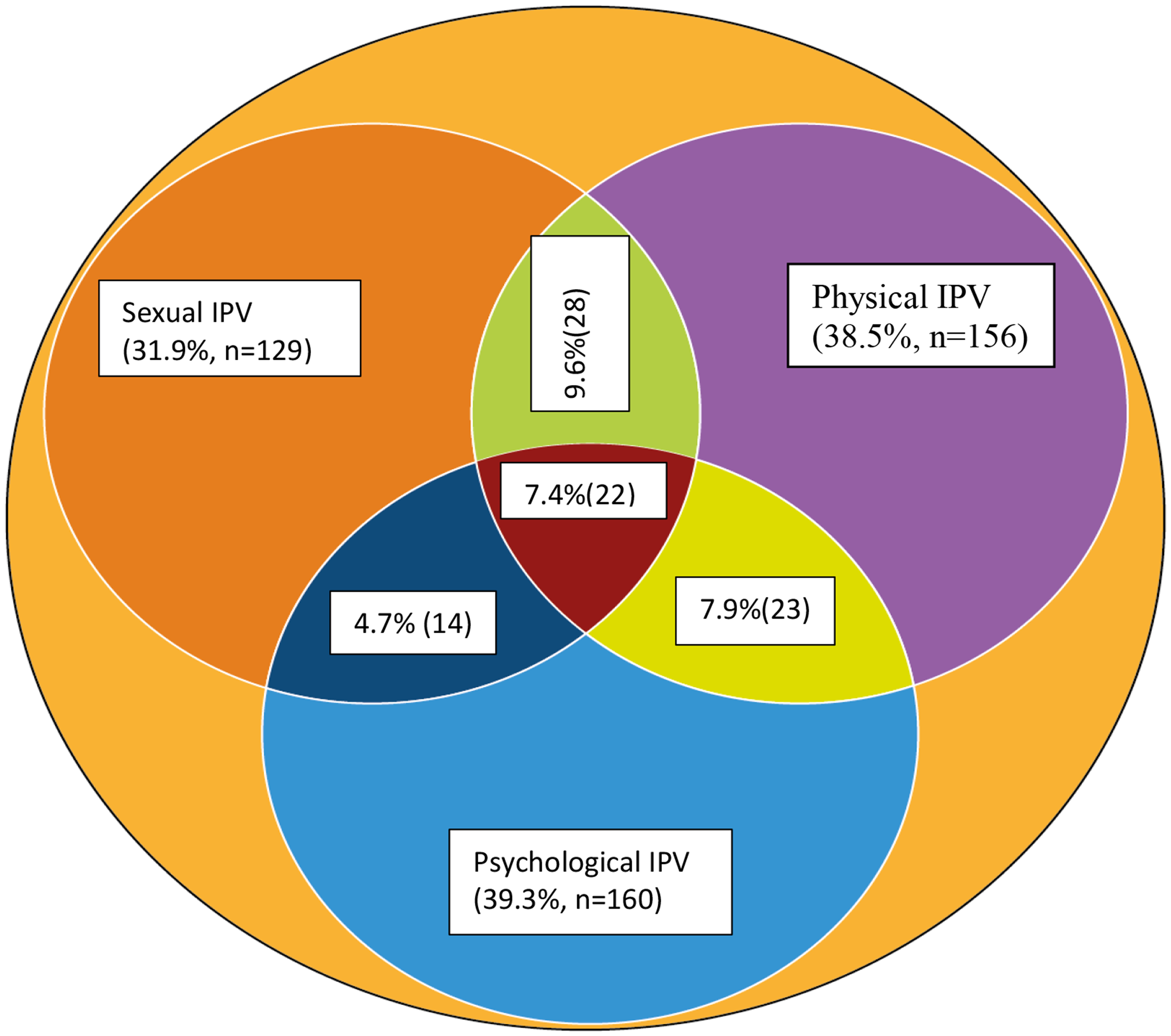

Fig. 4
Venn diagram illustrating concurrent experiences of IPV among contraceptive user women in Adilo Zuria District Southern Ethiopia 2022
Factors associated with women’s experience of IPV
Women who live in rural areas women had a formal education, partners alcohol drinking habits, partners Khat chewing behavior, and poor social sport were significantly associated with IPV among contraceptive-user women. Women who lived in rural area were 3.19 times more likely to experience IPV compared to women who lived in urban area (AOR = 3.19, 95% CI: 1.69–6.02). Women whose partners used alcohol were 3.3 times more likely to experience IPV than women whose partners never used alcohol (AOR = 3.32, 95% CI: 1.89–5.84). Women whose partners chewed Khat were seven times more likely to experience IPV compared to those women whose partners have never chewed Khat (AOR: 7.22, 95% CI: 4.12–12.65). Women who had poor social support were 2.5 times more likely to experience IPV as compared with those women who had good social support (AOR = 2.47, 95% CI: 1.43–4.27). But the odds of women experience of IPV were 63% less among women with formal education as compared with women who had no formal education (AOR = 0.37, 95% CI: 0.19–0.70) (Table 4).
Table 4
Factors associated with IPV among contraceptive users in Southern Ethiopia 2022 (n = 405)
Variables | Categories | IPV experience | COR (95%CI) | AOR (95%CI) | |
|---|---|---|---|---|---|
Yes (%) | No (%) | ||||
Women residence | Urban | 95(23.5) | 24(5.9) | 1 | 1 |
Rural | 199(49.1) | 87(21.5) | 1.73(1.04–2.89) | 3.19(1.69–6.02)* | |
Head of household | Husband | 215(53) | 70(17.2) | 1 | 1 |
Wife | 79(19.5) | 41(10.1) | 1.59(1.01–2.53) | 1.44(0.81–2.54) | |
Marital status | Unmarried | 21(5.2) | 1(0.25) | 1 | 1 |
Married | 273(67.4) | 110(27.1) | 8.46(1.12–63.68) | 5.84(0.66–51.5) | |
Women educational status | No Formal | 168(41.5) | 85(20.1) | 1 | 1 |
Formal | 126(31.1) | 26(6.41) | 0.41(0.25–0.67) | 0.369(0.19–0.70)* | |
Partners educational status | No formal education | 56(13.8) | 28(6.9) | 1.52(0.81–2.85) | 1.58(0.73–3.45) |
Primary education | 74(18.3) | 32(7.9) | 1.71(0.92–3.17) | 2.42(1.10–5.20) | |
Secondary education | 73(18) | 28(6.9) | 1.98(1.04–3.77) | 1.60(0.69–3.20) | |
Above secondary | 91(22.5) | 23(5.7) | 1 | 1 | |
Alcohol consumption | No | 151(37.2) | 27(6.7) | 1 | 1 |
Yes | 143(35.3) | 84(20.7) | 3.29(2.01–5.36) | 3.32(1.89–5.84)* | |
Khat chewing | No | 199(49.1) | 28(6.9) | 1 | 1 |
Yes | 95(23.4) | 83(20.5) | 6.21(3.79–10.16) | 7.22(4.12–12.65)* | |
Discuss about family planning | No | 139 | 69 | 1 | 1 |
Yes | 155 | 42 | 0.55(0.35–0.85) | 0.73(0.42–1.26) | |
Social support | Strong | 199 | 56 | 1 | 1 |
Poor | 95 | 55 | 2.06(1.04–2.89) | 2.47(1.43–4.27)* | |
Discussion
This study determined the prevalence of IPV among women who visited the primary healthcare facilities at Adilo Zuria District for contraceptive use. Overall, current prevalence of IPV was 72.6% (95%CI: 68.1–76.8%). The present study has also identified the factors associated with IPV among contraceptive users in the study area. Women who have poor social support, live in rural settings and partner’s substance use behavior predict their experience of IPV. The present finding is similar to the finding from studies conducted in Southwestern Ethiopia which shows the prevalence of IPV was 72.5% [12] and 73.2% in Tanzania [18].
Contrary to this, the finding was lower than a study conducted in Conakry, Guinea among family planning clients which shows the prevalence of IPV was 92% [37]. In addition to the sociocultural variations across settings, the study in Conakry, Guinea used women’s experience of IPV in their lifetime which increased the prevalence. On the other hand, the finding of this study was higher than findings from previous studies in Ethiopia which ranged from 20 to 58% [11, 20, 38‐40], 56% in Nigeria [41], 35.9% in Malaysia [42], 46.1% in Tanzania [43], 55.89% in Afghanistan [44]. The study in southeast Nigeria [41] focused on severe form of physical and sexual violence assessment including marital rape that may hide of information due to family secrecy which may underestimate the level of IPV. In addition, the existing gender norms, cultural variations and some studies used multisite data caused the discrepancy across studies.
In this study, women being rural resident were 3.19 times more likely to experience IPV compared to women who live in urban settings. The finding is consistent with findings from studies conducted in Ethiopia [39, 45‐48]. The current study also found that women’s educational status was significantly associated with IPV. The odds of women’s experience to IPV reduced by 63% among women with formal education as compared with women who had no formal education. The findings are consistent with those of studies conducted in different parts of Ethiopia [45, 49], a study in Bangladesh [17], and findings from a WHO multi-country study [23].
Women whose partners used alcohol were 3.3 times more likely to experience IPV than women whose partners never used alcohol. The finding is consistent with those of studies conducted in Ethiopia [2, 11, 38, 49‐53] and the nine countries of the WHO multi-country study, including Ethiopia [8]. The fact that alcohol consumption disturbs the consumers’ cognitive/thinking and physical functions. These disturbances in thinking ability may lead the users to become aggressive, to misunderstand verbal or non-verbal communication in the relationship, altered mental judgment, increase the sense of power and control leading to exercise power and control on intimate partners.
Moreover, women whose partners chew Khat were seven times more likely to experience IPV compared to those women whose partners never chew Khat. This finding is consistent with studies conducted in Ethiopia [20, 50, 54]. This may be due to Khat chewing enhance sexual desire of men that women may not want to have, and Khat chewing increased money spent and consume time cause intra-marital conflict [55]. Finally, the contraceptive user women who had poor social support were 2.5 times more likely to experience IPV as compared with those women who had good social support. This finding is consistent with a study conducted in Ethiopia [56], Tanzania [57], and a study in six European countries [58]. The main reason may be getting social support from neighbour, friends and family members is associated with less victimization of women. Not having social support increases the probability of IPV among contraceptive users.
Implication of the study
In spite of the fact that the Ethiopian government has put policy and programmatic actions to combat gender-based violence and ensure gender equality, Ethiopia is one of the countries with a high burden of violence against women and patriarchal norms that affects women’s reproductive health service-seeking behavior and uptake of services. This finding on the extent of intimate partner violence against women among contraceptive users helps the program planners and healthcare service providers to consider the influence of partners, social support and partner substance use behaviors. It uncovers the extent of the problem in the study area that may inform the intervention to be designed to transform patriarchal norm, enhance social support and partner involvement in supporting women to use reproductive health service. This finding may also stimulate researchers to conduct further studies in large scale and design interventions to tackle violence against women in the setting.
Strengths and limitation of the study
The strength of this study is that the sample is adequate and from a well-defined catchment area and uses standard instruments of the WHO multicounty study on violence against women. However, as this study uses a cross-sectional design, it will be prone to recall bias. Women may hide the information as a result of the issue of being family secrecy and social desirability bias. The study design also cannot test cause- and- effect relationship between outcome variables and explanatory variables. Another limitation may be as this study is a facility-based study, it may miss women who do not come for family planning services during the data collection period.
Conclusions
The intimate partner violence against women among contraceptive users in the study is unacceptable high. It was found to be approximately three-fourths of women who were using contraceptives in Adilo District. Women live in rural settings, poor social support and live with partners who have substance (alcohol and Khat) use behavior are the common predictors of women’s experience of IPV. Although women education has reverse causality on women’s experience, women’s education remains a protective factor that should be strengthened. We suggested that programs that support gender-norm transformative intervention to men and women, strengthen women education, improve social support to women by their male partners to engage in community conversation to transform old-fashioned behaviors are crucial to prevent and control IPV in the southern Ethiopia.
