Background
It is well accepted that Helicobacter pylori (H. pylori) is a strong risk factor for the development of various gastric diseases, namely chronic gastritis, peptic ulcers, gastric mucosa-associated lymphoid tissue lymphoma and gastric cancer, and it is acknowledged that the interaction between H. pylori and epithelial cells contributes to such development. In fact, H. pylori infection induces inflammation in microenvironment of the stomach associated with induction of proinflammatory cytokines, such as tumor necrosis factor-α (TNF-α), interleukin-1β (IL-1β) and IL-6[
1‐
3], which makes gastric carcinogenesis conducive.
H. pylori infection also increases tumor invasiveness and metastasis [
4‐
6], though the mechanism is still not well understood. The process of cancer metastasis is not random, and different cancers have their preferred homing sites. Just like leukocyte trafficking, tumor cell migration is critically regulated by chemokine/chemokine receptor system. Another focus of our attention is shed on CXCR4, the most common chemokine receptor overexpressed in a series of cancers (gastric cancer included) by far [
7,
8]. Studies have indicated CXCL12/CXCR4 axis is involved in gastric cancer metastasis [
9]. Therefore it arouses great interests to find a link between H. pylori infection and CXCR4 overexpression in gastric cancer.
One of the key chemical mediators implicated in inflammation-associated cancers is TNF-α, and there is now substantial evidence in its involvement in promotion and progression of experimental and human cancers [
10,
11]. True to its name, high doses of regional TNF-α can lead to hemorrhagic necrosis via selective destruction of tumor blood vessels. However, it can unexpectedly act as an endogenous tumor promoter when produced in the tumor microenvironment. Our interest is consequently drawn to its involvement in the induction of CXCR4 expression by H. pylori, a potent inducer of TNF-α, which is known to upregulate a series of cytokines, chemokines, adhesion molecules and growth factors in cancers.
Methods
Gastric cancer cell lines and tissue specimens
The human gastric cancer cell MKN45 and HGC27 were obtained from Keygen Biotech. Co. (Nanjing, China), and were cultured in RPMI 1640 supplemented with 10% fetal bovine serum, at 37°C in a humid incubator with 5% CO2. 34 primary gastric cancer specimens were acquired from patients under operation with all their informed consent at Shengjing hospital, Chinese Medical University, and were frozen in liquid nitrogen immediately after surgical removal. Haematoxylin- and eosin-staining sections were prepared for assessment of the percentage of tumor cells, and only specimens with > 70% tumor cells were selected for analysis. This study was carried out with the approval of the ethical committee of China Medical University. All experiments were done at least three times.
Macrophage cell line RAW264.7
The macrophage cell RAW 264.7 was provided by the American Type Culture Collection (Rockville, MD, USA), and was maintained in Dulbecco's modified Eagle's medium, supplemented with 10% fetal bovine serum, at 37°C in a humid incubator with 5% CO2.
H. pylori strains
H. pylori strain 26695 (ATCC 700392, cag PAI+ ) and Tx30a (ATCC 51932, cag PAI- ) were offered by ATCC (Rockville, MD, USA). They were grown on sheep blood agar plates at 37°C under microaerophilic conditions. Bacteria were transferred after 48 h into Brucella broth containing 5% fetal bovine serum for 24 h. A multiplicity of infection of 100 was used in all studies.
Real-time reverse-transcription PCR
Total RNA was isolated from tissues and cell lines by Trizol (Takara, Dalian, China) according to the protocol supplied by the manufacturers. cDNA was synthesized using Takara RNA PCR 3.0 Kit (Takara, Dalian, China) in a total volume of 10 μl, containing AMV reverse transcriptase, 0.5 μl; random 9 primer, 0.5 μl; 25 mM MgCL2, 2 μl; 10 × RT Buffer, 1 μl; dNTP mixture (each 10 mM), 1 μl; RNase inhibitor, 0.25 μl; RNA 1 μl; dH2O, 3.75 μl. Conditions for RT were: 30°C for 10 minutes, 42°C for 25 minutes, 99°C for 5 minutes, and 5°C for 5 minutes. Real-time PCR was performed using the LightCycler system together with the LightCycler DNA Master SYBR Green I Kit (Roche Diagnostics). The total volume is 20 μl, containing 25 mM MgCl2, 3 μl; 10 × Buffer, 5 μl; 10 μM forward Primer, 1 μl; 10 μM reverse Primer, 1 μl; LightCycler DNA Master SYBR Green I, 2 μl; cDNA, 2 μl; dH2O, 6 μl. Conditions for PCR were: 50°C for 2 minutes, 95°C for 10 minutes, and then 40 cycles of 5 seconds at 95°C and 20 seconds at 60°C. The housekeeping gene glyceraldehyde-3-phosphate dehydrogenase (GAPDH) was used as an internal control. Gene expression was quantified by the comparative CT method, normalizing CT values to GAPDH and calculating relative expression values. Primer sequences were provided by Takala (Dalian, China) as follows: CXCR4 forward, 5'-GAGGAAATGGGCTCAGGG-3', reverse, 5'-AGTCAGCAGGAGGGCAGGGA-3'; TNF-α forward, 5'-AGTGACAAGCCTGTAGCCC-3', reverse, 5'-GCAATGATCCCAAAGTAGACC-3'; IL-1β forward, 5'-CCACCACTACAGCAAGGG-3', reverse, 5'-GAACTGGGCAGACTCAAA-3'; IL-6 forward, 5'-CCTTCGGTCCAGTTGCCTTCT-3', reverse, 5'-GCATTTGTGGTTGGGTCA-3'; GAPDH forward, 5'-GGGAAACTGTGGCGTGAT-3', reverse, 5'-AAAGGTGGAGGAGTGGGT-3'.
Western blotting
Cell lysates were prepared with sample buffer [50 mmol/L Tris-HCl (pH 6.8), 100 mmol/L DTT, 2% SDS, 0.1% bromophenol blue, and 10% glycerol] and were subjected to a 12% sodium dodecyl sulfate (SDS)/acrylamide gel. The proteins on acrylamide gel were transferred to a nylon membrane, which was blocked overnight (4°C in PBS with 0.1% Tween and 10% milk powder). Polyclonal antibodies for CXCR4 (Santa Cruz, CA, America), and the corresponding secondary antibodies (Santa Cruz, CA, America) were applied before immunoblotting. The human gene β-actin (Santa Cruz, CA, America) was used as an internal control. Blots were visualized with FX pro plus system (Bio-Rad) and quantified using Scion Image 4.03 software.
RNA interference
TNF-α RNAi plasmid and nonsilencing control RNAi plasmid were purchased from Takala (Dalian, China). Cells were seeded into a 24-well plate at a density of 2 × 105 . On the following day, cells were transfected with TNF-α siRNA or Control siRNA using Lipofectamine 2000 (Invitrogen, United Kingdom) according to the manufacturer's instructions.
Elisa for cytokines in cell culture supernatants
Concentrations of TNF-α, IL-1β and IL-6 in cell culture supernatants were measured using the Quantikine Elisa kit (Boster, Wuhan, China) according to the manufacturer's instructions. The sensitivity of the assay was 2 pg/ml for TNF-α, 4 pg/ml for IL-1β and 4 pg/ml for IL-6.
Migration assays
The migration of cultured cells was assayed using Matrigel invasion chamber (24-well format, 8 μm pore; BD pharmingen). Cells (5 × 105 ) were added to the upper chamber and medium supplemented with CXCL12 (100 ng/ml, Sigma) was added to the lower chamber. Migration assays were incubated for 18 hours at 37°C and 5% CO2. Migrated cells on the lower surface were stained using 1% toluidine blue after fixation with 100% methanol. For each transwell, the number of migrated cells in 10 medium power fields (× 20) was counted.
Statistical analysis
Mann-Whitney U-test was used to compare mRNA expression between H. pylori-positive and H. pylori-negative tumors. Correlation between CXCR4 expression and TNF-α expression in gastric cancer specimens was analyzed using Spearman's rank correlation test. Expression of mRNA in gastric cell lines was compared using Student's t-test or one way ANOVA. Statistical analysis was carried out using SPSS version 11.0 (SPSS, Chicago, IL, USA). Difference was considered significant when P-value was < 0.05.
Discussion
H. pylori is blamed to infect about 50% of the world's population as a definitive gastric carcinogen for humans [
12]. Pathogenesis of its infection often includes inflammation, mucosal damage, or gastric atrophy, and requires close interactions between the bacteria and the gastric epithelial cells, activating signalling pathways, modifying host cellular functions, and leading to chronic epithelial responses [13.14]. There are now considerable evidences linking chronic inflammation to human cancers [
15‐
17], and specifically, H. pylori-induced chronic inflammation and cytokines in local stomach microenvironment serve as the most common contributors [
18‐
20]. This study highlights the result that mucosal level of TNF-α mRNA was significantly higher in H. pylori positive patients than that in negative patients by using quantitative real-time PCR, and two gastric cancer cells also secreted TNF-α protein in vitro. It further points to the assumption that TNF-α may be involved in H. pylori positive gastric carcinogenesis as an indispensable and strong linker between inflammation and cancer [
21].
Though the mechanism of induction of TNF-α by H. pylori remains relatively unclear, a protein family has been disclosed in the last decade, including Helicobacter pylori-membrane protein-1 (HP-MP1) and TNF-α inducing protein (Tipα) [
22‐

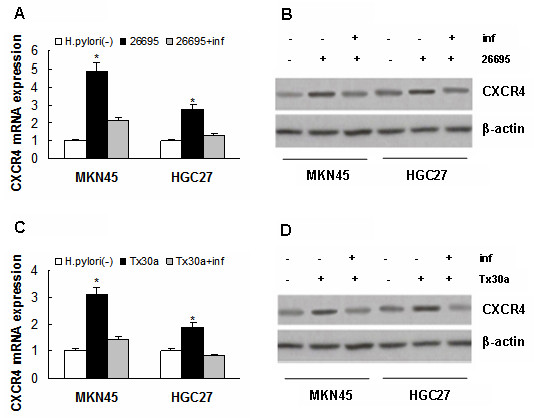

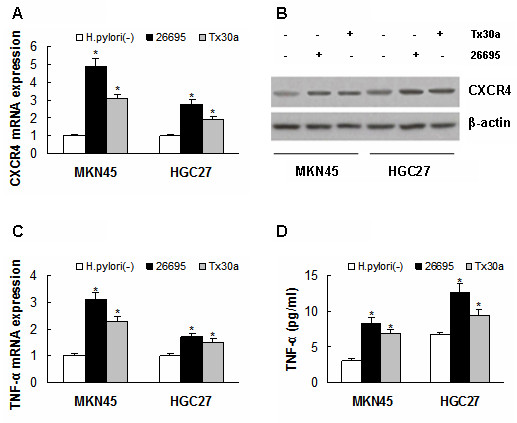

24]. Tipα gene, identified from H. pylori strain 26695, is homologous to HP-MP1 gene with 94.3% homology, and both of them show strong ability to induce TNF-α gene expression. In the study, H. pylori 26695 was found to upregulate TNF-α expression significantly in MKN45 and HGC27 cells, and cag PAI negative strain Tx30a also was spotted to induce it obviously, which may be in part due to the fact that HP-MP1/Tipα family is not in cag PAI region. However, it was also noted that the effect of Tx30a on TNF-α induction was weaker than that of 26695 (2.3 folds
vs 3.1 folds in MKN45 cells), which suggested H. pylori products in cag PAI may be also involved in the induction. In fact, it had been reported that cagA of H. pylori could induce TNF-α in gastric cancer biopsy specimens [
25]. In addition, purified H. pylori urease was also found to induce MKN45 cells to express TNF-α [
26].
TNF-α, a key cytokine in many chronic inflammatory diseases, was originally labelled as a serum factor for the induction of hemorrhagic necrosis of transplanted solid tumors in mice. However, presently it is commonly identified as a tumor promoter in local tumor microenvironment, and therefore the deletion or inhibition of it is supposed to reduce the incidence of experimental cancers. TNF-α/TNF-R1 knock down mice are resistant to chemical-induced carcinogenesis [
27,
28]. It is frequently detected in biopsies from a variety of human cancers, produced either by epithelial tumor cells or stromal cells. Additionally, it is also found, though in low amount, in the secretion of many cancer lines in vitro without inflammatory stimuli, though the mechanism is still not completely clear.
TNF-α was found not only involved in cell transformation and proliferation, but also in tumor metastasis. Such a finding was initially based on an animal model with colon cancer, in which injection of LPS enhanced the development of lung metastasis dependent on TNF-α production by host cells [
29]. The subsequent results showed the increased tumor metastasis inhibited by neutralizing TNF-α antibody [

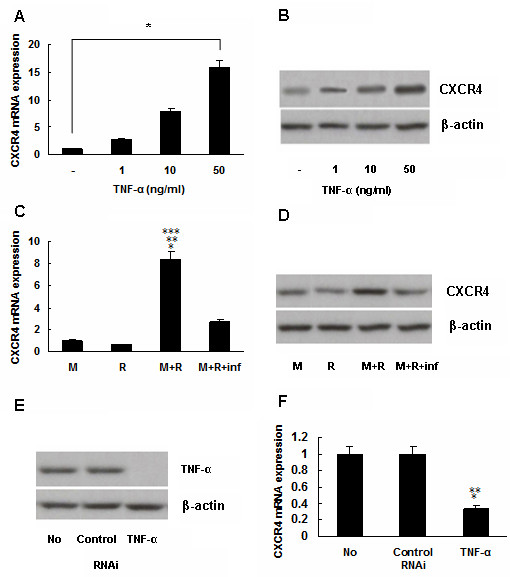

30]. These led to our speculation that one of the underlying mechanisms of TNF-α in tumor metastasis may be related to the upregulation of chemokines/chemokine receptors. First, there was a significant upregulation of CXCR4 in gastric cancer cells after they were treated with exogenous TNF-α. There was another obvious upregulation of CXCR4 expression in cancer cells after they were co-cultured with macrophage, an alternative source of TNF-α in gastric cancer microenvironment. As was expected, this upregulation could be inhibited by TNF-α neutralizing antibody infliximab. There was consequently a remarkable reduction of the expression of CXCR4 in HGC27 cells after RNAi was employed to abrogate the TNF-α expression in these cells, which indicated endogenous TNF-α can also upregulate CXCR4 expression. The overall findings led to our conclusion that TNF-α, with itself involved in the metastasis of gastric cancer, upregulates CXCR4 expression.
Overexpression of CXCR4, whose involvement in various human tumors is well known, was frequently observed in gastric cancer tissues to increase gastric cancer metastasis. Some human gastric carcinoma cells also express CXCR4 mRNA and protein at high levels [
7,
8]. Our study showed H. pylori infection increased MKN45 cell migration through the upregulation of CXCR4 expression. The treatment with a CXCR4 antagonist AMD3100 resulted in a significant suppression of MKN45 cell migration in vitro. Another study showed AMD3100 significantly suppressed the development of peritoneal carcinomatosis in a mouse model of gastric cancer, which was evidenced by the reduction of tumor growth and ascitic fluid formation [
9]. The previous researches led to our conclusion that CXCR4 overexpression in biopsy specimen of primary gastric cancer may serve as a preoperative evaluation of risks for the occurrence of peritoneal carcinomatosis.
Macrophages' involvement in the carcinogenesis and tumor invasion and metastasis [
31,

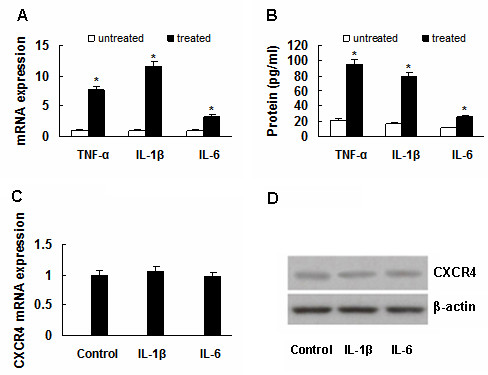

32] generally is blamed to motivate TAMs (Tumor associated macrophages), a major source of TNF-α in tumor microenvironment, to release a variety of growth factors, cytokines, and inflammatory mediators. The study revealed there was a significant expression of TNF-α induced by H. pylori, and simultaneously upregulation of IL-1beta and IL-6 in RAW264.7 cells, However, the latter variation failed to induce CXCR4 expression in MKN45 cells.
Studies have ultimately attributed the abnormal activation of NF-κB in cancer cells to the excessive secretion of TNF-α, whose role in CXCR4 upregulation is subsequently assumed to be related to pathways mediated by NF-κB. Others findings have revealed TNF-α antagonists can inhibit the upregulation of CXCR4 expression by H. pylori, and both it and CXCR4 antagonists can suppress the increased migration of gastric cancer cells in vitro. These results suggest that these antagonists alone, or in combination with other therapies, may serve as effective therapies for gastric cancer patients.
Competing interests
The authors declare that they have no competing interests.
Authors' contributions
ZC designed the study, carried out PCR analysis, analyzed and interpreted the data, and drafted the manuscript. LX performed Western analysis. BM performed cell transfection. ZN was engaged in drafting the manuscript and in statistical analysis. WW performed Elisa analysis. All authors read and approved the final manuscript.
