Background
Melanoma is a common skin cancer resulting in high morbidity and mortality. The development of effective therapeutics designed to target melanoma has become the recent focus of research to improve the melanoma patient's prognosis.
In mammalian cells, 5'-Methylthio-5'deoxyadenosine (MTA) is formed from decarboxylated S-adenosylmethionine in the biosynthesis of spermidine and spermine, and is cleaved by MTA phosphorylase (MTAP) into adenine and 5'-methylthio-5'deoxyribose-1-phospate, which are used for the salvage of ATP and methionine respectively [
1].
The
MTAP gene lies on 9p21, close to the gene
CDKN2A that encodes the tumor suppressor proteins p16
INK4A and p14
ARF being widely expressed in normal cells and tissues [
2]. The
INK4A-ARF locus on chromosome 9p21, (encoding p16
INK4a and p14
ARF), is often deleted in human melanoma [
3]. Interestingly,
MTAP and
CDKN2A are frequently homozygously co-deleted otherwise, inactivated in tumor cells including melanoma [
4], resulting in higher intra and extracellular MTA levels [
5]. A wide variety of biological responses to MTA have been reported both
in vivo and in cell culture. While physiological intracellular concentrations of MTA in the nM range might have a tumor-supporting role in MTAP deficient-melanoma cells [
5], the administration of higher concentrations of MTA (μM) interfere with cell proliferation, lymphocyte activation, tumor development, invasiveness and the regulation of apoptosis [
6‐
10]. Moreover, it has been shown that MTA has a differential effect in normal and transformed cells. While hepatocarcinoma cells undergo apoptosis when treated with MTA, normal hepatocytes and normal human fibroblast remain viable and are protected from okadaic acid-induced programmed cell death [
5,
10,
11]. Importantly, MTA has been tested in mice and rats and found to be non-toxic at high doses even when given over extended periods [
12,
13].
Although the mechanisms of action of MTA are not fully understood, it has been postulated that the inhibition of polyamine synthesis could be responsible for the cytostatic effects of MTA. Moreover, MTA has been shown to interfere with key cell signaling pathways, being able to inhibit growth-factor induced protein tyrosine phosphorylation and to increase intracellular cAMP levels through the inhibition of cAMP phos-phodiesterase [
14,
15]. Additionally, MTA inhibits protein methylation, modulating cell signaling and protein expression [
9,
16,
17].
A number of studies have demonstrated the effects of MTA in tumoral cell lines. However, in vivo studies have been restricted to gastroenterological tumor models or brain autoimmune disease. Besides the continuous efforts from the scientific community, there are not effective therapeutic approaches for melanoma treatment. In this study we explored the therapeutic properties of MTA in melanoma treatment. We used several human and mouse melanoma cell lines having different mutational status respect RAS, and BRAF proteins, and investigated the inhibition capabilities of MTA in vitro. We also performed in vivo studies using a mouse melanoma xenograft model showing the effectiveness of MTA in melanoma treatment.
Materials and methods
Cell lines
37-31E mouse melanoma cells were described previously [
18‐
20]. UACC903 cells were a gift from J. Trent (P. Pollock, Tgen, Phoenix, AR, USA). SkMel147 and SKMel103 cells were obtained from M. Soengas (CNIO Madrid, Spain) and MeWo and SKMel28 cells were purchased from the ATCC. 37-31E, SkMel147, SKMel103 and MeWo cells were maintained in DMEM with 10% FBS, penicillin/streptomycin. 37-31E cells were supplemented with EGF (50 ng/ml) (Invitrogen, Carlsbad, CA, USA) and Insulin (4 μg/ml) (Invitrogen, Carlsbad, CA, USA) and grown at 37°C and 5% CO
2 conditions. UACC903 were maintained in RPMI medium with 10% FBS, penicillin/streptomycin (Invitrogen, Carlsbad, CA, USA).
Antibodies and Western Blot analysis
Cells were lysed in RIPA buffer containing phosphatase and protease inhibitors (Sigma-Aldrich, Saint Louis, MO, USA). Liquid nitrogen frozen tumor samples were homogenized in RIPA buffer. 50 μg of total protein lysates were separated by SDS-PAGE and transferred to a membrane. After blocking, membranes were blotted against different primary antibodies and developed using horseradish peroxidase linked secondary antibodies and ECL (GE Healthcare, Barcelona, Spain). Cyclin D1 antibody was from Santa Cruz; phospho-Erk1/2 (Thr202/Tyr204), cleaved-caspase-3, p-S6 (Ser235/236), and phospho-Akt (Thr308) antibodies were from Cell Signaling (Danvers, MA USA); p-Bad was from Genscript, Piscataway, NJ, USA, Ki67 was from Master diagnostica, (Granada, Spain) and GAPDH was from Trevigen (Gaitherburg, MD, USA). CD31 antibody was from DAKO (Spremberg, Denmark). The anti-MTAP antibody was the generous gift of Dr. D.A. Carson (University of California San Diego, CA, USA), and was used at a 1:1.000 dilution.
Proliferation assays
Cells were seeded one day before treatment (50,000 cells per well (37-31E, MeWo, SkMel103, SkMel147, UACC903,) or 75,000 cells per well (Colo829)). Time point treatments were done in triplicates. Number of viable cells at different time points was analyzed by using Guava-Viacount reagent (Guava Technologies, Hayward, CA, USA), in a cell counter (Viacount; Guava Technologies, Hayward, CA, USA).
Cell cycle analysis
Cells were grown in complete media and treated for 48 h with 10 μM of MTA. Time point treatments were done in triplicates. Then, medium and cells were recollected and after centrifugation, cells were fixed and stained with the Cell Cycle Analysis Guava-Viacount reagent (Guava Technologies, Hayward, CA, USA). Samples were analyzed with the Guava cytometer PCA (Guava Technologies Hayward, CA, USA).
In vivostudies
Five to six month old male FVB/N mice were injected subcutaneously with one million cells in PBS. When tumors reached between 50-100 mm
3, mice were treated with either DMSO or MTA (96 μmol/kg body weight), a dose selected for its previously shown efficacy and lack of toxicity in other
in vivo models [
13,
21]. MTA was prepared from S-adenosylmethionine (Europharma, Madrid, Spain) as described elsewhere [
22]. Treatments were done by IP injection daily. Control mice were treated with the same volume of DMSO (100 μl). Tumor size and mice weight was monitored every two days. Tumor volume was calculated with the equation (d
2*D)*(π/6) (d = small-diameter; D = big-diameter). When mice were sacrificed, tumors were dissected and processed. All the animal procedures have been approved and supervised by the animal care and ethical committee of the Vall d'Hebron Research Institute.
Immunohistochemistry, Immunofluorescence, TUNEL assay and microvessel density quantification
Paraffin-embedded tumor samples were subjected to immunocytochemistry according to the manufacturer's antibody protocol. Samples were developed either by using secondary antibodies linked to horseradish peroxidase (HRP) and diaminobenzidine (DAB) as a substrate or by immunofluorescence. Tumor samples were used to perform a TUNEL assay as described previously [
23]. Apoptosis and proliferating cells were quantified by calculating the average of positive cells in ten fields (10×). For microvessel quantification, tumor samples were stained for CD31. Then, the integrated density of CD31 fluorescence per field (20× magnification = 587590 μm
2) was measured using ImageJ software (NIH). Ten fields per sample were quantified for a total of 5 DMSO treated tumor samples and 5 MTA treated tumor samples.
Three hundred cells were seeded. Treatments were added next day. Plates were incubated at 37°C and 5% CO2 until differences between the treatment conditions were noticeable. Media was changed every 2 days. Plates were washed with PBS, fixed with 4% formaldehyde (Sigma-Aldrich, Saint Louis, MO, USA) in PBS for 10 minutes, and stained with crystal violet. Finally, representative pictures were taken and the number of clones was quantified. At least two biological replicates with three technical replicates each were performed for every cell line.
Motility assays
For motility assays 5 × 10
4 cells were seeded in a 24 multi-well plate trans-wells (Corning). Following treatment cells were washed with 1× PBS and fixed with 1% glutaraldehyde in PBS. Cells were then stained with an aqueous solution of 0.1% crystal violet. After destaining in water, non-migrating cells in the top of the trans-well were removed, and stained migrating cells in the bottom of the trans-well were destaining with PBS containing 0.2% Triton X-100. The O.D. was then measured at 590 nm[
24].
mRNA samples and qRT-PCR
Fresh tumor tissues were disrupted using a rotor-stator homogenizer. mRNAs from tumors and cell lines were purified using RNeasy Kit (Quiagen). Amount and quality of RNA was assessed by spectrometrical measurements. Two hundred ng of RNA per sample were used to obtain cDNA using SuperScript™ III First-Strand Synthesis System for RT-PCR following the manufacturer's recommendations (Invitrogen, Carlsbad, CA USA). qRT-PCR was performed using validated Taqman Probes (VEGF: Mm 01281447_m1, and 18 S RNA: Hs 03003631_g1); (Applied Biosystems, Foster City, CA USA). qRT-PCR was performed according to manufacturers recommendations in a SDS 7900HT System. 18 S RNA was used as an internal control. Results were calculated using ΔΔCt method.
Statistics
Comparisons protein expression and tumor size among cell lines or treatment groups were done by two-sided
t test (Microsoft Excel, Microsoft, Redmond, WA, USA). Clonogenic assays were analyzed using Wilcoxon Signed-Rank Test [
25](Vassar Stats, Poughkeepsie, NY USA).
Discussion
Melanoma is the most serious form of skin cancer. If it is not recognized and treated early, the cancer can advance and spread to other parts of the body, where it becomes hard to treat and can be fatal. Recent studies have provided a much-improved understanding of melanoma biology, however, this knowledge has yet to be translated into effective treatment strategies. In this study, we investigated the therapeutic capabilities of MTA in melanoma treatment, a natural occurring nucleoside that has been shown to be effective in other tumor types [
6,
10,
16,
29,

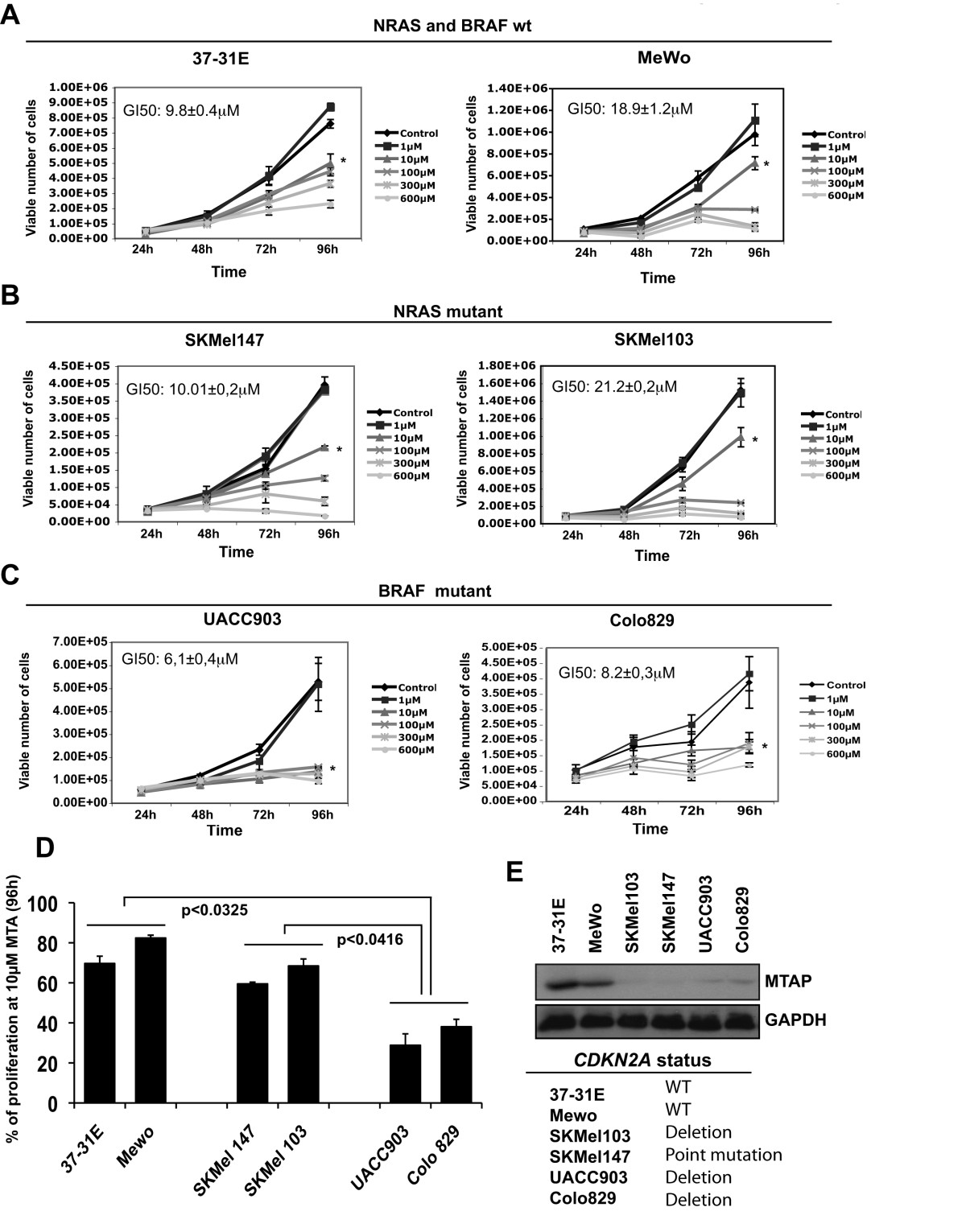

30]. Our results show that MTA inhibits
in vitro cell proliferation, and viability in a dose dependent manner in a variety of human and mouse melanoma cell lines. Importantly, MTA treatment was also effective inhibiting
in vivo tumor growth in a mouse melanoma xenograft model. Furthermore, the molecular analysis of the tumor samples and experiments performed with the cell lines indicated that in our model MTA has mostly cytostatic rather that pro-apoptotic effects.
Besides the inhibitory effects on the polyamine biosynthesis, MTA has been shown to exert other potent and specific pharmacological effects on cellular functions such as proliferation, apoptosis and modulation of the immune system [
10,
31,
32]. Our current findings are in agreement with previous publications showing the inhibitory effects of MTA on proliferation and invasion (Fig
1 and additional file
1) of different types of tumor cells lines [
33‐
35]. It is known that genetic mutations within tumor cells condition the drug response and this could be taken as an advantage in the design of more effective therapeutic approaches. Interestingly, BRAF mutant melanoma cell lines (UACC903 and Colo829) showed the highest sensitivity to MTA treatment, where concentrations of 10 μM of MTA reduced proliferation up to 70% (Fig
1D). Why BRAF mutant cells are more sensitive to MTA treatment is unknown and is an area of our current investigation. Nevertheless, the inhibition of cyclin D1 and proliferation by MTA might have a more pronounced effect in cells addicted to oncogenes with potent mitogenic effects. Additionally, the low levels of MTAP protein expressed in both cell lines might be contributing to the observed response.

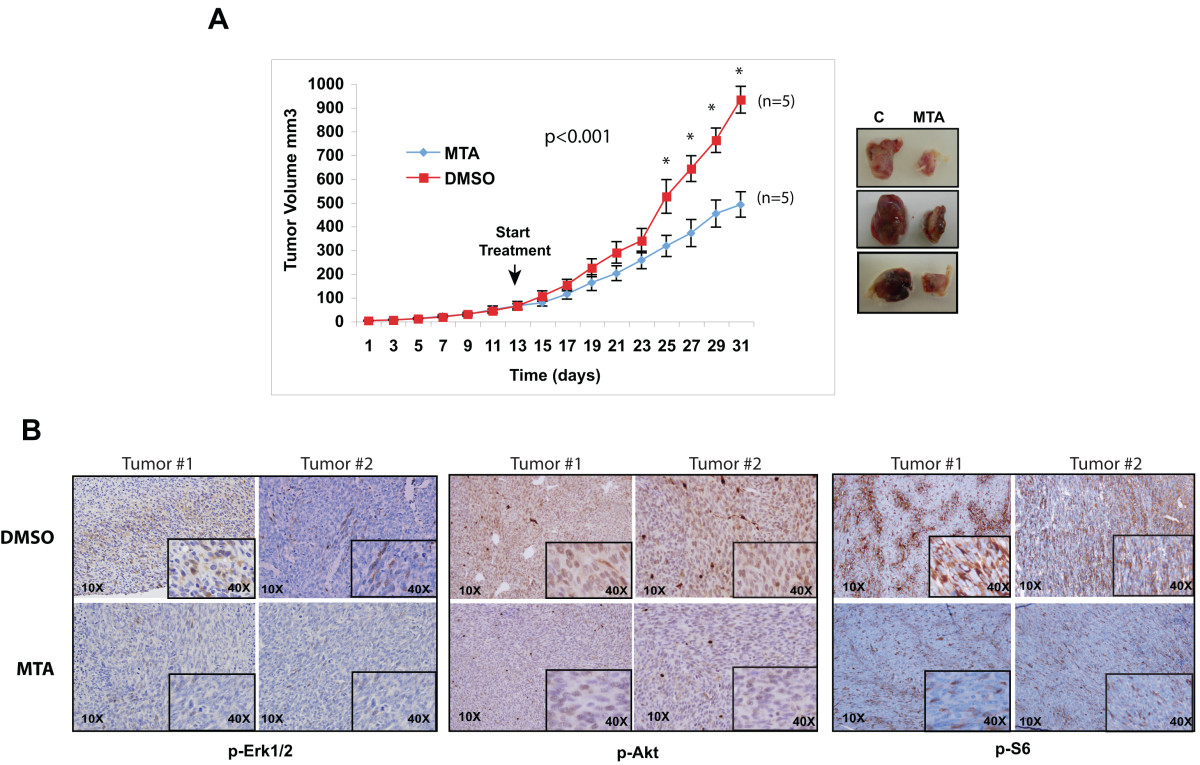

In agreement with the
in vitro results, MTA treatment reduced
in vivo tumor growth by 45%. The molecular analysis of the tumors indicated that MTA treated tumors had lower rates of proliferation according to the Ki67 and cyclin D1 levels, that correlated with lower levels in the PI3K and mTOR pathway activation and VEGF expression. While several studies have shown pro-apoptotic effects of MTA in tumor treatment [
10,
31], we observed a small increase of apoptosis in our tumor samples.
Recently, it has been described that MTA was able to induce the expression of growth factors and matrix metalloproteases in melanoma cells as well as enhance invasion and vasculogenic mimicry [
5]. It is widely known that MTA inhibits methyltransferase enzymatic reactions and interferes with cellular pathways modulating cell signaling and protein expression [
5,
14,
16,
17]. In the mentioned study, the obtained data was generated at early time points of MTA treatment. Furthermore, the biological outcome in a long-term treatment, such as melanoma cell proliferation and the
in vivo melanoma tumor growth, were not assessed. Our data show that the inhibitory effects of MTA on melanoma cell proliferation occur mostly after 48 h treatment. We believe that the biological response to MTA is dose dependent and cell type dependent. Indeed, several publications have shown that fibroblasts and normal hepatocytes have contrary responses to MTA compared to tumor cells. Moreover, in our system low concentrations of MTA (1 μM) promoted a slight increase in proliferation and viability, supporting a possible cell-type specific differential response to low concentrations of MTA. In mice, after intraperitoneal administration at 75 mg/kg, serum levels of MTA rapidly reached a peak of 28 μM rapidly and, at 30 minutes MTA was still at 10 μM [
12]. In our hands a preliminary study of the bioavailability of MTA showed that plasma concentrations 20 min after i.p administration of this compound at 96 μmol/kg (equivalent to 30 mg/kg) were in the micromolar range (20-30 μM) (unpublished observations). In view of the efficacy of MTA reducing
in vivo tumor growth, we speculate that the concentration reached within the tumor should be higher than 1 μM.
Previous studies have described a cytostatic effect of MTA on Mewo-LC1, Raji and R1.1 H cells [
26‐
28]. According to our current observations in the xenograft model, MTA promoted cytostatic rather than pro-apoptotic effects. This result was confirmed by the
in vitro experiments using the same cell line, where we found that MTA treatment induced the dephosphorylation of the downstream mTOR target S6 ribosomal protein, and the decrease of cyclin D1 protein levels. Importantly, we did not observe any molecular indication of apoptosis. Supporting these results, treatment of melanoma cells with MTA induced a cell cycle slow down in G1 phase. Interestingly, in agreement with the proliferation and viability results, UACC903 BRAF mutant melanoma cells showed the higher accumulation of cells in G1 phase.
MTA is a well-tolerated drug, devoid of the unwanted effects of other methyltransferase inhibitors. It has been administered previously in both acute and chronic experimental models of liver injury and systemic inflammation, showing efficacy and a safe profile [
32] with an ID50 of 2.9-0.4 gm/kg (intramuscular) in rats [
13]. In humans, MTA is also well tolerated [
34,
35]. Thus, MTA or any of its synthesized analogs would be good candidates for melanoma treatment in patients
Competing interests
The authors declare that they have no competing interests.
Authors' contributions
PAP did most of the experimental work and data analysis. AP was involved in the animal work. JG She was involved in the experimental work. JHL, RG and TM performed the pathological and immunohistochemical analysis. JC was involved in the analysis and discussion of the data. MAA contributed with some reagents, analyzed and discussed the data. JAR conceived and designed the study, coordinated the work, anlayzed the data and wrote the paper. All the authors approved and read the final manuscript.
