Background
Cystic fibrosis (CF) is a common autosomal recessive inherited disease. People with CF (PWCF) have a lower than normal average life expectancy [
1]. Affected individuals typically become symptomatic in infancy and childhood and classically present with mucosal infections, exocrine pancreatic insufficiency and elevated sweat chloride levels. Although it is a multisystem disorder, recurrent lung infections are responsible for the major morbidity and mortality in PWCF.
CF occurs due to mutations in the gene encoding the CF transmembrane regulator (CFTR) protein, a cyclic AMP-activated chloride channel that controls the secretion of chloride and bicarbonate ions across the airways and other epithelial surfaces. Six classes of CFTR mutations have been described, with the class II F508del-CFTR mutation representing the most common CFTR mutation worldwide [
2]. The misfolded F508del-CFTR protein encoded by this mutation accumulates in the endoplasmic reticulum (ER) and fails to reach the apical surface of epithelial cells to function as an anion channel. The βENaC-transgenic mouse phenocopies increased airway Na
+ absorption and airway surface liquid depletion characteristic of human CF airways and develops spontaneous CF-like lung disease with mucus plugging, chronic airway inflammation and reduced clearance of bacterial pathogens [
3,
4].
The ER is the site of protein translation, folding and processing for transport to secretory vesicles. Perturbation of the ER can lead to a phenomenon termed ER stress which results in the initiation of signalling networks aimed at restoration of ER equilibrium. One ER stress network is the unfolded protein response (UPR). Activating transcription factor 6 (ATF6) is an ER resident transcription factor and a key component of the UPR [
5]. Its activation leads to transcriptional induction of ATF6-regulated genes which function primarily to restore correct protein folding in the ER.
Recent evidence implicates microRNAs (miRNAs) in regulation of the UPR [
6-
9]. miRNAs are short regulatory RNAs that hybridise to miRNA recognition elements (MREs) located largely in the 3′UTR of mRNA transcripts, leading to mRNA degradation and/or inhibition of translation. Dysregulation of miRNA expression has been described in numerous disease states including CF, where the miRNA expression profile of bronchial epithelial cells has been shown to be altered [
10].
To date, there have been no studies examining whether altered miRNA expression regulates expression of UPR genes in CF airway epithelium. Therefore, we undertook a study to examine miRNA expression and regulation of ATF6 in CF and non-CF airway epithelial cells in vitro and in vivo, and complemented these human studies by analysing the expression of key miRNAs in a mouse model of CF lung disease.
Methods
Study populations, bronchial brush sampling and miRNA profiling
Following informed consent under a protocol approved by the Beaumont Hospital ethics review board, bronchial brushings were sampled and RNA isolated as previously described [
10] from 17 individuals: CF (
n = 8, 27.2 + 2.7 years, M/F 5:3), confirmed by sweat testing and/or genotyping, (Table
1) and non-CF controls (
n = 9, 50.8 + 5.4 years, M/F 5:4) (Table
2).
Table 1
CF patient demographics
1 | M | 21 | ΔF508/R506T > K | 17% | 30.5 | Y | + | + | − |
2 | M | 29 | ΔF508/ΔF508 | 64% | 20.24 | Y | + | − | − |
3 | F | 25 | ΔF508/R177H 5T | 89% | 23.15 | N | - | + | = |
4 | M | 18 | ΔF508/ΔF508 | 87% | 20.89 | Y | + | + | + |
5 | M | 23 | ΔF508/unknown | 27% | 17.76 | Y | + | - | - |
6 | F | 19 | ΔF508/ΔF508 | 54% | 21.71 | Y | + | - | - |
7 | F | 25 | ΔF508/1717GA | 51% | 19.62 | Y | + | - | + |
8 | M | 31 | ΔF508/621 + 1G → T | 83% | 22.77 | Y | + | - | + |
Table 2
Non-CF control patient demographics
1 | M | 47 |
2 | M | 57 |
3 | F | 68 |
4 | F | 73 |
5 | F | 60 |
6 | M | 54 |
7 | F | 20 |
8 | M | 47 |
9 | M | 46 |
All animal studies were approved by the Animal Care and Use Committee of the Regierungspräsidium Karlsruhe, Germany.
Cell lines and culture conditions
Human bronchial epithelial 16HBE14o- and F508del homozygous CFBE41o- cell lines were obtained as a gift from D. Gruenert (California Pacific Medical Centre Research Institute, San Francisco, CA, USA). HEK293 (human embryonic kidney cell line) were obtained from the European Collection of Cell Cultures (Salisbury, Wiltshire, UK). Cells were routinely grown in minimum essential media (MEM + GlutaMax, Gibco, Life Technologies, Carlsbad, CA, USA) supplemented with 10% fetal calf serum (Gibco) and 1% penicillin-streptomycin (Gibco) in 75-cm2 flasks and maintained in a 37°C humidified incubator containing 5% CO2. For experiments, cells were sub-cultured once 60% to 80% confluency was achieved and seeded at optimised densities.

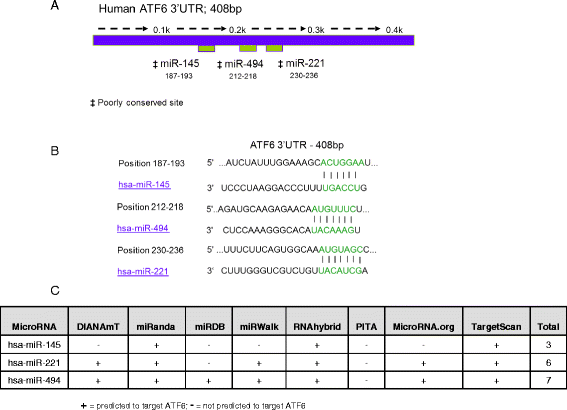

In silico analysis. Bioinformatic analysis was performed using the miRNA target prediction database TargetScan 6.2 to search for putative targets of miRNA differentially expressed in CF airway epithelium. Subsequently, a range of databases (including miRWALK
http://www.umm.uni-heidelberg.de/apps/zmf/mirwalk/micrornapredictedtarget.html which incorporates MicroRNA.org, PITA, miRDB and Microcosm) were interrogated to search for miRNA targeting human and murine ATF6.
Measurement of human miRNA expression levels by qRT-PCR
Total RNA was extracted using TriReagent (Sigma-Aldrich, St. Louis, MO, USA). Generation of cDNA for miRNAs of interest was performed using Taqman MicroRNA Reverse Transcription kits (Applied Biosystems, Foster City, CA, USA). miRNA expression in brushings and cell lines was measured on a Roche LC480 Lightcycler (Roche, Penzberg, Bavaria, Germany). Expression of miRNAs relative to miR-218 was determined using the 2(−ΔΔCt) method. miR-218 was chosen for normalisation due to a high degree of similarity in expression levels between CF and non-CF brushings observed in the expression profiling screen. All quantitative real-time polymerase chain reaction (qRT-PCR) experiments in cell lines were performed in triplicate, a minimum of three times and included no-template controls.
Mouse studies
The βENaC-transgenic mouse was originally generated on a mixed genetic background (C3H/He × C57BL/6) and was backcrossed to the C57BL/6 background as previously described [
11]. Experimental animals were housed in a specific pathogen-free animal facility of the University of Heidelberg and had free access to chow and water. Transgene-positive mice were identified by PCR of genomic DNA [
3], and wild-type (WT) littermates served as controls. The trachea and main stem bronchi were collected from 6-week-old mice as previously described [
12], and total RNA was isolated using TRIzol reagents (Invitrogen, Life Technologies, Carlsbad, CA, USA). Quantitative real-time PCR for miRNAs was performed with TaqMan assays (Applied Biosystems, Foster City, CA, USA) as per the manufacturer's protocols.

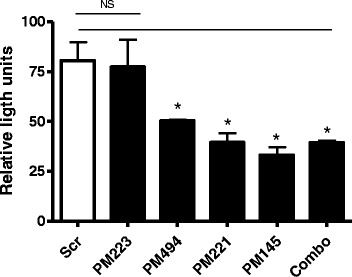

Luciferase reporter plasmid transfection
HEK293 cells (1 × 105 in triplicate) were transiently co-transfected for 24 h with a WT-ATF6 3′UTR (OriGene, Rockville, MD, USA) firefly luciferase reporter vector containing the full-length 3′UTR (250 ng), a constitutive Renilla luciferase vector (100 ng) and 30 nM synthetic premiR mimics (PM) for miR-145, miR-221 and miR-494 (Applied Biosystems, Foster City, CA, USA) as indicated or with a scrambled control. PremiR-223, a miRNA increased in the CF lung but not predicted to target ATF6, was included as a control. Transfections were performed using Genejuice (Novagen, Madison, WI, USA) for plasmid DNA and Ribojuice (Novagen, Madison, WI, USA) for miRNA in OptiMEM reduced serum media (Life Technologies, Carlsbad, CA, USA) as per the recommended conditions. Lysates were prepared and measurement of luciferase was performed using the luciferase assay system (Promega, Madison, WI, USA). Relative luciferase activity was calculated. Endogenous red fluorescent protein (RFP) expressed by the ATF6 3′UTR reporter was used to monitor transfection efficiency.
Measurement of mRNA expression levels by qRT-PCR
Total RNA was extracted using TriReagent. For mRNA gene expression, equal quantities of RNA were reverse transcribed into cDNA using the Quantitect Reverse Transcription Kit (Qiagen, Valencia, CA, USA) following the manufacturer's protocol. Expression of ATF6 mRNA relative to
β-actin (data presented as fold differences) was determined using the 2
(−ΔΔCt) method (details on primers are shown in Table
3).
Table 3
Primers used in this study
hATF6a
| F-TGAACTTCGAGGATGGGTTC | 1,560 to 1,739 | 180 |
R-TCACTCCCTGAGTTCCTGCT |
hβ-actin | F-GGACTTCGAGCAAGAGATGG | 747 to 884 | 138 |
R-AGGAAGGAAGGCTGGAAGAG |
Statistical analysis
All analyses were performed using GraphPad PRISM 4.0 (GraphPad Software Inc., San Diego, CA, USA). Results are expressed as the mean ± SEM and were compared by Student's t test. Differences were considered significant at p ≤ 0.05.
Discussion
ATF6 is an ER resident transcription factor involved in the unfolded protein response. Given the relatively recent discovery of miRNAs and their potential involvement in the regulation of almost all cellular processes, we examined whether miRNAs that are differentially expressed in CF airway epithelium control expression of ATF6. Here, we report decreased expression of ATF6 mRNA in F508del CF bronchial epithelium both in vitro and in vivo and correlate this observation with increased expression of miR-145, miR-221 and miR-494, three miRNAs predicted to target the ATF6 3′UTR. Of these three miRNAs, only miR-221 is predicted to regulate murine ATF6 mRNA, and in βENaC-Tg mice, expression of miR-221 is increased in native airway tissues (tracheal and bronchial tissues) compared to wild-type mice. Together, the data implicate altered miRNA expression, in particular miR-221, in controlling ATF6 levels in CF bronchial epithelium.
Based on a number of recent reports, evidence of a role for miRNA in controlling the UPR is beginning to emerge. For example, in alpha-1 antitrypsin deficiency, miR-199a-5p has been shown to control the expression of many key factors involved in UPR, including ATF6 [
6]. In mice, miR-702 also regulates ATF6; however, the possible existence of miR-702 in the human genome is low [
7]. Other miRNAs implicated in control of the UPR include miR-122 and miR-30c-3p [
8,
9]. To date, there are no reports on miRNA-mediated influences on UPR components within the CF airway epithelium.

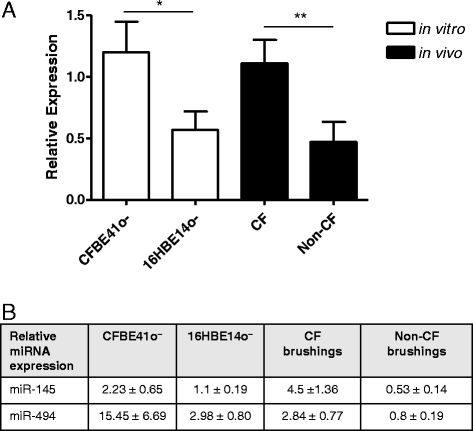

In this study, we observed that levels of miR-145, miR-221 and miR-494 are increased in CF bronchial epithelial cells
in vitro and
in vivo. Previously, we reported how altered levels of miR-145 and miR-494, together with other factors, can control decreased CFTR mRNA and protein expression
in vivo and
in vitro [
13]. Here, we extend our understanding of miR-145 and miR-494 in the context of CF bronchial epithelial cells by demonstrating their reciprocal relationship with ATF6 mRNA levels and provide evidence that miR-221 also contributes to the post-transcriptional regulation of ATF6. Regarding the expression of other miRNAs with a proven role in regulating ATF6 [
6,
7], neither was detected in CF and non-CF samples by
in situ qRT-PCR arrays [
10].
The βENaC-Tg mouse represents a murine model with CF-like lung disease that mimics an imbalance of CFTR-mediated anion secretion and ENaC-mediated Na
+ absorption characteristic of human CF airways. This imbalance causes airway surface dehydration and a spontaneous lung disease phenotype that shares key features with human CF including mucus plugging, chronic airway inflammation and reduced clearance of bacteria [
3,

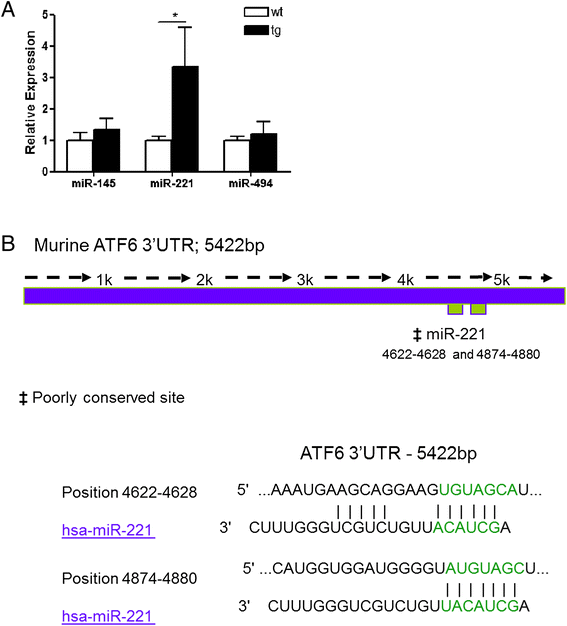

4]. Although the three miRNAs under investigation here are conserved between humans and mice, only miR-221 was found to be similarly increased in the trachea and bronchi of 6-week-old βENaC-Tg versus wild-type mice. Interestingly, bioinformatic analysis of the murine ATF6 3′UTR revealed two predicted miRNA recognition elements for miR-221, whereas miR-145 and miR-494 were not identified as potential regulators. Thus, βENaC-Tg mice may represent a useful model for further studies into the biology and function of miR-221 in CF lung disease. Regarding the age of the mice, 6-week-old mice are comparable to young adults as previously published for the βENaC-overexpressing mouse and other models of experimental lung disease in mice [
14,
15], and thus similar to the age of the CF patients studied here. Whether miRNA expression patterns differ in paediatric versus adult CF patients has not been studied to date.
More than 95% of the misfolded protein encoded by the F508del-CFTR mutation is retained in the ER and subsequently degraded by the proteasome [
16]; consequently, less CFTR reaches the apical membrane and ion transport is impaired. Conflicting opinions exist as to whether the aberrant folding of F508del-CFTR elicits an ER stress response and consequently activates the UPR. A number of studies suggest this is the case [
17,
18], whilst others propose that ER stress arises as a direct result of inherent inflammatory factors and chronic infection [
19-
21]. Therefore, it remains controversial whether mutant CFTR itself causes ER stress, UPR induction and subsequent inflammation or whether the chronic inflammation observed in CF is the primary ER stress effector leading to UPR activation independent of the aberrantly folded CFTR. A number of studies have reported a lack of UPR activation in F508del-CFTR homozygous primary tracheal cell cultures [
22] and nasal epithelial CF15 cell lines [
23] under basal conditions. Consistent with this, increased ER density and Ca
2+ signals observed in short-term primary cultures of F508del-CFTR homozygous CF cells which disappear over time (30 to 40 days) can be reproduced in normal bronchial epithelial cells stimulated with supernatant from CF lung mucopurulent material. This suggests that airway infection and inflammation and not the presence of mutant CFTR instigate an ER stress response [
20,

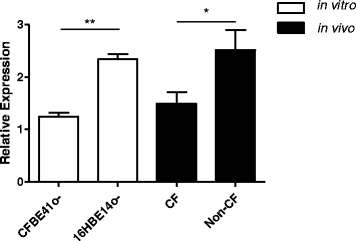

21]. Our data supports these studies. We observed lower levels of ATF6 mRNA in CF versus non-CF cells under basal conditions.
There are a number of limitations associated with this study. For example, although inhibition of luciferase activity in a vector containing the full-length human ATF6 3′UTR indicated that each of the three miRNAs were capable of decreasing luciferase expression, in order to demonstrate that miR-145, miR-221 and miR-494 directly target the human ATF6 3′UTR, additional experiments using reporter constructs in which the predicted MREs for the individual miRNAs are deleted or mutated would be required. Unfortunately, this was not possible at this time. Also, whilst it would be ideal to demonstrate decreased ATF6 protein levels in vivo, bronchial brushings are clinical samples obtained from a highly invasive procedure that yields relatively few cells. The priority in this study was to assess miRNA and mRNA expression levels in these rare samples, thus precluding their use for Western blot analysis. Finally, miRNA and ATF6 mRNA expressions were examined under basal rather than agonist-induced ER stress conditions. This approach was taken in order to establish the behaviour and relationship of these factors in the context of CF epithelial cells; future work should investigate how infection or inflammation may impact on the fundamental processes described here.
Open Access This article is licensed under a Creative Commons Attribution 4.0 International License, which permits use, sharing, adaptation, distribution and reproduction in any medium or format, as long as you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons licence, and indicate if changes were made.
The images or other third party material in this article are included in the article’s Creative Commons licence, unless indicated otherwise in a credit line to the material. If material is not included in the article’s Creative Commons licence and your intended use is not permitted by statutory regulation or exceeds the permitted use, you will need to obtain permission directly from the copyright holder.
Competing interests
The authors declare that they have no competing interests.
Authors' contributions
IKO and RA performed the experiments. CMG conceived and designed the study and drafted the manuscript with IKO. NGM and MAM provided clinical and intellectual input and revised the article. All authors read and approved the final manuscript.
