Nasopharyngeal amyloidoma: report of three cases and review of the literature

  • Open Access
  • 01.07.2024
  • Research
Erschienen in:

Abstract

Background

Nasopharyngeal amyloidoma is a rare, locally aggressive tumor that has been reported in the English literature in only 38 cases to date, most of which were in the form of case reports. The present study was aimed to summarize the characteristics of this rare tumor, with the goal of providing new insights for diagnosis and treatment.

Materials and methods

We report three cases of nasopharyngeal amyloidoma diagnosed in our hospital following comprehensive medical examination and review the current literature on all cases of nasopharyngeal amyloidoma from PubMed. The journey of nasopharyngeal amyloidoma, including presentation, diagnostics, surgeries, and follow-up was outlined.

Results

None of the three patients had systemic amyloidosis. CT and nasal endoscopy showed irregular masses obstructing the nasopharyngeal cavity. Congo red staining confirmed the deposition of amyloid, and immunohistochemical analysis showed that the amyloid deposition was the AL light chain type. Through literature review, we found that nasopharyngeal amyloidoma most commonly occurred in individuals over the age of 40, patients usually had a good prognosis after complete tumor resection; however, there were still cases of recurrence, and unresected patients were at risk of progression to systemic amyloidosis. The efficacy of radiotherapy and chemotherapy was currently uncertain.

Conclusion

Early clinical and pathological diagnosis is crucial, and surgical intervention is the primary treatment option for this disease. Although patients usually have a favorable prognosis, long-term monitoring is necessary to detect potential relapses and initiate timely intervention.

Publisher's Note

Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Introduction

Amyloidosis is caused by the deposition of amyloid protein, which is made up of many different amyloid fibril (Wisniowski and Wechalekar 2020). Amyloid fibrils are non-branching, have a smooth surface, and exhibit exceptional physical and chemical stability. They are capable of binding both dyes, Congo red and thioflavin T (Goldsbury et al. 2011). X-ray diffraction analysis revealed that the fibrillation was organized in a β-pleated structure, and the direction of the polypeptide main chain was perpendicular to the fibril axis (Álvarez-Marimon et al. 2021). According to transmission electron microscopy, the fibrils exhibited a width of 60–130 angstroms (Å) and a length of 100–16000 angstroms (Å) (Sipe and Cohen 2000).
After hematoxylin–eosin staining (HE), amyloid substance is characterized by eosinophilic, amorphous, and homogeneous pink deposits under the skin or around blood vessels and fat, as observed under a microscope (Picken 2020). In 1923, Bennhold discovered that Congo red could stain amyloid, resulting in a brick-red appearance and a characteristic double-refraction apple green color under polarized light filter (Elghetany et al. 1989). This criterion has become crucial for the accurate diagnosis of amyloidosis.
Amyloid deposition can occur in multiple systems throughout the body or in a particular organ. There are over 15 types of amyloidosis, with the most prevalent being light chain (AL) type amyloidosis, which is the most common form of systemic amyloidosis. It is caused by the deposition of immunoglobulin produced by abnormal clonal plasma cells (Deshayes and Aouba 2021). It commonly affects patients with multiple myeloma and primary amyloidosis (Wechalekar et al. 2016). AL amyloidosis accounts for about 70% of all systemic cases of amyloidosis (Rekhtina and Khyshova 2023). The disease progresses rapidly, frequently affecting the heart, liver, skin, and kidneys, and carries a grim prognosis (Hazenberg 2013). If amyloidosis is present at a specific site and forms a tumor-like lesion at that site, it is referred to as amyloidoma (Yerasi et al. 2022).
Nasopharyngeal amyloidoma is an extremely rare disease, and the cause and pathogenesis of the disease remain unclear (Wu et al. 2011). The disease is characterized by the deposition of abnormal, fibrous beta-pleated structures comprised of protein in the nasopharynx, leading to mass formation, and subsequent structural and functional abnormalities in this region. The clinical manifestations of nasopharyngeal amyloidoma are diverse and nonspecific, posing a challenge to its accurate diagnosis.
In this study, we retrospectively analyzed the imaging, clinical, and pathological data of three patients with nasopharyngeal amyloidoma who were diagnosed and treated in the Third Affiliated Hospital of Sun Yat-sen University, Guangzhou, southern China, and all English literature on nasopharyngeal amyloidoma to date was reviewed. Our aim was to provide new insights for the accurate diagnosis of this rare disease and to offer different ideas for its evaluation and treatment.

Materials and methods

We conducted a retrospective analysis of three patients in our hospital, reviewing their surgical pathology, examination indexes, clinical images, and medical records. All retrieved slides were reviewed, and clinical data were obtained from a comprehensive electronic medical record. In addition, immunohistochemical (IHC) staining of κ (DAKO; A0191) and λ-light (DAKO; A0193) chain were performed. A comprehensive review of the literature was conducted through electronic searches of PubMed using the search terms “nasopharynx” or "nasopharyngeal" and "amyloidosis". Only articles and reviews written in English were included.

Results

In this study, we found that all three patients were over 60 years old and the main complaints were nasal congestion and a runny nose. Blood routine and blood biochemical tests were not abnormal, liver function and renal function tests were within the normal range, and urine routine detection did not reveal any urine protein or ketone bodies (Table 1). The κ/λ ratio in the serum and urine of patients was within the normal range. Additionally, monoclonal immunoglobulins were not detected in the serum immunofixation electrophoresis of two patients (Cases 2 and 3, Fig. 1), while Case 1 was not tested. Ultrasonic examination of the three patients revealed no specific changes in the liver, kidney, heart, gallbladder, pancreas, spleen, and other important organs. Their medical histories also showed no significant problems, indicating that none of them had systemic amyloidosis.
Table 1
Laboratory results and basic information of patients

Reference range
Case 1
Case 2
Case 3
Age (year)

64
79
60
Gender (F/M)

M
F
M
CBC

 WBC (× 109/L)
3.5–9.5
6.49
6.95
8.87
 RBC (× 1012/L)
4.3–5.8
4.62
5.87
3.72
 Platelets (× 109/L)
100–350
183
290
230
 Hemoglobin (g/L)
130–175
138
119
112
CMP

 AST(U/L)
15–40
23
16
20
 ALT(U/L)
3–35
17
17
13
 Total protein(g/L)
61–82
63.8
67.6
66.8
 Albumin(g/L)
36–51
43.4
38.8
35.4
K+(mmol/L)
3.5–5.3
4.13
4.25
3.75
 Na+ (mmol/L)
137–147
143
143
144
 Cl (mmol/L)
99–110
105.8
104.9
107.5
 HCO3 (mmol/L)
20.2–29.2
23.2
26.5
29.3
 Glucose (mmol/L)
3.9–6.1
9.26
6.97
7.71
 BUN (mmol/L)
2.4–8.2
3.67
5.91
8.96
 Creatinine (umol/L)
31.8–116
62
57
136
 Ca2 + (mmol/L)
2.03–2.65
2.34
2.4
2.35
 Egfr-EPI

97.4
84.94
93.3
Routine Urine

 GLU
 PRO
 WBC
 KET
Kappa in plasma (g/L)
1.7–3.7
2.91
2.85
4.72
Lambda in plasma (g/L)
0.9–2.1
1.3
1.88
1.87
The κ/λ ratio in plasma
1.35–2.65
2.24
1.52
2.52
Kappa in urine (mg/L)
0–8
16
26
32.4
Lambda in urine (mg/L)
0–4
7
6.65
9.01
The κ/λ ratio in urine
0.75–4.5
2.29
3.91
3.60
Bold values indicate abnormal results
CBC complete blood count, CMP complete metabolic panel, PRO protein, KET ketone body

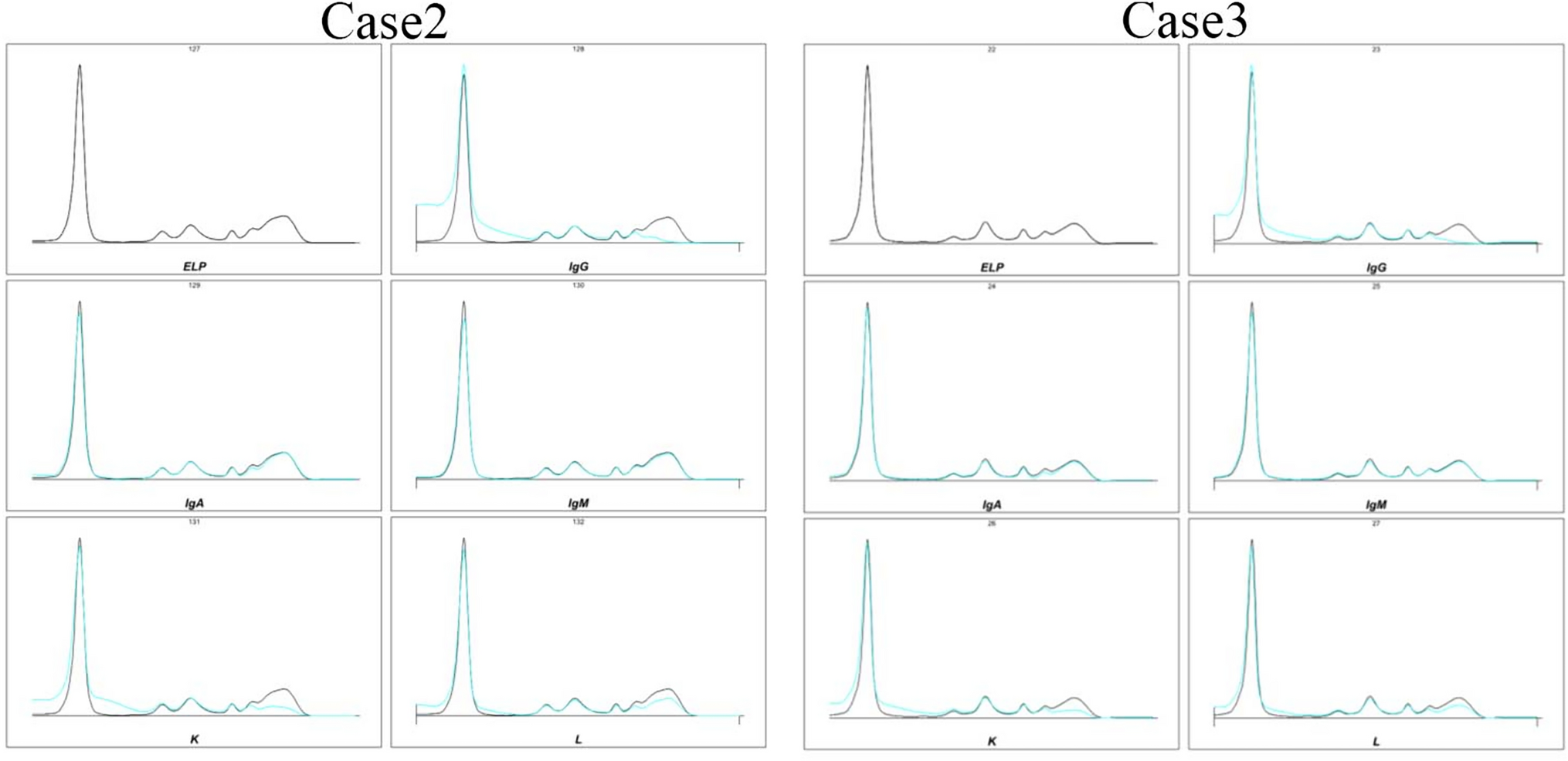

Fig. 1
Serum immunofixation electrophoresis was performed on Cases 2 and 3. In both cases, monoclonal immunoglobulins were not detected
Bild vergrößern
CT and nasal endoscopy were conducted in all three patients (Fig. 2). Case 1 revealed an irregularly shaped grayish-red mass obstructing the nasopharyngeal cavity. Case 2 discovered a new organism in the right posterior segment of the nasal base and the left lateral wall of the nasopharynx. The organism exhibited a grayish-red or grayish-yellow color, slightly uneven mucosa, and local vasodilation. The CT scan displayed an irregular soft tissue density image with a size of approximately 16 mm × 11 mm and an involved length of about 39 mm. Case 3 found a new organism in the left posterior nostril of the nasal cavity with a smooth surface, light yellow appearance, thickened nasopharyngeal mucosa, and a low-density laminar nasopharyngeal cavity. The lesion extended to the epiglotic region downward, exhibiting uneven density and an unclear boundary. The CT value was approximately 45HU. The enhanced scan showed uneven enhancement in all cases. Notably, no cervical lymph node enlargement was observed in any of the three patients. We observed that the nasopharyngeal mass did not have any significant impact on ventilation.
Fig. 2
Routine scan, enhanced CT and nasal endoscopy images of three patients. The CT scan revealed low-density, flaky shadows in the nasopharyngeal cavity, with uneven density and an unclear boundary. The enhanced scan displayed mild enhancement and partial non-enhancement. The nasal endoscopy revealed an irregular, gray-red mass obstructing the nasopharyngeal cavity, accompanied by a rough mucosal surface
Bild vergrößern
Two of the three patients (Cases 1 and 3) underwent endoscopic plasma resection of oropharyngeal masses via a combined oral-nasal approach. Case 2 was discharged after a small tissue biopsy under nasal endoscopy. The surgical specimens had a maximum diameter of 4.5 cm and 5 cm, respectively, and showed gray-red and yellow colors. All gross specimens were stained with HE and Congo red (Fig. 3). Cases 1 and 3 were mostly polypoid masses covered by squamous epithelium or ciliated columnar epithelium. Amyloid deposition was observed under the epithelium, distributed in small thin-walled blood vessels, accompanied by a few lymphocytes, plasma cells, and a few multinucleated giant cells. The Congo red stained sections show a characteristic uniform brick red color under the microscope and typical apple green birefringence under polarized light microscopy (Fig. 3). Based on the clinical history and Congo red staining results, these findings are consistent with the diagnosis of primary nasopharyngeal amyloidoma. Case 2 was also diagnosed with nasopharyngeal amyloidoma, but presented with focal cartilage hyperplasia and calcification. In addition, IHC staining revealed strong expression of both κ and λ-light chain (Fig. 4). These findings suggested that the amyloid deposited in the three patients was AL, with mixed expression of the κ and λ-light chains.
Fig. 3
HE and Congo red staining of amyloidoma. Under a light microscope (4 ×), amyloid appears as a uniform pink amorphous substance, the same areas exhibit Congo red staining, resulting in a typical brick-red appearance color. Under a polarized light microscope, Congo red-stained slides exhibit a characteristic birefringent apple green color. Additionally, Case 2 demonstrates local cartilage hyperplasia and calcification, as indicated by the red arrow
Bild vergrößern
Fig. 4
The IHC results of amyloid proteins in 3 cases. IHC staining showing κ and λ light chains immunoglobulin expression in amyloid material and nearby plasma cells (200 ×)
Bild vergrößern
Following surgical intervention, two patients received symptomatic treatment, including anti-infection medications, nasal drops, and local nasal sprays. The nasal congestion improved significantly, and there was no bloody fluid observed in either anterior nostril. The patients were discharged without any additional discomfort. We followed up the 3 cases for 4 years, 2 months and 1 month, respectively, and showed no recurrence or progression.

Review of the literature

To date, a total of 38 cases of nasopharyngeal amyloidoma have been reported in the English medical literature. Table 2 provides a summary of the clinical characteristics of nasopharyngeal amyloidoma, including the previously reported 38 cases and our 3 cases. A total of 22 males and 19 females were included in the study. The age of onset ranged from 7 to 86 years (with a mean of 55 years and a median of 60 years), and 33 patients were older than 40 years. Notably, nasopharyngeal amyloidoma typically affects middle-aged and elderly individuals over the age of 40, with no significant difference in gender distribution.
Table 2
Clinical and pathological features of nasopharyngeal amyloidoma
No.
Authors and citation
Age -Gender
Clinical Findings and symptoms
Systemic amyloidosis
Greatest dimension (cm)
Extension
Types of amyloid proteins
Treatment
Follow-up
Recurrence or progression
1
Luo et al. (2016)
39-M
NC and epistaxis
NO
4
Nasopharynx
Not stated
Resection and radiotherapy
1 year
NO
2
Patel et al. (2002)
68-M
Decreased hearing
NO
Not stated
Eustachian tube
Not stated
Untreated
3 months
Not stated
3
Jamarun and Wong (2022)
72-M
NC
NO
Not stated
Nasopharynx
Not stated
Resection
1 year
NO
4
Feng et al. (2022)
51-M
Hoarseness
NO
1.2
Nasopharynx and vocal cord
Not stated
Resection
6 months
NO
5
George et al. (2022)
60-M
NC and hearing loss
NO
5
Nasopharynx
Not stated
Not stated
Not stated
Not stated
6
Chen et al.(Chen et al. 2010)
86-M
Intermittent postnasal drip
NO
Not stated
Nasopharynx
Not stated
Untreated
3 years
NO
7
Crosetti and Manca (2021)
80-F
NC
NO
4.3
Nasopharynx
Not stated
Resection
2 years
NO
8
Durbec et al. (2012)
59-F
NC
NO
Not stated
Nasopharynx
Not stated
Resection
5 months
NO
9
Chowsilpa, et al. )2018)
64-M
Aural fullness
with autophony
NO
3.2
Eustachian tube
Not stated
Resection
3 years
Recurrence and progression to systemic amyloidosis
10
Kim and Kwon )2017)
73-M
Frequent epistaxis
NO
Not stated
Nasopharynx
Not stated
Untreated
1 year
NO
11
Wahid et al. (2019)
61-M
NC and recurrent epistaxis
NO
Not stated
Nasopharynx and
maxillary sinus
Not stated
Resection
6 months
NO
12
Karimi and Chheda (2010)
56-M
Otalgia and right aural fullness
NO
Not stated
Nasopharynx
Not stated
Untreated
Not stated
Progression to systemic amyloidosis
13
Chen and Sun (2019)
41-F
NC and loss of sense of smell
YES
3
Nasopharynx and rosenmuller fossa
AA
Resection and Chemotherapy
6 months
NO
14
Simpson et al. (1984)
29-F
Not stated
Not stated
Not stated
Nasopharynx and
soft palate
Not stated
Laser excision
3 years
NO
15
Hall et al. (2022)
61-F
Constant postnasal drip
NO
Not stated
Nasopharynx
AL
Radiotherapy
3 months
NO
16
Lim et al. (1999)
42-F
NC
NO
Not stated
Nasopharynx
AL
Resection
1 year
NO
17
Sakagiannis et al. (2018)
74-F
NC
NO
Not stated
Nasopharynx and eustachian tube
AA
Resection
2 years
Not stated
18
Sakagiannis et al. (2018)
54-F
NC
NO
Not stated
Nasopharynx
AA
Untreated
29 years
NO
19
Sakagiannis et al. (2018)
7-F
NC
NO
1.1
Nasopharynx
AA
Resection
35 years
NO
20
Georgios et al.(Sakagiannis et al. 2018)
18-F
Difficulty swallowing
NO
3
Nasopharynx
AA
Resection
34 years
NO
21
Sakagiannis et al. (2018)
13-M
Episodes of otitis media
NO
1.1
Nasopharynx
AA
Resection
4 years
NO
22
Sakagiannis et al. (2018)
69-M
Postnasal drip
NO
1.4
Nasopharynx
AA
Not stated
4 years
NO
23
Sakagiannis et al. (2018)
81-F
Chronic rhinosinusitis
Not stated
2.8
Nasopharynx and eustachian tube
AA
Resection
3 months
Recurrence
24
Gomes et al. (2023)
72-F
NC
NO
Not stated
Nasal cavity and pharyngeal region
Not stated
Untreated
Not stated
Not stated
25
Panda et al. (2007)
43-M
Not stated
NO
4.2
Nasopharynx and oropharynx
Not stated
Resection
6 months
NO
26
Geller et al. (2011)
62-F
Bilateral epiphora
NO
Not stated
Nasal cavities and the subglottic tracheal wall
Not stated
Not stated
Not stated
Not stated
27
Susanibar-Adaniya et al. (2017)
44-M
NC and anosmia
YES
9
Nasal cavities and maxillary sinus
AL (κ)
Resection and Chemotherapy
Not stated
NO
28
Wu et al. (2011)
72-M
Dysphagia
NO
6
Orbit and nasopharynx
AL
Not stated
Not stated
Not stated
29
Domínguez et al. (1996)
13-F
NC
NO
Not stated
Nasopharynx
Not stated
Resection
9 months
NO
30
Kumar et al. (2016)
55-M
NC and recurrent nasal bleed
NO
Not stated
Nasopharynx and skull base
AL (κ > λ)
Resection
Not stated
NO
31
Mirza et al. (2013)
31-F
Fluctuating hearing loss
NO
2.3
Nasopharynx and eustachian tube
Not stated
Untreated
2 years
The growth had extended beyond resectable limits
32
Zhuang et al. (2005)
81-F
Neck masses
NO
2
Nasopharynx
Not stated
Resection
9 months
NO
33
Motosugi et al. (2007)
46-F
NC
Not stated
3
Nasopharynx
Not stated
Not stated
Not stated
Not stated
34
Cheng et al. (2009)
60-M
Stuffy nose with hoarse voice
NO
Not stated
Nasal cavity, nasopharynx and larynx
Not stated
Resection
7 months
NO
35
Hegarty and Rao (1993)
77-M
Facial paresis, deafness, dysphagia, hoarseness
NO
Not stated
Nasopharynx and skull base,
AL
Untreated
Not stated
Not stated
36
Pitkäranta and Malmberg (2000)
14-M
Rhinorrhea
and right ear obstruction
NO
Not stated
Nasopharynx and tonsil
Not stated
Resection
16 years
Recurrence
37
Pitkäranta and Malmberg (2000)
41-F
Continuous postnasal drip and stertor
NO
2
Nasopharynx
Not stated
Resection
4 years
NO
38
Panda et al. (1994)
82-M
Recurring bleeding from the oral cavity
NO
Not stated
Nasopharynx
Not stated
Resection
1 year
NO
39
Our case
64-M
NC
NO
4.5
Nasopharyngeal cavity
AL
Resection
4 years
NO
40
Our case
79-F
NC
NO
4
Nasopharyngeal
AL
Untreated
2 months
NO
41
Our case
60-M
NC and a runny nose
NO
5
Nasopharyngeal and epiglotic region
AL
Resection
1 month
NO
M male, F female, R right side, L left side, NC nasal congestion, AL light chain amyloidosis, AA AA amyloidosis.
Among the 41 cases, approximately half of the patients reported symptoms of nasal obstruction, while the remaining symptoms included epistaxis, persistent rhinorrhea, hearing loss, hoarseness, anosmia, dysphagia, etc. Radiological and nasal endoscopic examinations revealed that the tumors were predominantly located in the nasopharynx, which could involve the nasal cavity, oropharynx, eustachian tube, vocal cords, tonsils, maxillary sinus, cranial base, and orbit.
Macroscopically, the tumors varied in size from 0.1 to 9 cm, with an average size of 3.4 cm and a median size of 3 cm. The cut surfaces were predominantly solid, appearing gray-red to grayish-yellow in color. Histologically, they were characterized by a homogenous, eosinophilic, amorphous material, with occasional lymphocytic infiltration around. Congo red staining revealed a characteristic uniform brick red color under the microscope and apple-green birefringence after polarizing light filtration. Out of the 41 cases, 9 patients had AL type amyloidosis, 8 patients had AA amyloidosis, and 24 patients did not specify the type of amyloid.
Twenty-three patients underwent total tumor resection, which included surgical resection and laser resection, with follow-up ranging from 1 month to 35 years. Of these, 19 patients experienced no recurrence or progression, 3 patients relapsed, and 1 patient's status was not stated. Among the patients who experienced recurrence, 1 patient developed systemic amyloidosis at the 1-year follow-up, 1 patient recurred after 3 months due to incomplete resection of the mass, and 1 patient recurred at the 16-year follow-up after a complete resection of the mass.
Two patients received treatment with excision and systemic chemotherapy, while one patient received excision and radiotherapy. All three patients were followed up for 6 months to 1 year without recurrence or tumor progression. One patient received radiotherapy alone, and after three months of follow-up, the mass did not increase or progress. Nine patients did not receive any treatment, including 1 patient whose tumor progressed too rapidly for follow-up surgery, 1 patient who developed systemic amyloidosis, 5 patients who showed no progression for 3 months to 3 years, and the remaining 2 patients for whom no follow-up information was provided. Treatment and follow-up information were not provided for the remaining 5 patients.

Discussion

The amyloid proteins can be derived from serum proteins or produced locally, are unable to be metabolically cleared, leading to cell death at the corresponding site, destruction of tissue structure and function, subsequent organ function impairment, and ultimately, related organ dysfunction (Riehani and Soubani 2023). Nasopharyngeal amyloidoma is a distinct entity characterized by the presence of amyloid deposition within the nasopharynx, without evidence of systemic amyloidosis (Desai et al. 2021). Although extremely rare, it is essential to differentiate it from other nasopharyngeal lesions.
In our study, we presented three cases of nasopharyngeal amyloidomas and comprehensively summarized the clinical and pathological information of all reported cases. Nasopharyngeal amyloidoma is a benign tumor that can manifest as single or multiple nodules, gradually invading the surrounding soft tissues from the nasopharynx. Microscopically, under hematoxylin–eosin staining, the tissue appears as a pink, uniform amorphous substance, indicating the presence of protein fibrils that cannot be metabolically cleared. Case 2 exhibited focal chondroplasia and calcification, which may represent a repair response of original fibroblasts in fibrous connective tissue damaged by nonfunctional protein precursors. In addition, IHC staining revealed that the amyloid deposited in the three patients was AL, with mixed expression of the κ and λ-light chains.
Generally speaking, AL amyloidosis is characterized by the presence of a monoclonal light chain, either κ or λ. However, some studies showed that there were mixed presence of both κ and λ light chains in AL amyloidosis(Kumar et al. 2016; Jamshidi et al. 2022). Mass spectrometry can be employed to quantitatively analyze all amyloidosis precursor proteins in tissues with up to 90% sensitivity and specificity in determining the type of amyloidosis. Using mass spectrometry, Jamshidi P et al. reported that λ light chain restriction is the most common mode (6/10, 60%), and the second most common mode is a mixture of λ and κ light chains (3/10, 30%)(Jamshidi et al. 2022). Kumar B et al. also identify mixed expressions of λ and κ light chains in a case of nasopharyngeal amyloidoma (Table 2, Case 30) (Kumar et al. 2016). In our study, all three cases of nasopharyngeal amyloidoma strongly expressed both λ and κ light chains. We acknowledge that IHC staining is not precise for quantifying light chains, detection of both κ and λ light chains in our cases maybe resulted from methodological problems of IHC staining with antibodies against immunogloblins, such as cross-reaction with non-target antigens or non-specific staining. However, due to the significantly higher cost of mass spectrometry compared to IHC, we did not perform mass spectrometry for a more accurate quantification. This is a limitation for the present study.
In clinical practice, histopathology and Congo red staining results are commonly utilized for the diagnosis of tumors, but high-resolution computed tomography evaluation is also a valuable tool as it allows for the assessment of tumor invasion and identification of other nasopharyngeal tumors (Gandhi et al. 2003). The diagnosis of amyloidoma does not rest solely on a single discipline. Rather, it necessitates a comprehensive approach involving a series of laboratory examinations and multidisciplinary consultations, alongside clinical evaluations and laboratory testing. The objective is to exclude systemic amyloidosis and establish a precise diagnosis and appropriate treatment. Here are the appropriate laboratory tests that we recommend to evaluate patients for systemic amyloidosis, including:
1.
1. Serum k chain, λ chain, and k/λ ratio within the normal range, without the presence of autoimmune antibodies (RF, ANA, aCCP anti-C-ANCA antibodies, anti-P-ANCA antibodies).

2.
Negative results from serum immunofixation electrophoresis for monoclonal immunoglobulins.

3.
No evidence of liver or kidney dysfunction.

4.
Urinary protein, k chain, λ chain, and k/λ ratio within the normal range.

5.
Cardiac MRI to exclude cardiac amyloidosis.

Through literature review, we have learned that nasopharyngeal amyloidoma is a benign disease, but its course typically presents as a chronic and aggressive mass, resulting in clinical symptoms such as nasal congestion and dysphagia. Early surgical resection of the complete mass can yield significant benefits. However, in the small number of patients who relapse after resection, we have found that incomplete resection of the mass may lead to recurrence in the short term, and even after complete resection, there are still cases of recurrence during long-term follow-up. Furthermore, there is a possibility that the disease may progress to systemic amyloidosis.
Although no tumor recurrence or progression was observed in the three patients who underwent surgical resection combined with chemotherapy or radiotherapy during the 6-month to 1-year follow-up period, the prognostic effect of surgical combined chemotherapy or radiotherapy remains unclear due to the limited number of cases and short follow-up time. Further research is necessary to establish the effectiveness of combined therapy. Similarly, one patient who received radiotherapy alone showed no recurrence or progression of the mass after 3 months of follow-up, but more cases and longer follow-up times are needed to determine the efficacy of radiotherapy alone. In patients who do not receive any treatment, nasopharyngeal amyloidoma may progress to systemic amyloidosis or develop into an unresectable mass during long-term follow-up in some cases.
Among the 17 cases with amyloid type mentioned, 9 patients underwent complete tumor resection, 2 patients (1 case of AL type and 1 case of AA type) received chemotherapy combined with surgical resection, and 1 patient with AL type amyloidosis received radiotherapy alone. These twelve patients had no recurrence or progression at known follow-up records. Further research is needed to determine the effects of chemotherapy and radiotherapy for different types of amyloid.
Currently, surgery is the main treatment for nasopharyngeal amyloidoma, but due to the tumor's location, some postoperative patients experience dysfunction. Thus, amyloid typing may be necessary for local amyloidoma, and identifying the type of protein is essential for potential drug treatment, which may lead to a better prognosis for patients with nasopharyngeal amyloidoma. Besides, amyloid typing is also crucial when suspecting systemic disease. In clinical practice, immunohistochemistry and mass spectrometry are the most commonly used methods for detecting amyloid protein types, allowing for accurate identification and quantification of these proteins.
In summary, complete resection of the tumor is essential, and long-term follow-up is necessary after surgery to detect any tumor recurrence or progression in a timely manner, allowing for early treatment. In addition, we need more case evidence and longer follow-up time to verify the effect of surgery combined with chemotherapy or radiotherapy.

Conclusions

Nasopharyngeal amyloidoma is a rare and distinctive solid tumor. Despite being benign, it is characterized by chronic and aggressive growth and has the potential to progress to systemic amyloidosis, affecting various organs throughout the body. The majority of individuals affected are adults over the age of 40. Early clinical and pathological diagnosis is crucial, and surgical intervention is the primary treatment option for this disease, which typically has a favorable prognosis. Long-term monitoring is necessary to detect potential relapses and initiate timely intervention.

Acknowledgements

This work was supported by the Guangzhou Science and Technology Project (202102010156), Guangdong Province, China and the China Postdoctoral Science Foundation (2022M713568).

Declarations

Conflict of interest

The authors declare that they have no known competing financial interests or personal relationships that could have appeared to influence the work reported in this paper.
Open Access This article is licensed under a Creative Commons Attribution 4.0 International License, which permits use, sharing, adaptation, distribution and reproduction in any medium or format, as long as you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons licence, and indicate if changes were made. The images or other third party material in this article are included in the article's Creative Commons licence, unless indicated otherwise in a credit line to the material. If material is not included in the article's Creative Commons licence and your intended use is not permitted by statutory regulation or exceeds the permitted use, you will need to obtain permission directly from the copyright holder. To view a copy of this licence, visit http://creativecommons.org/licenses/by/4.0/.

Publisher's Note

Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.
download
DOWNLOAD
print
DRUCKEN
Titel
Nasopharyngeal amyloidoma: report of three cases and review of the literature
Verfasst von
Wangsheng Zuo
Yu Du
Jian-ning Chen
Publikationsdatum
01.07.2024
Verlag
Springer Berlin Heidelberg
Erschienen in
Journal of Cancer Research and Clinical Oncology / Ausgabe 7/2024
Print ISSN: 0171-5216
Elektronische ISSN: 1432-1335
DOI
https://doi.org/10.1007/s00432-024-05873-5
Zurück zum Zitat Álvarez-Marimon E, Castillo-Michel H, Reyes-Herrera J, Seira J, Aso E, Carmona M, Ferrer I, Cladera J, Benseny- Cases N (2021) Synchrotron X-ray Fluorescence and FTIR Signatures for Amyloid Fibrillary and Nonfibrillary Plaques. ACS Chem Neurosci Jun 2;12(11):1961–1971
Zurück zum Zitat Chen CH, Sun CH (2019) Multifocal head and neck amyloidosis as a diagnostic clue of systemic lupus erythematosus (SLE): a case report. Medicine (baltimore) 98(35):e16830PubMedCrossRef
Zurück zum Zitat Chen YS, Li WY, Ho CY (2010) Localized nasopharyngeal amyloidosis. J Chin Med Assoc 73(10):549–552PubMedCrossRef
Zurück zum Zitat Cheng KJ, Wang SQ, Lin S (2009) Localized amyloidosis concurrently involving the nasopharynx, larynx and nasal cavities: a case report. Zhonghua Er Bi Yan Hou Tou Jing Wai Ke Za Zhi 44(10):875–876PubMed
Zurück zum Zitat Chowsilpa S, Chaiyasate S, Wannasai K, Daroontum T (2018) Localised nasopharyngeal amyloidosis: the importance of postoperative follow-up. BMJ Case Rep Feb 14:bcr2017222067
Zurück zum Zitat Crosetti E, Manca A, Maldi E, Succo G (2021) A rare nasopharyngeal presentation of amyloidosis. Ear Nose Throat J 100(8):562–565PubMedCrossRef
Zurück zum Zitat Desai SS et al (2021) Amyloidoma: a review and case report. Skeletal Radiol 50(2):437–444PubMedCrossRef
Zurück zum Zitat Deshayes S, Aouba A, Grateau G, Georgin-Lavialle S (2021) Infections and AA amyloidosis: An overview. Int J Clin Pract Jun;75(6):e13966
Zurück zum Zitat Domínguez S et al (1996) Primary localized nasopharyngeal amyloidosis. A case report. Int J Pediatr Otorhinolaryngol 36(1):61–67PubMedCrossRef
Zurück zum Zitat Durbec M et al (2012) Localized nasopharyngeal amyloidosis. Eur Ann Otorhinolaryngol Head Neck Dis 129(3):160–162PubMedCrossRef
Zurück zum Zitat Elghetany MT, Saleem A, Barr K (1989) The congo red stain revisited. Ann Clin Lab Sci 19(3):190–195PubMed
Zurück zum Zitat Feng Y, Li M, Liu D, Du Y, Li L, Gong L (2022) Amyloidosis in the nasopharynx and larynx: a case report. J Int Med Res Dec;50(12):3000605221144151
Zurück zum Zitat Gandhi D, Wee R, Goyal M (2003) CT and MR imaging of intracerebral amyloidoma: case report and review of the literature. AJNR Am J Neuroradiol 24(3):519–522PubMedPubMedCentral
Zurück zum Zitat Geller E, Freitag SK, Laver NV (2011) Localized nasopharyngeal amyloidosis causing bilateral nasolacrimal duct obstruction. Ophthalmic Plast Reconstr Surg 27(3):e64–e67PubMedCrossRef
Zurück zum Zitat George J et al (2022) Localized nasopharyngeal amyloidosis: a case report. Radiol Case Rep 17(12):4506–4509PubMedPubMedCentralCrossRef
Zurück zum Zitat Goldsbury C et al (2011) Amyloid structure and assembly: insights from scanning transmission electron microscopy. J Struct Biol 173(1):1–13PubMedCrossRef
Zurück zum Zitat Gomes S et al (2023) Amyloidosis localized to the sinonasal tract: from the diagnosis to management of disease. Cureus 15(1):e33480PubMedPubMedCentral
Zurück zum Zitat Hall J et al (2022) Treatment of localized amyloid light chain amyloidosis with external beam radiation therapy. Pract Radiat Oncol 12(6):504–510PubMedCrossRef
Zurück zum Zitat Hazenberg BP (2013) Amyloidosis: a clinical overview. Rheum Dis Clin North Am 39(2):323–345PubMedCrossRef
Zurück zum Zitat Hegarty JL, Rao VM (1993) Amyloidoma of the nasopharynx: CT and MR findings. AJNR Am J Neuroradiol 14(1):215–218PubMedPubMedCentral
Zurück zum Zitat Jamarun SA, Wong EHC (2022) Primary nasopharyngeal amyloidosis with nasal polyposis: case report of a diagnostic challenge. Int J Surg Case Rep 94:107056PubMedPubMedCentralCrossRef
Zurück zum Zitat Jamshidi P, Levi J, Suarez MJ, Rivera R, Mahoney N, Eberhart CG, Rosenberg A, Rodriguez FJ (2022) Clinicopathologic and proteomic analysis of amyloidomas involving the ocular surface and adnexa. Am J Clin Pathol 157(4):620–627PubMedCrossRef
Zurück zum Zitat Karimi K, Chheda NN (2010) Nasopharyngeal amyloidosis: a case report. Laryngoscope 120(Suppl 4):S197PubMed
Zurück zum Zitat Kim JS, Kwon SH (2017) Localized nasopharyngeal amyloidosis mimicking malignancy: a case report. Medicine (baltimore) 96(30):e7615PubMedCrossRef
Zurück zum Zitat Kumar B et al (2016) Sinonasal globular amyloidosis simulating malignancy: a rare presentation. Head Neck Pathol 10(3):379–383PubMedPubMedCentralCrossRef
Zurück zum Zitat Lim JS, Lebowitz RA, Jacobs JB (1999) Primary amyloidosis presenting as a nasopharyngeal mass. Am J Rhinol 13(3):209–212PubMedCrossRef
Zurück zum Zitat Luo M et al (2016) Intensity-modulated radiotherapy for localized nasopharyngeal amyloidosis : Case report and literature review. Strahlenther Onkol 192(12):944–950PubMedCrossRef
Zurück zum Zitat Mirza AH, El-Shunnar S, Sama A (2013) Nasopharyngeal amyloidosis: an unusual cause of unilateral hearing loss. J Surg Case Rep 2013 10(2):rjs048PubMedPubMedCentralCrossRef
Zurück zum Zitat Motosugi U et al (2007) Localized nasopharyngeal amyloidosis with remarkable early enhancement on dynamic contrast-enhanced MR imaging. Eur Radiol 17(3):852–853PubMedCrossRef
Zurück zum Zitat Panda NK et al (1994) Localized amyloidosis of the nasopharynx. Ear Nose Throat J 73(5):335–336PubMedCrossRef
Zurück zum Zitat Panda NK et al (2007) Localized amyloidosis masquerading as nasopharyngeal tumor: a review. Am J Otolaryngol 28(3):208–211PubMedCrossRef
Zurück zum Zitat Patel A, Pambuccian S, Maisel R (2002) Nasopharyngeal amyloidosis. Am J Otolaryngol 23(5):308–311PubMedCrossRef
Zurück zum Zitat Picken MM (2020) The pathology of amyloidosis in classification: a review. Acta Haematol 143(4):322–334PubMedCrossRef
Zurück zum Zitat Pitkäranta A, Malmberg H (2000) Localized amyloid tumor of the nasopharynx. Otolaryngol Head Neck Surg 122(2):309–310PubMedCrossRef
Zurück zum Zitat Rekhtina IG, Khyshova VA, Zozulya NI, Dvirnyk VN, Mendeleyeva LP (2023) Hemostasis disorders in patients with systemic AL-amyloidosis. Ter Arkh 95(9):746–750. (Russian)PubMed
Zurück zum Zitat Riehani A, Soubani AO (2023) The spectrum of pulmonary amyloidosis. Respir Med 218:107407PubMedCrossRef
Zurück zum Zitat Sakagiannis G, Giotakis E, Thompson LDR (2018) Localized nasopharyngeal amyloidosis: a clinicopathologic series of 7 cases with a literature review. Head Neck Pathol 12(4):542–547PubMedCrossRef
Zurück zum Zitat Simpson GT 2nd et al (1984) Localized amyloidosis of the head and neck and upper aerodigestive and lower respiratory tracts. Ann Otol Rhinol Laryngol 93(4 Pt 1):374–379PubMedCrossRef
Zurück zum Zitat Sipe JD, Cohen AS (2000) Review: history of the amyloid fibril. J Struct Biol 130(2–3):88–98PubMedCrossRef
Zurück zum Zitat Susanibar-Adaniya S et al (2017) Nasopharyngeal amyloidoma with osteolytic lesions leading to diagnosis of systemic light-chain amyloidosis. Clin Case Rep 5(6):812–815PubMedPubMedCentralCrossRef
Zurück zum Zitat Wahid NW et al (2019) Localized sinonasal amyloidosis. Allergy Rhinol (providence) 10:2152656719860821PubMedPubMedCentralCrossRef
Zurück zum Zitat Wechalekar AD, Gillmore JD, Hawkins PN (2016) Systemic amyloidosis. Lancet 387(10038):2641–2654PubMedCrossRef
Zurück zum Zitat Wisniowski B, Wechalekar A (2020) Confirming the diagnosis of amyloidosis. Acta Haematol 143(4):312–321PubMedCrossRef
Zurück zum Zitat Wu AY et al (2011) Bifocal orbital and nasopharyngeal amyloidomas presenting as Graves disease. Ophthalmic Plast Reconstr Surg 27(5):e132–e134PubMedCrossRef
Zurück zum Zitat Yerasi VR, Padhy BP, Hari R (2022) Amyloidoma presenting as compressive myelopathy. J Assoc Physicians India 70(12):11–12PubMed
Zurück zum Zitat Zhuang YL, Tsai TL, Lin CZ (2005) Localized amyloid deposition in the nasopharynx and neck, mimicking nasopharyngeal carcinoma with neck metastasis. J Chin Med Assoc 68(3):142–145PubMedCrossRef

Neu im Fachgebiet Onkologie

Was wächst diesmal Unterkiefer?

Eine 31-jährige, ansonsten gesunde Frau stellte sich in der Kopf- und Halschirurgie mit einer progredient zunehmenden Raumforderung im linken Unterkieferbereich vor. In der Vorgeschichte war ein pleomorphes Adenom reseziert worden. Worum könnte es sich dieses Mal handeln?

Erhöhte Sterblichkeit bei Brustkrebs durch genetisches BMI-Risiko

Bei postmenopausalen Brustkrebspatientinnen ist ein hoher genetischer Risikoscore für Adipositas mit einer erhöhten Gesamtmortalität assoziiert. Die gute Nachricht: Regelmäßige Spaziergänge können dieses Risiko abmildern.

Vorteile für risikobasiertes Mammakarzinom-Screening?

Mehr verhinderte Brustkrebstodesfälle, weniger falsch positive Wiedereinbestellungen – geht es nach einer US-Simulationsstudie, bieten bestimmte Strategien zur Früherkennung, die das absolute 5-Jahres-Mammakarzinomsrisiko berücksichtigen, Vorteile gegenüber rein altersbasierten Mammografieprogrammen.

Positiver Schnittrand bei Prostatektomie: Ausdehnung ist prognoserelevant

Ob der Nachweis von positiven Schnitträndern nach radikaler Prostatektomie mittelfristig mit einem erhöhten Risiko für biochemische Rezidive und für Metastasen einhergeht, hängt auch von der Ausdehnung des Randbefalls ab.

Update Onkologie

Bestellen Sie unseren Fach-Newsletter und bleiben Sie gut informiert.

Bildnachweise
Tonsillektomie Operation/© ShvedKristina - stock.adobe.com (Symbolbild mit Fotomodellen), Ältere Frau beim Nordic Walking/© ratmaner / stock.adobe.com (Symbolbild mit Fotomodell), Ärztin betrachtet Mammografie-Befund/© Gorodenkoff / stock.adobe.com (Symbolbild mit Fotomodellen)
