Nuclear β-catenin and CD44 upregulation characterize invasive cell populations in non-aggressive MCF-7 breast cancer cells

Human breast cancer cell line MCF-7 was obtained from the Institute of Development, Aging and Cancer, Tohoku University. MDA-MB-231 was purchased from the American Type Culture Collection. Both cell lines were maintained in RPMI 1640 (Sigma-Aldrich, St. Louis, MO) containing 10% fetal bovine serum (FBS) and an antibiotic-antimycotic.

BD BioCoat Matrigel Invasion Chambers (for a 6-well plate; BD Biosciences, San Jose, CA) were used to select invasive populations from MCF-7 cells. MCF-7 cell suspension (4 × 10⁵ cells/well) in serum-free RPMI1640 was seeded into the upper chamber. After 60 hours' cultivation, cells that migrated through the membrane (named MCF-7-1) were harvested by trypsinization, proliferated on a dish, and then reseeded in a Matrigel Invasion Chamber. The cycle was repeated 14 times, and finally MCF-7-14 cells were obtained. In each cycle, invading cells on the underside of the chamber were fixed with 10% formalin-neutralized buffer, stained with 0.1% crystal violet, and imaged through a microscope (Axiovert 200M; Carl Zeiss, Jena, Germany) with a CCD camera (AxioCam; Carl Zeiss).

MCF-7 and MCF-7-14 cells (5 × 10³ cells/well) were seeded into 96-well plates and cultured. The cells were counted at 24, 48, 72 and 96 h with a Cell Counting Kit-8 (MTT assay; Wako Pure Chemical Industries, Osaka, Japan).

Cell protein lysates were prepared from confluent cell cultures of MCF-7 and MCF-7-14 cells, subjected to SDS-PAGE, and transferred to PVDF membranes. The membranes were blocked (5% skim milk) and incubated with rat anti-human epidermal growth factor receptor 2, HER-2 (GeneTex, Irvine, CA) and mouse anti-estrogen receptor alpha, ER-α (Stressgen/Assay Designs, Ann Arbor, MI) monoclonal antibodies (mAbs), followed by the corresponding HRP-conjugated secondary antibody (GE Healthcare, Piscataway, NJ). Antibody complexes were detected with the ECL detection system (GE Healthcare).

Animal experiments were performed in accordance with the Guidelines of the Japanese Government for the Care and Use of Laboratory Animals and approved by the Institutional Animal Care and Use Committee at Tokyo University of Science and the Ethics Committee of Bio Matrix Research Inc. MCF-7 and MCF-7-14 cells were transfected with pEGFP-C1 (encoding the enhanced green fluorescence protein, EGFP; Clontech Laboratories, Mountain View, CA) using Fugene 6 Transfection Reagent (Roche, Basel, Switzerland) in serum-free medium. MCF-7 and MCF-7-14 cells stably transfected with pEGFP-C1 (named MCF-7-EGFP and MCF-7-14-EGFP, respectively) were selected by G418 treatment (500 μg/ml) for 3 weeks. Suspensions of MCF-7-EGFP and MCF-7-14-EGFP cells (1 × 10⁶ cells/50 μl) were mixed with the same volume of Matrigel, and injected into the fourth mammary fat pad of 10-week-old female BALB/cJ/nu/nu mice.

Xenografts and metastatic lesions were rapidly frozen, and 6 μm thick sections were cut on a cryostat. The sections were analyzed by hematoxylin/eosin (HE) and methyl green pyronin (MGP) staining, or unstained sections were analyzed for EGFP fluorescence. For immunostaining epithelial and mesenchymal markers, mouse anti-cytokeratin (CK) 19 (A53-B/A2; 1:50 dilution; Santa Cruz Biotechnology, Santa Cruz, CA), anti-E-cadherin (67A4; 1:25; Santa Cruz Biotechnology) and anti-vimentin (V9; 1:150; Dako, Glostrup, Denmark) mAbs were used. Briefly, frozen sections were treated with 3% H₂O₂ for 10 min and 5% skim milk in Tris-buffered saline with 0.2% Triton-X for 1 h. Primary antibodies were applied for 1 h at room temperature. Subsequently, the sections were incubated with Simple Stain Mouse MAX PO (Nichirei Biosciences, Tokyo, Japan) or Alexa Fluor 488-conjugated goat anti-mouse IgG (1:200; Molecular Probes, Invitrogen, Carlsbad, CA) at room temperature. Diaminobenzidine (DAB) with 0.1% H₂O₂ (Dako) was used as the final chromogen and hematoxylin for nuclear counterstaining in immunohistochemistry. In immunofluorescence, cell nuclei were counterstained with 4', 6-diamidino-2-phenylindole (DAPI). Immunostaining of the endothelial marker, CD31, was performed with rat anti-mouse CD31 mAb (MEC 13.3; 1:50; BD Biosciences) and HRP-linked goat anti-rat IgG F(ab')2 fragment (1:200; Amersham ECL, GE Healthcare). Microscopic images were acquired using an Axiovert 200 M equipped with an AxioCam and analyzed by AxioVision software (Carl Zeiss).

MCF-7, MCF-7-14 and MDA-MB-231 cells were plated on coverslips and fixed with 4% paraformaldehyde/phosphate-buffered saline (PBS) for 15 min and permeabilized with 0.1% Triton X-100 in PBS for 2 min, and then incubated in PBS containing 5% skim milk for 1 h at room temperature. Cells were incubated with anti-E-cadherin (1:100), anti-β-catenin (8E7; 1:100; Upstate Biotechnology/Millipore, Billerica, MA), anti-vimentin (1:300) and anti-fibronectin (clone 10; 1:200; BD Biosciences) mAbs for 1 h at room temperature, followed by incubation with Alexa Fluor 488-conjugated goat anti-mouse IgG (1:200-1:1000) and nuclear counterstaining with DAPI.

MCF-7, MCF-7-14 and MDA-MB-231 cells were synchronized in S-phase with the thymidine-hydroxyurea block method. Total RNA was isolated from cells arrested in S-phase using an RNeasy Mini kit (Qiagen, Hilden, Germany).

Using GeneSpring GX 7.3.1 software (Agilent Technologies, Santa Clara, CA), microarray data of each chip were normalized to the 50^th percentile of the measurements on that chip. For per-gene normalization, the measurements of each probe were normalized to the median of the measurements of that probe in MCF-7, MCF-7-14 and MDA-MB-231 cell lines. Average linkage hierarchical clustering was carried out on genes filtered on detection flags ("present" in two or more cell lines) and signal intensity (>50 in all cell lines). To identify potentially important differences in biological mechanisms regarding their invasive potential, genes up- or down-regulated >2-fold in both MCF-7-14 and MDA-MB-231 cells compared with MCF-7 cells were selected from the filtered genes. Ingenuity Pathway Analysis software (IPA 5.0; Ingenuity Systems, Redwood City, CA) was also utilized to identify the top significant canonical pathways for these selected genes and to functionally link the most differentially expressed genes.

cDNA was synthesized from 2 μg total RNA using SuperScript III reverse transcriptase (Invitrogen). Reverse transcription (RT) was run for 1 h at 50°C and stopped by heating for 5 min at 85°C. PCR was conducted in a 7900HT Fast Real-Time PCR System (Applied Biosystems, Foster City, CA). A 10 μl reaction containing 0.2 μl cDNA, 0.5 μM of each primer and 2.5 μl Power SYBR Green PCR Master Mix (Applied Biosystems) was used to monitor double-strand DNA synthesis. Primer sequences are provided in Additional file 1. Quantitative RT-PCR (qRT-PCR) was carried out following the recommended thermal profile: 95°C for 10 min (pre-incubation) followed by 40 cycles of 95°C for 15 sec (denaturation) and 60°C for 1 min (annealing and elongation). Fluorescence intensity of the amplified products was measured at the end of each PCR cycle. Two runs were performed with each data point run in triplicate. Results were normalized to internal control GAPDH mRNA and if necessary, represented relative to mRNA levels of MCF-7 cells.

MCF-7 and MCF-7-14 cells were plated on 96-well plates at a concentration of a single cell per well, which was confirmed visually. Wells containing either none or more than one cell were excluded from further analysis. Single-cell clones were cultured to allow the growth of individual colonies, which were picked and expanded in culture, and analyzed by Matrigel invasion assay and flow cytometry.

Three human breast cancer cell lines, MCF-7, MCF-7-14 and MDA-MB-231, and single-cell clones derived from the MCF-7 and MCF-7-14 cell lines were used in flow cytometry analysis. Cells were harvested with TrypLE Express (Invitrogen), and then suspended (2 × 10⁶ cells/100 μl) with Stain Buffer containing 1% FBS (BD Biosciences). Phycoerythrin (PE)-conjugated mAbs against human CD44 (G44-26; BD Biosciences) or CD24 (ML5; BD Biosciences) were added to the cell suspension at the concentrations recommended by the manufacturer and incubated at 4°C in the dark for 60 min. The labeled cells were fixed in 100% methanol on ice for 5 min. Flow cytometry analysis were performed in triplicate using a FACSCalibur system (BD Biosciences).

Cells (1 × 10⁶ cells) were incubated with rat anti-human CD44 mAb (IM7; BD Biosciences) or normal rat IgG at 400 μg/ml for 20 min. After preincubation, a cell proliferation assay, cell migration assay and Matrigel invasion assay were performed. Cell proliferation was assessed by MTT assay. The cell migration assay was performed using an Oris Cell Migration Assay (Platypus Technologies, Madison, WI), which comprises a 96-well plate with silicone stoppers (2 mm diameter) in each well. Following cell seeding and cell attachment (2 × 10⁴ cells), the stoppers were removed and migration proceeded for 72 h. Cells were then stained with crystal violet and imaged through a microscope. Matrigel Invasion Chambers (for a 24-well plate; BD Biosciences) were used to examine cell invasion. Pretreated cells (5 × 10⁴ cells) in serum-free RPMI1640 were seeded into the upper chamber and invading cells were fixed and stained after 60 h cultivation.

Data are the means ± standard deviation (SD). Values were compared between MCF-7 and MCF-7-14 cells and between normal IgG and anti-CD44 mAb using Student's t test. Comparisons among cell lines were made using analysis of variance (ANOVA) and Tukey-Kramer multiple comparison, where appropriate. P < 0.05 was considered significant.

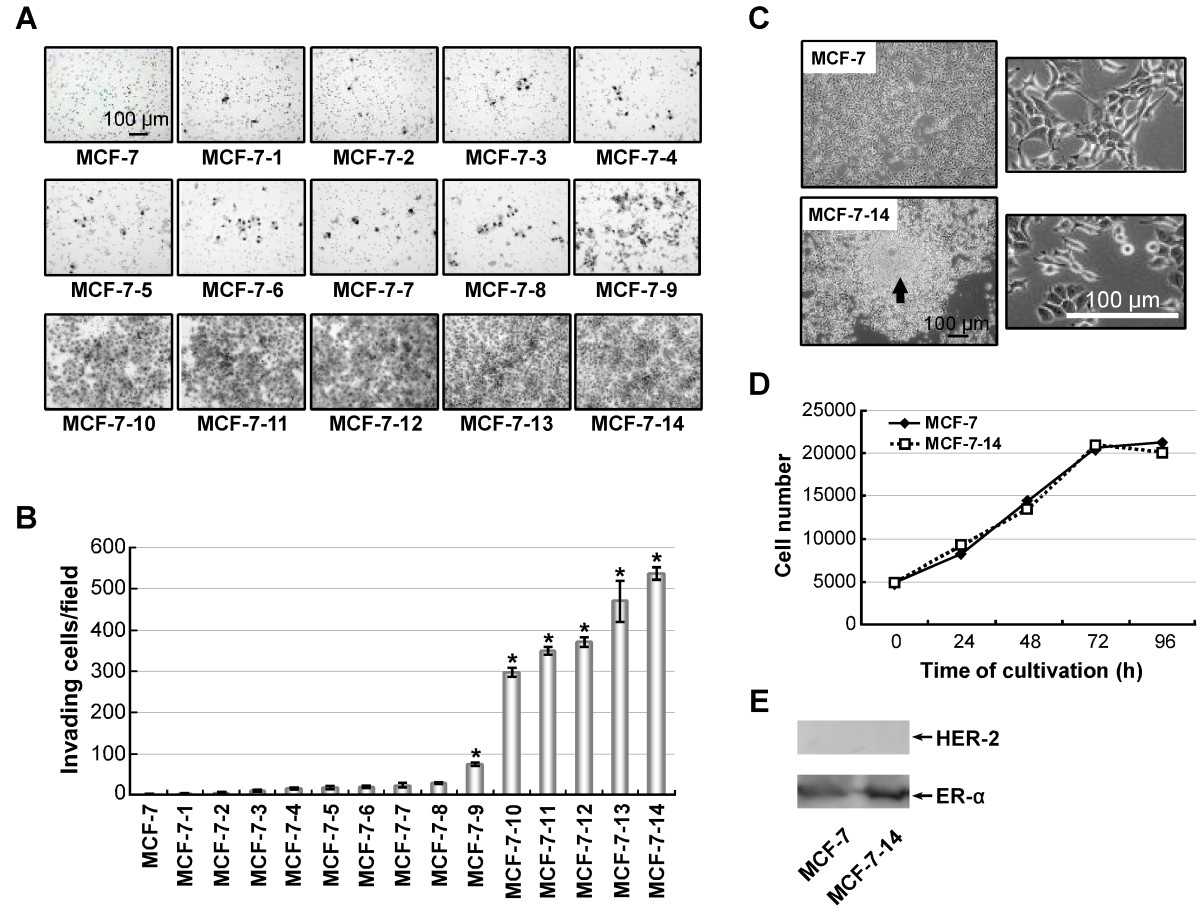

MCF-7 cells were seeded into a Matrigel Invasion Chamber. After 60 hours' cultivation, cells that migrated through the Matrigel membrane (MCF-7-1) were harvested, proliferated on a dish, and then reseeded in a Matrigel Invasion Chamber. Matrigel invasive cells are rare populations within MCF-7 cells. Very few cells migrated through the Matrigel until the 8^th cycle of sequential selection (Figure 1A and 1B); however, after the 9^th cycle, Matrigel invasive cells markedly increased, and finally, through 14 cycles of sequential Matrigel screening, we obtained MCF-7-14 cells with a significantly (P < 0.01) higher proportion of invasive cells than parental MCF-7 cells (Figure 1A and 1B). The selected MCF-7-14 cells in culture were compared with parental MCF-7 cells for morphology and proliferative capacity. MCF-7-14 cells uniquely displayed anchorage-independent growth and formed non-adherent spheres (Figure 1C); however, the proliferative capacity of MCF-7-14 cells was similar to that of parental MCF-7 cells (Figure 1D). In addition, MCF-7-14 cells expressed ER-α but not HER-2, similar to MCF-7 cells (Figure 1E).

Bild vergrößern

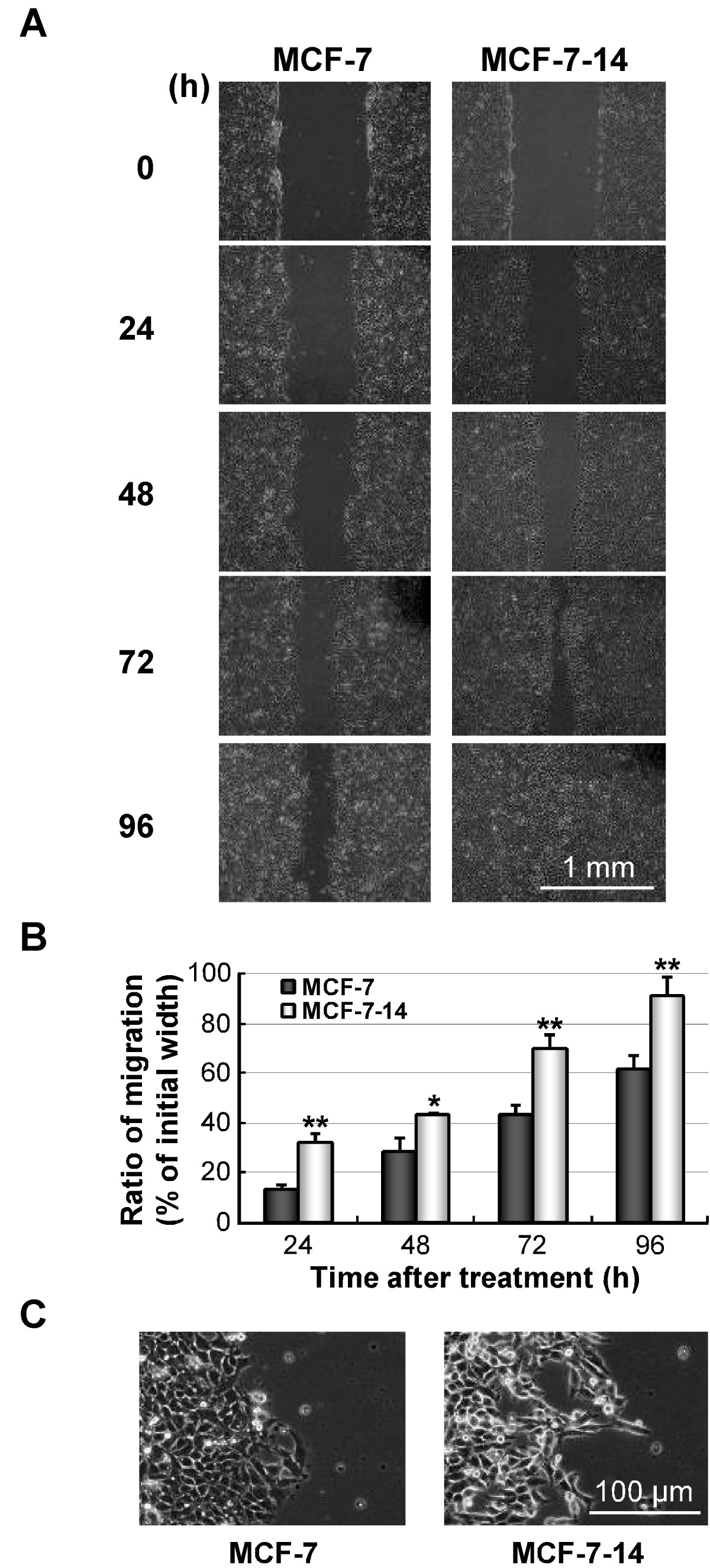

The migratory ability of MCF-7-14 cells was compared with that of parental MCF-7 cells using an in vitro wound healing assay. MCF-7-14 cells displayed significantly more rapid wound closure at all time points (Figure 2A and 2B), tending to protrude into the wound site, compared with MCF-7 cells (Figure 2C). Using a nude mouse orthotopic xenograft model, we assessed the in vivo metastatic ability of MCF-7-14-EGFP cells (Figure 3A). Distant metastases to the pancreas and peritoneum became detectable by fluorescence imaging 4 weeks after implanting MCF-7-14-EGFP cells and appeared in 20% of implanted animals (2/10), whereas no metastatic lesions were detected in MCF-7-EGFP-bearing animals (0/10). Metastasized MCF-7-14-EGFP cells invaded the pancreatic parenchyma, as shown by HE and MGP staining, and expressed EGFP (Figure 3B). In another case, 12 weeks after implantation of MCF-7-14-EGFP cells, pancreas metastasis showed strong stromal and angiogenic responses closely intermingled with metastasized tumor cells, as demonstrated by immunostaining for CD31 (Figure 3C).

Bild vergrößern

Bild vergrößern

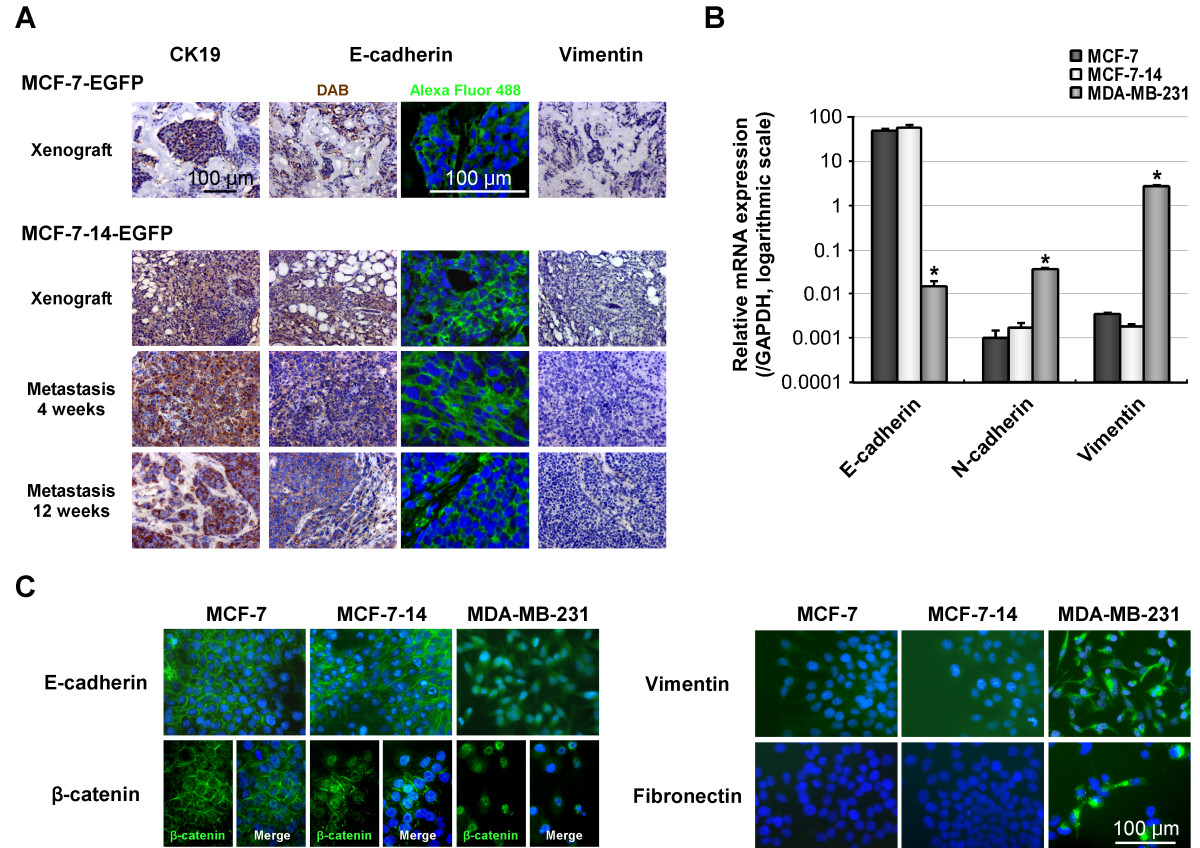

In immunohistochemistry, mammary xenografts and pancreas metastases generated by MCF-7-14-EGFP cells were positive for a luminal epithelial marker, CK 19, and an epithelial marker, E-cadherin, but negative for a mesenchymal marker, vimentin, similarly to MCF-7-EGFP xenografts (Figure 4A). To molecularly characterize MCF-7, MCF-7-14 and MDA-MB-231 cells in more detail, we analyzed mRNA and protein expressions of epithelial and mesenchymal markers related to EMT. The mRNA expression levels of E-cadherin and mesenchymal markers, N-cadherin and vimentin, were similar between MCF-7 and MCF-7-14 cells, while they confirmed that MDA-MB-231 cells had already undergone "complete EMT", defined by loss of epithelial markers and gain of mesenchymal markers (Figure 4B). Immunofluorescence analysis (Figure 4C) showed the localization of E-cadherin in adherent cell-cell junctions in both MCF-7 and MCF-7-14 cells, whereas E-cadherin was not detectable in MDA-MB-231 cells. In MCF-7 cells, immunofluorescence staining of β-catenin was strongly positive on the cell membrane, whereas in MDA-MB-231 cells, β-catenin was mainly expressed in the nucleus. Interestingly, β-catenin was expressed not only on the cell membrane but also in the nucleus in MCF-7-14 cells. Immunofluorescence staining for vimentin and fibronectin demonstrated cytoplasmic localization in MDA-MB-231 cells, although they were detectable in neither MCF-7 nor MCF-7-14 cells.

Bild vergrößern

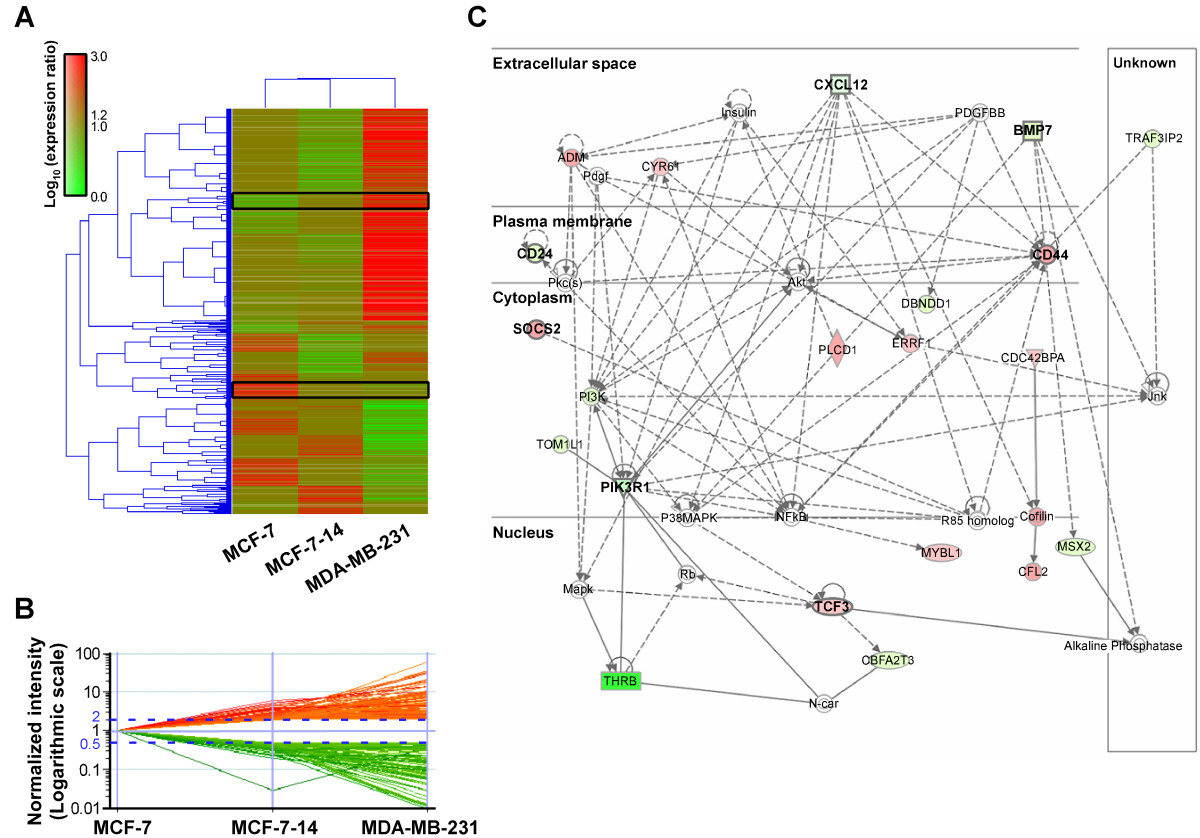

To identify genes associated with the invasive phenotype of breast cancer cells, we performed DNA microarray analysis and compared gene expression profiles among MCF-7, MCF-7-14 and MDA-MB-231 cells; 13,092 probe sets were detected in all samples. Hierarchical clustering based on informative probe sets showed that the MCF-7-14 cell gene expression profile was more similar to that of MCF-7 cells than MDA-MB-231 cells; however, there were some similarities between MCF-7-14 and MDA-MB-231 cells in gene expression (Figure 5A). Regarding their invasive potential, we selected 163 probe sets corresponding to 144 unique genes upregulated (76 probe sets, Additional file 2) or downregulated (87 probe sets, Additional file 3) >2-fold in both MCF-7-14 and MDA-MB-231 cells compared with MCF-7 cells from the filtered genes (Figure 5B).

Bild vergrößern

To assess the relevance of the 163 probe sets to previously defined signaling pathways, canonical pathway analysis was performed using IPA 5.0. Table 1 shows the top 16 signaling pathways for the selected genes. Some of these signaling pathways were involved in regulating cell migration and stem cell function. In this analysis, many of the selected genes involved in the top canonical pathways were multiple-mapped genes (9 genes, 74%; Table 1). Considering the general notion that cancer metastasis is a result of multifactorial crosstalk between different molecular pathways, we generated significant functional association networks in invasive cells (see Additional file 4). The network with the highest score (Figure 5C) was constructed relating to DNA replication, recombination and repair, cell cycle, and cancer. Of note, six multiple-mapped genes (PIK3R1, SOCS2, BMP7, CXCL12, CD44 and TCF3; Table 1) were mapped on the most significant network (Figure 5C). These genes were thought to be highly associated with the migratory and invasive phenotype.

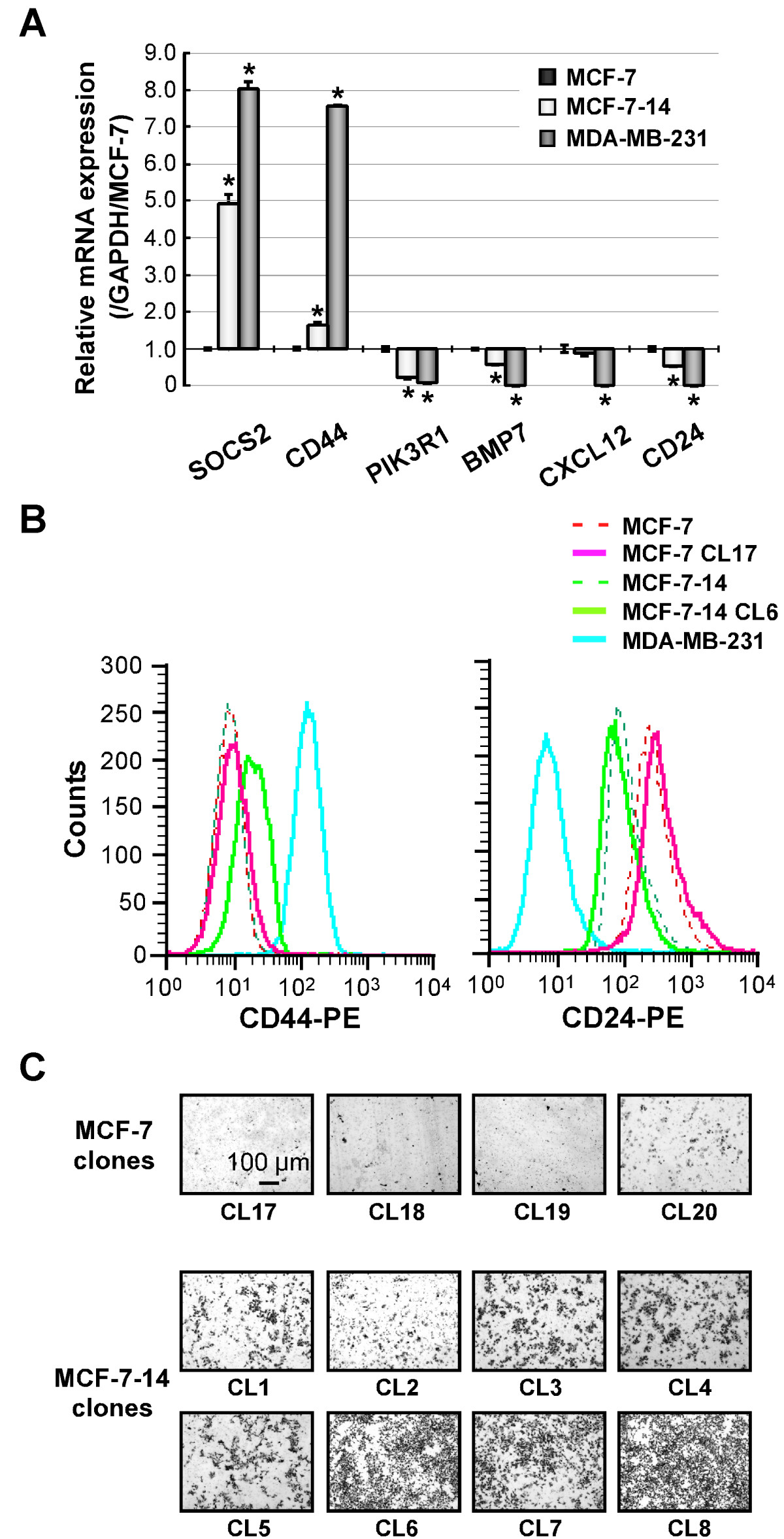

Selected interesting genes (PIK3R1, SOCS2, BMP7, CXCL12, CD44 and CD24) were evaluated by qRT-PCR using total RNA from MCF-7, MCF-7-14 and MDA-MB-231 cells. The mRNA expression levels of SOCS2 and CD44 were significantly (P < 0.01) higher in both MCF-7-14 and MDA-MB-231 cells than in MCF-7 cells. In contrast, PIK3R1, BMP7 and CD24 were significantly (P < 0.01) downregulated in MCF-7-14 and MDA-MB-231 cells (Figure 6A); however, MCF-7-14 cells showed a lower degree of upregulation or downregulation than MDA-MB-231 cells. CXCL12 mRNA expression was similar between MCF-7 and MCF-7-14 cells, although it was significantly (P < 0.01) downregulated in MDA-MB-231 cells. Furthermore, the protein expression levels of CD44 and CD24 were analyzed by flow cytometry. MCF-7 cells expressed low levels of CD44 and high levels of CD24, whereas MDA-MB-231 cells expressed high levels of CD44 and low levels of CD24 (Figure 6B), consistent with the results of qRT-PCR; however, MCF-7-14 cells showed similar levels of CD44 protein expression to MCF-7 cells (Figure 6B, left panel). Thus, single-cell clones were obtained from MCF-7 and MCF-7-14 cells, and analyzed by Matrigel invasion assay and flow cytometry. Single-cell clones derived from MCF-7-14 cells had varying invasive abilities (Figure 6C). The highly invasive cell clone (MCF-7-14 CL6, Figure 6C) displayed a higher expression of CD44 than MCF-7 and its non-invasive clone cells (Figure 6B, left panel). CD24 protein was downregulated in both MCF-7-14 and CL6 cells, compared with MCF-7 and CL17 cells (Figure 6B, right panel). Therefore, these results raise the possibility that alterations in the expression levels of genes selected by pathway and network analysis, including expression patterns of CD44 and CD24, may be accompanied by the acquisition of invasive potential in MCF-7-14 cells.

Bild vergrößern

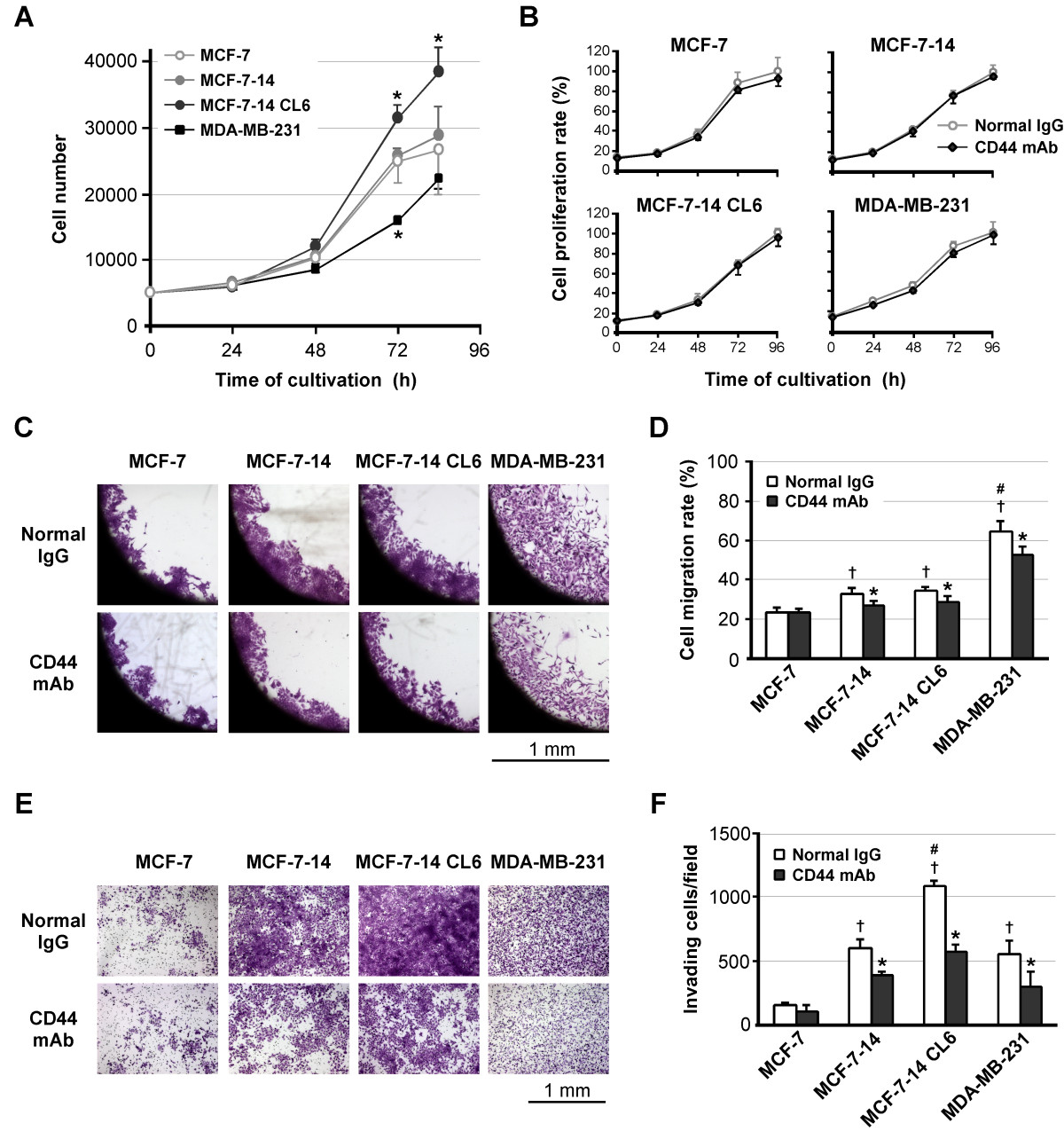

To clarify whether CD44 positively goes hand in hand with increased invasiveness, we examined the effects of anti-CD44 mAb on cell proliferation, migration and invasion. In the cell proliferation assay in the absence of antibodies (Figure 7A), whereas MCF-7-14, similar to MCF-7 cells, reached a plateau after 72 h, MCF-7-14 CL6 cells did not show a plateau phase, but rather continued to grow at a higher growth rate than MCF-7 and MCF-7-14 cells. On the other hand, MDA-MB-231 cells showed slower growth, but reached the same level as MCF-7 cells by the end of the assay. Despite the differences in the growth rate, preincubation with anti-CD44 mAb had no significant effect on cell proliferation in all cell lines tested, compared with treatment with normal IgG (Figure 7B). In the cell migration assay, MCF-7-14 and its clone CL6 cells migrated as a sheet, whereas MDA-MB-231 cells migrated more rapidly and more individually (Figure 7C). In addition to the difference in the method of cell migration, the CD44 expression level differs between these cells; nevertheless, anti-CD44-mAb significantly (P < 0.01) decreased cell migration in both MCF-7-14 and MCF-7-14 CL6 cells as well as MDA-MB-231 cells (Figure 7C and 7D). Anti-CD44-mAb also significantly (P < 0.01) inhibited cell invasion in these cells, although MCF-7-14 CL6 cells had a significantly higher number of invading cells than MCF-7-14 and MDA-MB-231 cells, differently from the results of the cell migration assay (Figure 7E and 7F).

Bild vergrößern

We obtained MCF-7-14 cells that had a significantly higher proportion of invasive cells throughout the in vitro sequential selection process, although parental MCF-7 cells had few Matrigel invasive cells. In addition, we demonstrated that EGFP-labeled MCF-7-14 cells metastasized to the pancreas and peritoneum in a xenograft model. In mouse orthotopic xenograft models of breast cancer, the pancreas seems to be a relatively common metastatic site. When injected into the mammary fat pad of nude mice, N-cadherin-expressing cells, but not control MCF-7 cells, metastasized to the liver, pancreas, salivary gland, omentum, lung, lymph nodes, and lumbar spinal muscle [11]. Murine 4T1 mammary cancer cells (expressing the pcDNA-Neo expression vector as a control; 4T1-Neo cells) implanted into the axillary mammary gland of BALB/c mice metastasized to the mesentery adjacent to the pancreas [12]. Despite differences in invasive ability, MCF-7-14 cells, similar to MCF-7 cells, expressed E-cadherin, but neither vimentin nor fibronectin. In the cell migration assay, MCF-7-14 and its clone CL6 cells moved as a sheet, in contrast to the more individual movements of mesenchymal MDA-MB-231 cells. Cell-sheet movement is a typical feature of epithelial cells during embryonic development and wound healing [13]; therefore, MCF-7-14 cells may be a novel model for breast cancer metastasis without requiring constitutive EMT. Complete and constitutive EMT seems not to be required for breast cancer metastasis [1, 14, 15]. In particular, Lou et al. [16] reported that 4T1 cells, which express E-cadherin and ZO-1, are migratory, invasive, and metastasize to multiple sites, and that 4T1-derived (67NR) cells, which form primary tumors but fail to metastasize, express vimentin and N-cadherin, but not E-cadherin. The metastatic ability of breast cancer cells does not seem to strictly correlate with the genotypic and phenotypic properties of EMT per se. In addition, Tarin et al. [17] suggested that the fundamental premise that EMT occurs in real cancers is very much in doubt because of the lack of convincing evidence for the conversion of epithelial cells into mesenchymal cell lineages in vivo; however, it is possible that MCF-7 and MCF-7-14 cells can make transient EMT in vitro in a reversible fashion. For example, estrogen treatment promoted reversible EMT-like changes and collective motility in ER-positive breast cancer cells [18]. The transitory acquisition of mesenchymal characteristics could explain the difficulty in observing EMT in cancer development.

On the other hand, loss of E-cadherin-β-catenin complex is an important step in the progression of many epithelial malignancies [19]. β-catenin has a dual role in the EMT; it enhances cell-cell adhesion when bound to cadherin complexes in adherens junctions and also functions as a transcriptional coactivator upon entry into the nucleus [20]. Nuclear import of β-catenin is another important player in EMT [21, 22]. Indeed, in MDA-MB-231 cells, β-catenin was mainly located in the nucleus, whereas in MCF-7 cells, β-catenin was mostly expressed on the cell membrane. Nuclear β-catenin induces a gene expression pattern favoring tumor invasion and proceeds with transition to the mesenchymal phenotype of epithelial tumor cells [23]. In MCF-7-14 cells, β-catenin was expressed not only on the cell membrane but also in the nucleus; therefore, enhanced invasive potential of MCF-7-14 cells may result from "incomplete" EMT, altering some signaling pathways. Several studies [24, 25] have identified a hybrid cell showing both epithelial and mesenchymal traits. These cells are referred to as a "metastable phenotype" and distinguished from both epithelial and mesenchymal cells by characteristics such as residual E-cadherin, nuclear β-catenin and sheet movement [13, 26]. According to this categorization, MCF-7-14 cells may be just in a "metastable" cell state.

Here we analyzed which signaling pathways are associated with the enhanced migratory and invasive potential of MCF-7-14 cells. Canonical pathway analysis using IPA 5.0 identified the top 16 signaling pathways for differentially expressed genes in invasive cells. Some of these signaling pathways are involved in regulating cell migration. JAK/STAT (Janus kinase/signal transducer and activator of transcription) signaling is necessary for border cell migration in the Drosophila ovary, suggesting its relevance to the progression of cancer [27]. Axon guidance molecules and neuregulin signaling play critical roles in cancer cell invasion as well as in neuronal migration [28, 29]. In addition, leukocytes exhibit the ability to sense and move in the direction of a chemoattractant [30]. Acute-phase response signaling modifies inflammatory responses, thereby contributing to leukocyte extravasation [31]. Directed cell movement or chemotaxis is exhibited during wound healing, angiogenesis, embryonic development, immune function, and during cancer cell metastasis [32]. Pathway and network analysis also identified a set of interesting genes, including PIK3R1, SOCS2 and BMP7. Philp et al. [33] reported the presence of somatic mutations in PIK3R1, the gene for the p85α regulatory subunit of phosphatidylinositol 3-kinase (PI3K), in primary human colon and ovarian tumors and cancer cell lines, resulting in the constitutive activation of PI3K. In addition, MCF-7-14 and MDA-MB-231 cells displayed the upregulated expression of SOCS2 and downregulated expression of BMP7 compared with MCF-7 cells. JAK/STAT signaling is negatively regulated by overexpression of SOCS proteins, and SOCS2 interferes with the negative regulatory effects of SOCS1 and SOCS3 [27, 34]. SOCS2 was generally upregulated in primary breast tumors that developed bone metastasis [35]. On the other hand, transforming growth factor beta (TGF-β) is a pro-oncogene in the later stages of tumorigenesis and appears to contribute to metastasis [36, 37]. BMP7 is an antagonist of the TGF-β pathway and can inhibit osteolytic metastasis attributable to prostate cancer [38]. Decreased BMP7 expression during carcinogenesis in the human breast contributes to the acquisition of a bone metastatic phenotype [39]. PI3K, JAK/STAT and TGF-β signaling play key roles in cell migration, and PIK3R1, SOCS2 and BMP7 are regulatory molecules of these signaling pathways, thereby possibly contributing to metastasis development. Consequently, alterations in these signaling pathways may explain the differences in migratory and invasive potential between MCF-7 and MCF-7-14 cells, demonstrating the validity and usefulness of this comparative analysis.

Canonical pathway analysis identified xenobiotic metabolism signaling as one of the top signaling pathways in invasive cells. This signaling pathway is possibly responsible for maintenance of the stem cell phenotype and multidrug resistance in breast cancer cells [40]. In addition, some of the top signaling pathways (JAK/STAT, TGF-β, epidermal growth factor and Wnt/β-catenin signaling) overlapped the signaling pathways important for cancer stem-like cells, identified between the MCF-7 side population (SP) and non-SP cells [41]. These signaling pathways are involved in both tumorigenesis in cancer and self-renewal in embryonic stem cells [42]. Although there are no direct evidences yet, MCF-7-14 cells, which have been derived from rare cell populations with higher invasive ability within MCF-7 cells, may be possibly relevant to cancer stem-like cells. MCF-7-14 cells have similar morphological characteristics to those of stem/progenitor or chemotherapy-resistant cells isolated from MCF-7 cells. Cells grown as non-adherent spherical clusters, which were isolated from breast cancer lesions or MCF-7, displayed stem/progenitor cell properties [43]. MCF-7 cells that survived chemotherapeutic treatment formed looser colonies in the monolayer, with cells at the borders tending to have more protruding filopodia [44]. Furthermore, invasive populations seem to generate both invasive and non-invasive populations resembling the cases seen in SP [45] and tumorigenic CD44⁺CD24^-/low cells [8] of breast tumor cells, because the numbers of cells invading the Matrigel were very low until the 8^th cycle of in vitro sequential selection. Interestingly, MCF-7-14 cells displayed increased expression of CD44 mRNA and downregulated expression of CD24 mRNA and protein. Although MCF-7-14 cells showed cell population heterogeneity in invasiveness and CD44 protein expression, MCF-7-14-derived clone MCF-7-14 CL6, which had a higher number of invading cells, displayed upregulation of CD44 and rapid and extended proliferation. However, there are no overlapping genes between our results and the gene signature identified by gene expression profiling of CD44⁺CD24^- breast cancer stem-like cells [46]; therefore, our findings should be validated in further studies, for example, analysis of stem cell marker expression.

Mani, Weinberg and colleagues [10] found that cells that had undergone EMT exhibited CD44^high/CD24^low expression, suggesting that the EMT might confer malignant properties on breast tumor cells. Although the EMT seems not to be an "all or nothing" event, upregulation of CD44 and downregulation of CD24 seem to participate in the acquisition of invasive and metastatic potential [47‐49]. In this study, despite the difference in CD44 expression, treatment with CD44 mAb (clone IM7), which induces CD44 shedding from the cell surface [50], significantly decreased cell migration and invasion in MCF-7-14 and its clone CL6 cells as well as MDA-MB-231 cells. Although CD44 expression seems to be correlated with mesenchymal marker expression as well as with invasiveness, CD44 may be one of the most important adhesion molecules facilitating cell invasion and metastasis [51]. Furthermore, CD44 expression is, directly or indirectly, regulated by the β-catenin/Tcf-4 signaling pathway, especially in the colorectal cancer precursor lesions, suggesting a role for CD44 in intestinal tumorigenesis [52, 53]. Brabletz et al. [21] reported that nuclear β-catenin accumulates in dedifferentiated colorectal carcinoma cells at the tumor-host interface, whereas a gradual loss of nuclear β-catenin is seen towards central, well-differentiated areas of the tumor. This heterogeneous pattern of the primary tumor is recapitulated in corresponding liver metastases. Nuclear accumulation of β-catenin in colorectal cancer cells at the invasive front and in the vessels has been suggested to be a powerful predictor of liver metastasis [54]. In breast cancer, Wnt/β-catenin activation is an important feature of basal-like breast cancers and is predictive of worse overall survival [55]. Consequently, nuclear β-catenin and upregulation of CD44 may be potential diagnostic and therapeutic targets for breast cancer metastasis.
