Background
Pancreatic duct adenocarcinoma (PDAC) is a lethal human cancer, with a five year survival rate of less than 5% [
1,
2]. PDAC is the tenth most common cancer, representing about 2% [
3] of all cases of cancer, the grim prognosis makes it the number four when it comes to cancer deaths in the western world [
2‐
4]. Despite all research efforts during the last 50 years, there are still no effective therapies for PDAC, except for surgical resection which has a minor impact on the long term survival rate [
5]. Consequently, it is of great importance to acquire a deeper knowledge about the development and progression of PDAC in order to develop new treatment strategies for this aggressive cancer.
Increasing evidence points to a systemic impairment of the immune system in individuals with different types of cancers [
6‐
8] putatively promoting tumor progression and development. Dendritic cells (DCs) are professional antigen presenting cells equipped for activation of naïve T cells and central memory T cells [
9,
10]. The DCs are ubiquitously distributed within the body and constitute less than 1% of peripheral blood mononuclear cells (PBMCs) [
11,
12]. Two distinct subtypes of DCs exist in the peripheral blood, i.e. the myeloid DCs (MDCs) and plasmacytoid DCs (PDCs). They share several common features, such as the expression of high levels of MHC class II molecules (HLA-DR) and lack of lineage specific markers (CD3, CD14, CD16, CD19, CD20, and CD56) [
13]. MDCs express high levels of CD11c, BDCA1, and BDCA3 and myeloid related surface molecules, whereas PDCs lack the myeloid markers including CD11c, but they express the IL-3 receptor (CD123) [
13]. These two DC subtypes also differ in their distribution throughout the body. MDCs are traveling from the bone marrow into the peripheral blood and/or out in peripheral tissues. The encounter of pathogens by tissue MDCs initiate their differentiation into mature DCs with the ability to migrate to lymphatic tissue and activate naïve T cells [
11]. PDCs migrate from the bone marrow to the peripheral blood, but in contrast to MDCs, they relocate directly from the blood into secondary lymphoid tissue without encountering any antigen and PDC is the main producer of IFN-a in the body upon activation [
13,
14].
Several types of solid and blood cancers, such as pancreatic, breast, prostate, hepatocellular, lung, leukemia and squamous cell head and neck carcinomas, are accompanied by impaired function and reduced numbers of DCs [
15‐
20]. This imbalance in the circulating DC pool is not just exclusively a finding in cancer, but is also observed in patients with chronic infections, such as HIV-1, hepatitis B, and hepatitis C, atopic dermatitis, and in autoimmune diseases, such as psoriasis arthritis, and rheumatoid arthritis [
12,
21‐
23].
The connection between these medical conditions is some degree of chronic inflammation, caused either by the tumor mass, infectious agents, or by autoreactive immune cells. The immune system serves to counteract the attack; which for a short period of time has beneficial consequences and under normal circumstances promotes the healing. However, it can be harmful when an inflammation becomes chronic and cause tumor escape from the immune surveillance [
24,
25], for instance as a result of dysfunctional immune cells.
In the present study, we investigated how the PDAC affect the MDCs and PDCs existing in peripheral blood. In addition, we wanted to study whether these populations of DCs return to normal after the tumor resection, which should be expected if the tumor was the only cause of the inflammation. We found that the PDAC, and other cancers located in the pancreas, such as biliary duct adenocarcinoma (BDAC), ampullary carcinoma (AC), and endocrine carcinoma (EC), all exerted systemic effects on the MDCs and PDCs, resulting in both reduced numbers and enhanced apoptosis. Incidentally, chronic inflammation of the pancreas, i.e. chronic pancreatitis, had the same effect on the DCs as the different tumors implicating chronic inflammation as a factor involved in this impairment. This could indicate that inflammation does not only directly support the development of the tumor, for instance by releasing growth stimulatory factors, but also indirectly by impairing the ability of DCs to activate immune response directed against the tumor. Of, note a preservation of the blood DCs compartment in PDAC patients seems to benefit the patients’ ability to manage the disease as PDAC patients with a survival over 2 years had significant higher levels of blood DCs compared to patients with less than one year survival.
Methods
Patients and controls involved in the study
Twenty ml heparinized peripheral whole blood samples were obtained from controls, at one occasion, and from patients at two time points, one week prior surgical removal of the tumor (Whipple resection) and 8-12 weeks after the surgery. The age matched controls were recruited randomly from department of Transfusion Medicine at Linköping University Hospital (Linköping, Sweden) and from the senior division of Linköping orienteering club. Subjects were consecutively recruited from the list of patients planned for pancreatic resection after preoperative radiological evaluation at Linköping University Hospital. The final diagnosis was histologically confirmed by two pathologists, independently investigating the samples. The patient group in this study referred to as billary duct adenocarcinoma (BDAC), are tumors histologically confirmed arising from the distal part of the billary duct located inside the pancreas. The patients with pancreatic disease did not receive chemo/radiotherapy during the time period of the pre or post blood sample collection and had no long term treatment with cortisone or NSAID. All samples were coded to protect the identities of the subjects participating in this study. The study protocol and patient consent documents were approved by the Regional Ethics committee in Linköping, Sweden (Dnr. M38-06). The PDACs were staged according to the 1997 International Union against Cancer classification (TNM = Tumor, Node, Metastasis).
Separation of peripheral blood mononuclear cells
Peripheral blood mononuclear cells (PBMCs) were isolated from heparin treated whole blood by Ficoll-Paque PLUS (GE Healthcare, Uppsala, Sweden) density gradient centrifugation. The plasma layer was collected after the density centrifugation, aliquoted in cryogenic-tubes and stored at -70°C until analysis. The cellular interface containing the PBMCs was harvested and washed two times in Dulbecco's PBS without Ca2+ and Mg2+ (PAA Laboratories GmbH, Germany). The PBMCs were resuspended in PBS supplemented with 0.2% bovine serum albumin (PAA Laboratories GmbH, Germany) and the cell quantity and viability measured by staining with Trypan blue (Fisher Scientific, Västra Frölunda, Sweden). The PBMCs were diluted to 5 × 106 cells/ml and 5 × 105 cells were added to the wells of a 96-wells U-bottom plate for examining the DC frequency and phenotype (see below). The remaining cells were spun down and re-suspended in freezing media (fetal bovine serum containing 8% DMSO: (Sigma-Aldrich, Schnelldorf, Germany) and cryogenic preserved in a liquid nitrogen freezer.
Flow cytometry monoclonal antibodies
Peripheral blood DC subsets were identified using FITC conjugated lineage (Lin) cocktail (CD3, CD14, CD16, CD19, CD20 and CD56), HLA-DR (PerCP), CD11c (APC), and CD123 (PE) monoclonal antibodies (mab) (Becton Dickinson, Stockholm, Sweden). Detection of apoptotic cells in peripheral blood was done by staining with Annexin V (APC) protein (Becton Dickinson, Stockholm, Sweden) in combination with FITC conjugated Lin cocktail, HLA DR PerCP and PE CD123 for PDCs or PE CD11c for MDCs.
Flow cytometry acquisition and analysis
PBMCs (5 × 105) were suspended in PBS supplemented with 0.2% BSA (FACS wash) and labeled with lineage cocktail, HLA-DR, CD11c, and CD123 mabs to detect MDCs and PDCs. The antibody straining was carried out at 4°C for 40 min. After the incubation unbound antibody was removed by spinning down the samples and replacing the supernatant with new FACS wash. This procedure was repeated 3 times. Detection of apoptotic DCs in the PBMCs was done by staining with Lin cocktail, HLA-DR, CD11c (for MDC) and Lin cocktail, HLA-DR, CD123 (for PDC) followed by incubation both sets with Annexin V protein for 15 min at 4°C. Four color flow cytometry was performed using a FACS Calibur flow cytometer (Becton Dickinson, San Jose, CA), analyzing 5 × 105 PBMCs for detection of apoptotic MDCs and PDCs and 2 × 105 PBMCs for determining the quantity of MDCs and PDCs. The acquired data were analyzed using the FLOW-JO software, v7.0 (Tree Star Inc, Ashland, OR).
Cytokine array and ELISA
Plasma cytokine profiles were analyzed by Bio-Plex™ Human cytokine 27-plex panel (Biorad, Laboratories, Inc.). The plasma was thawed, processed, and analyzed as recommended by the manufacturer. The cytokine panel was analyzed using Luminex 100™ (Luminex, Inc) plate reader and data processed using the corresponding program. Concentrations of plasma PGE2 metabolites (Cayman Chemicals Company, Ann Arbor, USA) and TGF-β (EBioscience, Inc. San Diego, USA) were measured by EIA and ELISA, respectively, according to the manufacture protocols.
Statistics
All groups were tested using Kruskal-Wallis one-way analysis of variance by ranks and when they were found significant followed by Mann-Whitney U test. P values < 0.05 were considered to be statistically significant. Correlation analysis of the data was performed using the Spearman rank correlation of nonparametric data.
Discussion
DCs have been recognized as the main initiators of the adaptive immune response and play the pivotal role of tumor surveillance in healthy individuals. The number of peripheral blood DCs appears to be decreased in several types of cancer, including pancreatic cancer [
15‐
20,
31,
32]. An opposing finding has been shown for levels of DC in individuals with melanoma, which had increased levels of both MDCs and PDCs with the highest in stage I disease but even stage IV had elevated levels [
41]. Findings from several types of solid cancers imply that anti-tumor immunity may be related to the number and/or functions of DCs [
15‐
17,
19,
20,
26]. Our results indicate that there is a significant decrease in the amount of MDCs and PDCs in peripheral blood from patients with different types of pancreatic cancers, including PDAC, but also for chronic inflammation in pancreas, i.e. chronic pancreatitis. A decrease in the MDC and an increase in the PDC subsets have previously been described for PDAC [
15]. The latter observation are contradicting the results we have obtained in the present study for PDAC and other pancreatic cancer as well as in previous findings for different adenocarcinoma [
17,
20,
31]. These differences are probably due to the definition of PDCs as CD11c-/lin-/HLA DR+ without using any specific marker for PDCs, which will include a non PDC population besides the PDCs [
15].
The peripheral Lin- HLA DR+ cell population contains MDCs, PDCs, and cells that are lin
-HLA-DR
+CD123
-CD11c
- (non DC). Our findings show a significantly increased frequency of non DCs among the Lin- HLA DR+ population in patients with PDAC. This corroborates a previous study by Pinzon-Charry et al displaying an increase in this population in breast cancer, prostate cancer, and malignant glioma [
32]. These lin- HLA-DR+CD11c-CD123- cells might be a specific pre DC population but they have less efficient antigen presenting function and generated an inadequate immune response compared to MDCs and PDCs [
32]. Whether these cells are MDCs and PDCs, that have impaired phenotype and functions due to the systemic effect by the disease, or if they comprise a separate cell population of different origin or a progenitor for one of the blood lymphocyte will need further elucidation. The increased proportion of this non-DC population among HLA DR+ cells appears when the MDC and PDC numbers decreases. Conversely, the diminished levels of DCs could be due to the enhanced apoptosis seen in both DC subsets in individuals with PDAC and other types of cancers in the pancreas. There was a negative correlation between levels of PDC and levels of apoptotic cells, which supports the involvement of program cell death as one component in the decrease. Of note, the frequency of apoptotic DCs remained the same or increased after the surgical removal of tumors (PDAC, EC, and AC) or inflamed tissue (CP) and the reason for the increased apoptosis could be enhanced inflammation secondary to the surgical procedure or the healing process. Increased apoptosis in the blood DCs have previously not been described for different types of pancreatic cancers or chronic pancreatitis, whereas MDCs, PDCs, and T cells in individuals with breast cancer, melanoma, and head and neck cancer have been shown to have increased levels of apoptosis [
33‐
35]. Taken together, these data prove that the solid tumor exert systemic modulatory effects on the immune system.
Dysfunctional DCs exist in many cancers including PDAC, where impairment of T cell stimulatory function among the MDCs has been detected [
15]. Another example is breast cancer, which besides decreased T cell stimulatory ability, exhibits decreased IL-12 and increased IL-10 production [
17]. It's likely that individuals with PDAC, and other pancreatic cancers, with decreased amounts of MDCs and PDCs and increased level of the non DCs provide a setting were the DCs in blood and tissue are inadequate to initiate a sufficient immune response against the tumor. Surgical removal of primary tumors can reverse the tumor induced immunosuppression [
30], which points to the tumor and surrounding stroma cells as general sources of inflammation inflicting impairment in the MDCs and PDCs. So, when resecting this inflammatory catalyst the immune system should get a second chance to reorganize and possibly kill remaining tumor cells. Unfortunately, this seems to have taken place only in a minority of the PDAC patients in a timely manner but on the other hand, these patients seem to have a complete recovery of the circulating DC populations. This failure to normalize MDC in subjects with PDAC was also seen in a recent study 2.5 to 13 weeks post surgery [
26] and Pinzon-Charry et al even found a further decrease in blood DCs six weeks post breast cancer surgery [
31].
Tumors have been referred to as wounds that never heal, due to their ability to create an inflammatory microenvironment [

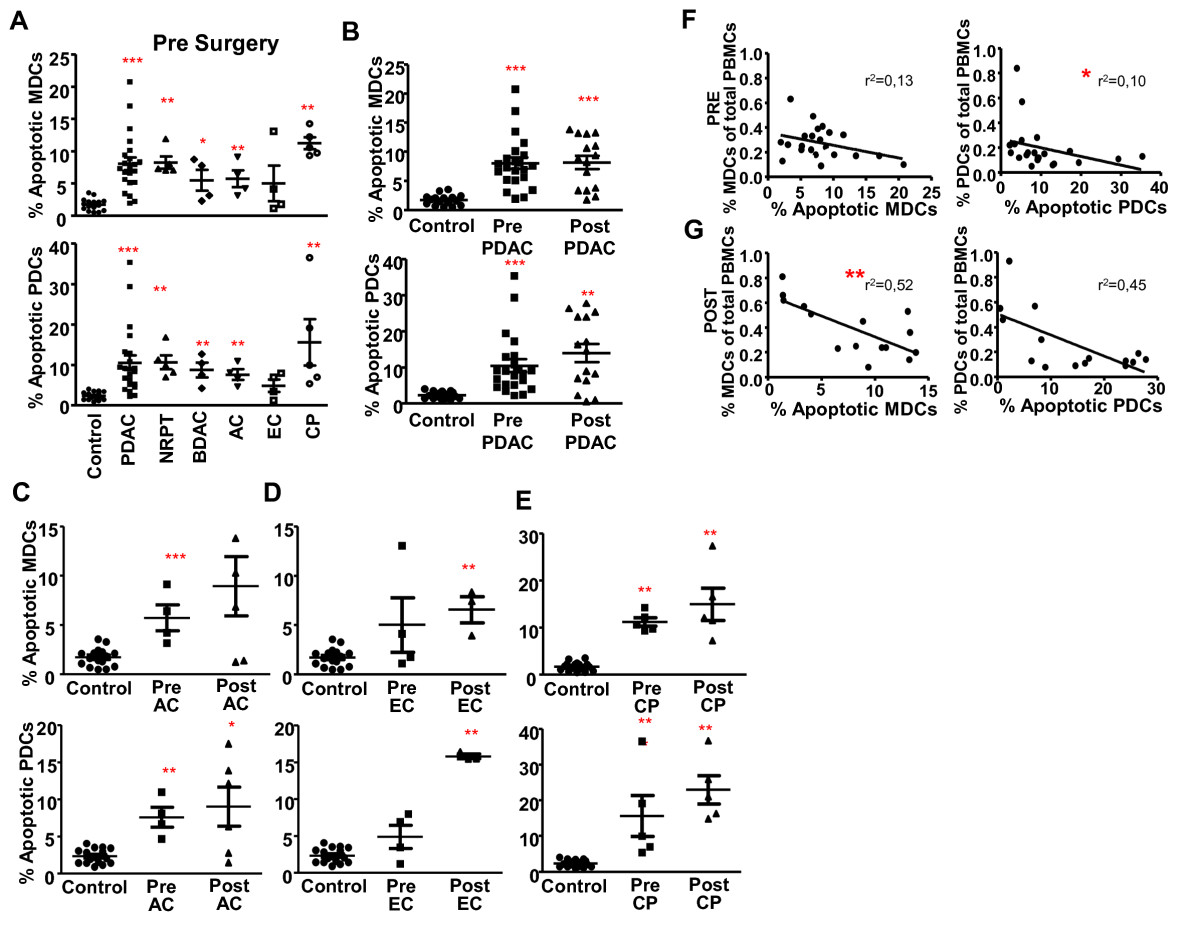

42]. Resection of the tumor should principally rescue the body from this chronic wound, but it seems likely that the healing process after surgery by itself contributes to the impairment of the circulating DCs as we found increased apoptosis in all pancreatic cancer groups and CP and even a further decrease in the frequency of DCs in many of subjects. Patients with early breast cancer disease showed minimally reduced DC levels at diagnosis but displayed a prolonged period (one year) of marked DC suppression after tumor resection [
31]. For the majority of PDAC patients this time frame is too long since the disease gives them a shorter mean survival span than it takes for the DCs to recover.
Production of residual inflammatory and/or additional factors induced and produced during the healing process could be blamed for the sustained negative effect exerted on the DCs. Cyclin E1, epithelial growth factor (EGF) [
37], IL-6, CXCL8, IL-10, and IL-1RA have all been shown to be elevated in individuals with pancreatic cancer [
43,
44] and high IL-6 or IL-10 levels correlated to poor survival [
43]. Over expression of CXCL8 mRNA was found ~80% of PDAC tissues compared to corresponding normal surrounding tissue [
38] and CXCL8 was also present in CP [

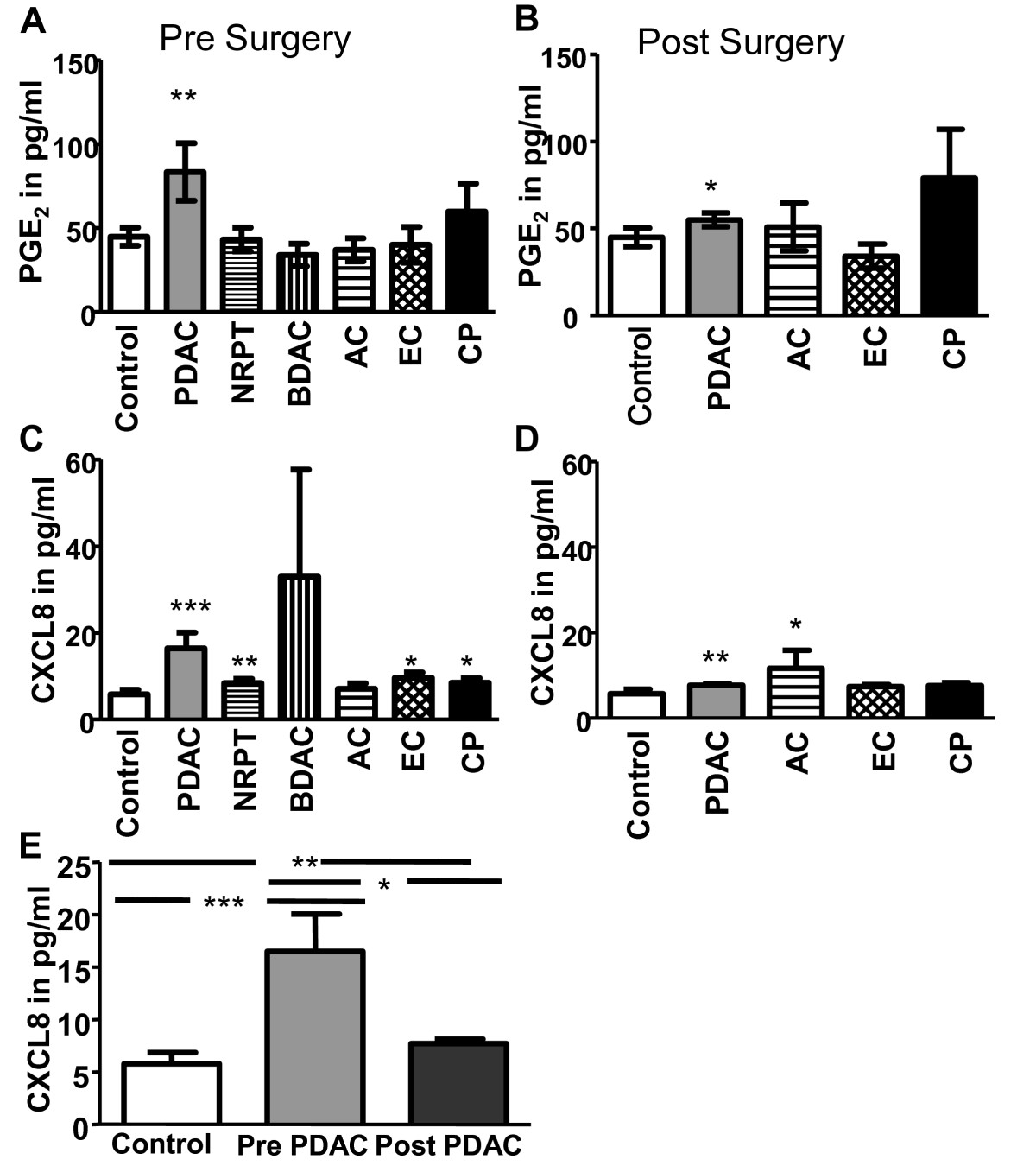

37]. We found elevated levels of plasma CXCL8 in PDAC, EC, and CP pre surgery and that CXCL8 decreased after tumor resection. Of note, it has been shown that CXCL8 in PDAC is associated with tumor genesis by promoting angiogenesis and metastasis [
38] but not with survival [
43]. Furthermore, CXCL8 is a chemoattractant that will attract many different cell types expressing CXCR1 or CXCR2 including DCs [
45] and the presence of CXCL8 in blood may affect their ability to exit the blood stream and affect their viability. Our findings do not show correlation between the increased plasma levels of CXCL8 and the amount of MDCs and PDCs, neither to the level of apoptosis or patient survival. The levels of CXCL8 decreased significantly in the blood from PDAC patients post surgery but this had no direct effects on the post surgery levels of MDCs or PDCs. Taken together, our findings indicate that CXCL8 is not directly involved in the depletion of blood DCs in PDAC or other pancreatic tumor patients but do not exclude that the recovery of DCs may take longer time than the normalization of inflammatory factors, such as CXCL8, in blood.
COX-2 enzyme expression is found in several cancers including PDAC and it's involved in cancer differentiation, apoptosis, metastasis, and angiogenesis [
46‐
50]. We found the COX-2 metabolite PGE
2 to be elevated significantly only in PDAC patients and tumor resection lowered the levels to almost normal. Increased levels of PGE
2 in plasma seem to be a specific feature for PDAC and a possible marker for distinguish PDAC from other tumors in the pancreas, but further test must be performed. Of note, PGE
2 is known to affect the DC function including, antigen presentation, maturation, and T cell activation [
51] and this could be true for the MDCs and PDCs in PDAC. Furthermore, patients with chronic pancreatitis had also elevated levels but the PGE2 did not normalize after surgery. The increased plasma levels of PGE
2 did not correlate to the amount of MDCs and PDCs, level of apoptosis or patient survival. However, the high expression of PGE
2 and CXCL8 in PDAC patients could reflect the severity of this tumor compared to other pancreatic tumors [
39,
40].
Our findings show that patients surviving more than 2 years are represented with more circulating DCs than short time survivors. Some of the other tumors in the pancreas, i.e. ampullary and endocrine carcinoma have high 5 years survival rates (60%) [
39,
40] and both groups were found with similar DC levels presurgery (0.73% and 0.76%, respectively) as the patients with PDAC with long time survival (0.64%). Moreover, the one year survival was 83% in the group of PDAC patients with the highest MDC and PDC levels compared to only 58% in the group of PDAC patients with the lowest MDC and PDC levels. These findings indicate that the total levels of DCs pre surgery could predict patient survival. Moreover, our findings indicate that patients with un-affected blood DC subsets pre and post, or with normalized DC numbers post surgery seems to have a survival benefit compared to individuals with impaired numbers of DCs. The few patients fitting these characteristics had a survival over 30 months post surgery which is above the mean survival after pancreaticoduodenectomy for PDAC which is between 14 to15 months [
52‐
54] indicating the importance of an intact blood DC compartment.
Competing interests
The authors declare that they have no competing interests.
Authors' contributions
VT carried out experiments, analyzed data and helped writing this manuscript. PS, AS, KB, and DS contributed with ideas, crucial patients and/or analyzed data, and edited the paper. UF, SF and KM contributed with ideas and edited the paper. ML conceived, designed, and supervised the study and wrote the manuscript. All authors read and approved the final manuscript.
