Background
Although our understanding of the molecular basis for the circadian rhythm is continually evolving, the current model involves a complex interplay between environmental and endogenous factors, which include a core set of circadian genes [
1]. Transcriptional and post-transcriptional interactions among these gene products results in an autoregulatory feedback system, which allows for predictable cycling of the core circadian elements [
2‐
4]. In addition, many of the circadian genes operate as transcriptional regulators for transcripts outside of the circadian system, and recent evidence indicates that as many as 10% of all mammalian genes may be regulated to some degree by the circadian oscillatory mechanism [
5‐
7]. As a result, disturbance of the circadian system, either through environmental exposures, or through genetic alterations in the key circadian genes, may have important implications for a variety of biological pathways.
One such core circadian gene,
CRY2, operates in the negative arm of the circadian feedback loop as a transcriptional repressor [
8].
CRY2 has also been shown to be involved in cancer-relevant pathways including DNA damage checkpoint control [
9] and regulation of genes important for cell cycle progression [
10,
11]. However,
Cry1
-/-,
Cry2
-/- transgenic mice do not display a cancer-prone phenotype in response to ionizing radiation exposure [
10]. Here, we report findings from
in vitro loss-of-function investigations into the phenotypic effects of
CRY2 knockdown on cell cycle, apoptosis, and DNA damage response to mutagen challenge in a breast cancer cell line. We also investigate a whole genome expression array to interrogate the impact of
CRY2 silencing on the expression of genes relevant to these pathways.
Methods
Cell culture and treatments
Human breast adenocarcinoma cells (MCF-7; American Type Culture Collection, Manassas, VA) were maintained in Dulbecco's modified Eagle medium (Invitrogen, Carlsbad, CA) supplemented with 10% fetal bovine serum (Invitrogen), 0.01 mg/ml bovine insulin, and 1% penicillin/streptomycin (Sigma-Aldrich, St. Louis, MO). siRNA oligos were designed and manufactured by Integrated DNA Technologies (IDT, Coralville, IA), targeting either CRY2 (Sense: 5'-UGCUUCAUUCGUUCAAUGUUAAGCCGG-3' Antisense: 5'-GGCUUAACAUUGAACGAAUGAAGCA-3') or a scrambled sequence negative control siRNA (Sense: 5'-CUUCCUCUCUUUCUCUCCCUUGUGA-3', Antisense: 5'-UCACAAGGGAGAGAAAGAGGGAAGGA-3'). Each oligo was complexed and reverse transfected using Lipofectamine RNAiMax transfection reagent (Invitrogen) at a final oligo concentration of 10 nM. Cells were either harvested 48 hours after transfection, to assay for knockdown efficiency by qPCR, or incubated with either PBS (neg. control) or 0.03% (v/v) methyl methanesulfonate (MMS, chemical mutagen) for use in subsequent assays.
RNA isolation and quantitation
RNA samples were isolated from harvested cells using the RNA Mini Kit (Qiagen, Valencia, CA) according to the manufacturer's instructions for mammalian cells, including on-column DNA digestion. Gene expression was quantified by two-step quantitative RT-PCR, beginning with first-strand cDNA synthesis using the AffinityScript cDNA kit (Stratagene, La Jolla, CA) with oligo-dT primers, followed by quantitative real-time PCR using the Power SYBR Green PCR master mix (Applied BioSystems, Foster City, CA). The primers used for CRY2 amplification were: (L: ACCGGGGACTCTGTCTACTG, R: GCCTGCACTGCTCATGCT). RNA quantity was normalized using HPRT1 content, and CRY2 silencing was quantified prior to each treatment according to the 2-ΔΔCt method. In each case, CRY2 was reduced to less than 20% of the levels seen in the mock siRNA-treated negative control (i.e. 5-fold downregulation).
Whole genome expression microarray and pathway-based expression analysis
A whole genome expression microarray (Agilent, Inc 44k chip, performed by MoGene, LC, St Louis, MO) was used to interrogate gene expression in cells with normal and reduced
CRY2. The results of these experiments have been uploaded to the Gene Expression Omnibus (GEO) database, and can be accessed by referencing accession #GSE14617. In order to determine whether genes involved in cell cycle regulation and DNA damage response were influenced by CRY2 knockdown, we analyzed the microarray expression data for genes in SABioscience's "Human Cell Cycle" and "Human DNA Damage Signaling Pathway" arrays (catalog numbers PAHS-020 and PAHS-029, respectively). All fold changes are the result of two biological replicates of the microarray experiment, and all observations with low intensity (<50) in both
CRY2 normal and
CRY2 knockdown populations have been discarded. Significantly altered genes were confirmed by qPCR, and the primers used for these reactions can be found in Additional file
1.
Cell cycle, cell viability, and apoptosis assays
Cells with normal and reduced
CRY2 levels were stained with propidium iodide (PI) and analyzed by flow cytometry using a fluorescence-activated cell sorter (FACS) flow cytometer (Becton Dickinson, San Jose, CA). Prior to analysis, cells were treated with either PBS or MMS for 1 hour, followed by duplicate washes and 24 hour incubation in normal growth medium. Cell populations from each treatment group were analyzed using the FlowJo flow cytometry analysis software (Tree Star, Inc., Ashland, OR), and cell phases were determined using the Watson pragmatic algorithm [
12]. Cells from each of the four treatment groups (
CRY2 +/-, MMS +/-) were also assayed for viability and apoptosis using the Vybrant Apoptosis Assay Kit #2 (Invitrogen). Briefly, cells were stained with PI and Annexin V according to the manufacturer's protocol, and scored as live, dead, apoptotic or ambiguous by flow cytometry. All results are based on the average of triplicate experiments. Raw flow cytometry images from each analysis are available in Additional file
2.
DNA Damage Assay

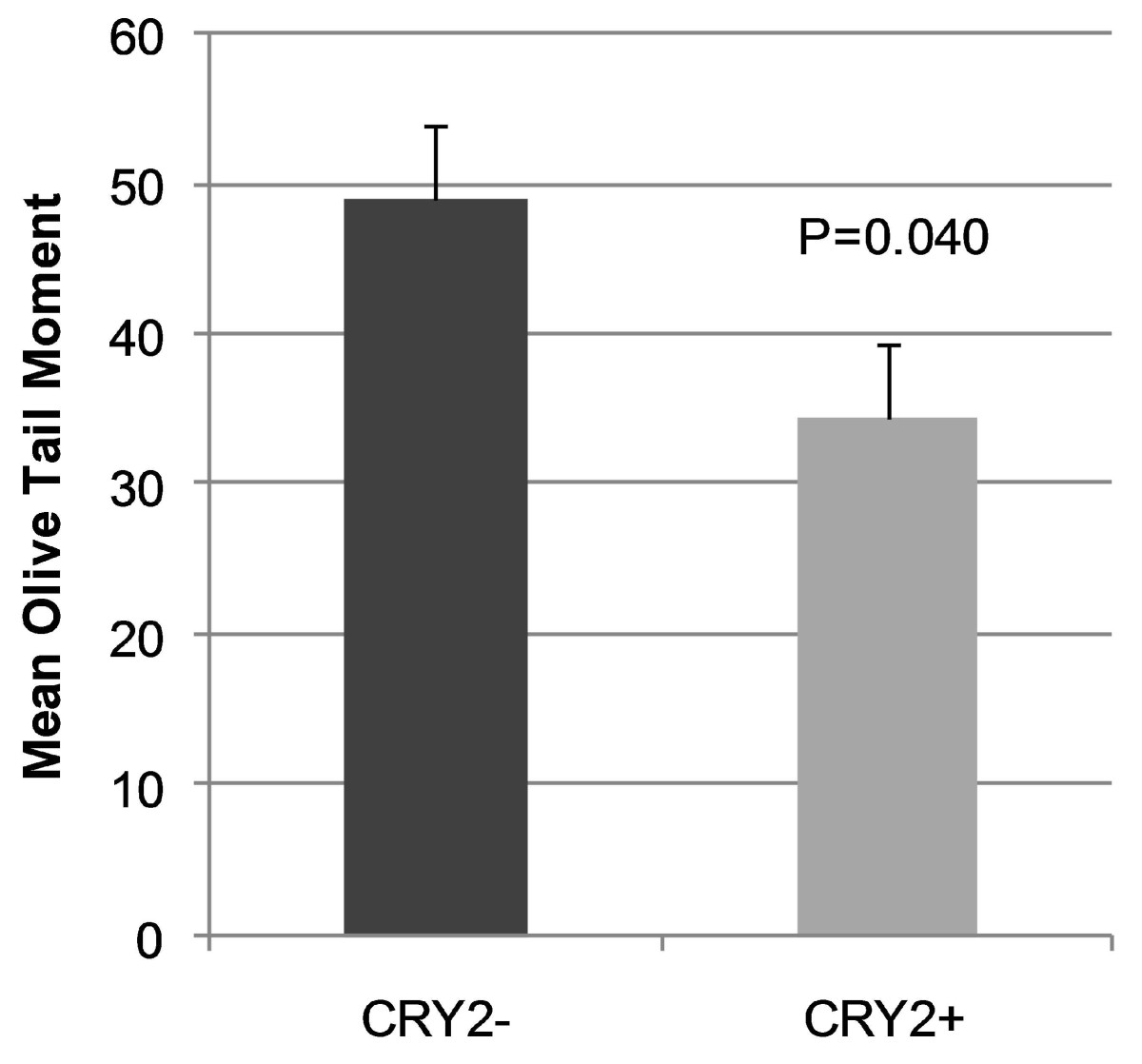

DNA damage accumulation was measured by alkaline single-cell gel electrophoresis (i.e. the comet assay). Cells with normal and reduced
CRY2 levels were incubated with MMS for one hour, followed by two PBS washes and 3 hours of recovery time. Cells were then fixed onto slides with low-melting agarose, lysed, and treated with pH>14 solution at 4°C to denature the DNA. Slides were then subjected to electrophoresis to allow damaged DNA to migrate away from the nucleus, and then stained with ethidium bromide. In order to reduce the possibility of observer bias, the prepared slides were then given to a second person who scrambled them and assigned his own arbitrary numeric label to each slide before returning them for scoring. As such, the person responsible for generating the data was unaware of the treatment status for each slide. 50 cells from each treatment group were analyzed by fluorescence microscopy using the Komet 5 comet assay analysis software. DNA damage was quantified by the software using the mean Olive tail moment calculation for each cell, as previously described [
13]. Once the scoring was complete, the data were sent back to the second person who replaced the numeric label with the treatment identity. All results are from duplicate experiments performed on 50 cells each.
Statistical Analysis
All statistical analyses were performed using the SAS statistical software (SAS Institute, Cary, NC), unless otherwise noted.
CRY2 knockdown was assessed using the 2
-ΔΔCt method with RNA content normalized to the housekeeping gene
HPRT1. Differences in cell cycle distribution were investigated by determining the percentage of cells in each phase for each treatment group. The
CRY2 normal population was then compared to the
CRY2 reduced population with and without mutagen challenge using the Student's t-test. Similar comparisons were made for cell viability and apoptotic response, comparing
CRY2 normal and
CRY2 reduced populations using the t-test. For the comet assay, comparisons were for the mean Olive tail moment in cells with reduced and normal
CRY2, and again, the t-test was used. Due to the large number of observations present in the microarray, P-values were adjusted for multiple comparisons using the false discovery rate correction, as previously described [
14], in order to obtain an adjusted Q-value for each observation.
Discussion
CRY2, in conjunction with
CRY1 and the period genes, (
PER1,
PER2, and
PER3) operates on the negative arm of the circadian system and is essential for maintaining proper circadian rhythm [
17]. However, due to the complex nature of circadian gene interactions, which include pre- and post-transcriptional regulation, it remains difficult to determine the direct phenotypic impact of a single gene, especially in light of the potential for overlapping functions and compensatory mechanisms among the core circadian proteins. Nevertheless, the observation that cells with reduced
CRY2 accumulate greater DNA damage is consist with the general understanding that circadian genes may directly influence organismal susceptibility to genotoxic stress [
18].
The finding that
CCND1 is induced following
CRY2 knockdown, while not proof of direct inhibition of
CCND1 by
CRY2, does provide the intriguing possibility that the aberrant overexpression of
CCND1 observed in several cancer types could be, in part, the result of circadian-mediated transcriptional dysregulation. Evidence for this association was provided by an earlier study which showed that enforced expression of
PER2 resulted in a 56% reduction in
CCND1 levels
in vitro [
19]. Interestingly, in addition to the positive regulator of cell cycle progression,
CCND1, a crucial cyclin-dependent kinase inhibitor,
CDKN1A (also known as
P21), was also induced after
CRY2 knockdown. This finding is consistent with a recent report demonstrating that clock-deficient mice have increased levels of p21, resulting in decreased cellular proliferation rates [
20]. That both
CCND1 and
CDKN1A, which influence cell cycle progression in opposite directions, were each upregulated after
CRY2 knockdown provides a potential explanation for the lack of observable phenotypic impact of
CRY2 silencing on cell cycle distributions. Given the importance of these cell cycle regulators in a variety of cancer types, additional exploration into the nature of these associations is warranted.
Despite evidence that cryptochromes may be involved in cancer-associated processes [
11], two
in vivo studies did not find a cancer-prone phenotype in double mutant mice lacking both crytpochrome genes (i.e.
Cry1-/-
Cry2-/-). For example,
Cry1-/-
Cry2-/- mice did not have poorer survival rates than wild type (WT) mice following exposure to ionizing radiation [
10]. In addition, fibroblasts derived from these mice did not have deficient DNA damage capacities compared to those derived from wild type mice, and cell cycle checkpoints were similarly unaffected. Another study of
Cry1-/-
Cry2-/- also showed that while these mice were significantly smaller than their WT counterparts, they did not have any obvious malignancies, and they remained reproductively fit [
21]. Interestingly, in mice which are predisposed to cancer due to a mutation in p53, addition of the
Cry mutation results in sensitization of p53 mutant cells to apoptosis and thus decreased cancer risk and increased survival [
22]. In addition, there is a strong circadian rhythm in nucleotide excision repair activity in the mouse brain, caused at least partly by circadian regulation of xeroderma pigmentosum A (XPA) [
23]. Cry negatively regulates this activity, and fibroblasts from
Cry1-/-
Cry2-/- mice exhibit 3-fold induction of XPA protein. It should be noted, however, that each of these studies employed double mutant mice, and are thus not necessarily reflective of the condition which may exist in the absence of
Cry2 only. In fact, a behavioral and molecular study of the effect of cryptochromes on light entrainment and circadian regulation showed very different phenotypes for
Cry1-/-
Cry2-/- mice compared to mice lacking
Cry1 only [
24], and an earlier study of
Cry-/- mice suggested that reductions in either cryptochrome alone have effects which are directly opposed to one another [
8]. To the best of our knowledge, no study has yet explored the response of
Cry2-/- only to mutagen challenge, or the effect of induced degradation of
CRY2 on DNA repair. It should also be noted that our data are generated using cells with wild-type p53. Thus, future studies may wish to investigate the effect of
CRY2 knockdown in mutant p53 cells, especially in light of the recent evidence suggesting differential effects of
Cry mutations against the p53 mutant background, as outlined above.
While changes were detected in DNA damage accumulation following
CRY2 knockdown, no differences were observed in other cancer-related pathways. However, previous studies have shown that induction of the DNA damage response pathway is an important early event in determining whether precursor lesions will develop into malignancies [
25], and those authors suggest that mutations which disrupt the DNA damage response may allow tumor progression. In another study, Gorgoulis
et al. demonstrate that a DNA damage response is present in precancerous lesions, also suggesting that disruption of this pathway could be an important determinant of progression to carcinoma [
26]. One interesting aspect of our phenotypic assays was the increase in DNA damage observed in
CRY2- cell populations in the absence of decreased survival or increased apoptosis. If in fact reduced
CRY2 results in increased DNA damage without triggering increases in cell death or apoptosis, this could potentially lead to cancer, as damaged cells could survive and be allowed to proliferate. As such, this phenotype warrants further investigation.
Competing interests
The authors declare that they have no competing interests.
Authors' contributions
AEH carried out the knockdown experiments, as well as the cell cycle and apoptosis studies and the analysis of the array data, and drafted the manuscript. YB, CY, and DL each participated in the comet assay. RS and TZ participated in the design of the study. YZ conceived the study, and participated in its design and coordination. All authors read and approved the final manuscript.
