Quantification of breast lymphoedema following conservative breast cancer treatment: a systematic review

Open Access
27.10.2022
Review

Erschienen in:

Verfasst von: Nicola Fearn; Catalina Llanos; Elizabeth Dylke; Kirsty Stuart; Sharon Kilbreath
Erschienen in: Journal of Cancer Survivorship | Ausgabe 6/2023

Abstract

Purpose

Breast lymphoedema is a possible side effect of breast conserving surgery, but it is poorly understood. This is due, in part, to difficulty assessing the breast. This systematic review described outcome measures that quantify breast lymphoedema signs and symptoms and evaluated the measurement properties for these outcome measures.

Method

Seven databases were searched using terms in four categories: breast cancer, lymphoedema and oedema, clinician reported (ClinROM) and patient reported outcome measures (PROM) and psychometric and measurement properties. Two reviewers independently reviewed studies and completed quality assessments. The Consensus-based Standards for the Selection of Health Measurement Instruments (COSMIN) methodology was used for studies including measurement property evidence.

Results

Fifty-six papers were included with thirteen questionnaires, eight patient-reported rating scales, seven physical measures, seven clinician-rating scales and four imaging techniques used to quantify breast lymphoedema. Based on COSMIN methodology, one ClinROM had sufficient reliability, ultrasound measuring dermal thickness. Tissue dielectric constant (TDC) measuring local tissue water had promising reliability. Four questionnaires had sufficient content validity (BLYSS, BLSQ, BrEQ and LYMQOL-Breast).

Conclusions

Ultrasound is recommended to reliably assess breast lymphoedema signs. No PROM can be recommended with confidence, but BLYSS, BLSQ, BrEQ and LYMQOL-Breast are promising. Further research is recommended to improve evidence of measurement properties for outcome measures.

Implications for Cancer Survivors

There are many approaches to assess breast lymphoedema, but currently, only ultrasound can be recommended for use, with others, such as TDC and questionnaires, showing promise. Further research is required for all approaches to improve evidence of measurement properties.

Hinweise

Publisher's note

Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Introduction

Breast conserving surgery with adjuvant radiotherapy is a common treatment regimen for women with early breast cancer as it leads to better quality of life [1] and improved survival to that of women undergoing mastectomy [2, 3]. Unfortunately, breast lymphoedema can be a painful and distressing complication of the breast conserving treatment regime [4, 5]. Breast lymphoedema is not well understood and poorly addressed by health professionals [6]. The reported incidence of breast lymphoedema varies considerably across studies, ranging from 0 to 90% due to variances in the definition and tools selected to diagnose and quantify breast lymphoedema [7, 8].

Assessments of lymphoedema in the limbs have been validated [9‐13]; however, it is unknown if those tools can be used in the assessment of breast lymphoedema. Measurement of lymphoedema in the breast differs to that in the arm as the breast is the direct recipient of the surgical and radiotherapy treatment. These treatments change the volume and tissue architecture of the affected breast, reducing the usefulness of measuring the breast pre-operatively or measuring the contralateral breast as a direct comparator. Changes to the breast caused by surgery and radiotherapy may also make it more difficult to distinguish between treatment impacts and those changes caused by presence of breast lymphoedema. Furthermore, self-reported questionnaires for lymphoedema have tended to focus on and be tested with people with limb lymphoedema rather than on populations with breast or midline lymphoedema [11, 13].

This systematic review describes what outcome measures are available to quantify breast lymphoedema signs and symptoms following breast conserving surgery and evaluates the evidence underpinning the measurement properties for these assessment tools or approaches, where available.

Methods

The systematic review was registered with the International Prospective Register of Systematic Reviews on 05 July 2020 (PROSPERO registration no: CRD42020183851).

The review was conducted according to the Preferred Reporting Items for Systematic Reviews and Meta-Analyses (PRISMA) guidelines [14] and Consensus-based Standards for the Selection of Health Measurement Instruments (COSMIN) guideline for systematic reviews [15‐17].

Database search

Five electronic databases were searched including Medline, Embase, CINAHL, Web of Science and Scopus as well as Trove and ProQuest Dissertations & Theses Global for theses that explored breast lymphoedema measurement. Searches were conducted with support from a librarian at the University of Sydney. Search terms were grouped into four categories relating to (i) breast cancer; (ii) lymphoedema and oedema; (iii) clinician-reported (ClinROM) and patient-reported outcome measures (PROM); and (iv) psychometric and measurement properties. The full Medline search strategy is described in Online Resource 1. The initial search was conducted on 19th April 2020 and repeated on 19th August 2021 and 14th February 2022 to check for recently published articles. There was no restriction on date of publications, but only articles published in English were included.

Selection criteria

Studies were included in which an assessment was used to quantify breast lymphoedema and related symptoms (e.g. peau d'orange, induration, hardness, heaviness, discomfort, skin redness) in adult women following breast conserving surgery (lumpectomy/wide local excision) for breast cancer. Women may have been treated with chemotherapy, radiotherapy and/or immunotherapy. Theses were included when publicly available online or provided by authors following request. Studies with men, women under 18 years old, women treated with mastectomy and/or reconstruction and assessment for lymphoedema in areas of the body other than the breast were excluded. Studies only using toxicity or cosmesis rating scales (e.g. CTCAE, LENT SOMA, National Cancer, Institute Canada-Common Toxicity Criteria 2, Harvard Breast Cosmesis Scale, Outcome by American Society for Radiation Oncology (ASTRO) Consensus Panel (CP) group and acute and late RTOG scales) were also excluded.

Study selection

Duplicates were removed using electronic and manual review in EndNOTE (version X9) with additional duplicates identified when titles were imported to Covidence systematic review software (Veritas Health Innovation, Melbourne, Australia (available at www.covidence.org). Titles and abstracts, followed by full text papers, were independently screened by two reviewers (NF, SK, CL). Reference lists of included full text papers were examined to identify additional appropriate studies. When disagreements on study eligibility occurred, consensus was reached through discussion as a team.

Data extraction and analysis

Two reviewers independently extracted data (SK and NF or CL and NF) using Covidence data extraction template (version 1). Information extracted included study design, participant demographics, treatment history and the stage at which the assessments took place in the participants’ cancer treatment timeline (e.g. time since diagnosis, surgery and/or radiotherapy). The purpose of the assessment (e.g. assessing treatment side effects, quality of life or measuring outcomes from an intervention to treat breast lymphoedema) and details pertaining to the measurement properties of the tools were also extracted where available. If there were missing data or data from participants following breast conserving surgery or breast lymphoedema were not presented separately, authors were contacted requesting this data.

Quality assessment

Several tools were used to assess the quality and risk of bias of included papers due to the variety of study designs included in this review. All assessments were completed by two reviewers (NF, SK, CL) independently and all disagreements were resolved through discussion until agreement was made. Included papers that had been authored by SK were assessed by other team members (NF and CL) to prevent potential bias in quality assessment.

The Cochrane tool for assessing risk of bias (RoB) in randomised trials, version 2 (RoB 2) [18], was used for the randomised controlled trials, and the quality assessment for cohort or non-randomised experimental studies was completed using the National Heart, Lung and Blood institute (NHLBI) Quality Assessment Tool for before-after (pre-post) studies with no control group (URL: www.nhlbi.nih.gov/health-topics/study-quality-assessment-tools (accessed 26 October 2020).

Consensus-based Standards for the Selection of Health Measurement Instruments (COSMIN) Risk of Bias checklist adapted for clinical measures (ClinROMs) [15] was completed for studies including measurement properties for clinician rating scales, measurement device or imaging tool. The COSMIN ROB checklist for patient reported outcome measures (PROMs) [16] was used for studies including measurement properties for PROMs. The studies were assessed separately against each standard using the four-point scale (very good, adequate, doubtful or inadequate), and then quality was rated using the “worst-score-counts method” [17]. The quality of PROM development was evaluated first, followed by the quality of content validity studies, and these results were combined to rate the content validity overall based on relevance, comprehensiveness and comprehensibility for breast lymphoedema measurement in women following conservative breast cancer treatment. Next, the other eight measurement properties were evaluated. Finally, the overall quality of evidence for each tool was graded using the modified GRADE (Grading of Recommendations, Assessment, Development and Evaluation) approach incorporating the assessment of risk of bias, inconsistency, imprecision and indirectness to grade the quality of evidence as high, moderate, low or very low quality [17].

Recommendations for the use of tools or approaches were categorised, based on the evidence, as (A) recommended (PROM, evidence of sufficient content validity and internal consistency; ClinROM, evidence of sufficient face validity and reliability), (B) promising (additional validation studies required, not categorised as A or C) or (C) insufficient (high quality evidence of insufficient measurement property) [17].

Data synthesis

A narrative synthesis of the findings from the included studies was performed for the breast lymphoedema measurement tools or approaches and available measurement properties. Meta-analysis was not conducted as the review was of the assessment tools, not treatment outcomes or efficacy of treatment.

Results

The search of databases identified 7805 papers and 169 theses titles, with 2306 duplicates removed. Following title and abstract review, 156 papers progressed to full paper review. Fifty-four papers and two theses met the inclusion criteria for this review (Fig. 1) following review of the full papers. Thirty-two studies measured breast lymphoedema signs and symptoms as a side effect of cancer treatments including breast conserving surgery and radiotherapy [19‐50]. Six studies measured the outcome of specific breast lymphoedema interventions [51‐56]. Seventeen studies reported on the measurement properties of the tools used and were further analysed with the COSMIN framework [31, 38, 57‐71].

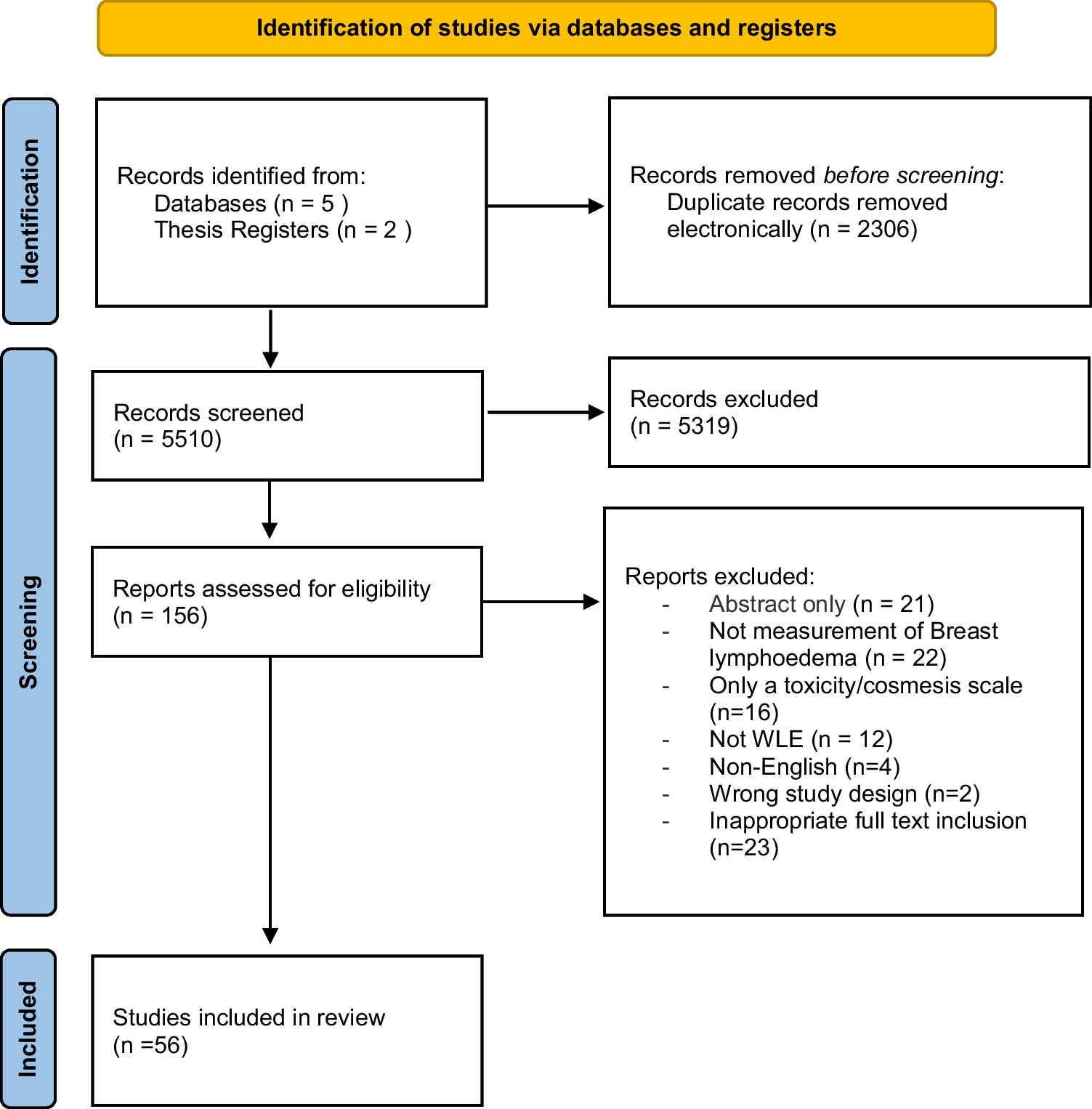

Fig. 1

Preferred Reporting Items for Systematic Reviews and Meta-Analyses (PRISMA) diagram [14]

Bild vergrößern

Fourteen studies used a combination of ClinROM and PROM, including all but one [52] of the breast lymphoedema interventions studies. ClinROMs alone were used in 23 studies, and PROMs alone in 20 studies. Most studies (62.5%) used at least two different tools, with one study using seven [59].

Characteristics of clinician reported outcome measures

Signs of breast lymphoedema were quantified using multiple tools and approaches (Table 1). Breast tissue dermal thickness was measured using ultrasound (n = 12) [21‐24, 35, 36, 54, 57‐60, 72] and mammography (n = 3) [26‐28]; local tissue water was measured using tissue dielectric constant (TDC) (n = 8) [19, 20, 51‐53, 59, 61, 73]; breast volume was measured using three-dimensional surface imagery (3D-SI: n = 4) [37, 40, 56, 63], magnetic resonance imaging (MRI: n = 1) [41] and anthropomorphic techniques (n = 1) [36]; extracellular fluid volume was measured using bioimpedance spectroscopy (BIS: n = 3) [54, 62, 74]; tissue resistance was measured using tonometry (n = 3) [55, 59, 62], the pitting test (n = 2) [59, 61] and indentation force (n = 1) [52]; and dermal backflow/compensatory drainage pathways was visualised with indocyanine green imaging (ICG: n = 1) [73]. Additionally, clinician rating scales (n = 8) [29, 31, 33‐35, 37, 47, 72] were used to identify presence of changes to the appearance, size or texture of the breast tissue. Rating scales were also used by clinicians to identify or grade indicators of breast lymphoedema seen using ultrasound or mammography, including signs of parenchymal or cutaneous oedema, trabecular thickening and skin elasticity (n = 8) [24‐29, 35, 36].

Table 1

Characteristic of studies, assessment tools and populations, organised by assessment tool

Author/ tool Sample size N =	Assessment location/s BLE duration	Outcome assessed Study purpose	Age: mean ± SD (range) or Median (IQR)	Measurement timepoints Times since surgery/RT	NHLBI quality assessment/ ROB 2
Clinician reported outcome measures
Ultrasound
Kerrigan 2021 [72] N = 30	Single site (6 o’clock)	Dermal thickness BLE assessment	Range ~ > 40 to > 70 years	Single measurement 6–24 months post-surgery	NHLBI-Fair
Kilbreath 2021 [60] N = 88	Quadrants BLE > 3 months	Dermal thickness Reliability, measurement error	56.8 ± 9.6 years	Baseline and 12 weeks 11–26 months post-surgery	NHLBI-Good
Riches 2020 [59] N = 40, retest n = 25	Quadrants	Dermal thickness BLE assessment methods	BLE = 59.98 ± 10.58 years All = 61.1 ± 9.6 years (29–80)	Baseline and 5–10 days later 6 months to 12 years post-surgery	NHLBI-Fair
Kilbreath 2020 [54] N = 89	Quadrants BLE > 3 months	Dermal thickness RCT: Intervention-exercise	Control age: 59.5 ± 8.0 years Exercise age: 53.7 ± 10.4 years	Baseline and 12 weeks	ROB-Low
Verbelen 2020 [58] N = 55	Quadrants	Dermal thickness Validating questionnaire	BLE: 58.2 ± 11.48 years No BLE: 63.0 ± 10.1 years	Two measures, 24–48 h apart	NHLBI-Good
Dylke 2018 [57] N = 38	Quadrants BLE > 3 months	Dermal thickness Reliability study	> 18 years	Single measurement	NHLBI-Fair
Garnier 2017 [21] N = 34	Two sites	Dermal thickness RT side effects	61.5 [IQR 53.0–68.0] years	Single measurement, final RT treatment	NHLBI-Fair
Adriaenssens 2012 [36] N = 20	Quadrants	Dermal thickness, elastography RT side effects and BLE diagnosis	58.9 ± 12.1 years	Pre-surgery and post RT	NHLBI-Fair
Wratten 2007 [24] N = 52	Medial and lateral breast	Dermal thickness, imaging signs RT side effects	55 (31–74) years	Pre RT, weekly during RT, 2, 6 weeks, 4, 6, 12 and 24 months post RT	NHLBI-Fair
Della sala 2006 [25] N = 90	Whole breast	Imaging signs RT side effects	IORT: 62 (45–79) years RT: 60 (40–78) years	Baseline, 12, 24 months post RT	NHLBI-Poor
Ronka 2004 [35] N = 160	Quadrants and whole breast	Dermal thickness, imaging signs Surgical side effects	SNB: 59 (39–77) years AC: 58 (37–80) years No AC: 58 (39–81) years	Single measurement Mean 12.6 (11.3–18.8) months post-surgery	NHLBI-Fair
Wratten 2002 [22], 2000 [23] N = 11	Medial and lateral breast	Dermal thickness Surgical side effects	BLE: 56.54 ± 11.1 (35–71) years	Single measurement	NHLBI-Fair
Tissue dielectric constant
Johansson 2020 [51] N = 56	Quadrants and mean	Local tissue water RCT: Int—compression	Comp = 61.9 ± 7.6 years No comp = 61.3 ± 9.6 years	3 months post RT and 9 months	ROB-Some concerns
Heydon-White 2020 [73] N = 10	Quadrants	Local tissue water Assessment of tools	54 ± 15 (36–81)	Single measurement	NHLBI-Fair
De Vrieze 2019 [61] N = 9	Single site BLE 74 ± 44 months	Local tissue water Reliability, measurement error	65 ± 8 years	Single measurement	NHLBI-Fair
Riches 2020 [59] N = 40, retest n = 25	Quadrants	Local tissue water BLE assessment methods	BLE = 59.98 ± 10.58 years All = 61.1 ± 9.6 years (29–80)	Baseline and 5–10 days later 6 months to 12 years post-surgery	NHLBI-Fair
Collins 2018 [53] N = 14	Quadrants and mean	Local tissue water RCT: Int-Kinesiotape	Age: Kinesio = 64.1 ± 5.9 years Usual = 53.9 ± 10.4 years	Baseline, EOT and 6 weeks post treatment At least 4 weeks post radiotherapy	ROB-Low
Mayrovitz 2017 [52] N = 12	Single site	Local tissue water Intervention–skin cooling	61.0 ± 12.1 (38–88 years)	Single session, two measurements: pre and post cool	NHLBI-Poor
Johansson 2015 [19] N = 65	Quadrants and mean	Local tissue water RT side effects	61.2 ± 8.1 years	Pre RT, 3, 6 months, 1, 2 years post RT	NHLBI-Good
Johansson 2014 [20] N = 118	Quadrants & mean	Local tissue water RT side effects	61.3 ± 8.4 years	Seven measurements: Pre RT, weekly during RT, 2, 4 weeks post RT	NHLBI-Fair
Mammography
Tian 2016 [26] N = 89	Whole breast	Dermal thickness, imaging signs RT Side effects	Med 60 (33–83) years	Single measurement Med 48 months post RT	NHLBI-Fair
Carvalho 2011 [27] N = 60	Whole breast	Dermal thickness, imaging signs RT side effects	ELIOT: 64.1 ± 8.9 years RT: 54.3 ± 8.8 years	Single measurement 12 months post RT	NHLBI-Fair
Kuzmiak 2009 [28] N = 64	Whole breast	Dermal thickness, imaging signs RT side effects	IORT: 70 (48–92) years WBRT: 62 (45–82) years	Single measurement 12 months post RT	NHLBI-Poor
Della Sala 2006 [25] N = 90	Whole breast	Imaging signs RT side effects	IORT: 62 (45–79) years RT: 60 (40–78) years	Baseline, 12, 24 months post RT	NHLBI-Poor
Vuorela 1989 [29] N = 14	Whole breast	Imaging signs RT side effects	48.5 (30–75) years	Single measurement 1–10 months/12–41 months post RT	NHLBI-Poor
Three-dimensional surface imagery
Leusink 2021 [63] N = 31	Whole breast	Breast volume Assessment of tool	NR	Single measurement Between 1–6 years post BCT	NHLBI-Fair
Koban 2020 [37] N = 38	Whole breast	Breast volume RT side effects	Med 57 years (30–80 years)	Baseline, weeks 1, 2, 3, 4, 5, 6 and 7 and 3 months post RT	NHLBI-Poor
Chapman 2020 [40] N = 77	Whole breast	Breast volume RCT-RT side effects	NR	Post-surgery/RT 3 years post RT	ROB-Some concerns
Jahr 2008 [56] N = 21	Whole breast	Breast volume RCT- interventions MLD ± deep oscillation	Treat: 56.6 (41–65) years Control: 62.0 (42–71) years	Three measurements: baseline, 4 weeks (end of intervention), 8 weeks post Intervention	ROB-Some concerns
Bioimpedance spectroscopy
Ward 2020 [74] N = 41	Whole breast-R₀ ratio > 3 months	Extracellular fluid Assessment of BLE tool	> 18 years	Single measurement	NHLBI-Good
Kilbreath 2020 [54] N = 89	Whole breast-R₀ ratio > 3 months	Extracellular fluid RCT: Intervention-exercise	Control age: 59.5 ± 8.0 years Exercise age: 53.7 ± 10.4 years	Baseline and 12 weeks	ROB-Low
Moseley 2008 [62] N = 14	Quadrants-R₀ ratio	Extracellular fluid Assessment of BLE tool	61.6 ± 9.7 years	Single measurement Mean 8.7 ± 4.7 years post-surgery	NHLBI-Poor
Pitting test
Riches 2020 [59] N = 40, retest n = 25	Quadrants	Tissue resistance BLE assessment methods	BLE:59.98 ± 10.58 years All: 61.1 ± 9.6 years (29–80)	Baseline and 5–10 days later 6 months to 12 years post-surgery	NHLBI-Fair
De Vrieze 2019 [61] N = 9	1 site 74 months ± 44	Tissue resistance Reliability, measurement error	65 ± 8 years	Single measurement	NHLBI-Fair
Tonometry
Riches 2020 [59] N = 40, retest n = 25	Quadrants	Tissue resistance BLE assessment methods	BLE:59.98 ± 10.58 years All:61.1 ± 9.6 years (29–80)	Baseline and 5–10 days later 6 months to 12 years post-surgery	NHLBI-Fair
Ashforth 2011 [55] N = 4	Single site	Tissue resistance Int: JoViPitPak, SLD, compression	39–55 years	Baseline, 2 weeks, 5 weeks of intervention	NHLBI-Poor
Moseley 2008 [62] N = 14	Quadrants	Tissue resistance Assessment of BLE tool	61.6 ± 9.7 years	Single measurement Mean 8.7 ± 4.7 years post-surgery	NHLBI-Poor
Indentation force
Mayrovitz 2017 [52] N = 12	Single site	Tissue resistance Intervention- skin cooling	61.0 ± 12.1 (38–88 years)	Single session, two measurements: pre and post cool	NHLBI-Poor
ICG
Heydon-white 2020 [73] N = 10	Whole breast	Lymphatic pathways/backflow Assessment of tools	54 ± 15 (36–81)	Single measurement	NHLBI-Fair
Anthropomorphic
Adriaenssens 2012 [36] N = 20	Whole breast	Breast volume (Qiao technique[81]) RT side effects and BLE diagnosis	58.9 ± 12.1 years	Pre-surgery and post RT	NHLBI-Fair
MRI
Pukancsik 2017 [41] N = 200	Whole breast	Breast volume	56 (32–70) years	Once, 12 months post-surgery	NHLBI-Poor
Clinical rating scales
Kerrigan 2021 [72] N = 30	Whole breast	Soft tissue BLE assessment	Range ~ > 40 to > 70 years	Single measurement 6–24 months post-surgery	NHLBI-Fair
Ronka 2004 [35] N = 160	Whole breast	Size, tenderness, pigmentation, skin condition Surgical side effects	SNB: 59 (39–77) years AC + : 58 (37–80) years AC-: 58 (39–81) years	Single measurement 12.6 (11.3–18.8) months post-surgery	NHLBI-Fair
Koban 2020 [37] N = 38	Whole breast	Skin erythema RT side effects	Med 57 years (30–80 years)	Baseline, weeks 1, 2, 3, 4, 5, 6 and 7 and 3 months post RT	NHLBI-Poor
Degnim 2012 [31] N = 124	Quadrants, nipple, areolar	Oedema, erythema Assessment of BLE tool	Med 56.5 (36–85) years	1, 3, 6 and 12 months post op Median follow up 11 months (3–14 months)	NHLBI-Fair
Pezner 1985 [33] N = 45	Whole breast	Breast size, peau d’orange, skin erythema, hyperpigmented pores RT side effects	55 (34–68)	Single measurement 18 months post RT (5–42 months)	NHLBI-Poor
Clarke 1982 [34] N = 76	Whole breast	Oedema, fibrosis, hyperpigmentation, thrombophlebitis RT side effects, diagnosis of BLE	Med 46 years	Multiple measurements Follow-up Med 23 months (12 mths-7.5 years) from diagnosis	NHLBI-Poor
Vuorela 1989 [29] N = 14	Whole breast	Skin and breast consistency RT side effects	48.5 (30–75) years	Single measurement 1–10 months/ 12–41 months post RT	NHLBI-Poor
Patient-reported outcome measures
Author Sample size n =	Languages BLE duration	Construct/symptoms Study purpose	Age: mean ± SD (range)	Measurement timepoints Times since surgery/RT	NHLBI QA/ROB2
BrEQ
Verbelen 2020 [58] N = 55	Dutch (English version not validated)	Symptom experience Validating questionnaire	BLE: 58.2 ± 11.48 years No BLE: 63.0 ± 10.1 years	Two measures, 24–48 h apart	NHLBI-Good
BLYSS
Smith 2013 [64] N = 50 (PROM develop), N = 30 (PROM test)	English Develop: 0.2–9 years Test: 0.25–14 years	Symptom experience Validating questionnaire/reliability	Develop: 62.5 ± 8.5 (45–85) years Testing: 46–82 years	Test: repeated BLYSS 24 h later Develop: 5.4 ± 26 (1–11 years) Test: 0–21 years post-surgery	NHLBI-Fair
LSIDS-Trunk
Kilbreath 2020 [54] N = 89	English BLE > 3 months	Symptom experience: intensity and distress. RCT: Intervention—exercise	Control: 59.5 ± 8.0 years Exercise: 53.7 ± 10.4 years	Baseline and 12 weeks	ROB-Low
BLSQ
Riches 2020 [59] N = 40, retest n = 25	English	Symptom experience BLE assessment methods	BLE: 59.98 ± 10.58 years All: 61.1 ± 9.6 years (29–80)	Baseline and 5–10 days later 6 months to 12 years post-surgery	NHLBI-Fair
LYMQOL-Breast
Riches 2020 [59] N = 40, retest n = 25	English	QOL BLE assessment methods	BLE: 59.98 ± 10.58 years All: 61.1 ± 9.6 years (29–80)	Baseline and 5–10 days later 6 months to 12 years post-surgery	NHLBI-Fair
EORTC-BR23 (105 translations)
Kilbreath 2020 [54] N = 89	English BLE > 3 months	QOL RCT: Intervention-exercise	Control: 59.5 ± 8.0 years Exercise: 53.7 ± 10.4 years	Baseline and 12 weeks	ROB-Low
Riches 2020 [59] N = 40, retest n = 25	English	QOL BLE assessment methods	BLE: 59.98 ± 10.58 years All: 61.1 ± 9.6 years (29–80)	Baseline and 5–10 days later 6 months to 12 years post-surgery	NHLBI-Fair
Adriaenssens 2012 [36] N = 20	NR	QOL RT side effects and BLE diagnosis	58.9 ± 12.1 years	Pre-surgery and post RT	NHLBI-Fair
Jankowska-Polanska 2017 [43] N = 50 (*150)	NR	QOL Surgery effects/cosmesis	BCS: 53.96 ± 8.54 (37–69 years)	Single measurement 20% > 1 year, 24% 1–2 years, 56% over 2 years post-surgery	NHLBI-Poor
Akca 2014 [44] N = 27 (*250)	Turkish	QOL Surgery side effects/QOL	Total sample: 47.4 ± 6.4 (28–55 years)	Single measurement	NHLBI-Poor
Adriaenssens 2012 [32] N = 131	NR	QOL RT side effects	60.2 ± 10.4	Single measurement Varied time post-surgery	NHLBI-Fair
Eldridge-Hindy 2020 [30] N = 148	English	QOL RT side effects	59 years (30–81)	Pre RT, End RT, 1, 6 months, 1, 2 and 3 years Med 39.3 (range 6–94) months post RT	NHLBI-Fair
De Oliveira-Junior 2021 [47] N = 300 (72 reconstruction)	Brazilian Portuguese	QOL Surgical outcomes	59.8 (95%CI 58.6–60.98) (range 32.8–87.5) years	Single measurement 7.14 (95%CI 6.6–7.68) years post-surgery	NHLBI-Good
Brandini da Silva 2019 [65] N = 300, n = 50 (retest)	Brazilian Portuguese	QOL Assessment of BCTOS	58.8 (25.6–87.5) years	Baseline and retest 21 to 30 days later 7.4 years (1.2–20.6) post first medical appointment	NHLBI-Fair
Pukancsik 2017 [41] N = 200	NR	QOL Surgical side effects/cosmesis	56 (32–70) years	Pre-surgery, 4 weeks post-surgery, 12 months post-surgery and post RT	NHLBI-Poor
Feisst 2019[66] N = 204	German	QOL Validation of BCTOS-12	Med 57 (30–82) years	Single measurement 1–4 weeks post-surgery	NHLBI-Fair
Struik 2018 [70] N = 101	Dutch	QOL Dutch translation of BCTOS-13	61 (39–86) years	Single measurement, minimum 2–3 months post-surgery and post RT 14.6 (5–29) months post-surgery	NHLBI-Fair
Heil 2011 [42] N = 199 (138 at f/up)	German	QOL Side effects	58 years old ± 9.3 (95%CI 43–74)	7 days and 1 year post surgery 3–9 months post RT (median 7 months)	NHLBI-Fair
Heil 2010 [69] N = 189	German	QOL Assessment of tool-German	57 years	Single measurement Mean 7.31 days post-surgery	NHLBI-Poor
Hennigs 2018 [67] N = 871	German	QOL BCTOS item reduction	58 ± 12.3(27–87) years	Single measurement Median 4 days post-surgery	NHLBI-Fair
BCTOS -22
Weng 2021 [46] N = 287	English	QOL RCT-RT side effects	CF-WBI: Med 60 (IQ: 54 –66) HF-WBI: Med 60 (IQ: 54 –66)	Pre-RT (within 12 weeks of surgery) and 6 months, 1,2,3,4,5 years post RT Med f/up 48.3(IQR 42.3–49.6 months)	ROB-Low
De Oliveira-Junior 2021 [47] N = 300	Brazilian-Portuguese	QOL/Cosmesis Surgical outcomes	59.8 (95%CI 58.6–60.98) (32.8–87.5) years	Single measurement 7.14 (95%CI 6.6–7.68) years post-surgery	NHLBI-Good
Chapman 2020 [40] N = 77	English	QOL RCT – RT side effects	NR	Post-surgery/RT 3 years post RT	ROB-Some concerns
Brandini da Silva 2019 [65] N = 300, N = 50 (retest)	Brazilian-Portuguese	QOL/Cosmesis Reliability, translation	58.8 (25.6–87.5) years	Baseline & retest 21 to 30 days later 7.4 years (1.2–20.6) post first medical appointment	NHLBI-Fair
Jethwa 2018 [48] N = 131	English	QOL/Cosmesis RT side effects	APBI: 69.3 ± 8.5 years WBI: 65.1 ± 10.8 years	Single measurement Med 13.3 months post RT	NHLBI-Poor
Teichman 2018 [49] N = 129	English	QOL RT side effects	PBPT: 65 (5394) med 72.5 years WBI: 63.32 (46–86) med 70 years	Single measurement PBPT, Mean = 7.44 years; WBI, Mean = 6.23 years post diagnosis	NHLBI-Good
Vieira 2018 [68] N = 10 (v5), n = 6 (v6)	Brazilian Portuguese	QOL Translation	V5:57.9 ± 9.5, 42.2 ± 36.7 years V6:59.9 ± 10.6, 44.9 ± 43 years	Single measurement	NHLBI-Poor
Pukancsik 2017 [41] N = 200	NR	QOL/Cosmesis Surgical side effects/cosmesis	56 (32–70) years	Pre-surgery, 4 weeks post-surgery, 12 months post-surgery and post RT	NHLBI-Poor
Ojala 2016 [50] N = 379	Finnish/Swedish	QOL Translation, surgical outcomes	62 (36–92) years	Single measurement 3 years post-surgery	NHLBI-Poor
Tian 2013 [45] N = 152 (*333)	English	QOL Side effects	62.4 ± 10.7 (55–77) years	Single measurement, at least 12 months post-surgery. Mean 46 months post-surgery (12–136 months)	NHLBI-Good
Heil 2010 [69] N = 189	German	QOL/Cosmesis Assessment of tool, translation	Mean 57 years	Single measurement Median 4 days, mean 7.31 days post-surgery	NHLBI-Poor
Krishnan 2001 [38] N = 54	English	QOL/Cosmesis Cosmetic and functional status after (BCT) and relation to QOL	64.34 ± 10.9 (41–83)	Single measurement 76.2 ± 48.33 months (9–216 months) post diagnosis	NHLBI-Poor
Stanton 2001 [71] N = 184	English	QOL Validation of BCTOS-22	61.62 ± 11.83 (28–85)	Single measurement Mean 73.61 months post diagnosis ± 51.45 (3–216 months)	NHLBI-Fair
BCTOS-18 (Oedema subscale excluded)
Eldridge-Hindy 2020 [30] N = 148	English	QOL/Cosmesis RT side effects	59 years (30–81)	Pre RT, End of RT, 1, 6 months, 1, 2 and 3 years Med f/up 39.3 (5.9–93.7 months) post RT	NHLBI-Fair
Heil 2011 [42] N = 199 (138 at f/up)	German	QOL/Cosmesis Side effects	58 years old (SD 9.3; 95% CI 43–74)	7 days and 1 year post surgery 3–9 months post RT (median 7 months)	NHLBI-Fair
Swanick 2016 [39] N = 287	English	QOL/Cosmesis RT side effects/cosmesis	CF-WBI median 60 (42–77) years HF-WBI median 60 (41– 81) years	Baseline, 6 months, 1, 2, 3 years post RT Med f/up 24.7 months (IQR 13.3–36.3)	ROB-Some concerns
BCTOS-12
Feisst 2019[66] N = 204	German	QOL/Cosmesis Validation of BCTOS-12	med 57 (30–82) years	Single measurement 1–4 weeks post-surgery	NHLBI-Fair
Hennigs 2018 [67] N = 871	English	QOL/Cosmesis BCTOS item reduction	58 ± 12.3(27–87) years	Single measurement Median 4 days post-surgery	NHLBI-Fair
BCTOS-13
Struik 2018 [70] N = 101	Dutch	QOL/Cosmesis Shortened BCTOS & translation	61 (39–86) years	Single measurement, 2–3 months post-surgery and RT 14.6 (5–29) months post-surgery	NHLBI-Fair
Breast Symptom Scale
Adriaenssens 2012 [32] N = 131	NR	Symptom experience RT side effects	60.2 ± 10.4	Single measurement Varied time post-surgery	NHLBI-Fair
Breast Cosmesis Questionnaire
Ashforth 2011 [55] N = 4	English	Breast and skin density, skin appearance, swelling, pain Int-JoViPitPak, SLD, compression	39–55 years	Baseline, 2 weeks, 5 weeks of intervention	NHLBI-Poor
Modified DASH
Kerrigan 2021 [72] N = 30	English	Symptoms/function BLE assessment	Range ~ > 40 to > 70 years	Single measurement 6–24 months post-surgery	NHLBI-Fair
Patient Rating Scales
Ashforth 2011 [55] N = 4	VAS	Breast pain Int-JoViPitPak, SLD, compression	39–55 years	Baseline, 2 weeks, 5 weeks of intervention	NHLBI-Poor
Johansson 2020 [51] N = 56	VAS	Heaviness, pain, tightness RCT: Int-compression	Comp = 61.9 ± 7.6 years No comp = 61.3 ± 9.6 years	3 months post RT and 9 months	ROB-Some concerns
Collins 2018 [53] N = 14	VAS	Heaviness/fullness, discomfort, redness RCT: Int-Kinesiotape	BLE Kinesio = 64.1 ± 5.9 years BLE Usual = 53.9 ± 10.4 years Overall = 59 years (34–74)	Baseline, end of treatment & 6 weeks post treatment At least 4 weeks post radiotherapy	ROB-Low
Jahr 2008 [56] N = 21	VAS (pain) and 11-point scale (swelling)	Swelling, pain RCT-interventions MLD ± deep oscillation	Treatment: 56.6 (41– 65) years Control: 62.0 (42–71) years Total sample: 59.2 (41–71) years	Three measurements: baseline, 4 weeks (end of intervention), 8 weeks post intervention	ROB-Some concerns
Degnim 2012 [31] N = 124	11-point scale	Heaviness, discomfort, redness, swelling Assessment of BLE tool	Med 56.5 (36–85) years	1, 3, 6, and 12 months post op Median follow up 11 months (3–14 months)	NHLBI-Fair
Heydon-White 2020 [73] N = 10	Yes/no	Heaviness, discomfort Assessment of tools	54 ± 15 (36–81)	Single measurement	NHLBI-Fair
Jethwa 2018 [48] N = 131	Linear analogue scale assessment	Symptom experience RT side effects	APBI: 69.3 ± 8.5 years WBI: 65.1 ± 10.8 years	Single measurement Med 13.3 months post RT	NHLBI-Poor
Ojala 2016 [50] N = 379	Author developed questionnaire	QOL BCTOS translation, surgical outcomes	62 (36–92) years	Single measurement 3 years post-surgery	NHLBI-Poor

Abbreviations: RT, radiotherapy; BLE, breast lymphoedema; Int, intervention; Med, median; AC, axillary clearance; MLD, manual lymphatic drainage; SLD, self lymphatic drainage; RCT, randomised controlled trial; NHLBI, National Heart, Lung and Blood Institute Quality Assessment Tool; ROB, Cochrane risk of bias tool version 2; BCT, breast conserving treatment; V, version; Comp, compression; EOT, end of treatment; CF-WBI, conventionally fractionated whole breast irradiation; HF-WBI, hypofractionated whole breast irradiation; WBI, whole breast irradiation; PBPT, proton beam radiation therapy; APBI, accelerated partial breast irradiation; ELIOT, intraoperative irradiation for early breast cancer; WBRT, whole breast radiation therapy; IORT, intraoperative radiation therapy; *whole sample including ineligible subjects for systematic review; QOL, quality of life

BrEQ, Breast Edema Questionnaire; BLYSS, Breast Lymphoedema Symptom Severity; LSIDS-T, Lymphedema Symptom Intensity and Distress Survey-Trunk; BLSQ, Breast Lymphoedema Symptom Questionnaire; LYMQOL-Breast, Lymphoedema Quality of Life tool-Breast; EORTC-QLQ BR23, European Organization for Research and Treatment of Cancer Breast Cancer-Specific Quality of Life Questionnaire; BCTOS, Breast Cancer Treatment Outcome Scale, QOL, quality of life; Modified DASH, Disabilities of the Arm, Shoulder and Hand; VAS, visual analogue scale

Measurement locations for the different tools and techniques varied and were either taken of the entire breast, quadrants or one or two selected locations on the breast. The entire breast was assessed for dermal backflow (ICG), volume (3D-SI, anthropomorphic, and MRI) and clinical rating scales. Ultrasound (dermal thickness), BIS, tissue resistance and TDC measures were performed both in breast quadrants [35, 36, 53, 57‐60, 62, 73], two breast sites [21‐24] or a single measurement site [52, 54, 55, 61, 72, 74]. TDC breast quadrant measures were also combined and reported as averages [19, 20, 51, 53, 59, 61] with the unaffected breast that was assessed to determine ratios. BIS measures were also reported as a ratio for the affected breast compared to the unaffected breast [54, 74].

COSMIN summary: ClinROMs

The COSMIN Risk of Bias tool adapted for clinical measures (ClinROMs) [15] was completed for five clinical assessment tools [31, 57, 59‐63], from eight studies that evaluated measurement properties. Evaluation of face validity, reliability and measurement error were conducted for all tools (Table 2). Criterion validity was not evaluated as there is no gold standard for measurement of breast lymphoedema. Measurement properties for dermal thickness measured with mammography as well as imaging signs and breast volume measured using anthropomorphic or MRI techniques were not reported in the studies meeting the inclusion criteria for this study. Only a single study presented measurement properties for clinician rating scales [31].

Table 2

Clinician Reported Outcome Measures (ClinROMs): measurement properties and COSMIN ratings

Assessment tool	Reference	Face validity	Reliability
Assessment tool	Reference	Face validity	Intra-rater	Inter-rater	Intra-rater	Inter-rater
Ultrasound (dermal thickness)	Dylke [57] (image measure)	+	ICC = 0.977 (0.7–0.93)	ICC = 0.96 (0.94–0.97)^a
				ICC = 0.85 (0.82–0.88)^b
				Cronbach’s α = 0.995 ^c
	Kilbreath [60] (image capture)	+	ICC = 0.84 (0.77–0.90)^d		SEM = 0.122 mm, SEM% = 9.3%, SRD = 0.34mm^d
			ICC = 0.77 (0.66–0.84)^e		SEM = 0.148 mm SEM% = 10.6%, SRD = 0.41mm^e
			ICC = 0.76 (0.65–0.84)^f		SEM = 0.148 mm, SEM% = 10.6%, SRD = 0.41mm^f
			ICC = 0.66 (0.52–0.77)^g		SEM = 0.141 mm, SEM% = 13.1%, SRD = 0.39mm^g
	Riches [59] (image measure)	+			BA mean diff = 0.008 (LOA − 0.857–0.873)
	Overall rating (GRADE)	+ (NG)	+ (M)	+ (M)	? (M)	NR
TDC (local tissue water/percentage water content)	De Vrieze [61]	+	ICC = 0.95 (0.75–0.99)^h	ICC = 0.0.90 (0.54–0.98)^h	SEM = 2.2^h	SEM = 4.0^h
		+	ICC = 0.74 (0.00–0.94)ⁱ	ICC = 0.826 (0.30–0.96)ⁱ	SEM = 3.1ⁱ	SEM = 2.9ⁱ
		+	ICC = 0.78 (0.11–0.95)^j	ICC = 0.86 (0.41–0.97)^j
	Riches [59]	+			BA mean diff = -0.23 (LOA = − 8.89–8.44)^j
	Overall rating (GRADE)	+ (NG)	+ (L)	+ (L)	? (L)	? (L)
Tonometry	Mosely [62]	?			CV = 1.29–3.25%
	Riches [59]	- (⁰H)
	Overall rating (GRADE)	- (NG)	NR	NR	? (VL)	NR
3D-SI (volume)	Leusink [63]	+			CV = 3.3%
3D-SI (volume)	Overall rating (GRADE)	+ (NG)	NR	NR	? (VL)	NR
BIS	Moseley [62]	+			CV = 0.29–0.86%
BIS	Overall rating (GRADE)	+ (NG)	NR	NR	? (VL)	NR
Clinician rating scale	Degnim [31] 2012	+	K = 0.76 (surgeon)/0.75 (LO therapist)
Clinician rating scale	Overall rating (GRADE)	+ (NG)	? – not wK (L)	NR	NR	NR
Pitting	DeVrieze [61]	+	K = 0.36 (SE = 0.37)	K = − 0.102 (SE = 0.14)
Pitting	Overall Rating (GRADE)	+ (NG)	- (L)	- (L)	NR	NR

Cut off values ICC: < 0.4 weak; 0.4–0.75 moderate; 0.75–0.9 strong; > 0.9 very strong (McDowell 1996) *Significant: p value < 0.05. Cut off values Cronbach alpha coefficients: < 0.5 unacceptable; 0.5– 0.6 weak; 0.6–0.7 acceptable; 0.7–0.9 good; > 0.9 excellent (Bland and Altman 1997; McDowell 1996)

BIS, bioimpedance spectroscopy; TDC, tissue dielectric constant; 3D-SI, three-dimensional surface imagery; SEM, standard error of measurement; SRD, smallest real difference; wK, weighted kappa; BA, Bland Altman; LOA, limits of agreement; diff, difference; K, kappa; CV, coefficient of variation; ⁰H, null hypothesis confirmed

COSMIN Overall ratings: + sufficient evidence;—insufficient evidence; ? indeterminate evidence; NR, not reported

GRADE: quality of evidence based on modified GRADE (risk of bias, inconsistency, imprecision (sample size) and indirectness [17]): H, high; M, moderate; L, low; VL, very low; NG, not graded. Bold denotes measurement criteria that has sufficient rating and a GRADE of moderate to high quality of evidence

^aAssessor 1, ^bassessor 2, ^cinterimage reliability, ^dsuperior quadrant, ^einferior quadrant, ^f medial quadrant, ^glateral quadrant, ^haffected breast, ⁱunaffected breast, ^jpercentage water content (PWC) ratio

Face validity was evaluated as sufficient for dermal thickness measurement using ultrasound [57, 59, 60], local tissue water measured with TDC [59, 61], breast volume measurement using 3D-SI [63], extracellular fluid measured with BIS [62], tissue resistance measured with pitting [61] and clinician rating scales of breast lymphoedema signs [31]. Tonometry face validity was evaluated as being indeterminate [59, 62] and having insufficient structural validity as this tool could not detect a difference between affected and unaffected breasts or lymphoedematous and non-lymphoedematous breasts [59]. Structural validity was not described for any other ClinROMs.

Reliability was rated as sufficient for measurement of dermal thickness for both the image capture [60] and image measurement [57, 59] using ultrasound, with a GRADE rating of moderate quality of evidence, due, in part, to low combined sample size (< 100) of studies that investigated it. Reliability was also evaluated as sufficient for TDC measuring percentage water content (PWC) ratio (affected:unaffected breasts) [59, 61]; however, it received a GRADE rating of low quality evidence due to imprecision (combined sample size for two studies < 50). Reliability of a clinician rating scale was indeterminate from a single study with GRADE rating downgraded to low quality due to risk of bias [31]. Pitting test reliability was rated as insufficient based on results from a single study with a GRADE of low quality due to small sample size (< 50) [59]. Reliability results were not available for tonometry, BIS, ICG or breast volume measurement.

Measurement error for all assessment tools was graded as indeterminate as minimally important change (MIC) has not been defined for any breast lymphoedema tools. Both dermal thickness assessed by ultrasound [57, 59, 60] and TDC [59, 61] had values for standard error of measurement and limits of agreement to allow some interpretation of results, with quality of evidence for measurement error graded as moderate for dermal thickness assessed by ultrasound and low for TDC, both of which were downgraded for the same reasons described for reliability respectively. Coefficient of variation was reported for tonometry [62], BIS [62] and breast volume measured by 3D-SI [63] with the quality of evidence for these tools graded as very low. There was no measurement error information for pitting test [59, 61] or clinician rating scales [31].

Based on the information provided, dermal thickness measurement assessed by ultrasound is recommended (Category A) for the assessment of breast lymphoedema as it has both have sufficient face validity and evidence for sufficient reliability with moderate quality of evidence. The other assessment tools, including TDC, BIS, tonometry, 3D-SI, clinician rating scales and the pitting test, are categorised as promising (Category B) as they do not have sufficient evidence for reliability, and the studies are of low or very low quality. No tools were categorised as insufficient (Category C).

Characteristics of PROMs

Patient-reported breast lymphoedema symptoms severity and/or intensity were quantified in 14 studies with seven using questionnaires (Breast Lymphoedema Symptom Severity (BLYSS), Breast Edema Questionnaire (BrEQ), Disabilities of the Arm, Shoulder and Hand (Modified DASH), BSQ-Breast Symptom Questionnaire (BSQ), Lymphedema Symptom Intensity and Distress Survey-Trunk (LSIDS-T), Breast Cosmesis Questionnaire (BCQ), Breast Lymphoedema Symptom Questionnaire (BLSQ) and Breast Symptom Scale (BSS) [32, 54, 55, 58, 59, 64, 72]), six using visual analogue scales (VAS) [31, 48, 51, 53, 55, 56] and one using yes/no response options [73] (Table 1). Further, five questionnaires, European Organization for Research and Treatment of Cancer Breast Cancer-Specific Quality of Life Questionnaire (EORTC-QLQ BR23), Breast Cancer Treatment Outcome Scale-22, -13 and -12 (BCTOS-22, BCTOS-13, BCTOS-12) and Lymphoedema Quality of Life tool-Breast (LYMQOL-Breast), were used to quantify quality of life (QOL) as related to breast lymphoedema or associated symptoms in 24 studies. The EORTC QLQ BR23 was partly completed in three studies [41, 54, 70], using only the breast symptoms subscale with or without the arm symptom subscale, which measured symptoms rather than QOL, per se. The BCOTS-22, BCOTS-13 and BCOTS-12 had conflicting reporting of the construct it measured, with some studies reporting the subscales separately and used the subscales as a measure of cosmesis, pain and/or function [30, 38‐42, 45, 46, 49, 50, 66, 67, 69‐71], while others combined the subscales to measure QOL [47, 48, 65, 68].

COSMIN-PROM

COSMIN for PROM [16] was used to evaluate nine PROMs from eleven papers [38, 58, 59, 64‐71] meeting the inclusion criteria for this systematic review as well as two additional original validation papers in mixed breast cancer populations [75, 76] (Table 3).

Table 3

Patient Reported Outcome Measure (PROM) COSMIN ratings

Questionnaire	Content validity	Structural validity	Internal consistency	Reliability	Measurement error	Construct validity	Responsiveness
BrEQ [58]	+ (M)	NR	? (L)	+ (VL)	NR	- (VL)	NR
BLYSS [64]	+ (M)	NR	NR	+ (VL)	NR	? (VL)	NR
BCTOS-22 [38, 65, 68, 69, 71]	? (VL)	- (H)	+ (H)	+ (VL)	NR	? (M)	- (VL)
BCTOS-12 [66, 67]	? (VL)	? (H)	+ (H)	NR	NR	+ (H)	NR
BCTOS-13 [70]	? (VL)	? (H)	? (H)	+ (L)	NR	? (L)	NR
BLSQ [59]	+ (M)	NR	NR	+ (VL)	NR	+ (M)	NR
LYMQOL-Breast ([59]	+ (M)	NR	? (M)	- (VL)	? (L)	+ (M)	NR
EORTC-BR23 [76]**	+ (L)	NR	? (L)	? (VL)	NR	+ (L)	+ (L)^a
LSIDS-T [75]**	? (VL)	? (VL)	? (M)	NR	NR	+ (VL)	NR

BREQ, Breast Edema Questionnaire; BLYSS, Breast Lymphoedema Symptom Severity; BCTOS, Breast Cancer Treatment Outcome Scale; BLSQ, Breast Lymphoedema Symptom Questionnaire; LYMQOL-Breast, Lymphoedema Quality of Life tool-Breast; EORTC–QLQ BR23, European Organization for Research and Treatment of Cancer Breast Cancer-Specific Quality of Life Questionnaire; LSIDS-T, Lymphedema Symptom Intensity and Distress Survey-Trunk

^**Indirect mixed breast cancer population; ^aSpanish and Dutch versions only

COSMIN ratings, + ; sufficient rating, –; insufficient rating, ?; indeterminate rating, ()

Grading of overall quality of evidence based on modified GRADE approach; H, high; M, moderate; L, low; VL, very low; NR, not reported. Bold denotes measurement criteria that has sufficient rating and a GRADE of moderate to high

All included PROMs were evaluated as having adequate face validity; however, all PROM development studies lacked the detail required by the COSMIN methodology to score above a rating of doubtful quality. The BLYSS, BrEQ and EORTC-BR23 received a doubtful rating for quality of PROM design and the pilot study and a doubtful rating overall for PROM development. These three questionnaires consulted patients for concept elicitation using a qualitative approach but lacked detail on the interview and analysis process. Authors for the BSLQ and LYMQOL-Breast involved patients using quantitative methods for concept elicitation and to confirm comprehensibility and comprehensiveness but only performed this with a small sample of women (n = 20) resulting in an inadequate quality rating for PROM development.

The BCTOS-22/12/13 and LSIDS-T were all rated as inadequate for PROM design as they did not involve patients, either relying on literature review and experience of the authors (BCTOS), or only involving professionals in PROM design and pilot testing (LSIDS-T). A single exception was the pilot study testing the BCTOS-13 [70]. This study involved patients to rate comprehensibility and relevance resulting in a doubtful rating for quality for this pilot study.

The content validity studies for the nine PROMs similarly only achieved a maximum rating of doubtful quality. The BLYSS, LYMQOL-Breast, BLSQ, EORTC-BR23 and BrEQ were all rated as doubtful quality for relevance, comprehensiveness and comprehensibility due to lack of detail on the conduct and analysis of patient or professional interviews (BLYSS/EORTC-BR23/BrEQ) or only surveys being used (BLSQ, LYMQOL-Breast). The original studies for BCTOS were rated as inadequate quality for content validity. However, the German [69] and Brazilian-Portuguese [68] translations of BCTOS-22 did ask patients regarding comprehensibility but was rated as doubtful quality, due to limited information on analysis of this process. LSIDS-T content validity was also rated as inadequate due to lack of patient involvement in the content validity study.

Overall, BLYSS had sufficient quality of evidence with moderate grade evidence for content validity. The BrEQ, BLSQ and LYMQOL-Breast were also rated as sufficient with moderate GRADE evidence, with downgrading due to either lack of input from professionals (BrEQ) or use of quantitative methods in only a small sample for patient feedback (BLSQ/LYMQOL). The EORTC-BR23 had sufficient quality of evidence with low GRADE evidence due to indirectness of the sample used. LSIDS-T and BCTOS were both rated as indeterminate with very low GRADE evidence for content validity.

Six of the nine measurement properties were reported for the included PROMs (Table 3). Construct validity was evaluated for all questionnaires with a sufficient rating for six questionnaires (BrEQ, BCTOS-12, BLSQ, LYMQOL-Breast, EORTC QLQ BR23 and LSIDS-T). Internal consistency was evaluated for six questionnaires (BrEQ, BCTOS-22, BCTOS-12, BCTOS-13, LYMQOL-Breast, EORTC-BR23, LSIDS-T) with two measures receiving a sufficient rating (BCTOS-22, BCTOS-12) with high GRADE evidence. Reliability was evaluated for seven questionnaires (BrEQ, BLYSS, BCTOS-22 [Brazilian-Portuguese], BCTOS-13, BLSQ, LYMQOL-Breast, EORTC-BR23), with five achieving a sufficient rating (BrEQ, BLYSS, BCTOS-22, BCTOS-13, BLSQ), but the GRADE was low or very low for all. Structural validity was evaluated for four questionnaires (BCTOS-22, BCTOS-13, BCTOS-12, LSIDS-T), but no measure achieved a sufficient rating for this measurement property. The BCTOS-22 had an insufficient rating with high GRADE evidence. Responsiveness was only available for two questionnaires (BCTOS-22 and EORTC-BR23 [Spanish and Dutch versions]), with the EORTC-BR23 [Spanish and Dutch versions] achieving a sufficient rating with low GRADE evidence, and the BCTOS-22 rated as insufficient with very low GRADE evidence. Measurement error was presented for just one questionnaire (LYMQOL-Breast) and was rated as indeterminate with low GRADE evidence. Cross-cultural validity, criterion validity and measurement invariance were not presented for any questionnaires. There was no gold standard to assess criterion validity for PROMs.

Quality assessment

Seven randomised controlled trials were included and assessed using the RoB 2 tool [18] (Table 1) [39, 40, 46, 51, 53, 54, 56]. Three RCTs had low overall risk of bias [46, 53, 54], and four were rated as having some concerns [39, 40, 51, 56]. Quality assessment for the 49 non-randomised studies [19‐38, 41‐45, 47‐50, 52, 55, 57‐74] was completed using the NHLBI quality assessment tool (URL: www.nhlbi.nih.gov/health-topics/study-quality-assessment-tools [accessed 26 October 2020]). Seven studies were rated as good quality [19, 45, 47, 49, 58, 60, 74], 25 rated as fair [20‐24, 26, 27, 30‐32, 35, 36, 42, 57, 59, 61, 63‐67, 70‐73] and 17 as poor [25, 28, 29, 33, 34, 37, 38, 41, 43, 44, 48, 50, 52, 55, 62, 68, 69] (Table 1).

Discussion

The signs and symptoms of breast lymphoedema were quantified using a variety of approaches, including 13 patient-reported questionnaires, eight patient-reported rating scales, seven types of physical measures, seven clinician rating scales and four imaging techniques. Dermal thickness measured with ultrasound is recommended for assessment of breast lymphoedema, but further studies are required to establish the MCID and responsiveness (the validity of a change score). A breast lymphoedema PROM, however, cannot be recommended at this time as the reported details for development and measurement properties were lacking for all questionnaires. Nevertheless, the symptom-based PROMs, BLYSS, BLSQ and BrEQ (Dutch) and the QOL PROM LYMQOL-Breast are promising, with sufficient content validity. However, all tools require additional appropriately powered studies with women with, or at risk of breast lymphoedema to improve the measurement property evidence.

To fully assess the impact of breast lymphoedema, more than one assessment tool is suggested [7, 54, 77]. Breast lymphoedema is complex, with no agreed upon definition of the condition and with the presence of oedema in the breast influenced by treatment factors including surgery, radiotherapy and chemotherapy [78]. Measurement of signs and symptoms of breast lymphoedema, including both clinician- and patient-reported outcomes, would provide a comprehensive assessment of the underlying changes occurring. Forty-six percent of the included studies in this systematic review assessed more than one measurement outcome to quantify breast lymphoedema with 14 reporting both patient-reported and clinician-reported outcomes [31, 36, 40, 41, 47, 51, 53‐56, 58, 59, 72, 73]. Inclusion of both ClinROMs and PROMs can also highlight the discord between patient and clinician reported outcomes, such as has been found in arm lymphoedema [12, 79], For example, measurements of dermal thickness provided information on the secondary tissue changes that can occur within the oedematous breast, but this does not necessarily relate to symptoms experienced by women [60]. Furthermore, due to the lack of a gold standard to assess the tools, we are unable to determine which tool is the best. Therefore, use of multiple tools, including those tools with the best available measurement property evidence, are recommended.

The practicality and expense of tools to quantify breast lymphoedema is a consideration for clinical usefulness. Questionnaires are the least expensive option, but responsiveness has only been established in EORTC-BR23 in non-English speaking samples. Ultrasound is readily available in hospitals and imaging centres but may be less accessible in private clinics where lymphoedema therapists often treat patients with lymphoedema. Comparably, TDC is a small, portable tool that could prove useful in clinical settings, but cost may still be prohibitive for small clinics at approximately $6000 AUD for a unit. Unfortunately, two reliable approaches that are widely used for limb lymphoedema, volume measurement and BIS [12], do not currently have sufficient evidence for breast lymphoedema assessment.

This review highlighted the need for standardised assessment protocols for the ClinROMs as there was heterogeneity across many of the studies on the measurement locations on the breast, with some studies reporting individual quadrant results while others only reporting overall means/ratios. For example, findings for dermal thickness measured with ultrasound and TDC may have been influenced by the location at which the measurement was taken. In healthy breasts, dermal thickness is greater in the inferior and medial breast quadrants [57, 59]; similarly, TDC varied across location in healthy breasts as well as unaffected breasts [59, 73]. Other factors such as age and menopausal status [80] and scar tissue [81] may also impact on breast signs but have yet to be investigated in the context of women with breast lymphoedema. Inclusion of these data may become important in the future in interpreting the findings.

This review identified significant gaps for the measurement properties of breast lymphoedema tools. The COSMIN framework for determining ratings for measurement properties is very comprehensive and relies on studies thoroughly reporting the study design to avoid poor ratings. Nevertheless, overall, there was a lack of high-quality evidence of measurement properties for breast lymphoedema tools. Dermal thickness measured with ultrasound had the most evidence but still lacked evidence of measurement error due to no established MCID for these or any breast lymphoedema tools. Four questionnaires (BrEQ, BLYSS, BLSQ, LYMQOL-Breast) were promising but require further investigation and larger sample sizes to improve overall quality of evidence for their measurement properties and overall quality of evidence. It is only after those investigations can recommendations to be made about their usefulness in assessment of breast lymphoedema.

Conclusion

The findings from this systematic review reveal that ultrasound has the best measurement properties, including information on measurement error, but MIC has not yet been established. Of the PROMS, BLYSS, BrEQ and BLSQ for symptom severity and LYMQOL-Breast for measurement of QOL are promising tools to assess women following conservative breast cancer treatment. Well-designed and reported studies on measurement properties for all tools are required to improve quality of evidence in this emerging area of assessment. Based on the current level of evidence, a combination of objective and subjective measurements is recommended to quantify the full manifestation of breast lymphoedema signs and symptoms.

Systematic Review Registration

This systematic review was registered in PROSPERO (CRD42020183851).

Declarations

Competing interests

The authors declare no competing interests.

Open AccessThis article is licensed under a Creative Commons Attribution 4.0 International License, which permits use, sharing, adaptation, distribution and reproduction in any medium or format, as long as you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons licence, and indicate if changes were made. The images or other third party material in this article are included in the article's Creative Commons licence, unless indicated otherwise in a credit line to the material. If material is not included in the article's Creative Commons licence and your intended use is not permitted by statutory regulation or exceeds the permitted use, you will need to obtain permission directly from the copyright holder. To view a copy of this licence, visit http://creativecommons.org/licenses/by/4.0/.

Publisher's note

Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Metadaten
Literatur

Titel: Quantification of breast lymphoedema following conservative breast cancer treatment: a systematic review
Verfasst von: Nicola Fearn
Catalina Llanos
Elizabeth Dylke
Kirsty Stuart
Sharon Kilbreath
Publikationsdatum: 27.10.2022
Verlag: Springer US
Erschienen in: Journal of Cancer Survivorship / Ausgabe 6/2023
Print ISSN: 1932-2259
Elektronische ISSN: 1932-2267
DOI: https://doi.org/10.1007/s11764-022-01278-w

Zehra S, Doyle F, Barry M, et al. Health-related quality of life following breast reconstruction compared to total mastectomy and breast-conserving surgery among breast cancer survivors: a systematic review and meta-analysis. Breast Cancer. 2020;27(4):534–66. https://doi.org/10.1007/s12282-020-01076-1.CrossRefPubMed

Christiansen P, Mele M, Bodilsen A, et al. Breast-conserving surgery or mastectomy?: Impact on survival. Ann Surg Open. 2022;3(4):e205.

Agarwal S, Pappas L, Neumayer L, et al. Effect of breast conservation therapy vs mastectomy on disease-specific survival for early-stage breast cancer. JAMA Surg. 2014;149(3):267–74. https://doi.org/10.1001/jamasurg.2013.3049.CrossRefPubMed

Todd M. Identification, assessment and management of breast oedema after treatment for cancer. Int J of Palliat Nurs. 2017;23(9):440–4. https://doi.org/10.12968/ijpn.2017.23.9.440.CrossRef

Doersam JK, Dietrich MS, Adair MA, et al. A comparison of symptoms among patients with head and neck or truncal lymphedema and normal controls. Lymphat Res Biol. 2019;17(6):661–70. https://doi.org/10.1089/lrb.2019.0034.CrossRefPubMedPubMedCentral

Probst H, Rosbottom K, Crank H, et al. The patient experience of radiotherapy for breast cancer: a qualitative investigation as part of the SuPPORT 4 All study. Radiography. 2021;27(2):352–9. https://doi.org/10.1016/j.radi.2020.09.011.CrossRefPubMed

Verbelen H, Gebruers N, Beyers T, et al. Breast edema in breast cancer patients following breast-conserving surgery and radiotherapy: a systematic review [Review]. Breast Cancer Res Treat. 2014;147(3):463–71. https://doi.org/10.1007/s10549-014-3110-8.CrossRefPubMed

Abouelazayem M, Elkorety M, Monib S. Breast lymphedema after conservative breast surgery: an up-to-date systematic review. Clin Breast Cancer. 2021;21(3):156–61. https://doi.org/10.1016/j.clbc.2020.11.017.CrossRefPubMed

Hidding JT, Viehoff PB, Beurskens CHG, et al. Measurement properties of instruments for measuring of lymphedema: systematic review. Phys Ther. 2016;96(12):1965–81. https://doi.org/10.2522/ptj.20150412.CrossRefPubMed

10.

Llanos C, Gan EY, Chen J, et al. Reliability and validity of physical tools and measurement methods to quantify hand swelling: a systematic review. Phys Ther. 2021;101(2):pzaa206. https://doi.org/10.1093/ptj/pzaa206.CrossRefPubMed

11.

Paramanandam VS, Lee M-J, Kilbreath SL, et al. Self-reported questionnaires for lymphoedema: a systematic review of measurement properties using COSMIN framework. Acta Oncol. 2021;60(3):379–91. https://doi.org/10.1080/0284186X.2020.1862422.CrossRefPubMed

12.

Czerniec SA, Ward LC, Refshauge KM, et al. Assessment of breast cancer-related arm lymphedema–comparison of physical measurement methods and self-report. Cancer Invest. 2010;28(1):54–62. https://doi.org/10.3109/07357900902918494.CrossRefPubMed

13.

Beelen LM, van Dishoeck AM, Tsangaris E, et al. Patient-reported outcome measures in lymphedema: a systematic review and COSMIN analysis. Ann Surg Oncol. 2021;28(3):1656–68.CrossRefPubMed

14.

Page MJ, McKenzie JE, Bossuyt PM, et al. The PRISMA 2020 statement: an updated guideline for reporting systematic reviews. BMJ (Online). 2021;29(372):n71. https://doi.org/10.1136/bmj.n71.CrossRef

15.

Mokkink LB, Boers M, van der Vleuten CPM, et al. COSMIN risk of bias tool to assess the quality of studies on reliability or measurement error of outcome measurement instruments: a Delphi study. BMC Med Res Methodol. 2020;20(1):293. https://doi.org/10.1186/s12874-020-01179-5.CrossRefPubMedPubMedCentral

16.

Mokkink LB, de Vet HCW, Prinsen CAC, et al. COSMIN Risk of Bias checklist for systematic reviews of patient-reported outcome measures. Qual Life Res. 2018;27(5):1171–9. https://doi.org/10.1007/s11136-017-1765-4.CrossRefPubMed

17.

Prinsen CAC, Mokkink LB, Bouter LM, et al. COSMIN guideline for systematic reviews of patient-reported outcome measures. Qual Life Res. 2018;27(5):1147–57. https://doi.org/10.1007/s11136-018-1798-3.CrossRefPubMedPubMedCentral

18.

Sterne JAC, Savović J, Page MJ, et al. RoB 2: a revised tool for assessing risk of bias in randomised trials. BMJ. 2019;366:l4898. https://doi.org/10.1136/bmj.l4898.CrossRefPubMed

19.

Johansson K, Darkeh MH, Lahtinen T, et al. Two-year follow-up of temporal changes of breast edema after breast cancer treatment with surgery and radiation evaluated by tissue dielectric constant (TDC). Eur J Lymphology Relat Probl. 2015;27(73):15–21.

20.

Johansson K, Lathinen T, Björk-Eriksson T. Breast edema following breast conserving surgery and radiotherapy. Eur J Lymphology Relat Probl. 2014;25(70):1–5.

21.

Garnier M, Champeaux E, Laurent E, et al. High-frequency ultrasound quantification of acute radiation dermatitis: pilot study of patients undergoing radiotherapy for breast cancer. Skin Res Technol. 2017;23(4):602–6. https://doi.org/10.1111/srt.12378.CrossRef

22.

Wratten C, Kilmurray J, Wright S, et al. A study of high frequency ultrasound to assess cutaneous oedema in conservatively managed breast. Front Radiat Ther Oncol. 2002;37:121–7. https://doi.org/10.1159/000061307.CrossRefPubMed

23.

Wratten C, Kilmurray J, Wright S, et al. Pilot study of high-frequency ultrasound to assess cutaneous oedema in the conservatively managed breast. Int J Cancer. 2000;90(5):295–301.CrossRefPubMed

24.

Wratten CR, O’Brien PC, Hamilton CS, et al. Breast edema in patients undergoing breast-conserving treatment for breast cancer: assessment via high frequency ultrasound. Breast J. 2007;13(3):266–73.CrossRefPubMed

25.

Della Sala SW, Pellegrini M, Bernardi D, et al. Mammographic and ultrasonographic comparison between intraoperative radiotherapy (IORT) and conventional external radiotherapy (RT) in limited-stage breast cancer, conservatively treated. Eur J Radiol. 2006;59(2):222–30.CrossRefPubMed

26.

Tian S, Paster LF, Kim S, et al. Comparison of mammographic changes across three different fractionation schedules for early-stage breast cancer. Int J Radiat Oncol Biol Phys. 2016;95(2):597–604. https://doi.org/10.1016/j.ijrobp.2016.01.056.CrossRefPubMedPubMedCentral

27.

Carvalho BPSA, Frasson AL, Santos MM, et al. Mammography findings following electron intraoperative radiotherapy or external radiotherapy for breast cancer treatment. Eur J Radiol. 2011;79(2):e7–10. https://doi.org/10.1016/j.ejrad.2009.11.009.CrossRefPubMed

28.

Kuzmiak CM, Zeng D, Cole E, et al. Mammographic findings of partial breast irradiation. Acad Radiol. 2009;16(7):819–25. https://doi.org/10.1016/j.acra.2009.01.021.CrossRefPubMed

29.

Vuorela AL, Harju E, Jakobsson M. Mammographic and palpation findings in the irradiated spared breast. Anticancer Res. 1989;9(4):1217–21.PubMed

30.

Eldredge-Hindy H, Gaskins J, Dragun A, et al. Patient-reported outcomes and cosmesis after once-weekly hypofractionated breast irradiation in medically underserved patients. Int J Radiat Oncol Biol Phys. 2020;107(5):934–42. https://doi.org/10.1016/j.ijrobp.2020.04.041.CrossRefPubMed

31.

Degnim AC, Miller J, Hoskin TL, et al. A prospective study of breast lymphedema: frequency, symptoms, and quality of life. Breast Cancer Res Treat. 2012;134(3):915–22. https://doi.org/10.1007/s10549-012-2004-x.CrossRefPubMedPubMedCentral

32.

Adriaenssens N, Verbelen H, Lievens P, et al. Lymphedema of the operated and irradiated breast in breast cancer patients following breast conserving surgery and radiotherapy. Lymphology. 2012;45(4):154–64.PubMed

33.

Pezner RD, Patterson MP, Robert Hill L, et al. Breast edema in patients treated conservatively for stage I and II breast cancer. Int J Radiat Oncol Biol Phys. 1985;11(10):1765–8. https://doi.org/10.1016/0360-3016(85)90029-x.CrossRefPubMed

34.

Clarke D, Martinez A, Cox RS, et al. Breast edema following staging axillary node dissection in patients with breast carcinoma treated by radical radiotherapy. Cancer. 1982;49(11):2295–9. https://doi.org/10.1002/1097-0142(19820601)49:11%3c2295::Aid-cncr2820491116%3e3.0.Co;2-g.CrossRefPubMed

35.

Rönkä RH, Pamilo MS, Von Smitten KAJ, et al. Breast lymphedema after breast conserving treatment. Acta Oncol. 2004;43(6):551–7. https://doi.org/10.1080/02841860410014867.CrossRefPubMed

36.

Adriaenssens N, Belsack D, Buyl R, et al. Ultrasound elastography as an objective diagnostic measurement tool for lymphoedema of the treated breast in breast cancer patients following breast conserving surgery and radiotherapy. Radiol Oncol. 2012;46(4):284–95. https://doi.org/10.2478/v10019-012-0033-z.CrossRefPubMedPubMedCentral

37.

Koban KC, Etzel L, Li Z, et al. Three-dimensional surface imaging in breast cancer: a new tool for clinical studies? Radiat Oncol. 2020;15(1):52. https://doi.org/10.1186/s13014-020-01499-2.CrossRefPubMedPubMedCentral

38.

Krishnan L, Stanton AL, Collins CA, et al. Form or function? Part 2. Objective cosmetic and functional correlates of quality of life in women treated with breast-conserving surgical procedures and radiotherapy. Cancer. 2001;91(12):2282–7. https://doi.org/10.1002/1097-0142(20010615)91:12%3c2282::AID-CNCR1259%3e3.0.CO;2-0.CrossRefPubMed

39.

Swanick CW, Lei X, Shaitelman SF, et al. Longitudinal analysis of patient-reported outcomes and cosmesis in a randomized trial of conventionally fractionated versus hypofractionated whole-breast irradiation. Cancer. 2016;122(18):2886–94. https://doi.org/10.1002/cncr.30121.CrossRefPubMed

40.

Chapman BV, Lei X, Patil P, et al. Quantitative 3-dimensional photographic assessment of breast cosmesis after whole breast irradiation for early stage breast cancer: a secondary analysis of a randomized clinical trial. Adv Radiat Oncol. 2020;5(5):824–33. https://doi.org/10.1016/j.adro.2020.04.035.CrossRefPubMedPubMedCentral

41.

Pukancsik D, Kelemen P, Újhelyi M, et al. Objective decision making between conventional and oncoplastic breast-conserving surgery or mastectomy: an aesthetic and functional prospective cohort study. Eur J Surg Oncol. 2017;43(2):303–10. https://doi.org/10.1016/j.ejso.2016.11.010.CrossRefPubMed

42.

Heil J, Czink E, Golatta M, et al. Change of aesthetic and functional outcome over time and their relationship to quality of life after breast conserving therapy. Eur J Surg Oncol. 2011;37(2):116–21. https://doi.org/10.1016/j.ejso.2010.11.007.CrossRefPubMed

43.

Jankowska-Polańska B, Świątoniowska-Lonc N, Ośmiałowska E, et al. The association between illness acceptance and quality of life in women with breast cancer. Cancer Manag Res. 2020;12:8451–64. https://doi.org/10.2147/cmar.S261624.CrossRefPubMedPubMedCentral

44.

Akça M, Ata A, Nayır E, et al. Impact of surgery type on quality of life in breast cancer patients. J Breast Health. 2014;10(4):222–8. https://doi.org/10.5152/tjbh.2014.1919.CrossRefPubMedPubMedCentral

45.

Tian Y, Schofield PE, Gough K, et al. Profile and predictors of long-term morbidity in breast cancer survivors. Ann Surg Oncol. 2013;20(11):3453–60. https://doi.org/10.1245/s10434-013-3004-8.CrossRefPubMed

46.

Weng JK, Lei X, Schlembach P, et al. Five-year longitudinal analysis of patient-reported outcomes and cosmesis in a randomized trial of conventionally fractionated versus hypofractionated whole-breast irradiation. Int J Radiat Oncol Biol Phys. 2021;111(2):360–70. https://doi.org/10.1016/j.ijrobp.2021.05.004.CrossRefPubMedPubMedCentral

47.

de Oliveira-Junior I, da Silva IA, da Silva FCB, et al. Oncoplastic surgery in breast-conserving treatment: patient profile and impact on quality of life. Breast Care (Basel). 2021;16(3):243–53. https://doi.org/10.1159/000507240.CrossRefPubMed

48.

Jethwa KR, Kahila MM, Mara KC, et al. Patient-reported outcomes of catheter-based accelerated partial breast brachytherapy and whole breast irradiation, a single institution experience. Breast Cancer Res Treat. 2018;169(1):189–96. https://doi.org/10.1007/s10549-018-4665-6.CrossRefPubMed

49.

Teichman SL, Do S, Lum S, et al. Improved long-term patient-reported health and well-being outcomes of early-stage breast cancer treated with partial breast proton therapy. Cancer Med. 2018;7(12):6064–76. https://doi.org/10.1002/cam4.1881.CrossRefPubMedPubMedCentral

50.

Ojala K, Meretoja TJ, Leidenius MH. Aesthetic and functional outcome after breast conserving surgery - comparison between conventional and oncoplastic resection. Eur J Surg Oncol. 2017;43(4):658–64. https://doi.org/10.1016/j.ejso.2016.11.019.CrossRefPubMed

51.

Johansson K, Jonsson C, Bjork-Eriksson T. Compression treatment of breast edema: a randomized controlled pilot study. Lymphat Res Biol. 2020;18(2):129–35. https://doi.org/10.1089/lrb.2018.0064.CrossRefPubMed

52.

Mayrovitz HN, Yzer JA. Local skin cooling as an aid to the management of patients with breast cancer related lymphedema and fibrosis of the arm or breast. Lymphology. 2017;50(2):56–66.PubMed

53.

Collins SC, Bradley NS, Fitzgibbon S, et al. Kinesiology taping for breast lymphoedema after breast cancer treatment: a feasibility randomised controlled trial. Physiother Pract Res. 2018;39:107–16.

54.

Kilbreath SL, Ward LC, Davis GM, et al. Reduction of breast lymphoedema secondary to breast cancer: a randomised controlled exercise trial. Breast Cancer Res Treat. 2020;184(2):459–67.CrossRefPubMed

55.

Ashforth K, Morgner S, VanHoose L. A new treatment for soft tissue fibrosis in the breast. J Lymphoedema. 2011;6(2):42–6.

56.

Jahr S, Schoppe B, Reisshauer A. Effect of treatment with low-intensity and extremely low-frequency electrostatic fields (Deep Oscillation (R)) on breast tissue and pain in patients with secondary breast lymphoedema. J Rehabilit Med. 2008;40(8):645–50. https://doi.org/10.2340/16501977-0225.CrossRef

57.

Dylke ES, Benincasa Nakagawa H, Lin L, et al. Reliability and diagnostic thresholds for ultrasound measurements of dermal thickness in breast lymphedema. Lymphat Res Biol. 2018;16(3):258–62. https://doi.org/10.1089/lrb.2016.0067.CrossRefPubMed

58.

Verbelen H, De Vrieze T, Van Soom T, et al. Development and clinimetric properties of the Dutch Breast Edema Questionnaire (BrEQ-Dutch version) to diagnose the presence of breast edema in breast cancer patients. Qual Life Res. 2020;29(2):569–78. https://doi.org/10.1007/s11136-019-02337-z.CrossRefPubMed

59.

Riches K. Determining the size of the problem: a validation study to improve the assessment of mid-line breast cancer related lymphoedema [PhD]: University of Nottingham; 2020.

60.

Kilbreath SL, Fearn NR, Dylke ES. Ultrasound: assessment of breast dermal thickness: Reliability, responsiveness to change, and relationship to patient-reported outcomes. Skin Res Technol. 2021;28(1):111–8. https://doi.org/10.1111/srt.13100.CrossRefPubMedPubMedCentral

61.

De Vrieze T, Gebruers N, Nevelsteen I, et al. Reliability of the MoistureMeterD compact device and the pitting test to evaluate local tissue water in subjects with breast cancer-related lymphedema. Lymphat Res Biol. 2020;18(2):116–28. https://doi.org/10.1089/lrb.2019.0013.CrossRefPubMed

62.

Moseley A, Piller N. Reliability of bioimpedance spectroscopy and tonometry after breast conserving cancer treatment. Lymphat Res Biol. 2008;6(2):85–7. https://doi.org/10.1089/lrb.2008.1002.CrossRefPubMed

63.

Leusink A, Connell R, Dean SL, et al. A comparison of volume and anthropometric breast measurements using the Crisalix and VECTRA XT 3-dimensional surface imaging systems in women who have undergone breast-conserving surgery. Med Res Arch. 2021 Apr;9(4). https://doi.org/10.18103/mra.v9i4.2395.

64.

Smith C. The development and validation of the Breast Lymphoedema Severity Symptom (BLYSS) questionnaire [PhD]: Curtin University; 2013.

65.

Brandini da Silva FC, Jose da Silva J, Sarri AJ, et al. Comprehensive validation study of quality-of-life questionnaire using objective clinical measures: Breast Cancer Treatment Outcome Scale (BCTOS) Brazilian Portuguese version. Clin Breast Cancer. 2019;19(1):e85–100. https://doi.org/10.1016/j.clbc.2018.10.004.CrossRefPubMed

66.

Feißt M, Heil J, Stolpner I, et al. Psychometric validation of the Breast Cancer Treatment Outcome Scale (BCTOS-12): a prospective cohort study. Arch Gynecol Obstet. 2019;300(6):1679–86. https://doi.org/10.1007/s00404-019-05362-y.CrossRefPubMed

67.

Hennigs A, Heil J, Wagner A, et al. Development and psychometric validation of a shorter version of the Breast Cancer Treatment Outcome Scale (BCTOS-12). Breast. 2018;38:58–65. https://doi.org/10.1016/j.breast.2017.12.002.CrossRefPubMed

68.

Vieira R, Silva F, Silva MES, et al. Translation and cultural adaptation of the Breast Cancer Treatment Outcome Scale (BCTOS) into Brazilian Portuguese. Rev Assoc Med Bras. 2018;64(7):627–34. https://doi.org/10.1590/1806-9282.64.07.627.CrossRefPubMed

69.

Heil J, Holl S, Golatta M, et al. Aesthetic and functional results after breast conserving surgery as correlates of quality of life measured by a German version of the Breast Cancer Treatment Outcome Scale (BCTOS). Breast. 2010;19(6):470–4. https://doi.org/10.1016/j.breast.2010.05.004.CrossRefPubMed

70.

Struik GM, de Jongh FW, Birnie E, et al. Development and psychometric evaluation of a Dutch-translated shorter Breast Cancer Treatment Outcome Scale (Dutch BCTOS-13). J Patient Rep Outcomes. 2018;2(1):1–10. https://doi.org/10.1186/s41687-018-0085-y.CrossRef

71.

Stanton AL, Krishnan L, Collins CA. Form or function Part 1 Subjective cosmetic and functional correlates of quality of life in women treated with breast-conserving surgical procedures and radiotherapy. Cancer. 2001;91(12):2273–81. https://doi.org/10.1002/1097-0142(20010615)91:12%3c2273::AID-CNCR1258%3e3.0.CO;2-1.CrossRefPubMed

72.

Kerrigan CB, Ahern TP, Brennan SK, et al. Ultrasound for the objective measurement of breast lymphedema. J Ultrasound Med. 2021. https://doi.org/10.1002/jum.15881.CrossRefPubMed

73.

Heydon-White A, Suami H, Boyages J, et al. Assessing breast lymphoedema following breast cancer treatment using indocyanine green lymphography. Breast Cancer Res Treat. 2020;181(3):635–44. https://doi.org/10.1007/s10549-020-05661-y.CrossRefPubMed

74.

Ward LC, Degnim AC, Dylke ES, et al. Bioimpedance spectroscopy of the breast. Lymphat Res Biol. 2020;18(5):448–54. https://doi.org/10.1089/lrb.2019.0087.CrossRefPubMed

75.

Ridner SH, Deng J, Doersam JK, et al. Lymphedema Symptom Intensity and Distress Surveys-Truncal and Head and Neck, Version 2.0. Lymphat Res Biol. 2021;19(3):240–8. https://doi.org/10.1089/lrb.2020.0071.CrossRefPubMedPubMedCentral

76.

Sprangers MA, Groenvold M, Arraras JI, et al. The European Organization for Research and Treatment of Cancer breast cancer-specific quality-of-life questionnaire module: first results from a three-country field study. J Clin Oncol. 1996;14(10):2756–68. https://doi.org/10.1200/jco.1996.14.10.2756.CrossRefPubMed

77.

Levenhagen K, Davies C, Perdomo M, et al. Diagnosis of upper-quadrant lymphedema secondary to cancer: clinical practice guideline from the oncology section of APTA. Rehabil Oncol. 2017;35(3):E1–18. https://doi.org/10.1097/01.REO.0000000000000073.CrossRefPubMedPubMedCentral

78.

Kelemen G, Varga Z, Lázár G, et al. Cosmetic outcome 1–5 years after breast conservative surgery, irradiation and systemic therapy. Pathol Oncol Res. 2012;18(2):421–7. https://doi.org/10.1007/s12253-011-9462-z.CrossRefPubMed

79.

Ridner SH, Montgomery LD, Hepworth JT, et al. Comparison of upper limb volume measurement techniques and arm symptoms between healthy volunteers and individuals with known lymphedema. Lymphology. 2007;40(1):35–46.PubMed

80.

Ulger H, Erdogan N, Kumanlioglu S, et al. Effect of age, breast size, menopausal and hormonal status on mammographic skin thickness. Skin Res Technol. 2003;9(3):284–9. https://doi.org/10.1034/j.1600-0846.2003.00027.x.CrossRefPubMed

81.

Gutierrez R, Horst KC, Dirbas FM, et al. Breast imaging following breast conservation therapy. In: Dirbas F, Scott-Conner C, editors. Breast Surgical Techniques and Interdisciplinary Management. New York, NY: Springer New York; 2011. p. 975–995.

82.

Qiao Q, Zhou G, Ling Y. Breast volume measurement in young Chinese women and clinical applications. Aesthetic Plast Surg. 1997;21(5):362–8. https://doi.org/10.1007/s002669900139.CrossRefPubMed

Springer Medizin

Abstract

Purpose

Method

Results

Conclusions

Implications for Cancer Survivors

Publisher's note

Introduction

Methods

Database search

Selection criteria

Study selection

Data extraction and analysis

Quality assessment

Data synthesis

Results

Characteristics of clinician reported outcome measures

COSMIN summary: ClinROMs

Characteristics of PROMs

COSMIN-PROM

Quality assessment

Discussion

Conclusion

Systematic Review Registration

Declarations

Competing interests

Publisher's note
