To distinguish histological subtypes of renal tumors using radiomic features and machine learning (ML) based on multiphase computed tomography (CT).
Material and methods
Patients who underwent surgical treatment for renal tumors at two tertiary centers from 2012 to 2022 were included retrospectively. Preoperative arterial (corticomedullary) and venous (nephrogenic) phase CT scans from these centers, as well as from external imaging facilities, were manually segmented, and standardized radiomic features were extracted. Following preprocessing and addressing the class imbalance, a ML algorithm based on extreme gradient boosting trees (XGB) was employed to predict renal tumor subtypes using 10-fold cross-validation. The evaluation was conducted using the multiclass area under the receiver operating characteristic curve (AUC). Algorithms were trained on data from one center and independently tested on data from the other center.
Results
The training cohort comprised n = 297 patients (64.3% clear cell renal cell cancer [RCC], 13.5% papillary renal cell carcinoma (pRCC), 7.4% chromophobe RCC, 9.4% oncocytomas, and 5.4% angiomyolipomas (AML)), and the testing cohort n = 121 patients (56.2%/16.5%/3.3%/21.5%/2.5%).
The XGB algorithm demonstrated a diagnostic performance of AUC = 0.81/0.64/0.8 for venous/arterial/combined contrast phase CT in the training cohort, and AUC = 0.75/0.67/0.75 in the independent testing cohort. In pairwise comparisons, the lowest diagnostic accuracy was evident for the identification of oncocytomas (AUC = 0.57–0.69), and the highest for the identification of AMLs (AUC = 0.9–0.94)
Conclusion
Radiomic feature analyses can distinguish renal tumor subtypes on routinely acquired CTs, with oncocytomas being the hardest subtype to identify.
Clinical relevance statement
Radiomic feature analyses yield robust results for renal tumor assessment on routine CTs. Although radiologists routinely rely on arterial phase CT for renal tumor assessment and operative planning, radiomic features derived from arterial phase did not improve the accuracy of renal tumor subtype identification in our cohort.
Publisher’s Note Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.
AML
Angiomyolipoma
AUC
Area under the curve
ccRCC
Clear cell RCC
chRCC
Chromophobe RCC
CM
Contrast media
CV
Cross-validation
ML
Machine learning
PCA
Principal component anylsis
pRCC
Papillary RCC
RCC
Renal cell carcinoma
RFE
Recursive feature elimination
ROC-curve
Receiver operating characteristics curve
XGB
Extreme gradient boosting tree
Introduction
In 2023, cancer of the kidneys and renal pelvis is estimated to account for 5% and 3% of incident cancer cases in men and women in the United States, respectively, most of which are renal cell carcinomas (RCC) [1]. A broader clinical utilization of radiological cross-sectional imaging and technical advancements has been discussed to contribute to the increasing incidence of RCC over the last decades, in particular for small renal tumors [2‐4].
Renal tumors are pathologically classified according to their cellular origin and behavior, with each of these histological subtypes showing a specific profile regarding their incidence, clinical prognosis, and therapeutic options [5, 6]. Still, the radiological distinction of renal tumor subtypes on cross-sectional imaging is imperfect in clinical practice, with immediate ramifications for affected patients: for example, studies have shown that approximately 20% of renal tumors that were radiologically classified as malignant were in fact benign of histopathological assessment [7‐9].
Anzeige
In clinical practice, dedicated CT protocols for renal tumor assessment are routinely performed using multiple contrast media (CM) phases including non-CM, arterial, and venous CM phases. While associated with a higher radiation dose than single-phase imaging, multiphase CT can identify varying CM enhancement patterns depending on renal tumor histology. For example, papillary RCC (pRCC) has been described to demonstrate low levels of peak enhancement and little enhancement fluctuation between CM phases, while rapid high enhancement in the arterial phase and CM washout is more suggestive for clear-cell RCC or oncocytoma [10‐12]. Arterial phase imaging also provides additional information for planning, surgical procedures, or percutaneous renal tumor thermoablation, which has been shown to yield comparable outcomes to partial nephrectomy in small renal tumors [13]. For percutaneous renal tumor thermoablation in specific, interarterial CM application might aid in the guidance of ablation procedures, while additional interarterial embolization of renal tumors might improve outcomes [14, 15]. Still, the exact diagnostic benefit of multiphase CT over single-phase CT in the specific clinical setting of renal tumor subtype identification has not been fully evaluated so far.
An effective method for enhancing the assessment of renal tumors involves employing radiomic feature analyses and machine learning (ML) algorithms, which have shown strong performance across different classification tasks and types of medical imaging [16, 17]. One earlier study from our research group utilized these techniques to evaluate renal tumor subtype on venous CM phase CTs with an AUC = 0.72 [18]. Still, the aforementioned study and most others published on this topic did not include a comparison of multiple CM-phases or CT scans from different imaging centers or lacked external validation [19‐21].
Thus, the study presented here seeks to evaluate renal tumor subtypes through the application of radiomic feature analyses and subsequent ML. This analysis utilizes a multicenter dataset comprising multiphase CT studies collected from routine clinical practice.
Material and methods
This retrospective study received prior approval by the local ethics committees (No 2/4/17 and No 67/19) and is compliant with the Declaration of Helsinki.
Anzeige
Study cohort selection
The inclusion criteria comprised adult patients with renal tumors who underwent surgical resection between 2012 and 2022 at either (1) the Department of Urology, University Medical Center Goettingen, or (2) the Department of Urology and Pediatric Urology, Saarland University. All patients had undergone preoperative contrast-enhanced CT imaging in both arterial (corticomedullary) and venous (nephrogenic) phases at these tertiary centers or external imaging facilities (such as radiological private practices or other hospitals). The analysis was limited to patients diagnosed with clear cell, papillary, or chromophobe RCC, oncocytoma, or angiomyolipoma (AML), regardless of tumor size.
Patients exhibiting diffusely infiltrative tumors, such as lymphoma or those with chronic inflammatory changes as well as those presenting with cystic neoplasms were excluded. Renal tumor patients, for whom the reference standard of histological assessment was not available (i.e., those with fat-rich AMLs on CT) were excluded as well.
CT imaging
Arterial and venous CM-phase CT studies obtained in the two tertiary centers and outside imaging centers were included, without restrictions regarding acquisition protocol, CT scanner, slice thickness, or imaging artifacts, to reflect clinical heterogeneity in CT imaging acquisition and quality.
The renal CT imaging protocol at the two tertiary centers comprised: (i) a non-contrast scan; (ii) an arterial-phase scan with bodyweight adapted intravenous administration of iodinated contrast media (1.1 mL Ultravist 370/kg) followed by a 30 mL NaCl chaser (both at 3 mL/s), delay of 10 s after enhancement > 120 Hounsfield Units in the abdominal aorta; (iii) venous-phase scan 40 s after arterial-phase scan.
Radiomic feature analyses
Renal tumor segmentation and radiomic feature analyses were conducted using the open-source software 3D Slicer [22]. The radiomics features derived in this study adhered to an internationally standardized and reproducible approach, following feature definitions outlined by the Imaging Biomarker Standardization Initiative [23, 24]. These features encompass renal tumor voxel intensities, and 2D and 3D shape characteristics, along with higher-order features, as detailed in the supplementary material. A bin width of 25 was selected for the radiomic feature analyses.
Renal tumors were manually segmented by an experienced GU-radiologist with delineation of the region of interest (ROI) on all axial arterial and venous phase CT slices. The number of CT slices varied according to the size of renal tumors and the CT slice thickness.
Renal tumor assessment
The histological reference standard for all renal tumors was established by histopathological analyses at the Department of Pathology at both participating tertiary centers evaluating partial or radical nephrectomy specimens.
Machine learning
For statistical modeling, data from one tertiary center was used as the training dataset, and data from the other tertiary center as an independent (outside) testing dataset. All analyses were performed separately using radiomics from arterial, venous, as well as combined arterial + venous CM-phase CTs.
Anzeige
Radiomic feature preprocessing comprised: (i) omitting variables with so-called “near zero variance”, whereby only one representative variable was retained; and (ii) omitting variables with linear dependencies. After preprocessing, a total of 127 radiomic features + age and gender were considered for further evaluation.
A 10-fold cross-validation (CV) was used for internal validation and assessment of the generalizability. Stratified sampling was implemented to maintain the distribution of renal tumor subtypes in all training and testing subsets.
The steps detailed below were applied within each CV-fold and CV-repetition to avoid the leakage of information.
Class imbalance was handled using: (i) no class imbalance handling, (ii) SMOTE with nearest-neighbor-based oversampling of minority classes [25], and (iii) weighting.
Anzeige
Feature selection was applied using: (i) no feature selection technique (passing all features for downstream ML); (ii) recursive feature elimination (RFE), where a random forest model ordered features according to their importance in a classifier, retaining only the top features with the best performance. To mitigate bias, RFE was performed using an internal 10-fold CV [26]; and (iii) principal component analysis (PCA) where within each fold, PCA was calculated on the training set, retaining components that explained 80% of the total variance, and projecting the rest samples onto the same PCA.
Using the methodology detailed above, an extreme gradient boosting tree classification model (XGB) was trained.
Statistical analyses and diagnostic performance assessment
The XGB algorithms diagnostic accuracy was evaluated using the area under the curve (AUC) with a generalization to multiclass problems that implements all pairwise comparisons [27]. Diagnostic performance measures reported in this study were calculated from the out-of-bag samples of the 10-fold cross-validation for all CM-phases. Diagnostic performance was validated on an independent testing dataset from one tertiary center. The Youden-Index was used to define cut-off values for calculation of sensitivity and specificity.
Statistical analyses were conducted utilizing R and RStudio, employing the R package “caret” [28]. A significance level of 0.05 was selected, and all reported p values are two-sided.
Anzeige
Results
Study cohort
The training dataset comprised n = 297 patients and the validation dataset n = 121 patients. A study flowchart is provided in Fig. 1.

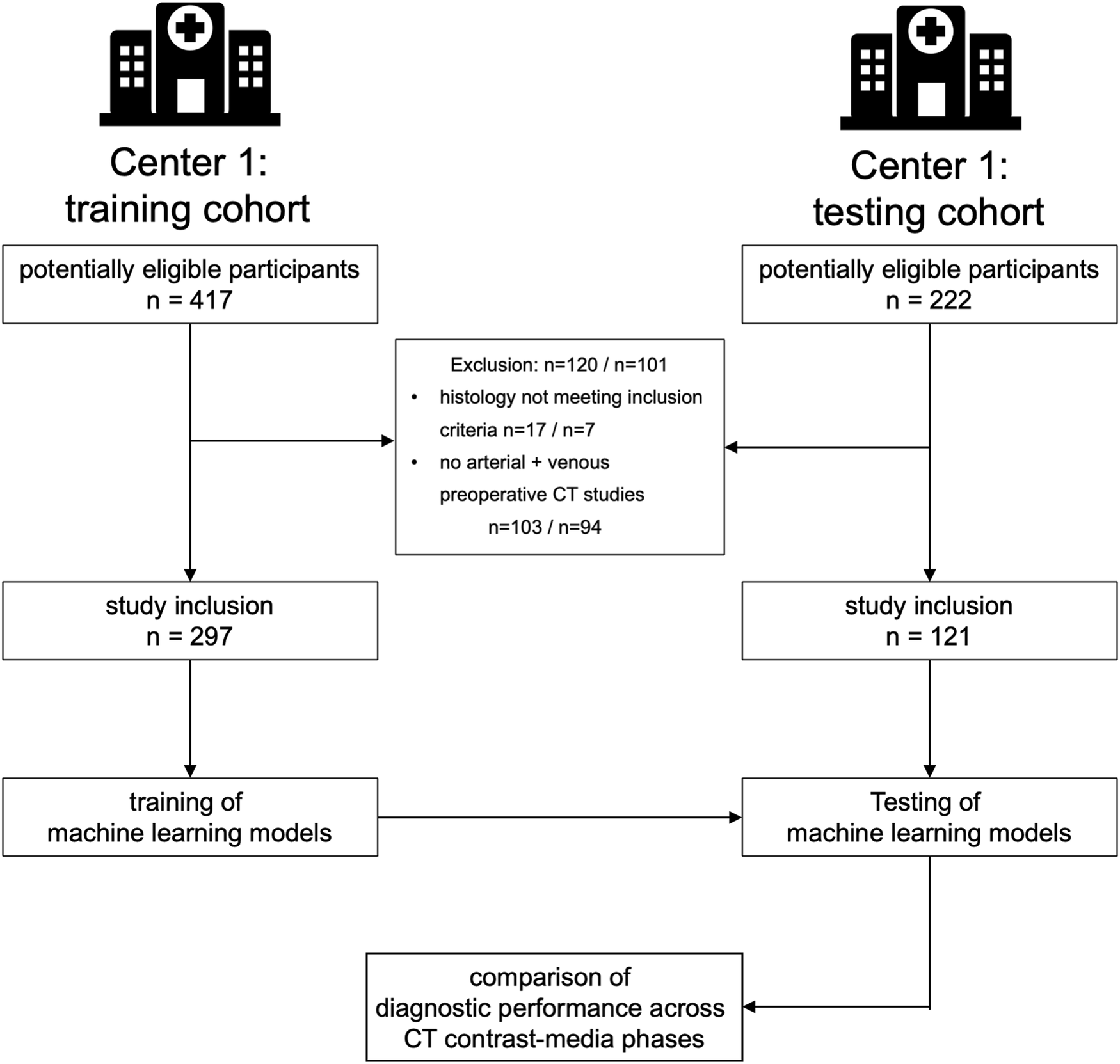

Fig. 1
Study flowchart showing patient inclusion and exclusion
As detailed in Table 1, the training dataset showed a larger proportion of female patients compared to the validation dataset, although statistical significance was not reached (38.4% vs 29.8%, p = 0.12). Similarly, no statistically significant difference was evident in the age distribution across centers (mean 65 ± 12 vs. 64 ± 13 years, p = 0.40). The majority of CT studies included in this study were acquired at outside imaging centers, although the proportion was higher in the training compared to the testing dataset (18.7% vs. 3.2%, p < 0.001).
Table 1
Characteristics of included patients and renal tumors
The distribution of renal tumor subtypes demonstrated statistically significant variability (overall difference p = 0.01): while clear cell RCC (ccRCC) was the predominant renal tumor in both datasets (64.3% and 56.2%), AML was more frequent in the training dataset (5.4% vs 2.5%), and oncocytoma more frequent in the testing dataset (9.4% vs 21.5%).
The mean 3-dimensional (3D) diameter of included renal tumors was 62 ± 36 mm in the training and 42 ± 16 mm in the testing dataset (p < 0.01). Representative patient cases are provided in Fig. 2.

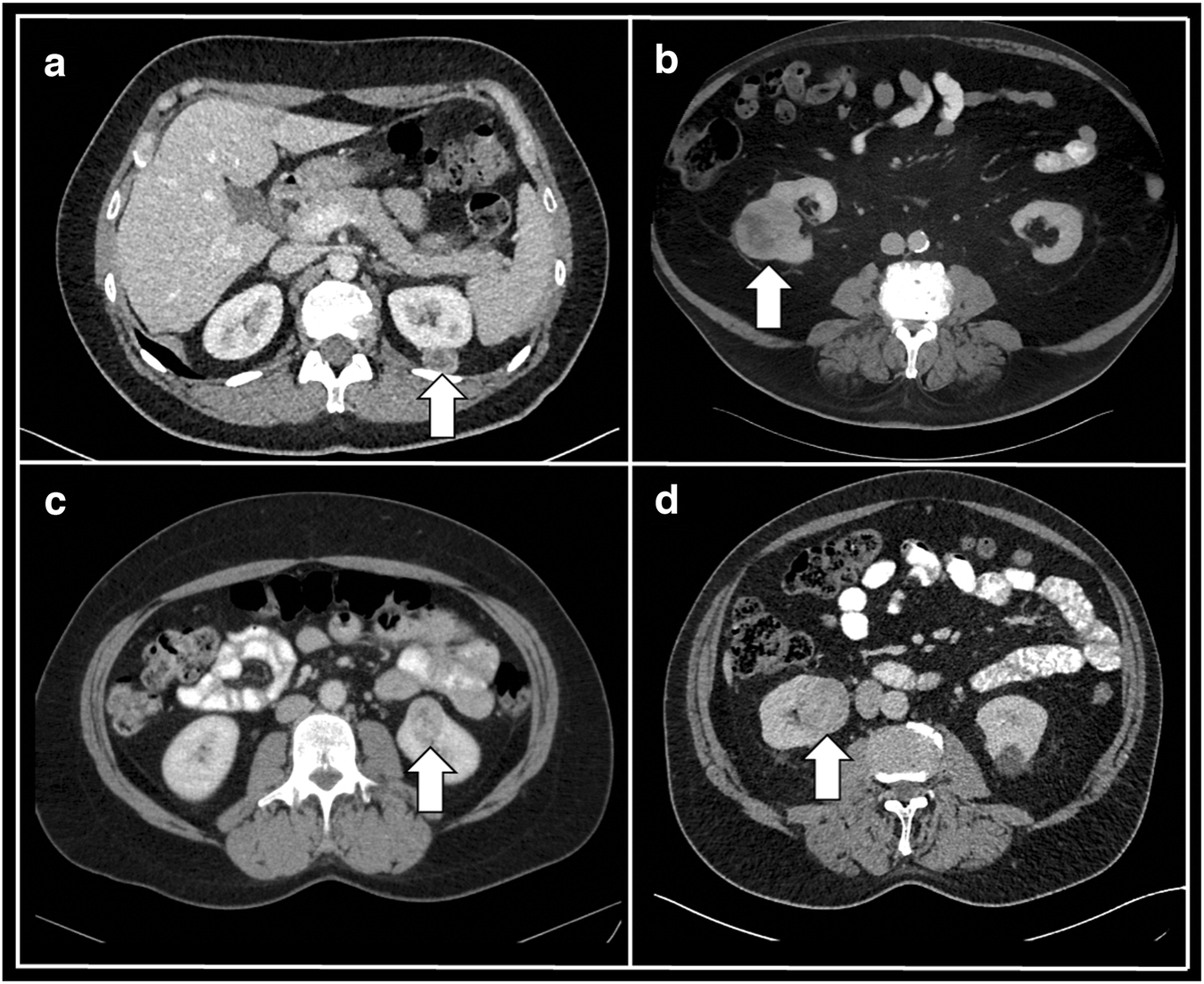

Fig. 2
Representative CT case studies. a 49-year-old female patient with left-sided renal tumor (arrow), histologically identified as AML; b 70-year-old male patient with right-sided renal tumor (arrow), histologically identified as ccRCC; c 49-year-old female patient with left-sided renal tumor (arrow), histologically identified as oncocytoma; d 68-year-old male patient with right-sided renal tumor (arrow), histologically identified as pRCC
Across the out-of-bag CV samples in the training dataset, the diagnostic accuracy of the XGB algorithm was highest using SMOTE and no feature selection for combined CM-phases and was thus selected as the reference for further downstream modeling. For prediction of the renal mass histological subtypes, the XGB reached a multiclass AUC = 0.8 for combined CM-phases; 0.64 for arterial CM-phase; and 0.81 for venous CM-phase.
Table 2 summarizes the corresponding diagnostic accuracy (measured as AUC and sensitivity/specificity) for pairwise comparisons of one specific histological subtype versus the remaining histological subtypes. The highest AUC was consistently achieved for differentiation of AML (AUC = 0.90–0.94; versus any other renal tumor). The lowest AUC was evident for differentiation of oncocytoma (AUC = 0.57–0.69). Associated ROC curves are depicted in Fig. 3.
Table 2
Diagnostic performance for specific renal tumor subtype detection (against all other subtypes) according to CT contrast-media phase

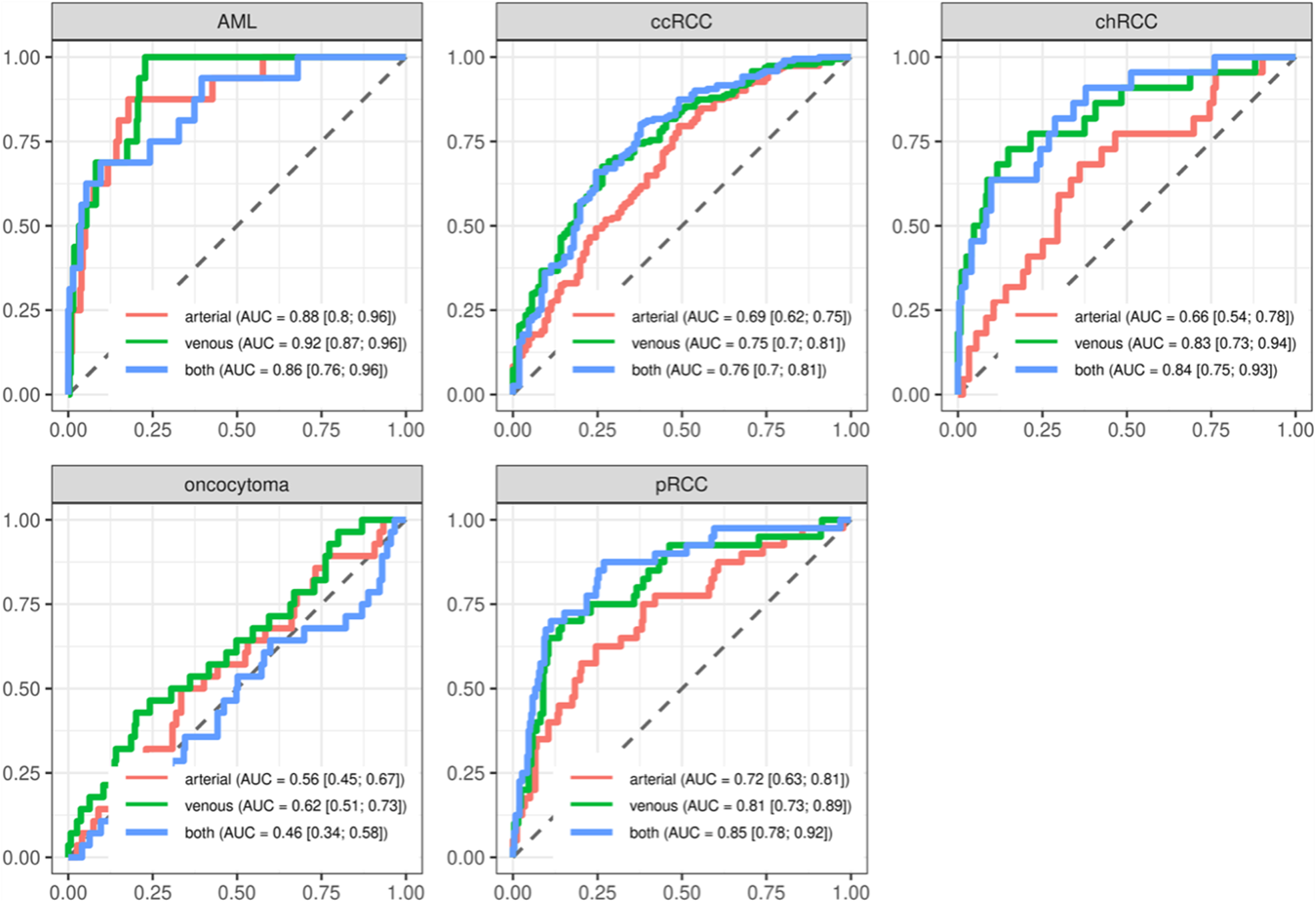

ROC curves for differentiation of specific renal tumor subtypes from all other subtypes across different contrast media phases (results from out-of-bag cross-validation samples). AML angiomyolipoma, ccRCC clear cell renal cell carcinoma, chRCC chromophobe renal cell carcinoma, pRCC papillary renal cell carcinoma
The application of the XGB algorithm (with SMOTE and without feature selection) in the independent testing dataset yielded an AUC = 0.75, AUC = 0.67, and AUC = 0.75, for combined, arterial, and venous CM-phase CTs, respectively. The corresponding ROC curves are depicted in Fig. 4. The performance to identify specific subtypes among different contrast media phases is summarized in Table 3.

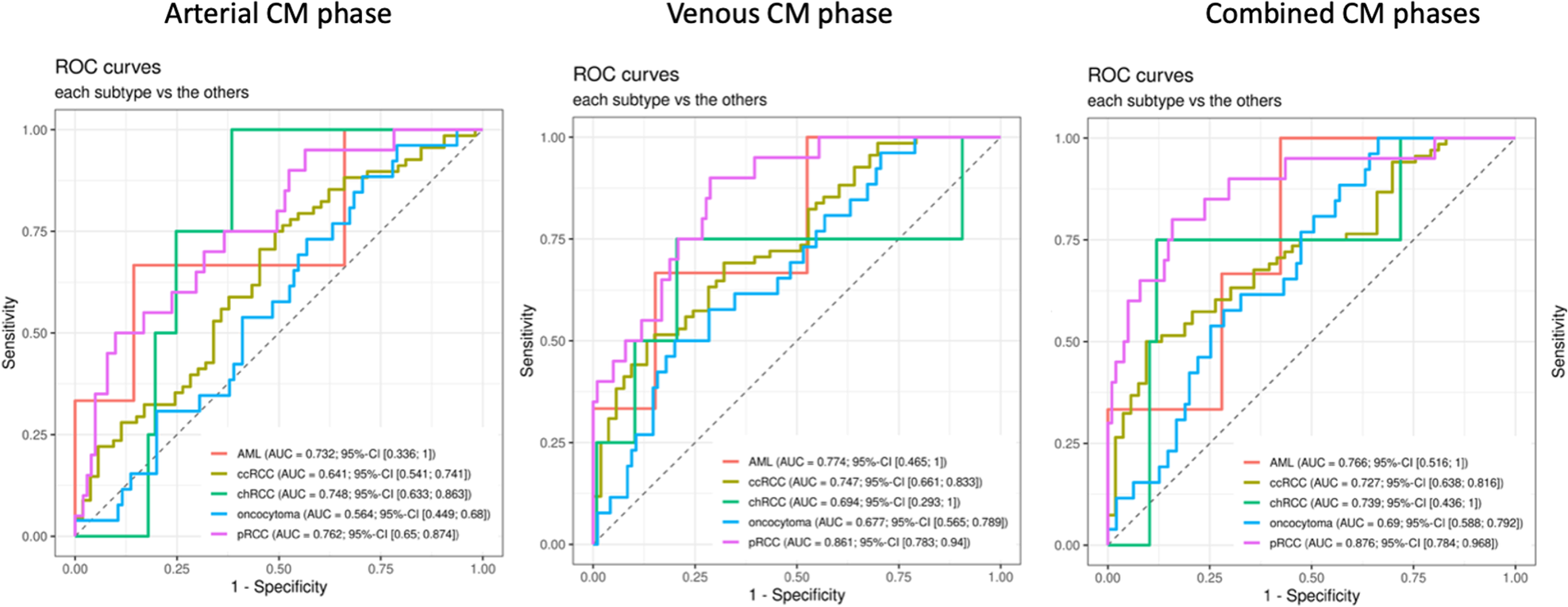

Fig. 4
ROC-curves for identification of specific renal tumor subtypes (against all other subtypes) in the testing dataset. AML angiomyolipoma, ccRCC clear cell renal cell carcinoma, chRCC chromophobe renal cell carcinoma, pRCC papillary renal cell carcinoma
Multiphase CT is the radiological mainstay of renal tumor assessment and aids in the planning of surgical and thermoablation procedures. While some renal tumors, such as fat-rich AMLs with macroscopic fat, can be confidently classified on CT, the identification of the other renal tumor subtypes remains a radiological challenge. Consequently, up to 20% of renal tumors that were radiologically classified as malignant turn out to be benign on histological assessment after surgical resection, resulting in a surgical overtreatment [7‐9]. To date, the diagnostic benefit of multiphase CT has so far not been systematically evaluated in the context of AI-aided renal tumor assessment and using CT studies from multiple centers.
This study evaluated a large-scale cohort of renal tumor patients with multiphase CT from multiple imaging centers and provided an independent external dataset for statistical testing. Different CT scanners with varying slice thickness as well as CT studies with imaging artifacts were included to better reflect the diversity of CT studies that are clinically encountered by radiologists. All renal tumor specimens evaluated in this study underwent histopathological assessment to establish a precise reference standard. In this clinical dataset, radiomic feature analyses and ML algorithms were utilized to predict renal tumor subtypes using preoperative CT imaging.
The demographic characteristics of included patients are in line with the recent literature, showing a male predominance and peak incidence of renal tumors between age 60 and 70 [4, 5]. Interestingly, the frequency of specific renal tumor subtypes varied according to the accruing center, highlighting the heterogeneity encountered when assessing different patient cohorts and corroborating the need for external model testing. In general, the frequency of benign renal tumors in our study (14.8–24%) was comparable to the literature, reporting ranges between 20% to 30% [8, 29].
Using an XGB algorithm, we achieved an AUC = 0.84 in the internal validation dataset for the discrimination of different renal tumor subtypes using combined arterial + venous CM-phases. On the independent testing dataset, the algorithm yielded an AUC = 0.75. Using radiomic features from the venous CM-phase only, the XGB demonstrated an AUC = 0.75 in the testing dataset, and arterial CM-phase an AUC = 0.67. These results indicate that radiomic features derived from venous CM-phase reflect the most crucial imaging characteristics of different renal tumor subtypes. It also challenges the diagnostic benefit of an added arterial CM-phase for renal tumor subtyping.
Noticeably, the XGB algorithm performed better in our training cohort than in the independent testing dataset (AUC = 0.84 vs. AUC = 0.75). These discrepancies might be attributed to statistical overfitting that was not fully addressed using multifold cross-validation. Still, center-specific differences in the distribution of renal tumor subtypes and renal tumor diameter, as well as varying acquisition protocols and the high proportion of CT studies acquired from outside imaging centers in the testing cohort could have contributed as well. Overall, the center-specific diagnostic performance of our radiomics-based XGB algorithm shows the challenges that need to be addressed when implementing imaging-based ML models on data from clinical practice and the potential necessity for algorithmic adaptation at each clinical site. Further, as suggested by other authors, the combination of AI approaches with expert radiologist knowledge might further stabilize and improve their diagnostic performance [30].
In both our training and testing datasets, the identification of oncocytomas was most challenging for the XGB algorithm, demonstrating the lowest AUCs irrespective of CM phases. These results might reflect the similarities in radiological appearance between oncocytomas and ccRCC, presenting with a morphologically similar central scar and central necrosis, respectively.
Notably, the diagnostic performance for assessing renal tumor subtypes in this study is inferior to the discrimination reported for benign versus malignant renal tumors (AUC = 0.83) in a previous publication by our research team [31]. Other studies on renal tumor subtype assessment revealed diverging results. Evaluating different renal tumor subtypes, Coy et al used peak lesion attenuation analyses, which yielded pairwise AUCs ranging between 0.96 and 0.79 [19]. Similar to the results of our study, the diagnostic performance reported by Coy et al was worse for the identification of oncocytomas (AUC = 0.79) and fat-poor AMLs (AUC = 0.83). Using a standard logistic regression without cross-validation or external testing, Sasguri and colleagues evaluated to diagnostic performance of CT attenuation values and skewness from biphasic contrast CT to discriminate oncocytomas from other renal tumors, reporting an AUC = 0.8 [32]. A recent meta-analysis by Firouzabadi et al corroborates a high heterogeneity of radiomic feature analyses for the assessment of renal oncocytomas among included studies, reporting a pooled sensitivity and specificity of 0.82 and 0.8 [33]. Given the heterogeneity and diagnostic uncertainty in renal tumor subtype assessment, in particular, regarding oncocytomas, it would be beneficial to establish a diagnostic baseline by visual assessment and renal tumor subtyping by radiologists. Unfortunately, as CT studies and associated histology were known to the involved radiologists, a post-hoc blinded renal tumor assessment was not possible within the scope of the presented study.
The higher diagnostic performance of the aforementioned studies might have resulted from the utilization of standardized renal tumor CT acquisition protocols at one imaging center. On the contrary, the CT studies included in our study were obtained in a multicenter setting, including different CT scanners, variable slice thickness, and studies with imaging artifacts. Especially given the independent testing performed, our results might be more generalizable and realistic in a clinical scenario.
Recent meta-analyses and review articles have summarized the literature on ML for renal tumor assessment [34, 35]. For example, Feng et al evaluated n = 58 patients to distinguish RCCs and fat-poor AMLs, achieving an accuracy of approximately 94% [20]. Kocak et al reported an accuracy of 85% in discriminating ccRCC and non-clear-cell RCC in 68 patients with a lower accuracy for renal tumor subtype assessment (69%) [21]. An AUC of up to 92% for selected renal tumor subtypes was achieved by Yu et al in 119 patients using radiomic features and SVMs, although the authors failed to comprehensively assess all tumor subtypes in one global model [17].
The aforementioned studies yield promising results but might be limited in their generalizability, given their focus on single-center CT studies of high quality and lack of external, independent testing. Still, suboptimal renal tumor CT studies are routinely encountered in radiological clinical practice given that referral patterns might result in urological patients that present with CT studies from external imaging centers.
Our study is not devoid of limitations. First, patients were accrued at two tertiary urological referral centers in Germany, which might limit the generalizability of our findings to a non-Caucasion population. Second, our analyses were restricted to the five most common renal tumor subtypes, thus not reflecting the diversity of renal neoplasms (i.e., cystic renal masses) encountered in clinical routine. This limits the a-priori applicability of the presented methods for individual patients. Third, due to the inclusion of patients with histopathologically assessed renal tumors in this study, patients with fat-rich AMLs that have been correctly identified on CT studies by radiologists were excluded. In a clinical cohort without this patient preselection, the presented methods might therefore yield different results. Finally, renal tumor subtypes have not been evaluated by radiologists in this study, which would have provided a comparative measure for the diagnostic performance of the ML algorithm.
Conclusions
Radiomic feature analyses acquired from clinical routine CT yielded robust results for renal tumor assessment on a large-scale independent testing dataset. Although radiologists routinely rely on arterial phase CT for renal tumor assessment and operative planning, radiomic features derived from arterial phase did not improve the accuracy of renal tumor subtype identification in our cohort using an XGB algorithm.
Given the results of this study, among all renal tumors, oncocytomas are the hardest to differentiate using CT.
The scientific guarantor of this publication is Johannes Uhlig.
Conflict of interest
The authors of this manuscript declare relationships with the following companies: Siemens Healthineers (JU; scientific grants and cooperation).
Statistics and biometry
Three of the authors have significant statistical expertise (AU; JU; AL).
Informed consent
Written informed consent was waived by the Institutional Review Board.
Ethical approval
Institutional Review Board approval was obtained.
Study subjects or cohorts overlap
An earlier study by this research group (https://doi.org/10.3390/cancers12103010; https://doi.org/10.1097/MD.0000000000019725) reported on the diagnostic performance for renal tumor subtype assessment in a total of 201 patients imaged with venous phase (nephrogenic) CT. The here presented study adds 96 patients and an independent external dataset of 121 patients, all of which were imaged with both arterial (corticomedullary) and venous phase (nephrogenic) CT.
Methodology
Retrospective
Diagnostic or prognostic study
Multicenter study
Open Access This article is licensed under a Creative Commons Attribution 4.0 International License, which permits use, sharing, adaptation, distribution and reproduction in any medium or format, as long as you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons licence, and indicate if changes were made. The images or other third party material in this article are included in the article’s Creative Commons licence, unless indicated otherwise in a credit line to the material. If material is not included in the article’s Creative Commons licence and your intended use is not permitted by statutory regulation or exceeds the permitted use, you will need to obtain permission directly from the copyright holder. To view a copy of this licence, visit http://creativecommons.org/licenses/by/4.0/.
Publisher’s Note Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.
Radiomics and machine learning for renal tumor subtype assessment using multiphase computed tomography in a multicenter setting
Verfasst von
Annemarie Uhlig
Johannes Uhlig
Andreas Leha
Lorenz Biggemann
Sophie Bachanek
Michael Stöckle
Mathias Reichert
Joachim Lotz
Philip Zeuschner
Alexander Maßmann
Siegel RL, Miller KD, Wagle NS, Jemal A (2023) Cancer statistics, 2023. CA Cancer J Clin 73:17–48CrossRefPubMed
2.
Hollingsworth JM, Miller DC, Daignault S, Hollenbeck BK (2006) Rising incidence of small renal masses: a need to reassess treatment effect. J Natl Cancer Inst 98:1331–1334CrossRefPubMed
3.
Kane CJ, Mallin K, Ritchey J, Cooperberg MR, Carroll PR (2008) Renal cell cancer stage migration: analysis of the National Cancer Data Base. Cancer 113:78–83CrossRefPubMed
4.
Nguyen MM, Gill IS, Ellison LM (2006) The evolving presentation of renal carcinoma in the United States: trends from the Surveillance, Epidemiology, and End Results program. J Urol 176:2397–2400CrossRefPubMed
5.
Ljungberg B, Albiges L, Abu-Ghanem Y et al (2019) European Association of Urology guidelines on renal cell carcinoma: the 2019 update. Eur Urol 75:799–810CrossRefPubMed
6.
Moch H, Cubilla AL, Humphrey PA, Reuter VE, Ulbright TM (2016) The 2016 WHO classification of tumours of the urinary system and male genital organs—Part A: renal, penile, and testicular tumours. Eur Urol 70:93–105CrossRefPubMed
7.
Zeuschner P, Greguletz L, Meyer I et al (2021) Open versus robot-assisted partial nephrectomy: a longitudinal comparison of 880 patients over 10 years. Int J Med Robot 17:1–8CrossRefPubMed
8.
Frank I, Blute ML, Cheville JC, Lohse CM, Weaver AL, Zincke H (2003) Solid renal tumors: an analysis of pathological features related to tumor size. J Urol 170:2217–2220CrossRefPubMed
9.
Johnson DC, Vukina J, Smith AB et al (2015) Preoperatively misclassified, surgically removed benign renal masses: a systematic review of surgical series and United States population level burden estimate. J Urol 193:30–35CrossRefPubMed
10.
Pierorazio PM, Hyams ES, Tsai S et al (2013) Multiphasic enhancement patterns of small renal masses (≤4 cm) on preoperative computed tomography: utility for distinguishing subtypes of renal cell carcinoma, angiomyolipoma, and oncocytoma. Urology 81:1265–1271CrossRefPubMed
11.
Herts BR, Coll DM, Novick AC et al (2002) Enhancement characteristics of papillary renal neoplasms revealed on triphasic helical CT of the kidneys. AJR Am J Roentgenol 178:367–372CrossRefPubMed
12.
Zhang J, Lefkowitz RA, Ishill NM et al (2007) Solid renal cortical tumors: differentiation with CT. Radiology 244:494–504CrossRefPubMed
13.
Uhlig J, Kokabi N, Xing M, Kim HS (2018) Ablation versus resection for stage 1A renal cell carcinoma: national variation in clinical management and selected outcomes. Radiology 288:889–897CrossRefPubMed
14.
Muglia R, Marra P, Dulcetta L, Carbone FS, Sironi S (2023) CT renal arteriography as a novel imaging guidance for the percutaneous ablation of small renal tumors. Int J Hyperthermia 40:2244706CrossRefPubMed
15.
Sommer CM, Pallwein-Prettner L, Vollherbst DF et al (2017) Transarterial embolization (TAE) as add-on to percutaneous radiofrequency ablation (RFA) for the treatment of renal tumors: review of the literature, overview of state-of-the-art embolization materials and further perspective of advanced image-guided tumor ablation. Eur J Radiol 86:143–162CrossRefPubMed
16.
Juntu J, Sijbers J, De Backer S, Rajan J, Van Dyck D (2010) Machine learning study of several classifiers trained with texture analysis features to differentiate benign from malignant soft-tissue tumors in T1-MRI images. J Magn Reson Imaging 31:680–689CrossRefPubMed
17.
Yu H, Scalera J, Khalid M et al (2017) Texture analysis as a radiomic marker for differentiating renal tumors. Abdom Radiol (NY) 42:2470–2478CrossRefPubMed
18.
Uhlig J, Leha A, Delonge LM et al (2020) Radiomic features and machine learning for the discrimination of renal tumor histological subtypes: a pragmatic study using clinical-routine computed tomography. Cancers (Basel) 12:3010CrossRefPubMed
19.
Coy H, Young JR, Douek ML, Brown MS, Sayre J, Raman SS (2017) Quantitative computer-aided diagnostic algorithm for automated detection of peak lesion attenuation in differentiating clear cell from papillary and chromophobe renal cell carcinoma, oncocytoma, and fat-poor angiomyolipoma on multiphasic multidetector computed tomography. Abdom Radiol (NY) 42:1919–1928CrossRefPubMed
20.
Feng Z, Rong P, Cao P et al (2018) Machine learning-based quantitative texture analysis of CT images of small renal masses: differentiation of angiomyolipoma without visible fat from renal cell carcinoma. Eur Radiol 28:1625–1633CrossRefPubMed
21.
Kocak B, Yardimci AH, Bektas CT et al (2018) Textural differences between renal cell carcinoma subtypes: machine learning-based quantitative computed tomography texture analysis with independent external validation. Eur J Radiol 107:149–157CrossRefPubMed
22.
Fedorov A, Beichel R, Kalpathy-Cramer J et al (2012) 3D Slicer as an image computing platform for the Quantitative Imaging Network. Magn Reson Imaging 30:1323–1341CrossRefPubMedPubMedCentral
23.
van Griethuysen JJM, Fedorov A, Parmar C et al (2017) Computational radiomics system to decode the radiographic phenotype. Cancer Res 77:e104–e107CrossRefPubMedPubMedCentral
24.
Zwanenburg A, Leger S, Vallières M, Löck S (2016) Image biomarker standardisation initiative - feature definitions, arXiv:1612.07003
25.
Chawla NV, Bowyer KW, Hall LO, Kegelmeyer WP (2002) SMOTE: synthetic minority over-sampling technique. J Artif Int Res 16:321–357
26.
Ambroise C, McLachlan GJ (2002) Selection bias in gene extraction on the basis of microarray gene-expression data. Proc Natl Acad Sci USA 99:6562–6566CrossRefPubMedPubMedCentral
27.
Hand DJ, Till RJ (2001) A simple generalisation of the area under the ROC curve for multiple class classification problems. Mach Learn 45:171–186CrossRef
28.
Kuhn M (2008) Building predictive models in R using the caret package. J Stat Softw 28:1–26CrossRef
29.
Kutikov A, Fossett LK, Ramchandani P et al (2006) Incidence of benign pathologic findings at partial nephrectomy for solitary renal mass presumed to be renal cell carcinoma on preoperative imaging. Urology 68:737–740CrossRefPubMed
30.
Nadkarni P, Merchant S (2022) Enhancing medical-imaging artificial intelligence through holistic use of time-tested key imaging and clinical parameters: future insights. Artif Intell Med Imaging 3:55–69CrossRef
31.
Uhlig J, Biggemann L, Nietert MM et al (2020) Discriminating malignant and benign clinical T1 renal masses on computed tomography: a pragmatic radiomics and machine learning approach. Medicine (Baltimore) 99:e19725CrossRefPubMed
32.
Sasaguri K, Takahashi N, Gomez-Cardona D et al (2015) Small (<4 cm) renal mass: differentiation of oncocytoma from renal cell carcinoma on biphasic contrast-enhanced CT. AJR Am J Roentgenol 205:999–1007CrossRefPubMed
33.
Dehghani Firouzabadi F, Gopal N, Homayounieh F et al (2023) CT radiomics for differentiating oncocytoma from renal cell carcinomas: systematic review and meta-analysis. Clin Imaging 94:9–17CrossRefPubMed
34.
Mühlbauer J, Egen L, Kowalewski KF et al (2021) Radiomics in renal cell carcinoma—a systematic review and meta-analysis. Cancers (Basel) 13:1348CrossRefPubMed
35.
Ferro M, Crocetto F, Barone B et al (2023) Artificial intelligence and radiomics in evaluation of kidney lesions: a comprehensive literature review. Ther Adv Urol 15:17562872231164803CrossRefPubMedPubMedCentral
