Short-term effects of obesity surgery versus low-energy diet on body composition and tissue-specific glucose uptake: a randomised clinical study using whole-body integrated 18F-FDG-PET/MRI

Thirty non-diabetic patients (28 women, 2 men (self-reported); BMI 35–45 kg/m²) planned to undergo an obesity surgery were recruited at the Department of Endocrinology and Diabetes, Uppsala University Hospital, Uppsala, Sweden, during a pre-surgical endocrinological assessment. Exclusion criteria included diabetes, other endocrine disorders (except well-treated hypothyroidism), cancer, previous cardiovascular events, untreated sleep apnoea, major illnesses and pregnancy. The study consisted of a parallel-group randomised controlled trial. The participants were randomly assigned to two arms: (1) OS (RYGB or SG by patient decision) without presurgical diet change; or (2) LCD for 4 weeks, followed by OS. The OS/LCD allocation ratio was initially 1:1, later altered to 2:1. The allocation sequence was obtained using sequentially numbered, sealed envelopes, which were kept by a research nurse. Neither study participants nor caregivers and study investigators were blind to the group assignment. Six participants withdrew before or during the baseline investigations, due to reasons such as back pain, claustrophobia and lack of venous access (Fig. 1). Ultimately, 15 participants in the OS arm and nine in the LCD arm completed the 4 week intervention and follow-up, albeit one could not complete clamps with PET/MRI (LCD group; due to claustrophobia). The study participants were representative of the population undergoing obesity surgery in terms of sex and age distribution. The study adhered to Consolidated Standards of Reporting Trials (CONSORT) guidelines [24]. The Regional Ethics Review Board in Uppsala approved the study (Dnr 2015/514 with amendment 2015/514/1). All participants provided written informed consent (ClinicalTrials.gov registration no. NCT02988011) and investigations followed the principles of the Declaration of Helsinki (2008).

Bild vergrößern

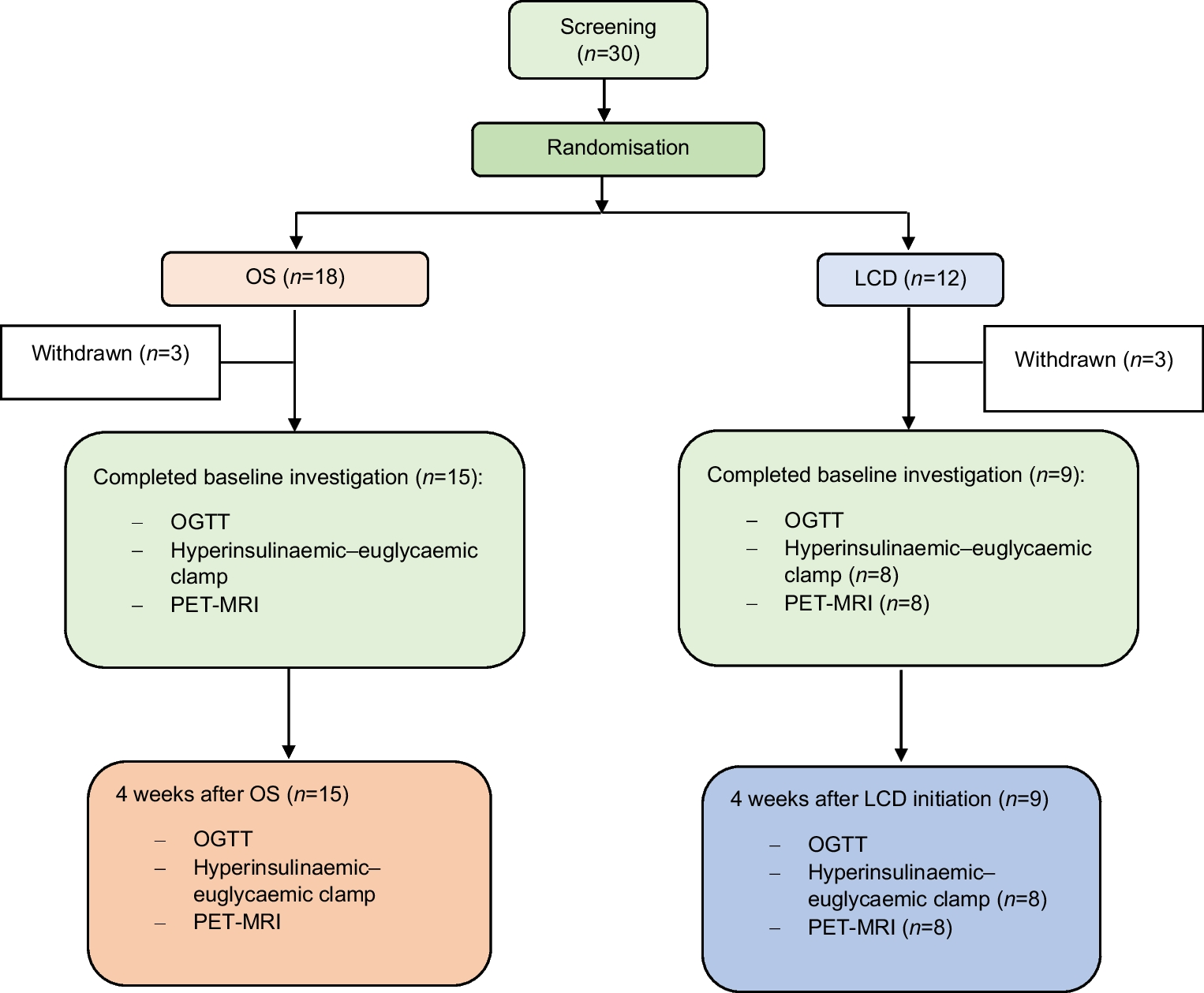

Participants were assessed at baseline and 4 weeks post LCD or surgery. In the surgery group, 15 participants were offered RYGB or SG. The LCD consisted of liquid meal (Modifast; Täby, Sweden) replacements for 4 weeks, providing 4600 kJ (1100 kcal) energy intake per day. Both groups aimed for 8–10% weight loss [22, 25]. The primary outcome was HOMA-IR change. Secondary outcomes included anthropometric measures (weight, waist and hip circumference, and body fat % measured by bioimpedance using Tanita BC-418 [Tanita Corporation, Tokyo, Japan]), blood tests, subcutaneous adipose tissue (SAT) needle biopsy, 2 h 75 g OGTT, hyperinsulinaemic–euglycaemic clamp with glucose uptake assessment with ¹⁸F-FDG-PET, and 24 h physical activity and energy expenditure. See electronic supplementary material (ESM) Methods for additional details.

A hyperinsulinaemic–euglycaemic clamp was performed, as previously reported to be compatible with whole-body PET/MRI [26, 27]. In brief, human insulin (Actrapid; Novo Nordisk, Copenhagen, Denmark) was infused at 56 mU (m² body surface)⁻¹ min⁻¹, and plasma insulin levels were raised to about 700 pmol/l. A variable glucose infusion (200 mg/ml) was simultaneously adjusted to maintain stable plasma glucose at 5.6 mmol/l. The M value, reflecting whole-body insulin sensitivity, was derived from the glucose infusion rate during the clamp steady state (60–120 min) and calculated as glucose infusion rate per lean body mass (LBM) (mg [kg LBM]⁻¹ min⁻¹).

We used a whole-body integrated simultaneous 3.0 T PET/MRI system (Signa PET/MR; GE Healthcare, Waukesha, WI, USA) following an established protocol [27, 28]. Initially, 4 MBq of ¹⁸F-FDG per kg of body weight was injected for a 10 min dynamic PET scan focusing on early ¹⁸F-FDG dynamics in the thorax. Subsequently, five static whole-body PET scans, covering head to toe, were conducted with ten bed positions, each lasting 30 s. Simultaneously acquired water-fat (Dixon) MRI data, using vendor-specific magnetic resonance attenuation correction (MRAC) sequence, facilitated PET data attenuation correction and whole-body tissue segmentation. MRAC generated two distinct whole-body image datasets: a water signal image; and a fat signal image. Comprehensive corrections for quantitative PET evaluation, including random and scatter corrections, were executed. After PET/MRI scans, we performed two dedicated water-fat MRI acquisitions of the liver and pancreas using a 3D six-echo gradient-echo acquisition and a vendor-specific water-fat reconstruction method (iterative decomposition of fat and water with echo asymmetry and least squares estimation [IDEAL-IQ) [29]). This sequence produced quantitative fat fraction images with voxel intensities representing the fraction of the fat signal to the total water and fat signal.

Quantitative ¹⁸F-FDG net glucose influx rate Ki images were generated. Whole-body glucose disposal (Rd), EGP and specific tissue glucose metabolic rate (MRglu) were calculated based on ¹⁸F-FDG kinetics, tissue lumped constants and adjustment for urinary and blood ¹⁸F-FDG, as previously reported [26, 29]. Adipose and non-adipose tissue volumes were quantified from whole-body water-fat MRI using automated image analysis. Liver and pancreatic fat % were quantified from manually delineated fat fraction maps. See ESM Methods for details.

Data are displayed as mean ± SD unless otherwise indicated. All data were first checked for normality using Shapiro–Wilk test and normal distribution of the residuals was analysed by visual validation of Q–Q plots. Homoscedasticity was deemed acceptable after visual inspection of residuals vs predicted values. Non-normally distributed data were log-transformed before analysis. Back-transformation to the original scale was made and results display geometric mean and CI (95% CI). Group differences at baseline between the surgery and LCD group and changes from baseline within a group were analysed using independent t test and paired t test, respectively. Analyses of change from baseline between the groups (surgery vs LCD) were assessed with ANCOVA adjusted for the outcome baseline value. Comparison between the number of participants with normoglycaemia or prediabetes between OS and LCD was performed with Fisher’s Exact test. For this exploratory research focusing on potential mechanisms there was no formal prespecified power requirement. However, power analyses based on previous studies [30, 31], indicate that the current sample size in the LCD group (n=9) gives 80% power to detect a change from baseline in fasting plasma glucose of 0.53 mmol/l and HOMA-IR of 2.2 units, with α=0.05. The larger OS group (n=15) provides more than 80% power for such changes. For the comparison of LCD vs OS groups, there is an 80% estimated power to detect a difference in effects on FPG of 0.6 mmol/l and on HOMA-IR of 2.6 units, respectively. A p value <0.05 was considered statistically significant, with no multiple testing correction. All data were analysed with IBM SPSS software version 23 (USA) and GraphPad Prism 10.0.2 (USA).

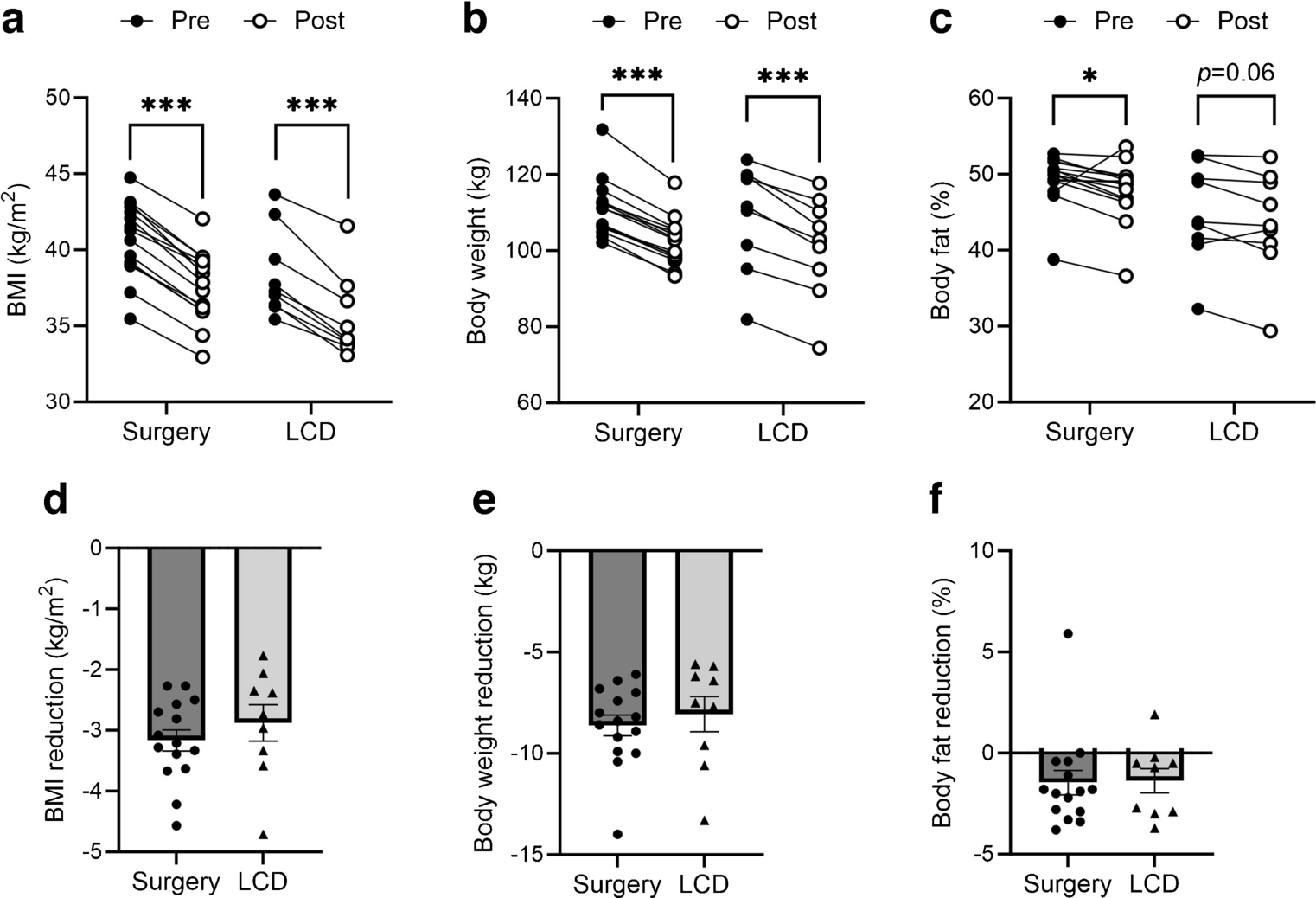

Surgery and LCD led to comparable reductions in body weight and BMI (Table 1, Fig. 2). In both groups, the mean weight loss was 8–9 kg (7–8%) over the study period of 4 weeks. Accordingly, waist circumference was decreased by ~6 cm in both groups (Table 1). Moreover, body fat %, as assessed by bioimpedance analyses, was significantly decreased by OS and was decreased (albeit not significantly) by LCD (Table 1, Fig. 2c). There was a corresponding increase in LBM %, which was significant in the OS group (Table 1). Systolic BP was significantly reduced, and diastolic pressure was non-significantly reduced, by OS and LCD to a similar degree.

Bild vergrößern

The level of physical activity assessed by 24 h accelerometer monitoring did not show any significant change after either OS or LCD and, thus, there were no differences between the groups. Further, the estimated 24 h energy expenditure (representing normal life, resting and active) did not show any differences between OS and LCD (Table 1). However, these analyses could be performed only in a subset of participants and therefore must be interpreted with caution.

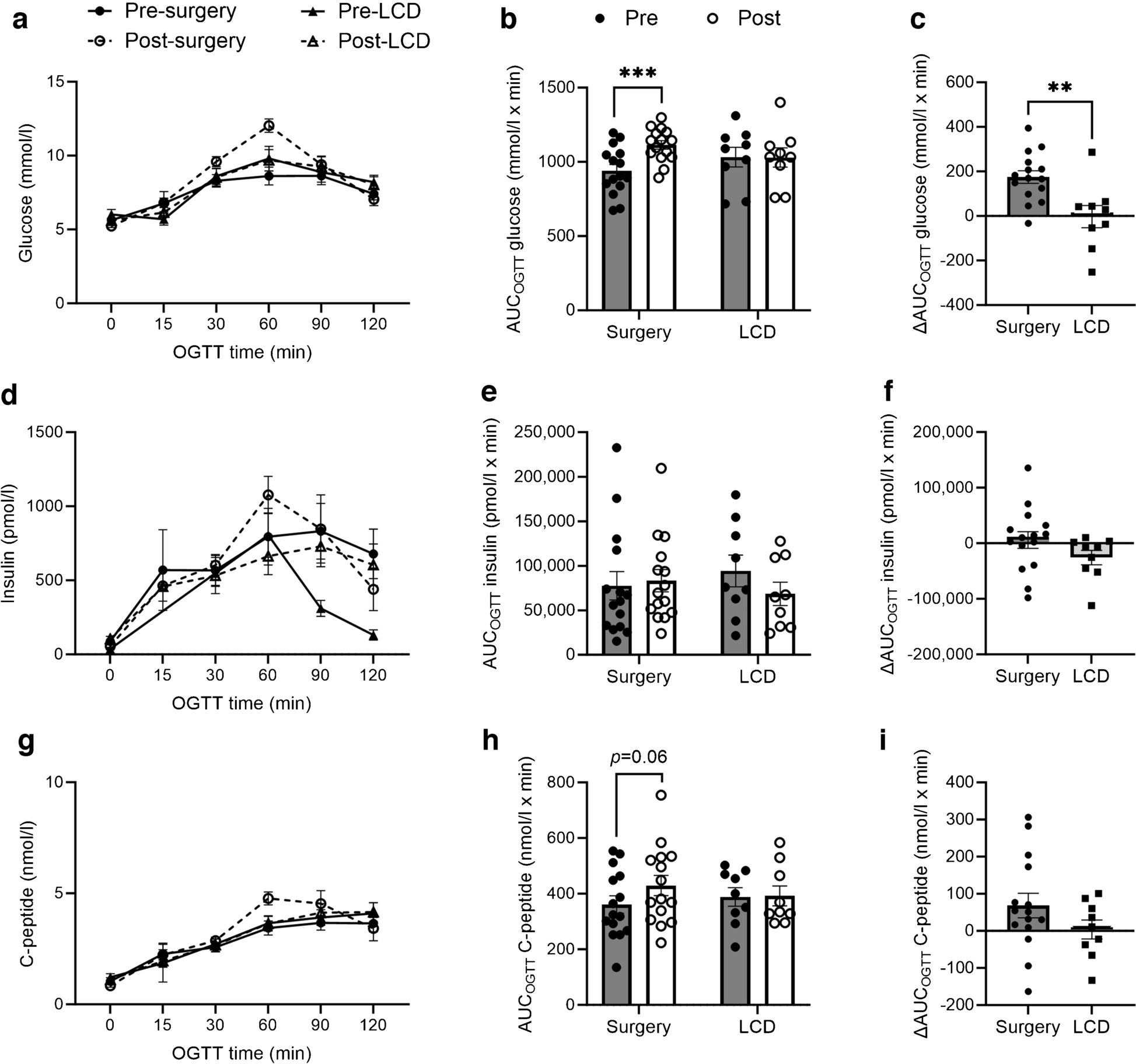

Circulating glucose levels, reflected by HbA_1c, were reduced more markedly by surgery than LCD at 4 weeks (Table 1), with the change from baseline differing significantly when comparing OS with LCD (p<0.01). Additionally, fasting glucose and insulin were reduced after OS (p<0.01) but not after LCD, with no significant differences in changes from baseline when comparing OS with LCD. The AUC for glucose, insulin and C-peptide concentrations were obtained during an OGTT (AUC_OGTT; Fig. 3). Glucose AUC_OGTT was increased by 20% after OS (p<0.001) but not after LCD, and this effect was independent of weight loss (%). Insulinogenic index was slightly reduced after surgery and significantly reduced in the LCD group (Fig. 4e,f), whereas insulin AUC_OGTT was unaffected by either of the interventions (Table 1, Fig. 3d–f). The lipid levels, including fasting plasma cholesterol, HDL-cholesterol, LDL-cholesterol and triglycerides were reduced in both groups with no significant difference between the groups.

Bild vergrößern

Bild vergrößern

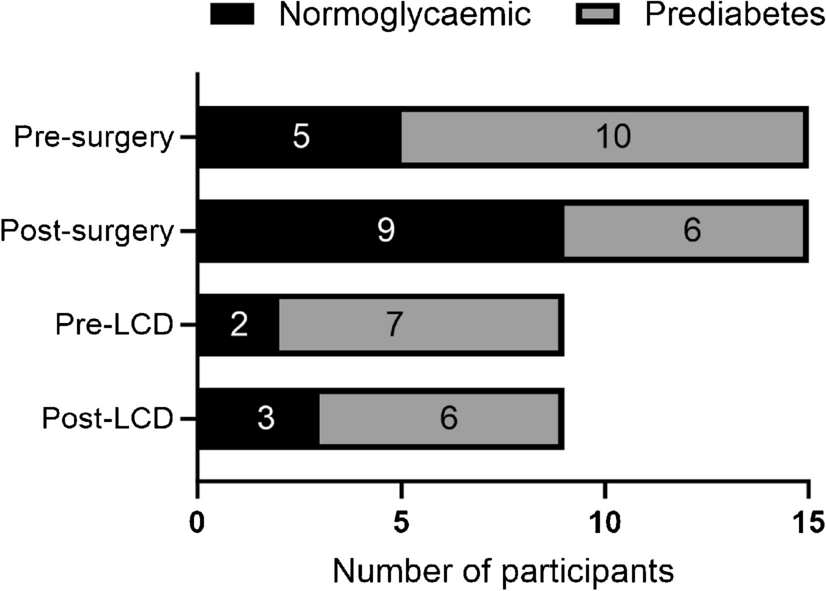

At baseline, seven individuals in the LCD group were diagnosed with prediabetes (either impaired fasting glucose or impaired glucose tolerance) and one of them reversed to a normoglycaemic condition following the diet (Fig. 5). Ten individuals in the OS group had prediabetes before surgery, and four of them reverted to normoglycaemia after the intervention. There was a nominally greater (but not significantly so), proportion of participants with prediabetes that converted to normoglycaemia (40%) in the OS group than in the LCD group (14%).

Bild vergrößern

C-reactive protein and AST were reduced by surgery but not by LCD (Table 1). The impact of OS on reduction of C-reactive protein was independent of weight loss. The interventions had different effects on creatinine (p=0.002), with OS reducing levels but LCD increasing levels (p<0.05).

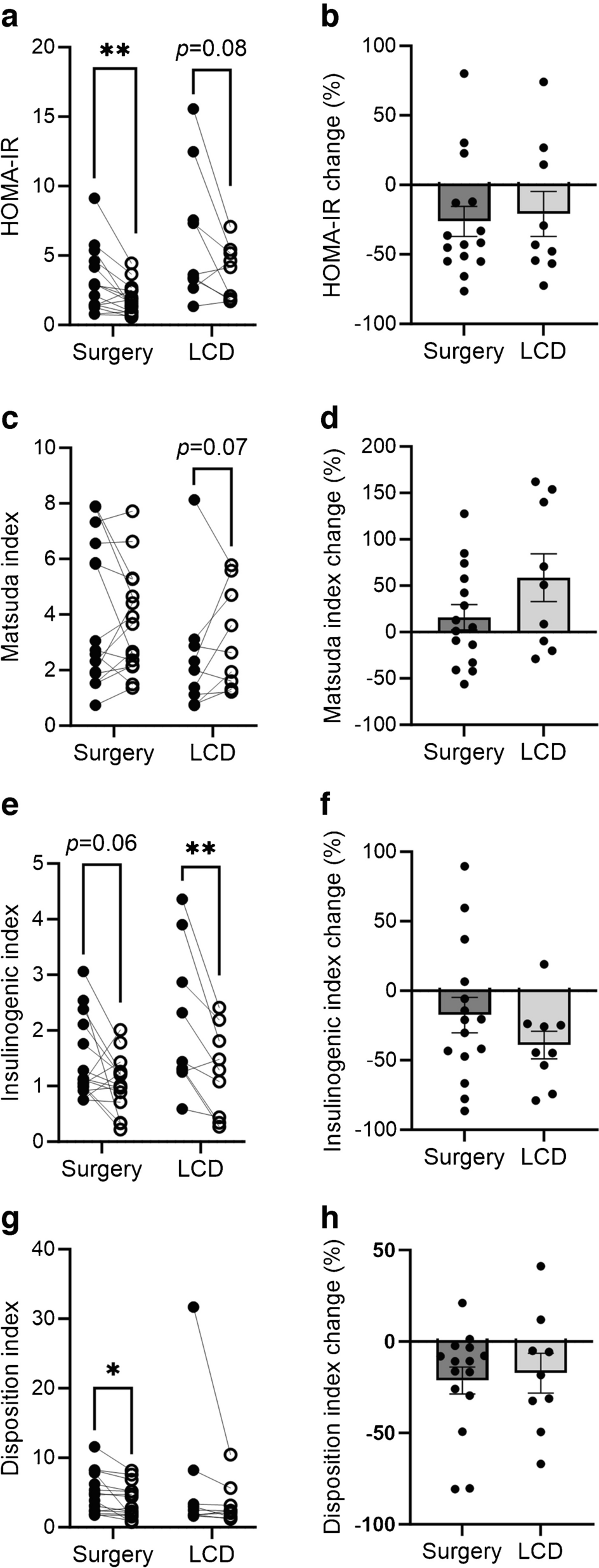

Neither intervention significantly affected whole-body insulin sensitivity at 4 weeks, as assessed by the clamp-derived M value (Table 1). HOMA-IR was significantly reduced following OS (−26.3% [95% CI −49.5, −3.0], p=0.009); the reduction was not statistically significant following LCD (−20.9% [95% CI −58.2, 16.5]). Similar results were found for disposition index, indicating a possible insulin sensitisation effect. There were no consistent effects on the Matsuda index during a glucose load, and no significant difference between interventions regarding these indices could be detected (Table 1, Fig. 4).

Both OS and LCD caused significant decreases in magnetic resonance-derived estimates of whole-body, adipose tissue and non-adipose tissue volumes (all p<0.001, Table 2). Adipose tissue volume was comparably decreased by around 7% after both interventions. However, OS led to a greater decrease in non-adipose tissue volume (p<0.01), and this was independent of weight loss. Both surgery and LCD markedly decreased liver fat % by approximately 2% units. Neither intervention affected pancreas fat % (Table 2).

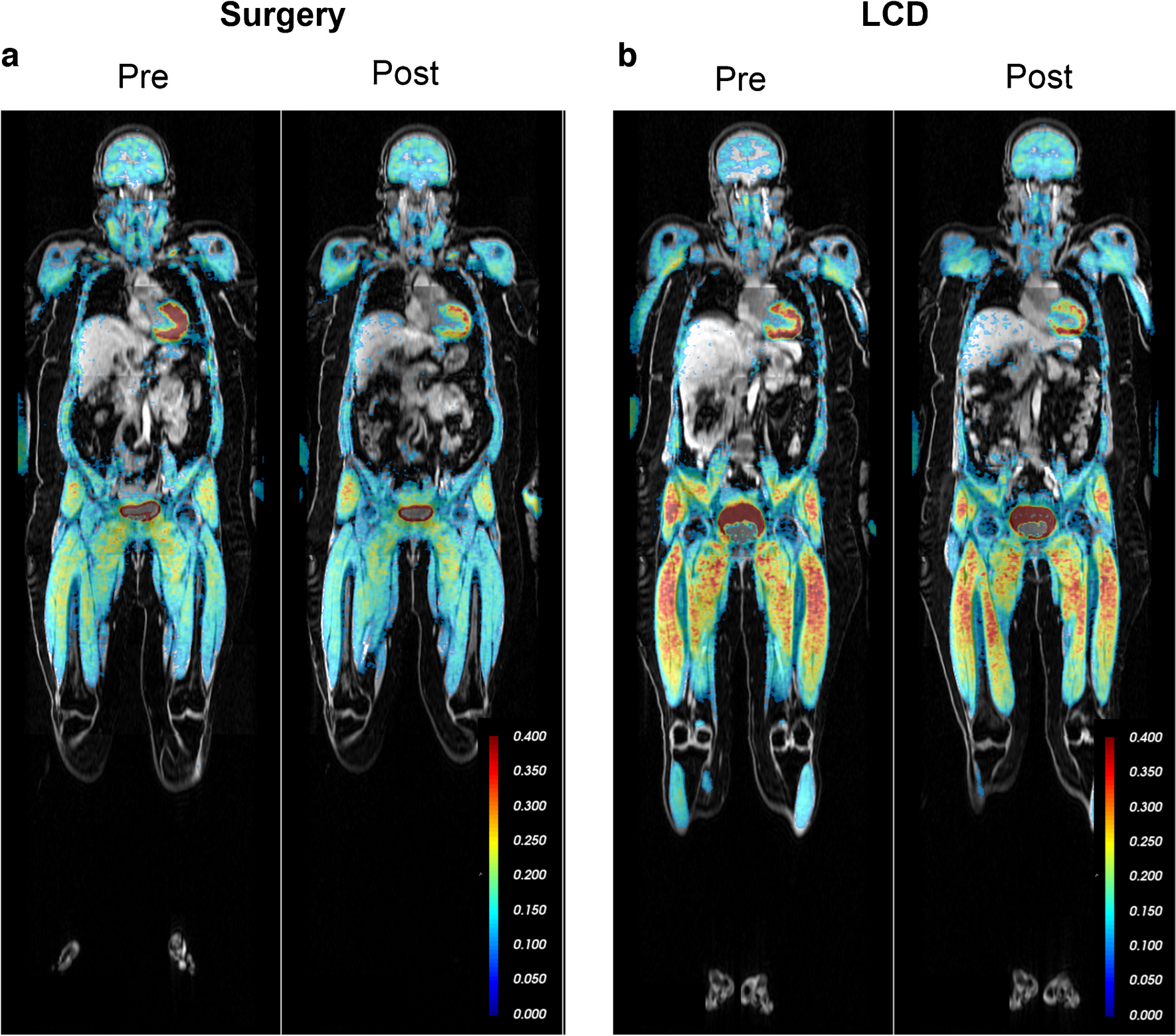

There was a non-significant reduction in Rd during steady-state hyperinsulinaemic–euglycaemic clamp following LCD (p=0.09). EGP remained unaltered after both interventions (Table 2). Following OS, there was a decrease in tissue-specific glucose uptake rate in the heart (MRglu heart, p<0.001) and abdominal adipose tissue (p<0.05), whereas there was an increase in the skeletal muscles of the legs (p<0.05). Neither of these effects was seen after LCD, and neither of the interventions affected glucose uptake rates in any of the other assessed tissues (i.e. brain or liver) (Table 2, Fig. 6). However, LCD led to a non-significant increase in the glucose uptake rate of the brain (Table 2).

Bild vergrößern

Reduction of fasting plasma glucose after intervention was positively associated with absolute and relative body weight loss following OS but not LCD (ESM Table 1). Furthermore, lowering of EGP was associated with body fat reduction, although this was significant only in the LCD group. The body fat % reduction negatively correlated with the liver fat reduction in the OS group, while in the LCD group, this association was positive (both p<0.05). No correlations were found between weight loss and glycaemic or ¹⁸F-FDG-PET/MRI-derived effect measures.

The two types of OS, RYGB and SG, lead to weight loss by partly differing mechanisms and they also display different effects on long-term diabetes remission and weight maintenance. Therefore, we performed separate sensitivity analyses by including only the larger subgroup undergoing RYGB. The short-term effects on glycaemia, insulin sensitivity, whole-body and tissue-specific fat content, and glucose turnover remained very similar, as did the limited differences when compared with LCD (data not shown).

OS and LCD induced a similar reduction in body weight (8–9 kg) 4 weeks after the intervention. Both groups of participants experienced comparable reductions in circulating lipids and BP, whereas fasting plasma glucose, insulin, HbA_1c and HOMA-IR were reduced more markedly, or only, following OS. After OS, a higher proportion of participants with prediabetes (impaired glucose tolerance or impaired fasting glucose) reverted to normoglycaemia, with four out of 10 (40%) becoming normoglycaemic compared with one out of seven (14%) for LCD. Taken together, the data support the notion that dysglycaemia normalises more rapidly after OS than after an LCD, and that this difference is independent of weight loss [11, 32].

OS and LCDs similarly reduced whole-body adipose tissue volume by about 7%, along with a reduction in liver fat content by 2% units, whereas pancreas fat did not change in either group. Interestingly, the participants that underwent OS exhibited a slightly greater volume reduction in non-adipose tissues than those given the LCD, suggesting a relatively greater loss of fluid from non-adipose vs adipose tissue in the OS compared with the LCD group. This has previously been reported as a rapid and possibly temporary effect following OS, although the mechanisms are not clear [34, 35].

Liver fat content was reduced similarly following both interventions; in the LCD group, this was positively correlated with the reduction in whole-body fat %. In contrast, the opposite was found with OS (i.e. a significant inverse relationship between whole-body and liver fat reduction). This might be explained by enhanced lipid release from adipose tissue, potentially leading to elevated uptake in the liver [36], which could in turn drive hepatic insulin resistance. Nonetheless, there was a net decrease in liver fat following OS, in keeping with lower HOMA-IR and fasting plasma glucose. Furthermore, the rapid decrease in fasting glucose and hepatic insulin resistance following OS is probably also due to several other factors, including resetting of secretion of incretins and other glucose-regulating hormones as well as adaptative changes of the brain’s glucose-sensing and regulating functions [16, 17, 29].

In the OS group, there was a 20% increase in glucose AUC in response to an OGTT, in contrast to the LCD group. This result is likely attributed to the anatomical rearrangements specifically in RYGB patients, in whom the duodenum and much of the stomach are bypassed, allowing for rapid glucose absorption in the jejunum. During hyperinsulinaemia, only the OS group showed a significantly increased PET-derived glucose uptake in skeletal muscle (by about 25%). OS also led to a substantial 40% reduction in glucose uptake in the heart and a 10% reduction in abdominal adipose tissue, with no significant changes in the brain or liver.

Surprisingly, Rd and EGP were unaffected by either intervention. Previous work has shown reduced EGP post-RYGB, often under fasting conditions or at later time points than four weeks [37, 38]. Our data suggest a probable reduction in fasting EGP following RYGB, as evidenced by decreased fasting glucose and HOMA-IR. This implies that the glucose-lowering effect of OS is more related to fasting conditions than the fed state. At 4 weeks after OS, no clear improvements in glucose metabolism, insulin secretion or insulin action upon an oral glucose load were observed, as Matsuda and insulinogenic indices remained unchanged. This aligns with unaltered PET-derived glucose uptake at the whole-body level during hyperinsulinaemia. Nevertheless, the increased glucose uptake rate in skeletal muscle and adipose tissue supports the occurrence of rapid tissue-specific insulin sensitisation after OS [39].

The outcomes of insulin sensitivity assessments displayed variability across diverse methods. Notably, the clamp experiments, coupled with PET/MRI investigations, reflected a submaximal insulin-stimulated state, a characteristic largely shared with the Matsuda index derived from OGTT data. Examining the impact of OS on insulin-stimulated glucose uptake in tissues, using FDG-PET, revealed distinctive patterns: an increased uptake in skeletal muscle and adipose tissue, and a reduced uptake in the heart. However, there were no significant changes in the whole-body glucose turnover, and those effects were also found following an LCD. In contrast, HOMA-IR reflects the fasting condition and suggests a more marked improvement of insulin resistance after OS.

Increased insulin sensitivity of skeletal muscle probably explains the observed increase in its glucose utilisation at 4 weeks after OS, as previously observed in other studies [40]. However, our data also revealed that glucose uptake was reduced in adipose tissue and myocardium. The latter might be due to lower cardiac output [41] and hence less strain on the heart. We hypothesise that the rapid glycaemic improvement after OS is mainly accounted for by reduced hepatic glucose production in the fasting state. However, this hypothesis was not directly addressed as EGP was only measured during hyperinsulinaemic clamps and did not change. Albeit direct measurements were not performed, the notion of lowered EGP during fasting [38], and thus much of everyday life, is supported by the observed reduction in HOMA-IR after OS. Notably, at later time points after OS, there are clear effects also on whole-body glucose utilisation during hyperinsulinaemia [17, 42].

Our correlation analyses indicate that the magnitude of body weight loss does not directly impact the rapid changes in glycaemic regulation. This is also supported by the lowering of glycaemic measures seen 4 weeks after OS but not LCD, despite similar body weight and fat loss. Thus, we propose that, after OS compared with LCD, there is a more rapid change of fasting plasma glucose and this may be mediated by a lower hepatic glucose production in the fasting state, which could not be assessed during our hyperinsulinaemic clamps.

We observed no evident effects on whole-body insulin action during the clamps, as reflected by the M value (glucose infusion rate) and glucose uptake rates derived from FDG-PET. This finding was unexpected as both weight loss per se and, in particular, OS are known to markedly reverse insulin resistance. However, it seems likely that those effects require several months to manifest. This was previously shown by us and others and may involve adipose tissue remodelling and accompanying functional changes including insulin responsiveness and altered gene expression [12, 17]. Moreover, the brain and neuroendocrine pathways may play an important role. Attenuated insulin-antagonistic neurohormonal responses (adrenocorticotropic hormone, cortisol, glucagon, growth hormone and sympathoadrenergic) have been shown by us and others following RYGB [16, 43]. Within the brain, glucose utilisation, as well as blood flow and neural network activity, is changed and these alterations likely contribute to the resetting of whole-body glucose metabolism. Such effects (e.g. a general reduction in brain glucose uptake) were demonstrated after at least 4 months and thus may not operate earlier [16, 29, 44]. This is supported by our present finding of an unchanged rate of glucose uptake in the whole brain after both OS and LCD. However, this does not preclude some changes in critical brain regions or effects on other brain functions.

This study is the first to compare the short-term metabolic effects of OS and LCD with a comprehensive assessment of tissue-specific and whole-body glucose turnover. Integrated simultaneous PET/MRI imaging was employed for the measurement of body composition, fat distribution and quantitative assessment of glucose fluxes. Notably, PET/MRI offers advantages over the more commonly available and less costly PET/computed tomography (CT) method, thanks to its lower radiation dose for whole-body investigations. Furthermore, MRI enables more precise quantifications such as liver fat compared with CT [45]. While our study provides valuable insights, we acknowledge inherent limitations due to the modest sample size, which was due to challenges in participant recruitment and resource constraints, in turn posed by the complex and cumbersome investigations. Consequently, there is low statistical power to detect minor differences in effects between the two interventions. Additionally, since most of the participants in the study were female, generalisations to all sex and genders in the populations is limited.

Of note, we only address the first 4 weeks after interventions. Repeated follow-up investigations would be of interest but were hindered by the waiting list design (with surgery performed directly after the study in the LCD group) and also by radiation exposure limits. At this point, we have not analysed incretin hormones, which may be involved in the early effects on glucose homeostasis, particularly following OS where enhanced responses to oral glucose are found [12, 44]. However, stimulated insulin secretion during OGTT was not amplified following either treatment, so the role of incretins in short-term glycaemic changes may be limited. In future work, we will address gut hormone regulation after LCD and RYGB. Quantitative glucose partitioning to different tissues should also be explored in more detail but would require rather challenging volume determination of each tissue of interest [26].

While achieving identical weight loss, OS and LCD also led to similar reductions in whole-body and liver fat after 4 weeks. However, only surgery increased the glucose uptake rate in skeletal muscle during hyperinsulinaemia, whereas it reduced the uptake rate in the myocardium and abdominal adipose tissue. Both liver and brain glucose uptake rates were similar between OS and LCD, as were whole-body glucose uptake and EGP. Taken together, the data indicate that the short-term metabolic effects of OS are not explained by loss of body fat alone. Although the full effects on whole-body insulin resistance and blood glucose levels do not occur immediately, there are clear reductions in fasting plasma glucose and insulin resistance as well as in HbA_1c as early as 4 weeks post-OS, potentially contributing to the prevention or reversal of type 2 diabetes. This indicates a specific and rapid glucose-lowering effect of OS, probably mainly explained by lower glucose production by the liver in the non-fed condition.
