Successful exclusion of coronary artery aneurysm by utilizing shortening of covered stent to avoid side-branch occlusion

  • 02.01.2021
  • Images in Cardiovascular Intervention
Erschienen in:

Auszug

A 48-year-old man with acute coronary syndrome was transferred to our hospital for primary percutaneous coronary intervention. He underwent urgent balloon angioplasty for in-stent restenosis in the distal right coronary artery (RCA) and drug-eluting stent implantation (4.0 × 33 mm) across the coronary artery aneurysm (CAA) in the mid RCA (Fig. 1a, the upper panels). Subsequently, procedure to exclude CAA was intended since the CAA was proven to be enlarged within three years by referring previous angiogram. While shortest length of the covered stent (CS) available in Japan at that moment was 16 mm, the distance between two right ventricular branches (RVBs) originating at proximal and distal sides of the CAA was 13.4 mm on optical coherence tomography (OCT) (Fig. 1a, the lower panels). Angiogram also demonstrated a 4.0 × 16 mm CS (GRAFTMASTER, Abbott Vascular) would jail at least one RVB (Fig. 1b, the upper left panel, a white dotted line). Accordingly, implantation with high pressure (20 atm) and post-dilatation with a 5.0-mm non-compliant balloon (22 atm) was performed to cause intentional shortening of the CS, the degree of which was reported to be potentially approximately 3 mm using larger balloons [1]. Consequently, CAA was excluded with preserved flow into both RVBs (Fig. 1b, the upper right panel) and the implanted CS was shortened by 3.0 mm on OCT (proximally 1.4 mm and distally 1.6 mm in length, Fig. 1b, the lower panels). The edge injury related to the CS implantation with high pressure was successfully avoided, thanks to the first stent, the length of which was longer than that of the CS, as a previous report suggested [2]. At the 10-month follow-up, he had been symptom free. The patency of both RVBs, absence of CAA, and shortened CS without restenosis were also confirmed by coronary computed tomography.

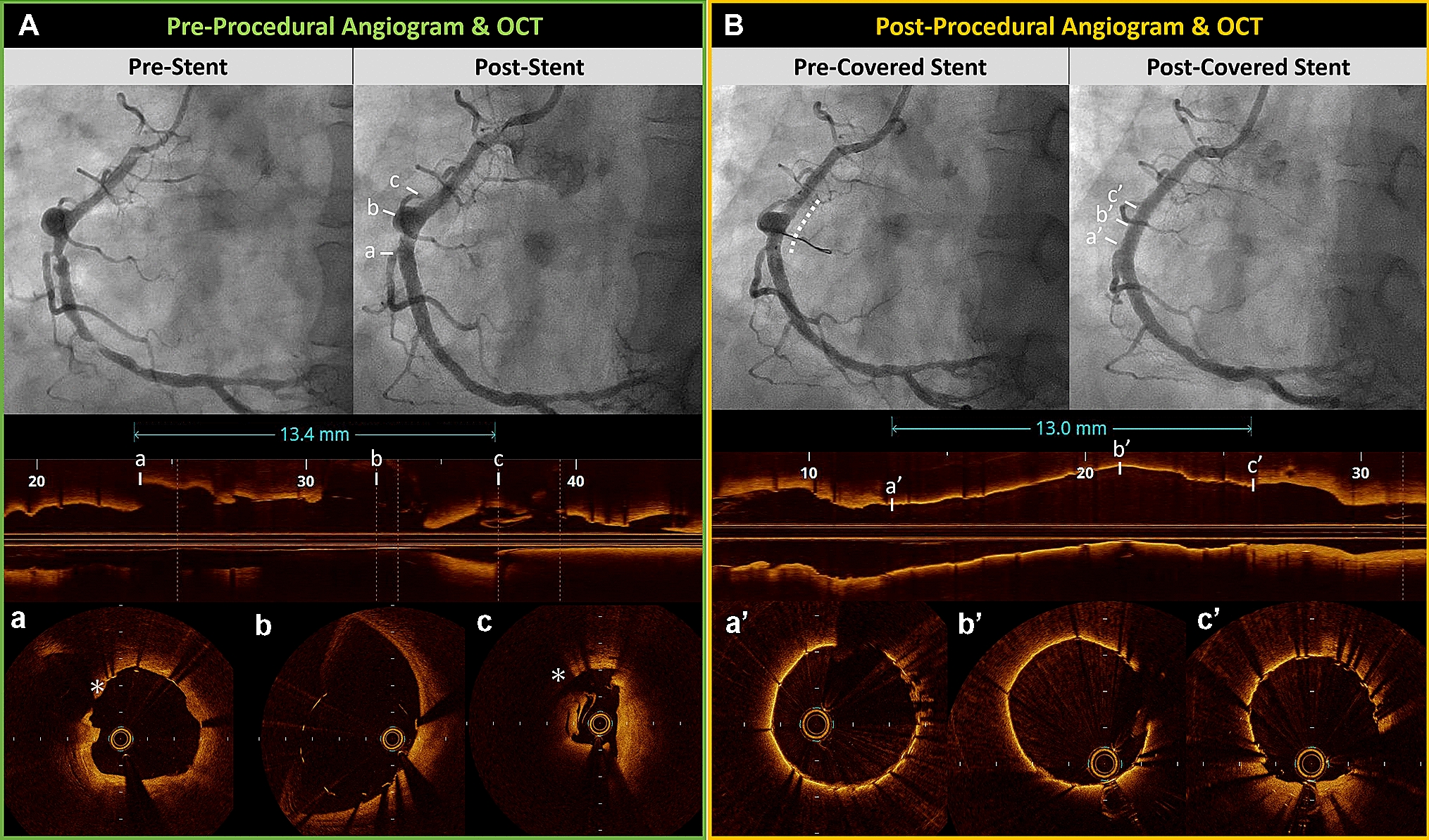

Fig. 1
Successful Exclusion of CAA. The findings of angiogram are shown in the upper panels and those of optical coherence tomography (OCT) in the lower panels. A Pre-procedural assessment indicated the risk of RVBs (right ventricular branches) occlusion. a White asterisk indicates distal end of the ostium of distal RVB. b Deployed DES (drug-eluting stent) across the CAA (coronary artery aneurysm). c White asterisk indicates proximal end of the ostium of proximal RVB. B Successful CS (covered stent) implantation. a’ Distal overlap of CS (covered stent) and DES. b’ CS on deployed DES across the CAA. c’ Proximal overlap of CS and DES
Bild vergrößern
Titel
Successful exclusion of coronary artery aneurysm by utilizing shortening of covered stent to avoid side-branch occlusion
Verfasst von
Takayuki Warisawa
Norio Suzuki
Mizuho Kasahara
Kazuaki Okuyama
Hisao Matsuda
Yoshihiro J. Akashi
Publikationsdatum
02.01.2021
Verlag
Springer Singapore
Erschienen in
Cardiovascular Intervention and Therapeutics / Ausgabe 1/2022
Print ISSN: 1868-4300
Elektronische ISSN: 1868-4297
DOI
https://doi.org/10.1007/s12928-020-00740-9
