Transcutaneous osseointegration prosthetic systems (TOPS) are intended to provide stable skeletal attachment for artificial limbs after extremity amputation and is an alternative for socket attachment. TOPS for individuals with limb amputation using osseointegration implants (OI) has proven to consistently and significantly improve quality of life and mobility for the vast majority of amputees, previously using a socket prosthesis also experiencing socket-related problems. As with any implant, complications such as infection, aseptic loosening, or implant fracture can occur, which may necessitate hardware removal. Approximately half of patients who undergo a below-knee amputation are able to utilize an artificial leg acceptably well with a socket-suspended prosthesis. However, the other half of patients experience limitations resulting in reduced prosthesis use, mobility, and quality of life. Limb-to-prosthesis energy transfer is poor because of the so-called “pseudojoint” (i.e., the soft tissue interface), and gross mechanical malalignment is common. Furthermore, transtibial amputees may experience irritation from pistoning and suction at the residual limb–socket interface. These issues result in skin problems and difficulties with socket fit because of fluctuation in the size of the residual limb size, resulting in a decrease in overall satisfaction and confidence in mobility. A bone-anchored implant creates a direct skeletal connection between the residual limb and artificial leg, in which energy transfer is optimal and mechanical alignment is significantly improved.
Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.
Introductory remarks
Transcutaneous osseointegration prosthetic systems (TOPS) are intended to provide a stable skeletal attachment for artificial limbs after extremity amputation and is an alternative for socket attachment. TOPS for individuals with limb amputation using osseointegration implants (OI; Fig. 1) has proven to consistently and significantly improve the quality of life and mobility for the vast majority of amputees, previously using a socket prosthesis also experiencing socket-related problems. As with any implant, complications such as infection, periprosthetic fracture, aseptic loosening, or implant fracture can occur, which may necessitate hardware removal.

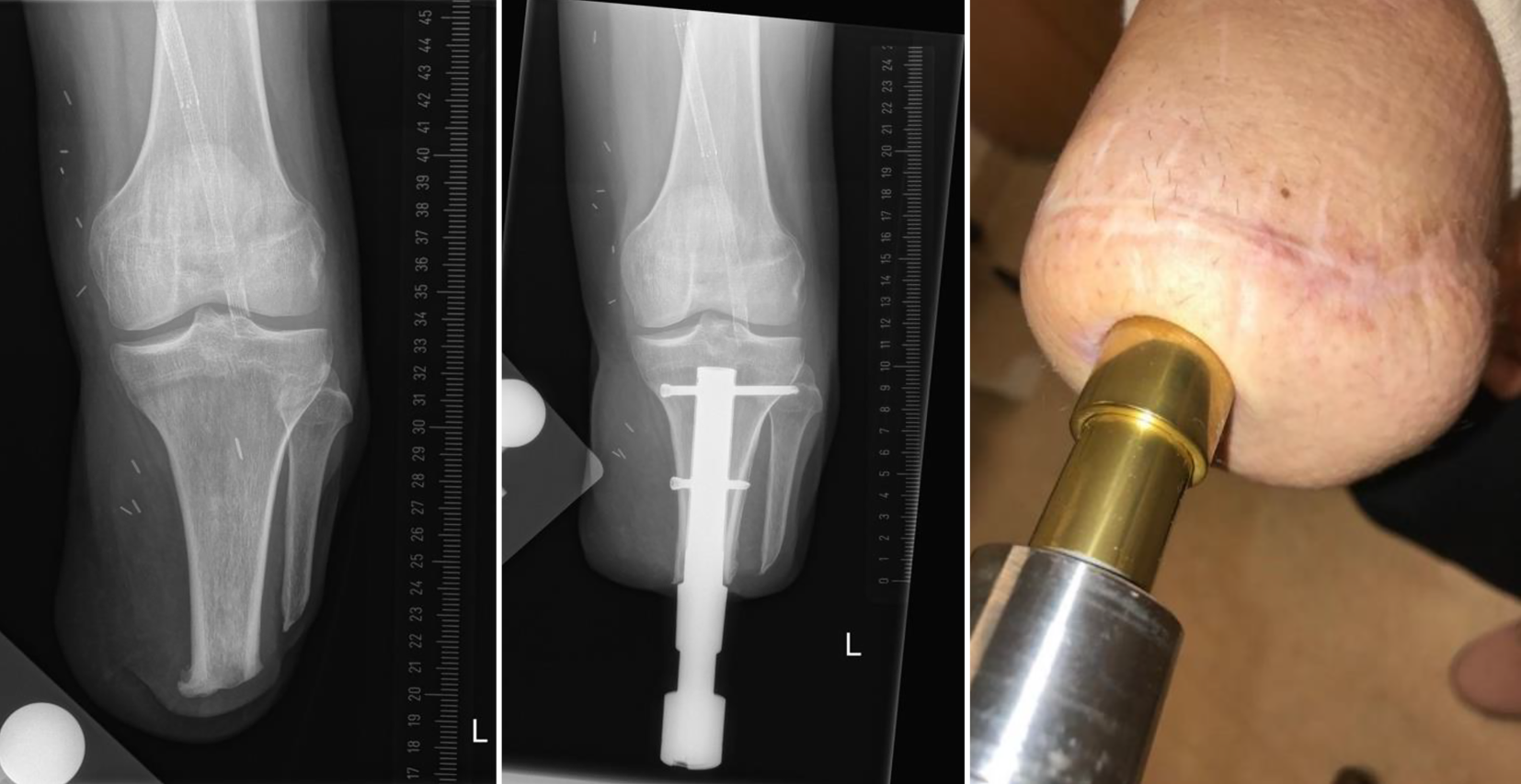

Fig. 1
Before (left) and after (middle) implantation of bone-anchored prosthesis with stoma (right)
Approximately half of patients who undergo a below-knee amputation are able to utilize an artificial leg acceptably well with a socket-suspended prosthesis [4, 10]. However, the other half of patients experience limitations resulting in reduced prosthesis use, mobility, and quality of life. Limb-to-prosthesis energy transfer is poor because of the so-called “pseudojoint” (i.e., the soft tissue interface), and gross mechanical malalignment is common. Furthermore, transtibial amputees may experience irritation from pistoning and suction at the residual limb–socket interface. These issues result in skin problems and difficulties with socket fit because of fluctuation in the size of the residual limb size, resulting in a decrease in overall satisfaction and confidence in mobility. A bone-anchored implant creates a direct skeletal connection between the residual limb and artificial leg, in which energy transfer is optimal and mechanical alignment is radically improved. Since 2014 we have successfully treated about 150 individuals with bone-anchored prosthesis after below-knee amputation [1, 2, 6, 10].
Anzeige
Surgical principle and objective
The cylindrical BADAL X (OTN Implants Arnhem The Netherlands) tibia implant with a distal drop shape is transcutaneously implanted using a retrograde press-fit approach. Press fit is created with an implant diameter that is 0.6–1.0 mm larger than the surgically prepared intramedullary canal of the humerus and also depending on the individual bone quality. The distal part of the BADAL X tibia implant is provided with a taper connection to the BADAL X dual-cone adapter that serves as an abutment for the fixation of the leg prosthesis. The leg prosthesis can be connected to the BADAL X dual-cone adapter with a compatible quick attach and release ‘Luci’ connector.
Advantages
Better prosthetic control and stability/safety
Prosthetic “feeling”
Perfect suspension in swing phase
Better sitting comfort and hip range-of-motion
No loosening of prosthesis during daily activities
Donning and doffing is quick and easy
Stump muscles remain fit
No sweating in summer
Disadvantages
Unnatural skin opening (stoma)
Life-long stoma care required
Soft tissue infection in the skin penetration area may occur
Loosening of the prosthesis during daily activities
Complaints of perspiration due to socket/liner
Anzeige
Contraindications
Satisfaction with socket prosthesis
Poorly controlled diabetes or with complications
Severe bone deformity
Children and adolescents
Bone diseases (chronic infection or metastasis)
Chemotherapy
Severe vascular diseases
Pain without a clear cause
Overweight (body mass index > 30)
Smoking
Patient information
It is important that the surgeon informs the patient about:
Progressive postoperative loading instructions
Life-long stoma care with water and soap twice daily
Occurrence of soft tissue irritations in the skin penetration area
In case of failure, residual limb shortening is expected
The risk of infection and potential bone infection
Preoperative work-up
The manufacturer (OTN Implants Arnhem The Netherlands) provides the surgical planning based on computed tomography (CT) scan images to calculate the implant size (Fig. 2).

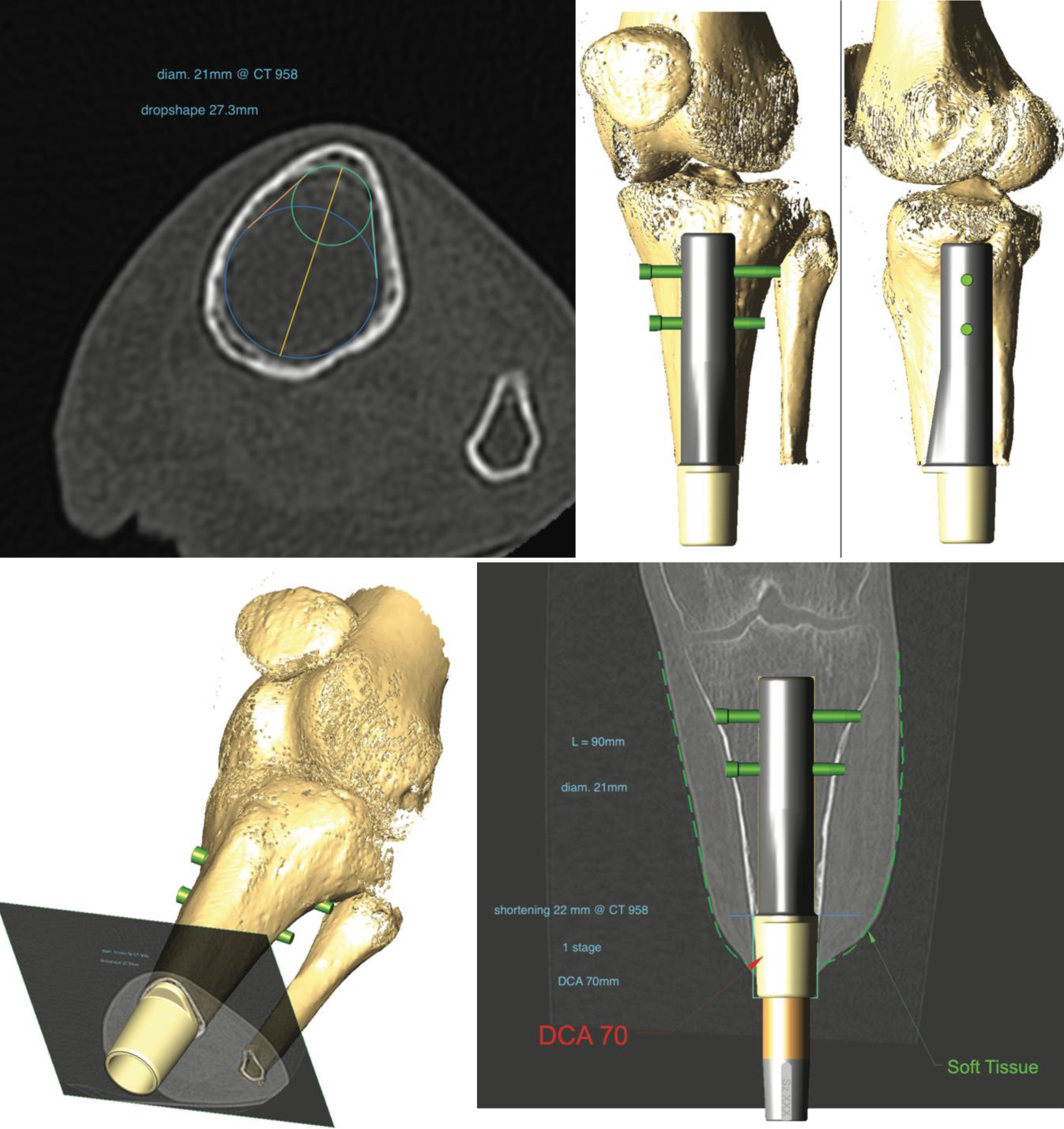

Fig. 2
Preoperative surgical planning based on computed tomography (CT) scan images to configure the template tibial remnant
OTNI 13BS and 13TS—reusable surgical instrument basic sets for BADAL X tibia
OTNI RR01 and RR02 and RR03 rigid reamer sets with diameters 12–23 mm
DePuy Synthes LCP 5.0 mm screws various sizes according to planning (author’s preference)
Anesthesia and positioning
The patient is positioned in supine position on a standard radiolucent operating table under general or spinal anesthesia preferably with locoregional nerve block. Perioperative antibiotic prophylaxis is indicated according to institutional standard orthopedic guidelines. A silicon cushion is placed under the knee for stabilization during surgery and optimal viewing with C‑arm. The C‑arm is ideally on the opposite side of the patient. Always test the images obtained with the C‑arm prior to draping. The residual leg is prepared and draped to allow for surgery until just above the knee (Fig. 3).
Soft tissue marking: In cases with redundant soft tissues or excessive scars, we tend to mark the resection prior to cutting but it is also an option to perform the soft tissue reduction after implant insertion with the advantage of not having to resect too much
Soft tissue correction and exposure of residual bone: We start with a direct approach to the distal tip of the tibia bone remnant using existing scars as much as possible with removal of redundant skin and soft tissues, exposing the bone and allowing for shortening following the preoperative surgical plan including removal of redundant calf muscles

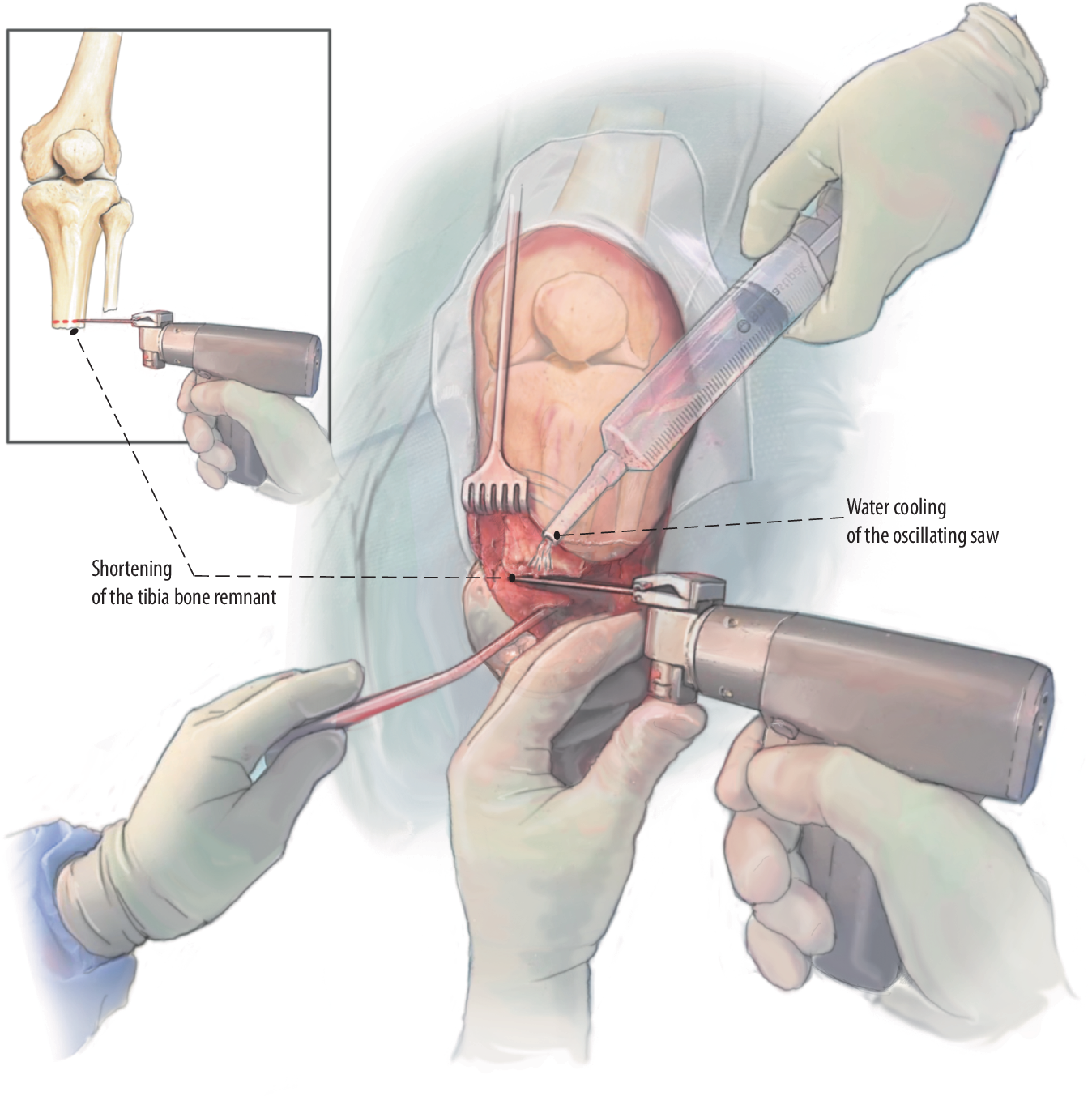

Revision osteotomy with guided shortening: According to the presurgical planning, we perform an osteotomy at the distal end of the tibia to open the medullary canal. In this case, only 12 mm is resected. It is important to water cool the saw to prevent thermal damage to the bone. The fibula is shortened whenever indicated, aiming about 10–20 mm shorter than the level of the tibia

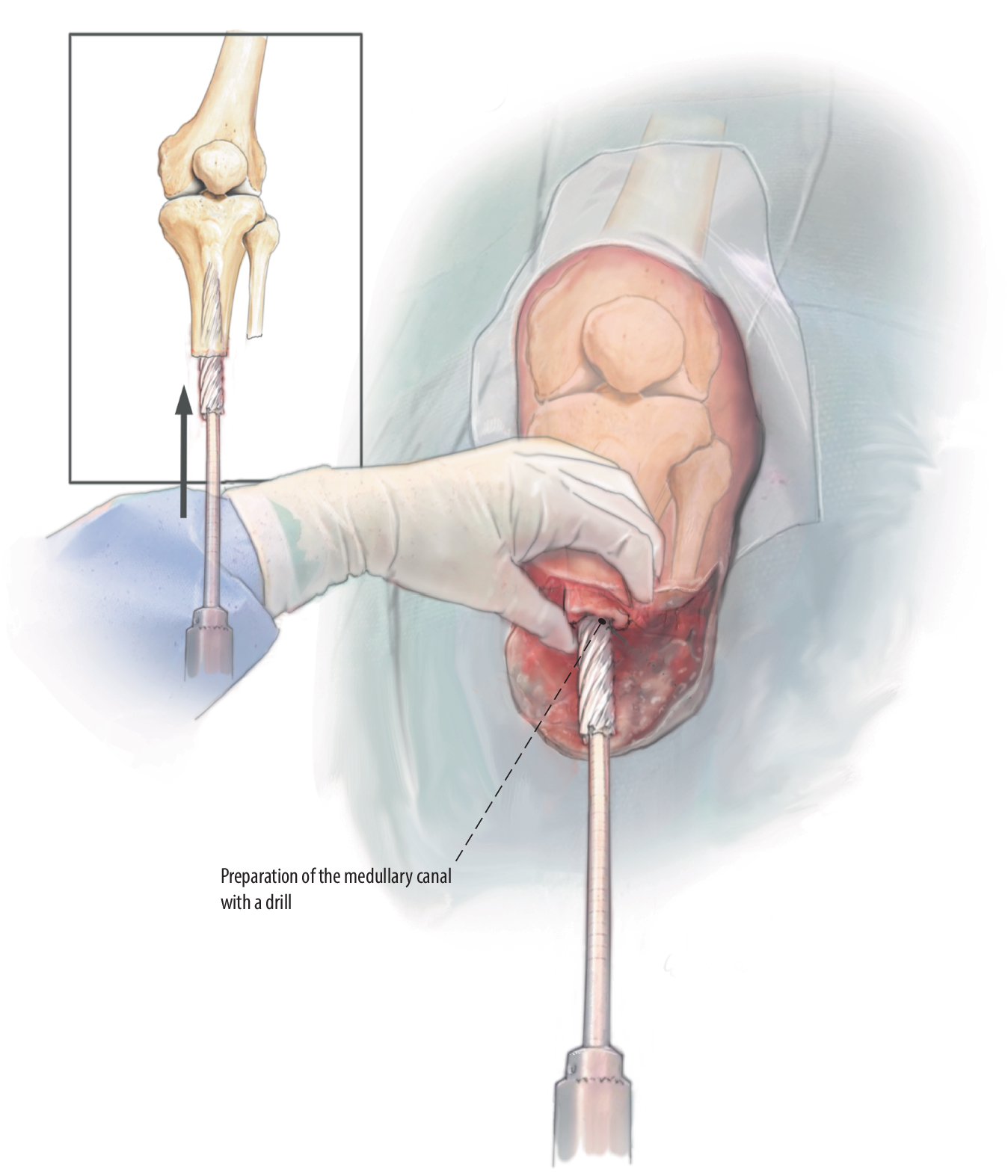

Medullary canal preparation and perpendicular cutoff plane: Preparation of the medullary canal can be performed using the smallest 12 mm rigid drill manually with careful progression; confirm the alignment with fluoroscopy. Further opening of the canal is performed using rigid drills stepwise until reaching the desired size with a power drill. Depending on the bone quality, you may over- or underdrill by one millimeter. Double check the cortical wall after preparation to assess for eventual cracks, after which the distal cut edge is perpendicularly finished by hand or with tip rasps on power drill

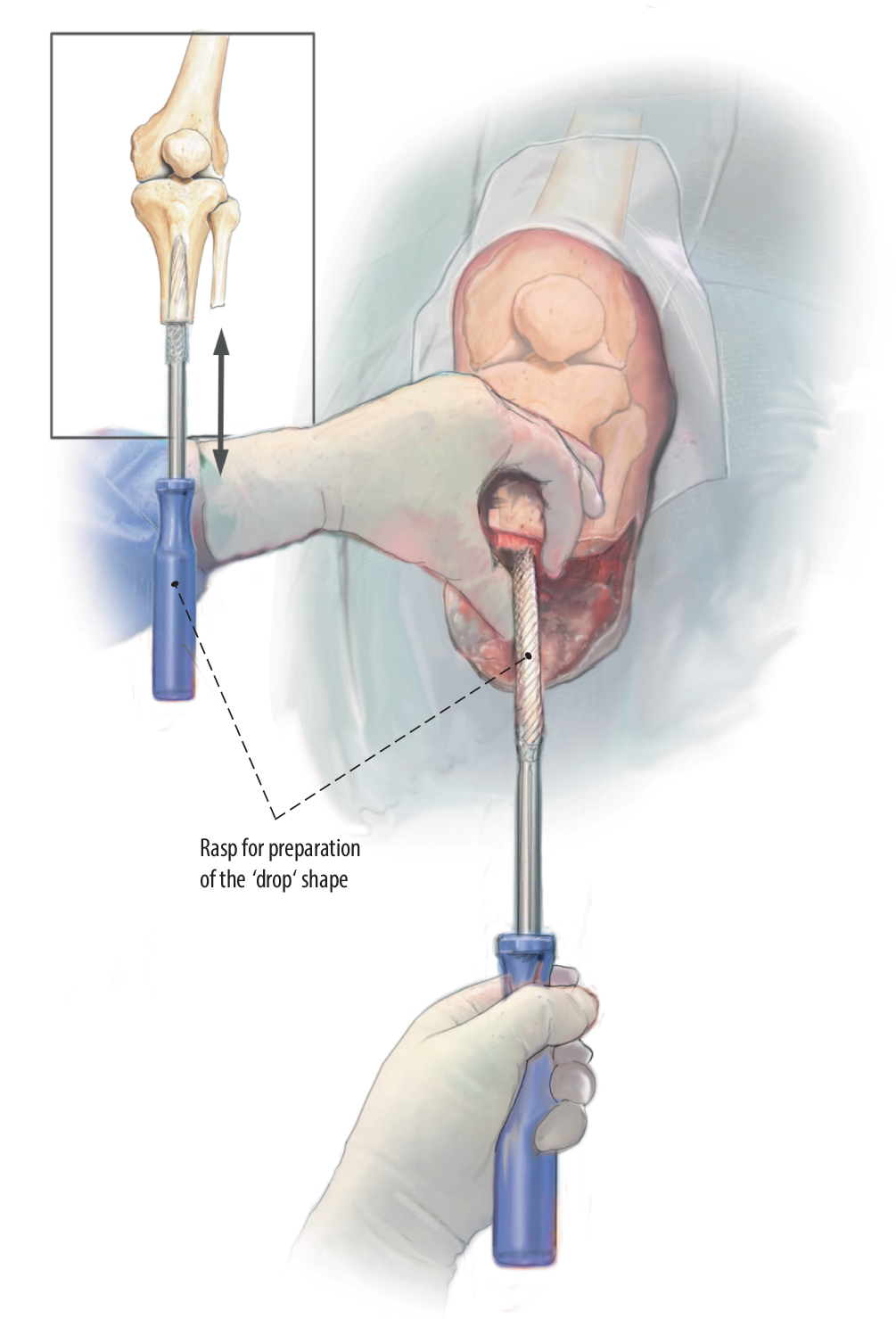

Preparation for drop shape: To prepare the drop shape, we use a manual rasp until the prescribed diameter is achieved, which in this case is 23 mm. Careful assessment must also be made regarding the length of the drop shape and the inclination. To avoid a crack at this level of the tibia crest, do not undersize

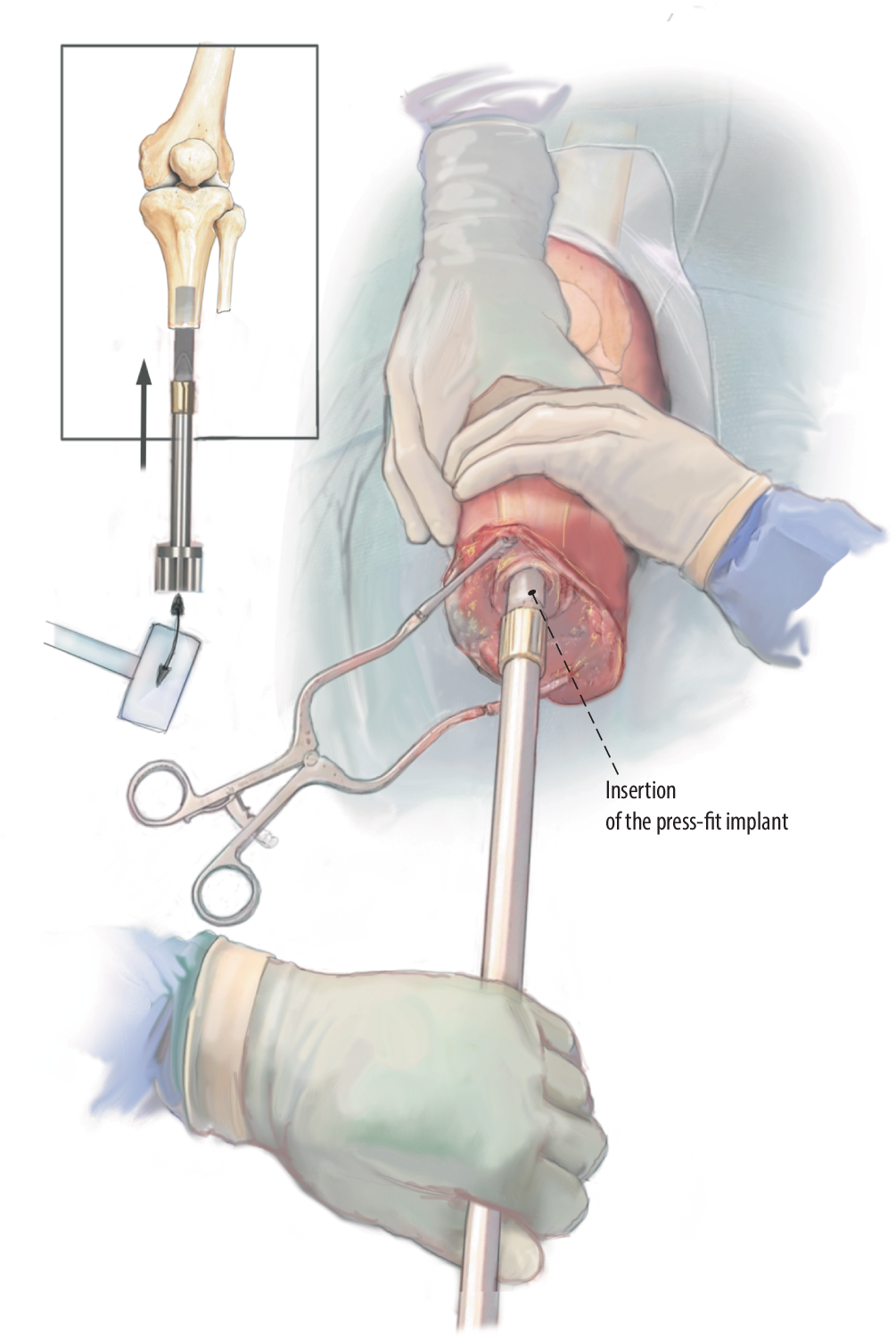

Insertion of intramedullary component: The custom-made stem is mounted on the installer. The implant is then hammered into the bone, and the grip of the press-fit implant is checked, also testing rotational stability. In this case, I drill one extra mm and afterward decide on an adequate fixation. Once this is achieved, we further insert the implant with gentle strikes until the shoulder of the implant is firmly connected to the cut edge of the femoral remnant. When a crack occurs and reamings are available, these reamings are used to fill the crack. Use the C‑arm to guide insertion and finally check the uncomplicated position of the implant with adequate alignment in two directions

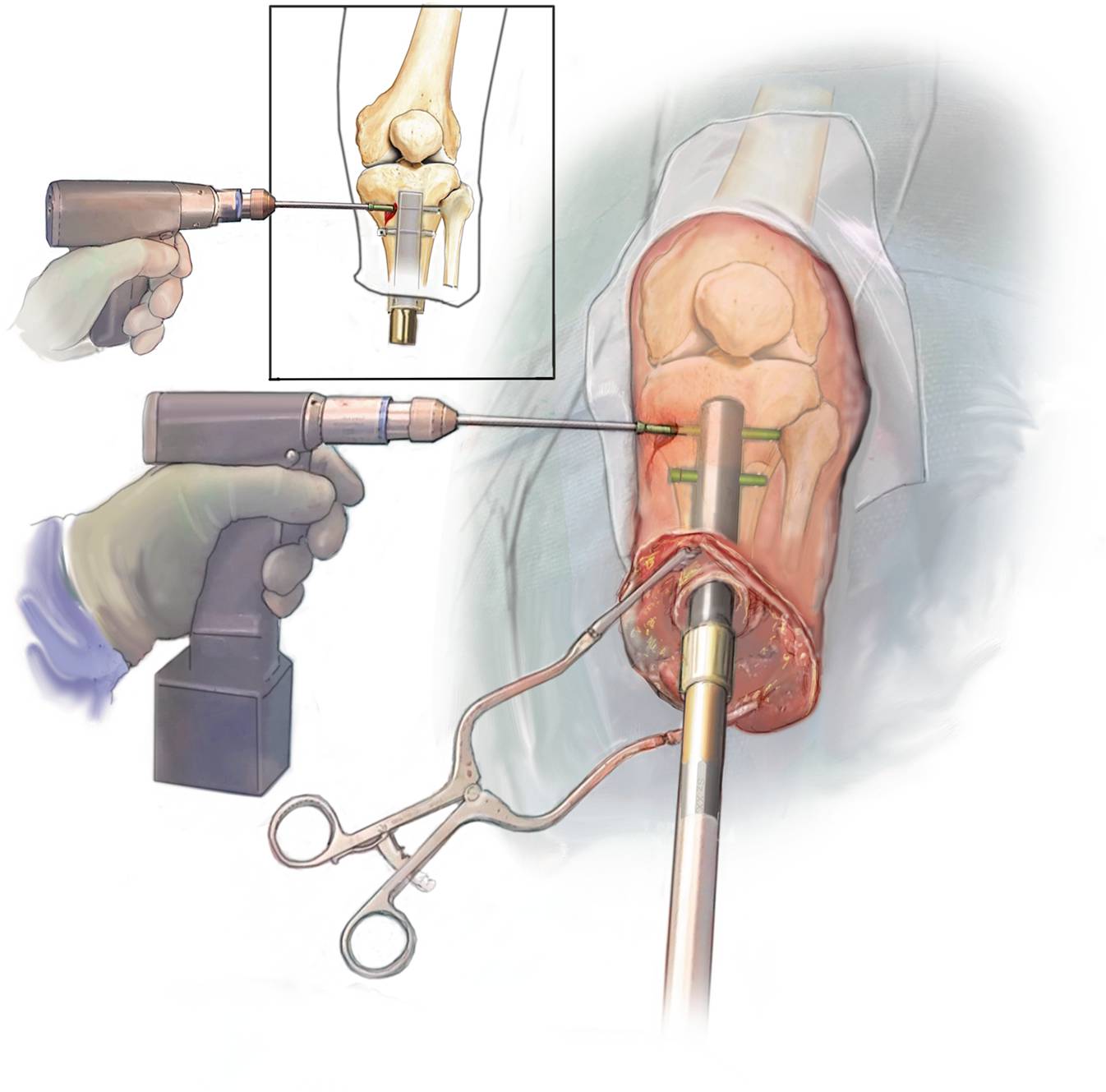

Insertion of transverse locking screws: The C‑arm is positioned to allow free hand placement of the two transverse locking screws in a standard fashion. The large fragment LCP screws are featured with threads on the head of the screw to bury in the tibial cortex. A custom-made disposable guiding device can be ordered if desired

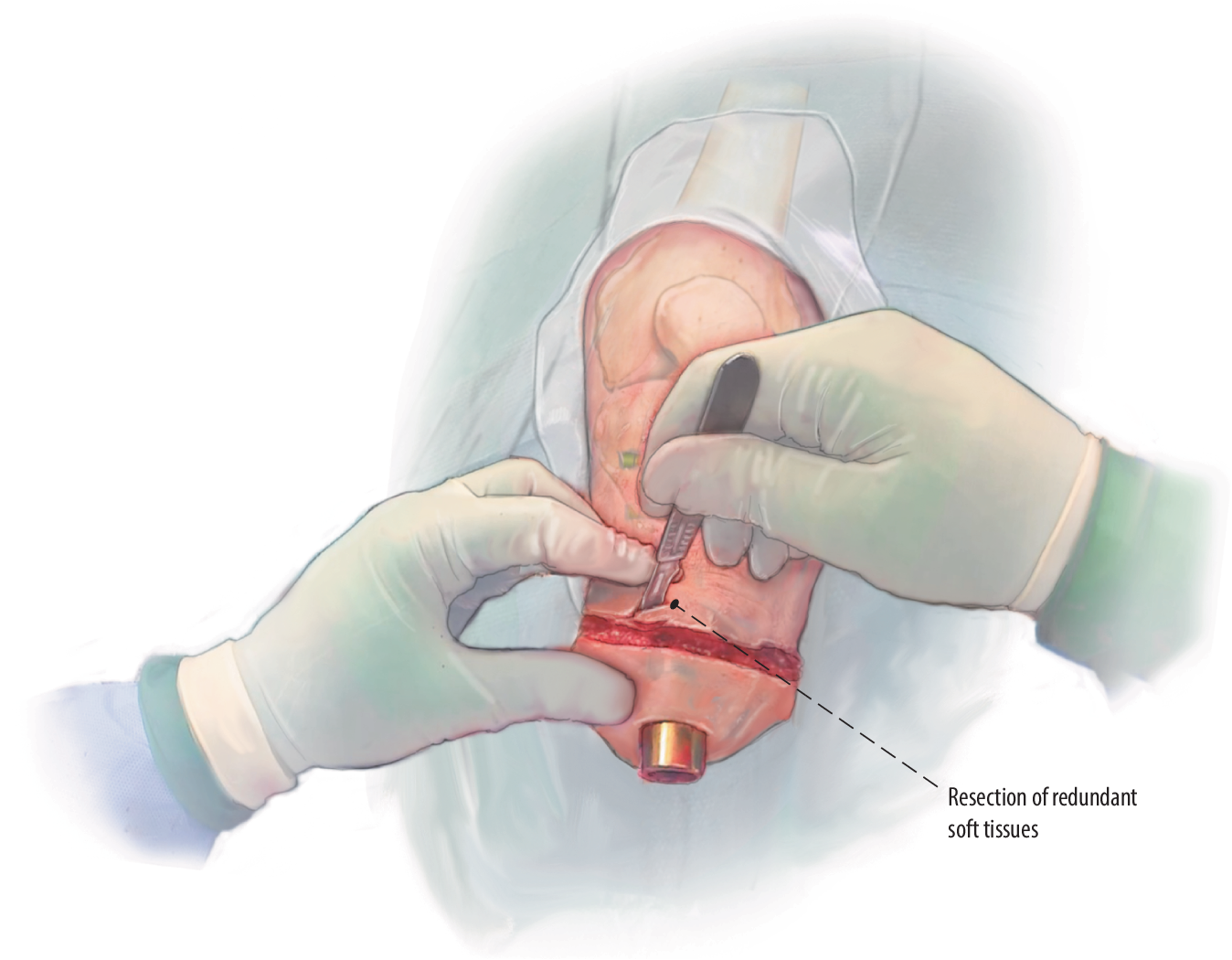

Soft tissue contouring and closure: All soft tissues including skin, subcutaneous fat, and remaining muscles are resected until skin closure is feasible without tension as performed in regular limb amputation surgeries. To create a shallow stoma of 2–3 cm, the subcutaneous fat is removed without thinning of the skin. Remaining muscles are purse-string sutured for hemostasis. The subcutaneous fascia and skin are closed in layers with interrupted sutures covering the head of the implant
Creation of stoma: A transcutaneous K‑wire is used to identify the correct position of the head of the stem, after which the cannulated corer knife is used to cut a circular defect in the skin and subcutaneous tissue until the head of the implant can be identified and pops out from the stoma. The custom-made dual cone is mounted on the stem after thorough cleaning. The locking screw is inserted and tightened by hand after which the abutment screw is temporarily mounted
Bandaging: To avoid postoperative bleeding complications, we apply pressure bandage around the residual limb to be removed on postoperative day 2. Extra unfolded gauzes are placed around the dual cone and pressed to control bloody leakage from the stoma during the first postoperative days
After the 24 h pressure bandage period, cover the stoma with a nonsterile gauze as long as there is some discharge from the stoma.
Discharge from hospital at day 1 after surgery.
Limb immobilization and/or anticoagulation therapy is not required (author’s preference).
Postoperative pain medication according to standard guidelines for knee surgery.
Give stoma care instructions before discharge from the hospital.
Instruct the patient to start stoma cleaning with lukewarm tap water and soap twice daily.
Remove sutures at 10–14 days after surgery.
Start standard institutional rehabilitation program at 3–4 weeks postoperatively after single-stage surgery. Patients may fully load the prosthesis at the start of the rehabilitation, provided the pain score does not exceed a 5 on a scale from 0–10 [6, 8, 9].
Errors, hazards and complications
Intraoperative bone cracks or fractures are treated conservatively or by cerclage depending on implant stability.
Stoma related complications including; tissue irritation, soft tissue infections are treated in the same way as lower limb bone-anchored prosthesis [3].
Septic or aseptic implant loosening is diagnosed by X ray and treated with implant removal and antibiotics with staged revision implant whenever indicated.
Periprosthetic fracture is treated with standard orthopedic surgical or nonoperative treatments similar to lower limb bone anchored prosthesis [7]
Mechanical failure of the implant is diagnosed by plain X ray and treated with staged implant replacement similar to lower limb bone-anchored prosthesis [11]
Preoperative implant planning: the procedure should be guided by comprehensive surgical instructions and use a custom-made implant design, with the aim of performing the procedure in a single stage.
Patient positioning and setup: knee cushion support may be beneficial.
Soft tissue marking: plan the resection area liberally, and plan the stoma anterior to the surgical approach (if not possible, directly in the wound).
Soft tissue correction and exposure of residual bone: liberally resect soft tissue redundancy.
Revision osteotomy with guided shortening: utilize water-cooled power sawing.
Medullary canal preparation and the perpendicular osteotomy plane: use fluoroscopy to guide drilling.
A custom dummy stem is available from the manufacturer on request.
Insertion of the intramedullary component: in case of little resistance, use bone morphogenetic protein‑2 (InductOs; Medtronic) and bone impaction grafting for augmentation.
Use transverse locking screws for primary stabilization of the implant.
A custom made disposable guiding device is available for insertion of the transverse locking screws from the manufacturer on request.
Soft tissue contouring and closure: do not close the muscle fascia over the implant.
Aperture creation and dual-cone insertion: perform a 2-stage procedure only in cases with bone reconstruction, with the second stage performed after a 10 to 12-week interval.
Bandage: leave the bandage applied for 24 h.
Postoperative imaging and follow-up: our institutional follow-up schedule is 6 months, then 1, 2, 5, and 10 years postoperatively.
Results
We describe the fixed 5‑year follow-up results of 21 individuals with a transtibial amputation treated with tibia TOPS implant. We treated 15 men (71%), with an average age of 37 years (± 16) at amputation and 48 years (± 13) at implantation of TOPS. Amputation etiologies were the following: trauma 14 (67%), dysvascular 3 (14%), infection 2 (10%), or other 2 (10%). Individuals were treated with single-stage surgery 7 times (32%), two-stage surgery 14 times (64%), and with primary amputation combined with TOPS implantation once (5%).
Implant survival of 95.5% was achieved at the 5‑year follow-up. One individual experienced progressive septic implant loosening resulting in a through-knee amputation. The individual had undergone primary transtibial amputation due to dysvascular problems, and preoperative duplex ultrasonography had shown no signs of aorto-iliac occlusive disease. However, repeat exam displayed dysvascular disease progression, with the patient admitting not to have stopped smoking. No bone infection, periprosthetic fracture, intramedullary stem breakage, or aseptic loosening occurred. Nine individuals experienced 12 events of low-grade soft tissue infection, which were all successfully treated with oral antibiotics. Nine individuals also experienced 12 events of high-grade soft tissue infections, successfully treated with oral antibiotics 8 times, and requiring parenteral antibiotics or surgical treatment in 1 and 3 cases, respectively. This resulted in an infection/implant–year used ratio of 0.24. Hypergranulation tissue and stoma tissue redundancy occurred 2 and 4 times, respectively.
Functional outcomes were evaluated using the Questionnaire for Transfemoral Amputees (Q-TFA) Global Score (GS) and Prosthetic Use Score (PUS), showing a significant improvement in outcomes compared to preoperative baseline values using a socket vs postoperative following TOPS treatment: baseline (52.7), 6 months (89.9), 1 year (88.0), 2 years (91.3), and 5 years (88.9). This significant improvement was also observed for the Q‑TFA GS: baseline (38.3), 6 months (71.4), 1 year (79.4), 2 years (76.8), and 5 years (77.6).
Anzeige
Declarations
Conflict of interest
J.P. Frölke and R. Atallah are stock holders of AOFE clinics which is a focus health care clinic on limb amputation. R. Leijendekkers declares that he has competing interests.
For this article no studies with human participants or animals were performed by any of the authors. All studies mentioned were in accordance with the ethical standards indicated in each case.
Open Access Dieser Artikel wird unter der Creative Commons Namensnennung 4.0 International Lizenz veröffentlicht, welche die Nutzung, Vervielfältigung, Bearbeitung, Verbreitung und Wiedergabe in jeglichem Medium und Format erlaubt, sofern Sie den/die ursprünglichen Autor(en) und die Quelle ordnungsgemäß nennen, einen Link zur Creative Commons Lizenz beifügen und angeben, ob Änderungen vorgenommen wurden. Die in diesem Artikel enthaltenen Bilder und sonstiges Drittmaterial unterliegen ebenfalls der genannten Creative Commons Lizenz, sofern sich aus der Abbildungslegende nichts anderes ergibt. Sofern das betreffende Material nicht unter der genannten Creative Commons Lizenz steht und die betreffende Handlung nicht nach gesetzlichen Vorschriften erlaubt ist, ist für die oben aufgeführten Weiterverwendungen des Materials die Einwilligung des jeweiligen Rechteinhabers einzuholen. Weitere Details zur Lizenz entnehmen Sie bitte der Lizenzinformation auf http://creativecommons.org/licenses/by/4.0/deed.de.
Publisher’s Note
Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.
Atallah R, Leijendekkers RA, Hoogeboom TJ, Frölke JP (2018) Complications of bone-anchored prostheses for individuals with an extremity amputation: a systematic review. PLoS ONE 13(8):e201821PubMedPubMedCentral
2.
Atallah R, van de Meent H, Verhamme L, Frölke JP, Leijendekkers RA (2020) Safety, prosthesis wearing time and health-related quality of life of lower extremity bone-anchored prostheses using a press-fit titanium osseointegration implant: a prospective one-year follow-up cohort study. PLoS ONE 15(3):e230027PubMedPubMedCentral
3.
Atallah R, Meent H van de, Verhamme L, Frölke JP, Leijendekkers RA (2020) Safety, prosthesis wearing time and health-related quality of life of lower extremity bone-anchored prostheses using a press-fit titanium osseointegration implant: A prospective one-year follow-up cohort study. PLoS One 15(3):e0230027. https://doi.org/10.1371/journal.pone.0230027. PMID: 32150598; PMCID: PMC7062258CrossRef
4.
Dillingham TR, Pezzin LE, MacKenzie EJ, Burgess AR (2001) Use and satisfaction with prosthetic devices among persons with trauma-related amputations: a long-term outcome study. Am J Phys Med Rehabil 80:563–571PubMed
Frölke JP, Leijendekkers RA, van de Meent H (2017) Osseointegrated prosthesis for patients with an amputation: multidisciplinary team approach in the Netherlands. Unfallchirurg 120(4):293–299PubMedPubMedCentral
7.
Hoellwarth JS, Tetsworth K, Kendrew J, Kang NV, Waes O van, Al-Maawi Q, Roberts C, Al Muderis M (2020) Periprosthetic osseointegration fractures are infrequent and management is familiar. Bone Joint J 102-B(2):162–169. https://doi.org/10.1302/0301-620X.102B2.BJJ-2019-0697.R2. PMID: 32009427; PMCID: PMC7002843CrossRefPubMedPubMedCentral
8.
Leijendekkers RA, Staal JB, van Hinte G, Frölke JP, van de Meent H, Atsma F, Nijhuis-van der Sanden MW, Hoogeboom TJ (2016) Long-term outcomes following lower extremity press-fit bone-anchored prosthesis surgery: a 5-year longitudinal study protocol. BMC Musculoskelet Disord 17(1):484PubMedPubMedCentral
9.
Leijendekkers RA, van Hinte G, Frölke JP, van de Meent H, Atsma F, Nijhuis-van der Sanden MW, Hoogeboom TJ (2019) Functional performance and safety of bone-anchored prostheses in persons with a transfemoral or transtibial amputation: a prospective one-year follow-up cohort study. Clin Rehabil 33(3):450–464PubMed
10.
Meulenbelt HE, Geertzen JH, Jonkman MF, Dijkstra PU (2009) Determinants of skin problems of the stump in lower-limb amputees. Arch Phys Med Rehabil 90:74–81PubMed
11.
Mohamed J, Reetz D, Meent H van de, Schreuder H, Frölke JP, Leijendekkers R (2022) What Are the Risk Factors for Mechanical Failure and Loosening of a Transfemoral Osseointegrated Implant System in Patients with a Lower-limb Amputation? Clin Orthop Relat Res 480(4):722–731. https://doi.org/10.1097/CORR.0000000000002074CrossRefPubMed
