Methods
In vitro propagation of BrCSCs in serum-free culture medium
TM40D murine breast cancer cells were kindly provided by M. Zhang (Baylor College of Medicine, Houston, Texas) and maintained in our laboratory. Cells were cultured in serum-free DMEM/F12 (DrGenes, Shandong, China) containing 20 ng/ml epidermal growth factor (EGF; PeproTech Asia, Rehovot, Israel), 20 ng/ml basic fibroblast growth factor (bFGF; R&D Systems, Minneapolis, MN), 0.4% bovine serum albumin (DrGenes) and 2% B27 (Invitrogen, Carlsbad, CA) at a density of 1000 cells/ml. Cells were grown in T-75 culture flasks at 37°C in a humidified atmosphere containing 5% CO2. Tumorspheres were passaged by mechanical dissociation to single cells through the needle (gauge 21) of a 5 ml syringe every 3 days and reseeded in the medium described above at 1000 cells/ml.
Flow cytometric analysis and apoptosis measurement

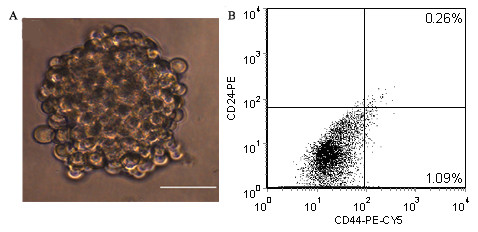

To identify CD44+/CD24- cells in TM40D cell line, we measured expression of CD44+CD24- at passages 2–16 by using a fluorescence-activated cell sorting (FACS)-Vantage SE instrument (Becton Dickinson, Franklin Lakes, NJ). The antibodies used were anti-CD24-phycoerythrin (PE), anti-CD44-PE-cyainn 5 (CY5), and their corresponding isotype controls (BioLegend, San Diego, CA). Cells were harvested and gently disaggregated to a single cell suspension. Staining was made according to the manufacturer's protocol. The rate of apoptosis induced by anticancer regimens was analyzed by flow cytometry using an annexin V-FITC/PI kit (BD Biosciences, San Diego, CA) following the manufacturer's instructions.
Anticancer regimens screening assay
Cells at passage 10 were plated at 1 × 105/ml into 24-well plates (100 μl per well) under serum-free condition for 3 days until formation of tumorspheres consisting of hundreds of cells. Then a combination with pacilitaxel (Taiji, Sichuan, China) and epirubicin (Pfizer, Wuxi, China), was administered at several different peak plasma concentrations (PPC; 1, 0.5, 0.35, 0,3, 0.25, 0.1). Each concentration was repeated thrice. The PPC of pacilitaxel and epirubicin are 2.2 μg/ml and 0.78 μg/ml, respectively. After incubation for 24 hours, the cells were centrifuged, mechanically dissociated into single cells and recultured for 7 days in fresh serum-free medium.
Tumor xenograft experiment
As described previously by Al-Hajj et al [
1], four-week-old female BALB/C mice (Shanghai Experimental Animal Center, Chinese Academy of Sciences, Shanghai, China) were treated with VP-16 (Double-crane, Beijing, China) by an i.p. injection (30 mg/kg). Five days later, tumor cells injections were done. Cells treated with 0.35 PPC of chemotherapeutic drugs were counted in DMEM/F2 with 0.04% trypan blue (Shenggong, Shanghai, China) and 10% fetal calf serum (Sijiqing, Hangzhou, China), and resuspended in DMEM/F2 and Matrigel (BD Biosciences) mixture (1:1 volume). The cells were then injected s.c. in 200 μl volumes into the abdominal wall of the mice. Cell viability was determined by trypan blue exclusion before transplantation. The number of injected cells was obtained with limited dilution method. After cell injection, mice received an estradiol (Tongyong, Shanghai, China) supplementation (0.4 mg/kg s.c.) every 10 days for 40 days and were inspected for tumor appearance by observation and palpation as described by Ponti et al. [
19]. When the xenograft tumors grew to about 1 cm in diameter, the mice were sacrificed by cervical dislocation and each tumor was confirmed by routine H&E staining for paraffin sections. Eight months later, the others that failed to give rise to palpable nodules at the injection site were also sacrificed and soft tissues around the injection site were examined by H&E staining. Experimental protocols were performed according to the guidelines of the Nanjing Medical University Animal Committee.
Expression of CD44 and CD24 in xenograft tumors by immunohistochemical analysis
Following the diagnosis of breast cancer by H&E staining, immunohistochemical procedures were made on 4-μm tissue sections with monoclonal antibodies for CD44 and CD24 (both from Boster, Wuhan, China). Immunodetection was performed using a standard SABC method. Sections were counterstained blue with hematoxylin for the nuclei.
Discussion
Since BrCSCs have been identified as CD44
+CD24
- subpopulation from breast cancer patient samples [
1], much progress in research on this field has been achieved. However, the isolation and purification of BrCSCs is still hindered by their scarcity in quantity and continuous differentiation. To the development of targeted therapy against breast cancer, the key is to solve the problem from the identification of true BrCSCs. At present, identification of CSCs is mainly based on cell surface antigens sorted by fluorescence-activated cell sorting or magnetic immunosorting. As the exact molecular signature of CSCs is not known, it seems somewhat blind and impractical in order to find CSCs by screening large numbers of known markers. Hoechst 33342 dye efflux, another sorting approach in using functional properties of CSCs, are being utilized to isolate side population cells enriched in CSCs. However, cytotoxicity of Hoechst-33342 may restrict its further applications [
13‐
15]. The above two methods both use flow cytometry, and cell sorting may cause the trauma of stained cells.
The CSC theory holds that CSCs reside in a largely quiescent state with regard to cell-cycle activity [
16,
17] and express high levels of ATP-binding cassette (ABC) transporters such as the multidrug resistance gene [
18], so that they can be more resistant to chemotherapeutics than tumour cells with limited proliferative potential. Furthermore, it has been demonstrated that BrCSCs can be propagated and passaged in vitro under serum-free suspension culture and sustain the undifferentiated state [
19]. Based on the above theory and research results, we propose a novel strategy-suspension culture combined with anticancer regimens – to screen BrCSCs. At first, we followed the approach of Ponti et al. [
19] to expand and enrich tumorigenic breast cancer cells under suspension culture conditions. Cytotoxic regimens were then used to eradicate rapidly dividing tumor cells but spare BrCSCs. Finally, tumor xenograft experiments were performed to evaluate tumorigenicity of the sorted cells. Recently, Yu et al. [
20] have successfully taken advantage of mammospheres in suspension culture and chemotherapy to enrich for self-renewing breast cancer cells, which further confirms our viewpoint.
Tumorspheres could sustain long-term suspension culture and serial passage in vitro. In our laboratory, they have been through 110 successive passages. During the period of serum-free culture, we observed that cells were not able to proliferate in serum-free medium without EGF and/or bFGF. Tumorspheres only formed in the presence of EGF and/or bFGF. Similar results have also been in culture of mammospheres reported by Dontu et al.[
21]. We speculate it is EGF and/or bFGF that induce cell proliferation under suspension culture conditions. As described by Ponti et al. [
19] and Yu et al.[
20], tumorspheres were undifferentiated cells because they failed to express mature markers associated to myoepithelial cells (cytokeratin 14 and alpha-smooth muscle actin) and luminal/ductal cells (cytokeratin 14 and MUC-1). However, it is the relative degree of undifferentiation. In this experiment we found that the sorted CD44
+CD24
- subset could generate CD44
-CD24
-, CD44
-CD24
+, and CD44
+CD24
+ subpopulation besides CD44
+CD24
- phenotype in serum-free culture (data not shown). Even if under suspension culture, tumorsphere cells propagate always followed by differentiation. Before chemotherapy, more than 70% of cells in serum-free media possessed CD44
+CD24
- phenotype. One week after chemotherapy, almost all cells expressed CD44
+CD24
-.(Note early flow cytometry analysis after anticancer application may affect test results as a large number of necrotic cells and debris). The findings showed that chemotherapy drugs killed non-CD44
+CD24
- cells and only retained a very small number of CD44
+CD24
- cells in 0.35 PPC of TE (less than 2%). After about 2 weeks of quiescence and recovery, a single surviving CD44
+CD24
-cell would propagate as tumorspheres and differentiate into a heterogenous population. These cells exhibted the ability of self-renewal and multipotent differentiation in virto suspension culture.
In order to obtain a true, single BrCSC, we have proposed in vitro suspension culture growth pattern to describe the properties of BrCSCs from suspension culture in vitro [
22]. Tumorspheres consist of BrCSCs and transit amplifying cells/progenitors, which may be compared to the structure of an atomic model. A few BrCSCs locate inside the core of tumorsphere (viewed as an atomic nucleus) and a large amount of relatively differentiated progenies surround the outer layer (viewed as electrons). BrCSCs simultaneously perpetuate themselves through symmetric division and generate differentiated progeny through asymmetric division [
23,
24]. Self-renewal of BrCSCs is limit and tumorpsphere formation is mainly due to expansion of their progeny (rapidly dividing cells, also termed transit amplifying cells). A possible mechanism may involve that BrCSCs have a relatively slow turnover rate to ensure uniform genetic background and rapid expansion of transit amplifying cells prevent neighboring BrCSCs proliferating via unknown regulation. As gentle mechanical aspiration can disperse tumorspheres, surface tension may play a key role in tumorpsphere formation rather than cell-cell interactions. From this hypothesis model, we can speculate that a certain size tumorsphere should contain the largest proportion of BrCSCs. To obtain a large number of BrCSCs, it is necessary to dissociate the optimal size of tumorspheres into single cells. In this way, single BrCSC is exposed again and another self-renewal process will continue. By measuring CD44
+CD24
- expression of tumorsphere cells during serial passages, we found that it had the highest proportion of CD44
+CD24

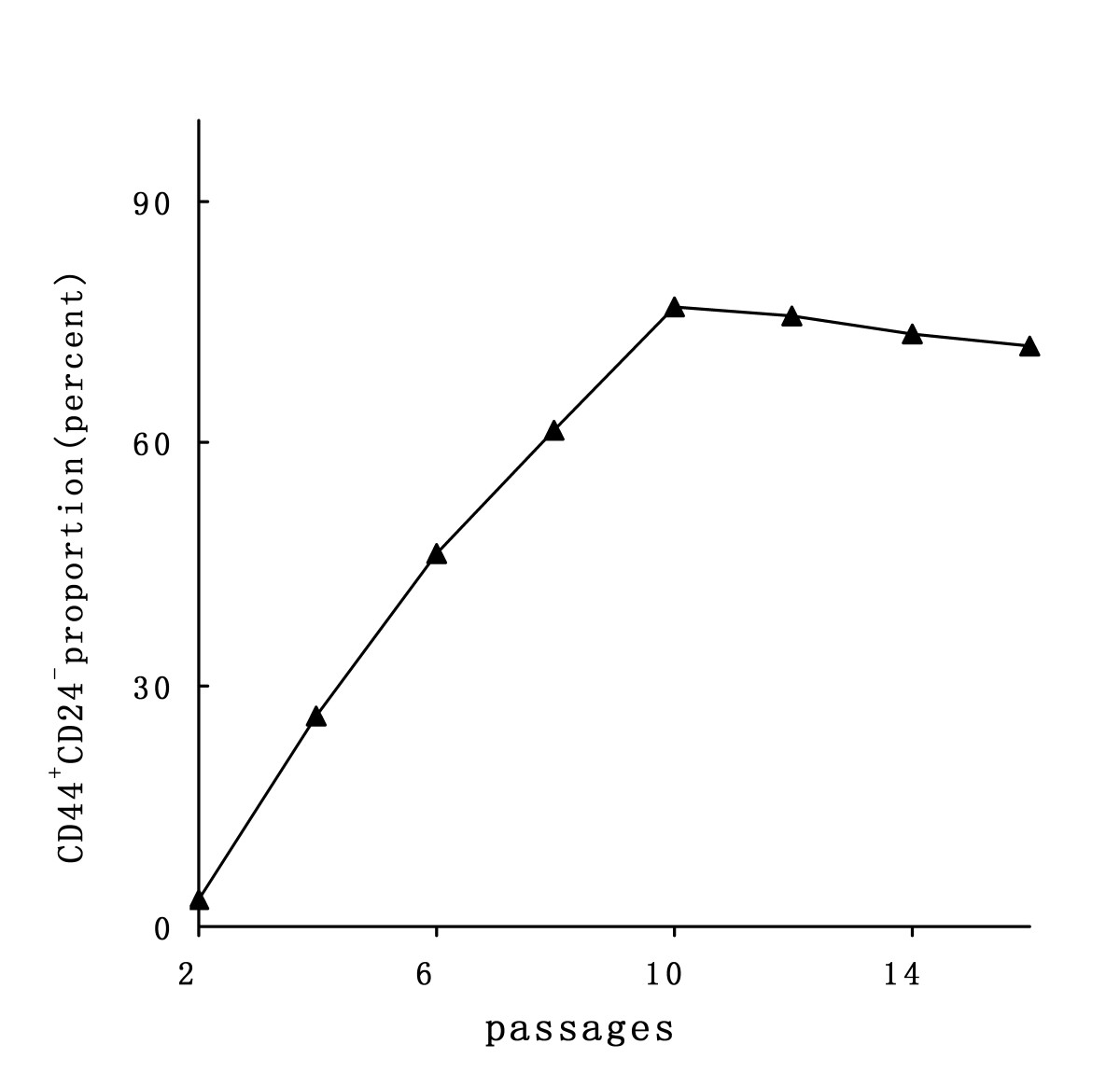

- cells at passage 10. Cells of passage 10 were therefore the most desirable research subjects. As shown in Fig.
2, the proportion of CD44
+CD24
-subpopulation exhibited a rough S-shaped curve. This suggests that CD44
+CD24
- cells has achieved stable proportion after some passages of suspension culture and BrCSCs may reside in a relatively slow proliferation period or a quiescent state, whereas their differentiated progeny may sustain expansion in number. During this time, most BrCSCs can survive the attack of chemotherapy drugs. Pacilitaxel and epirubicin, which mainly target rapidly dividing tumor cells, are widely used against breast cancer as a combined chemotherapy protocol. It is a critical issue to determine the optimal concentrations of TE. The criteria is required to comply with the requirements of eradicating the vast majority of dividing cells and retaining the minimum number of dormant cells. Less than 2% of the cells treated with 0.35 PPC of TE survived the double sorting of suspension culture and anticancer regimens. In theory, these sorted cells were much closer to the source of primitive BrCSCs. In contrast, the other concertrations of chemotherapy drugs would kill all tumor cells or would not stop cell proliferation in our study.
Tumorigenicity test are currently been regarded as the gold standard for proving the existence of CSCs. The key to a successful transplantation is to keep cell viability. Before single-cell inoculation, each cell was evaluated by trypan blue staining to exclude dead cells. At the same time matrigel and estrogen were both applied. Matrigel can provide a more favourable microenvironment niche for cell colonization and growth. Exogenous estrogen supplementation can promote tumor formation. In this study, in order to avoid transplantation rejection in the use of human breast cancer cells and immunocompromised mice, we adopted the established breast cancer cell line TM40D from BALB/C mice. Although congenic transplantations were used, we applied VP-16 before transplantation in order to reduce immune and inflammation response and guarantee the viability of cells after inoculation under the consideration of transplantation of a small number of tumor cells at initial design stage, especially for a single-cell transplantation. In fact, the transplantation results showed there were no distinct difference between the non-immunosupressed and immunosuppressed group in this study. It suggests that immune function may have no apparent effect on syngeneic tumor transplantation of inbred mice. The immunochemical analysis of the resulting tumors driven by a single sorted cell showed a heterogenous tumor in vivo, with the similar features compared with primary tumors from TM40D cells. Taken in vitro and in vivo experimental studies together, we conclude that the sorted cells are true BrCSCs.
As a functional sorting method, suspension culture combined with anticancer regimens provides us a novel approach to enrich and purify CSCs. At the pre-experiment, we adopted CD29 and CD24 as the presumed markers of BrCSCs according to CD29
hiCD24
+ from mouse mammary epithelium stem cell identified by Shackleton et al. [
12]. We found no tumors were formed by injecting 10
4 CD29
hiCD24
+ cells or CD29
hiCD24
- into BALB/C mice. The result reminded us that there may be unknown or no specific cell surface antigens highly expressed in BrCSCs. So we bagen to enrich tumorgenic breast cancer cells by serum-free suspension culture and purify BrCSCs by chemotherapy drugs. The results showed BrCSCs in mice derived from CD44
+CD24
- subpopulation and had the same markers of puative BrCSCs in human. By applying this sorting stragegy, we could expand and purify CSCs under the condition of unknown putative markers in vitro. Similarly, we could also obtain CSCs much closer to the source under the condition of known putative markers. It could not be made only by flow sorting of the original cultures.
Competing interests
The authors declare that they have no competing interests.
Authors' contributions
Most experiments and the manuscript were made by H–ZL. T–BY performed immunocytochemistry staining. Z–YW was involved in designing all experiments and revised the manuscript. All authors read and approved the final manuscript.
