The association between the cutaneous sensory block area, the surgical incision’s location, and the block’s analgesic efficacy: a post hoc sensitivity analysis of data from a controlled randomised multicentre trial
Transversus abdominis plane blocks are widely used, but the association between the cutaneous sensory block area and the analgesic effect is still debated. We aimed to determine the relationship between the cutaneous sensory block area, the surgical incision’s location, and the block’s analgesic efficacy.
Methods
A sensitivity analysis of data from a multicentre, patient-, clinician-, investigator-blinded, placebo- and active-controlled, 3-arm randomised clinical trial. Patients undergoing minimally invasive colon surgery were included from four hospitals across Denmark between January 2021 and February 2024. In this sensitivity analysis, we used our previously collected data of the cutaneous sensory block area to examine the efficacy of two different approaches to the transversus abdominis plane block, as compared to each other and placebo based on incision location. The primary outcome was total morphine dose equivalents administered in the first 24 h after minimally invasive surgery in patients receiving either a Pfannenstiel or a supraumbilical transverse incision.
Results
We found that the subcostal dual laparoscopic-assisted transversus abdominis plane block was superior to both the ultrasound-guided posterior transversus abdominis plane block and placebo in patients with a Pfannenstiel incision with an absolute difference of − 8.9 mg (95% CI, − 16.5 to − 1.3 mg; p = 0.02) and − 10.3 mg (95% CI, − 17.0 to − 3.6 mg; p < 0.01) morphine dose equivalents, respectively. No difference was found for the supraumbilical transverse incision. Patient-reported outcome measures favoured the laparoscopic-assisted block, with an absolute difference of 13 (95% CI, 1.7–24.3; p = 0.025) in the Quality of Recovery-15 score compared to placebo.
Conclusion
The effect of the transversus abdominis plane block seems to be independent of the distribution of the cutaneous sensory block area of the approach. The laparoscopic-assisted subcostal transversus abdominis plane block reduced postoperative pain with a high QoR-15 score.
Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.
ASA
American Society of Anaesthesiologists
BMI
Body mass index
CI
Confidence interval
HADS
Hospital anxiety and depression scale
IQR
Interquartile range
LA
Local anaesthetic
LOS
Length of stay
L-TAP
Laparoscopic-assisted transversus abdominis plane
MCID
Minimal clinically important difference
NRS
Numeric rating scale
PCS
Pain catastrophizing scale
QoR
Quality of recovery
TAP
Transversus abdominis plane
TIVA
Total intravenous anaesthesia
US-TAP
Ultrasound-guided transversus abdominis plane
Transversus abdominis plane (TAP) blocks are currently recommended for postoperative pain management in minimally invasive colorectal surgery [1]. For TAP blocks, a bolus of local anaesthetic is injected into the plane between the transversus abdominis and internal oblique muscles. This aims to separate the fascial layers and allow for widespread diffusion, blocking as many cutaneous nerves as possible [2]. Studies using MRI or dye injection have suggested that TAP blocks, as field blocks, provide dermatomal coverage [3, 4]. In clinical settings, the cutaneous sensory block area (CSBA), measured as loss of sensation to cold, is often used to assess the presumed coverage of regional, field, and epidural blocks. We mapped the CSBA of three different TAP modalities: the ultrasound-guided posterior (US-TAP) block in healthy individuals [5], and the subcostal dual-TAP block applied ultrasound-guided [6] and laparoscopically guided (L-TAP) [7] in patients undergoing laparoscopic cholecystectomies. Our results question the assumption of TAP blocks’ dermatomal coverage and therefore their analgesic effect.
To definitively establish the analgesic effect of TAP blocks, we conducted optimal peripheral nerve block after minimally invasive colon surgery (OPMICS) [8], a multicentre, blinded, randomised controlled trial including 360 patients undergoing minimally invasive colon resections. OPMICS aimed to determine whether posterior US-TAP and subcostal dual L-TAP blocks reduce 24-h postoperative morphine equivalent consumption compared to placebo. The subcostal dual L-TAP block demonstrated statistical superiority to placebo and non-inferiority to the US-TAP block. However, neither block achieved the predetermined minimal clinically important difference of 10 mg morphine [9].
Anzeige

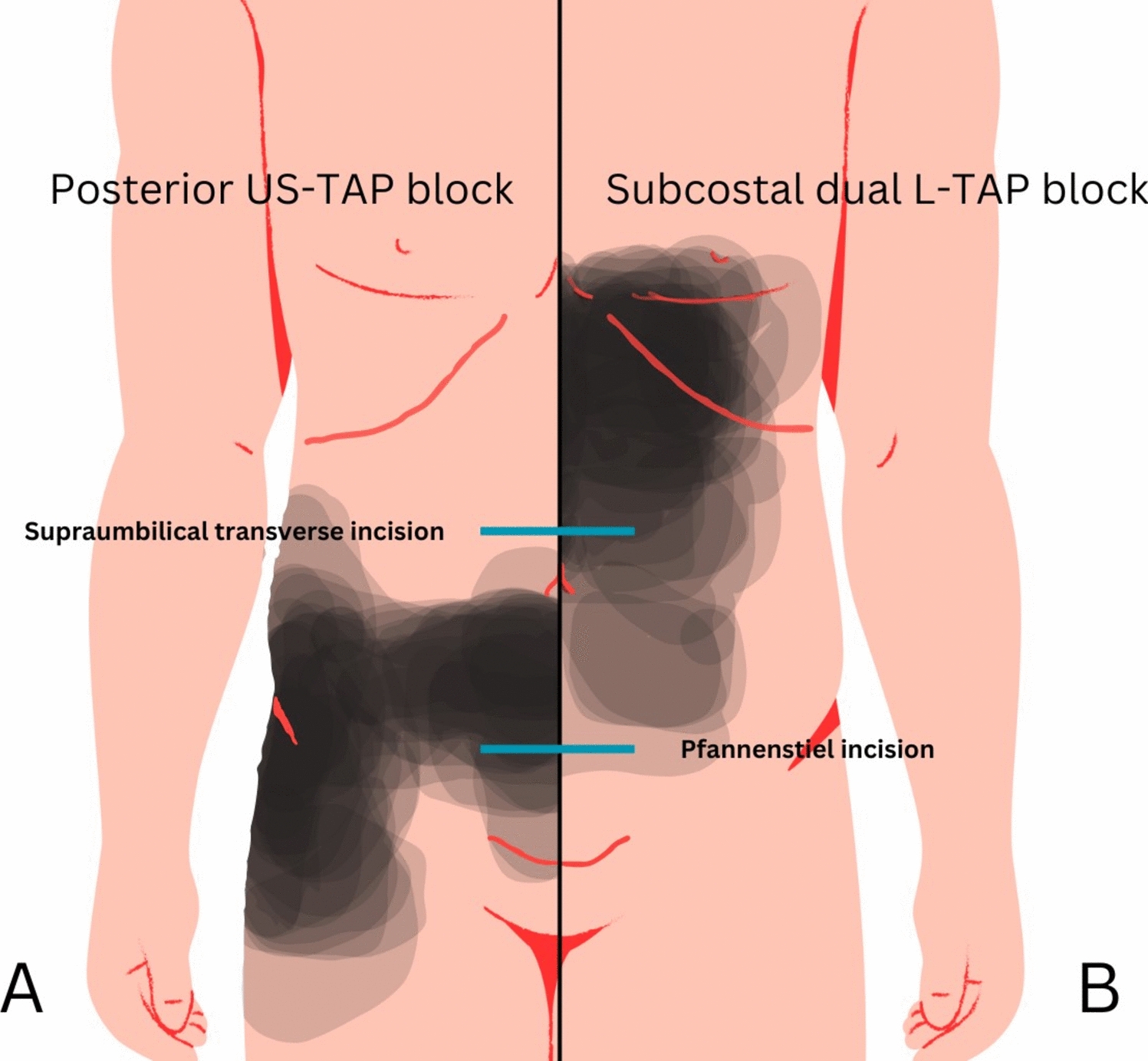

Figure 1 shows the combined CSBA maps of posterior US-TAP blocks in healthy individuals [5] and the subcostal dual L-TAP blocks in patients undergoing laparoscopic cholecystectomy [7], which are identical to those applied in OPMICS. Figure 1 indicates that the effects of US-TAP and L-TAP in OPMICS may be related to the incisions made for bowel extraction. The subcostal dual L-TAP block, applied by the surgeon, may provide better analgesia for supraumbilical transverse incisions, and the posterior US-TAP block, applied by the anaesthesiologist, for Pfannenstiel incisions. This might explain why OPMICS did not achieve the predetermined minimal clinically important difference.
Fig. 1
Location of the Pfannenstiel incisions and the common location of the supraumbilical transverse incision with the demarcation of the cutaneous sensory block area of the (A) posterior US-TAP block based on data from Støvring et al. [5] and (B) the subcostal (dual) L-TAP block from Salmonsen et al. [7]. L-TAP laparoscopic-assisted transversus abdominis plane, US-TAP ultrasound-guided transversus abdominis plane
This post hoc sensitivity analysis of data from OPMICS investigated whether the two frequently used extraction site incisions (supraumbilical transverse or Pfannenstiel) impacted the clinical analgesic effect of the US-TAP and L-TAP blocks in minimally invasive colon surgery.
Methods
Study design
A post hoc sensitivity analysis of using the per-protocol data from the OPMICS trial, a multicentre, patient-, clinician-, and investigator-blinded, placebo-controlled, three-arm randomised clinical trial [9]. The CONSORT statement was used for reporting [10].
We chose to perform a sensitivity analysis for this study to examine the robustness of our findings in OPMICS and to determine how they were affected by the variable ‘type of incision’, i.e. location. The study was conducted as a post hoc analysis for several reasons. Firstly, the CSBA of the subcostal L-TAP had not been assessed, and the differences in CSBA distribution of the blocks had not been considered when planning the OPMICS trial. Finally, including assessment of the CSBA in OPMICS was not an option as it would have unblinded the randomisation.
Anzeige
Ethical approval for the trial was granted by the Regional Committee on Health Research Ethics and the Danish Health and Medicines Authorities under the references H-20026773 and EudraCT 2020-001054-22. The trial was prospectively registered with ClinicalTrials.gov (NCT04311099). Data management was performed in accordance with the General Data Protection Regulation of the European Union and Danish legislation and approved by The Regional Data Protection Agency. All data were stored using a REDCap database [11, 12].
Study population and randomisation
All 360 patients provided oral and written informed consent. OPMICS was initiated in January 2021, and inclusion concluded in February 2024. Inclusion criteria were patients aged 18 years and older undergoing elective minimally invasive surgery for colon cancer or adenoma with curative intent without a planned ostomy. Exclusion criteria were allergy to LA, liver failure Child–Pugh Score C, body weight less than 40 kg, concurrent pain conditions or weekly intake of analgesics above Step I according to the World Health Organization analgesic ladder, non-compliance due to a language barrier or psychiatric disease, pregnancy, history of inflammatory bowel disease, prior open abdominal surgery featuring a midline or supraumbilical abdominal incision exceeding 8 cm, incisional hernia, or abdominal wall musculature resection.
Patients at each participating hospital were randomly assigned to one of three groups: (1) active posterior US-TAP and subtotal placebo L-TAP; (2) placebo posterior US-TAP and active subcostal dual L-TAP; or (3) posterior placebo US-TAP and subcostal placebo L-TAP in a 3:3:2 ratio without any other stratification. Patients were excluded from analysis if they were converted from minimally invasive to open surgery, if a situation arose in which surgery could not be completed, or if a protocol violation occurred that resulted in no valid data on the primary outcome being reported (Fig. 2).

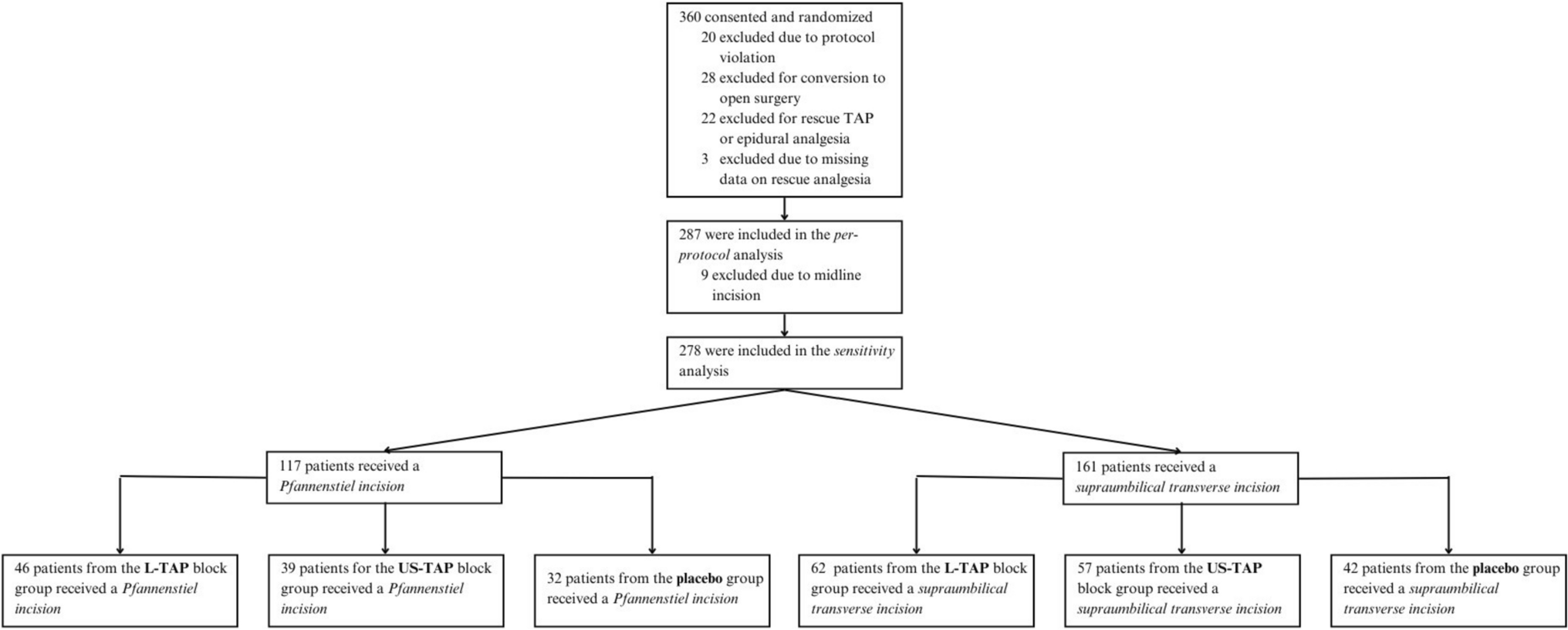

Fig. 2
Flow diagram for this sensitivity analysis. TAP transversus abdominis plane, L-TAP laparoscopic-assisted subcostal TAP, US-TAP ultrasound-guided posterior TAP
As a pragmatic study, surgical procedures adhered to the guidelines established by participating hospitals and were carried out at the discretion of the attending surgeon. All sites primarily performed laparoscopic excisions, however, one site also performed robotic-assisted colon surgery in some cases. All sites performed complete mesocolic excision, but in some cases, the central resections may have been more limited. A Pfannenstiel incision is typically used for bowel extraction in left-sided hemicolectomies and sigmoidectomies, whilst a supraumbilical, often muscle-sparing, transverse incision is often used by Danish surgeons in right-sided hemicolectomies with the assumption of less postoperative pain and a lower risk of incisional hernia [13].
Consistent with the study protocol, no local infiltration analgesia was administered at port sites. However, all patients received infiltration analgesia around the extraction site, with a standardised dose of 40 ml of ropivacaine (1 mg/ml) administered at the conclusion of surgery.
All blocks applied contained either ropivacaine (2 mg/ml) or isotonic saline (placebo). For the US-TAP block, 20 ml of ropivacaine (2 mg/ml) or placebo was applied on each side. Two injections of 10 ml (amounting to 20 ml) of ropivacaine (2 mg/ml) or placebo were applied on each side for the L-TAP block. All patients received both a US-TAP block and an L-TAP block. The US-TAP block was performed bilaterally using the posterior approach [5, 14]. The posterior approach targets the TAP approximately 1 cm anterior to the fascia layers tapering into the thoracolumbar fascia. The L-TAP block was performed immediately after placing the first port using a medial/upper and lateral/lower subcostal TAP block approach (dual-TAP block) [7, 15]. The techniques and approaches used to apply the TAP blocks, including relevant differences, are further described in Table 1.
Table 1
Transversus abdominis plan block techniques and approaches used in the OPMICS trial
Posterior ultrasound-guided TAP block
Subcostal dual laparoscopic-assisted TAP block
Technique
Injection under direct visual ultrasound guidance, with distinct visualisation of fascial separation upon injection
Injection under laparoscopic guidance with no direct visualisation of fascial separation (blind). Confirmation of the ‘correct plane’ was visualised by the formation of Doyle’s bulge representing the transversus abdominis muscle covered by the abdominal wall fascia and parietal peritoneum lifted by the local anaesthetic bolus injection
Approach
A linear probe was placed perpendicular to the body’s longitudinal axis in the patient’s flank a few cm cranial to the iliac crest. An 80–120 mm, 21-gauge needle was used, and the injection was carried out in the anterior–posterior direction in parallel with the transducer using hydro-dissection to verify the correct needle position. Targeting the transversus abdominis plane approximately 1 cm anterior to fascia layers tapering into the thoracolumbar fascia
A 21-gauge, 2.5-inch needle was used. A medial subcostal injection was performed between the midclavicular and the central sternal lines and a lateral subcostal injection between the midclavicular and the anterior axillary lines. The needle tip was visualised laparoscopically, passing into preperitoneal fat without perforating the parietal peritoneum. The needle was then withdrawn until the tip was assumed to be located between the posterior rectus sheath and the transversus abdominis fascia (approximately 2–3 mm, more in obese patients), and the injection was performed
Injectate
One injection of 20 ml of 2 mg/ml ropivacaine was administered bilaterally (40 ml, 80 mg in total)
Two injections of 10 ml of 2 mg/ml ropivacaine were administered bilaterally (40 ml, 80 mg in total)
Expected CSBA
Heterogeneous non-dermatomal distribution located to the hip and infraumbilical abdomen
Heterogeneous non-dermatomal distribution located to the supraumbilical abdomen and epigastrium
Expected associated incision
Pfannenstiel incision
Supraumbilical transverse incision
Description of block techniques, approaches, and expected differences
OPMICS optimal peripheral nerve block after minimally invasive surgery, TAP transversus abdominis plane
Postoperative pain management consisted of oral paracetamol and supplementary IV and oral opioids, which were administered on a patient-controlled basis according to individual needs.
The typical location of the supraumbilical transverse and Pfannenstiel incisions is shown in Fig. 1.
Anzeige
Outcomes and measures
The primary outcome measure was total morphine dose equivalents (intravenously administered, in mg) in the first 24 h, counting from admission to the postanaesthetic care unit. Using this outcome and based on the patient population, two groups were analysed based on incision location. The groups were analysed with stratification by incision and by TAP block approach for the primary and secondary outcomes. The following secondary outcomes were analysed: NRS pain scores (0–10, no pain to worst possible pain) during rest and activity; incidence of postoperative nausea (0 = no nausea, 1 = mild, 2 = moderate, 3 = severe) and vomiting (0 = no vomiting, 1 = once, 2 = two to three times, 3 = more than three times); mobilisation (1 = without assistance, 2 = needs a little assistance, 3 = needs a lot of help, 4 = cannot be mobilised); quality of recovery (QoR-15 questionnaire, score 0–150), all measured using a postoperative questionnaire completed on postoperative day one between 08:00 and 10:00. The QoR-15 questionnaire was also completed preoperatively. The 30-day postoperative complications according to the Clavien-Dindo classification (as no complications, Clavien–Dindo grade I–IIIa, Clavien–Dindo grade IIIb–IVb, or Clavien–Dindo grade V) and length of stay were also analysed.
Statistical analysis
As a post hoc sensitivity analysis, no sample size calculation was performed, and findings should be interpreted as exploratory and hypothesis-generating.
All analyses were performed using R statistical software, version 4.2.3 [16]. All available data were used, and no imputations were performed. Continuous data are presented as median and interquartile range (IQR) and categorical data as frequencies and proportions. All primary outcomes were continuous, analysed using linear regression, and presented as absolute differences. Secondary outcomes included categorical variables, which were analysed using Fisher’s exact test. Residual diagnostics assessed statistical model assumptions. For this sensitivity analysis, a p-value less than or equal to 0.05 was considered statistically significant when evaluating the outcomes.
Results
Two hundred eighty-seven patients were included in the per-protocol analysis. After excluding nine patients from the sensitivity analysis due to having received a midline incision after minimally invasive surgery, 161 patients with supraumbilical transverse incisions and 117 patients with Pfannenstiel incisions were included (Fig. 2).
Anzeige
As the type of procedure and whether the anastomosis was performed intra-abdominally or extra-abdominally determined the choice of incision, the distribution of procedures consequently differed between the two incision groups. Similarly, as the groups were not randomised based on incision location, some statistical differences were present between the two groups concerning age, hospital anxiety and depression scale (HADS) score, total intravenous anaesthesia (TIVA), and time from posterior US-TAP block application to start of surgery. Patient characteristics are summarised in Tables 2 and 3.
Table 2
Clinical and surgical characteristics of the patients, stratified by incision
ASA American Society of Anaesthesiologists, BMI body mass index, HADS hospital anxiety and depression scale, PCS pain catastrophizing scale, QoR quality of recovery
Table 3
Anaesthesiological characteristics and postoperative complications of the patients, stratified by incision
Pfannenstiel incision
Supraumbilical transverse incision
p-value
(N = 117)
(N = 161)
Anaesthesiologic characteristics
Total intravenous anaesthesia, n (%)
99 (84.6)
156 (96.9)
< 0.001
TAP block procedure, n (%)
0.95
US-TAP block
39 (33.3)
57 (35.4)
L-TAP block
46 (39.3)
62 (38.5)
Placebo
32 (27.4)
42 (26.1)
Median US-TAP block procedure time (IQR) in min
10.0 (8.0–13.3)
10.0 (8.0–12.0)
0.36
Median L-TAP block procedure time (IQR) in min
2.0 (2.0–3.0)
2.0 (2.0–3.0)
0.35
Median time between US-TAP and surgery start (IQR) in min
29.5 (22.0–45.0)
39.0 (30.8–49.3)
< 0.001
Median time between surgery start and L-TAP (IQR) in min
4.0 (3.0–6.0)
4.0 (3.0–6.0)
0.45
Postoperative characteristics
Postoperative day one questionnaire
Median NRS pain score when at rest (IQR) from 0 to 10
3.0 (2.0–5.0)
3.0 (2.0–5.0)
0.61
Median NRS pain score when coughing (IQR) from 0 to 10
TAP transversus abdominis plane, USTAP ultrasound-guided TAP, L-TAP laparoscopic-assisted TAP, NRS numeric rating scale, QoR quality of recovery
The median 24-h total morphine dose equivalents were 18.5 mg (IQR, 9.2–28.6 mg) after supraumbilical transverse incisions and 18.3 mg (IQR, 8.3–28.3 mg) after Pfannenstiel incisions with an absolute difference of 1.1 mg (95% CI, − 2.7 to 5.0 mg; p = 0.57) (Fig. 3).

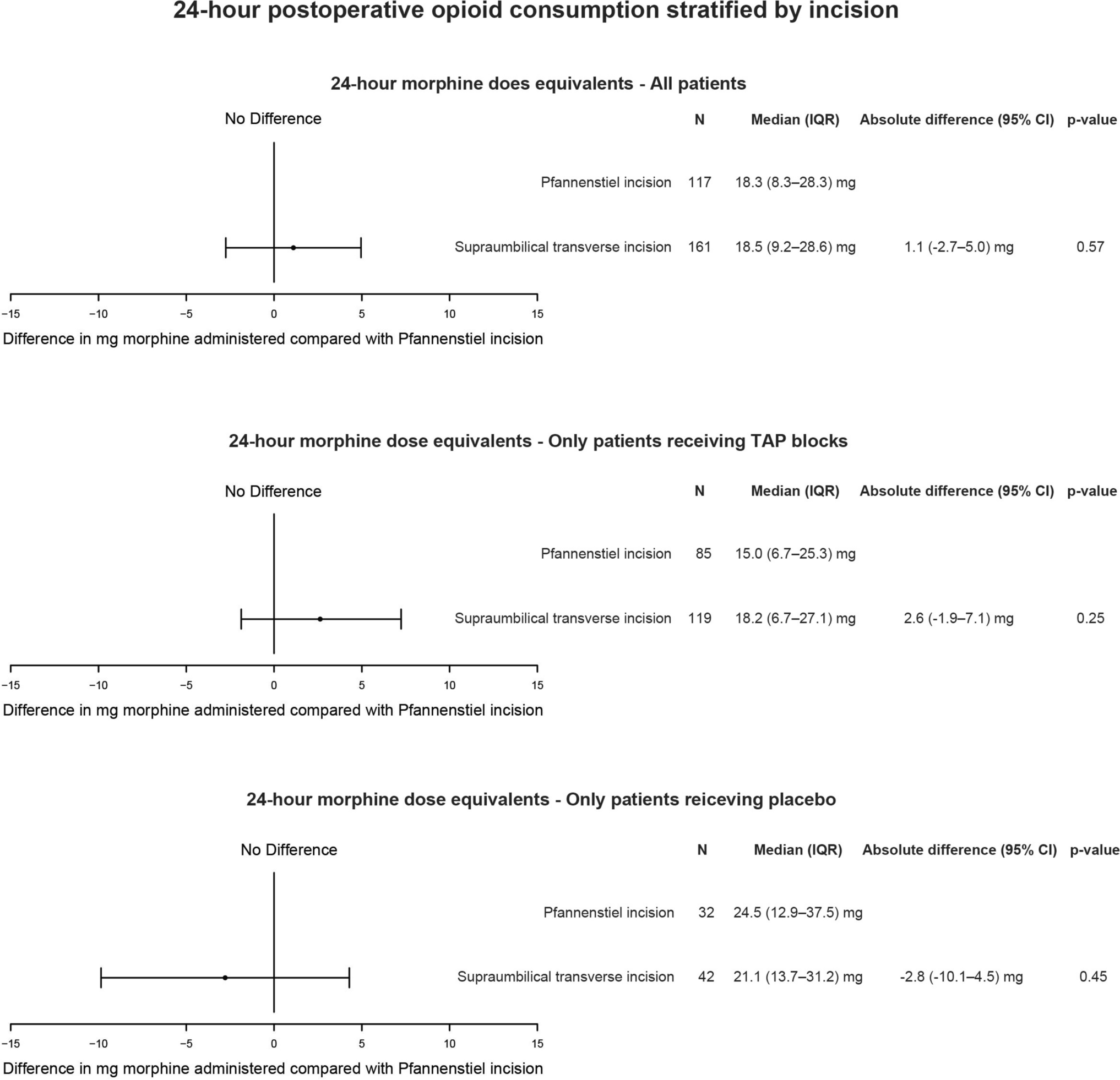

Fig. 3
24-h morphine dose equivalents (mg) in patients stratified by incision used for bowel extraction presented for all patients, the laparoscopic-assisted or ultrasound-guided transversus abdominis plane block groups pooled, and the placebo group only. 24-h morphine dose equivalents were analysed by linear regression and presented as the absolute difference with 95% CI. CI confidence interval, IQR interquartile range
There was no significant difference between the two incisions for all patients, for patients receiving the TAP blocks, or in the placebo group (Fig. 3). No significant differences were found for secondary outcomes (Tables 2, 3).
24-h total morphine dose equivalents stratified by TAP block
Supraumbilical transverse incision
The median 24-h total morphine dose equivalents were 18.2 mg (IQR, 7.3–27.5 mg) in the US-TAP block group, 17.8 mg (IQR, 6.7–26.7 mg) in the L-TAP block group, and 21.1 mg (IQR, 13.7–31.2 mg) in the placebo group. There were no statistical differences between the placebo and each of the two TAP blocks after the supraumbilical transverse incision. Similarly, there were no statistical differences between the two TAP blocks (Fig. 4). No significant differences were found for secondary outcomes.

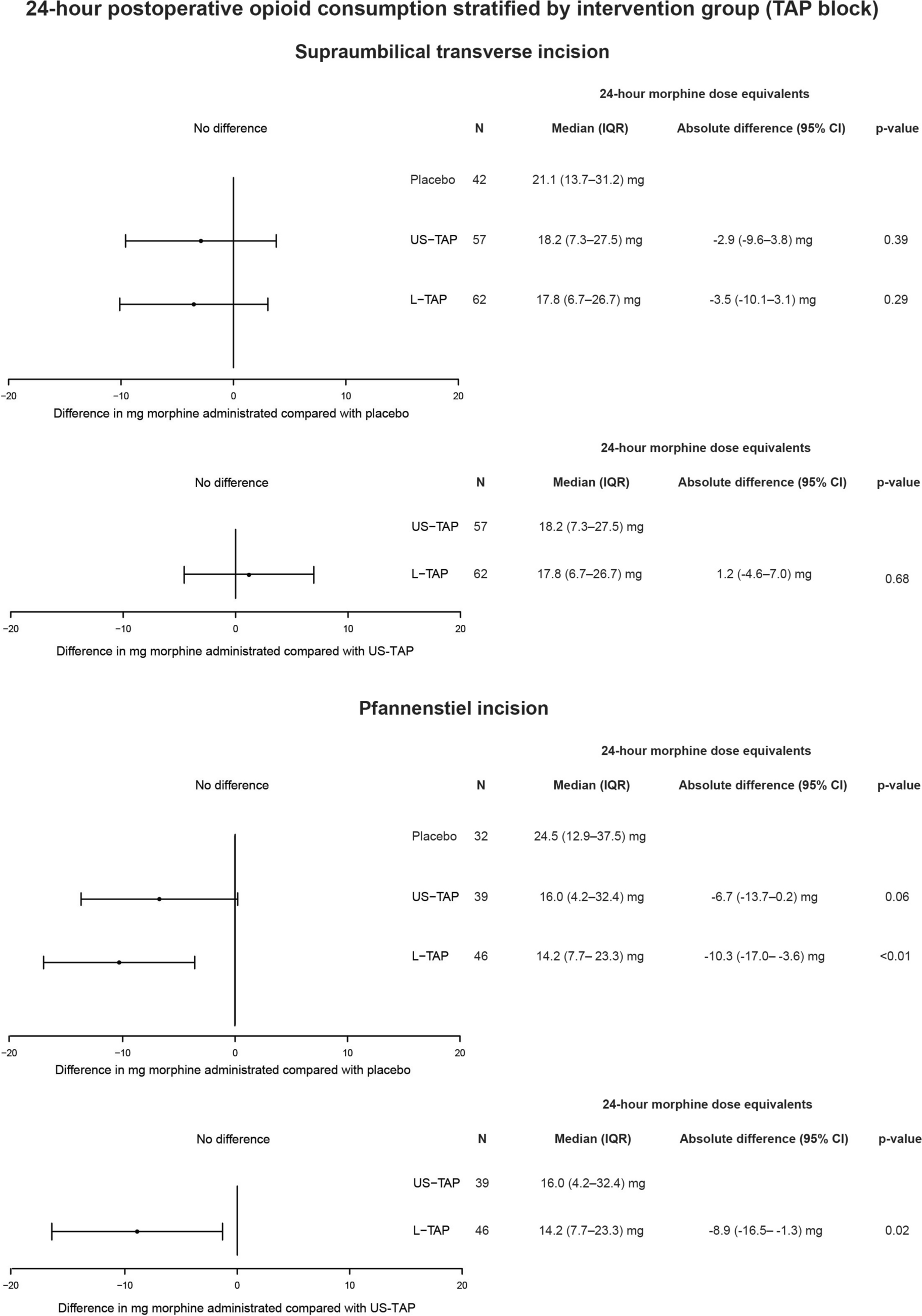

Fig. 4
24-h morphine dose equivalents (mg) stratified by US-TAP block, L-TAP block, or placebo for patients with upper transverse incision and Pfannenstiel incision, respectively. 24-h morphine dose equivalents were analysed by linear regression and presented as the absolute difference with 95% CI. L-TAP laparoscopic-assisted dual subcostal transversus abdominis plane block, US-TAP ultrasound-guided posterior transversus abdominis plane block, CI confidence interval, IQR interquartile range
The median 24-h total morphine dose equivalents were 16.0 mg (IQR, 4.2–32.4 mg) in the US-TAP block group, 14.2 mg (IQR, 7.7–23.3 mg) in the L-TAP block group, and 24.5 mg (IQR, 12.9–37.5 mg) in the placebo group (Fig. 4). The L-TAP block was statistically superior to placebo with an absolute difference of − 10.3 mg morphine dose equivalents (95% CI, − 17.0 to − 3.6 mg; p < 0.01), which was considered above the clinically relevant difference in OPMICS. The L-TAP block was also statistically superior to the US-TAP block, with an absolute difference of − 8.9 mg morphine dose equivalents (95% CI, − 16.5 to − 1.3 mg; p = 0.02). There was no statistical difference between the US-TAP block versus placebo (Fig. 4).
Regarding secondary outcomes, there was a statistically significant difference in patient-reported outcome measures, as the median QoR-15 score on postoperative day 1 was 114 (IQR, 98–125) in the L-TAP block and 95 (IQR, 77–112) in the placebo group with an absolute difference of 13 (95% CI, 1.7–24.3; p = 0.025). No other secondary outcomes showed statistical significance.
Discussion
This sensitivity analysis showed the L-TAP block to be superior to both placebo and US-TAP block in patients receiving a Pfannenstiel incision. Furthermore, looking at our previous findings of the CSBA of the L-TAP and US-TAP blocks, there was no association between the coverage of the cutaneous segment of the blocks and incision location on 24-h postoperative opioid consumption.
Anzeige
OPMICS used a triple-blind approach (patient, clinician, and researcher) in a population undergoing minimally invasive colon surgery. This design, combined with the chosen TAP block approaches, provided a unique opportunity to examine a possible association between the expected CSBA and the location of the primary abdominal incision regarding postoperative pain management. To our knowledge, this is the first study to investigate the effects of the CSBA in relation to abdominal incision location. The CSBA was not assessed in OPMICS, as this would have unblinded the randomisation to both patients and clinicians.
The main finding of OPMICS [9] was a statistically significant difference in 24-h morphine equivalent consumption of − 5.9 mg for the L-TAP block versus placebo. This did not meet our pre-trial estimate of the minimal clinically important difference of 10 mg morphine dose equivalents, which is the consensus in the literature on postoperative pain management [21]. Interestingly, when isolating the population to those receiving a Pfannenstiel incision, the difference in postoperative morphine consumption increased to − 10.3 mg for L-TAP block versus placebo. This was also reflected in the patient-reported outcome measures, with a higher QoR-15 score on postoperative day one. No such difference was present for the supraumbilical transverse incision. The effect of the US-TAP block on 24-h morphine consumption was not statistically different from placebo for both supraumbilical and Pfannenstiel incisions. This post hoc sensitivity analysis seems underpowered to assess the effect of the US-TAP block in patients receiving a Pfannenstiel incision, as the difference trended towards being statistically significant and of clinical importance. Further studies aiming to assess the analgesic effect of the subcostal L-TAP block in patients receiving Pfannenstiel incisions seem warranted. These should explore the effect in other minimally invasive surgical fields such as gynaecology and urology, where consensus on TAP block effect is similarly divergent [22‐26]. In this context, the use of the US-TAP block seems obsolete due to longer procedure time, need for ultrasound guidance and complexity. The US-TAP block should be reserved for procedures such as caesarean sections, where it has previously been shown to have a clinically relevant effect [27, 28]; however, contrary to the expected CSBA, a subcostal US-TAP block might be preferable for these procedures. Studies have also looked into surgeon-administered blocks under direct visual application through the abdominal wall incision [29].
Dermatomal coverage has traditionally been used to assess the effect of abdominal field blocks such as TAP blocks. However, as we have previously pointed out, the term ‘dermatomal coverage’ is insufficient when describing the effects of these blocks [30]. Firstly, it inadequately reflects the true distribution of sensory loss (i.e., the CSBA), as this often exhibits a more heterogeneous, non-dermatomal pattern [5, 6, 31]. Secondly, no evidence suggests that dermatomal coverage or the CSBA translates to effective pain management [32]. These findings contradict the idea of dermatomal coverage as a measure of effect, as, although the expected CSBA of the subcostal dual L-TAP block does not cover the site of the Pfannenstiel incision, there seems to be an analgesic effect. Selecting the type of TAP block based on the CSBA covering the incision does not directly translate to an analgesic effect.
Whilst the value of CSBA and ‘dermatomal coverage’ for assessing new abdominal field blocks is questionable. Posterior injection techniques, such as the ultrasound-guided quadratus lumborum block, whilst technically more challenging, fail to improve postoperative pain [32‐34]. A muscle relaxing effect, as suggested by Støving et al. [5], might explain the reduction in opioid consumption from the subcostal dual L-TAP block in patients with a Pfannenstiel incision, rather than sensory loss.
We found no significant differences in surgical and postoperative outcomes or length of stay between supraumbilical transverse and Pfannenstiel incisions despite the association with procedures performed, i.e., right-sided or left-sided resections. Several studies have investigated postoperative pain differences between midline and transverse incisions in abdominal surgery [35‐38]. Some suggest the superiority of transverse incisions [35], whilst others find no difference [36‐38]. In minimally invasive colorectal surgery, there appears to be no difference in pain scores between midline and transverse incisions [36, 38].
Limited evidence exists comparing postoperative pain outcomes after supraumbilical transverse and Pfannenstiel incisions in minimally invasive colon surgery. A solitary study, examining the comparative effects of intracorporeal versus extracorporeal ileocolic anastomosis in right-sided hemicolectomies, reported a statistically significant reduction in pain scores on the third postoperative day for patients undergoing Pfannenstiel incisions relative to those with supraumbilical transverse incisions [39]. However, due to the technical aspects, there was a significant imbalance in incision type between the intracorporeal and extracorporeal groups, with 39 of 70 patients in the intracorporeal group receiving a Pfannenstiel incision compared to 1 of 70 in the extracorporeal group. The lower pain scores in patients with a Pfannenstiel incision might be due to unknown factors related to intracorporeal anastomosis [39]. Regarding postoperative pain, the anatomical location of the transverse incision appears to be a subordinate factor in the decision-making process between intracorporeal and extracorporeal anastomosis. Given that incisions in minimally invasive colon surgery are typically of limited dimension (approximately 5–7 cm), their contribution to postoperative pain may be overshadowed by other aetiological factors, such as visceral pain and referred shoulder pain resulting from peritoneal insufflation [32, 38]. Future research should prioritise perioperative protocols aimed at mitigating visceral pain.
Strengths and limitations
This post hoc sensitivity analysis has some limitations. It was not considered in the sample size calculation of OPMICS, and its findings should be interpreted as exploratory and hypothesis-generating. The CSBA in this sensitivity analyses were based on two previous trials conducted by our group [5, 7]. Although this is a potential source of bias, the TAP blocks in the referenced studies [5, 7] were applied identically to those in OPMICS. The patients were randomised according to US-TAP block, L-TAP block, and placebo. Consequently, there are some statistical differences between the groups when stratified by incision, as mentioned previously.
The observed age difference is consistent with previous findings in Denmark, where patients undergoing sigmoid cancer resection [40] tend to be younger than those undergoing right-sided colon cancer resection [41]. The small difference in HADS score, 10 versus 9, is unlikely to be clinically significant but could be a minor confounder. The time between US-TAP block application and the start of surgery differed by about 10 min between incision types. With an estimated block effect of around 8–10 h, this should not influence the outcome [5].
Fewer patients in the Pfannenstiel group received TIVA (85% vs. 97%). TIVA has been shown to improve complications such as postoperative nausea and vomiting, though no such effect was established on postoperative pain or opioid consumption [42]. We found no statistical difference concerning postoperative nausea or vomiting when stratified by incision. Lastly, the posterior US-TAP block did not reach statistical significance. This was likely due to the smaller sample size in this sensitivity analysis stratified by incision, and statistical significance might have been reached with a greater population.
Despite the limitations, this sensitivity analysis provides valuable knowledge based on high-quality data and sheds light on a subject lacking consensus. The assumption that the analgesic effect is related to TAP blocks’ ‘dermatomal coverage’ appears implausible. Interestingly, when isolating the population to patients having received a Pfannenstiel incision, a clinically significant difference of 10 mg in 24-h morphine consumption was achieved for the subcostal L-TAP block, as well as a superior patient-reported quality of recovery.
Conclusion
The effect of the transversus abdominis plane block seems to be independent of the distribution of the cutaneous sensory block area of the approach. The laparoscopic-assisted subcostal transversus abdominis plane block, applied by the surgeon, is more efficient and easier to apply, and reduces postoperative pain with a high QoR-15 score. Further research is needed to determine its applicability in minimally invasive surgery.
Acknowledgements
The OPMICS study group collaborators: Jeanette Lydeking, RN and Christina Kraiberg Rokatis, RN, Department of Surgery, Copenhagen University Hospital—North Zealand, Hillerød, Denmark; Uffe Schou Løve, MD PhD Department of Surgery, Regional Hospital of Viborg, Viborg, Denmark; Susie Lindhardt Larsen, RN, Claudia Jaensch, MD, and Anders Husted Madsen, MD PhD all Department of Surgery and Surgical Research Unit, Gødstrup Hospital, Denmark. Jeanette Lydeking, Christina Kraiberg Rokatis, Uffe Schou Løve, Susie Lindhardt Larsen, Claudia Jaensch, Anders Husted Madsen.
Declarations
Disclosures
The authors of this manuscript, Salmonsen CB, Lange KH, Kleif J, Krøijer R, Bruun L, Mikalonis M, Dalsgaard P, Hesseldal BH, Olsson JE, and Bertelsen CA have no conflict of interestor financial ties to disclose.
Ethical approval
This study involves human participants and the Regional Committee on Health Research Ethics of the Capital Region of Denmark and the Danish Health and Medicines Authority approved the trial under the following references: j.nr. H-20026773 and EudraCT 2020-001054-22.
Consent to participate
Participants gave informed consent to participate in the study before taking part.
Transparency declaration
First author, Christopher Blom Salmonsen, affirms that this manuscript is an honest, accurate, and transparent account of the study being reported, that no important aspects of the study have been omitted, and that any discrepancies from the study as planned have been explained.
Open Access This article is licensed under a Creative Commons Attribution 4.0 International License, which permits use, sharing, adaptation, distribution and reproduction in any medium or format, as long as you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons licence, and indicate if changes were made. The images or other third party material in this article are included in the article's Creative Commons licence, unless indicated otherwise in a credit line to the material. If material is not included in the article's Creative Commons licence and your intended use is not permitted by statutory regulation or exceeds the permitted use, you will need to obtain permission directly from the copyright holder. To view a copy of this licence, visit http://creativecommons.org/licenses/by/4.0/.
Publisher's Note
Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.
Unsere Produktempfehlungen
Die Chirurgie + umfangreiches Online-Angebot
Print-Titel
Das Abo mit mehr Tiefe
Mit der Zeitschrift Die Chirurgie erhalten Sie zusätzlich Online-Zugriff auf weitere 43 chirurgische Fachzeitschriften, CME-Fortbildungen, Webinare, Vorbereitungskursen zur Facharztprüfung und die digitale Enzyklopädie e.Medpedia.
Mit e.Med Chirurgie erhalten Sie Zugang zu CME-Fortbildungen des Fachgebietes Chirurgie, den Premium-Inhalten der chirurgischen Fachzeitschriften, inklusive einer gedruckten chirurgischen Zeitschrift Ihrer Wahl.
The association between the cutaneous sensory block area, the surgical incision’s location, and the block’s analgesic efficacy: a post hoc sensitivity analysis of data from a controlled randomised multicentre trial
Verfasst von
Christopher Blom Salmonsen
Kai Henrik Wiborg Lange
Jakob Kleif
Rasmus Krøijer
Lea Bruun
Martynas Mikalonis
Peter Dalsgaard
Karen Busk Hesseldal
Jon Emil Philip Olsson
Claus Anders Bertelsen
the OPMICS Study Group
Hamid HK, Emile SH, Saber AA, Ruiz-Tovar J, Minas V, Cataldo TE (2020) Laparoscopic-guided transversus abdominis plane block for postoperative pain management in minimally invasive surgery: systematic review and meta-analysis. J Am Coll Surg 231:376–386CrossRefPubMed
2.
Milan Z, Tabor D, McConnell P, Pickering J, Kocarev M, du Feu F, Barton S (2011) Three different approaches to transversus abdominis planeblock: a cadaveric study. Med Glas 8:181–184
3.
Borglum J, Jensen K, Christensen AF, Hoegberg LC, Johansen SS, Lonnqvist PA, Jansen T (2012) Distribution patterns, dermatomal anesthesia, and ropivacaine serum concentrations after bilateral dual transversus abdominis plane block. Reg Anesth Pain Med 37:294–301CrossRefPubMed
4.
Carney J, Finnerty O, Rauf J, Bergin D, Laffey JG, Mc Donnell JG (2011) Studies on the spread of local anaesthetic solution in transversus abdominis plane blocks. Anaesthesia 66:1023–1030CrossRefPubMed
5.
Stoving K, Rothe C, Rosenstock CV, Aasvang EK, Lundstrom LH, Lange KH (2015) Cutaneous sensory block area, muscle-relaxing effect, and block duration of the transversus abdominis plane block: a randomized, blinded, and placebo-controlled study in healthy volunteers. Reg Anesth Pain Med 40:355–362CrossRefPubMed
6.
Salmonsen CB, Lange KHW, Rothe C, Kleif J, Bertelsen CA (2024) Cutaneous sensory block area of the ultrasound-guided subcostal transversus abdominis plane block: an observational study. Reg Anesth Pain Med 49:289–292CrossRefPubMed
7.
Salmonsen CB, Lange KHW, Rothe C, Kleif J, Bertelsen CA (2024) Cutaneous sensory block area of the laparoscopic-assisted transversus abdominis plane block. Dan Med J 71:A02240142PubMed
8.
Salmonsen CB, Lange KHW, Kleif J, Bertelsen CA (2021) Optimal peripheral nerve block after minimally invasive colon surgery—a study protocol for a randomised trial. Dan Med J 68:A03210245PubMed
9.
Salmonsen CB, Lange KHW, Kleif J, Kroijer R, Bruun L, Mikalonis M, Dalsgaard P, Hesseldal KB, Olsson JEP, Bertelsen CA, Group OS (2024) Transversus abdominis plane block in minimally invasive colon surgery: a multicenter three-arm randomized controlled superiority and non-inferiority clinical trial. Reg Anesth Pain Med. https://doi.org/10.1136/rapm-2024-105712CrossRefPubMed
10.
Schulz KF, Altman DG, Moher D, Group C (2011) CONSORT 2010 statement: updated guidelines for reporting parallel group randomised trials. Int J Surg 9:672–677CrossRefPubMed
11.
Harris PA, Taylor R, Minor BL, Elliott V, Fernandez M, O’Neal L, McLeod L, Delacqua G, Delacqua F, Kirby J, Duda SN, Consortium RE (2019) The REDCap consortium: building an international community of software platform partners. J Biomed Inform 95:103208CrossRefPubMedPubMedCentral
12.
Harris PA, Taylor R, Thielke R, Payne J, Gonzalez N, Conde JG (2009) Research electronic data capture (REDCap)–a metadata-driven methodology and workflow process for providing translational research informatics support. J Biomed Inform 42:377–381CrossRefPubMed
13.
Lee L, Abou-Khalil M, Liberman S, Boutros M, Fried GM, Feldman LS (2017) Incidence of incisional hernia in the specimen extraction site for laparoscopic colorectal surgery: systematic review and meta-analysis. Surg Endosc 31:5083–5093CrossRefPubMed
14.
Tran DQ, Bravo D, Leurcharusmee P, Neal JM (2019) Transversus abdominis plane block: a narrative review. Anesthesiology 131:1166–1190CrossRefPubMed
15.
Hebbard P (2015) TAP block nomenclature. Anaesthesia 70:112–113CrossRefPubMed
16.
R Core Team (2023) R: a language and environment for statistical computing. R Foundation for Statistical Computing, Vienna
17.
Zigmond AS, Snaith RP (1983) The hospital anxiety and depression scale. Acta Psychiatr Scand 67:361–370CrossRefPubMed
18.
Sullivan MJL, Bishop SR, Pivik J (1995) The pain catastrophizing scale: development and validation. Psychol Assess 7:524–532CrossRef
19.
Kleif J, Edwards HM, Sort R, Vilandt J, Gogenur I (2015) Translation and validation of the Danish version of the postoperative quality of recovery score QoR-15. Acta Anaesthesiol Scand 59:912–920CrossRefPubMed
20.
Dindo D, Demartines N, Clavien PA (2004) Classification of surgical complications: a new proposal with evaluation in a cohort of 6336 patients and results of a survey. Ann Surg 240:205–213CrossRefPubMedPubMedCentral
21.
Laigaard J, Pedersen C, Ronsbo TN, Mathiesen O, Karlsen APH (2021) Minimal clinically important differences in randomised clinical trials on pain management after total hip and knee arthroplasty: a systematic review. Br J Anaesth 126:1029–1037CrossRefPubMed
22.
Ferrari FA, Crestani B, Torroni L, Pavone M, Ferrari F, Bourdel N, Franchi M, Uccella S (2024) Wound infiltration with local anesthetics versus transversus abdominis plane block for postoperative pain management in gynecological surgery: a systematic review and meta-analysis of randomized controlled trials. J Minim Invasive Gynecol. https://doi.org/10.1016/j.jmig.2024.10.030CrossRefPubMed
23.
López-Ruiz C, Orjuela JC, Rojas-Gualdrón DF, Jimenez-Arango M, Ríos JFL, Vásquez-Trespalacios EM, Vargas C (2022) Efficacy of transversus abdominis plane block in the reduction of pain and opioid requirement in laparoscopic and robot-assisted hysterectomy: a systematic review and meta-analysis. Rev Bras Ginecol Obstet 44:55–66CrossRefPubMedPubMedCentral
24.
Rosen DC, Winoker JS, Mullen G, Moshier E, Sim A, Pathak P, Wagaskar V, Sfakianos JP, Reddy A, Palese M, Badani KK, Wiklund P, Tewari A, Mehrazin R (2022) Robot-assisted vs ultrasonography-guided transversus abdominis plane (TAP) block vs local anaesthesia in urology: results of the UROTAP randomized trial. BJU Int 130:815–822CrossRefPubMed
Zheng C, Yang H, Yang L, Luo J, Xiong B (2023) The effect of transversus abdominis plane block in kidney transplantation: a systematic review and meta-analysis. Urol Int 107:608–616CrossRefPubMed
27.
Riemma G, Schiattarella A, Cianci S, La Verde M, Morlando M, Sisti G, Esposito I, Della Corte L, Sansone P, De Franciscis P (2021) Transversus abdominis plane block versus wound infiltration for post-cesarean section analgesia: a systematic review and meta-analysis of randomized controlled trials. Int J Gynaecol Obstet 153:383–392CrossRefPubMed
28.
Sultan P, Patel SD, Jadin S, Carvalho B, Halpern SH (2020) Transversus abdominis plane block compared with wound infiltration for postoperative analgesia following cesarean delivery: a systematic review and network meta-analysis. Can J Anaesth 67:1710–1727CrossRefPubMed
29.
Bowden S, Wagner G, Xue C, Nelson G, Metcalfe A (2024) Analgesic efficacy of surgeon-administered transversus abdominis plane blocks for cesarean delivery: a systematic review. Can J Anaesth 71:158–160CrossRefPubMed
Zhang S, Sun J, Liu C, Gong X, Chen R, Jin Z, Xia F, Liu L, Wang Q, Chen H (2024) Sensory assessment of intramuscular quadratus lumborum block at the L2 level in open inguinal hernia repair patients. BMC Anesthesiol 24:377CrossRefPubMedPubMedCentral
32.
Chin KJ, Lirk P, Hollmann MW, Schwarz SKW (2021) Mechanisms of action of fascial plane blocks: a narrative review. Reg Anesth Pain Med 46:618–628CrossRefPubMed
33.
Barry G, Sehmbi H, Retter S, Bailey JG, Tablante R, Uppal V (2023) Comparative efficacy and safety of non-neuraxial analgesic techniques for midline laparotomy: a systematic review and frequentist network meta-analysis of randomised controlled trials. Br J Anaesth 131:1053–1071CrossRefPubMed
34.
Tanggaard K, Hasselager RP, Holmich ER, Hansen C, Dam M, Poulsen TD, Baerentzen FO, Eriksen JR, Gogenur I, Borglum J (2023) Anterior quadratus lumborum block does not reduce postoperative opioid consumption following laparoscopic hemicolectomy: a randomized, double-blind, controlled trial in an ERAS setting. Reg Anesth Pain Med 48:7–13CrossRefPubMed
35.
Brown SR, Goodfellow PB (2005) Transverse verses midline incisions for abdominal surgery. Cochrane Database Syst Rev 2005:CD005199PubMedPubMedCentral
36.
Lim SW, Huh JW, Kim YJ, Kim HR (2013) Vertical transumbilical incision versus left lower transverse incision for specimen retrieval during laparoscopic colorectal surgery. Tech Coloproctol 17:59–65CrossRefPubMed
37.
Seiler CM, Deckert A, Diener MK, Knaebel HP, Weigand MA, Victor N, Buchler MW (2009) Midline versus transverse incision in major abdominal surgery: a randomized, double-blind equivalence trial (POVATI: ISRCTN60734227). Ann Surg 249:913–920CrossRefPubMed
38.
Tan WS, Chew MH, Ho KS, Yatim JB, Lai JS, Tang CL (2015) Short and long-term outcomes of a randomised controlled trial of vertical periumbilical wound versus transverse left iliac fossa wound for specimen retrieval in laparoscopic anterior resections. Surg Endosc 29:2720–2727CrossRefPubMed
39.
Allaix ME, Degiuli M, Bonino MA, Arezzo A, Mistrangelo M, Passera R, Morino M (2019) Intracorporeal or extracorporeal ileocolic anastomosis after laparoscopic right colectomy: a double-blinded randomized controlled trial. Ann Surg 270:762–767CrossRefPubMed
40.
Bertelsen CA, Elfeki H, Neuenschwander AU, Laurberg S, Kristensen B, Emmertsen KJ (2018) The risk of long-term bowel dysfunction after resection for sigmoid adenocarcinoma: a cross-sectional survey comparing complete mesocolic excision with conventional surgery. Colorectal Dis 20:O256–O266CrossRefPubMed
41.
Bertelsen CA, Larsen HM, Neuenschwander AU, Laurberg S, Kristensen B, Emmertsen KJ (2018) Long-term functional outcome after right-sided complete mesocolic excision compared with conventional colon cancer surgery: a population-based questionnaire study. Dis Colon Rectum 61:1063–1072CrossRefPubMed
42.
Crane J, Hamed M, Borucki JP, El-Hadi A, Shaikh I, Stearns AT (2021) Complete mesocolic excision versus conventional surgery for colon cancer: a systematic review and meta-analysis. Colorectal Dis 23:1670–1686CrossRefPubMed
