Background
A number of bioactive molecules, including antitumour substances, have been identified in various mushroom species. Polysaccharides are the best known and most potent of these and have antitumour and immunomodulating properties [
1‐
5]. PSK, a protein-bound polysaccharide obtained from
Basidiomycetes, also known as
Krestin, has been used as an agent in the treatment of cancer in Asia for over 30 yrs [
6‐
8]. PSK is derived from the fungus
Coriolus versicolor and has documented anticancer activity
in vitro in experimental models [
9] and in human clinical trials. Several randomized clinical trials have demonstrated that PSK has great potential in adjuvant cancer therapy, with positive results in the treatment of gastric, esophageal, colorectal, breast and lung cancers [
10,
11]. These studies have suggested the efficacy of PSK as an immunomodulator of biological response.
Previous reports indicated that PSK might act in different ways: as antioxidant [
5,
12,
13]; as inhibitor of metalloproteinases and other enzymes involved in metastatic processes [
14] and as inhibitor of the action of various carcinogens in vulnerable cell lines. However its most important and widely reported property is its immunomodulatory capacity. PSK may act to increase leukocyte activation and response
via upregulation of key cytokines. Thus, natural killer (NK) and lymphocyte-activated killer (LAK) cell activation has been demonstrated
in vivo and
in vitro [
15,
16]. Our group demonstrated that PSK is capable of inhibiting metastatic colonization
in vivo in some experimental fibrosarcomas, and that this effect is mediated by activation of NK cells [
17,
18]. Moreover, the NK cell line NKL, derived from a large granular lymphocyte leukaemia [
19], is activated
in vitro by PSK [
16]. This activation may replace IL-2 in inducing the proliferation and cytotoxicity of NKL cells. The signal transduction pathways involved in the responses to IL-2 or PSK are different: IL-2 increases PKCα and ERK3 expression and decreases ERK2 expression, whereas PSK decreases PKCα expression and increases ERK3 expression [
20]. PSK also enhances CRE binding activity, while IL-2 increases SP-1 and modifies GAS/ISRE, IRF-1 and STAT5 [
21]. In addition, PSK and IL-2 have been shown to bind to different receptor on NKL cells [
22].
The direct in vitro effect of PSK on the proliferation of tumour cell lines was compared with its effect on PBLs. PSK had cytotoxic activity on tumour cell lines, inhibiting proliferation, producing cell cycle arrest and cell accumulation in G0/G1phase and inducing apoptosis.
Methods
Protein-bound polysaccharide K
Protein-bound polysaccharide K (PSK) was kindly provided by Kureha Chemical Ind. Co. (Tokyo, Japan). It is prepared by extracting cultured mycelia of
Coriolus versicolor with hot water. The precipitate is separated from the clear supernatant with saturated ammonium sulfate, then desalted and dried [
23]. Protein-bound polysaccharide K was dissolved in RPMI medium or water and heated at 50°C for 20–30 min until a clear solution appeared. The PSK preparation was filter-sterilized and diluted in culture medium or water to the desired concentration. Protein-bound polysaccharide K was previously titrated in NKL cells [
16] and the working dilution was 100 μg/mL. PSK extract digested with neuraminidase was also tested, digesting 100 μg of PSK with 4 μl (Sigma) and incubating for 3 h at 37°C. Our group previously showed that PSK is composed of two bands of very high molecular weight [
22]. After digestion with neuraminidase, these bands are reduced to a single band of about 12 kd. These results indicate that PSK is probably composed of a single 12-kd protein, and that this protein is highly glycosylated [
22]. Two different extracts of PSK were also used: one rich in sugars and other rich in proteins.
Cell lines and cell culture
The following tumour cell lines were studied: B16 murine melanoma, B9 murine MCA-induced fibrosarcoma, Ando-2 human melanoma, AGS human gastric cancer, A-549 human lung cancer, Hela human cervical adenocarcinoma and Jurkat T lymphoma leukemia. The NKL studied was established from PBLs of a patient with LGL leukemia [
19]. All cell lines were obtained from the American Type Culture Collection (Manassas, USA) except for the B9 cell line, which was generated at our laboratory, and the Ando-2 and NKL cell lines, kindly provided by P. Coulie (Unite de Genetique Cellulaire, Louvain University, Brussels, Belgium), F. X. Real (Instituto Municipal de Investigaciones Medicas, Barcelona, Spain) and Dr. M. Lopet-Botet (Universidad Pompeu-Fabra, Barcelona, Spain), respectively.
Cell lines derived from solid tumours were grown at 37°C in a humidified atmosphere of 5% CO2 in DMEM culture medium (Gibco, Paisley UK) supplemented with 10% heat-inactivated foetal bovine serum (Life Technologics, Milan Italy), antibiotics and glutamine. Jurkat T cell leukemia was cultured in RPMI 1640 with 10% heat-inactivated fetal bovine serum. The NKL cell line was cultured in RPMI 1640 with 10% heat-inactivated human AB serum (Sigma Chemical, St Louis, MO; USA) and human recombinant IL-2 (100 U/ml; purity > 97%, specific activity, 2 × 106 U/mg) (Roche, Nutley, NJ; USA).
In vitro cytotoxicity assays
The effect of PSK on tumour cell proliferation was assessed by measuring BrdU incorporation with the BrdU colorimetric ELISA Cell Proliferation Kit (Roche Diagnostic). Cells were plated in 96-well microculture plates (5 × 103 cells/well). Every 48 h, the culture medium was replaced and PSK was added. After 48–96 h, BrdU labelling reagent was added and cultured for a further 1–3 h. Assays were also performed by counting viable cells using Trypan Blue. Briefly, cancer cell lines were seeded into culture tissue-flask (1.5–2 × 105/culture tissue-flask) and incubated for 24 h at 37°C in a humidified atmosphere of 5% CO2. Cells were then treated with 100 μg/ml of PSK in the culture medium, which was replaced every 48 h. After 4–6 days, cells were collected by centrifugation and a small sample of cell suspension was diluted in 0.4% Trypan Blue, counting cells in a haemocytometer chamber. Each cell sample was counted in this way at least three times and each assay was repeated at least three times.

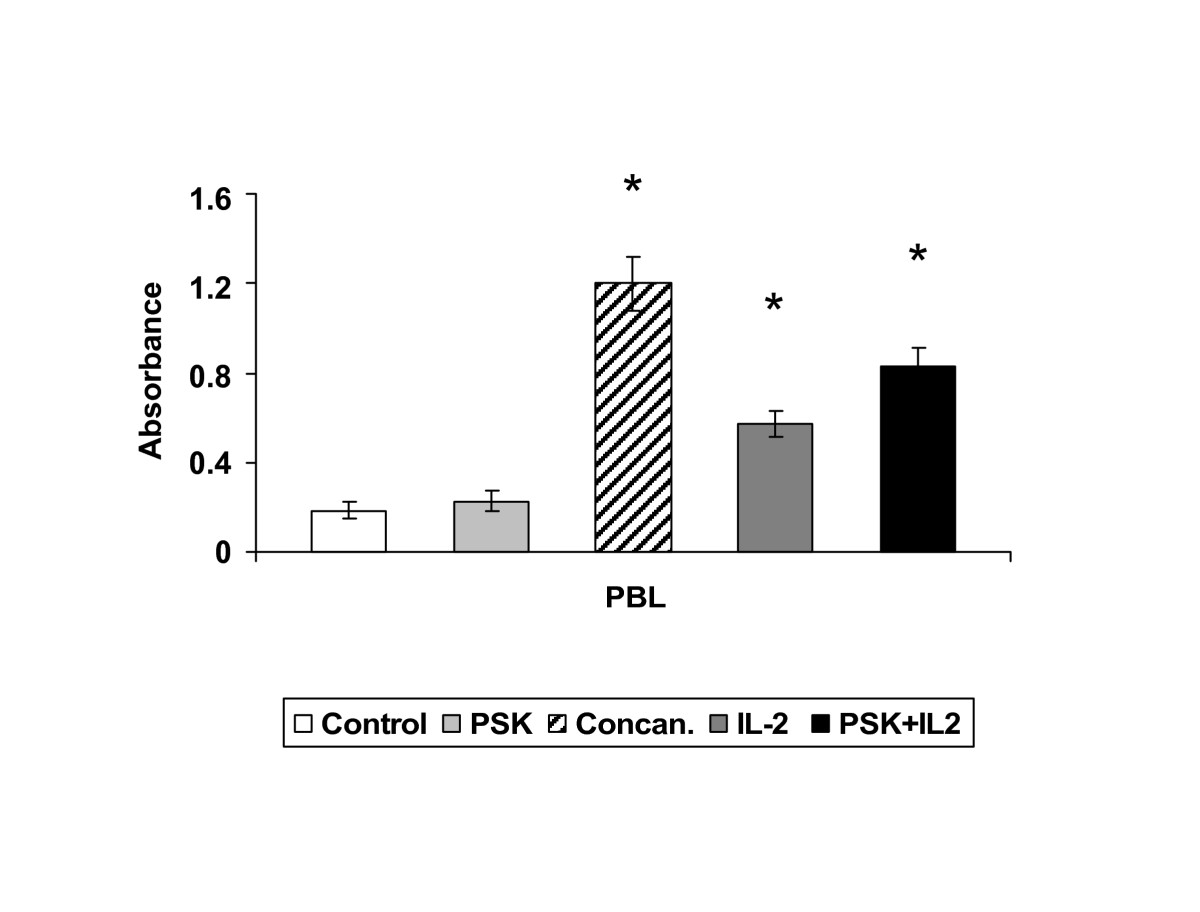

Lymphocyte and NKL proliferation assay
Human lymphocytes were isolated from venous blood by the Ficoll-Hystopaque separation method. Proliferation of PBLs was analyzed in vitro using 5-bromo-2'-deoxyuridine (BrdU) labelling of DNA-synthesizing cells with the above-mentioned kit. PBLs were seeded in 96-well microculture plates at a cell density of 5 × 104 per well. Two different concentrations of PSK were used, 100 μg/ml and 50 μg/ml. Concanavalin A (5 μg/ml, Sigma) and IL-2 were used as positive controls. PSK was also used in combination with IL-2 or Concanavalin A. After 48 h of culture in presence or absence of PSK, BrdU labelling reagent (final concentration 10 μM) was added and cells were cultured for 24 h. Cells were then fixed for 30 min and incubated with anti-BrdU for 1 h at 37°C. 100 μl of tetramethyl-benzidine (TMB) was used as substrate. Optical densities were determined at 370 nm by means of an ELISA microplate reader (Biotek, Power-Wave XS). Controls were the culture medium, cells cultured only in medium and cells incubated with anti-BrdU in absence of BrdU. All experiments were repeated at least three times.

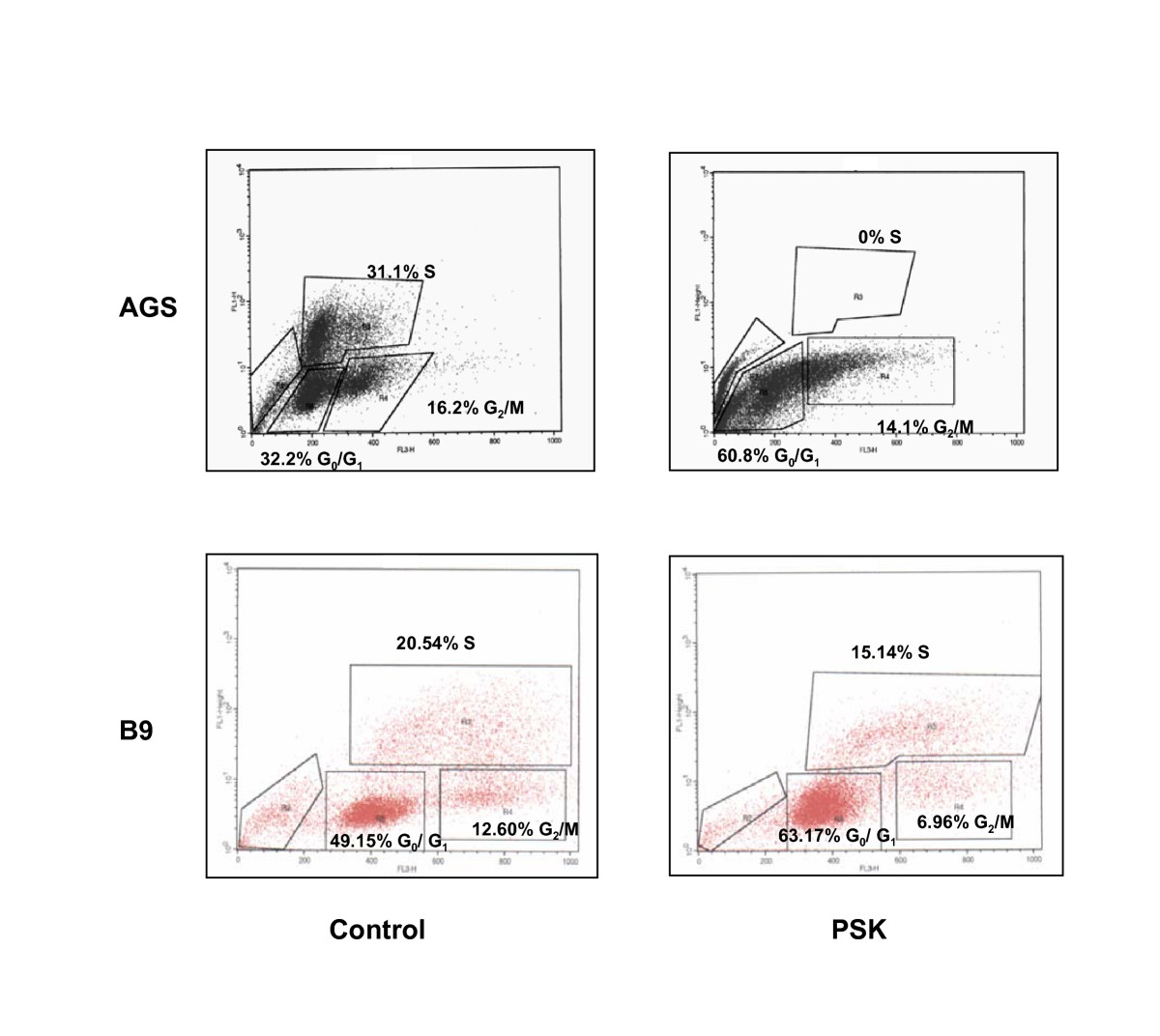

Cell cycle distribution analysis
Briefly, cells were plated in six-well plates (5 × 105 per well) or in culture tissue-flask (15 × 105) and continuously exposed for 4 days to 100 μg/ml of PSK. The DNA synthesis rate was examined by BrdU incorporation method using FITC BrdU Flow Kit (BD Pharmingen) according to manufacturer's instructions. BrdU was then detected by DNase cell treatment using FITC-conjugated anti-BrdU antibody. Cells were washed with 1 ml 1 × BD Perm/Wash Buffer, and 20 μl 7-amino-actinomycin D was added. Analysis was performed with 50000 cells using Cell Quest Software and FACScan flow cytometer (Becton-Dickinson).

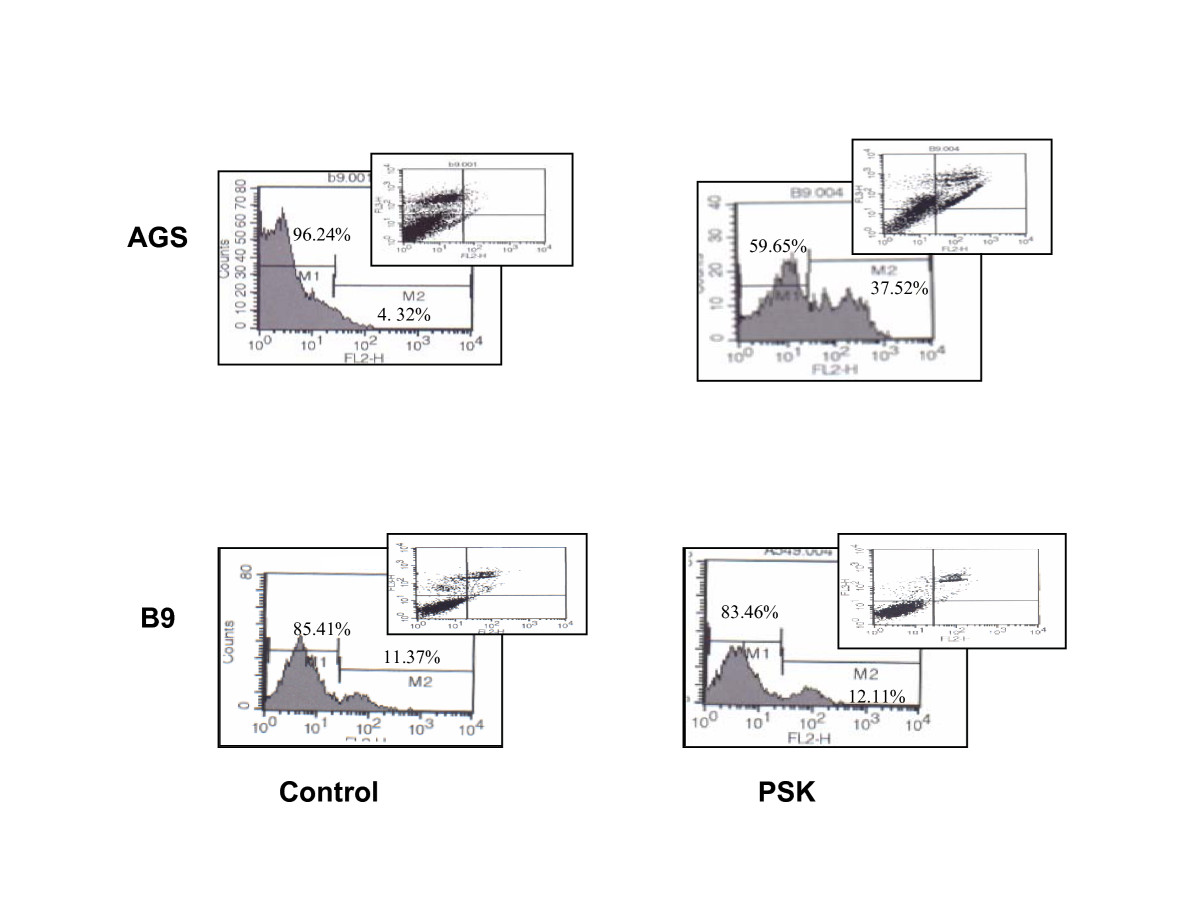

Annexin V binding assay to detect apoptotic cells
After treatment of cancer cells with PSK for four days, cells were detached from the culture tissue-flask with PBS containing 3 mM EDTA. These cells were then collected together with floating cells, washed twice with cold PBS and resuspended in binding buffer at a concentration of 1 × 106 cells per ml; 100 μl of solution was incubated for 30 min at 4°C with 5 μl of Annexin V-PE antibody (BD Biosciences), and 5 μl of 7-amino-actynomycin D was then added. Cells were incubated for 15 min in darkness, and 400 μl of staining buffer was added before flow cytometry analysis. Apoptosis was analyzed by quadrant statistics as follows: Annexin V- and 7-AAD-negative cells are alive; Annexin V-positive and 7-AAD-negative cells are in early stages of apoptosis; Annexin V-negative and 7-AAD-positice cells are dead but not by apoptosis; and Annexin V-positive and 7-AAD-positive cells are in mid- or end-stage apoptosis.
Assay for active caspase-3 expression
FITC conjugated monoclonal anti-active-caspase-3 antibody (BD Biosciences) was used to determine whether the protease caspase-3 is involved in PSK-induced apoptosis. After 4-day treatment with PSK, cancer cells were washed twice with cold PBS and fixed and permeabilized in Cytofix/Cytoperm buffer. Then, cells were incubated with FITC-conjugated monoclonal rabbit anti-active human-caspase-3 antibody for 30 min. Cells were washed twice and 500 μl of 1 × Perm Wash Buffer was added before analysis by flow cytometry.
Statistical analysis
Values are expressed as means ± SD. Student's t-test was used for statistical comparisons, considering a significance value of P < 0.05.
Discussion
Several clinical assays have reported the anti-tumour properties of PSK and its synergestic effect in combined therapies [
9,
24,
25]. Our group previously reported the immunomodulatory activity of PSK on NK cells, producing
in vitro proliferation and activation of NKL cells [
16,
20,

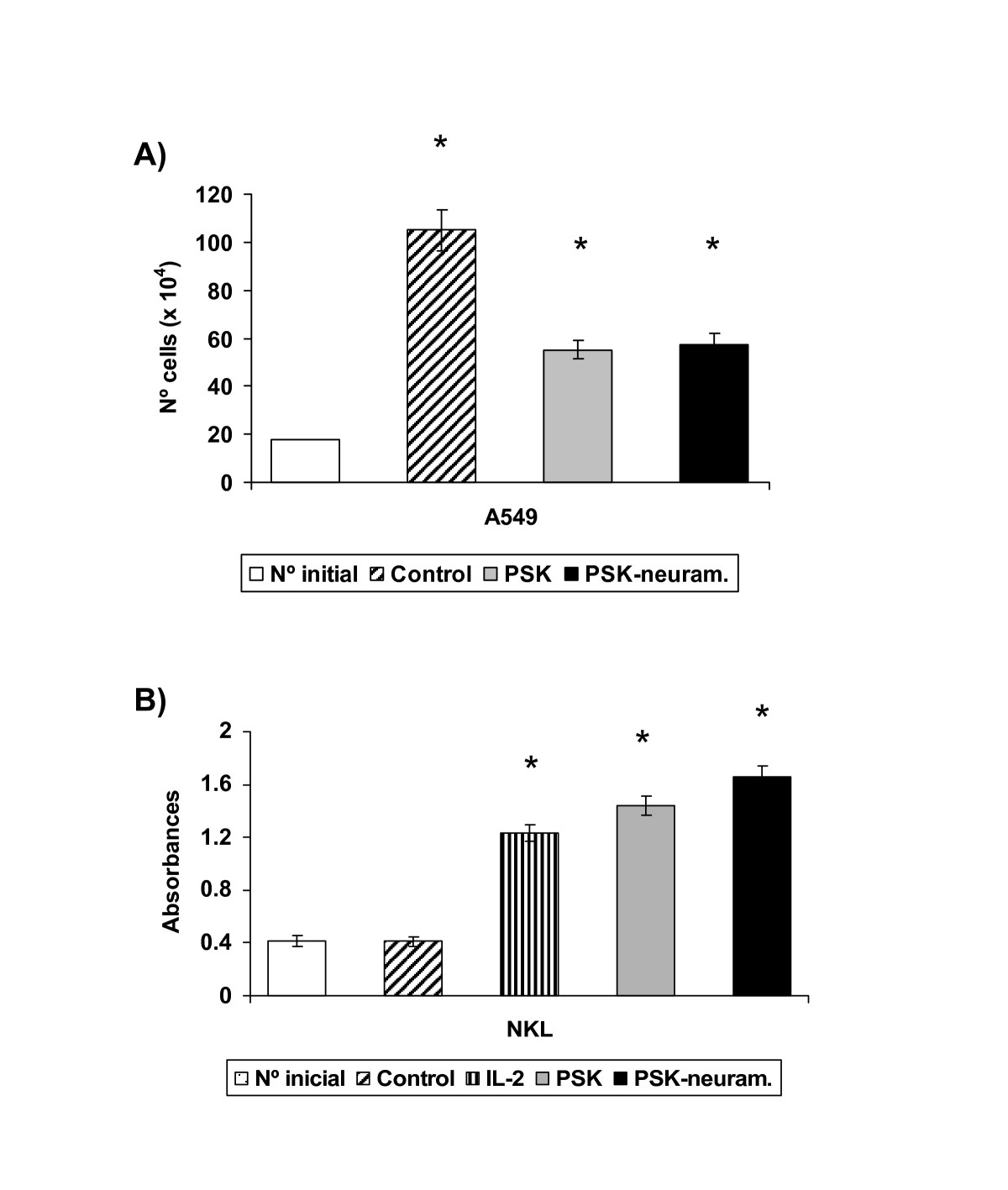

21]. In the present study, we have identified a new cytotoxic anti-tumour activity of PSK. This activity varied according to the histological origin of the tumour cell lines under study, with inhibition rates ranging from 84% to 22% (Table
1). The highest profileration inhibition rates were found in AGS (84%) and A549 (80%) cell lines (gastric and lung cancer, respectively). PSK was previously reported to be effective in adjuvant immunotherapy for patients after curative resection of gastric cancer [
25], and this effect was attributed to its immunomodulatory activity on NK cells [
26]. Our group previously reported that PSK mediates induction of the NKL cell proliferation and activation. The present results suggest that PSK may also exert a direct antitumour cytotoxic activity. Inhibition was around 65% in melanoma cell lines Ando-2 (human) and B16 (mice) and was lowest (22%) in the B9 murine fibrosarcoma cell line. Deglycosylation of PSK by neuraminidase treatment did not modify its cytotoxic effect on tumour cell lines. The sugar-rich and protein-rich PSK variants showed identical results to those of PSK in their inhibition of proliferation of tumour cell lines
in vitro. These results indicate that the cytotoxic properties are in a compound that is present in all three variants studied and does not vary among them.
Interestingly, PSK had the opposite effect on lymphocytes. Thus, PSK, in synergy with IL-2, induced proliferation of PBLs. PSK also induced proliferation and activation of NKL cells, producing an effect similar to that of IL-2. Hence, PSK has a cytotoxic effect on tumour cells and a mitotic effect on lymphocytes and NK cells.
The cell cycle was arrested or slowed by PSK according to the histological origin of the tumour cells. PSK is known to increase docetaxel-induced apoptosis of NOR-P human pancreatic cancer cells [
27] and of Namalwa Burkitt lymphoma cells [
28]. PSK induced apoptosis in the AGS cell line but not in all tumour cell lines analysed and induced caspase-3 expression in some tumour cell lines but not all. These results indicate that PSK may induce cytotoxic activity by different molecular mechanisms according to the histology of tumour.
The molecular mechanisms implicated in PSK-induced proliferation and activation of NKL cells have been widely described, showing that PSK and IL-2 bind to different receptors on NKL cells and induce different signal transduction pathways [
20‐
22]. The present results indicate that the anti-tumour properties of PSK observed in clinical trials might be due to a dual biological activity: 1) a direct cytotoxic activity on tumour cells and 2) an immunomodulatory activity largely produced by NK cell activation. A similar dual activity has also been described in a
Calendula extract, LACE, which produces an
in vitro cytotoxic activity and
in vivo immunomodulatory effect on tumour cell lines, including human and mouse melanioma cells, increasing the number and activation of CD4+, CD19+ and NKT cells [
29]. PSK suppressed
in vivo metastases in spontaneous metastasis assays of mouse fibrosarcoma, melanoma, rat hepatoma AH60C and mouse colon cancer 26 [
17,
30,
31]
via NK cell activation. Based on the present findings, it can be hypothesised that this anti-metastatic capacity may also derive from the cytotoxic component of PSK.
Research into the biological mechanisms underlying the anti-tumour effect of PSK is ongoing. We can now add a direct cytotoxic effect on tumour cells to the previously described immunomodulatory effect of this polysaccharide. Greater knowledge of the molecular mechanisms implicated in PSK anti-tumour activity may improve cancer immunotherapy, leading to the application of new anti-tumour protocols.
Conclusion
PSK shows in vitro growth inhibition of various tumour cell lines, producing cell cycle arrest/slowing, apoptosis and induction of caspase-3 expression. In combination with IL-2, PSK induces proliferation of PBLs. The biological activity of PSK appears to include both an immunomodulatory effect on NK cells and a cytotoxic effect on tumour cells
Competing interests
Materials for these studies were partially supported by a grant from Kureha Chemical Industry (Japan), which manufactures PSK. The authors declare that they have no other competing interest.
Authors' contributions
EJM, EB and IR performed the assays. IA and AC helped in some experiments. FG and AGL designed the study and drafted the manuscript. All authors have read and approved the final manuscript.
