Background
Acute lymphoblastic leukemias (ALL) can occur during childhood and more rarely during adulthood. Especially adult patients still have a grave prognosis following conventional chemotherapies despite progress in the treatment during recent years. Therefore, risk adapted therapy approaches have been developed including allogenic stem cell transplantation as well as targeted therapies. In particular, CD20 antibody treatment has been successfully introduced in B-ALL [
1]. In addition, signal transduction inhibitors such as the tyrosine kinase inhibitor Imatinib have been used in BCR-ABL positive ALL patients leading to improved response rates [
2,
3]. Investigation of further targeted therapy approaches e.g. inhibition of signaling pathways is aiming at inhibiting other dysregulated tyrosine kinases or transcription factors.
Sorafenib is a multikinase inhibitor targeting Raf serine/threonine kinases as well as different receptor tyrosine kinases including c-Kit, FLT-3, vascular endothelial growth factor receptor (VEGFR) and platelet-derived growth factor receptor (PDGFR) [
4,
5]. Sorafenib has previously been shown to induce apoptosis and necrosis in various types of cancer such as renal cell carcinoma, breast cancer, lung cancer, colon cancer, chronic myelogenous leukemia (CML), chronic lymphocytic leukemia (CLL) and acute myeloid leukemia (AML) [
6‐
8]. Cell lines from different solid tumors have been tested previously for their response to Sorafenib. It was shown that Sorafenib inhibits cell growth of renal cell carcinoma cells, pancreatic tumor cells, colon cancer, breast tumor cells and melanoma tumor cells [
9,
6]. Sorafenib has recently been approved for the clinical treatment of hepatocellular carcinoma and renal cell carcinoma [
10]. Furthermore it is under clinical investigation in FLT3 positive acute myeloid leukemia (AML) patients [
8,
11]. In the present study we investigated the effect of the multikinase inhibitor Sorafenib on B- and T-ALL cells. Our results demonstrate that Sorafenib inhibits proliferation and induces apoptosis as well as necrosis in ALL cells. In addition, we could demonstrate the inhibitory effect of Sorafenib on the PI3K/Akt pathway.
Methods
Cell lines
ALL cell lines with different cytogenetics and phenotypes were used. The human ALL cell lines SEM, RS4;11 (both B-ALL) and Jurkat (T-ALL) were purchased from DSMZ (Braunschweig, Germany) and cultured according to manufacturer's protocol. The media were supplemented with 10% heat-inactivated fetal bovine serum (PAA, Pasching, Austria) and 1% penicillin and streptomycin (Biochrom AG, Berlin, Germany). All cells were grown in a 37°C and 5% CO2 humidified atmosphere-incubator.
Inhibitors and cytostatics
Sorafenib was a kind gift from Bayer Healthcare (Leverkusen, Germany). The mTOR inhibitor RAD001 was kindly provided from Novartis (Basel, Switzerland). Inhibitors were dissolved in dimethyl sulfoxide (DMSO) and stored as stock solution at -20°C. Cytarabine and doxorubicin were purchased from cell pharm GmbH (Bad Vilbel, Germany) and dissolved in 5% NaCl (B. Braun Melsungen AG, Melsungen, Germany).
For experimental use drugs were prepared freshly from stock solution. Control cells were cultured in their medium containing the same concentration of DMSO as the experimental treated cells. Drug concentrations were chosen in accordance with serum concentration that can be achieved in clinical settings.
Inhibition experiments and drug combination studies
Cells (5 × 105/well) were seeded in 24 well plates (Nunc, Langenselbold, Germany) and treated with inhibitors for up to 96 h. Sorafenib was investigated as single drug and in combination with conventional cytostatics cytarabine and doxorubicin. In addition, the mTOR inhibitor RAD001 was combined with Sorafenib. Cells were incubated with sub -IC50 concentration of cytostatics cytarabine (250 nM), doxorubicin (25 nM) or RAD001 (1 nM and 10 nM) and with Sorafenib (0.73 μM and 7.3 μM) alone and in combination. Sub -IC50 concentrations of cytostatics were used to detect synergistics effects easier. IC-50 values of each drug had been determined in previous experiments. Inhibitors were added once at the time of cell seeding. Samples of cells were harvested after 0.5, 2.5, 4.0, 24, 48, 72 and 96 h and used for analyses.
Analyses of apoptosis and necrosis

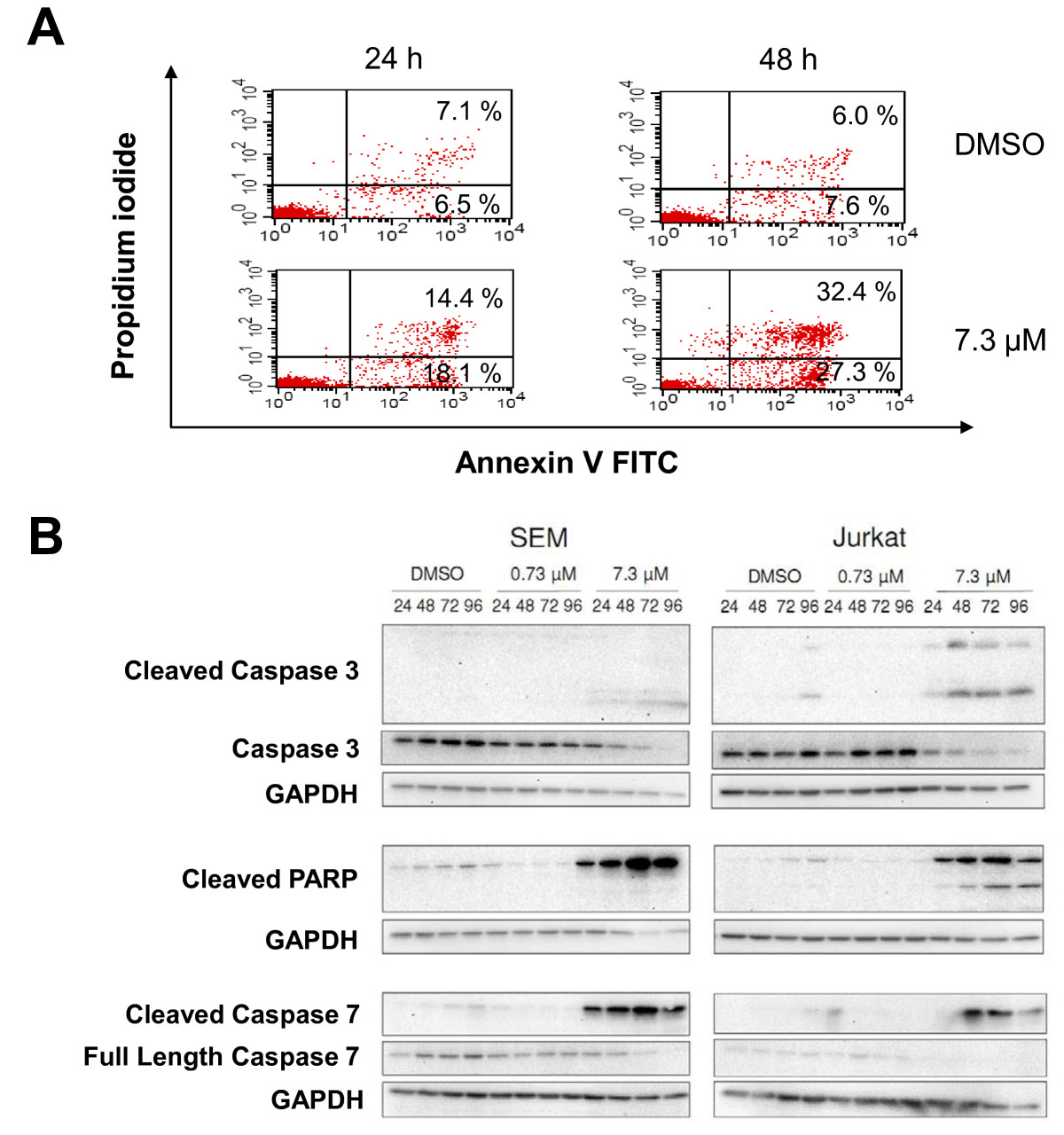

Apoptosis and necrosis were determined using Annexin V FITC (BD Biosciences, Heidelberg, Germany) and propidium iodide (PI) (Sigma Aldrich, St. Louis, USA) labeling technique and flow cytometry analyses. Briefly, 5 × 105 cells were harvested and washed twice (180 g, 10 min, 4°C) with PBS at indicated points in time. Each cell pellet was resuspended in 100 μl of binding buffer (1×) and 5 μl Annexin V FITC were added. After an incubation time of 10 min at room temperature, additional 400 μl of binding buffer were added for a final volume of 500 μl. Cells were stained with PI (0.6 μg/ml) immediately before measurement. Unstained and single stained controls were included in each experiment. Flow cytometry analyses were performed using FACSCalibur (Becton and Dickinson, Heidelberg, Germany) and data thus obtained were analysed with CellQuest software (Becton and Dickinson, Heidelberg, Germany).
Proliferation studies
Cell counts were determined using the trypan blue staining. Metabolic activity was determined using tetrazolium compound (4-[3-(4-Iodophenyl)-2-(4-nitrophenyl)-2H-5-tetrazolio]-1,3-benzene disulfonate) [WST-1, Roche, Mannheim, Germany] according to the manufacturers protocol. In brief, cells (5 × 104/well) were seeded in 96 well plates in triplicates and incubated with 15 μl WST-1 for 4 h. The assay is based on the reduction of tetrazolium salt WST-1 to soluble formazan by mitochondrial dehydrogenases of the cells. The amount of formazan dye directly correlates to the number of metabolically active cells and was detected by the absorbance at 450 nm and a reference wavelength at 620 nm by an ELISA Reader (Anthos, Krefeld, Germany). The absorbance of culture medium plus WST-1 in the absence of cells was used as background control.
Cell cycle analysis
After treatment SEM and Jurkat cells were harvested and washed twice in PBS. Cells were fixed with 70% ethanol and incubated with 1 mg/ml Ribonuclease A (Sigma-Aldrich, St. Louis, USA) for 30 min at 37°C. Subsequently, cells were washed twice in PBS and stained with PI. DNA content was analyzed by flow cytometry on a FACSCalibur Cytometer (Becton and Dickinson, Heidelberg, Germany). Data analysis was performed using CellQuest software (Becton and Dickinson, Heidelberg, Germany).
Western blot
For protein extraction 1 × 106 cells were washed twice in PBS and lysed with RIPA buffer (50 mM Tris HCl pH 7.4; 150 mM NaCl; 0.1% SDS and 1% NP40) including protease and phosphatase inhibitors (Roche Applied Science, Mannheim, Germany). Samples were incubated for 20 min at 4°C and frozen at -20°C. Cell extracts were thawed and centrifuged at 12000 g for 10 min at 4°C. Total protein concentration of supernatants was determined using Bio-Rad Protein Assay (Bio-Rad, München, Germany).
Equal amounts of protein samples were separated by SDS-polyacrylamid gel (8% or 15%) electrophoresis and transfered onto a PVDF membrane (Amersham Biosciences, Buckinghamshire, UK). Membranes were blocked in 5% milk or 5% BSA and incubated at 4°C overnight with the following polyclonal antibodies: rabbit anti-cleaved caspase 3, rabbit anti-caspase 3, rabbit anti-cleaved PARP, rabbit anti-cleaved caspase 7, rabbit anti-caspase 7, rabbit anti-pErk1/2 (Thr202/Tyr204), rabbit anti-Erk, rabbit anti-pAktThr308, rabbit anti-pAktSer473, rabbit anti-Akt, rabbit anti-p15INKB, rabbit anti-p27KIP1, mouse anti-CDK4, mouse anti-CyclinD3 (all Cell Signaling Frankfurt/Main, Germany), rabbit anti-pFoxO3AThr32 and rabbit anti-FoxO3A (both Upstate, Temecula, USA). Blots were incubated with mouse anti-α-tubulin antibody or mouse anti-GAPDH (both Invitrogen, Carlsbad, USA) as loading control. Specific horseradish peroxidase-conjugated secondary antibodies (anti-mouse or anti-rabbit) were used. Blots were re-probed using Restore Plus Western Blot stripping buffer (Pierce, Rockford, USA). Signals were detected with ECL Plus reagent (Amersham Biosciences; Buckinghamshire, UK) and a CCD camera (Kodak Digital Sience Image Station 440CF, Rochester, USA).
Statistical analysis
Experiments were conducted in triplicates and results within each experiment were described using mean ± standard deviation (SD). Significant effects (*) between treatment groups, or between treatment groups and control was accomplished by using the two-sample Student's
t-test. For more than two independent samples, the total significance level α = 0.05 was Bonferroni adjusted for each pairwise test (α
adj). All p-values resulted from two-sided tests. The nature of interaction between Sorafenib and other drugs was characterized using Bliss additivism model [
12‐
14].
Discussion
Targeted therapy of leukemias with specific inhibitors has been shown to be effective and clinically well tolerated. In the present study, we have investigated the effect of the multikinase inhibitor Sorafenib in regards to influence on proliferation, apoptosis and necrosis in B- and T-lymphoblastic cells. Significant antiproliferative effects of Sorafenib were observed with 7.3 μM (a clinically achievable serum concentration) in all investigated cell lines. Inhibition of proliferation was also inducible with lower concentration (0.73 μM) in SEM cells. We could further demonstrate that Sorafenib induces caspase activation by cleavage of caspases 3 and 7 which results in cleavage of the nuclear protein PARP. Sorafenib has been previously shown to activate apoptosis and necrosis in various types of cancer [
6,
7,
15‐
17]. In AML it was shown that treatment with Sorafenib activates the intrinsic apoptotic pathway by up-regulation of Bim associated with an increase of Bad, Bax and Bak proteins [
8]. Further, it was demonstrated that Sorafenib-induced apoptosis resulted in down-regulation of Mcl-1, caspase activation and cytochrome c release in different cancer cells [
6,
18].
Whereas the effects of Sorafenib on Raf, Mek, Erk inhibition are well established in a variety of different cancers, its effects on the Akt signaling pathway is less clear. Since we and other have shown earlier, that the Akt pathway is activated in ALL cells, we aimed to detect Sorafenib effects on the PI3K/Akt/mTOR pathway. We demonstrated an inactivation of Akt after treatment with Sorafenib in SEM and RS4;11 achieving a complete disappearance of phosphorylated Akt. In Jurkat cells, that harbor a PTEN deletion, a marked decrease of pAkt levels (pAktSer473 and pAktThr308) occurred. In previous studies with several cancers, Sorafenib has not been shown to inhibit Akt phosphorylation [
10,
19,
20]. Furthermore, it was demonstrated with biochemical assays, that Sorafenib is not a direct inhibitor of Akt [
9]. In contrast, different studies indicated that Sorafenib induced an inhibition of STAT3 (phosphorylated signaltransducers and activators of transcription 3) that were associated with decreased levels of pAkt in glioblastoma cells, pancreatic cancer cell lines and neuroblastoma cells [
16,
21,

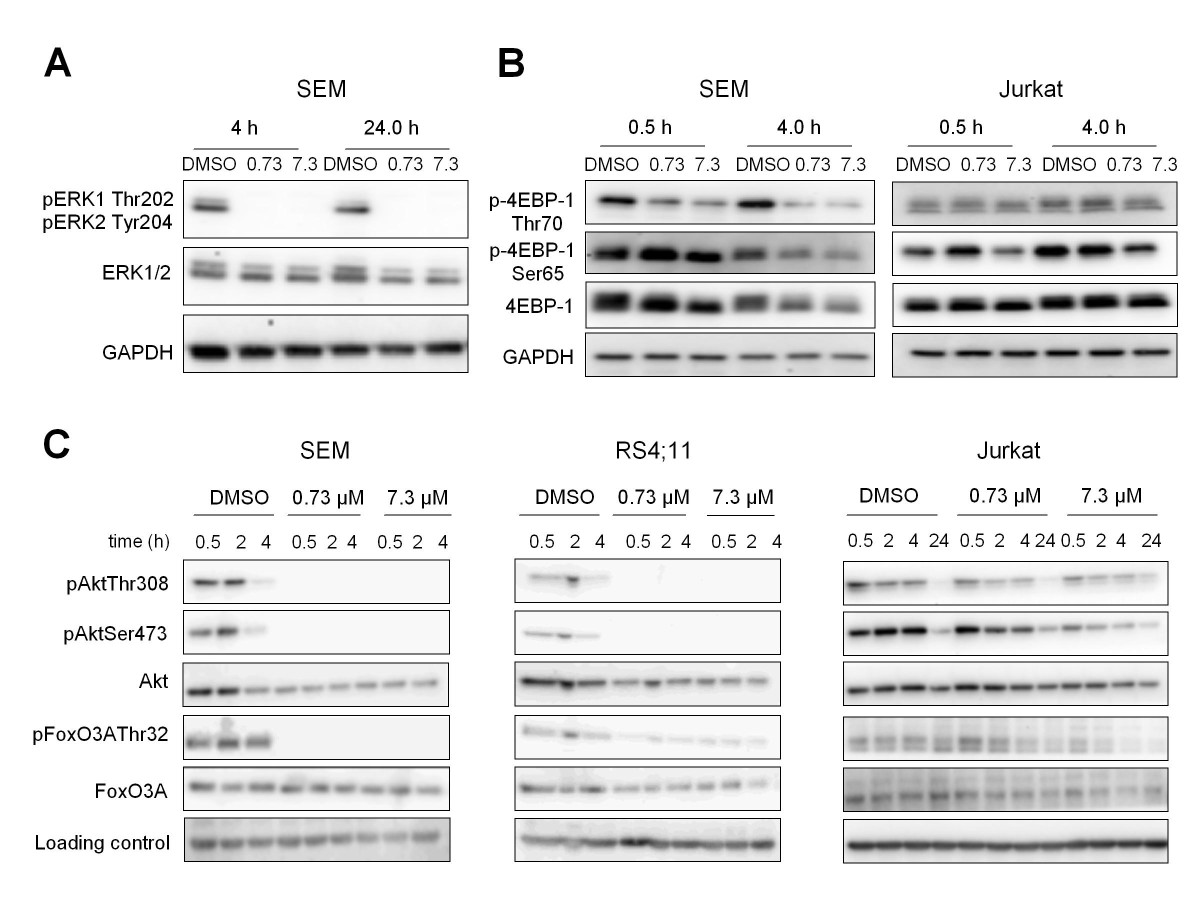

22]. Moreover, we analyzed mTOR kinase activity by analyzing the phosphorylation sites of 4EBP-1. In SEM and Jurkat cells reduced levels of p-4EBP-1 (Ser65 and Thr70) were detected with 7.3 μM Sorafenib after 0.5 h treatment. In addition, we showed a decrease of phosphorylation of transcription factor FoxO3A as a result of an inhibition of Akt. Dephosphorylation of Akt leads to a relocalization of FoxO3A from cytoplasm into the nucleus and acts as transcription factor [
23‐
25]. FoxO3A transcribes proapoptotic genes and cell cycle inhibitors such as
Bim-1, Bcl-6,
Trail,
p21Cip1,
p27Kip1 and
GADD45 which proteins block cell cycle progression or induce apoptosis, respectively [
26,

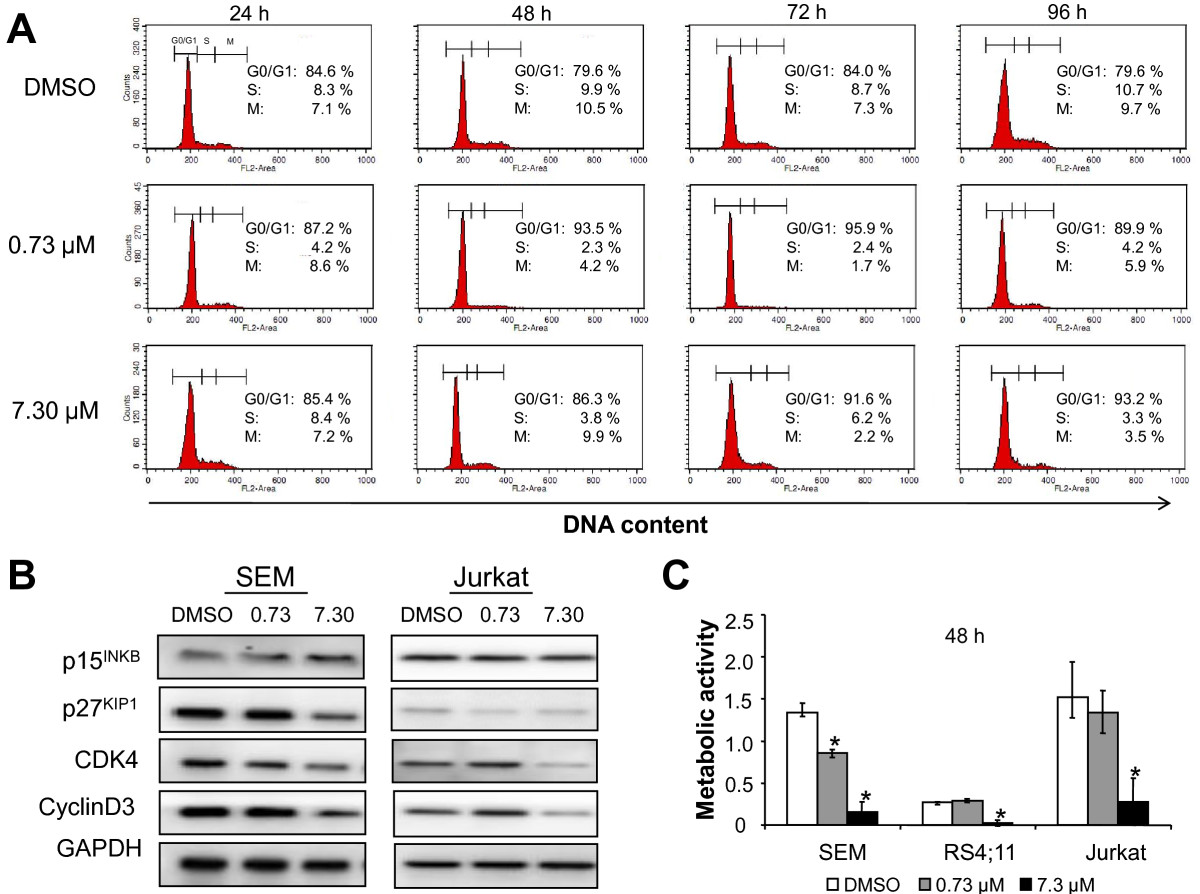

27]. In our study, we showed that antiproliferative effects of Sorafenib are caused by cell cycle arrest as well as apoptosis. G0/G1 arrest was associated with a decrease of CyclinD3 and CDK4 as well as an increase of p15
INKB in SEM and Jurkat Sorafenib (0,73 μM) treated cells. In contrast, protein levels of CDK2 inhibitor p27
Kip1 were lower than in untreated SEM cells, indicating that CDK2 inhibition were affected not only by FoxO3A transcription factors. In comparison to SEM cells, protein expression of p27
Kip1 is lower and not affected in Jurkat cells.
Our results indicate that Sorafenib influences not only the Raf/Mek/Erk pathway but also the PI3K/Akt/mTOR signaling pathway. Ulivi P et al. showed that Sorafenib exhibit a strong anti-proliferative effect independently of Ras/Raf/Mek/Erk [
21]. The mechanism by which Sorafenib inhibits Akt phosphorylation remains uncertain. Decreased levels of pAkt might be caused by inhibiting different upstream tyrosine kinases, as Sorafenib has also a potent activity against VEGFR, c-Kit, c-Raf and B-Raf [
5]. Expression of VEGFR-2 has been demonstrated in haematopoetic stem cells. After ligand binding of VEGFR-2 and following autophosphorylation, the Ras/Raf/Mek/Erk pathway and the PI3K/Akt signaling cascade are activated [
28]. In this context, we presume a cross-talk between both pathways that provide Akt inhibition after Sorafenib treatment in ALL cells. Recent studies described an interaction between MAPK and mTOR pathway [
29,
30]. These findings support our hypothesis that Sorafenib-induced inhibition of PI3K/Akt/mTOR as a result of blocking upstream several tyrosine kinases as well as Ras/Raf/Erk pathway.
Further, it is known that Sorafenib inhibits FMS-like tyrosine kinase 3 (FLT3). This receptor tyrosine kinase is mainly expressed in early myeloid and lymphoid progenitor cells and activates PI3K and Ras signal-transduction cascades [
31]. Internal tandem duplication insertions in the juxtamembrane domain of FLT3 (FLT3-ITD) leads to constitutive activation of this receptor. FLT3-ITD are common in AML (25%) whereas this mutation occurs much less frequently in ALL (<1%) [
32]. Additionally, it has been reported that mixed-lineage leukemia gene (MLL) rearrangement and hyperdiploid patients offer point mutations in the activation loop in the tyrosine kinase domain of FLT3 [
33]. This mutation results in ligand-independent receptor dimerization, phosphorylation and constitutive activation of downstream signalling pathways and is more frequent in ALL (5-22%) [
32,
34]. SEM and RS4;11 are precursor B-ALL cell lines and carry the t(4;11) MLL-AF4 fusion protein. However, both cell lines are negative for FLT3-ITD.
In order to enhance antiproliferative effects, combination of cytostatic drugs is commonly a reasonable approach. Successful combination therapy might enhance the impact of inhibitors, allowing lower doses of cytostatic drugs and thereby reducing side effects. Different studies in patients with melanoma, hepatocellular carcinoma or non-small-cell lung cancer suggest that Sorafenib has the potential to be combined with a variety of cytotoxic drugs and targeted agents [
35‐

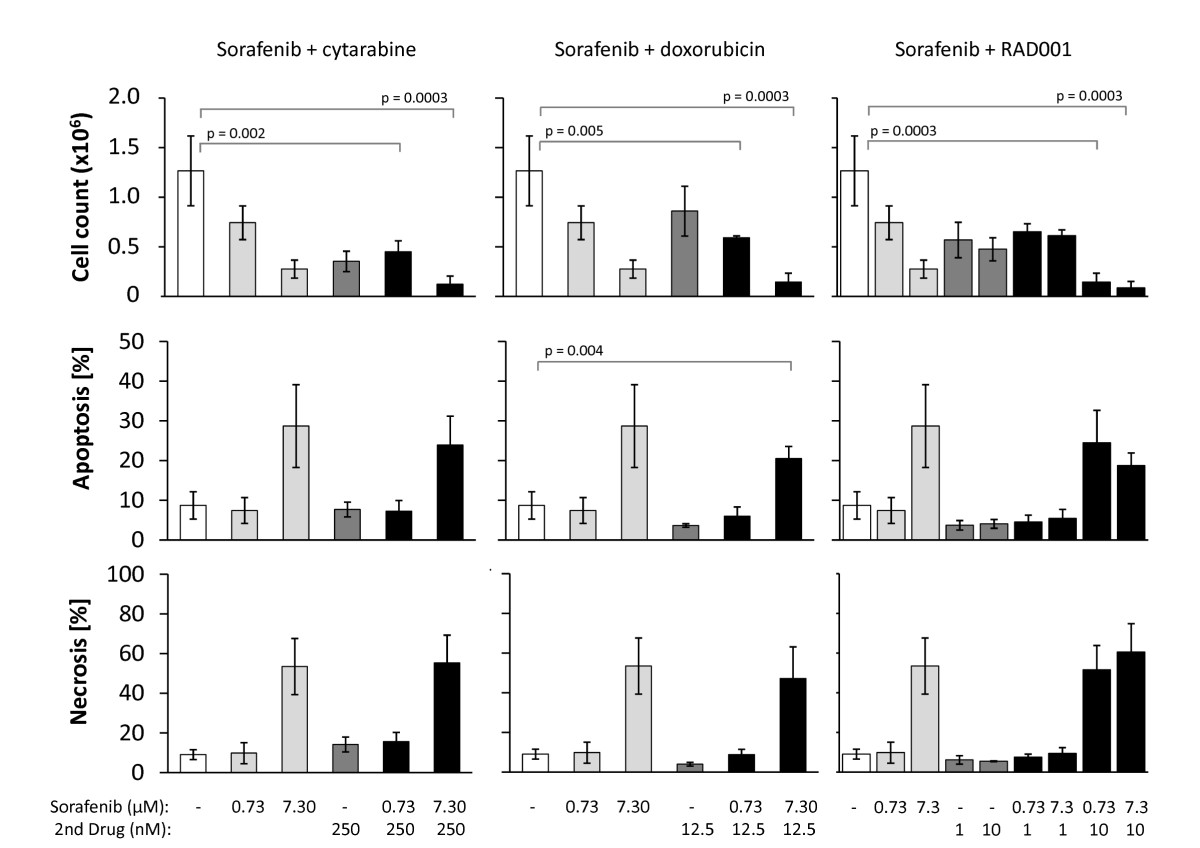

37]. Here, we treated cells with 0.73 μM or 7.3 μM Sorafenib in combination with sub-IC50 concentrations of cytarabine, doxorubicin and the mTOR inhibitor RAD001. Our studies demonstrate that the
in vitro effect of co-treatment with Sorafenib and cytostatics is "Bliss synergistic" in B-ALL cells regarding proliferation, apoptosis and necrosis as well. These results indicate that simultaneous application of Sorafenib with the tested conventional cytotoxic drugs might lead to synergistic impact, exceeding the expected pure "additive" effect of individual compounds with independent action. The results obtained indicate that the effects of the mixtures of Sorafenib and cytostatics can be studied experimentally, even at low concentrations of the single components.
We suppose that pre-treatment with cytarabine might potentate the
in vitro effect of Sorafenib and maximize apoptosis and necrosis rates. Integration of cytarabine is restricted and occurs mainly during the S-phase of cells. In our study, we demonstrated that Sorafenib induced cell cycle arrest by decreasing the proportion of cells in the S and M phase hindering the efficacy of cytarabine. Auclair
et al. reported that Sorafenib induces G0/G1 arrest in AML cells [
7]. Levis
et al. elucidated that pre-treatment with chemotherapy induce synergistic interactions, whereas treatment of cells with the FLT3 inhibitor CEP-701 followed by cytarabine administration results in antagonistic effect in FLT3/ITD expressing leukemia cell lines [
38]. In contrast, Zhang
et al. demonstrated that combination of Sorafenib with cytarabine synergistically inhibits
in vitro growth in AML cells [
8]. Further studies are warranted to show whether or not pre-treatment of cytostatic drugs potentate synergistic effects in Sorafenib treated ALL cells.
Additionally, we investigated antiproliferative effects of Sorafenib in combination with RAD001, a mTOR inhibitor to enhance toxicity in ALL cells. It has been shown, that inhibition of the Ras/Raf/Mek/Erk and PI3K/Akt/mTOR pathways is more effective and induces synergistically effects [
36,
39]. Combination of Sorafenib with RAD001 was associated with a significant inhibition of ALL cell growth. Previous studies demonstrated that RAD001 caused G1 cell cycle arrest and did not induce apoptosis in different cancer cell lines [
40‐
42]. Furthermore, it was reported that combination of RAD001 with the new RAF inhibitor LBT613 led to a significant decreased proliferation in glioblastoma cells [
43]. Treatment with RAD001 and Sunitinib synergistically inhibited the proliferation of leukemia cells [
44]. A previous report by Tamburini et al., 2008 demonstrated that RAD001 induced an up-regulation of phosphorylated Akt levels in AML cells [
45]. These data suggest that rather a pre-treatment than concomitant treatment with RAD001 may enhance Sorafenib antiproliferative effects on ALL cells. However, additional studies are needed to evaluate the efficacy of combination treatments with Sorafenib and anticancer drugs in ALL.
Competing interests
The research project was in part supported financially by BayerHealthcare, Leverkusen, Germany. There are no other financial or non-financial competing interests.
Authors' contributions
CS designed experiments, performed and analyzed data and wrote the manuscript; MD participated in the study design, data interpretation and edited the manuscript, SR participated in the study design and data interpretation. MS carried out some experiments; FA carried out some experiments, SL participated in the design of experiments and edited the manuscript, DE served as a collaborator and assisted with experimental design; AG performed statistical analysis and edited the manuscript; GF served as a collaborator and edited the manuscript, SB performed statistical analysis and edited the manuscript; OW served as a collaborator and edited the manuscript; LMN served as a collaborator and assisted with experimental design MF: contributed to experimental design and organization CJ designed experiments, analyzed data and participated in the design of the paper and critically revised it.
All authors read and approved the final manuscript.
