Thyroid-stimulating hormone is associated with trabecular bone score and 5-year incident fracture risk in euthyroid postmenopausal women: the OsteoLaus cohort

OsteoLaus is a sub-study of the CoLaus|PsyColaus study, an ongoing prospective study aiming to assess the determinants of cardiovascular and psychiatric diseases using a population-based sample [19, 20]. Information on the methodology of the CoLaus|PsyCoLaus study can be obtained at www.​colaus-psycolaus.​ch. Briefly, the CoLaus study was initiated in 2003; it included 6733 men and women aged 35 to 75 years living in the city of Lausanne, Switzerland. Follow-up has been done every 5 years, first in 2009, second in 2014, and third in 2018.

The goal of OsteoLaus is to obtain more precise fracture risk models and to evaluate the link between cardiovascular diseases and osteoporosis [21]. Between September 2009 and September 2012, all women aged between 50 and 80 years from the CoLaus|PsyColaus study were invited to participate in OsteoLaus. Of the initial 1704 women invited, 1500 (88%) accepted, and 1475 were included; 98.4% were Caucasian. Follow-up of OsteoLaus has been done every 2.5 years, first in 2012, second in 2015, and third in 2018.

The study was retrospective. Participants in the 5-year follow-up of OsteoLaus were included (n = 1212). Blood TSH and free T₄ were assessed at the first CoLaus follow-up, corresponding to the baseline OsteoLaus visit. Participants were sequentially excluded if they 1) had any anti-osteoporotic, antidiabetic, thyroid-modifying, hormone replacement or systemic corticoid treatment; 2) had no TSH or fT4 data, or no covariates; 3) presented with TSH or fT4 levels outside the normal reference values, and 4) had no densitometry or TBS data.

The primary endpoint of this study was to analyze the relation between fT4 and TSH in the normal range and bone measurements parameters (lumbar spine BMD, femoral neck BMD, total hip BMD, and TBS). The primary endpoint included an exploratory comparison of two subgroups divided by the medians of TSH and fT4: high fT4/low TSH and low fT4/high TSH. The secondary endpoint was to analyze the association between fT4 and TSH measured at baseline and the incidence of major osteoporotic fracture 5-year later.

BMD, TBS, and prevalence of fractures were assessed at baseline OsteoLaus visit using the following: (1) a questionnaire on potential clinical risk factors for fracture/osteoporosis, and on conditions affecting bone metabolism; (2) a spine (L1 to L4) and femur dual DXA scan using the Discovery A System (Hologic, Waltham, MA, USA); (3) a blind central processing of TBS (TBS iNsight® v3.03, Medimaps, Mérignac, France) based on the previously acquired antero-posterior spine DXA scan; (4) a vertebral fracture assessment (VFA) by two experimented clinicians using the semiquantitative approach of HK Genant [22]. Spine and femur DXA were analyzed according to the International Society for Clinical Densitometry (ISCD) recommendations [23]. The current TBS software is based on an algorithm accounting for BMI. We also used the research TBS algorithm which takes into account the soft tissue thickness TBS TTH [24]. Major osteoporotic fractures included vertebrae (clinical or radiologic grade 2/3 on VFA), hip, pelvis, humerus and radius, occurring spontaneously or after falling from the patient’s own height. Incidence of major osteoporotic fractures was assessed similarly during the second OsteoLaus follow-up after 5 years.

Assays were performed by the CHUV Clinical Laboratory on fresh blood samples within 2 h after collection. TSH and fT₄ were assessed by chemiluminescence (ECLIA) on a Cobas e 602 device (Roche diagnostics GmbH, Mannheim, Germany) with intra-batch coefficients of variation ranging between 1.1 and 3.0% for TSH and between 2.7 and 5% for fT₄. Technical documentation (in French) can be provided upon request. Reference ranges are 0.27 to 4.20 mU/L for TSH and 12 to 22 pm/L for fT₄ [25]. Serum and urinary creatinine were measured by the Jaffe kinetic compensated method (2.9–0.7%). Estimated glomerular filtration rate (eGFR) was computed using the MDRD equation.

Height and weight were measured with the participant barefoot and in minimum clothing, using a portable stadiometer/electronic scale (Seca version 216, Seca, Chino, CA, USA) with a precision of 0.1 cm and 0.1 kg, respectively. BMI was calculated by dividing the individual’s weight by height squared (kg/m²). Age, history of disease, smoking status, alcohol consumption, and menopausal duration were assessed by questionnaire. Menopause duration was categorized into ≤ and > 10 years.

Statistical analysis was conducted using Stata v.16 (Stata Corp, College Station, TX, USA). Prevalence levels and corresponding 95% confidence intervals for deteriorated TBS (values < 1.23) or BMD (values <  − 2.5 SD) were computed using the exact binomial procedure. Bivariate associations were conducted using Spearman correlations; multivariate associations were conducted using linear regression and the results were expressed as beta standardized coefficients. Multivariate linear regression used bone measures as the dependent variable and thyroid hormones as the independent variable, with adjustment for age (continuous), BMI (continuous), and duration of menopause (categorical). Statistical significance was considered for a two-sided test with p < 0.05. As previous studies suggested that low-normal TSH (i.e., < 1 mU/l in the normal range) may favor skeletal fragility and higher risk of fractures, a sensitivity analysis was conducted by comparing bone parameters according to three groups of TSH (< 1, 1–2.5, and > 2.5 mU/l). Further comparisons between participants with TSH levels below or above 1 mU/L were conducted among participants who experienced fragility fractures after 5-year follow-up. As bone parameters at baseline were strongly correlated (Spearman r ranging from 0.366 to 0.851, all p < 0.0001), several multivariable analyses adjusting for other covariates and for one parameter at the time were conducted.

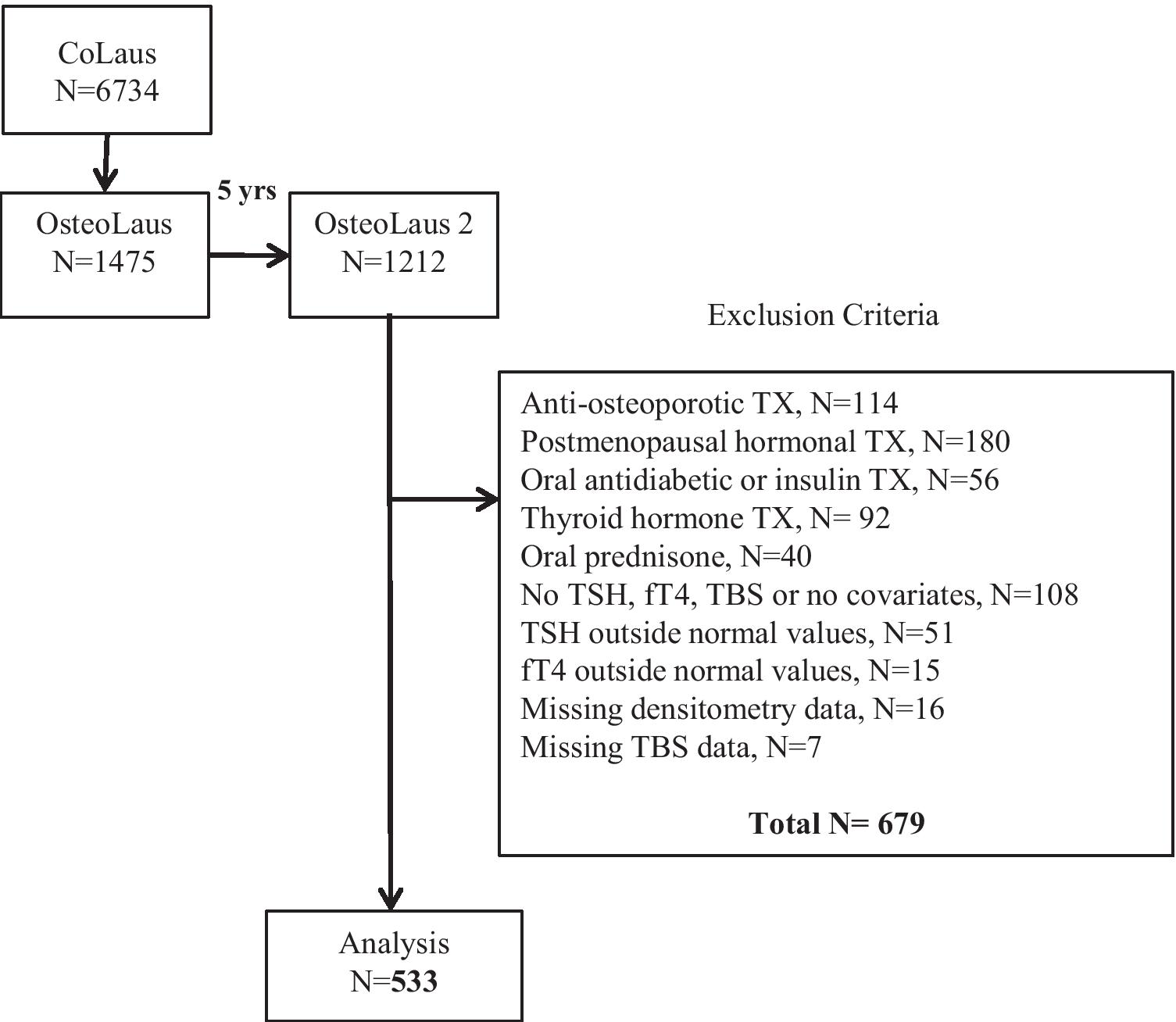

The selection procedure of the participants is shown in Fig. 1. Of the initial 1212 participants, 533 (45.6%) had normal values for TSH and fT4 (Supplementary Material, Fig. 1). The clinical characteristics of excluded and included participants are provided in Table 1. There were no significant differences between the two groups except for age, with the excluded participants being 1.5 years older. No included participant has further confounders such as renal failure (GFR < 15 ml/min/1.73m²), anticancer drugs, genetic bone disease or malformation, inflammatory bowel disease, gastrectomy, anorexia, neoplasm or other secondary osteoporosis. The prevalence of BMD <  − 2.5 DS was 10.9% (95% CI 8.4–13.8) at lumbar spine, 3.9% (95% CI 2.5–6.0) at total hip, and 5.3% (95% CI 3.5–7.5) at femoral neck. Deteriorated TBS was present in 18.4% (95% CI 15.2–21.9).

Bild vergrößern

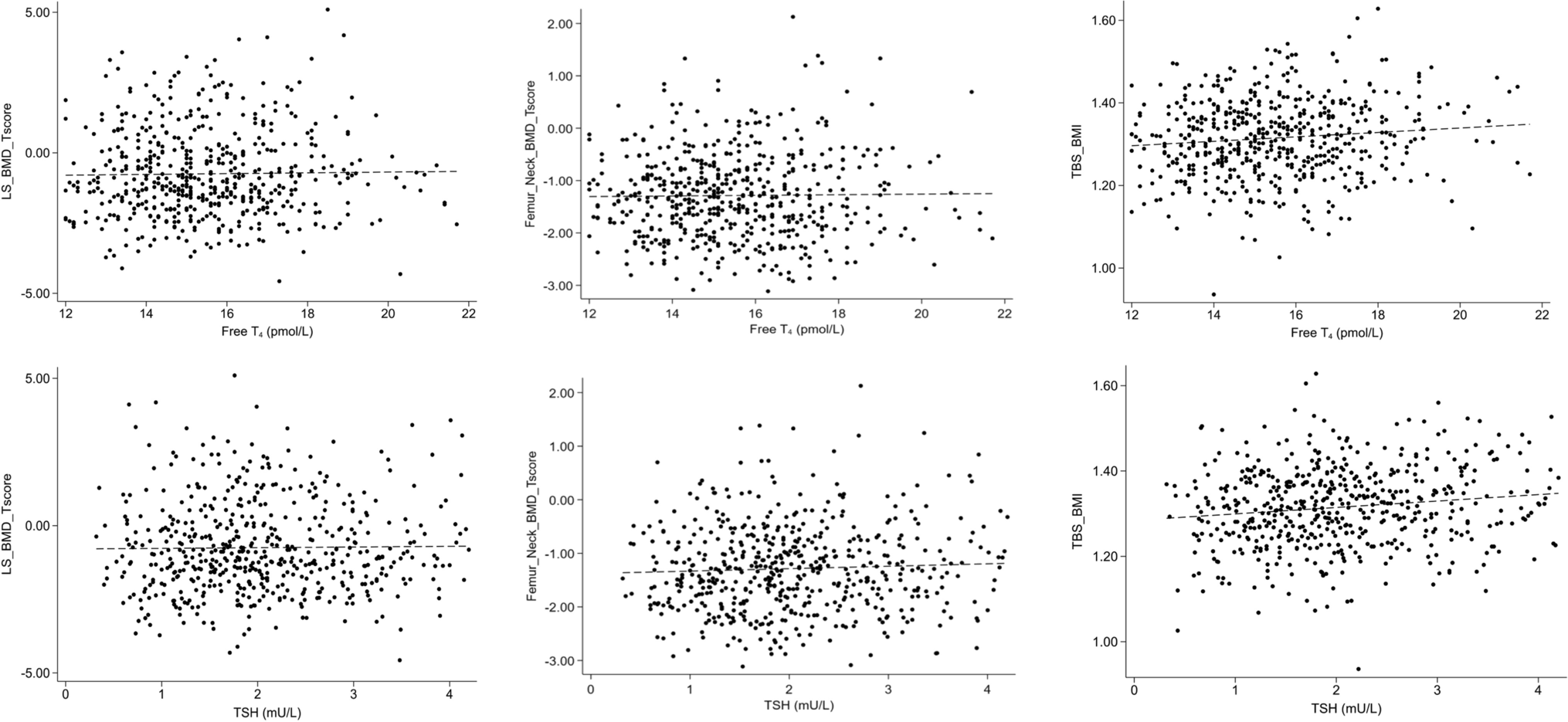

There was no association between fT4 and lumbar spine or hip BMD (Table 2 and Fig. 2). As the results for TBS and TBS TTH (algorithm used for research) were the same, we give only the results for the TBS used in clinical routine. fT4 was positively associated with TBS (β = 0.105, p = 0.015) in the unadjusted model but disappeared after adjustment. TSH was positively associated with TBS (β = 0.138, p < 0.01) in the unadjusted model, and remained significant after adjustment for age, BMI and duration of menopause (β = 0.087, p = 0.031).

Bild vergrößern

The purpose of this exploratory analysis was to detect a difference within the extremes of the normal fT4 and TSH values. We compared two subgroups divided by the medians of TSH and fT4: high fT4/low TSH (n = 137) and low fT4/high TSH (n = 136). Neither BMD values at the three measurement sites, nor TBS values differed between the two groups in the bivariate and multivariable analyses (Table 3). In the Supplementary Table 1, we analyzed TBS, BMD and fractures in subjects stratified in three groups TSH categories (TSH < 1 mU/l, TSH 1–2.5 mU/l and TSH > 2.5 mUl). The conclusions do not change relative to the comparison between high fT4/low TSH and low fT4/high TSH groups.

After 2.5 and 5 years, 30 and 44 participants, respectively, had a major incident osteoporotic fracture. Among these 44 participants, six had vertebral fracture and nine had two major osteoporotic fractures. After a 5-year follow-up, participants with major osteoporotic fractures had lower TSH levels than participants without fracture in the bivariate analysis (1.77 ± 0.13 vs. 2.05 ± 0.04 mU/l, p = 0.038, Table 4); this association remained after adjusting for age, BMI, and menopause duration. No association between TSH and incident fractures at 2.5 years was detected. There was no association between fT4 and the incident fracture after 2.5 or 5 years. Among participants who experienced fragility fractures after 5-year follow-up, we provided in Supplementary Table 2 the distribution of TBS and BMD in those with TSH below 1 mU/L and in those with TSH > 1 mU/l. We chose the 5-year follow-up to have the maximum number of participants and thus the highest statistical power possible. There was no difference in BMD or TBS values. There were strong correlations between all baseline variables (Spearman r ranging from 0.366 to 0.851, all p < 0.0001). Hence, to avoid collinearity, it was decided to adjust on a single variable, and several models were applied, one for each variable. The results are provided in Supplementary Table 3. The results confirm those indicated in Table 4, i.e., the probable existence of an association between TSH levels and incident fractures.

We found a positive association between TSH and TBS in postmenopausal women. The association between fT4 and TBS on bivariate analysis disappeared on multivariable analysis. The finding of an association between TSH and TBS, but not fT4 and TBS, is probably due to the higher sensitivity of TSH as a biomarker and the insufficient power to identify an association with fT4. In a Korean study including 648 postmenopausal women, fT4 was negatively associated with TBS, while no association was found between TSH and TBS or BMD [17]. Although both studies go in the same direction (a lower thyroid function is associated with higher TBS), the difference can be due to differences in participants: ethnicity, younger age, lower BMI, the use of a different DXA facility (GE Lunar Prodigy vs. Hologic) and the exclusion criteria. Two studies of thyroid cancer patients receiving exogenous T4 treatment to suppress TSH found the same trends. In 273 postmenopausal women with differentiated thyroid carcinoma, duration of TSH suppression was negatively correlated with lumbar spine TBS levels, but not with BMD [26]. Similar results were found in 84 Spanish postmenopausal women (but not in the 61 premenopausal women) treated with thyroid suppression therapy for differentiated thyroid carcinoma [27]. The authors concluded that TBS should be considered in the evaluation of these postmenopausal women for fracture risk evaluation. This association with altered TBS, but not with altered BMD, has been described in other causes of secondary osteoporosis (type 2 diabetes mellitus, chronic kidney disease glucocorticoids, HIV) [16].

We and the previously cited studies [17, 26, 27] found no association between TSH or fT4 and BMD, contrary to other studies [12, 28‐31]. Mazziotti G et al. found an association between low-normal TSH values and high prevalence of vertebral fractures in women, independently of thyroid hormones, age and BMD [29]. In 1278, European postmenopausal women (68 ± 7 years), higher fT₄ levels within the normal range were associated with lower hip BMD [30]. There was no association between lumbar spine BMD and fT4. Therefore, it is possible that participants with hyper- or hypothyroidism might have been included (2.5^th and 97.5^th percentiles values for fT4 and TSH). In a sample of 1426 peri-menopausal Dutch women, fT4 levels in the highest quartile within the normal range, but not low serum TSH, were independently related to decreased BMD at lumbar spine [31]. In a meta-analysis including 313,557 individuals (mean age from 51 to 85 years), in women, subclinical hyperthyroidism was associated with lower distal forearm BMD, whereas subclinical hypothyroidism (high TSH with normal fT4) was associated with higher femoral neck BMD [12]. The differences observed at lumbar spine between both studies may be related to the age of the participants. As TBS is not associated with degenerative disease or osteoarthritis, it gives an accurate result in patients over 60 year, where the lumbar spine BMD is overestimated [9].

The protective effect of TSH on bone has been demonstrated in in vitro studies by uncoupling bone resorption and formation, leading to an increase in bone mass [32‐34]. Only one in vitro study suggested that the effect of the thyrotropic axis on bone is due to the thyroid hormone effects instead of the direct effects of TSH itself [35]. A study in 10 thyroidectomized postmenopausal women treated with a recombinant TSH injection showed an increase in bone formation markers; this result was absent in the premenopausal group [36]. Another study including women treated with L-thyroxine suppressive therapy for thyroid carcinoma found a decrease in bone resorption markers and an increase formation markers after short term recombinant human TSH stimulation in postmenopausal women but not in premenopausal women [37]. It was therefore important to exclude women taking hormone replacement therapy from our analysis. In the TRUST randomized controlled trial, after 1 year of levothyroxine daily substitution (25–50 µg), there was no significant change on BMD and TBS in the 737 men and women included, and there was no difference to placebo-treated participants [18]. The population was older than 65 years and had a subclinical hypothyroidism [18]. This interventional study suggests that even if there is an association between TSH and/or fT4 and BMD and/or TBS, a modest change in fT4 and/or TSH values does not modify BMD and/or TBS in the short term. This could mean that a long-term change is needed to highlight a clinical significance.

This exploratory analysis was performed to highlight a possible difference between women close to subclinical hyperthyroidism or sub-clinical hypothyroidism values. For this analysis, we assumed that TSH and fT4 have an independent and inverse effect on BMD and TBS. Neither BMD values at the three measurement sites, nor TBS values differed between the two groups in the bivariate and multivariable analyses. The lack of difference observed may be due to the small sample size of the groups, or the fact that only TSH or only fT4 influences the BMD and TBS values. In a sample of 1426 peri-menopausal Dutch women, the BMD of participants with low TSH and high fT4 did not differ from that of other participants [29]. These results suggest that the interaction between thyroid hormones and the bone measurements in euthyroid subjects is small. It is still important to analyze these results with caution due to the potential bias from the categorization, and the unknown length of time of being in one or the other of the categories.

We found that women in the lower normal TSH range had a higher incidence of major osteoporotic fracture 5 years later. Our results are consistent with the association found between TSH and TBS. In the OPUS 6-year prospective cohort study (n = 1278), higher fT4 was associated with an increased risk of incident nonvertebral fracture, and higher TSH with a decrease of this risk [28]. In the OPENTHYRO register (n = 222,138, mean follow-up 7.5 years), the risk of hip fractures increased with each SD decrease of TSH in both genders, while the risk of major osteoporotic fractures increased only in women (HR 1.32, 95% CI 1.19–1.46) [38]. In a meta-analysis including 70,298 participants (mean age 64 years, 61.3% women), subclinical hyperthyroidism was associated with an increased risk of hip and other fractures, particularly among participants with TSH levels below 0.10 mU/L [13]. In another meta-analysis including 313,557 participants, subclinical hyperthyroidism was associated with a higher risk of all types of fractures [12]. Thus, there is a clear association in the literature between TSH and decreased risk of fracture [29]. However, caution should be used when interpreting the results because of the heterogeneity of the populations, and of the considered normal range for TSH values.

The main strength of this study is the design of the OsteoLaus and CoLaus cohorts. All blood tests and DXA exams were done under the same conditions. The same thyroid hormone normal values were used for all participants. Another strength is the purity of the studied sample reached through the exclusion criteria and confounders for osteoporosis. For example, we excluded the diabetic patients whose TBS is decreased while their BMD is paradoxically increased [39]. The limitations of the study are related to the relatively small sample size. In addition, due to the exclusion criteria, the results are not generalizable to all postmenopausal euthyroid women. We have not measured thyroid autoantibodies. Autoimmunity per se may affect bone structure. We have not measured fT3, which probably has a regulatory role. This could support measurement of fT3, fT4, and TSH in future studies, to better understand the link between thyroid hormones and bone. The effect of thyroid hormones on muscle has also been documented [38, 40]. This effect could alter the association between thyroid hormones and a marker of bone health. Inherent biases are the inter/intra individual or seasonal variation and the genetic polymorphism of the thyroid hormones. Minimizing those effects was possible thanks to the study size and the systematic collection of blood samples on the same time of the day [41]. TSH values were measured at baseline and not during the follow-up. This is a potential limitation of the study because the time of exposure to low and low-normal TSH may be an important factor influencing skeletal health [42].
