Rapid detection of carriers with BRCA1 and BRCA2mutations using high resolution melting analysis

BRCA1 and BRCA2 are the two most frequently mutated genes underlying inherited breast and ovarian cancer. As both are large multi-exon genes, with inactivating mutations occurring across the entire coding region, the consequent cost of BRCA1/2 mutation screening has limited mutation testing to those who are most likely to have a mutation based on their family history of cancer. Consequently, a significant proportion of women carrying germline mutations are missing out on the opportunity to have mutation screening and thereby to modify their risk of breast cancer, particularly those with a small pedigree structure or where the inheritance is through the paternal lineage. The costs of full sequencing are reducing, but it will be some years before they drop significantly enough to have a serious impact on the numbers of genetic tests provided by scarce health dollars. In the meantime, an alternative approach is to use a mutation scanning technique to highlight variations in genomic sequences which are then characterised by sequencing.

High resolution melting (HRM) is a new methodology for mutation scanning in which the mutation scanning is carried out in the same tube or well in which the sequence is amplified (reviewed in [1]). The PCR reactions and HRM can all be performed in a single run of less than 2 hours resulting in extremely rapid screening. Up to 384 scans (generally 192 samples in duplicate) can be done at the same time enabling very high throughput.

We selected several regions of the BRCA1 and BRCA2 genes known to carry a number of founder mutations in order to investigate the ability of HRM for reliable detection of both known founder mutations and other mutations occurring in close proximity to those founder mutations. Founder mutations are specific mutations found at high frequency in a particular population as a result of geographic, cultural or ethnic isolation. Individuals of Ashkenazi Jewish ancestry have a particularly high carrier rate for three mutations predisposing to the hereditary breast and ovarian cancer syndrome: the 185delAG and the 5382insC in BRCA1 and the 6174delT in BRCA2 with a population prevalence of approximately 2.5% [2‐4]. The 5382insC in exon 20 of BRCA1 is also one of the most common recurrent mutations in Central and Eastern Europeans [5‐9]. This exon also contains the 5331G>A BRCA1 mutation recently shown to be a founder mutation in Greek Europeans [10].

We tested DNA from the peripheral blood of individuals heterozygous for known mutations in the three regions containing the Ashkenazi founder mutations predisposing to breast and ovarian cancer as well a series of wild type controls (Table 2). As in our previous publications on mutation detection [13, 14], we found that difference curves, where the melting profile of one of the control samples is converted to a horizontal line and the melting profiles of the other samples are normalised against this line, allowed the best visualisation of mutations.

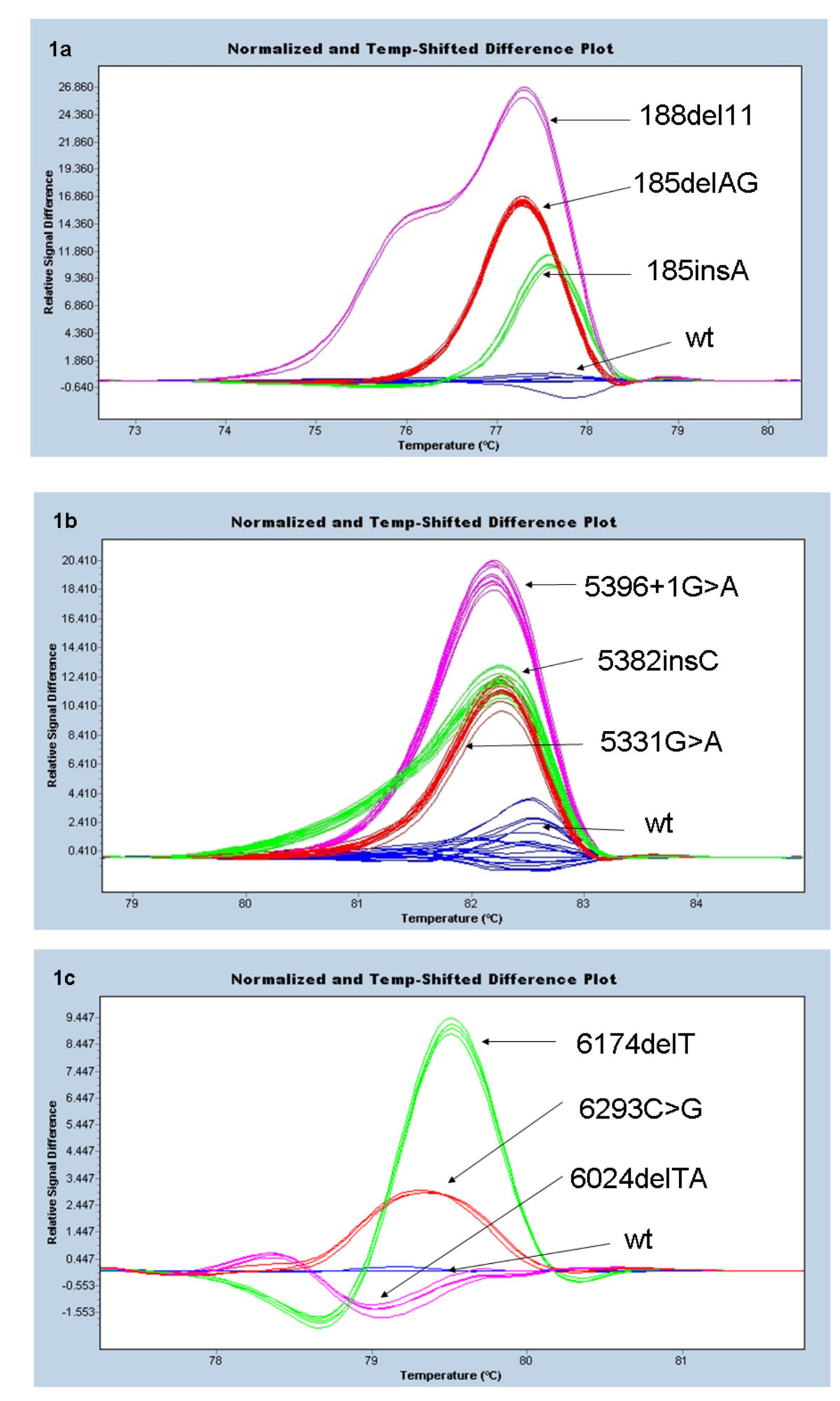

For BRCA1 exon 2 (Figure 1a), we tested DNA from 4 individuals with the Ashkenazi mutation 185delAG as well as 1 individual with the mutation 188del11 and 2 individuals with the mutation 185insA. The mutations were all readily differentiated from the wild type. They were also readily differentiated from each other giving characteristic melting curves as is readily seen from the figure. It can also readily be seen that biological replicates had near identical melting patterns.

Similarly for the amplicon including BRCA1 exon 20 (Figure 1b) and for the amplicon including the region around the 6174delT mutation in BRCA2 exon 11 (Figure 1c), all the mutations were readily identified, displayed characteristic melting curves and were clearly differentiated from the wild type and from each other. The mutations tested in addition to the 5382insC (6 individuals) were the 5396+1G>A (4 individuals) and the 5331G>A (5 individuals). The mutations tested in addition to the 6174delT (3 individuals) were the 6024delTA (2 individuals) and the 6293C>G (2 individuals). Biological replicates again had near identical melting patterns.

DNA sequencing is regarded as the gold standard for BRCA1 and BRCA2 mutation detection. However, in practice, most testing laboratories perform a preliminary scan of exons and splice junctions using methods such as the protein truncation test (PTT), denaturing gradient gel electrophoresis (DGGE) and/or denaturing high pressure liquid chromatography (DHPLC) to reduce cost and increase throughput. Any region that is found to potentially contain a mutation by scanning is then characterised by sequencing.

Scanning methods are particularly relevant to studies involving large numbers of individuals. A recent Canadian study [15] used a combination of PTT, DGGE and DHPLC to scan the BRCA1 and BRCA2 genes, followed by DNA sequencing to screen for BRCA1 and BRCA2 mutations. Although very sensitive, PTT, DGGE and DHPLC do not detect all mutations. In particular, PTT, which is used for screening of the large exons comprising approximately half of the total sequence of the BRCA1 and BRCA2 genes, does not detect missense alterations. Both DHPLC and DGGE are both operator and interpreter sensitive. It has been shown that DHPLC, which is currently considered as the gold standard of screening methods, is superior to DGGE for the detection of BRCA1 and BRCA2 mutations [16].

HRM is an in-well scanning method in which the melting analysis is performed immediately after the PCR amplification and is thus particularly suitable for high-throughput applications. HRM is predicted to have close to a 100% sensitivity as each heterozygous mutation should create a readily detected heteroduplex [17]. Heterozygotes are readily recognisable by HRM because they form a proportion of heteroduplexes which melt differently to perfectly matched homoduplexes. The use of HRM to detect both known and novel germline mutations has been reported for several other genes including the EXT1, EXT2, RET, GJB1 and CFTR genes [18‐21]. All germline mutations in the BRCA1 and BRCA2 genes are expected to occur in heterozygotes as mutant homozygotes are lethal [22] and consistent with this, none have been reported.

A comparative study has recently shown that the sensitivity and specificity of HRM is better than DHPLC which is the current gold standard of scanning methods [17]. In addition, HRM is more rapid as the melting analysis is performed in all wells simultaneously whereas DHPLC involves the removal of the PCR product (in itself problematical because of the PCR contamination issue) and then the sequential analysis of each sample. The instrumentation for DHPLC is more expensive and the analysis generates chemical waste which requires disposal. There are therefore significant time and cost advantages in adopting HRM.

In our hands, all the different mutations in the 3 regions that we analysed from the BRCA1 and BRCA2 genes were detected, giving us a sensitivity of 100% in this pilot study. The true sensitivity remains to be determined in a larger study, but publications for other genes indicate that it is likely to be very high [14, 17]. A larger study is currently underway in our lab testing several hundred known mutations in historic samples across all BRCA1 and BRCA2 coding regions in combination with the screening of prospectively collected diagnostic samples. This will provide further insight into the true sensitivity of HRM and applicability of the method for mutation scanning of the entire coding regions of BRCA1 and BRCA2.

Currently, the three founder mutations associated with Ashkenazi Jewish ancestry are generally identified using sequencing and, once a mutation is identified in a family, other family members can undergo predictive testing by sequencing for the exon in which the mutation was identified. However, as the frequency of the three founder mutations is relatively high, it is possible that a second mutation might be segregating in the family and so ideally all founder mutations should be sought in other family members. HRM would allow testing for all three Ashkenazi mutations in family members at relatively low cost. The testing would also enable inexpensive population-based screening of individuals with Jewish ancestry for the founder mutations.

We also detected the 5331G>A mutation in BRCA1 exon 20 that has recently been shown to be a Greek founder mutation [10]. Large scale screening for this founder mutation can now be undertaken in relevant populations. A similar approach can be applied to other founder mutations in regions not screened for in this study. The ability to detect mutations by HRM alone has implications for economical large scale population screening studies to understand the prevalence and characteristics of other known or suspected founder mutations.

HRM can also be used as an inexpensive methodology for tracking mutations across pedigrees. Each mutation had a characteristic melting profile that would allow it to be identified by using a control for that mutation. In some cases, this would remove the necessity for sequencing. However, for diagnostic purposes, any apparently mutation positive individual should be confirmed by sequencing as different mutations can also have similar profiles.

Dufresne and colleagues [23] reported the use of melt curve analysis for the specific detection of the Ashkenazi mutations using SYBR Green 1 incorporation as monitored by a standard real time PCR machine. This approach is melting analysis rather then the high resolution melting (HRM) we have used here. Whereas their methodology is capable of detecting known mutations such as the Ashkenazi mutations by designing primers flanking those mutations, our methodology is an essentially different and more powerful methodology which is designed primarily as a screening methodology. We used an appropriate dye for high resolution melting, an HRM enabled real time PCR machine (only recently available) and software that allows HRM analysis to be performed. The greater sensitivity of HRM allowed longer amplicons to be used (534 base pairs was successfully used for the region surrounding the 6174delT mutation) which allows for the screening of unknown mutations as we have demonstrated. Thus by examining extra, non-founder mutations in close proximity to the founder mutations we show that this method easily detects missense mutations as well as small insertions and deletions. Interestingly, the missense mutation heterozygotes melt earlier than some of the deletion/insertion heterozygotes; the 6174delT initially being more stable than even the wildtype.

Based on our current findings, we are confident that HRM for mutation detection will prove superior to the current germline mutation screening approaches in terms of speed, and cost and give at least equivalent sensitivity. HRM is the most rapid of the current screening methods as the only set-up involved is the PCR amplification, up to 384 reactions can be tested in the one run for a given amplicon and the results can be rapidly scanned by a technician. Consequently, HRM is the least expensive of the current screening methods as the only consumables cost involved is the PCR amplification with a HRM dye and the reaction vessels while the rapid scanning reduces labour costs. Consequently, we believe that HRM may become the method of choice for BRCA1 and BRCA2 mutation screening in both the diagnostic and research settings.

This study demonstrates the use of HRM as a method to scan for the common germline BRCA1 and BRCA2 mutations such as those seen in Ashkenazi Jewish individuals. It also demonstrates the potential of this method for screening the BRCA1 and BRCA2 genes as every mutation tested for was readily detected. Whereas, the use of HRM for full screening of the BRCA1 and BRCA2 still needs to be verified by sequencing, screening for the Ashkenazi founder mutations (or other founder mutations) can now be carried out by laboratories with access to the increasingly available high resolution melting platform. The method is sensitive, rapid and cost effective and will markedly reduce the amount of sequencing required in mutational studies of BRCA1 and BRCA2, and thereby the time and cost required for these studies.
