To our knowledge, a single biodistribution study was carried out after non-IV administration of QDs. Gopee
et al. [
19] investigated the distribution in healthy mice of 48 pmol intradermally (ID) injected QDs with a diameter of 37 nm and PEG coating. The authors did not find any QDs in lymph nodes until 12 h after injection, whereas we could detect them already 5 minutes following the injection (Figure
1). An early detection (3 min) of QDs traveling toward inguinal nodes was observed after intratumoral injection of red emitting QDs at concentrations similar to ours [
14]. However this observation was not followed by biodistribution investigations. QDs Fluorescence increases with time to reach a maximum at 60 min after the injection. The calculated percentages of the injected dose (2.42% at 60 min and 1.24% at 24 h) (Table
1) were comparable with those of Kim
et al. [
13] and Gopee
et al. [
19] who found 2–4% and 1.07% respectively in the SLN. We observed a 4 fold decrease of QDs concentration in ALN from 60 min to 24 h post-injection (Figure
1). We also noted a strong fluorescence of QDs at the injection site. This observation is consistent with the study of Gopee and co-workers [

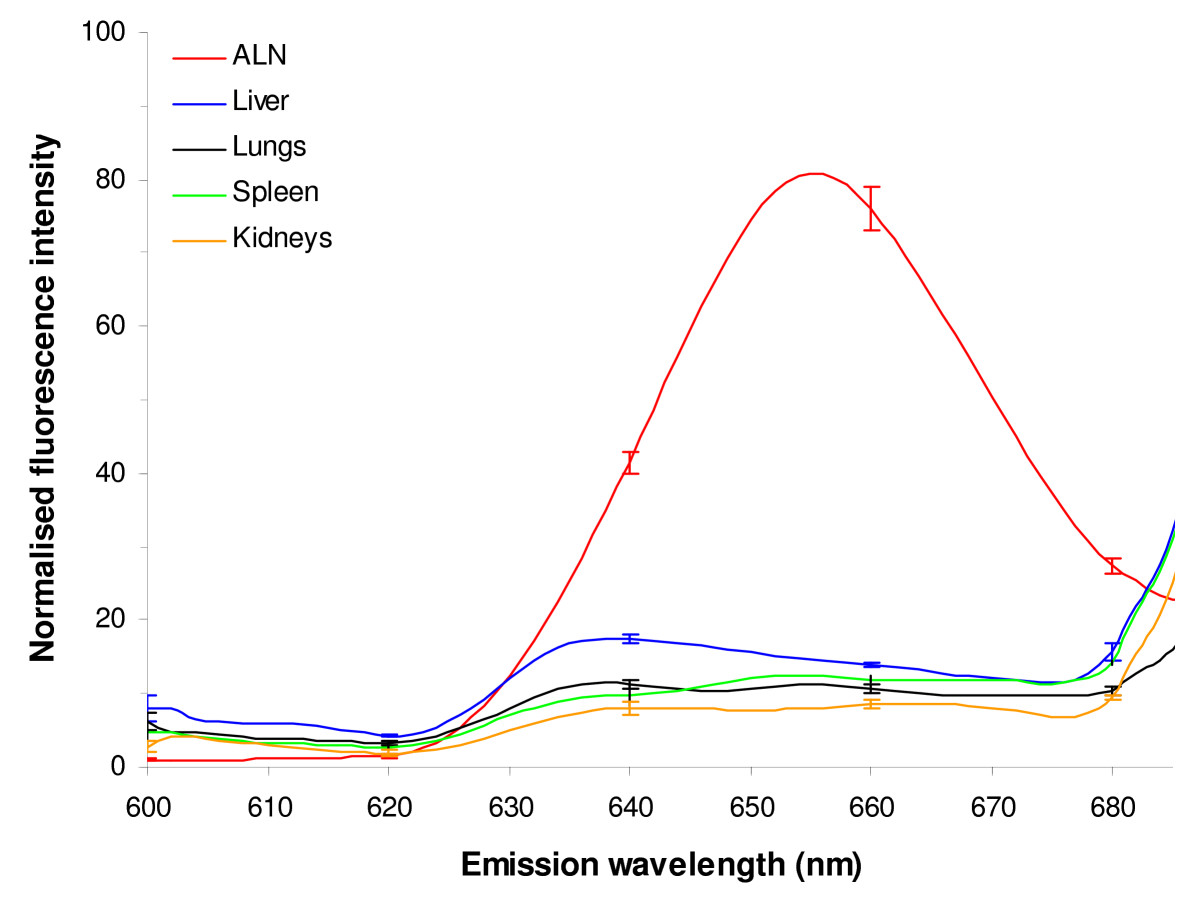

19] who found 60% of cadmium retention at the injection site. We further undertook the study of the biodistribution of QDs in the organs. No fluorescence peak was observed after chemical extraction of Qdot
® 655 ITK™ carboxyl in liver, kidneys, spleen, lungs, heart, intestine, brain, bladder, and skin (Figure
3). This points out that we are below the calculated concentration limit (Table
2), even if the latter is as low as around 2.5 pmol/g of tissue. The lower detection threshold observed for pigmented organs such as liver and heart was expected (Table
2) since the fluorescence detection method employed in our study is very sensitive to the absorption properties of the sample. In contrast to our results, the previous QDs biodistribution studies all evidenced the presence of QDs in the liver and also to a minor extent in spleen and kidneys [
18,
19]. The plausible explanation could be provided by the difference in the site of injection. Gopee
et al. [
19] injected QDs ID in the dorsal flank and found 24 h after injection 6.40% of the initial dose in liver and a small amount in kidneys (0.51%) and spleen (0.18%). We have administrated QDs subcutaneously in the paw. ID injection of QDs in the flank drains differently from the SC injected QDs [
25] because of the anatomical differences in lymphatic network of the two regions. Likewise, when intradermal injection is performed on the back, direct lymphatic drainage to retroperitoneal and paravertebral nodes can occur before the injected product is distributed throughout the body [
26]. When injection is performed in the paw, the first lymph node that receives direct lymphatic drainage is always in the axillary area. QDs are unlikely to be excreted from the body, neither by urine nor by feces in the time span of 48 h. This observation is in agreement with previous work [
18] demonstrating the absence of QDs in urine and feces during ten days. Theses results are explained by the dramatic reduction of renal filtration for QDs with a hydrodynamic diameter higher than 3.5 nm and with negative charges [
27]. Taken as a whole, the decline in QDs concentration 24 h post-injection could not be attributed to the elimination and/or migration of QDs to different organs. Assuming very strong retention in SLN, we hypothesize that QDs may diffuse in the second lymph node of the chain. This supposition is consistent with the fluorescence distribution pattern of QDs in SLN (Figure
2). Indeed QDs fluorescence is extended till medulla sinus, thus rending possible the migration to the distal lymph node through the lymph channels. The interaction of QDs with serum should also be addressed. We did not perform studies on the interaction of carboxyl QDs with serum proteins, however, as it was shown recently anionic or cationic charged QDs were associated with an increase of the hydrodynamic diameter after incubation with serum [
20]. Moreover, the intensity of fluorescence of QDs increases in the presence of BSA [
28] or hemoglobin [
29].

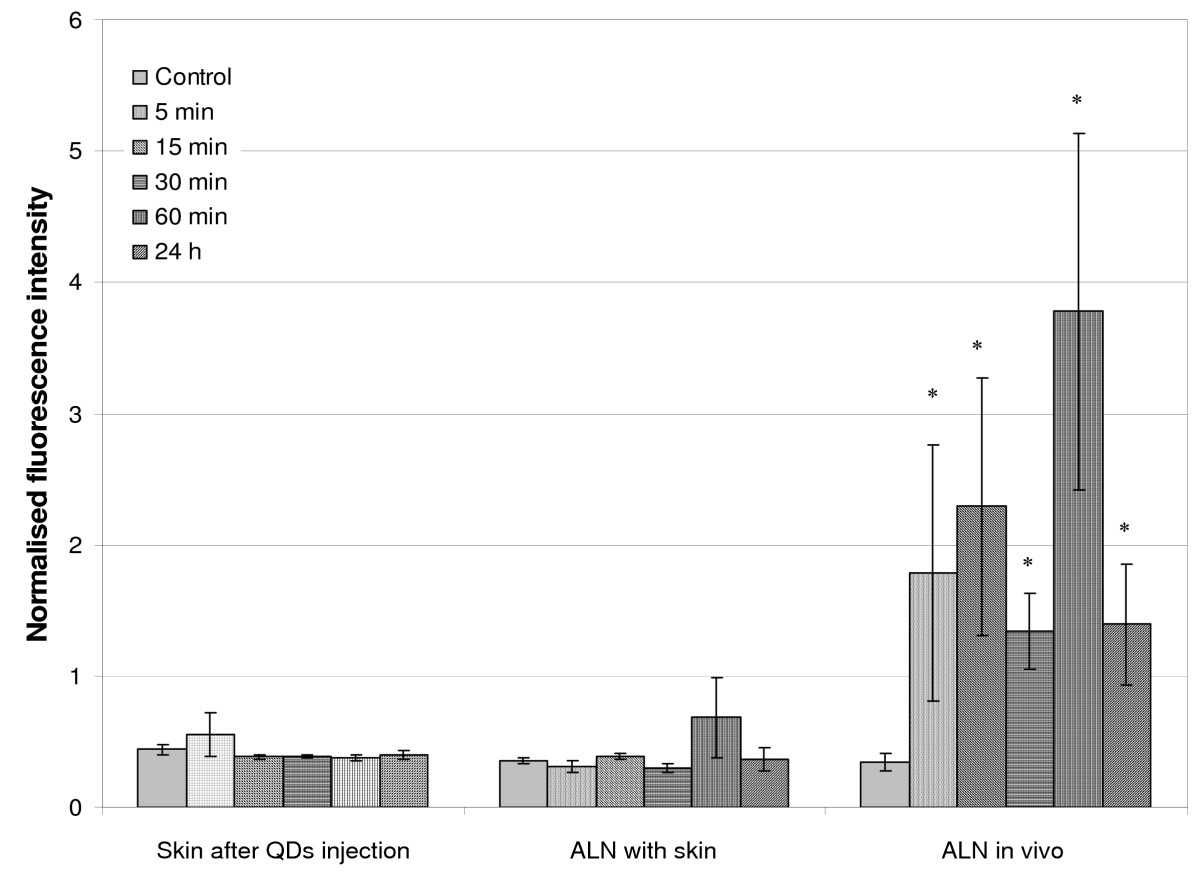

Spectrofluorometry using an optical fiber is a non-invasive procedure for the detection of fluorescent tracers. The results of our study demonstrate that despite the incapacity to detect QDs directly through the skin, LIF measurements allow the detection of QDs in ALN after skin incision with a profile similar to chemical extraction (Figure
4). However, non-invasive measurements are frequently suffering from significant variations of measurements, related to light diffusion and scattering. Further, actually, our work is a preliminary step to use of NIR emitting QDs which we expect the detection of QDs through the skin without any incision. In the future, the non-invasive measurements could be achieved by modulating an excitation wavelength and using NIR emitting QDs. The excitation wavelength in our study was set to 410 nm. Using an excitation at larger wavelengths should result in less skin absorption and scattering, and should make deep tissue imaging possible. Detection of QDs with optical fiber spectroscopy opens perspectives for the utilization of this technique in operation theatre, since it can provide a rapid and reliable QDs detection immediately after SLN excision. A limitation to the clinical use of QDs for SLN mapping is their potential toxicity [
30]. However, because most of the injected dose is eliminated by removal of the injection site and nodal tissue, the eventual toxicity may be negligible. Furthermore, to avoid toxicity caused by biodegradation of QDs and exposition of core metal ions, QDs with non-heavy metal cores (such as indium) would be developed along with ameliorations of surface chemistry [
31].
