Background
Heme oxygenase (HO) is a microsomal enzyme that catalyzes oxidative cleavage of the porphyrin ring in heme molecule leading to the formation of biliverdin, carbon monoxide (CO) and free iron [
1,
2]. Biliverdin is further converted into bilirubin by biliverdin reductase. All HO products exert pleiotropic effects including numerous cytoprotective responses [
3]. Bilirubin and biliverdin are among the most potent endogenous scavengers of reactive oxygen species (ROS) [
4]. CO exerts strong antiapoptotic and anti-inflammatory effects through induction of soluble guanylyl cyclase. It suppresses production of tumor necrosis factor (TNF), interleukin-1β (IL-1β) and CCL4 chemokine (macrophage inflammatory protein-1β), but up-regulates synthesis of anti-inflammatory IL-10 [
5]. Finally, free iron (Fe
2+) despite participation in Fenton reaction that leads to formation of highly reactive hydroxyl radicals, also activates Fe-ATPase, a transporter that removes intracellular iron, as well as induces expression of ferritin heavy chains which sequester free iron and exert specific cytoprotective roles [
6].
Two isoforms of heme oxygenase exist. HO-1 is an inducible enzyme that belongs to the heat shock protein (HSP32) family. Its expression is induced by a vast array of stress-inducing stimuli that include: oxidative stress, heat shock, UV irradiation, exposure to heavy metals and numerous other toxins, including chemotherapeutics [
7]. Some observations indicate that HO-1 and its products also exert anti-inflammatory effects and participate in the control of growth and proliferation of tumor cells. Elevated constitutive levels of HO-1 have been observed in a number of human tumors including glioma, melanoma, prostate, pancreatic and renal cell carcinoma, lymphosarcomas, Kaposi sarcoma and hepatoma [
7]. Enhanced expression of HO-1 can also contribute to tumor progression through promotion of angiogenesis and metastases formation [
8,
9]. Furthermore, the increased basal level of HO-1 expression in tumor cells can be further elevated by chemotherapeutics, radiotherapy or photodynamic therapy [
10,
11].
Altogether HO products participate in attenuation of oxidative stress, suppression of inflammatory responses, inhibition of apoptosis and promotion of angiogenesis [
12,
13]. Therefore, accumulating evidence indicates that HO-1 can be a therapeutic target for antitumor treatment. Indeed, it was shown that zinc protoporphyrin IX (Zn(II)PPIX) or its pegylated derivative, a potent HO inhibitor, can exert significant antitumor effects against several tumors in mice [
14‐
16]. Moreover, inhibition of HO-1 expression or activity was shown to increase responsiveness of tumor cells to other anticancer treatments
in vitro [
10,
16,
17]. The aim of these studies was to explore the
in vivo role of HO-1 in tumor growth and in protecting tumor cells against chemotherapeutics.
Methods
Tumor cells
Human ovarian carcinoma (MDAH2774), human pancreatic adenocarcinoma (Mia PaCa2), human breast carcinoma (MDA-MB231), murine breast carcinoma (EMT6) cell lines were purchased from ATCC (Manassas, VA, USA). Murine colon-26 (C-26), a poorly differentiated colon adenocarcinoma cell line was obtained from prof. Danuta Dus (Institute of Immunology and Experimental Medicine, Wroclaw, Poland). B16F10 murine melanoma cells were provided by Dr. M. Kubin (Wistar Institute, Philadelphia, PA). Cells were cultured in RPMI 1640 medium (C-26 and B16F10) (Invitrogen, Carlsbad, CA, USA) or DMEM (MDAH2774, Mia PaCa2, MDA-MB231 and EMT6) supplemented with 10% heat-inactivated fetal calf serum, antibiotics, 2-mercaptoethanol (50 μM) and L-glutamine (2 mM) (all from Invitrogen), hereafter referred to as culture medium.
Reagents
Zinc (II) propoporphyrin IX (Zn(II)PPIX), a HO-1 inhibitor, was purchased from Frontier Scientific Europe Ltd. (Carnforth, Lancashire, United Kingdom) and was dissolved in dimethylsulfoxide (DMSO) (Sigma, St. Louis, USA) to the final stock concentration of 5 mM. Bilirubin (Sigma, St Louis, MO, USA) was dissolved in 0.1 N NaOH to the final stock concentration of 10 mM. Hemin (from Sigma) was dissolved in 0.1 N KOH to the final stock concentration of 10 mM. All the solutions were prepared in the dark right before adding to the cell cultures.
Mice
Female BALB/c and C57Bl/6 mice, 8–12 weeks of age were used for in vivo experiments. Breeding pairs were obtained from the Institute of Oncology (Warsaw, Poland). Mice were kept in conventional conditions with full access to food and water during experiments. All of the animal studies were performed in accordance with the guidelines approved by the Ethical Committee of the Medical University of Warsaw.
Western blotting
For Western blotting C-26 were treated with Zn(II)PPIX for 24, 48 or 72 h. After indicated times of culture cells were washed with PBS and lysed with radioimmunoprecipitation assay buffer (RIPA) containing Tris base 50 mM, NaCl 150 mM, NP-40 1%, sodium deoxycholate 0.25% and EDTA 1 mM supplemented with Complete® protease inhibitor cocktail tablets (Roche Diagnostics, Mannheim, Germany). Protein concentration was measured using Bio-Rad Protein Assay (BioRad, Hercules, CA, USA). Equal amounts of whole cell proteins were separated on 12% SDS-polyacrylamide gel, transferred onto Protran® nitrocellulose membranes (Schleicher and Schuell BioScience Inc., Keene, NH, USA), blocked with TBST [Tris buffered saline (pH 7.4) and 0.05% Tween 20] supplemented with 5% nonfat milk and 5% FBS. The following antibodies at 1:1000 dilution were used for the 24 h incubation: mouse monoclonal anti-α-tubulin (Promega Corporation, Madison, WI, USA), rabbit polyclonal anti-cleaved caspase 3 (Cell Signaling Technology, Beverly, MA, USA) and mouse monoclonal anti-cyclin D1 (Santa Cruz). After extensive washing with TBST, the membranes were incubated for 45 min with corresponding alkaline phosphatase-coupled secondary antibodies (from Jackson Immuno Research). The color reaction for alkaline phosphatase was developed using nitroblue tetrazolium and 5-bromo-4-chloro-3-indolyl phosphate (Sigma).
Cytostatic/cytotoxic assay

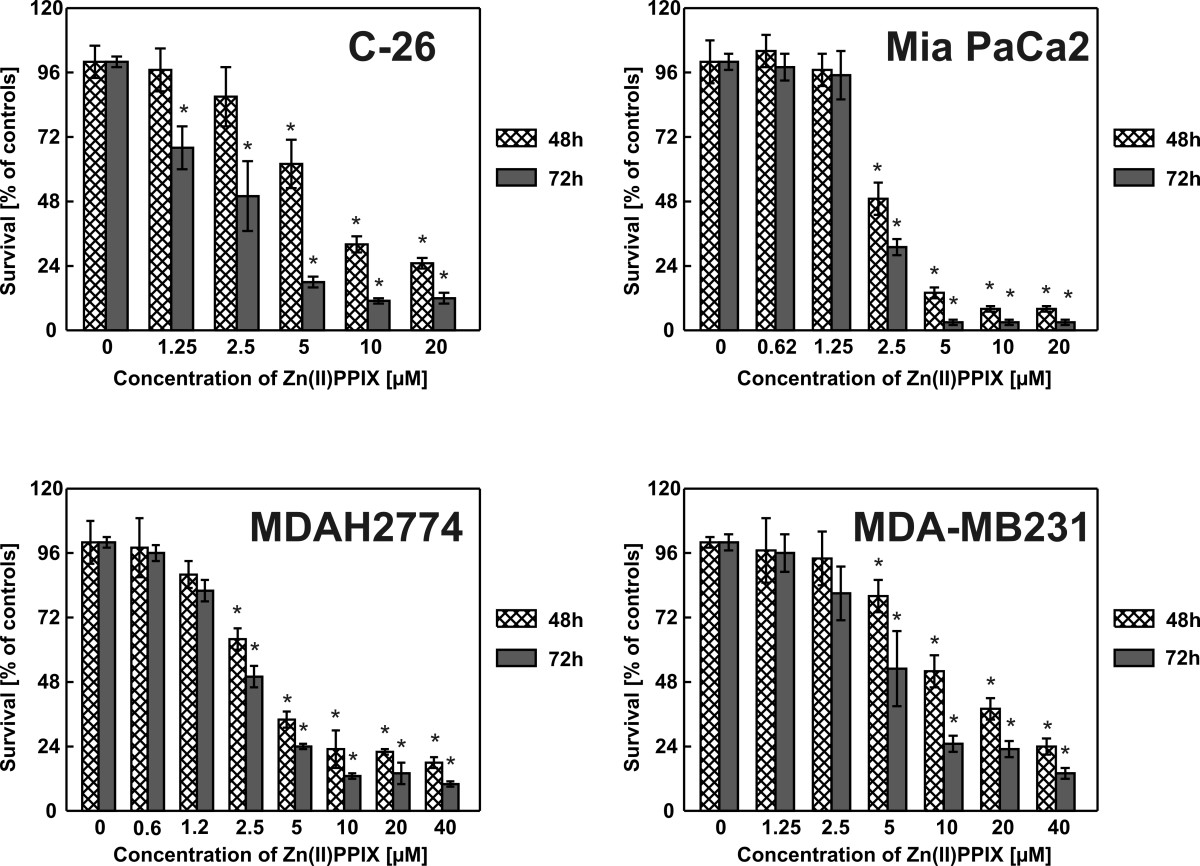

The cytostatic and/or cytotoxic effects were measured using crystal violet staining as described [
18]. Briefly, tumor cells were dispensed into 96-well plates (Sarstedt, Numbrecht, Germany) at a concentration of 5 × 10
3 cells per well and allowed to attach overnight. The following day investigated agents were added at indicated concentrations. Cells were kept in dark for 48 or 72 h. After the incubation time the cells were rinsed with PBS and stained with 0.5% crystal violet in 2% ethanol for 10 min at room temperature. Plates were washed four times with tap water and the cells were lysed with 1% SDS solution. Absorbance was measured at 595 nm using an enzyme-linked immunosorbent assay reader (SLT Labinstrument GmbH, Salzburg, Austria), equipped with a 595 nm filter. Cytotoxicity was expressed as relative viability of tumor cells (% of control cultures incubated with medium only) and was calculated as follows: relative viability = (A
e - A
b) × 100/(A
c - A
b), where A
b is the background absorbance, A
e is experimental absorbance, and A
c is the absorbance of untreated controls.
Clonogenic assay

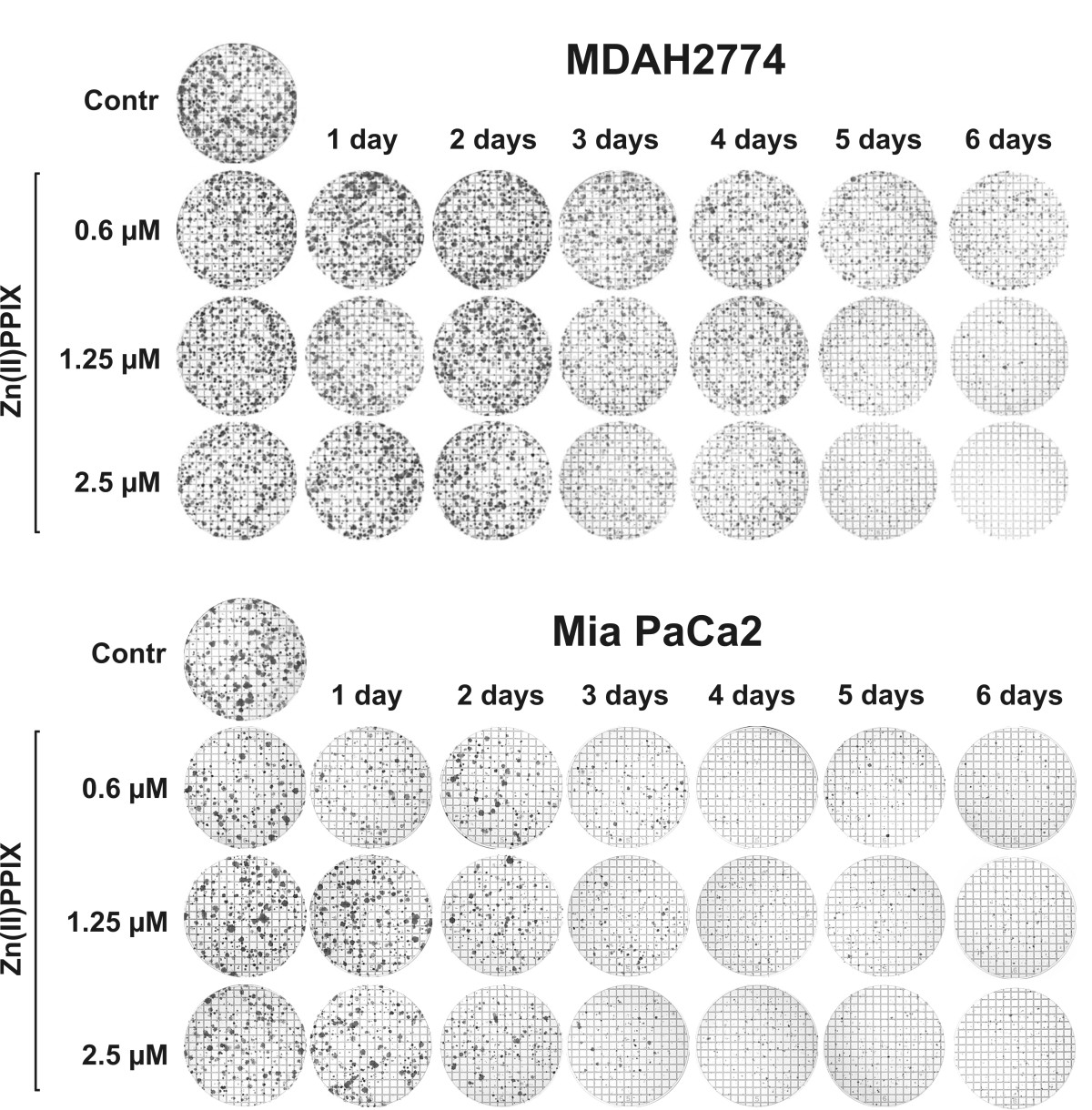

MDAH2774 or Mia PaCa2 cells were plated at 2.5 × 105 cells per 35-mm dish (Sarstedt). Four hours after seeding, Zn(II)PPIX was added at indicated concentrations. After 24 hours of incubation in dark, the cells were washed with PBS, trypsinized and seeded into 35-well plates in triplets at the concentration of 1 × 103 cells per a dish. Fresh medium containing Zn(II)PPIX was added. The medium was removed daily for the 6 following days. After 14 day incubation in the dark, the cells were rinsed with PBS, fixed for 10 min in pure methanol and stained with 0.5% crystal violet in 2% ethanol for 10 min at room temperature. Then the plates were washed four times with tap water and air-dried. The images of the plates were made using the Olympus Camedia C750 Ultra Zoom digital camera.
FACS analysis of cell cycle and apoptosis

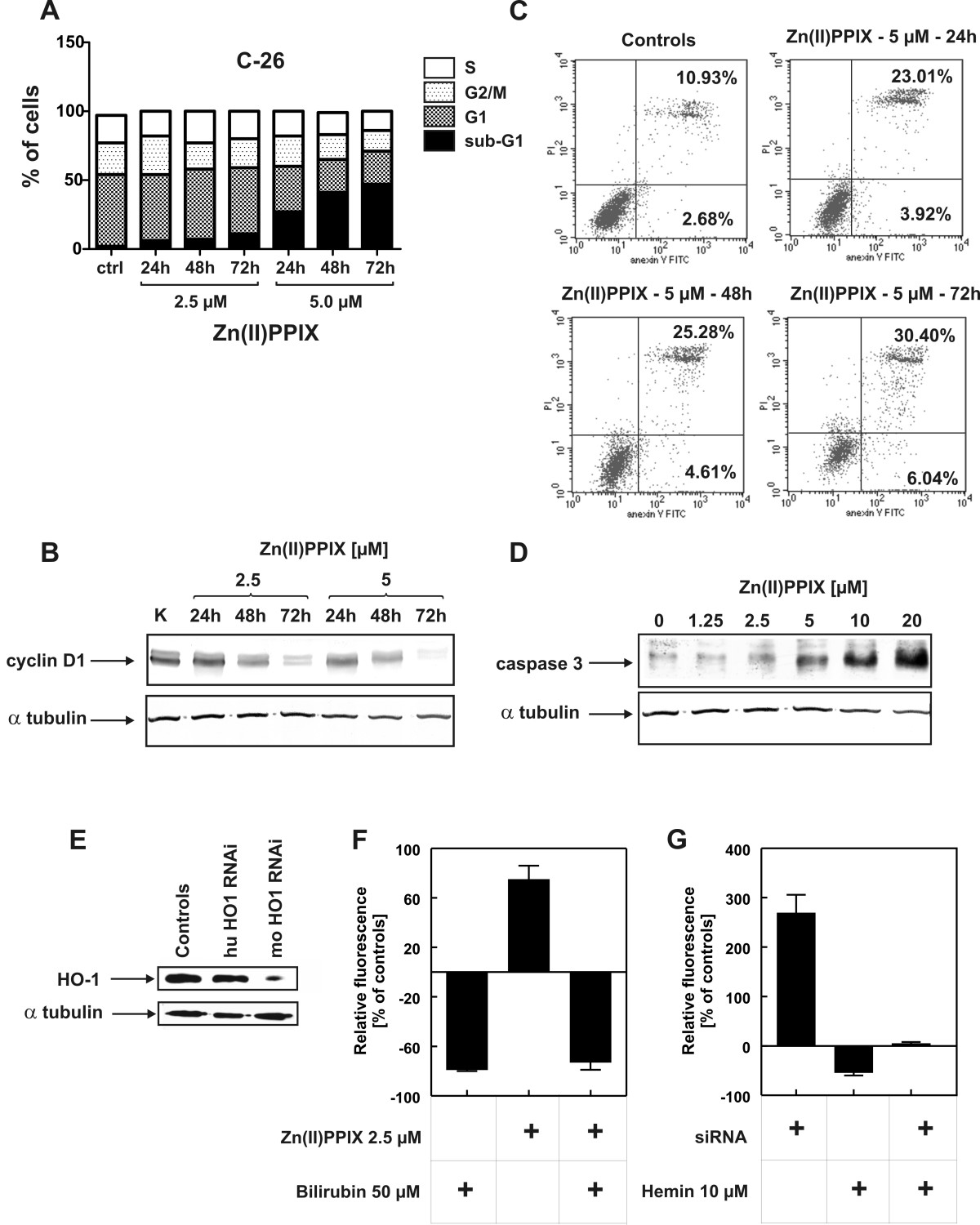

For the cell cycle analysis, C-26 cells were seeded into 6-well plates (Sarstedt) at the concentrations 1 to 3 × 105 cells per well and incubated in dark with 2.5 μM or 5 μM Zn(II)PPIX. The incubation time varied from 24 to 72 h. After the incubation, the cells were washed with PBS, trypsinized and centrifuged at 1000 rpm for 10 min in 4°C. The pellet was resuspended in 0.5 ml of PBS and injected under the surface of ice cold 70% ethanol for 24-h fixation in -20°C. At the day of analysis, the cells were washed from ethanol, stained with 5 μg/ml propidium iodide (PI, Becton Dickinson, Mountain View, CA, USA) at the presence of RNase A (Becton Dickinson) for 30 min at 37°C. For the analysis of apoptosis induction C-26 or Mia PaCa2 cells were seeded into 6-well plates (Sarstedt) at the concentrations 1 to 3 × 105 cells per well and incubated in dark with 2.5 μM or 5 μM Zn(II)PPIX. The incubation time varied from 6 to 72 h. After the incubation, the cells were washed with PBS, trypsinized and centrifuged at 1000 rpm for 10 min in 4°C. The pellet was resuspended in 0.5 ml of Annexin-binding buffer (BioSource International, Camarillo, CA, USA) and then incubated for 15 min with 5 μl of Annexin V-FITC (BioSource). Finally, the cells were stained with 5 μg/ml PI. The cytofluorometric analysis was performed using FACSCalibur (Becton Dickinson). For single analysis 1 × 104 cells were used. Data were collected at the wavelength of 580 nm (for PI) and 520 nm for FITC, and analysed with CELLQuest 1.2 software (Becton Dickinson).
HO-1 RNAi
Small interfering RNA against murine HO-1 was obtained by chemical synthesis from Dharmacon (Lafayette, CO, USA). The following sequence was used for targeting of murine HO-1: 5'-GCA-GAA-CCC-AGU-CUA-UGC-C-3'. For RNAi experiments 3,5 × 105 C-26 cells were seeded into 6-well plates (Sarstedt). After 24 h cells were washed with Optimem™ medium (Invitrogen) and transfected with 100 nM siRNA using OligofectAMINE™ according to the manufacturer's protocol. 10 μM hemin was added to the appropriate groups 2 h befor RNAi procedure. After 8 h trasfection medium was replaced with full DMEM culture medium. 24 h after transfection cells were harvested and ROS generation analysis was performed (see below).
ROS generation assay
For determination of ROS generation, C-26 cells (3,5 × 105 cells per well) were seeded into 6-well paltes (Sarstedt) and treated for 24 h with 2.5 μM Zn(II)PPIX and/or 50 μM biliubin or subjected to HO-1 RNAi (as described above). On the day of the analysis, cells were trypsynized, washed 3 times in ice-cold PBS and resuspended in 1 ml of PBS. One μl of CM-H2DCFDA (Invitrogen, 5 mM DMSO solution) was added to each sample for 20 min incubation at 37°C. Then, cells were washed twice with ice-cold PBS and subjected to flow cytometry using FACSCalibur (Becton Dickinson). For single analysis 1 × 104 cells were used. Data were collected at the wavelength of 520 nm and analysed with CELLQuest 1.2 software (Becton Dickinson).
Tumor treatment and monitoring

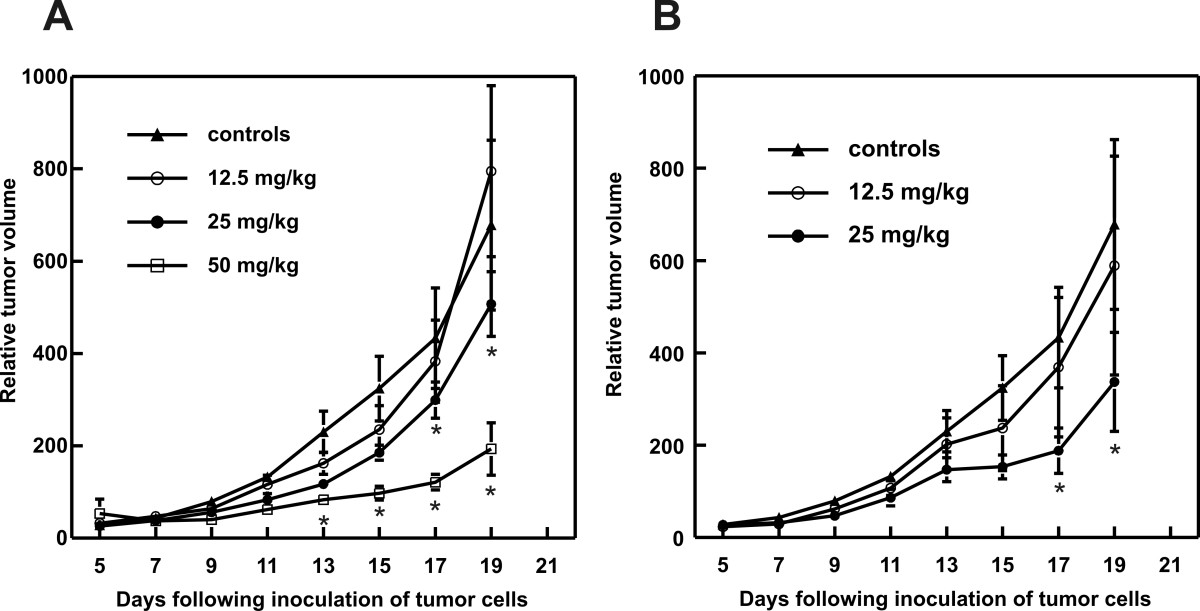

For assessment of antitumor activity of Zn(II)PPIX in vivo, exponentially growing C-26 were harvested, re-suspended in PBS medium to the appropriate concentration, and injected at the dose of 1 × 105 cells per mouse into the footpad of the right hind limb of experimental mice. Tumor cell viability measured by trypan blue exclusion was always above 95%. For in vivo treatment Zn(II)PPIX was dissolved in DMSO and further diluted in 0.9% NaCl to required concentrations. Final DMSO concentration was always less then 0.1%. Zn(II)PPIX was distributed intraperitoneally at doses from 12.5 to 50 mg per kg of body weight or orally at doses from 11 to 22 mg per kg of body weight. Control animals received 0.1% DMSO solution in 0.9% NaCl i.p. or orally.

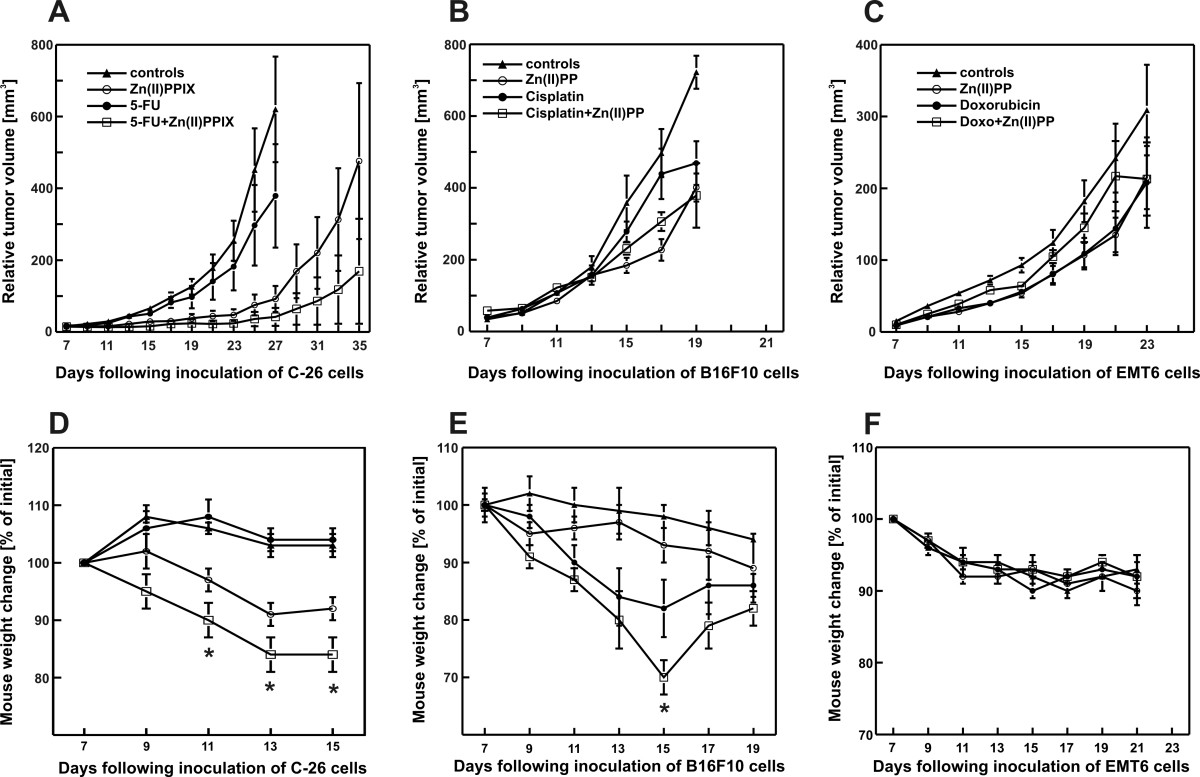

For in vivo experiments evaluating the effectiveness of combine treatment using Zn(II)PPIX and chemotherapeutics, exponentially growing C-26, EMT6 and B16F10 cells were injected at the dose of 1 × 105, 1 × 105 and 1 × 106 cells per mouse, respectively into the footpad of the right hind limb of experimental mice. Zn(II)PPIX treatment (50 mg/kg i.p.) was started on the day 7 after inoculation of tumor cells and continued for 7 consecutive days. First dose of HO-1 inhibitor was administered 1 h before each of the chemotherapeutics to eliminate any possible interactions (such as neutralization) between drugs. Cisplatin (Platidam, Pliva-Lachema, Cech Republic) at the dose of 7.5 mg/kg i.p., 5-FU (Fluorouracil 1000 Medac, Medac, Hamburg, Germany) – 50 mg/kg i.p., or doxorubicin (Adriblastina RD, Pharmacia Italia, Milan, Italy) – 7.5 mg/kg i.p. were administered at a single dose on the day 7th after inoculation of tumor cells.

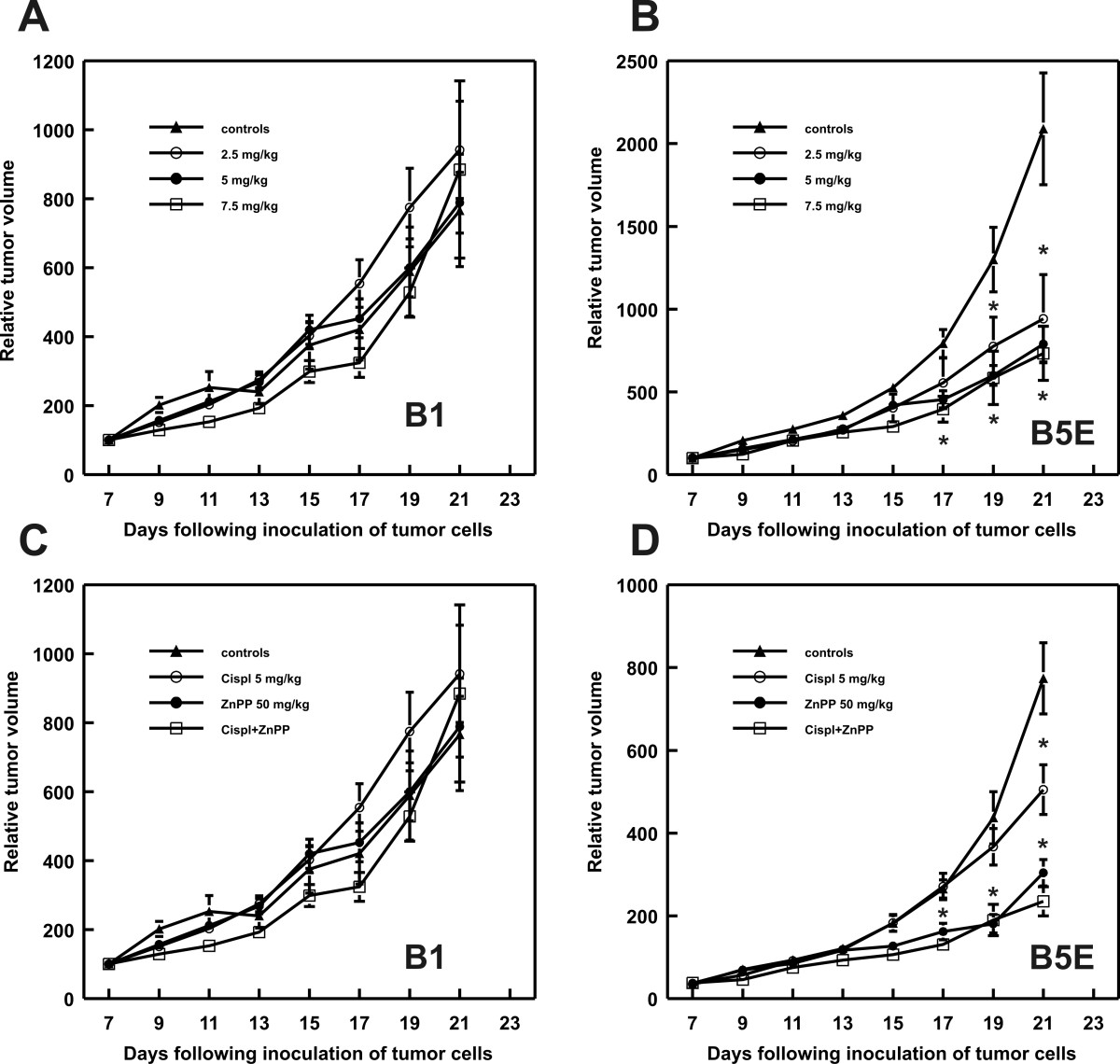

For in vivo experiments determining influence of HO-1 gene transfer on sensitivity of B16F10 melanoma cells to cisplatin treatment, exponentially growing B1 (HO-1 transfected) and B5E (empty plasmid transfected) cells were injected at the dose of 1 × 106 cells per mouse into the footpad of the right hind limb of experimental mice. Cisplatin (Platidam, Pliva-Lachema) was administered i.p. at a single dose (2.5, 5.0 or 7.5 mg/kg) on the day 7th after inoculation of tumor cells.
For in vivo experiments exponentially growing B1 and B5E cells were injected at a dose of 1 × 106 cells per mouse into the footpad of the right hind limb of experimental mice. Cisplatin was administered i.p. at a single dose of 7.5 mg/kg on the 7th day after inoculation of tumor cells. Zn(II)PPIX treatment (50 mg/kg i.p.) was started on the day 7 after inoculation of tumor cells and continued for 7 consecutive days. First dose of HO-1 inhibitor was administered 1 h before the chemotherapeutic.
In all the experiments mentioned above, local tumor growth was determined every second day as described previously [
19] by the formula: tumor volume (mm
3) = (longer diameter) × (shorter diameter)
2.
Statistical analysis
Data were calculated using Microsoft™ Excel 2003. Differences in in vitro cytotoxicity assays and tumor volume were analyzed for significance by Student's t test. Significance was defined as a two-sided P < 0.03.
Discussion
The role of HO-1 in tumor development is still not completely elucidated and some recent reports demonstrate discordant or even completely opposite results. Nevertheless, accumulating evidence indicates that HO-1 is expressed or overexpressed by a large variety of human tumors and that it plays a critical role in progression of neoplastic diseases [
7]. For example, it was shown that increased expression of HO-1 is associated with higher proliferation rate of various tumor cells [
7,
10,
15,
20], although opposite effects are observed in breast cancer cells [
21]. Specific siRNA-mediated down-regulation of HO-1 resulted in suppression of proliferation of pancreatic cancer cells [
10] or in induction of apoptosis of lung cancer cells [
17]. Similarly, cytostatic/cytotoxic effects were observed with HO-1 inhibitors, such as Zn(II)PPIX [
15,
22] or its pegylated derivative (PEG-ZnPP) [
16]. Moreover, overexpression of HO-1 increased viability, proliferation and angiogenic potential of melanomas [
9]. Mice inoculated with HO-1 overexpressing melanomas fared worse than controls, had a higher number of metastases and a significantly shortened survival [
9].
The results of present experiments performed with additional cell lines further establish that Zn(II)PPIX is an active agent capable of inducing cytostatic and cytotoxic effects against a number of human and mouse tumor cell lines. Moreover, in two different tumor models Zn(II)PPIX was demonstrated to exert potent antitumor effects manifested by the retardation of tumor growth.
Development of effective antitumor regimens requires administration of drugs in combination. The role of the combination treatment is to target different pathways in tumor cells in order to elicit more robust antitumor response. Synergistic antitumor effects might lead to decreased dosing and elimination or a significant attenuation of toxic side effects of drugs used in monotherapy. Several previous reports demonstrated that HO-1, which is frequently over-expressed in tumor cells, might participate in tumor-protective effects against a number of chemotherapeutics, radiotherapy and photodynamic therapy [
10,
11]. By targeting HO-1 it might be possible to sensitize tumor cells to more effective cytotoxic effects of other therapeutic regimens. Indeed,
in vitro data seem to support this idea. HO-1 knock-down sensitized pancreatic cancer cells to gemcitabine [
10] and lung cancer cells to cisplatin [
17]. Moreover, PEG-ZnPP sensitized colon cancer cells to cytostatic/cytotoxic effects of camptothecin or doxorubicin [
16]. However, the efficacy of combining chemotherapeutics with HO-1 inhibitor
in vivo has not yet been addressed.
Considering the use of HO-1 inhibitors in combination with other antitumor agents it must be kept in mind that HO-1 and its products affect multiple signaling and metabolic pathways and play an important role in protection of normal cells against multiple environmental insults. For example, HO-1 protects retinal cells against light-induced damage [
23], ameliorates ischemia-reperfusion injury elicited by a number of different conditions [
24], inhibits endothelial cell apoptosis induced by endoplasmic reticulum stress [
25], protects mice from apoptotic liver damage [
26], prevents development of atherosclerosis in LDL-receptor knock-out mice [
27], improves survival of transplanted organs [
28] or prevents development of gastric ulcers in rats [
29]. HO-1 also protects normal cells and tissues against toxic effects of chemotherapeutics. Heme-induced HO-1 expression protects against cyclophosphamide-mediated hemorrhagic cystitis [
30], HO-1 attenuates cisplatin-induced toxicity in renal tubular cells [
31] or in auditory cells [
32], it also decreases doxorubicin-mediated cardiotoxicity [
33]. Moreover, transgenic mice deficient in HO-1 (-/-), develop more severe renal failure and have significantly greater renal injury compared with wild-type (+/+) mice treated with cisplatin [
34].
At doses used in the studies presented here Zn(II)PPIX was unable to restore cisplatin sensitivity in HO-1 overexpressing melanoma cells nor was it capable of potentiating antitumor effects of cisplatin, doxorubicin or 5-FU in three different models. Nonetheless, Zn(II)PPIX significantly potentiated toxicity of cisplatin and 5-FU as determined by decreased weight loss. Tozer
et al, have shown that administration of Zn(II)PPIX at a dose of 45 μmoles/kg is ineffective in inhibiting HO-1 activity in tumors [
35]. The dose used in these studies (50 mg/kg) corresponds to almost 80 μmoles/kg/mouse. Although it was not measured whether Zn(II)PPIX used at this dose and at this administration schedule was capable of inhibiting HO-1 activity it can be concluded that it is ineffective in neither inducing antitumor effects in HO-1-overexpressing B16F10 melanomas nor in restoring sensitivity to cisplatin. Future studies should address an important, and not addressed in these studies, question of drug administration schedule. Specifically, what should be the timing of Zn(II)PPIX administration in combination with chemotherapeutics to effectively inhibit HO-1 activity in tumor cells? Is it possible to design combination strategies that would target HO-1 in tumors and not in normal tissues? It seems that the influence of Zn(II)PPIX administration on the activity of HO-1 in tumor versus normal tissues will be of utmost importance in designing combination treatments.
Competing interests
The authors declare that they have no competing interests.
Authors' contributions
DN participated in experimental design, performed most of in vitro and in vivo experiments and participated in the writing of the manuscript, MB participated in in vivo experiments, MW and JB did most of the flow cytometry studies, AS measured ROS formation in tumor cells, PS participated in cytostatic/cytotoxic asssays in vitro, TI participated in in vivo experiments, HW prepared control and HO-1 overexpressing B16F10 melanoma cells, AJ participated in experimental design, JD participated in experimental design and participated in the writing of the manuscript, TS participated in experimental design and in in vitro experiments, and participated in manuscript correction, JG conceived the study, participated in its design and coordination and wrote the first draft of the manuscript. All authors read and approved the manuscript.
