Peripheral pulmonary nodules: Relationship between multi-slice spiral CT perfusion imaging and tumor angiogenesis and VEGF expression

verfasst von: Shu-Hua Ma, Hong-Bo Le, Bao-hui Jia, Zhao-Xin Wang, Zhuang-Wei Xiao, Xiao-Ling Cheng, Wei Mei, Min Wu, Zhi-Guo Hu, Yu-Guang Li

Erschienen in: BMC Cancer | Ausgabe 1/2008

Abstract

Background

The aim of this study is to investigate the relationship between16-slice spiral CT perfusion imaging and tumor angiogenesis and VEGF (vascular endothelial growth factor) expression in patients with benign and malignant pulmonary nodules, and differential diagnosis between benign and malignant pulmonary nodules.

Methods

Sixty-four patients with benign and malignant pulmonary nodules underwent 16-slice spiral CT perfusion imaging. The CT perfusion imaging was analyzed for TDC (time density curve), perfusion parametric maps, and the respective perfusion parameters. Immunohistochemical findings of MVD (microvessel density) measurement and VEGF expression was evaluated.

Results

The shape of the TDC of peripheral lung cancer was similar to those of inflammatory nodule. PH (peak height), PHpm/PHa (peak height ratio of pulmonary nodule to aorta), BF (blood flow), BV (blood volume) value of peripheral lung cancer and inflammatory nodule were not statistically significant (all P > 0.05). Both showed significantly higher PH, PHpm/PHa, BF, BV value than those of benign nodule (all P < 0.05). Peripheral lung cancer showed significantly higher PS (permeability surface) value than that of inflammatory nodule and benign nodule (all P < 0.05). BV, BF, PS, MTT, PH, PHpm/PHa, and MVD among three groups of peripheral lung cancers were not significantly (all P > 0.05). In the case of adenocarcinoma, BV, BF, PS, PHpm/PHa, and MVD between poorly and well differentiation and between poorly and moderately differentiation were statistically significant (all P < 0.05). The peripheral lung cancers with VEGF positive expression showed significantly higher PH, PHpm/PHa, BF, BV, PS, and MVD value than those of the peripheral lung cancer with VEGF negative expression, and than those of benign nodule with VEGF positive expression (all P < 0.05). When investigating VEGF negative expression, it is found that PH, PHpm/PHa, and MVD of inflammatory nodule were significantly higher than those of peripheral lung cancer, PS of inflammatory nodule were significantly lower than that of peripheral lung cancer (all P < 0.05). PH, PHpm/PHa, BF, and BV of benign nodule were significantly lower than those of inflammatory nodule (all P < 0.05), rather than PS and MTT (mean transit time) (all P > 0.05). PH, PHpm/PHa, BV, and PS of benign nodule were significantly lower than those of peripheral lung cancer (all P < 0.05). In the case of VEGF positive expression, MVD was positively correlated with PH, PHpm/PHa, BF, BV, and PS of peripheral lung cancer and PS of benign nodule (all P < 0.05).

Conclusion

Multi-slice spiral CT perfusion imaging closely correlated with tumor angiogenesis and reflected MVD measurement and VEGF expression. It provided not only a non-invasive method of quantitative assessment for blood flow patterns of peripheral pulmonary nodules but also an applicable diagnostic method for peripheral pulmonary nodules.
Hinweise

Electronic supplementary material

The online version of this article (doi:10.​1186/​1471-2407-8-186) contains supplementary material, which is available to authorized users.

Competing interests

The authors declare that they have no competing interests.

Authors' contributions

SHM created the original study design, wrote the protocol, and extracted the data. HBL, BHJ and ZXW read an earlier version of the manuscript and gave insightful comments and suggestions. SHM, HBL and XLC undertook CT scanning and analyses of CT images. SHM, HBL and WM inquired about cases and undertook immunohistochemical staining. ZXW and ZGH did statistical testings. All authors contributed to both protocol and final reports.
Abkürzungen
VEGF
Vascular endothelial growth factor
TDC
Time density curve
MVD
Microvessel density
PH
Peak height
PHpm/PHa
Peak height ratio of pulmonary nodule to aorta
BF
Blood flow
BV
Blood volume
PS
Permeability surface
MTT
Mean transit time.

Background

Pulmonary nodule is a kind of common disease found in the lung. Sometimes it is difficult to directly identify between malignancy and benignancy of peripheral pulmonary nodule by using morphology features because of changes in the blood vessel volume, perfusion and capillary permeability in new tumor vessels which may result in the changes of blood patterns [13]. The method of perfusion imaging is effective to detect the differentiation of blood supply between benign and malignant pulmonary nodules in quantity and quality [48].
The purpose of this study was to quantitatively evaluate 16-slice spiral CT perfusion imaging to describe the blood patterns of benign and malignant pulmonary nodules and to investigate the relationship between CT perfusion imaging and tumor angiogenesis and vascular endothelial growth factor (VEGF) expression in patients with benign and malignant pulmonary nodules, and the differential diagnosis between benign and malignant pulmonary nodules by using perfusion imaging of 16-slice spiral CT.

Methods

1. Patients

From January 2005 to December 2006, 69 patients with peripheral pulmonary nodule were studied with informed consent. All the tumors were conformed by surgery. The patients underwent 16-slice spiral CT perfusion scanning in less than a week before surgery. No patients received any therapy (such as chemotherapy) before surgery. Five of 69 patients who could not hold their breath, led to errors in perfusion values and artifacts on parametric maps, and so were excluded. The other 64 patients (39 men and 25 women; age range, 26–75 years; mean age ± SD, 51.27 ± 13.83 years; approximately spherical; long-axis diameters range, 1.6–4.2 cm, mean diameters, 2.8 cm) were included.
The 64 patients included 39 cases of peripheral lung cancer (24 adenocarcinoma, 11 squamous cell carcinoma, 2 large cell carcinoma, and 2 small cell carcinoma, long-axis diameters range, 1.7–4.2 cm, mean diameters, 2.7 cm), 13 cases of inflammatory nodules (8 active inflammatory granuloma and 5 pneumonia apostematosa, long-axis diameters range, 2.1–3.9 cm, mean diameters, 3.2 cm), 12 cases of benign nodules (9 tuberculoma and 3 hamartoma, long-axis diameters range, 1.6–3.0 cm, mean diameters, 2.5 cm). In the 39 cases of peripheral lung cancer, 24 adenocarcinoma (well, moderately, poorly differentiation are 9, 10, 5 cases respectively), 11 squamous cell carcinoma (well, moderately, and poorly differentiation are 6, 4, 1 cases respectively), 11 large and small cell carcinoma (well, moderately, poorly differentiation are 6, 4, 1 cases respectively) (Table 1).
Table 1
Differentiation of peripheral lung cancer
Differentiation of lung tumors
Cases
Well
Moderately
Poorly
Adenocarcinoma
24
9
10
5
Squamous cell carcinoma
11
6
4
1
Large and small cell carcinoma
4
3
0
1
The experiments were performed with the approval of the human subjects ethics committee of the First Affiliated Hospital, Medical College of Shantou University.

2. Computed tomography scanning

Computed tomography perfusion imaging were performed by using a commercially available 16-slice spiral CT scanner (Lightspeed, GE, USA). The patients were instructed in breath-holding and in holding their breath at full suspended inspiration during quiet breathing so as to facilitate to repeat imaging of the same tissue volume.
The CT scan involved two steps. Firstly, a conventional CT scan was performed to find the tumor and determine the section of perfusion scan. The scan ranged from the thoracic inlet to the pulmonary base, with 1.25-mm section thickness, 1.375 pitch, 10-mm reconstruction thickness, 120-kV tube voltage, 220-mA tube current. Secondly, CT perfusion scan was performed after the tumor was found.
Four adjacent sections containing the largest nodular diameter were selected as the target cross sections. Nonionic contrast medium ultravist 300 (300 mgI/ml)was injected via a superficial antebrachial vein with pressure syringe at a flow rate of 4 ml/s and a total volume of 50 ml. Perfusion scan was in a cine pattern, with 0.5 s/coil, 5-mm section thickness × 4, 0-mm interval, no inclination of scan frame, tube voltage of 120 kV, tube current of 60 mA, exposition time of 40 s, data acquisition time of 40 s, delay time of 2 s (perfusion scan started after injection of contrast medium for 2 s).

3. Analysis of CT perfusion images

The 316 images (79 images per section, 4 sections) with 5-mm reconstruction thickness generated by CT perfusion were transmitted to AW4.1 workstation via a local area network. All the data were calculated quantitatively according to the calculation approach of the deconvolution model with the CT body perfusion software of GE perfusion3 and produced perfusion parametric maps (assigned type). The analysis package offered a motion correction for in-plane movement. The four sections of data were respectively analyzed. Air and bone pixels are excluded from calculations by CT value (Hounsfield Unit, HU) thresholds, typically -120 to 240 HU.
Firstly, descending aorta (or innominate artery without descending aorta) in-plane of nodule was chosen as the input artery. A region of interest (ROI) with five pixels was hand drawn in the centre of the descending aorta. Secondly, three ROIs were hand drawn in every section of the nodular area of perfusion parametric maps; every ROI was about 70 pixels; and calcified, cystic, or necrotic areas were avoided as far as possible. The edges of the nodule were avoided to prevent partial volume. We examined an ROI that covered about two-thirds of the diameter of the nodule at the equator if the nodule was smaller.
The time density curves (TDC) of the descending aorta and pulmonary nodule ROI, peak height (PH), peak height ratio of pulmonary nodule to aorta (PHpm/PHa), each type of perfusion parametric maps [blood flow (BF), blood volume (BV), mean transit time (MTT), permeability surface (PS)], and respective perfusion parameters for all four anatomic section locations available for each patient were calculated. Representative parameter values of three groups of pulmonary nodules were then averaged across the four sections.
Two radiologists experienced in chest CT respectively observed the TDCs and perfusion parametric maps.

4. Immunohistochemical staining

The position from which the pathologic tissue samples were drawn as far as possibe kept a parallel with the CT perfusion section. The tissue in each case was fixed by formalin and embedded by paraffin. Paraffin sections (5 μm thickness) were used for immunohistochemistry using a streptavidin peroxidase (SP) kit and a hematoxylin and eosin staining kit. The slices were deparaffinized and dehydrated in graded alcohols. Heat-induced antigen retrieval was performed by using a microwave oven and citrate buffer (pH, 6.0; 10 mol/L). All samples were immunostained by using the SP procedure with the monoclonal mouse antibodies VEGF (1:100 dilution) and the monoclonal rabbit antibodies CD34 (1:100 dilution) (both from Fuzhou Maixin Company, China). The positive breast cancer paraffin sections supplied with the SP kit were taken as positive controls and samples with primary antibody replaced by PBS were taken as negative controls.
VEGF positive brown staining is located in the cytoplasm. The VEGF staining was graded in terms of its extent and intensity shown by Mattern et al. [9]. To evaluate the VEGF expression, a score corresponding to the sum of both (a) staining intensity (0 = negative; 1 = weak; 2 = intermediate; 3 = strong) and (b) percentage of positive cells (0 = 0% positive cells;1 ≤ 25% positive cells; 2 = 25–50% positive cells; 3 ≥ 50% positive cells) was established. The sum of (a) and (b) reached a maximum score of 6. We observed 10 fields of vision by high time lens (×400) and calculated the average score: 0–2 is negative, more than 2 is positive, between 3 and 4 is weak positive expression, between 5 and 6 is strong positive expression.
The degree of angiogenesis was determined by means of MVD measurement in the defined areas of tissue sections according to the Weidner method [10]. Each slide was first scanned at low magnification (×100) to determine five "hotspot" areas where the number of microvessels was at a maximum. Calcified or necrotic areas were excluded. MVD was counted in each of the five hotspot areas on a slide at high magnification (×200). Any one brown staining endothelial cell or cell cluster that is obviously different from peripheral tissues and connective tissues was counted as a single vessel, and branch construct with discrete breaks was also counted as a single vessel. Appearance of erythrocyte and lumen of vessel may not be taken as calculation standard for MVD measurement; lumen of vessel that is more than eight erythrocytes in diameter and vessel that has thicker muscular layer were also not taken as calculation standard for MVD measurement.
A pathologist experienced in lung pathology recorded the histologic diagnosis of each pulmonary nodule. MVD measurement and VEGF expression were assessed by means of immunohistochemistry.

5. Data and statistical analysis

The pulmonary nodules were divided into three groups (peripheral lung cancer, inflammatory nodule, benign nodule). HU values of 11 time points (2, 6, 10, 14, 18, 22, 26, 30, 34, 38, 42 s) on each TDC of ROI at four anatomic section locations available for each group of pulmonary nodules were recorded. Representative HU values of the respective time point were then averaged (Table 2). The TDCs of the three groups of pulmonary nodules were drawn by Graph software (OriginPro 7.5) (Figure 1).
Table 2
HU values showing 11 time-points on the TDC of peripheral lung cancer, inflammatory nodule, and benign nodule
Pathologic type
2 S
6 S
10 S
14 S
18 S
22 S
26 S
30 S
34 S
38 S
42 S
Peripheral lung
11.46
21.66
29.94
36.05
40.76
48.86
51.77
50.16
45.81
43.55
42.16
Cancer
±4.41
±6.71
±7.99
±9.54
±10.64
±10.75
±10.21
±10.50
±9.67
±10.02
±9.54
Inflammatory
18.55
35.60
40.86
43.96
50.60
56.97
63.64
60.57
49.52
43.98
42.02
Nodule
±6.60
±7.59
±7.47
±8.05
±8.17
±6.37
±6.97
±8.11
±7.56
±8.41
±8.18
Benign nodule
5.68
9.39
12.14
16.41
17.73
19.08
21.84
20.97
20.28
19.68
18.73

±5.25
±8.94
±8.82
±7.13
±5.83
±9.16
±13.28
±12.47
±10.84
±11.11
±10.46
*Data is the mean ± SD.
The BV, BF, MTT, PS, PH, PHpm/PHa value of pulmonary nodule ROI for all four anatomic section locations available for each group of patients were recorded. Representative parameter values were then averaged. All statistical results were indicated with mean ± SD.
Chi-square test was used among two or three groups of number datas. P value was calculated by Exact Method. One-way ANOVA was used to analyze statistical differences in two or three groups of measurement data, P value was calculated by LSD Method for equation of variance or by Tamhane Method for heterogeneity of variance. P values less than 0.05 were considered to indicate a statistically significant difference. Pearson coefficients were used to represent the relationship between the perfusion value (BV, BF, MTT, PS, PH, PHpm/PHa) and MVD measurement. All statistical analyses were performed by using a statistical software (SPSS 13.0 for Windows).

Results

1. Time density curve of peripheral pulmonary nodule

The shape of the TDC of peripheral lung cancer was similar to that of inflammatory nodule. Both showed a steeper slope, and had an obviously increased nodular HU value. However, TDC of peripheral lung cancer changed little after reaching a peak. It became flat at the peak, and had a platform. However, TDC of inflammatory nodule declined immediately after reached peak and did not have a platform. Moreover, inflammatory nodule showed a higher peak than that of peripheral lung cancer. TDC of both was obviously different from that of benign nodule, in which, the TDC changed little, had no steeper slope, had a flat trend, and had no obvious increase in nodular HU value (Figures 1, 2A6A).

2. Immunohistochemistry

In peripheral lung cancers, positive staining of CD34 were found in the tissues of small artery, small vein, capillary and blood vessel endothelium of lung cancer tissues, which were stained brown. Microvascular distributions were intense in the surrounding and interstitial substances of the nodules, and blood vessels were rare in essence and necrotic areas. Many immature tumor capillaries were found in the interstitial substance of the nodules. Many single or cluster endothelial cell clumps showed no lumina or their lumina were closed (Figures 2G3G). In peripheral lung cancers, VEGF positive staining was located in the cytoplasm. The size of the cancer cell nucleus was bigger and atypia of the nucleus was obvious (Figures 2H, 3H). VEGF expression was found positive in 29 patients and negative in 10 patients.
In inflammatory nodules, positive staining of CD34 which displayed more expanded mature blood capillaries were observed (Figure. 4G). VEGF expression in all the 13 cases with inflammatory nodule were negative (Figure 4H).
In benign nodules, positive staining of CD34 manifested that a smaller quantity of staining tumor capillaries were observed (Figures 5G, 6G). For VEGF expression, 3 patients were positive, 9 patients were negative (Figures 5H, 6H).
MVD results of peripheral lung cancer, inflammatory nodule and benign nodule were 29.292 ± 14.391, 33.966 ± 15.548, and 7.959 ± 2.328, respectively. MVD values of peripheral lung cancer and inflammatory nodule were very high and not statistically significant (P > .05). However, both MVD values were statistically significant higher than that of benign nodule (all P < .05) (Tables 3, 4).
Table 3
Perfusion parameters and MVD of three groups of pulmonary nodules
Parameter
Peripheral lung cancer
(n = 39)
Inflammatory nodule
(n = 13)
Benign nodule
(n = 12)
BV
10.577 ± 3.708
8.542 ± 2.581
5.806 ± 1.628
BF
205.232 ± 90.669
160.902 ± 68.412
80.733 ± 16.060
MTT
7.472 ± 3.760
6.397 ± 3.292
5.760 ± 2.884
PS
19.703 ± 7.660
4.019 ± 1.730
3.797 ± 2.186
PH
60.790 ± 8.336
65.700 ± 5.948
27.833 ± 9.072
PHpm/PHa (100%)
20.611 ± 3.243
22.163 ± 2.240
8.893 ± 2.624
MVD
29.292 ± 14.391
33.966 ± 15.548
7.959 ± 2.328
*Data is the mean ± SD.
Table 4
Comparison among the perfusion parameters and MVD of three groups of pulmonary nodules
Parameter
BV
(p)
BF
(p)
MTT
(p)
PS
(p)
PH
(p)
PHpm/PHa
(p)
MVD
(p)
Peripheral lung cancer (n = 39) and inflammatory nodule(n = 13)
0.106
0.207
0.345
0.000
0.062
0.107
0.726
Peripheral lung cancer (n = 39) and benign nodule(n = 12)
0.000
0.000
0.146
0.000
0.000
0.000
0.000
Inflammatory nodule(n = 13) and benign nodule(n = 12)
0.013
0.003
0.653
0.990
0.000
0.000
0.000
MVD among adenocarcinoma, squamous cell carcinoma, large and small cell carcinoma were not significantly (all P > 0.05) (Table 5). In the case of adenocarcinoma, MVD between poorly and well differentiation and between poorly and moderately differentiation were statistically significant (all P < 0.05) (Tables 6, 7).
Table 5
Comparison among the perfusion parameters and MVD of adenocarcinoma, squamous cell carcinoma, large and small cell carcinoma
Parameter
Cases
BV
BF
MTT
PS
PH
PHpm/PHa
MVD
Adenocarcinoma
24
10.173 ± 3.624
225.46 ± 83.132
6.673 ± 3.821
17.819 ± 8.214
62.329 ± 8.084
21.159 ± 3.083
27.483 ± 14.85
Squamous cell carcinoma
11
10.244 ± 3.528
164.071 ± 101.015
8.876 ± 3.371
22.217 ± 6.414
56.436 ± 8.456
19.048 ± 3.465
30.828 ± 15.559
Large and small cell carcinoma
4
13.92 ± 3.925
197.063 ± 86.943
8.413 ± 3.969
24.093 ± 3.389
63.525 ± 6.52
21.62 ± 2.758
35.918 ± 5.683
*BV, BF, PS, MTT, PH, PHpm/PHa, and MVD among adenocarcinoma, squamous cell carcinoma, large and small cell carcinoma were not significantly (all P > 0.05).
Table 6
Tumor differentiations of adenocarcinoma, squamous cell carcinoma, large and small cell carcinoma
Parameter
Differentiation
Cases
BV
BF
MTT
PS
PH
PHpm/PHa
MVD
Adenocarcino ma (24 cases)
well
9
8.706 ± 2.441
205.723 ± 77.469
5.422 ± 1.591
15.949 ± 5.736
61.122 ± 6.371
20.718 ± 3.001
22.451 ± 13.536

moderately
10
9.261 ± 3.448
205.193 ± 90.827
8.755 ± 5.0
15.528 ± 9.547
59.95 ± 6.435
20.069 ± 2.478
22.831 ± 12.514

poorly
5
14.636 ± 2.237
301.518 ± 6.290
4.758 ± 1.919
25.766 ± 4.142
69.26 ± 11.132
24.134 ± 2.889
45.846 ± 4.079
Squamous cell carcinoma (11 cases)
well
6
10.308 ± 2.729
182.63 ± 105.873
8.362 4.083
20.083 ± 7.198
59.717 ± 5.138
20.342 ± 2.17
28.902 ± 16.223

moderately
4
10.393 ± 5.359
157.448 ± 110.379
9.938 ± 2.759
22.993 ± 3.081
52.825 ± 12.095
17.933 ± 4.852
29.693 ± 16.515

poorly
1
9.26 ± 0.0
79.210 ± 0.0
7.710 ± 0.0
31.92 ± 0.0
51.20 ± 0.0
15.75 ± 0.0
46.93 ± 0.0
Large and small cell carcinoma (4 cases)
well
3
13.743 ± 4.787
165.083 ± 72.129
6.67 ± 2.327
23.003 ± 3.179
60.567 ± 3.356
20.46 ± 1.828
34.993 ± 6.582

moderately
0
0
0
0
0
0
0
0

poorly
1
14.45 ± 0.0
293.0 ± 0.0
13.64 ± 0.0
27.36 ± 0.0
72.4 ± 0.0
25.1 ± 0.0
38.69 ± 0.0
Table 7
Relationships between adenocarcinoma differentiations and parameters
Parameter
BV
(p)
BF
(p)
MTT
(p)
PS
(p)
PH
(p)
PHpm/PHa
(p)
MVD
(p)
Well (n = 9) and moderately (n = 10)
0.679
1.000
0.198
0.999
0.738
0.615
0.945
Well (n = 9) and poorly (n = 5)
0.001
0.018
0.897
0.011
0.066
0.038
0.002
Poorly (n = 5) and moderately (n = 10)
0.003
0.025
0.130
0.038
0.035
0.014
0.002
*Because there are fewer cases of squamous cell carcinoma, large and small cell carcinoma, relationships between their differentiations and parameters were not compared. In the case of adenocarcinoma, BV, BF, PS, PHpm/PHa, and MVD between poorly and well differentiation and between poorly and moderately differentiation were statistically significant (all P < 0.05).
The peripheral lung cancers with VEGF positive expression showed significantly higher MVD value than that of peripheral lung cancers with VEGF negative expression (P < .05). MVD of benign nodules with VEGF positive and negative expression were not statistically significant (P > .05) (Table 8).
Table 8
Comparison among the perfusion parameters and MVD between VEGF positive and negative expression of three groups of peripheral pulmonary nodules
Pulmonary nodule
Parameter
BV
BF
MTT
PS
PH
PHpm/PHa (100%)
MVD
Peripheral lung cancer
VEGF positive expression (n = 29)
11.457 ± 3.593
225.406 ± 83.556
7.326 ± 3.807
21.638 ± 7.050
62.531 ± 8.579
21.285 ± 3.238
32.495 ± 14.541

VEGF negative expression (n = 10)
8.025 ± 2.859
146.728 ± 88.744
7.896 ± 3.787
14.090 ± 6.785
55.740 ± 5.132
18.657 ± 2.466
20.002 ± 9.363

F
7.449
6.394
0.167
8.680
5.522
5.455
6.400

P
0.010
0.016
0.685
0.006
0.024
0.025
0.016
Inflammatory nodule
VEGF positive expression (n = 0)
/
/
/
/
/
/
/

VEGF negative expression (n = 13)
8.542 ± 2.581
160.902 ± 68.412
6.397 ± 3.292
4.019 ± 1.730
65.700 ± 5.948
22.163 ± 2.240
33.966 ± 15.548
Benign nodule
VEGF positive expression (n = 3)
6.620 ± 2.231
83.070 ± 25.153
6.320 ± 1.890
5.047 ± 2.945
30.733 ± 14.199
9.793 ± 4.177
8.877 ± 3.285

VEGF negative expression (n = 9)
5.534 ± 1.439
79.954 ± 13.919
5.573 ± 3.222
3.380 ± 1.903
26.867 ± 7.652
8.592 ± 2.168
7.653 ± 2.081

F
1.000
0.078
0.139
1.350
0.386
0.448
0.599

P
0.341
0.786
0.717
0.272
0.548
0.519
0.457
*Data is the mean ± SD.
For VEGF negative expression, MVD of inflammatory nodule were significantly higher than that of peripheral lung cancer (P < .05), MVD of benign nodule were significantly lower than that of peripheral lung cancer and inflammatory nodule (P < .05) (Tables 8, 9).
Table 9
Comparison among the perfusion parameters and MVD between VEGF positive and negative expression of three groups of peripheral pulmonary nodules

Parameter

BV
BF
MTT
PS
PH
PHpm/PHa
MVD
VEGF positive expression
Peripheral lung cancer (n = 29) and benign nodule (n = 3)
P
0.031
0.007
0.658
0.000
0.000
0.000
0.010
VEGF negative expression
Peripheral lung cancer (n = 10) and inflammatory nod (n = 13)
P
0.616
0.968
0.308
0.003
0.000
0.001
0.043

Peripheral lung cancer (n = 10) and benign nodule (n = 9)
P
0.033
0.114
0.152
0.002
0.000
0.000
0.007

Inflammatory nodule (n = 13) and benign nodule (n = 9)
P
0.008
0.003
0.585
0.818
0.000
0.000
0.000

3. Perfusion parameters of pulmonary nodules

PH, PHpm/PHa, BF and BV values of peripheral lung cancer and inflammatory nodule were not statistically significant (all P > .05). Both showed significantly higher PH, PHpm/PHa, BF, BV value than those of benign nodule (all P < .05). MTT value was not statistically significant among the three groups of nodules (all P > .05). Peripheral lung cancer showed significantly higher PS value than that of inflammatory nodule and benign nodule (all P < .05). PS value of inflammatory nodule and benign nodule was not statistically significant (P > .05) (Tables 3, 4).
BV, BF, PS, MTT, PH, and PHpm/PHa among adenocarcinoma, squamous cell carcinoma, large and small cell carcinoma were not significantly (all P > 0.05) (Table 5). In the case of adenocarcinoma, BV, BF, PS, PHpm/PHa between poorly and well differentiation and between poorly and moderately differentiation were statistically significant (all P < 0.05) (Tables 6, 7).
The peripheral lung cancers with VEGF positive expression showed significantly higher PH, PHpm/PHa, BF, BV, and PS values than those of the peripheral lung cancers with VEGF negative expression, and than those of benign nodule with VEGF positive expression (Table 8).
In the case of VEGF negative expression, the PH, and PHpm/PHa of inflammatory nodule were significantly higher than those of peripheral lung cancer (all P < .05). The PS of inflammatory nodule was significantly lower than that of peripheral lung cancer (P < .05). Both BF, BV, and MTT were not statistically significant (all P > .05). PH, PHpm/PHa, BF, and BV of benign nodule were significantly lower than those of inflammatory nodule (all P < .05), rather than PS and MTT (all P > .05). PH, PHpm/PHa, BV, and PS of benign nodule were significantly lower than those of peripheral lung cancer (all P < .05), rather than BF, and MTT (all P > .05) (Tables 8, 9).
MVD, but not MTT, was positively correlated with PH, PHpm/PHa, BF, BV, and PS of the peripheral lung cancer with VEGF positive expression. MVD was positively correlated with PS of the benign nodule with VEGF positive expression, rather than PH, PHpm/PHa, BF, BV, and MTT. MVD was not correlated with PH, PHpm/PHa, BF, BV, PS, as well as MTT of the three groups of pulmonary nodules with VEGF negative expression (Table 10).
Table 10
Correlation between MVD and perfusion parameters of three groups of peripheral pulmonary nodules with VEGF positive and negative expression
Pulmonary nodule
Parameter
VEGF positive expression
VEGF negative expression

r
p
r
p
Peripheral lung cancer
BV
0.429
0.020
0.106
0.771

BF
0.432
0.019
0.013
0.971

MTT
-0.218
0.256
-0.174
0.630

PS
0.512
0.004
0.114
0.754

PH
0.444
0.016
0.533
0.112

PHpm/PHa
0.415
0.025
0.452
0.190
Inflammatory nodule
BV
/
/
0.135
0.661

BF
/
/
0.104
0.734

MTT
/
/
-0.252
0.407

PS
/
/
0.299
0.321

PH
/
/
0.067
0.829

PHpm/PHa
/
/
0.344
0.250
Benign nodule
BV
0.957
0.188
0.407
0.277

BF
0.996
0.055
0.360
0.341

MTT
-0.992
0.083
-0.544
0.130

PS
0.999
0.026
0.535
0.138

PH
0.991
0.086
0.441
0.235

PHpm/PHa
0.983
0.116
0.468
0.203

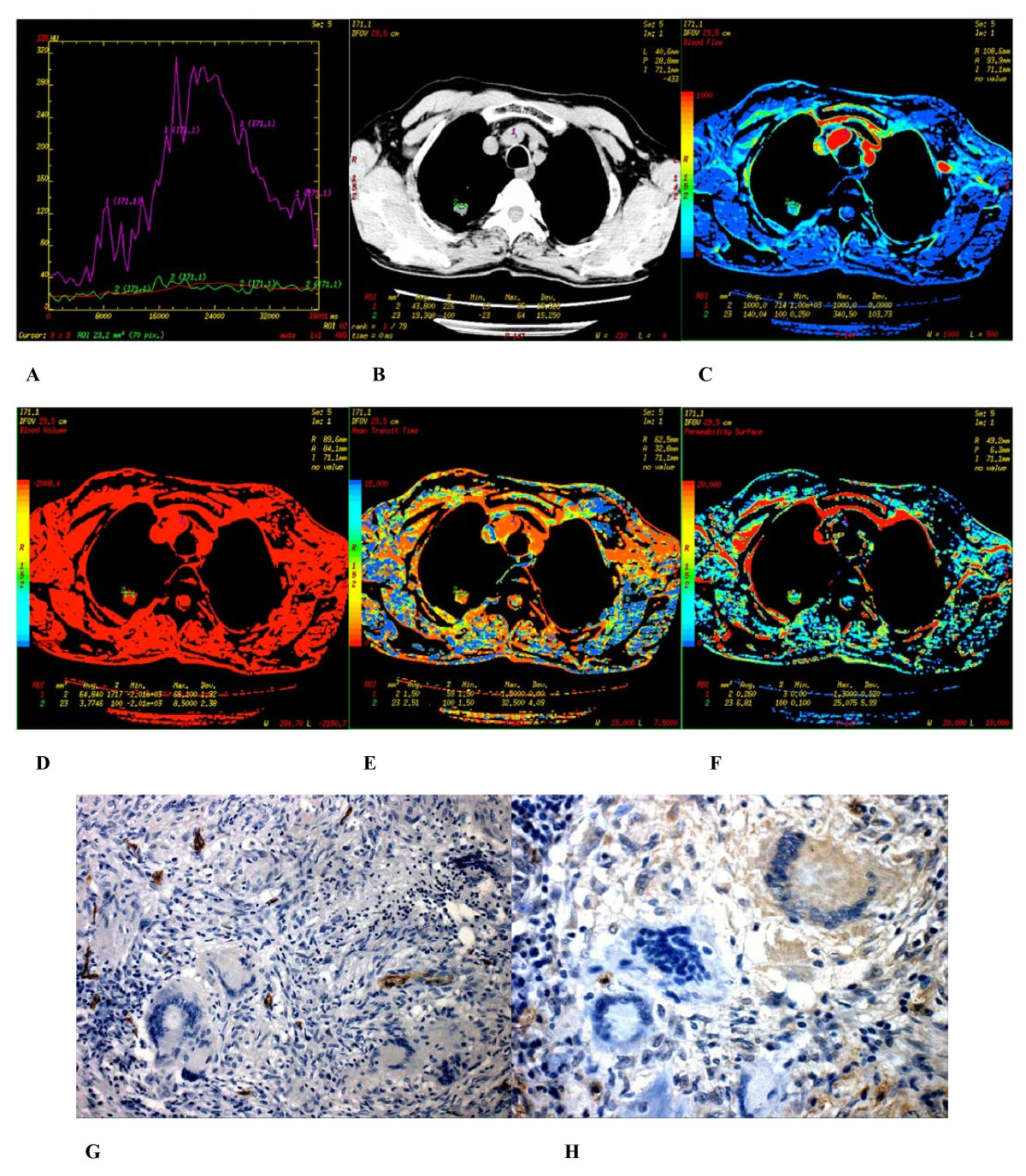

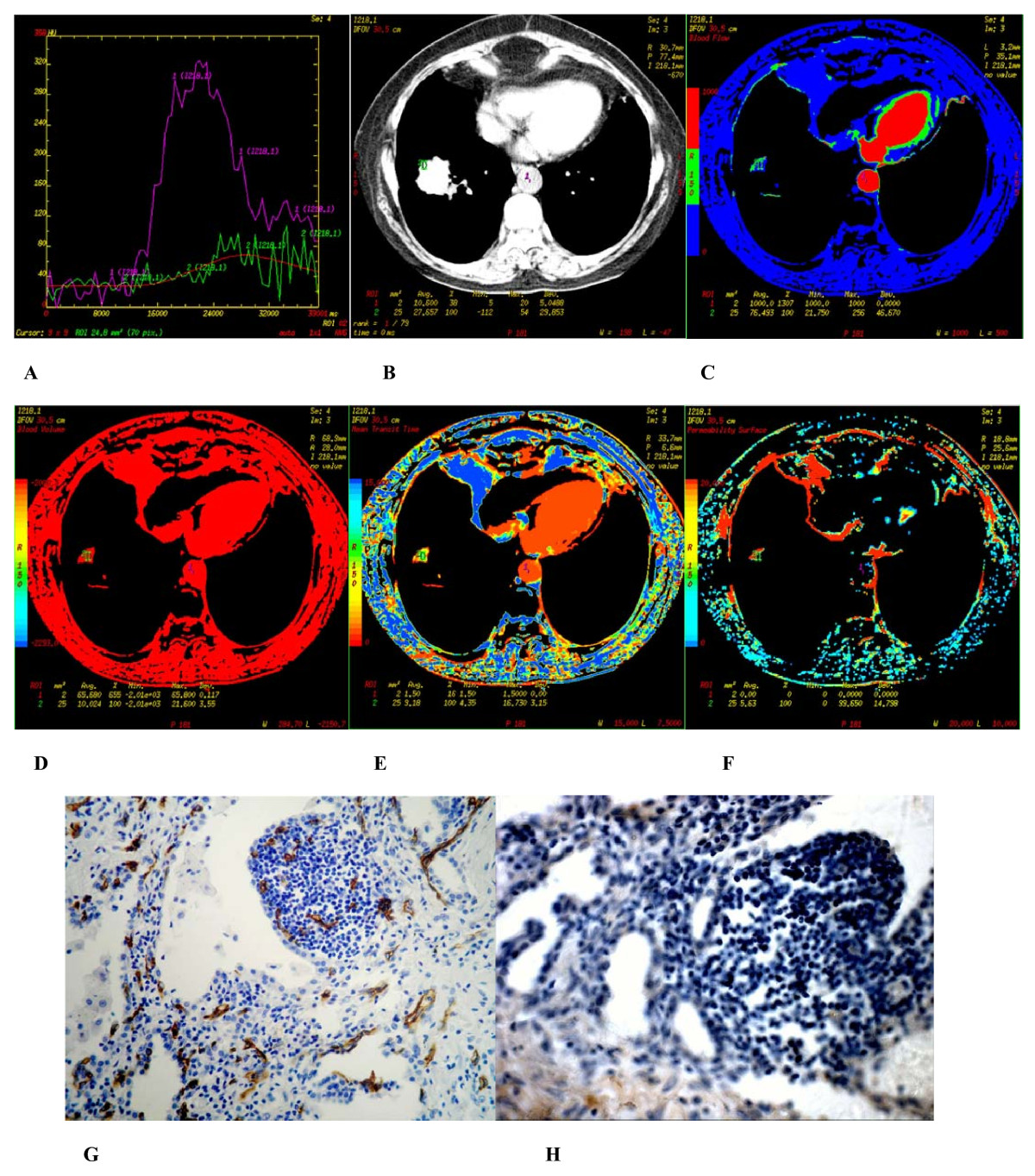

4. Perfusion parametric maps of pulmonary nodules

There were 3 types of CT perfusion parametric maps of pulmonary nodules. Type I was lack of central blood perfusion with sufficient peripheral blood perfusion (Figures 2C–2F, 5C–5F, 6C–6F); Type II was heterogeneity blood perfusion and much less blood perfusion in the area of necrosis (Figures 3C–3F); Type III was lack of central and peripheral blood perfusion (Figures 4C–4F).
There were 21 patients in type I cases (13 peripheral lung cancers, 2 inflammatory nodules, 4 tuberculoms, 2 hamartomas); 33 patients in type II cases (24 peripheral lung cancers, 9 inflammatory nodules) and 10 patients in type III cases (2 peripheral lung cancers, 2 inflammatory, 5 tuberculomas, 1 hamartoma). The perfusion pattern of peripheral lung cancer and inflammatory nodule was not statistically significant (F = 2.559, P = 0.298). Both and benign nodule were statistically significant (F = 19.984, P = 0.000; F = 13.562, P = 0.001) (Table 11).
Table 11
Type of perfusion parametric maps showing three groups of pulmonary nodules

TypeI
TypeII
Type III
Peripheral lung cancer(n = 39)
13
24
2
Inflammatory nodule(n = 13)
2
9
2
Benign nodule(n = 12)
6
0
6
*The perfusion patterns of peripheral lung cancer and inflammatory nodule were not statistically significant (F = 2.559, p = 0.298), but both and benign nodule were statistically significant (F = 19.984, P = 0.000; F = 13.562, P = 0.001).
The size of the tumor in CT perfusion parametric maps was smaller than that of CT original images and there were more exudative process found in the nodules (Figures 4B–4F).

Discussion

A growing tumor needs added blood supply from adjacent tissues, because this is essentially required for tumor growth and metastatic spread. This process may be caused by the increasing release of angiogenic factors from the tumor, such as vascular endothelial growth factor (VEGF), and subsequent increase in the extent of microvessel density (MVD) [1114]. The resulting increase of MVD leads to increased perfusion and permeability of the blood capillaries. Owing to the increased MVD which is associated frequently with increased parameter values of a tumor at CT perfusion imaging [15], CT perfusion imaging can be interpreted as reflecting tumor vascularity. This discovery may aid in comparing the differentiation of benignancy and malignancy of the tumor [16, 17].

1. Application value of TDC in the differentiation of benignancy and malignancy of the tumor

We want to look into early changes in the TDC in a region of interest which correlates with blood flow per unit of tissue. It is found that sufficient vascular characterization may be completely provided in the first scans after an intravenous bolus of contrast medium. CT perfusion imaging should be carried out during an early and first-pass process of contrast medium enhancement. Therefore, the data acquisition time for scanning is crucial. This study indicated that more intact TDC of all the nodules appeared within 40 seconds, and 2-second duration time after an intravenous bolus of contrast medium was carried out.
The different appearances of TDC of pulmonary nodules mainly represented the differences in blood perfusion and diffusion [18]. This study indicated that TDC of peripheral lung cancer had a steeper slope, and there was an obvious increase of nodular HU value. This changed little after reaching peak. In fact, it became flat at the peak, and had a platform. The enhancement of peripheral lung cancer and aorta enhanced at an equal pace. However, the peak of TDC appeared slightly later than that of the aorta. This was in accordance to the reports of Littleton [19] and Han Mingjun [20] who proposed that most lung cancers had abundant vascular supply, which was from the bronchial arterial system. The blood perfusion of peripheral lung cancer is abundant, so, there was a steeper slope in TDC.
The interstitial space of peripheral lung cancer was found to be larger, and a near absence or substantial reduction of lymphatic flow was noted. The retarded flow found in intravascular and interstitial spaces in the washout phase from the interstitial space contribute to retention of contrast medium in peripheral lung cancer. Thus, TDC of pulmonary nodule hanged out a little after reaching the peak. It was found to be flat at peak, with a platform.
This study indicated that TDC of inflammatory nodule had a steeper slope, which declined immediately after reaching the peak. It also indicated that in most of the processes of pulmonary inflammatory nodules, the number and sizes of bronchial arteries and blood circumfluence of bronchial veins had increased. Moreover, diffused thrombosis at the arterioles of the pulmonary circulation was observed and the microvessel structure was found to be made up of coarctate capillary network from the bronchial artery [19]. Moreover, it was found that the lung has two systems-bronchial artery and pulmonary artery of blood supply. When inflammatory nodules, ratio of ventilation and blood flow changed, the pulmonary arteries became narrow or occlusive, and bronchial artery became expanded. The vascular supply was actually found to be from the bronchial arteries. Thus, blood perfusion of the inflammatory nodule is abundant, and has a steeper slope in TDC. Flow of contrast medium through the intravascular space occurred through relatively straight vessels with a normal configuration. There was an accelerated, active lymphatic flow, and diffusion of contrast medium increased. Thus, TDC of inflammatory nodule declined earlier than that of peripheral lung cancer after reaching the peak.
This study indicated that TDC of benign nodule (tuberculoma and hamartoma) manifested as a flat trend. There was no a steeper slope, or an obvious increase in nodular CT value. Tuberculoma occurred mainly from caseous material and hamartoma was mainly from cartilage and fibrous tissues. Therefore, MVD is smaller, and vascular supply of tuberculoma and hamartoma is not abundant. There is lesser blood circumfluence in vessels and extravascular space. This resulted in a faster diffusion in tuberculoma and hamartoma. Thus, TDC of benign nodule manifested in a flat trend. Tthere was no steeper slope, or increase in nodular CT value.
This study indicated that TDC may depict a hemadynamic character of the pulmonary nodules. These characterizations may act as reference indexes for differentiating benign and malignant pulmonary nodules. TDC of peripheral lung cancer was similar to that of inflammatory nodule. Both TDC were shown to be obviously different from that of benign nodule. This coincided with the study of Zhang et al. [21]. However, Zhang et al. [21] believed that after inflammatory nodules reached maximum enhancement, the TDC declined and then rose again. This did not coincide with our study for two reasons. Firstly, contrast medium distributed in the vessels rather than in extravascular space during data acquisition of 40-seconds. After an intravenous bolus of conventional iodinated contrast material, the TDC reflected sufficient vascular characterization but did not reflect TDC of extravascular characterization in this study. Secondly, this discovery correlated with the scanner mode and application of the 16-slice spiral CT machine in this study.
TDC of benign nodule was obviously different from that of peripheral lung cancer and inflammatory nodule. When TDC manifested as a flat trend, there is neither a steeper slope nor obvious increase of nodular HU value. Therefore, morphologic characteristics and patient history may be used, and tuberculoma or hamartoma may be considered first before other pulmonary lesions are proved.

2. Clinical application value of perfusion parameters in the differentiation of benignancy and malignancy of tumor

This study indicated that PH, PHpm/PHa, BF, BV value of peripheral lung cancer and inflammatory nodule were not statistically significant. Both showed significantly higher PH, PHpm/PHa, BF, BV value than those of benign nodule. Peripheral lung cancer showed significantly higher PS value than that of inflammatory nodule and benign nodule. PS value of inflammatory nodule and benign nodule were not statistically significant. MTT value was not statistically significant among the three groups of nodules. In the case of adenocarcinoma, BV, BF, PS, PHpm/PHa between poorly and well differentiation and between poorly and moderately differentiation were statistically significant.
The reason may be owing to the fact that the vascular supply of malignant nodule and inflammatory nodule is more abundant, and therefore, both blood perfusion have increased. The vascular supply of benign nodule is lesser, therefore, its blood perfusion is obviously less than that of malignant nodule and inflammatory nodule. This coincided with the study results of Swensen et al. [5, 7, 22, 23] and Zhang et al. [21], who compared PH, PHpm/PHa or perfusion value of malignant, inflammatory, and benign nodule, and suggested that malignant and inflammatory nodule showed higher PH, PHpm/PHa or higher perfusion value than those of benign nodule.
The result of this study indicated that there was a better consistency among BF, BV, PS, PH, PHpm/PHa in peripheral lung cancer, inflammatory nodule, and benign nodule cases. This result suggested that the five perfusion parameters may better reflect blood perfusion status, malignant and benign degree of pulmonary nodules.
PS value reflects one-way transmission speed for contrast material to enter cell spaces by capillary endothelium, and it reflects the diffusion coefficient of blood vessel endothelial interspace of tumor angiogenesis. There were straighter branches of blood vessels, mature blood capillaries, and near normal permeability surfaces of blood capillaries in benign and inflammatory nodules. Therefore, PS value of inflammatory nodule and benign nodule was lower, and not statistically significant. For peripheral lung cancer, there is found to have more developmental immaturity of tumor capillary, no intact vessel wall, and increased permeability surface of blood capillary which resulted from VEGF and other vascular growth factors. Therefore, the PS value of peripheral lung cancer is higher.
PH, PHpm/PHa, BF, BV value of peripheral lung cancer and inflammatory nodule were usually significantly higher than those of benign nodule. Peripheral lung cancer usually showed significantly higher PS value than that of inflammatory nodule and benign nodule. when a pulmonary nodule shows that PH, PHpm/PHa, BV and BF are higher, PS is usually higher. It is possible that before other pulmonary nodules are found, peripheral lung cancer may be considered first. When pulmonary nodules show PH, PHpm/PHa, BV, BF are higher, PS is found to be lower, and inflammatory nodule may be considered first.

3. Application value of perfusion parametric maps of pulmonary nodules

The findings of our study indicated that perfusion map in type I usually showed up in tuberculoma and hamartoma, and there was shown to be a lack of central blood perfusion, and sufficient peripheral blood perfusion. Perfusion map in type II usually showed up in inflammatory nodule and peripheral lung cancer. In this case, there was the presence of heterogeneity blood perfusion, and area of necrosis was found to be less. Perfusion map in type III usually also showed up in tuberculoma, hamartoma and inflammatory nodule, and there was found to be a lack of central and peripheral blood perfusion.
In perfusion parametric map of pulmonary nodule, there is found to be a lack of central blood perfusion and sufficient peripheral blood perfusion before other pulmonary lesions are proved. Morphologic characteristics and patient history may be used, and benign pulmonary nodule (tuberculoma or hamartoma) may be considered first. However, other pulmonary nodules may found not to completely excluded, because some adenocarcinomas may be filled with mucus. Also fewer inflammatory nodules may be filled with pus, and have lack of central perfusion.
This study indicated that the low-perfusion area of necrosis and mucus or cavitation area could diminish the mean perfusion parameter values. Therefore, when drawing up region of interest, it is considered that pulmonary nodule, low perfusion and cavitation should be avoided as far as possible.
The size of tumor in CT perfusion parametric maps was usually smaller than that of original images when there were more exudative process shown in tumors. Therefore, CT perfusion parametric maps displayed by color gray scale may reveal the essence of pulmonary nodules and differences in regional blood perfusion status more directly, clearly, realistically, and reliably. This will probably aid in paracentesis and biopsy of the essence of pulmonary nodule by CT guidance.

4. Relationship between perfusion parameters and MVD and VEGF in pulmonary nodules

Angiogenesis is a complicated process, as it is controlled by vascular growth factors and vascular growth inhibitor factors [24, 25], This is because the endothelial cells which have resided in blood capillary and postcapillary vein will enter again itto cell generation cycle. As a result, there will be degrading basal membrane under endothelia cells and this will form blood capillary spore. In turn, blood capillary will move towards peripheral tissues by a pullulate way. Thus, when a tumor has no passage to directly contact with the eutaxia circulation system, it must induce the vicinity vessels to erupt the new vessels.
Growth of tumor will suffer limitation if there is occurrence of no angiogenesis. Tumor cells obtain nutrition only when there is diffusion. Tumor will stop growing after achieving 1–2 nm diameter or thickness of about 107 cells if there is not enough oxygen and nutrition supply. However, growth of tumor will accelerate once new vessels are put into tumor tissues, and the nutrition supply of tumor transforms perfusion from diffusion process. Therefore, the tumor is a growth that typically depends on supply from the blood vessels. Although there are many kinds of vascular growth factors, VEGF played a crucial role in tumor angiogenesis because of its speciality factor in promoting tumor karyokinesis [25]. MVD is the number of microvessel per unit area which is counted by using some specific antibodies (for instance CD34 monoclonal antibody)to mark microvessel endothelial cells of tumor tissues.
This study indicated that in the case of VEGF positive expression, MVD was found to be positively correlated with PH, PHpm/PHa, BF, BV, and PS of peripheral lung cancer. This coincided with the studies of Yi et al. [26], Tateishi et al. [27] and Li Shenjiang et al. [8]. Yi et al. and Tateishi et al. described that a significantly positive correlation was found between enhancement of MVD and/or VEGF of malignant pulmonary nodule. Li Shenjiang et al [8]. reported that enhancement and perfusion value were significantly and positively correlated with MVD and VEGF of malignant pulmonary nodule, and MTT value was not significantly correlated with MVD and VEGF.
This study also indicated that VEGF expression of 32 cases (29 peripheral lung cancer, 0 inflammatory nodule, 3 benign nodule) were positive. MVD was not correlated with PH, PHpm/PHa, BF, BV, and PS of three groups of pulmonary nodules with VEGF negative expression. The peripheral lung cancers with VEGF positive expression showed significantly higher PH, PHpm/PHa, BF, BV, and PS value than those of the peripheral lung cancers with VEGF negative expression, and those of benign nodule with VEGF positive expression.
It is clear that PH, PHpm/PHa, BF, BV, and PS value can reflect MVD measurement and VEGF expression of benign and malignant pulmonary nodules. This explains that PH, PHa/PHpm, BF, BV, PS may act as angiogenesis index of pulmonary nodules, and have potential value of studied pulmonary nodule angiogenesis.

Conclusion

16-slice spiral CT perfusion imaging closely correlated with tumor angiogenesis and reflected MVD measurement and VEGF expression. It provided not only a non-invasive method of quantitative assessment for blood flow patterns of peripheral pulmonary nodules.

Acknowledgements

This study was supported by grants from the Nature Science Foundation of Guangdong Province of China (06301077), the Traditional Chinese Medicine Administration Foundation of Guangdong Province of China (2060134), the Health Department Foundation of Guangdong Province of China (A2007421), the Shantou Technology Bureau Science Foundation of China (Shantou government technology (2006)85), and National Nature Science Foundation of China (30700235).
The authors are grateful to Zu-De Zhu, Tao Huang for excellent technical assistance; Li-Hua Sun for immunohistochemistry experiment; Bao-Jun Huang for conducting the mass analyses of CT perfusion images, as well as the English editorial assistance of John K. Lim, M.D., from USA, professor Grace from Singapore, Junqing Cui, PH.D. from USA, are gratefully acknowledged.
This article is published under license to BioMed Central Ltd. This is an Open Access article distributed under the terms of the Creative Commons Attribution License (http://​creativecommons.​org/​licenses/​by/​2.​0), which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited.

Competing interests

The authors declare that they have no competing interests.

Authors' contributions

SHM created the original study design, wrote the protocol, and extracted the data. HBL, BHJ and ZXW read an earlier version of the manuscript and gave insightful comments and suggestions. SHM, HBL and XLC undertook CT scanning and analyses of CT images. SHM, HBL and WM inquired about cases and undertook immunohistochemical staining. ZXW and ZGH did statistical testings. All authors contributed to both protocol and final reports.
Literatur
1.
Zurück zum Zitat Klingenbeck-Regn K, Schaller S, Flohr T, Ohnesorge B, Kopp AF, Baum U: Subsecond multi slice computed tomography: basics and applications. Eur J Radiol. 1999, 31: 110-124. 10.1016/S0720-048X(99)00086-8.CrossRefPubMed Klingenbeck-Regn K, Schaller S, Flohr T, Ohnesorge B, Kopp AF, Baum U: Subsecond multi slice computed tomography: basics and applications. Eur J Radiol. 1999, 31: 110-124. 10.1016/S0720-048X(99)00086-8.CrossRefPubMed
2.
Zurück zum Zitat Vaupel P, Kallinowski F, Okunieff P: Blood flow, oxygen and nutrient supply, and metabolic microenvironment of human tumors: a review. Cancer Res. 1989, 49: 6449-6465.PubMed Vaupel P, Kallinowski F, Okunieff P: Blood flow, oxygen and nutrient supply, and metabolic microenvironment of human tumors: a review. Cancer Res. 1989, 49: 6449-6465.PubMed
3.
Zurück zum Zitat Miles KA: Tumour angiogenesis and its relation to contrast enhancement on computed tomography: a review. Eur J Radiol. 1999, 30: 198-205. 10.1016/S0720-048X(99)00012-1.CrossRefPubMed Miles KA: Tumour angiogenesis and its relation to contrast enhancement on computed tomography: a review. Eur J Radiol. 1999, 30: 198-205. 10.1016/S0720-048X(99)00012-1.CrossRefPubMed
4.
Zurück zum Zitat Schaefer JF, Vollmar J, Schick F, Vonthein R, Seemann MD, Aebert H, Dierkesmann R, Friedel G, Claussen CD: Solitary pulmonary nodules: dynamic contrast-enhanced MR imaging-perfusion differences in malignant and benign lesions. Radiology. 2004, 232: 544-553. 10.1148/radiol.2322030515.CrossRefPubMed Schaefer JF, Vollmar J, Schick F, Vonthein R, Seemann MD, Aebert H, Dierkesmann R, Friedel G, Claussen CD: Solitary pulmonary nodules: dynamic contrast-enhanced MR imaging-perfusion differences in malignant and benign lesions. Radiology. 2004, 232: 544-553. 10.1148/radiol.2322030515.CrossRefPubMed
5.
Zurück zum Zitat Swensen SJ, Brown LR, Colby TV, Weaver AL, Midthun DE: Lung nodule enhancement at CT: prospective findings. Radiology. 1996, 201: 447-455.CrossRefPubMed Swensen SJ, Brown LR, Colby TV, Weaver AL, Midthun DE: Lung nodule enhancement at CT: prospective findings. Radiology. 1996, 201: 447-455.CrossRefPubMed
6.
Zurück zum Zitat Ohno Y, Hatabu H, Takenaka D, Adachi S, Kono M, Suqimura K: Solitary pulmonary nodules: potential role of dynamic MR imaging in management initial experience. Radiology. 2002, 224: 503-511. 10.1148/radiol.2242010992.CrossRefPubMed Ohno Y, Hatabu H, Takenaka D, Adachi S, Kono M, Suqimura K: Solitary pulmonary nodules: potential role of dynamic MR imaging in management initial experience. Radiology. 2002, 224: 503-511. 10.1148/radiol.2242010992.CrossRefPubMed
7.
Zurück zum Zitat Swensen SJ, Viggiano RW, Midthun DE, Müller NL, Sherrick A, Yamashita K, Naidich DP, Patz EF, Hartman TE, Muhm JR, Weaver AL: Lung nodule enhancement at CT: multicenter study. Radiology. 2000, 214: 73-80.CrossRefPubMed Swensen SJ, Viggiano RW, Midthun DE, Müller NL, Sherrick A, Yamashita K, Naidich DP, Patz EF, Hartman TE, Muhm JR, Weaver AL: Lung nodule enhancement at CT: multicenter study. Radiology. 2000, 214: 73-80.CrossRefPubMed
8.
Zurück zum Zitat Li Shen-jiang, Xiao Xiang-sheng, Liu Shi-yuan: Blood flow patterns of solitary pulmonary nodules with enhancement: clinical value of multislice spiral CT. Chin J Radiol. 2004, 38: 1062-1068. Li Shen-jiang, Xiao Xiang-sheng, Liu Shi-yuan: Blood flow patterns of solitary pulmonary nodules with enhancement: clinical value of multislice spiral CT. Chin J Radiol. 2004, 38: 1062-1068.
9.
Zurück zum Zitat Mattern J, Koomagi R, Volm M: Association of vascular endothelial growth factor expression with intratumoral microvessel density and tumor cell proliferation in human epidermoid lung carcinoma. Br J Cancer. 1996, 73: 931-934.CrossRefPubMedPubMedCentral Mattern J, Koomagi R, Volm M: Association of vascular endothelial growth factor expression with intratumoral microvessel density and tumor cell proliferation in human epidermoid lung carcinoma. Br J Cancer. 1996, 73: 931-934.CrossRefPubMedPubMedCentral
10.
Zurück zum Zitat Weidner N: Tumor vascularity and proliferation: Clear evidence of a close relationship. J Pathol. 1999, 189: 297-299. 10.1002/(SICI)1096-9896(199911)189:3<297::AID-PATH434>3.0.CO;2-O.CrossRefPubMed Weidner N: Tumor vascularity and proliferation: Clear evidence of a close relationship. J Pathol. 1999, 189: 297-299. 10.1002/(SICI)1096-9896(199911)189:3<297::AID-PATH434>3.0.CO;2-O.CrossRefPubMed
11.
Zurück zum Zitat Weidner N, Semple JP, Welch WR, Folkman J: Tumor angiogenesis and metastasis correlation in invasive breast carcinoma. N Engl J Med. 1991, 324: 1-8.CrossRefPubMed Weidner N, Semple JP, Welch WR, Folkman J: Tumor angiogenesis and metastasis correlation in invasive breast carcinoma. N Engl J Med. 1991, 324: 1-8.CrossRefPubMed
12.
Zurück zum Zitat Fontanini G, Bigini D, Vignati S, Basolo F, Mussi A, Lucchi M, Chine S, Angeletti CA, Harris AL, Bevilacqua G: Microvessel count predicts metastatic disease and survival in non-small cell lung cancer. J Pathol. 1995, 177: 57-63. 10.1002/path.1711770110.CrossRefPubMed Fontanini G, Bigini D, Vignati S, Basolo F, Mussi A, Lucchi M, Chine S, Angeletti CA, Harris AL, Bevilacqua G: Microvessel count predicts metastatic disease and survival in non-small cell lung cancer. J Pathol. 1995, 177: 57-63. 10.1002/path.1711770110.CrossRefPubMed
13.
Zurück zum Zitat Fontanini G, Vignati S, Boldrini L, Chinè S, Silvestri V, Lucchi M, Mussi A, Angeletti CA, Bevilacqua G: Vascular endothelial growth factor is associated with neovascularization and influences progression of non-small cell lung carcinoma. Clin Cancer Res. 1997, 3: 861-865.PubMed Fontanini G, Vignati S, Boldrini L, Chinè S, Silvestri V, Lucchi M, Mussi A, Angeletti CA, Bevilacqua G: Vascular endothelial growth factor is associated with neovascularization and influences progression of non-small cell lung carcinoma. Clin Cancer Res. 1997, 3: 861-865.PubMed
14.
Zurück zum Zitat Shibusa T, Shijubo N, Abe S: Tumor angiogenesis and vascular endothelial growth factor expression in stage I lung adenocarcinoma. Clin Cancer Res. 1998, 4: 1483-1487.PubMed Shibusa T, Shijubo N, Abe S: Tumor angiogenesis and vascular endothelial growth factor expression in stage I lung adenocarcinoma. Clin Cancer Res. 1998, 4: 1483-1487.PubMed
15.
Zurück zum Zitat Ahn MJ, Jang SJ, Park YW, Choi JH, Oh HS, Lee CB, Paik HK, Park CK: Clinical prognostic values of vascular endothelial growth factor, microvessel density, and P53 expression in esophageal carcinomas. J Korean Med Sci. 2002, 17: 201-207.CrossRefPubMedPubMedCentral Ahn MJ, Jang SJ, Park YW, Choi JH, Oh HS, Lee CB, Paik HK, Park CK: Clinical prognostic values of vascular endothelial growth factor, microvessel density, and P53 expression in esophageal carcinomas. J Korean Med Sci. 2002, 17: 201-207.CrossRefPubMedPubMedCentral
16.
Zurück zum Zitat Tateishi U, Nishihara H, Watanabe S, Morikawa T, Abe K, Miyasaka K: Tumour angiogenesis and dynamic CT in lung adenocarcinoma: radiologic-pathologic correlation. J Comput Assist Tomogr. 2001, 25: 23-27. 10.1097/00004728-200101000-00004.CrossRefPubMed Tateishi U, Nishihara H, Watanabe S, Morikawa T, Abe K, Miyasaka K: Tumour angiogenesis and dynamic CT in lung adenocarcinoma: radiologic-pathologic correlation. J Comput Assist Tomogr. 2001, 25: 23-27. 10.1097/00004728-200101000-00004.CrossRefPubMed
17.
Zurück zum Zitat Fujimoto K, Abe T, Müller NL, Terasaki H, Kato S, Sadohara J, Kono R, Edamitsu O, Ishitake T, Hayashi A, Rikimaru T, Hayabuchi N: Small peripheral pulmonary carcinomas evaluated with dynamic MR imaging: correlation with tumor vascularity and prognosis. Radiology. 2003, 227: 786-793. 10.1148/radiol.2273020459.CrossRefPubMed Fujimoto K, Abe T, Müller NL, Terasaki H, Kato S, Sadohara J, Kono R, Edamitsu O, Ishitake T, Hayashi A, Rikimaru T, Hayabuchi N: Small peripheral pulmonary carcinomas evaluated with dynamic MR imaging: correlation with tumor vascularity and prognosis. Radiology. 2003, 227: 786-793. 10.1148/radiol.2273020459.CrossRefPubMed
18.
Zurück zum Zitat Zhang Minming, Zhou Hua, Zhou Yu: Evaluation of pulmonary carcinoma angiogenesis by dynamic contrast-enhanced CT and MR functional imaging. Radiol Practice. 2005, 20: 286-290. Zhang Minming, Zhou Hua, Zhou Yu: Evaluation of pulmonary carcinoma angiogenesis by dynamic contrast-enhanced CT and MR functional imaging. Radiol Practice. 2005, 20: 286-290.
19.
Zurück zum Zitat Littleton JT, Durizch ML, Moeller G, Herbert DE: Pulmonary masses: contrast enhancement. Radiology. 1990, 177: 861-871.CrossRefPubMed Littleton JT, Durizch ML, Moeller G, Herbert DE: Pulmonary masses: contrast enhancement. Radiology. 1990, 177: 861-871.CrossRefPubMed
20.
Zurück zum Zitat Han Mingjun, Feng Gansheng, Yang Jianyong, Su Hong-ying, Zhao Zhong-chun: The pulmonary artery doesn't participate in the blood supply of lung cancer:experimental and DSA study. Chin J Radiol. 2000, 34: 802-804. Han Mingjun, Feng Gansheng, Yang Jianyong, Su Hong-ying, Zhao Zhong-chun: The pulmonary artery doesn't participate in the blood supply of lung cancer:experimental and DSA study. Chin J Radiol. 2000, 34: 802-804.
21.
Zurück zum Zitat Zhang M, Kono M: Solitary pulmonary nodules: evaluation of blood flow patterns with dynamic CT. Radiology. 1997, 205: 471-478.CrossRefPubMed Zhang M, Kono M: Solitary pulmonary nodules: evaluation of blood flow patterns with dynamic CT. Radiology. 1997, 205: 471-478.CrossRefPubMed
22.
Zurück zum Zitat Swensen SJ, Browen LR, Colby TV, Weaver AL: Pulmonary nodules: CT evaluation of enhancement with iodinated contrast material. Radiology. 1995, 194: 393-398.CrossRefPubMed Swensen SJ, Browen LR, Colby TV, Weaver AL: Pulmonary nodules: CT evaluation of enhancement with iodinated contrast material. Radiology. 1995, 194: 393-398.CrossRefPubMed
23.
Zurück zum Zitat Swensen SJ, Morin RL, Schueler BA, Brown LR, Cortese DA, Pairolero PC, Brutinel WM: Solitary pulmonary nodule: CT evaluation of enhancement with iodinated contrast material-a preliminary report. Radiology. 1992, 182: 343-347.CrossRefPubMed Swensen SJ, Morin RL, Schueler BA, Brown LR, Cortese DA, Pairolero PC, Brutinel WM: Solitary pulmonary nodule: CT evaluation of enhancement with iodinated contrast material-a preliminary report. Radiology. 1992, 182: 343-347.CrossRefPubMed
24.
Zurück zum Zitat Miles KA, Griffiths MR, Fuentes MA: Standardized perfusion value: universal CT contrast enhancement scale that correlates with FDG PET in lung nodules. Radiology. 2001, 220: 548-553.CrossRefPubMed Miles KA, Griffiths MR, Fuentes MA: Standardized perfusion value: universal CT contrast enhancement scale that correlates with FDG PET in lung nodules. Radiology. 2001, 220: 548-553.CrossRefPubMed
25.
Zurück zum Zitat O'Byrne KJ, Koukourakis MI, Giatromanolaki A, Cox G, Turley H, Steward WP, Gatter K, Harris AL: Vascular endothelial growth factor, platelet-derived endothelial cell growth factor and angiogenesis in non-small-cell lung cancer. Br J Cancer. 2000, 82: 1427-1432. 10.1054/bjoc.1999.1115.CrossRefPubMedPubMedCentral O'Byrne KJ, Koukourakis MI, Giatromanolaki A, Cox G, Turley H, Steward WP, Gatter K, Harris AL: Vascular endothelial growth factor, platelet-derived endothelial cell growth factor and angiogenesis in non-small-cell lung cancer. Br J Cancer. 2000, 82: 1427-1432. 10.1054/bjoc.1999.1115.CrossRefPubMedPubMedCentral
26.
Zurück zum Zitat Yi CA, Lee KS, Kim EA, Han J, Kim H, Kwon OJ, Jeong YJ, Kim S: Solitary pulmonary nodules: Dynamic enhanced multi-detector row CT study and comparison with vascular endothelial growth factor and microvessel density. Radiology. 2004, 233: 191-199. 10.1148/radiol.2331031535.CrossRefPubMed Yi CA, Lee KS, Kim EA, Han J, Kim H, Kwon OJ, Jeong YJ, Kim S: Solitary pulmonary nodules: Dynamic enhanced multi-detector row CT study and comparison with vascular endothelial growth factor and microvessel density. Radiology. 2004, 233: 191-199. 10.1148/radiol.2331031535.CrossRefPubMed
27.
Zurück zum Zitat Tateishi U, Kusumoto M, Nishihara H, Nagashima K, Morikawa T, Moriyama N: Contrast-enhanced dynamic computed tomography for the evaluation of tumor angiogenesis in patients with lung carcinoma. Cancer. 2002, 95: 835-842. 10.1002/cncr.10730.CrossRefPubMed Tateishi U, Kusumoto M, Nishihara H, Nagashima K, Morikawa T, Moriyama N: Contrast-enhanced dynamic computed tomography for the evaluation of tumor angiogenesis in patients with lung carcinoma. Cancer. 2002, 95: 835-842. 10.1002/cncr.10730.CrossRefPubMed
Metadaten
Titel
Peripheral pulmonary nodules: Relationship between multi-slice spiral CT perfusion imaging and tumor angiogenesis and VEGF expression
verfasst von
Shu-Hua Ma
Hong-Bo Le
Bao-hui Jia
Zhao-Xin Wang
Zhuang-Wei Xiao
Xiao-Ling Cheng
Wei Mei
Min Wu
Zhi-Guo Hu
Yu-Guang Li
Publikationsdatum
01.12.2008
Verlag
BioMed Central
Erschienen in
BMC Cancer / Ausgabe 1/2008
Elektronische ISSN: 1471-2407
DOI
https://doi.org/10.1186/1471-2407-8-186

Weitere Artikel der Ausgabe 1/2008

BMC Cancer 1/2008 Zur Ausgabe

Erhöhte Mortalität bei postpartalem Brustkrebs

07.05.2024 Mammakarzinom Nachrichten

Auch für Trägerinnen von BRCA-Varianten gilt: Erkranken sie fünf bis zehn Jahre nach der letzten Schwangerschaft an Brustkrebs, ist das Sterberisiko besonders hoch.

Hypertherme Chemotherapie bietet Chance auf Blasenerhalt

07.05.2024 Harnblasenkarzinom Nachrichten

Eine hypertherme intravesikale Chemotherapie mit Mitomycin kann für Patienten mit hochriskantem nicht muskelinvasivem Blasenkrebs eine Alternative zur radikalen Zystektomie darstellen. Kölner Urologen berichten über ihre Erfahrungen.

Ein Drittel der jungen Ärztinnen und Ärzte erwägt abzuwandern

07.05.2024 Medizinstudium Nachrichten

Extreme Arbeitsverdichtung und kaum Supervision: Dr. Andrea Martini, Sprecherin des Bündnisses Junge Ärztinnen und Ärzte (BJÄ) über den Frust des ärztlichen Nachwuchses und die Vorteile des Rucksack-Modells.

Bessere Prognose mit links- statt rechtsseitigem Kolon-Ca.

06.05.2024 Kolonkarzinom Nachrichten

Menschen mit linksseitigem Kolonkarzinom leben im Mittel zweieinhalb Jahre länger als solche mit rechtsseitigem Tumor. Auch aktuell ist das Sterberisiko bei linksseitigen Tumoren US-Daten zufolge etwa um 11% geringer als bei rechtsseitigen.

Update Onkologie

Bestellen Sie unseren Fach-Newsletter und bleiben Sie gut informiert.
