Background
Pancreatic cancer is a leading cause of cancer-related deaths with extremely poor prognosis [
1,
2]. It is estimated that about 33,000 new cases of pancreatic cancer will be diagnosed in the United States each year [
3,
4]. The low survival rate is due to insensitivity of pancreatic cancer to most of oncologic therapies such as chemotherapy, radiotherapy and immunotherapy [
5,
6]. New therapeutic strategies are therefore urgently needed to combat with this deadly form of cancer. Several epidemiological studies suggested that diet rich in fruits, vegetables or certain herbs may be protective against various human malignancies including pancreatic cancer [
7‐
9].
Triphala (TPL) is the most commonly used Indian Ayurvedic herbal formulation, consisting equal parts of three medicinal dried plant fruits
Emblica officinalis,
Terminalia belerica and
Terminalia chebula. It is an important medicine of the "Rasayana" group of Ayurveda and is believed to promote immunity, health and longevity [
10]. Rich in antioxidants, Triphala, plays an essential role in the treatment of a wide variety of conditions such inflammation, anemia, constipation, asthma, jaundice, chronic ulcers and AIDS [
10,
11]. Gallic acid and ascorbic acid are found to be the major ingredients of Triphala [
12]. Recent study suggested that Triphala significantly reduce benzo(a)pyrene-induced forestomach tumorigenesis in mice [
13]. It has also been shown to suppress the growth of MCF-7 breast cancer cells and protect against radiation-induced oxidative damage [
14‐
16]. However, the molecular mechanism of the anticancer effects of Triphala has not yet been established and its effect against pancreatic cancer not known.
In the present study, we demonstrate that Triphala significantly inhibit the proliferation of Capan-2 and BxPC-3 human pancreatic cancer cells. The apoptosis inducing effects of Triphala in Capan-2 cells was associated with the generation of reactive oxygen species, activation of ERK, P53 and caspase-3 cascade. Moreover, oral administration of Triphala significantly suppresses the growth of Capan-2 tumor xenograft which correlates with increased apoptosis and activation of p53 and ERK in the tumors, in agreement with our in vitro observations.
Methods
Chemicals and Antibodies
Triphala (TPL) was obtained from Tansukh Herbal Corporation (Lucknow, India). Anti-actin, sulforhodamine B (SRB), and N-Acetyl-Cysteine (NAC) were purchased from Sigma (St. Louis, MO). The Antibodies against phospho-H2A.X (Ser-139), caspase-9, caspase-3, cleaved caspase-3, poly (ADP-ribose) polymerase (PARP), cleaved PARP, phospho-ERK (Thr-202/Tyr-204), phospho-P53 (Ser-15), phospho-ATM (Ser-1981), phospho-MEK-1 (Ser-217/221), ERK, and P53 were purchased from Cell Signaling (Danvers, MA). The cell death detection ELISA kit was obtained from Roche Diagnostic Gmbh (Mannheim, Germany) and P53 transcription factor assay kit was procured from TransAM (Carlsbad, CA). Enhanced chemiluminescence kit was bought from Perkin Elmer Life Science Products (Boston, MA). The specific probe DCFDA was obtained from Molecular Probes (Eugene, OR). U0126 (ERK specific inhibitor), and Pifithrin-α (p53 specific inhibitor) were obtained from Calbiochem (San Diego, CA). NE-PER Nuclear and Cytoplasmic extraction reagent kit was acquired from Pierce biotechnology (Rockford. IL).
Cell Culture
Human pancreatic cancer cell line Capan-2 and BxPC-3 were purchased from American Type Culture Collection (Rockville, MD). Capan-2 cells express wild type p53 whereas BxPC-3 cells harbor mutated p53. Monolayer cultures of Capan-2 cells were maintained in McCoy's medium and BxPC-3 cells in RPMI 1640 medium supplemented with 10% fetal bovine serum, PSN antibiotic mixture (10 ml/L) (Gibco BRL, Grand Island, NY). The cultures were maintained at 37°C in a humidified chamber of 95% air and 5% CO2. Normal human pancreatic ductal epithelial cells (HPDE-6) were a generous gift from Dr. Ming-Sound Tsao, University of Toronto, Toronto, Canada. The long term culture of pancreatic ductal epithelial cells derived from normal and benign adult human pancreata was achieved by infection with a retrovirus containing the E6 and E7 genes of the human papilioma virus 16. These cells were considered as near normal pancreatic epithelial cells. The genetic characterization and maintenance of primary culture of HPDE-6 cells were done as described previously [
17,
18].
Cell Survival Assays
The effect of Triphala on the survival of Capan-2, BxPC-3, and HPDE-6 cells was determined by Sulforhodamine B assay. Briefly, 5000 cells were plated in 96 well plates and allowed to attach overnight. The medium was replaced with fresh medium containing varying concentrations of Triphala, which was dissolved in PBS and filtered through 0.22 μm before use. Plates were developed as described by us previously [
19,
20] and read at 570 nm using Bio Kinetics plate reader.
Determination of Apoptosis
Apoptosis induction in control and Triphala treated cells was determined by cell death detection ELISA kit according to manufacturer's instructions. Briefly, cytoplasmic histone associated DNA fragments from control or Triphala treated cells were extracted and incubated in the microtiter plate coated with anti-histone antibody. Subsequently, after color development the absorbance of the samples was read at 405 nm using Biokinetics EL340 microplate reader.
Generation of reactive oxygen species (ROS)
The generation of ROS was evaluated by measuring the levels of hydrogen peroxide produced in the cells by flow cytometry. Levels of hydrogen peroxide in control and Triphala treated cells was determined by staining the cells with 6-carboxy-2',7'-dichlorodihydrofluorescein diacetate (DCFDA). DCFDA is cell permeable and is cleaved by non-specific esterases and oxidized by peroxides produced in the cells to form fluorescent 2',7'-dichlorofluorescin (DCF). The intensity of DCF fluorescence is proportional to the amount of peroxide produced in the cells. Briefly, 0.5 × 106 cells were plated in 25 cm2 flasks and allowed to attach overnight. After treatment of Capan-2 cells with Triphala, cells were further incubated with 5 μM DCFDA at 37°C for 15 min. Subsequently, cells were washed and resuspended in PBS and analyzed for DCF fluorescence by using a Coulter XL flow cytometer. Approximately 20,000 cells were evaluated for each sample. In all determinations, cell debris and clumps were excluded from the analysis.
Western blot analysis
Capan-2 cells were exposed to varying concentrations of Triphala for the indicated time periods, washed twice with ice-cold PBS and lysed on ice as described by us previously [
19,
20]. Tumors obtained from control and Triphala treated mice were washed with cold PBS, minced and homogenized in above-mentioned lysis buffer. The cell/tumor lysate was cleared by centrifugation at 14,000 × g for 30 min. Lysate containing 60 μg protein was resolved by 10% sodium dodecyl sulfate (SDS)-polyacrylamide gel electrophoresis (PAGE) and the proteins were transferred onto polyvinylidene fluoride (PVDF) membrane. After blocking with 5% non-fat dry milk in Tris buffered saline, membrane was incubated with the desired primary antibody overnight. Subsequently, the membrane was incubated with appropriate secondary antibody, and the immunoreactive bands were visualized using enhanced chemiluminescence kit according to the manufacturer's instructions. Each membrane was stripped and re-probed with antibody against actin (1:40000 dilution) to ensure equal protein loading.
ERK kinase activity
Control and Triphala-treated cells were lysed on ice by lysis buffer as described above. Approximately 500 μg protein lysate was incubated overnight with 15 μl immobilized antibody bead slurry at 4°C and centrifuged at 14,000 × g for 30 seconds at 4°C. Pellet was washed with PBS and resuspended in 50 μl of kinase buffer supplemented with 200 μM ATP and substrate and incubated for 30 minutes at 30°C. The protein was resolved by gel electrophoresis.
Nuclear P53 transcription activity assay
Nuclear extract from control and Triphala treated cells was prepared using NE-PER Nuclear and Cytoplasmic extraction reagent kit. P53 transcription activity was measured by the TransAM P53 kit according to the manufacturer's instructions. Briefly, about 10 μg nuclear extract was incubated with binding buffer for 1 hour at room temperature followed by addition of p53 antibody. Subsequently, after color development the absorbance of the samples was read at 450 nm using Biokinetics EL340 microplate reader with a reference wavelength of 655 nm.
In vivo xenograft experiment
Female athymic nude mice (NCR nu/nu) were purchased from Tacomics. The use of athymic nude mice and their treatment was approved by the Institutional Animal Care and Use Committee (IACUC), University of Pittsburgh and Texas Tech University Health Sciences Center, and all the experiments were carried out in strict compliance with their regulations. Mice were kept on antioxidant free AIN-76A special diet a week before starting the experiment. Tumor xenograft in athymic nude mice was performed as described by us previously [
21]. Briefly, 1 × 10
6 Capan-2 cells in 0.1 ml PBS were injected subcutaneously in both the flanks of nude mice. Mice were divided randomly into three groups with 5 mice in each group. Since each mouse had two tumors, every group consisted of 10 tumors. Group 1 served as controls and received 0.1 ml PBS by oral gavage. Group 2 received 50 mg Triphala/Kg body weight five times a week (Monday-Friday), Group 3 received 100 mg Triphala/Kg five times a week (Monday-Friday) respectively in 0.1 ml PBS by oral gavage. Treatment started the same day after tumor cell implantation. Triphala was dissolved in PBS and filtered through 0.22 μm before administering to the mice. Control mice received PBS only. Tumors were measured by Vernier calipers three times a week (Monday, Wednesday, Friday) and each mouse was weighed twice a week (Monday and Friday).
Apoptosis measurement in human tumor xenografts
Paraffin-embedded tissue sections (4 μm in thickness) were stained by hematoxylin and eosin (H&E). Apoptosis was measured by TUNEL staining kit according to the manufacturer's instructions. Briefly, tissue sections were incubated with proteinase K (20 μg/ml in 10 mM Tris-HCl, pH 7.4) for 15 min at 37°C. DNA breaks were then labeled with terminal deoxytransferase (TdT) and biotinylated deoxy UTP. Staining without TdT enzyme or the biotinylated substrate was used as negative controls. Endogenous peroxidase activity was quenched by incubating the slides in 3% hydrogen peroxide, followed by washing in PBS.
Immunohistochemistry
Immunohistochemical staining was performed on 4 μm paraffin-embedded tissue sections using ABC avidin/biotin method. Briefly, paraffin sections were deparaffinized and rehydrated. Endogenous peroxide activity was quenched by incubating sections in xylene/ethanol for 15 min. To unmask antigens, slides were digested for 10 minutes at 37°C by using pepsin. Slides were incubated with antibodies against phospho-ERK (1:100), phospho-p53 (1:200) overnight at 4°C. After incubating with secondary antibody (1:100), immunoreactive products were developed using 3,3'-diaminobenzidine (DAB) as the chromogen with standardized development times.
Densitometric scanning and statistical analysis
The intensity of immunoreactive bands was determined using a densitometer (Molecular Dynamics, Sunnyvale, CA) equipped with Image QuaNT software. Results are expressed as mean values with 95% confidence intervals. All statistical calculations were performed using InStat software and GraphPad Prizm 4.0. Non parametric analysis of variance (ANOVA) followed by Bonferroni post hoc multiple comparison tests were used to test the statistical significance between multiple control and treated groups. Student t test was used to compare control and treated group only. Differences were considered significant at P < 0.05.
Discussion
Triphala has been used for centuries in Ayurvedic medicine to treat various types of gastrointestinal-related disorders; however, the molecular mechanisms of Triphala have not been studied yet. In the present studies, we demonstrate that aqueous extract of Triphala is effective in inhibiting the growth of pancreatic cancer cells in culture as well as in the in vivo model. Our results reveal that Triphala treatment drastically reduces the survival of Capan-2 and BxPC-3 human pancreatic cancer cells in a dose-dependent manner. On the other hand, Triphala failed to cause any cytotoxic effects on the growth of HPDE-6 near normal pancreatic epithelial cells. Suppression of pancreatic cancer cell growth by Triphala in our model was due to induction of apoptosis, which in turn was associated with generation of ROS. Pretreatment of Capan-2 cells with antioxidant NAC blocked ROS generation and completely protected the cells from Triphala-induced apoptosis. Our results also demonstrate that Triphala treatment caused DNA damage resulting in the activation of ATM and ERK leading to stabilization of p53. Blocking ERK activation by MEK-1/2 inhibitor U0126 or p53 activation by pifithrin-α completely protected Capan-2 (wild type p53) cells from Triphala-induced apoptosis. Similarly, U0126 treatment blocked Triphala-induced apoptosis in BxPC-3 (mutated p53) cells, suggesting ERK as a molecular target of Triphala in pancreatic cancer cells. Further, orally feeding 50 mg/kg or 100 mg/kg Triphala to nude mice significantly retarded the growth of Capan-2 pancreatic tumor xenograft. Tumors from Triphala treated mice demonstrated increased apoptosis in the tumor cells, which was due to the activation of ERK and p53. To the best of our knowledge, this is the first study to report the molecular mechanism of the chemotherapeutic effects of Triphala against pancreatic cancer.
Reactive oxygen species (ROS) are the known mediators of intracellular signaling cascades. Excessive production of ROS nonetheless leads to oxidative stress, loss of cell function and apoptosis or necrosis [
25‐
28]. Our results reveal that Triphala-induced apoptosis in pancreatic cancer cells is initiated by ROS generation, the effect of which can be blocked by antioxidant NAC. Several previous studies including those from our laboratory have implicated ROS as a possible mechanism for DNA damage and induction of apoptosis [
26,
28‐
31]. DNA damage plays a critical role in maintaining genomic integrity. Tumor cells exhibit genetic instability causing functional inactivation of p53 that plays an important role in DNA damage checkpoint pathways. In response to DNA damage, p53 is stabilized through phosphorylation at Ser 15 by ATM [
22,
32,
33]. The effects of Triphala are compatible with this assertion. Our results do indicate that Triphala treatment causes DNA damage as depicted by increased phosphorylation of H2A.X at Ser 139, an indicator for the presence of DNA double-strand breaks.
DNA damage has been shown to activate the kinase activity of ATM, which subsequently modifies a number of downstream targets including phosphorylation of p53 at Ser 15 at the N-terminus [
33,
34]. Our studies reveal that Triphala treatment activates ATM by phosphorylation at Ser 1981. Moreover, our results also demonstrate increased protein expression and phosphorylation of p53 at Ser 15 in response to Triphala treatment. Stabilization of p53 by Triphala was further confirmed by nuclear transcriptional activity of p53. Induction of apoptosis by Triphala was almost completely blocked when the cells were pretreated with p53 specific inhibitor pifithrin, signifying the role of p53 in Triphala-induced apoptosis in pancreatic cancer cells.
A number of studies have shown the importance of ERK signaling pathway in regulating apoptosis [
35‐
38]. Although, ERK pathway delivers a survival signal, quite a few recent studies have linked the activation of ERK with induction of apoptosis by various chemopreventive and chemotherapeutic agents [
39‐
41]. In fact, oxidants have been shown to activate ERK by taking over the growth factor receptor signaling pathways [
42‐
46]. Moreover, ERK may get activated in response to DNA damage and can phosphorylate p53
in vitro [
23,
24,
47‐

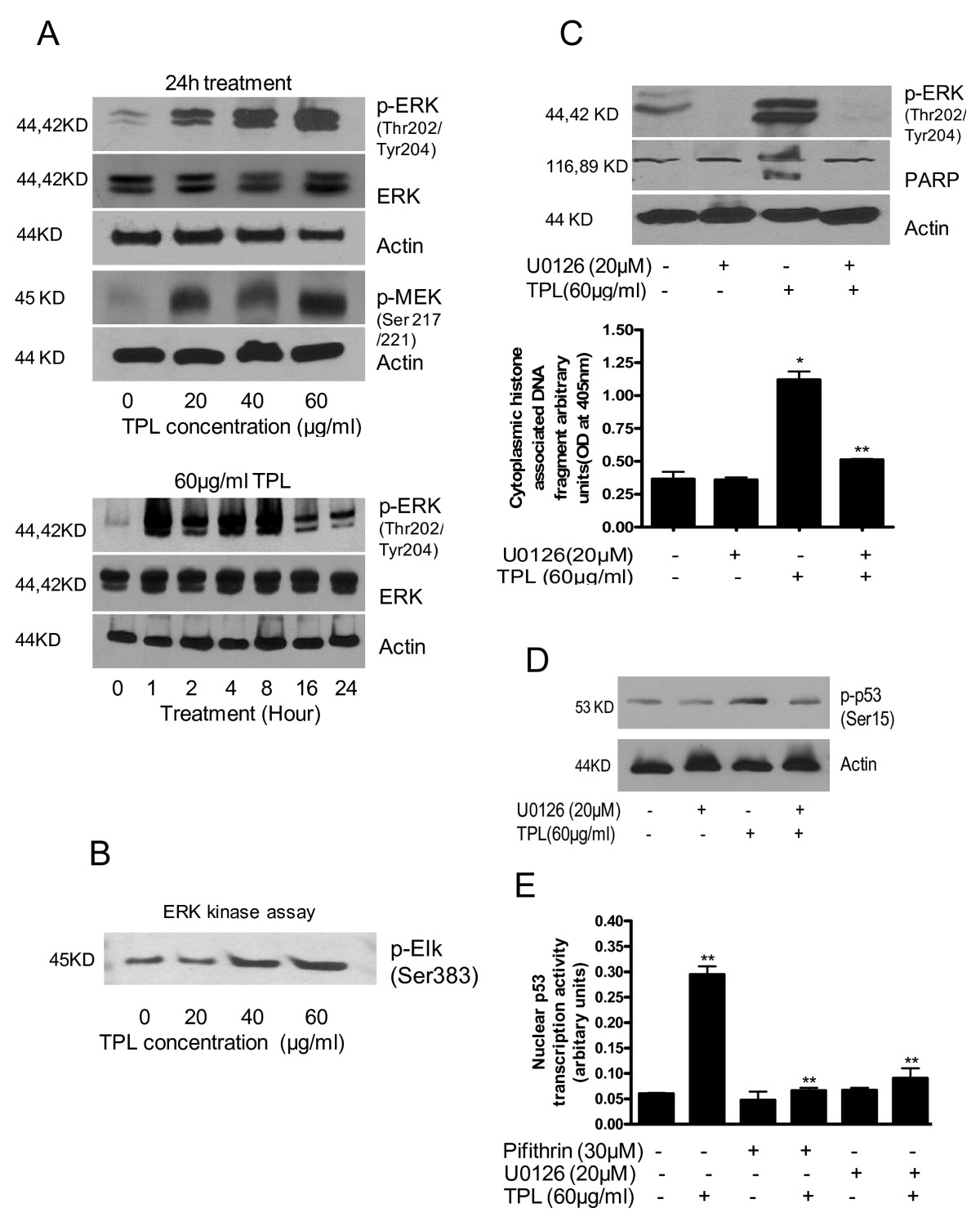

49]. We found that exposure of Capan-2 or BxPC-3 cells with apoptosis-inducing concentration of Triphala results in a rapid and sustained activation of ERK in a concentration and time-dependent manner. Triphala mediated activation of ERK as well as apoptosis was completely abolished by MEK-1 inhibitor. MEK-1, which is an upstream of ERK, is also activated by Triphala in Capan-2 cells. Further, we observed that p53 is transcriptionaly regulated by ERK in response to Triphala treatment suggesting ERK as an upstream regulator of p53 in Capan-2 cells. We also observed that Triphala induce apoptosis by ERK activation in BxPC-3 cells, which has mutated p53. This is in part consistent with the observation that activated ERK lead to apoptosis after DNA damage in a p53 independent manner [
49]. On the other hand, Triphala is not at all toxic to HPDE-6 normal pancreatic epithelial cells and does not activate ERK, p53 or caspases. Taken together, our results indicate ERK as a possible molecular target of Triphala in pancreatic cancer cells.

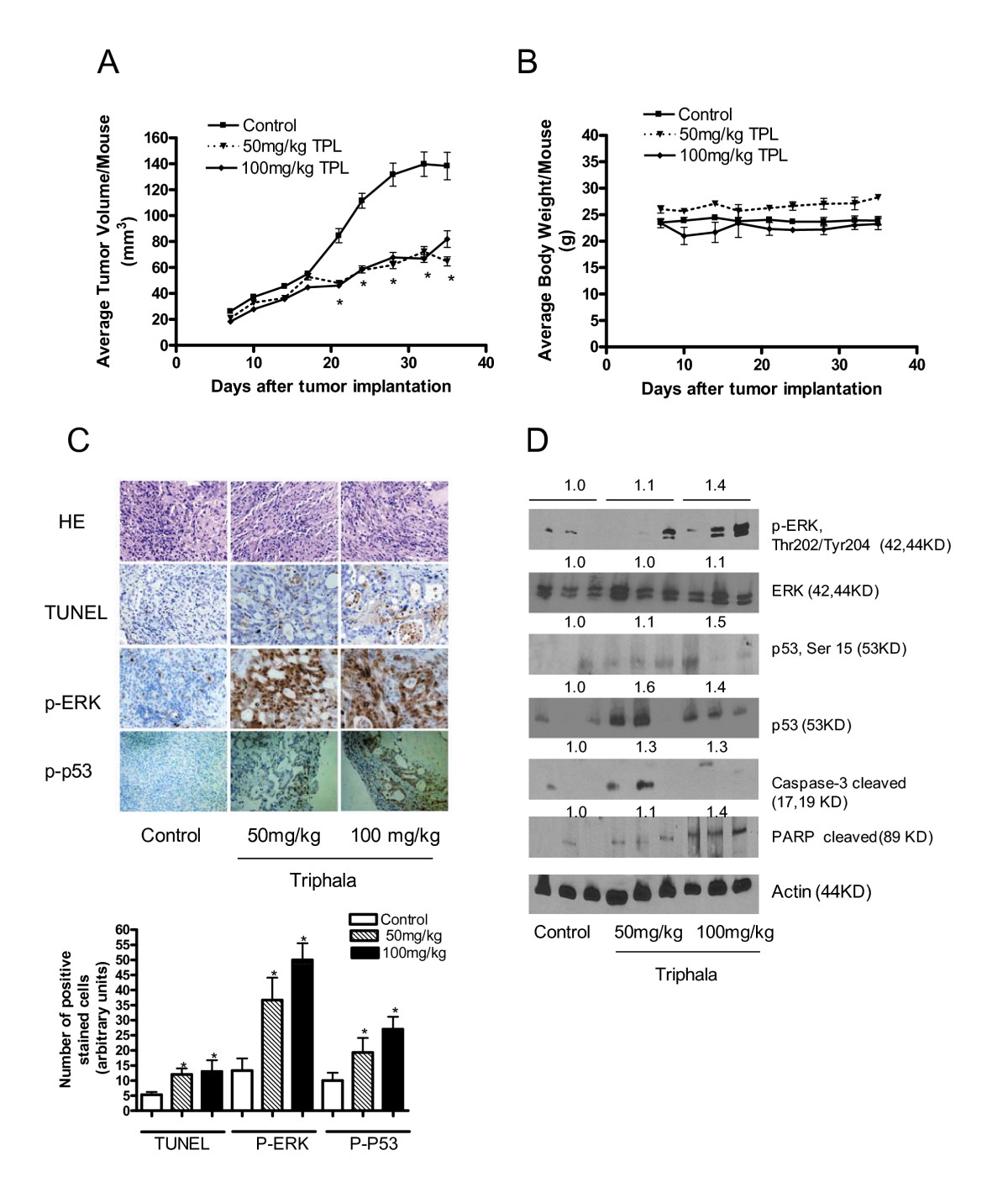

Pancreatic tumor growth inhibition and induction of apoptosis
in vivo was observed by the oral administration of 50 mg/kg or 100 mg/kg Triphala 5 times a week. Our results are consistent with previous studies where Triphala was shown to be effective in suppressing the growth of Barc-95 (mouse thymic lymphoma) xenograft in mice [
15]. Although, pharmacokinetics of Triphala in humans has not been determined, it has been used safely for centuries in the Ayuervedic medicinal system in India for the treatment of various gastrointestinal-related disorders. The effective dose of Triphala in our animal model for suppressing tumor growth, if extrapolated to humans ranges from 4 to 8 grams per day for a person weighing 70 kg. These doses of Triphala come within the dose range already being used by humans in countries such as India. The overall incidence of pancreatic cancer is approximately 8–10 cases per 100,000 persons per year in the USA [
50‐
52]. In other countries the incidence may vary from 8–12 cases per 100,000 persons per year [
51‐
53]. However, in some areas of the world, pancreatic cancer is sporadic; for instance, the incidence of pancreatic cancer in India is less than 2 cases per 100,000 persons per year [
51‐
53]. It is tempting to speculate that the low incidence of pancreatic cancer in India may in part be due to consumption of Triphala or one of its constituent Amla (rich in ascorbic acid). Nevertheless, detailed epidemiological studies are required to substantiate this assumption. Interestingly, a very recent study demonstrated the anti-tumoral effects of ascorbic acid (component of Triphala) against ovarian, pancreatic and glioblastoma xenografts in mice [
54]. Our recent studies have observed that Amla is also very effective against pancreatic cancer (manuscript communicated).
Acknowledgements
This investigation was supported in part by USPHS RO1 grant CA106953 (to S.K.S.) awarded by the National Cancer Institute. The funds from Texas Tech University Health Sciences Center, School of Pharmacy (to S.K.S.) are also acknowledged. Authors wish to thank Dr. Ming-Sound Tsao, University of Toronto, Canada, for providing HPDE-6 cells. We are thankful to University of Pittsburgh, our previous institution, as part of this work was performed there. Authors also thank summer students Gaurav Mookerjee, Ashwin Shinde and Gorana Smailagic for their technical assistance at University of Pittsburgh.
Competing interests
The authors declare that they have no competing interests.
Authors' contributions
YS performed all major experiments and drafted the manuscript. RPS performed experiments during the revision of the manuscript. SKS was involved in the overall design of the study and writing the manuscript.
