Background
Breast cancers are comprised of epithelial neoplastic cells embedded in a tumor microenvironment composed mainly of extracellular matrix and non-neoplastic cells such as inflammatory cells, vascular cells and fibroblasts [
1]. Fibroblasts growing within the tumor mass are known as carcinoma-associated fibroblasts (CAF). They express smooth muscle actin and are found in large numbers in most invasive human breast cancers [
2]. There is increasing evidence that CAF play different roles supporting tumor growth [
3]. Several studies have addressed the role of CAF using experimental designs that involve the co-inoculation of CAF with breast cancer cell lines in mice [
4,
5]. However, the persistence of the inoculated CAF within the carcinoma remains controversial. Some authors have reported that they have detected the inoculated CAF for periods of 30 days or more after the injection [
5,
6], suggesting that the tumor stroma was derived from the inoculated CAF, while others have reported that the stroma within the tumor was derived from the host [
4,
7,
8].
In our laboratory, we work with the MPA mouse model of mammary carcinomas. These tumors were induced by the continuous administration of medroxyprogesterone acetate (MPA) in BALB/c mice. Most tumors are initially hormone dependent (HD) because they grow only if MPA is supplied. However, they can give rise to different hormone-independent (HI) variants, which are able to grow without hormone supply. Both HD and HI tumors, have a rich stromal compartment [
9‐
11]. We have reported that isolated CAF from our model can be stimulated by EGF, TGFβ1 and FGF-2 [
12], but they are not stimulated by steroid hormones. In previous studies, we also demonstrated that primary cultures of isolated CAF from HI tumors (CAF-HI) induced an increase in cell proliferation of epithelial cells isolated from HD tumors (EPI-HD). These CAF-HI express higher levels of fibroblast growth factor 2 (FGF-2) than CAF from HD tumors (CAF-HD), and the exogenously administrated FGF-2 induced in vivo tumor growth of HD tumors in the absence of MPA [
13].
In this study, we wanted to reproduce these in vitro findings in an in vivo setting and we hypothesized that CAF-HI, by secreting FGF-2 or other paracrine factors, would be able to promote the growth of HD tumor cells. Our main goal was to evaluate the effect of co-inoculated CAF-HI on tumor growth of EPI-HD and EPI-HI cells. This report clearly demonstrates that inoculated CAF-HI do not persist within the tumor mass although they may participate during the first stages of tumor growth, favoring angiogenesis. This angiogenic milieu increases HI tumor growth, although this stimuli is not sufficient to replace the hormone requirement of HD tumors.
Methods
Animals
Two-month-old virgin female BALB/c mice (Animal Facility, Instituto de Biología y Medicina Experimental) were housed in groups of four per cage. Transgenic mice expressing enhanced GFP under the direction of the human ubiquitin C promoter were purchased from the Jackson Laboratories, Bar Harbor, Maine. These mice express Green Fluorescent Protein (GFP) in all tissues examined. The animals were in an air-conditioned room at 20 ± 2°C with a 12-hour light/dark cycle and had access to food and water ad libitum. Animal care and manipulation were in agreement with institutional guidelines and the Guide for the Care and Use of Laboratory Animals [
14]. Protocols are approved by the Institutional Bioethical Committee.
Tumors
C4-HD, a transplantable ductal mammary tumor, was originally induced by the continuous administration of MPA to a BALB/c female mouse [
9,
15] and was subsequently maintained by serial subcutaneous (sc) transplantations into syngeneic MPA-treated female mice. This HD tumor expresses high levels of estrogen (ER) and progesterone receptors (PR) [
16] and shows a nearly diploid karyotype [
17]. The C4-HI variant arose from the C4-HD tumors when it started to grow in the absence of MPA. C4-HI cells also exhibit high ER and PR levels but have acquired an aneuploid karyotype [
17,
18].
Primary cultures
Primary cultures were prepared from C4-HI and C4-HD tumors as described previously [
16,
19]. Briefly, tumors were aseptically removed, minced, washed with DMEM/F12 medium (Dulbecco's modified Eagle's medium: Ham's F12, 1:1, without phenol red, Sigma Chem. Co.), suspended in 5 ml of enzymatic solution [2.5 mg/ml trypsin (Life Technologies Inc.), 5 mg/ml albumin (Life Technologies Inc.), and 850 U/ml collagenase type II (Life Technologies Inc.) in phosphate buffered saline], and incubated at 37°C for 20 minutes with continuous stirring. The liquid phase of the suspension was then removed, and the undigested tissue was incubated for an additional 20 minutes with fresh enzymatic solution. Enzyme action was interrupted by adding a washing medium with 10% fetal calf serum (FCS, BioSer, Buenos Aires, Argentina). Epithelial (EPI) and fibroblastic cells (CAF) were isolated by resuspending the digested material in 20 ml of medium plus 10% FCS and allowing it to settle for 20 minutes. The upper 7 ml, containing single cells, were seeded into plates and the medium was changed after two hours. This time period is enough for the CAF to settle and not enough for the EPI to attach to the plastic plates. The fraction corresponding to the lower 5 ml, containing the sedimented cells, was resuspended in another 20 ml of washing medium (plus 5% FCS) and allowed to settle for 20 minutes. The upper 15 ml were discarded and the procedure was repeated 10 times, or until no single cells were observed in the upper fraction. Instead of plating the purified EPI, they were directly used for in vivo experiments. CAF, on the other hand, were obtained from primary cultures that were grown for one week prior to inoculation.
Immunofluorescence
Purified EPI-HI, CAF-HI or EPI-HI+CAF-HI were seeded onto chamber slides. Slides were fixed with 100% ethanol for 30 minutes at -20°C, washed and treated with 0.25% Triton X-100 for 20 minutes. Slides were rinsed and blocked with 5% FCS for one hour at room temperature. Incubation with cytokeratin (CK; polyclonal rabbit antibody Z0622, 1:250 dilution, DakoCytomation, Carpinteria, CA) or smooth muscle actin (SMA; monoclonal mouse antibody Sigma Aldrich) was performed overnight at 4°C. After rinsing in PBS, slides were incubated with fluorescein isothiocyanate (FITC)-conjugated anti-rabbit (for CK) or anti-mouse (for SMA) IgG at 1:100 dilution (Vector Laboratories, Burlingame, CA). Nuclei were counterstained with propidium iodide (PI). The signal was viewed in a Nikon Eclipse E800 confocal microscope.
In vivo experiments

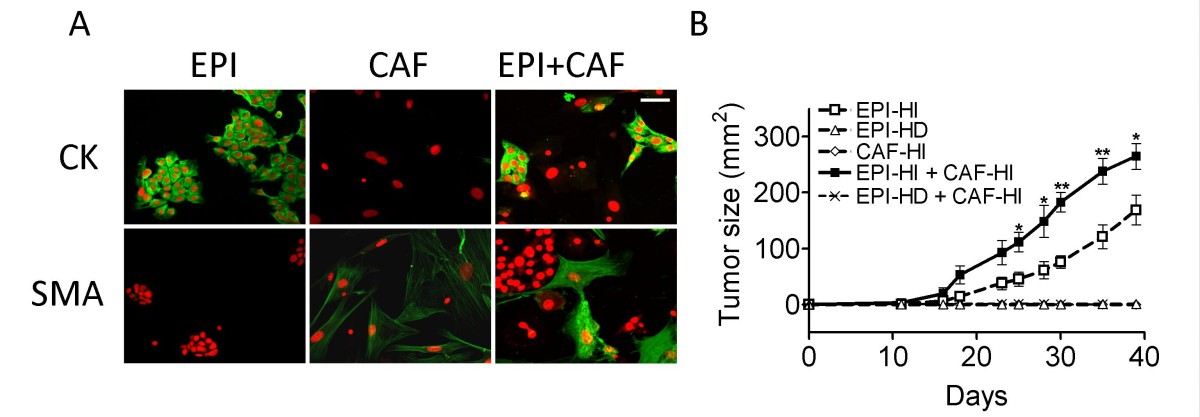

Tumor growth
In the first set of experiments, untreated female BALB/c mice were sc inoculated with 1.5 × 104 EPI-HD or EPI-HI alone or together with the same number of CAF-HI (n = 6 mice/group). Isolated CAF-HI were also inoculated to rule out the possibility that contaminating EPI-HI cells could account for the observed effects. In the second set of experiments, 1.5 × 104 EPI-HI or EPI-HI+CAF-HI were sc inoculated in untreated female BALB/c mice and the animals were euthanized at 2, 7, 12 and 17 days post-inocula (n = 3/group). These cell injections were mixed with trypan blue prior to inoculation to localize the area of inoculation. After removal, isografts were immediately fixed in 10% formalin, embedded in paraffin and prepared for histological evaluation.
Tracking inoculated CAF-HI
Female CAF-HI in male BALB/c mice
EPI-HI (1.5 × 104) alone or together with an equal number of CAF-HI were sc inoculated into female (n = 4-6/group) or male untreated BALB/c mice (n = 4/group). Animals were followed closely, and tumor width and length were measured 3 times a week using a Vernier Caliper. Animals were euthanized after one month. Some of the tumors were frozen for in situ hybridization studies.
GFP-labeled CAF-HI in BALB/c mice
EPI-HI (1.5 × 104) alone or together with an equal amount of CAF-HI-GFP were sc inoculated in BALB/c mice. Trypan blue was used to visualize the site of injection.
Unlabeled CAF-HI in BALB/c-GFP mice
EPI-HI (1.5 × 104) alone or together with an equal amount of unlabeled CAF-HI were sc inoculated in BALB/c-GFP. Trypan blue was used to visualize the site of injection.
Tumor transplant growing in BALB/c-GFP mice transplanted in BALB/c mice
EPI-HI were sc inoculated into BALB/c-GFP mice. Once the tumor grew a small piece was transplanted into BALB/c mice.
For all in vivo experiments performed with BALB/c-GFP mice or inoculated CAF-HI-GFP, before the tumors were excised, the animals were perfused with a cold saline solution (0.9% NaCl) followed by 4% paraformaldehyde (PFA). The inoculated area was excised at different time points (4, 7, 13 and 28 days), kept in cold 4% PFA overnight and then transferred to 20% sucrose for another 24 hours. Tissues were embedded in OCT (Tissue-Tek O.C.T Compound), frozen sections were cut and the endogenous fluorescence was analyzed by confocal microscopy. Nuclei were counterstained with PI. Primary cultures followed by SMA immunostaining were performed with some of these tumors.

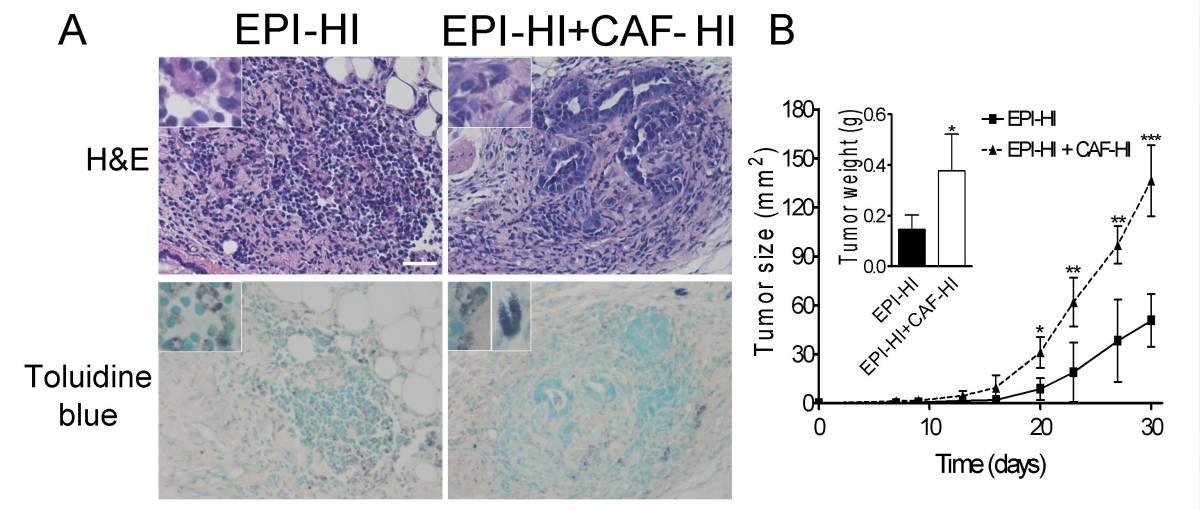

Mast and PMN cell quantification
BALB/c mice (n = 3-10/group) were sc inoculated with saline, CAF-HI (1.5 × 104), EPI-HI (1.5 × 104), or EPI-HI+CAF-HI (1.5 × 104 + 1.5 × 104). Trypan blue was used to visualize the site of injection. The animals were euthanized at 7 and 12 days post inocula; tumors were then fixed with 10% formalin and embedded in paraffin.
Mast cells-toluidine blue method
Tumor sections were deparaffinized and rehydrated, stained for 30 minutes in aqueous toluidine blue (0.1% pH 1), washed and nuclei were counterstained with methyl green. Tissues were dehydrated and mounted on Permount and observed under a microscope. Mast cells were identified by their characteristic metachromasia. Total mast cells within the inoculated area were counted using a Nikon Eclipse E200 microscope, magnification 400×. The tumor area was measured using "Image J" Software and the numbers of mast cells were calculated per area.
Polymorphonuclear cells quantification
Hematoxylin and eosin (H&E) staining was observed under a Nikon Eclipse E200 microscope. PMN cells were identified by standard morphological criteria (Magnification: 1000×). All fields within the inoculated area were counted and PMN numbers of cells were referred per field.
Fluorescence in situ hybridization (FISH) and immunofluorescence
Frozen tissue sections of the tumors were fixed in a cold solution of methanol:acetic acid (3:1) for one hour. The tissue sections were denatured in 70% formamide/2× standard saline-citrate. Mouse paint biotinylated DNA probes (Cambio, Cambridge, UK) for chromosomes X and Y were denatured and preannealed. The hybridization was performed overnight at 37°C. After hybridization, the slides were washed and the probes were detected with Avidin-TexasRed (Vector Laboratories, Burlingame, CA). Immunofluorescence using a CK antibody (polyclonal rabbit antibody Z0622, 1:250 dilution, DakoCytomation, Carpinteria, CA) was performed on the same slides. A secondary anti-rabbit-FITC coupled antibody was used. Nuclei were counterstained with DAPI. The signal was viewed in a Nikon Eclipse E800 confocal microscope.

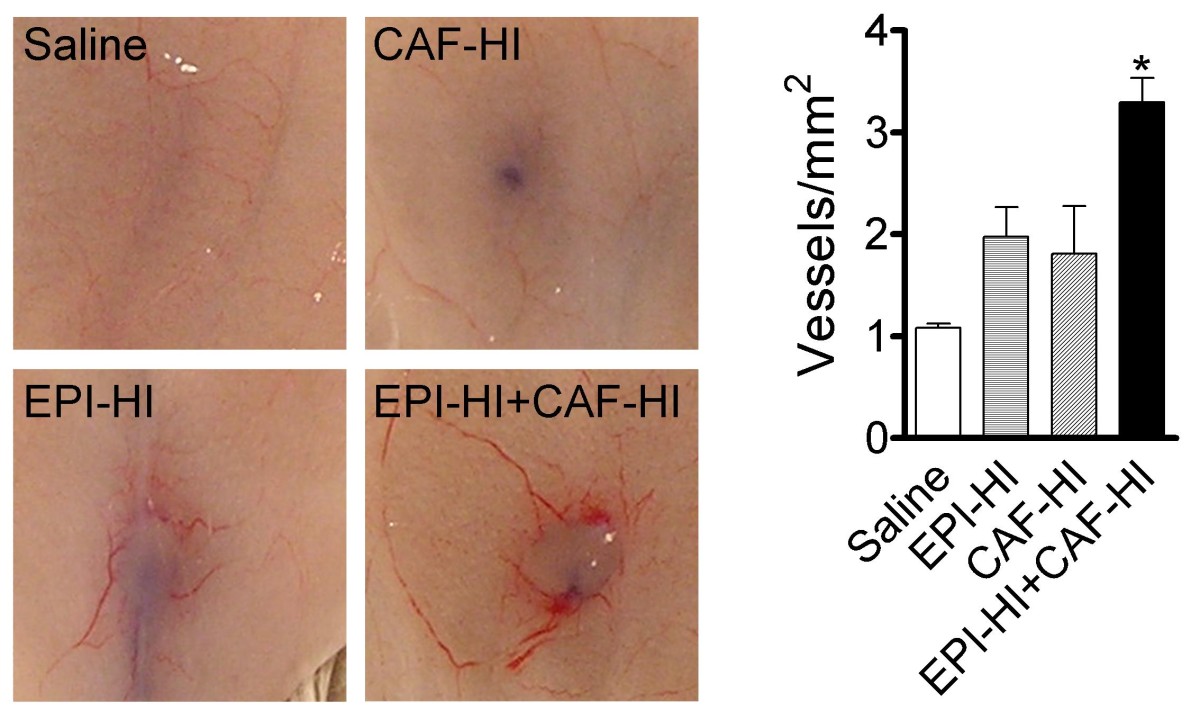

Angiogenesis assay in vivo
Each BALB/c mouse was implanted intradermally on the ventral surface with the cells. Saline, CAF-HI (1.5 × 104), EPI-HI (1.5 × 104) or EPI-HI+CAF-HI (1.5 × 104 + 1.5 × 104) were injected in a volume of 50 μl together with one drop of 0.4% trypan blue to visualize the sites of injection. After 5 days, the mice were sacrificed, the skin carefully separated, and photographs captured under a Trinocular Zoom Stereomicroscope (Leica). The number of vessels was scored using a grid, subdivided into squares of 0.16 mm2, and superimposed onto the photograph of the injection site.
Statistical Analysis
Tumor growth curves were studied using regression analysis and the slopes were compared using ANOVA followed by parallelism analysis. Unpaired t-tests were used as needed. Values are considered significant if p < 0.05.
Discussion
The mechanisms underlying hormone independent tumor growth are still unknown. In a recent study, we demonstrated that CAF-HI express higher levels of FGF-2 than CAF-HD. Moreover, we showed that in vitro, CAF-HI induced a significant increase in HD cell proliferation as compared to CAF-HD. In vivo, the exogenous inoculation of FGF-2 mimicked the effect of hormones inducing HD tumor growth [
13]. In this study, we challenged the hypothesis that co-inoculated CAF-HI could bypass the hormone requirement of HD tumors. We found that inoculated CAF-HI did not persist within the tumor and thus, they failed to induce HD tumor growth. However, CAF-HI decreased tumor latency and increased angiogenesis in HI tumors.
CAF have recently been implicated in important aspects of epithelial solid tumor biology, such as progression, growth, angiogenesis and metastasis. Several studies have demonstrated that after tumor or cell transplantation the cancer cells recruit the stroma from the host. In 2004, using intravital microscopy, Duda et al [
7] reported that the stroma from transplants of mammary cell lines was fully replaced by the host stroma after 4 weeks of transplantation. Two years later, Udagawa et al [
21], using a lung cell line in GFP mice, demonstrated that this occurred several days after transplantation. Therefore, it is clear that once the tumor is established, the accompanying stroma is recruited from the host. However, in experiments regarding the inoculation of CAF together with tumor cells, the persistence of CAF within the tumor mass is not so well defined. Some studies have indicated that exogenously inoculated human CAF remain as part of the tumor stroma at least during the first 30 days [
6] or more [
5], and others have reported that inoculated human CAF disappear and the tumor stroma is exclusively of murine origin [
4,
8]. Here, we demonstrated that in our model, exogenously administered CAF-HI are undetectable as early as day 13 after injection. Thus, no long-lasting effects can be directly attributed to inoculated CAF. Despite their inability to persist, these CAF can exert growth promoting effects during the first days after cell inoculation decreasing tumor latency. The short lifespan of inoculated CAF-HI is not enough to enhance HD growth, although it rapidly creates a proper microenvironment for HI growth.
The fact that stromal components, such as CAF or Matrigel, increase the tumor burden is not a novel finding. In fact, this methodology is used to grow cells that will otherwise not grow [
4]. Co-inoculation of fibroblasts with different tumor cells [
4,
5,
22,
23] or with sub-tumorigenic numbers of epithelial cells [
24] has been shown to promote tumor growth. We found that co-inoculated CAF-HI enhanced HI tumor growth and that they do not persist within the tumor. Based on these findings, we concluded that the growth enhancing effects are a result of changes occurring during the early stages of tumor development. However, most studies using admixed CAF investigate their effects once the tumor is already settled and, according to our data, these CAF may be those recruited by the tumor cells [
5,
6].
To understand the stimulatory effects of CAF on tumor growth, we also investigated possible differences in the tumor site microenvironment at early time points after cell inoculation. We looked for changes occurring in the site of implantation even before the tumor structure was organized. In our view, the very first stages in tumor development are crucial and a fast stromal recruitment will favor tumor formation and progression. Both, growth promoting or inhibitory effects have been demonstrated for certain hematopoietic cells such as: mast cells, neutrophils, NK cells or dendritic cells [
25,
26]. Most of these studies using CAF and cell lines have been made using immunocompromised mice. The strength of this study is that we are working with BALB/c mice and we could not establish differences in the immune infiltrates that could account for the differences observed. Moreover, the same differences in tumor growth were observed in BALB/c mice and in NOD/SCID mice supporting a non-immune effect of CAF.
Accumulating evidence suggests a role for fibroblasts promoting angiogenesis [
5,
27]. Studebaker et al [
28], have shown that MCF-7 cells co-injected with senescent skin fibroblasts, which secrete IL-6, developed tumors, while mice co-injected with pre-senescent skin fibroblasts, that express little or no IL-6, failed to form tumors. We previously demonstrated that CAF-HI secrete high levels of FGF-2 [
13]. FGF-2 is a well known angiogenic factor [
20] and here, we showed an increase in angiogenesis when EPI-HI were co-inoculated with CAF-HI. We can speculate that FGF-2 from CAF-HI might be contributing to the development of a pro-angiogenic milieu creating a permissive microenvironment that favors tumor growth.
The precise nature and origin of the stromal cells that grow along with the tumor cells is still a matter of debate. It has been proposed that CAF are resident fibroblasts recruited by the tumor [
29], that they may arise by an epithelial mesenchymal transition (EMT) of the tumor parenchyma [
30‐
32], or that they are mesenchymal bone marrow derived cells recruited from the circulation [
21]. Although we cannot yet establish if CAF from our tumors are resident or bone marrow recruited fibroblasts, we can rule out the possibility of an EMT as CAF-HI isolated from tumors growing in BALB/c-GFP mice expressed GFP.
