Background
There is evidence that macrophages have the capacity to change their phenotype in response to changes in the microenvironment. It has been suggested that M1 and M2 represent the extremes of a variety of phenotypes that macrophages can express and that the M2 phenotype is associated with suppressor functions [
1,
2]. It has been shown that apoptotic cells induce macrophage polarization towards a suppressive phenotype. Fadok et al [
3] reported that the addition of apoptotic cells to LPS-stimulated macrophages shifts the type of mediators/cytokines produced from a pro-inflammatory towards a suppressive profile. The recognition of apoptotic cells by macrophages is achieved through molecules that are expressed in the plasma membrane of apoptotic cells and bind to a variety of receptors present on the surface of the macrophages, resulting in the phagocytic removal of altered or dying cells [
4]. We have previously found that the rate of phagocytosis of apoptotic cells is higher than that of viable cells and that this potentiation is abolished if macrophages are treated with an antagonist of the PAF-R. Moreover, the interaction of macrophages with apoptotic cells induces the expression of COX-2, the inducible enzyme that is responsible for the synthesis of prostaglandins and is also inhibited by treatment with the PAF-R antagonist [
5]. One of the products of this enzyme is PGE2, which exerts suppressive actions through interaction with EP2 or EP4 receptors in the macrophage [
6]. PAF-R is a G-protein-coupled receptor that is present in the plasmatic and nuclear membrane and also in the cytoplasm of various cell types including macrophages. Depending on its localization, the receptor is linked to different sub-units of G-protein, Gα
q or Gα
i/o and thus activates distinct intracellular signaling cascades [
7].
The findings that apoptotic cells share common ligands with PAF, that apoptotic cells dampen macrophage activation and that PAF-R is somehow involved in these effects could be particularly relevant in the case of tumour growth. As the number of tumour cells increases during tumour development, many of these cells die by apoptosis or necrosis due to the reduction in oxygen and nutrient supply. Induction of apoptosis is also the mechanism of action of anti-tumour chemotherapy. Correa et al [
8] clearly demonstrated that apoptotic cells injected together with a sub-tumourigenic dose of B16F10 melanoma cells promote tumour growth. This could be attributed to the postulated suppressor effect of apoptotic cells on macrophages but whether it is dependent on PAF-R remains to be determined. Antagonists of PAF-R have been tested in some tumours: in human breast cancer they inhibited cell proliferation
in vitro and reduced the formation of new vessels in tumours induced by implantation of these cells [
9]; in B16F10 murine melanoma they decreased lung metastasis [
10]; in EAT they reduced tumour growth [
11].
Based on the data discussed above we postulated that the interaction of macrophages with apoptotic cells in the tumour microenvironment, through PAF-R-dependent mechanisms, would drive macrophage polarization towards a suppressive phenotype favoring tumour growth. In the present study we investigated this hypothesis in two murine tumours: EAT and melanoma B16F10. Apoptotic cells were either inoculated into the tumour or induced by dacarbazine (DTIC), an agent that is widely used in human melanoma therapy. The role of the PAF-R was evaluated using the antagonist WEB2170. Tumour growth was evaluated by counting the cells in the ascitis or measuring tumour volume. The tumour microenvironment elements that were analysed were the levels of PGE2, VEGF and NO in the ascitis and, in the melanoma, the number of cells expressing COX-2, the number of intra-tumoural blood vessels and tumour infiltration by activated macrophages/dendritic cells expressing galectin-3, which is associated with the suppressive M2 phenotype. PAF-R expression was evaluated in cells from inside the tumour and in melanoma cells taken from cultures.
Methods
Animals
Seven- to 10-week-old male BALB/C and 7- to 8-week-old female C57BL/6 mice from our own animal facilities were used. All animal procedures were in accordance with the ethical principles adopted by the Brazilian College of Animal Experimentation and approved by the Ethical Committee for Animal Research of the Institute of Biomedical Sciences, University of São Paulo.
Tumours
The murine melanoma cell line B16F10 was a kind gift from I. Fidler (M.D. Anderson, Texas, USA) and was cultured in RPMI 1640 medium (Cultilab, Campinas, Brazil), pH 7.4 supplemented with 10% fetal bovine serum (FBS, Cultilab, Campinas, Brazil), in the absence of antibiotics, at 37°C and 5% CO
2. Ehrlich ascitis tumour (EAT) cells were grown as described elsewhere [
12].
Evaluation of tumour growth

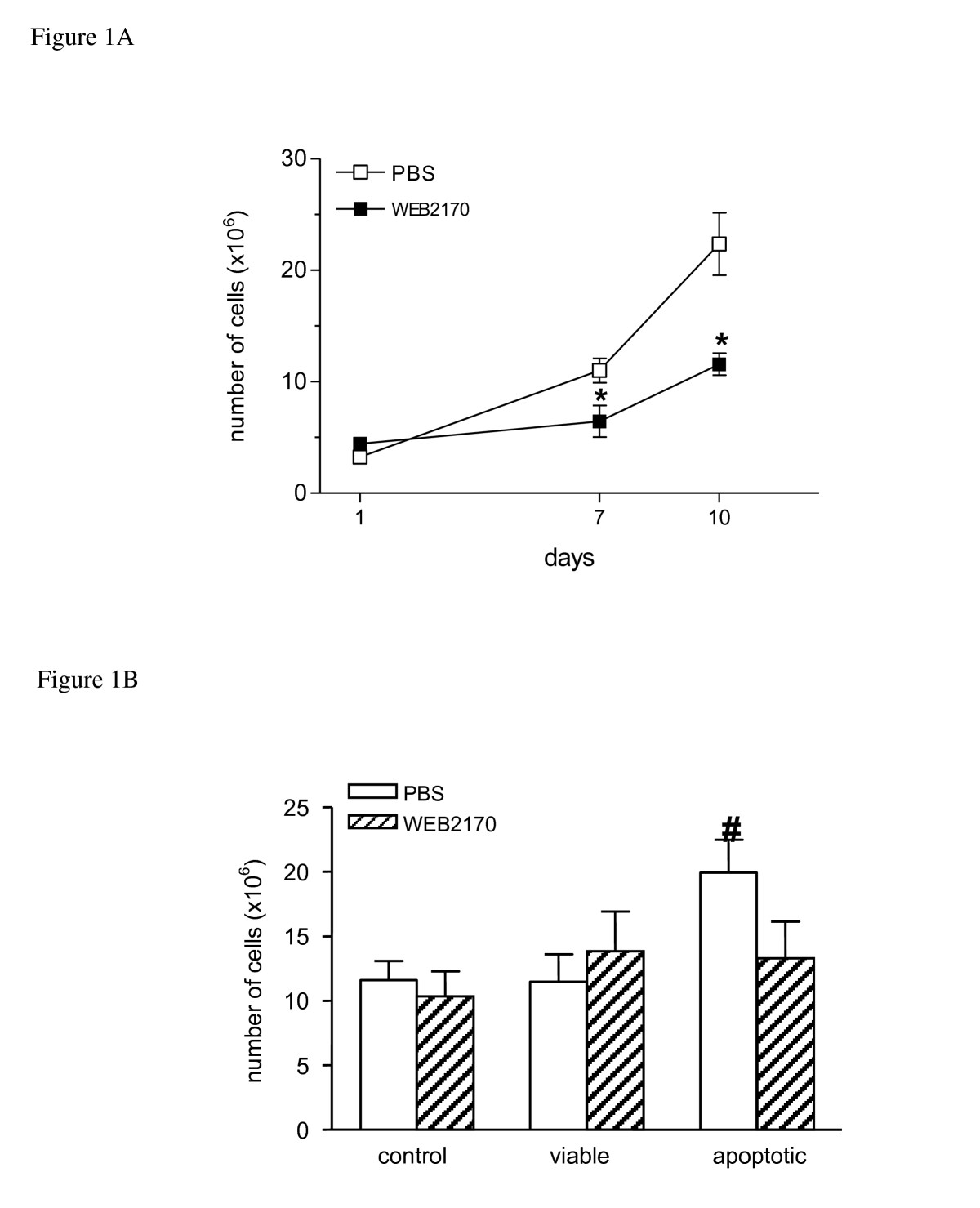

Ehrlich ascitis tumour (103-105 cells) was injected intraperitoneally (i.p.) in BALB/c mice. At different times after tumour implantation, aliquots of the ascitis fluid were recovered using a 21-gauge needle to measure cell number and mediator/cytokine levels. B16F10 melanoma cells (5 × 105) were injected subcutaneously (s.c.) in C57BL/6 mice and tumour growth was determined via measurement of the diameter of the solid tumour mass, from which the volume was estimated using the formula for a spheroid: V = 0.52 × (largest axis) × (smallest axis) 2.
Treatments
The PAF-R antagonist WEB2170 (5 mg/Kg; Boehringer Ingelheim, Germany) was injected i.p. 30 minutes before tumour implantation and injections were repeated every 24 h until the end of the experiment. In order to evaluate the possible benefit of the combined therapy with WEB2170, treatment with the chemotherapeutic drug DTIC was chosen at a suboptimal regimen based on previously published studies [
13,
14]. In our study 40 μg DTIC (Sigma Chem. Co.) was given i.p. to each mouse every 3 days after tumour implantation. To determine the impact of these treatments on the survival of B16F10 melanoma-bearing mice, the treatment protocols were extended to 35 days. The Kaplan-Meier method and the log-rank test were used to estimate and compare the different groups.

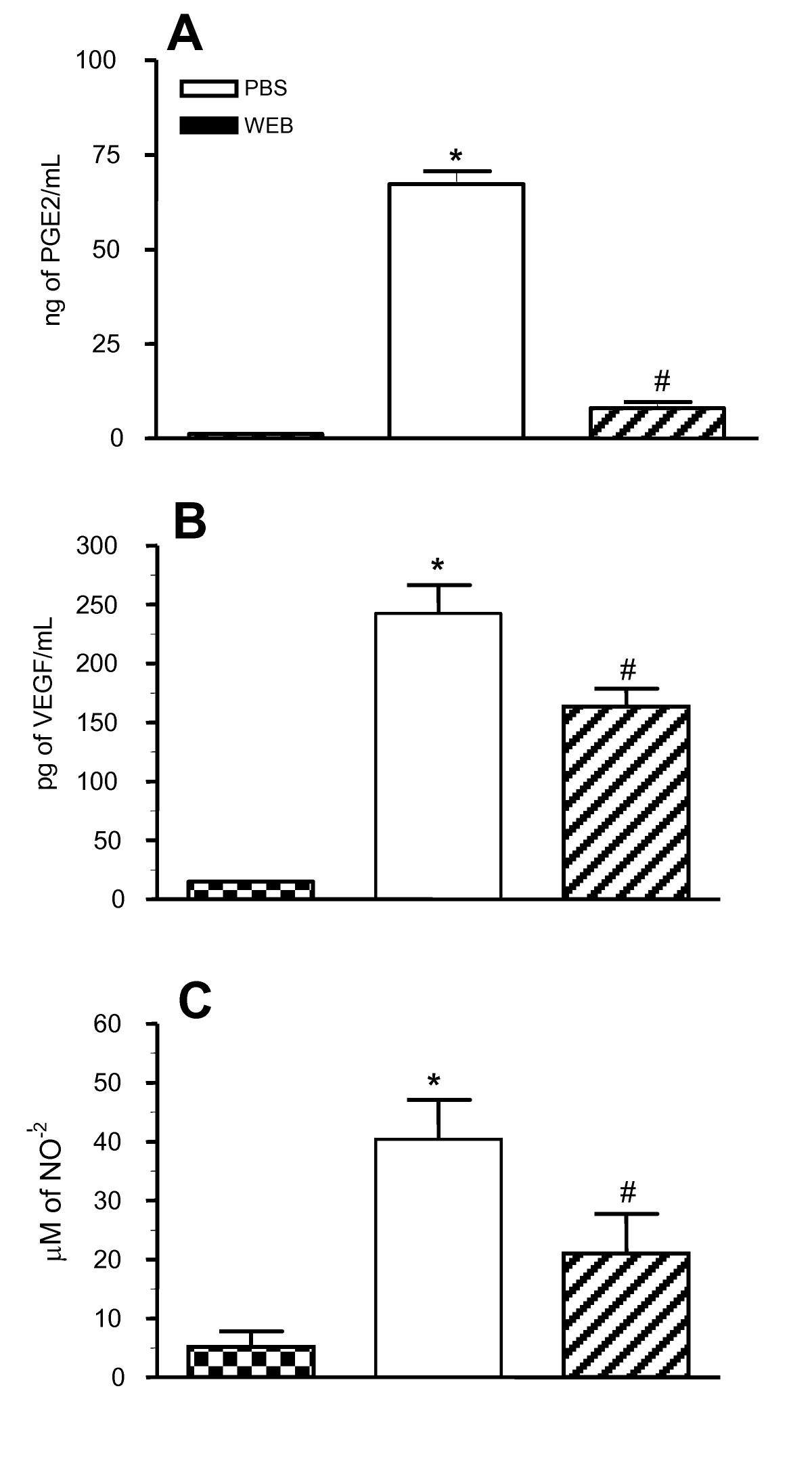

Quantification of VEGF, PGE2 and nitrite in the ascitis fluid
At day 10 of EAT growth, BALB/C mice were sacrificed and the ascitis fluid was recovered. The suspension was centrifuged (180 ×
g for 10 min) and VEGF levels were determined in the supernatant by ELISA using goat polyclonal antiserum against mouse VEGF (Santa Cruz Biotechnology, Inc.). PGE2 levels were also determined by ELISA using a commercially available kit (Cayman Chem. Co.). NO levels were determined according to the method described by Bartholomew (1984) [
15]. Briefly, aliquots of 150 μL of the ascitis fluid were treated with 15 μL of 10% ZnSO
4 solution for 10 minutes at 4°C. Three μL of 2.5 N NaOH were added and the ascitis fluid was incubated at 4°C for 10 minutes. The NO
3
- content was converted to NO
2
- through addition of 15 μL of 0.5 M NaH
2PO
4, 15 μL of 2.4 M ammonium formiate and 10 μL of a suspension of
E. coli to the ascitis fluid. The bacterium
E. coli expresses nitrate reductase, which catalyses the conversion of nitrate to nitrite. Samples were further incubated at 37°C for 2 h, centrifuged (18000 ×
g for 5 min at 20°C), and 100 μL of Griess Reagent (0.1% N-naphthyl-ethyl-indiamine, 1% sulphanilamide, 2.5% orthophosphoric acid - Sigma Co.) were added to the same volume of the supernatant. NO levels were quantified in a spectrophotometer at 540 nm.
Characterization of apoptotic and necrotic cells in the ascitis fluid
BALB/C mice were inoculated i.p. with 1 × 103 EAT cells and sacrificed after 7 or 10 days. The peritoneal cavity was injected with 3 mL of PBS to recover the ascitis. The fluid was centrifuged (180 × g for 10 min) and the cell pellet resuspended in 1 ml of RPMI 1640 with 10% fetal calf serum. Trypan Blue dye (0.2%) was added to aliquots of cellular suspensions and the percentage of cells that had taken up the dye (necrotic cells) was determined microscopically. The percentage of apoptotic cells was determined by flow cytometry (FACScalibur, Becton Dickinson, San Jose, CA) after incubation of 3 to 5 × 105 cells with propidium iodide (20 μg/mL in 0.1% sodium citrate and 0.1% Triton X-100) at 4°C for 2 h in the dark.
Induction of apoptosis in murine thymocytes
Murine thymocytes were obtained through surgical extraction of the thymus from BALB/C mice. After thymus dissociation, the thymocyte suspension was centrifuged (400 ×
g, 4°C, 7 min), the pellet was resuspended in RPMI medium and cell viability was determined using Trypan Blue vital dye. After this, thymocytes were γ-irradiated (450 rad) and incubated at 37°C for 18 hours. Apoptotic cells were detected by annexin V staining and the percentage of apoptotic cells was measured by flow cytometry (FACS, Becton-Dickinson, CA), as described elsewhere [
5]. To evaluate the effect of apoptotic thymocytes on EAT growth, BALB/C mice were inoculated with 6 × 10
6 viable or apoptotic thymocytes into the peritoneal cavity 2 h before the inoculation of 1 × 10
5 EAT cells. Animals were sacrificed after 5 days and aliquots of the ascitis fluid were recovered to estimate EAT growth via direct cell counting in a Neubauer chamber under a light microscope.
Histological, immunohistochemistry and morphometric analysis of melanoma specimens
Tumours derived from B16F10 melanoma cells were excised and processed for immunohistochemistry to detect the expression of galectin-3 (1:32, ATCC), PAF-R (1:80; Cayman), COX-2 (1:100; Santa Cruz) and activated caspase-3 (1:600; Cell Signaling). Reactions were performed as described elsewhere [
16,
17]. Images of different areas of each tumour specimen were acquired with a digital camera DXM 1200F (Nikon) and quantitative analysis was performed using Eclipse Net software (Nikon). For percent area measurements, grids were projected on tissue sections and the number of grid intersections that overlaid a cell with a specific type (identified by immunohistochemistry reaction) or functional blood vessels (identified by routine H&E staining and by the identification of blood cells) was counted. Data were expressed as percent area occupied by vessels or cells expressing a given marker (COX-2-expressing cells, galectin-3-expressing cells, and activated caspase-3-expressing cells). The total number of cells positively stained by each marker was determined by counting multiple grids randomly placed on tissue sections at medium power field magnification (40×). Spleens were also processed for immunohistochemistry to detect cells expressing galectin-3 in the white pulp.
Preparation of cell suspensions from tumours
Tumours were excised and kept in RPMI 1640 at 4°C for immediate processing. All collected tumours were washed in ice-cold PBS, finely minced and transferred to 60 mm-diameter Petri dishes containing 1 mL MTH (HBSS, 0.5 U/mL DNAse in 15 mM HEPES) supplemented with 0.15 Wunsch units/mL of Liberase Blendzyme 3 (Roche). Fragments were incubated for 30 minutes at 37°C under constant agitation (80 rpm) for mechanical dissociation. Cell suspensions were then filtered using nylon membranes (41 μm pores). The filtrate was centrifuged at 4°C (1200 rpm for 5 min), washed in cold PBS and resuspended in 3 mL of red blood cell lysis solution (Amersham Biotech). After 3 min, another 3 mL of RPMI 1640 was added to the suspension, which was then centrifuged as above and washed in PBS. Cell number was then determined by direct counting using a Neubauer chamber.
Flow cytometry
For flow cytometry experiments, a million cells were separated for each reaction tube or well. Cells were washed with PBS-BSA (PBS containing 0.5% BSA) and then incubated with an Fc blocker antibody for 15 min at 4°C. Cells were then centrifuged (1200 rpm for 5 min at 4°C), washed with PBS-BSA and incubated with 0.3 μg/mL of a rabbit polyclonal anti-PAF-R antibody (Cayman Chemical, USA) for 60 min on ice. After washing, cells were incubated with a FITC-labeled anti-rabbit IgG for 30 min on ice in the dark. After washing, the cells were then suspended in 2% formaldehyde in PBS and kept in the dark until acquisition and analysis in a flow cytometer (FACScalibur, Becton Dickinson, San Jose, CA, USA). Histogram analysis was done using the CellQuest software. The control samples were incubated with the Fc blocker and with the FITC-labeled secondary antibody.
Statistical analysis
Data were analysed using ANOVA followed by Tukey or Bonferroni post-hoc tests. Survival was analysed by the Kaplan-Meier method and survival curves were compared using the log-rank test. Differences were considered significant when p < 0.05.
Discussion
PAF-R is a G-protein-coupled receptor that can be found in cellular and nuclear membranes. These receptors are coupled to distinct G proteins and can thus trigger distinct signaling pathways. Upon binding of PAF or PAF-like molecules to the PAF-R present in the cell membrane of macrophages, several mediators/cytokines [
20] and pro-angiogenic factors such as VEGF are released, angiogenesis being considered one of the important actions of PAF [
21,
22]. Prostaglandins are also produced by macrophages upon PAF-R engagement and PGE2 exerts anti-inflammatory actions through its interaction with the prostaglandin EP2 and EP4 receptors, which leads to increased intracellular levels of cAMP and inhibition of macrophage activation [
6]. These aspects are particularly important when studying tumours, since macrophages that are present in the tumour microenvironment are key actors in both angiogenesis and tumour immune escape. However, the role of PAF/PAF-like molecules and PAF-R as modulators of the tumour microenvironment is still incompletely understood.
We have previously shown that PAF-R-dependent mechanisms are involved in the interaction of macrophages with apoptotic cells [
5]. In the present study we examined the effect of apoptotic cells and PAF-R on tumour growth. This was done using two murine tumours: the Ehrlich ascitis tumour and the melanoma B16F10. Apoptotic cells were either inoculated into the tumour or induced by the chemotherapeutic drug DTIC. The role of the PAF-R was evaluated using the antagonist WEB2170. We found that previous inoculation of apoptotic cells into the peritoneal cavity increased EAT growth. The potentiation of tumour growth by apoptotic cells was abolished when animals were treated with WEB2170 before apoptotic cell inoculation. WEB2170 treatment modified the tumour microenvironment since it decreased the levels of VEGF, PGE2 and NO in the ascitis fluid. In the B16F10 melanoma model, treatment with DTIC reduced tumour growth and increased the survival rate only when associated with WEB2170, thus indicating that PAF-R engagement by PAF/PAF-like molecules that are present on apoptotic cells or free in the microenvironment modulate the response of the tumour to chemotherapy. Treatment with WEB2170 alone or associated with DTIC also modified the tumour microenvironment by reducing the number of intra-tumoural blood vessels and tumour infiltration by macrophages/dendritic cells expressing galectin-3, a molecule that is associated with the suppressive M2 phenotype.
These data suggest that PAF-R-dependent mechanisms are able to modify tumour microenvironment elements, including tumour macrophages, during EAT growth. In previous studies in our laboratory, we observed that whereas macrophages taken from the normal peritoneal cavities of mice were able to produce hydrogen peroxide and spread across a glass surface, those taken from mice with EAT retained the round morphology characteristic of non-activated macrophages and were unable to produce hydrogen peroxide [
12]. However, macrophage spreading and H
2O
2 production in tumour-bearing mice was restored after treatment
in vivo with antagonists of the PAF-R (BN52021 or SRI63441), and this was accompanied by a significant reduction in EAT growth [
11]. This was the first indication that engagement of PAF-R can modify the macrophage phenotype and modulate tumour growth. In the present study we confirmed the EAT growth inhibition by a PAF-R antagonist distinct from that used in previous studies, i.e. WEB2170, which belongs to a group of triazolodiazepinic compounds and has been shown to antagonize the effects of PAF in several cells and tissues [
23]. The same dose of WEB2170 that was effective in the latter studies to antagonize the effects of PAF
in vivo was used in our experiments. Participation of PAF-R was also observed in a solid tumour where WEB2170 significantly reduced the growth of melanoma B16F10.
As tumours grow, a number of tumour and host cells die. The process of cell death is accompanied by oxidation of membrane phospholipids. We have previously shown that apoptotic cells express PAF-like molecules, which share a common or related receptor with oxLDL and PAF in macrophages [
5]. We thus evaluated the impact of apoptotic cells on tumour growth and the contribution of WEB2170. It was found that inoculation of apoptotic cells with the EAT cells increased tumour growth and that this effect was abrogated by treatment of mice with WEB2170 prior to the injection of apoptotic cells. In a solid tumour, melanoma B16F10, the combination of WEB2170 with the chemotherapeutic agent DTIC, which induces apoptosis, increased the survival of melanoma-bearing mice. These data suggest that interaction of PAF-like molecules on the surface of apoptotic cells with PAF-R that are present in the tumour microenvironment (presumably in tumour macrophages) has an important modulatory effect during the initial stages after tumour cell implantation. This may also be the case for the B16F10 melanoma model, where the survival time was improved only when DTIC treatment was associated with daily WEB2170 treatment, which began as early as 30 min before melanoma cell inoculation.
Although treatment of melanoma-bearing mice with WEB2170 reduced melanoma growth it did not prolong survival, indicating that the efficacy of treatment was limited to a narrow time window in the initial phase of tumour growth. Another possibility that has to be considered is that increased survival could be related to inhibition of tumour metastasis [
14]. Indeed, Im et al [
10] demonstrated that PAF increases the metastasis of melanoma B16F10 into the lungs of C57Bl6 mice.
Blocking PAF-R also modified other elements of the tumour microenvironment such as the increased levels of PGE2, NO and VEGF produced during EAT growth. Moreover, in melanoma the PAF-R antagonist reduced the proportion of COX-2-expressing cells, the microvascular density, and the proportion of activated macrophages/dendritic cells expressing galectin-3 within the tumour microenvironment. These alterations did not contribute to the control of the melanoma, unless the animals were given the chemotherapeutic agent DTIC. Interestingly, as shown in Fig.
4, treatment of animals with DTIC alone also failed. A common cause of chemotherapy failure is the phenomenon of tumour cell repopulation [
14,
24,
25]. It is conceivable that release or exposure of PAF/PAF-like molecules by dying cells would affect the phenotype of tumour macrophages and the tumour microenvironment, as suggested by our study. Seo and colleagues [
26] showed that exogenously added PAF stimulated B16F10 growth and attenuated etoposide-induced cell death, via activation of anti-apoptotic gene expression. This can be interpreted as showing that the engagement of PAF-R by the agonist produces the same effect as the apoptotic cells in favouring tumour growth by suppressing tumour macrophages. Indeed the frequency of galectin-3, which is a marker of suppressor macrophages, was lower in the group treated with the PAF-R antagonist. Correa et al showed that inoculation of apoptotic cells along with sub-tumourigenic inocula of melanoma cells favoured melanoma growth [
8]. This finding strengthens our hypothesis that the presence of apoptotic cells in the tumour microenvironment favours tumour growth.
We have shown the expression of PAF-R in homogenates of melanoma but not in melanoma B16F10 cells kept in vitro, which indicates that the receptor is expressed by cells from the tumour microenvironment rather than the tumour cells themselves.
Clearance of dead cells by professional phagocytes such as macrophages may lead to the secretion of cytokines that favour tumour growth [
27]. The endogenous lectin galectin-3 is among the activation markers of macrophage/dendritic cells, playing a role as an opsonin [
28] and as a modulator of cell migration [
29]. Macrophages expressing galectin-3 are driven towards the alternative pathway of activation [
30], usually associated with the M2 phenotype, which favours tumour growth and angiogenesis [
31]. Here we showed a significant reduction in the proportion of galectin-3-expressing infiltrating macrophages/dendritic cells within the tumour microenvironment of WEB2170-treated mice but not in the spleen white pulp of animals treated with both DTIC and/or WEB2170. Together, these results suggest that engagement of PAF-R interferes with selected pathways in macrophages, changing their phenotype into that of a suppressor. This suggestion is reinforced by the slight but significant decrease in microvascular density observed in WEB2170-treated animals. Indeed, the activation of macrophage PAF-R plays a role in macrophage-derived angiogenesis [
31]. As macrophages/dendritic cells are central actors in the maintenance of both normal and tumour tissue homeostasis, novel pharmacological interventions that may control their functions are warranted. For cancer therapy, inhibitors of PAF-R-dependent pathways are promising candidates for adjuvant therapy, as they can act in both tumour cells and host cells, e.g., by attenuating the pro-tumoural activities of suppressor macrophages.
