Background
Gene-directed enzyme prodrug therapy (GDEPT) for cancer is designed to increase the chemotherapeutic sensitivity of tumor cells by introduction of a gene coding for a prodrug activation enzyme. Using this approach, a prodrug-activating gene is delivered to tumor cells in a selective manner, e.g., using a tumor-selective viral vector carrying the therapeutic gene [
1‐
4]. Tumor cells that express the prodrug-activating gene acquire the capacity to convert a prodrug to its active cytotoxic metabolite, leading to cell death upon contact with the prodrug [
5]. GDEPT thus provides the potential to improve cancer therapy by sensitizing tumor tissue to a chemotherapeutic prodrug. Ultimately, this strategy may allow for a reduction in drug dosages needed to achieve therapeutic activity, thereby decreasing systemic side effects towards critical host tissues, such as bone marrow, kidney and heart [
6,
7].
Commonly studied GDEPT systems include herpes simplex virus thymidine kinase (HSV-tk) in combination with the prodrug ganciclovir,
E. coli cytosine deaminase with 5-fluorocytosine, and cytochrome P450 with cyclophosphamide (CPA) or ifosfamide [
8]. P450-based GDEPT has several advantages: 1) P450 is a multiple enzyme-multiple drug system, unlike other GDEPT systems, which are essentially one enzyme-one drug systems [
8‐
11]; 2) P450 GDEPT can be implemented using established anti-cancer agents, such as CPA and ifosfamide, as well as investigational agents, such as the CYP3A4 prodrug methoxymorpholinyl doxorubicin [
12], the CYP1A2 prodrug dacarbazine [
13], 4-ipomeanol, ftorafur, and tamoxifen, among others [
7,
8]. Moreover, P450 GDEPT may be useful in treating a broad spectrum of cancers, including breast cancer, melanoma, pancreatic cancer, and metastatic liver cancer [
14‐
17]; 3) mammalian P450 subfamily 2B enzymes, in particular rat CYP2B1 [
18], human CYP2B6 [
10,
11], and dog CYP2B11 [
19,
20], are effective catalysts of CPA activation. The use of a P450 gene of mammalian origin reduces the likelihood of inducing adverse immune responses; 4) the active metabolites of P450 prodrugs, such as CPA, can readily diffuse from cell to cell via non-facilitated mechanisms, conferring a strong bystander effect even in the absence of direct cell-cell contact [
8,
21,
22], in contrast to certain other prodrugs used for GDEPT, such as ganciclovir [
23]. Bystander killing is an essential feature of any GDEPT system, insofar as it helps circumvent the requirement (unachievable using current gene delivery technologies) to transduce 100% of the target tumor cell population with the therapeutic gene.
Conditionally replicating adenoviruses offer the advantage of selective replication in cancer cells and are commonly used as gene delivery vectors [
4,
5]. A prototypical example is the adenovirus ONYX-015 and its closely related derivative ONYX-017 (E3 region wild-type), both expected to replicate in p53-defective cells [
24,
25]. These replicating adenoviruses can be combined with replication-defective Adeno-P450 viruses to facilitate therapeutic delivery of P450, or other therapeutic genes, in tumor cells
in vivo [
20,
24]. This combination of conditionally replicating and non-replicating adenoviruses could be ideal for GDEPT, due to the synergistic effect of combining replicating virus-induced tumor cytolysis with intratumoral activation of chemotherapeutic prodrugs conferred by the replication-defective virus.
One gene therapeutic approach to increasing tumor cell kill involves the introduction of pro-apoptotic factors to augment drug-induced tumor cell apoptosis. This approach has been exemplified using the pro-apoptotic factors Bax, p53, Trail and various caspases, and has been investigated in both preclinical and clinical studies, either alone or in combination with traditional chemotherapy [
26]. However, a serious limitation of this strategy is that it does not elicit bystander cytotoxicity, and consequently, the pro-apoptotic gene must be introduced into the tumor cell population
in vivo with an efficiency approaching 100% to achieve an effective and sustained anti-tumor response. Furthermore, pro-apoptotic factor-based therapies are not suitable for combination with GDEPT, as they undermine the bystander killing effect that is essential for tumor cell eradication [
26]. An alternative, albeit counter-intuitive approach combines GDEPT with the introduction of anti-apoptotic factors, and is designed to prolong the longevity of those tumor cells that produce the prodrug-activating enzyme, allowing them to generate an increased amount of cytotoxic prodrug metabolites, but in a way that does not ultimately block the death of those tumor cells [
26]. This strategy was initially investigated using caspase inhibitors to delay the death of tumor cells carrying a prodrug-activating P450 gene. In a comparison of four caspase inhibitors, the baculovirus protein p35, a 35-kDa single chain broad-spectrum caspase inhibitor [
27,
28], was found to be the most effective in delaying the death of CPA-treated 9L gliosarcoma cells stably expressing P450 [
29]. Importantly, the introduction of p35 delayed, but did not block, the ultimate death of the transduced tumor cells and thereby increased the bystander killing effect of CPA. The present study further develops this strategy with the introduction of a replication-defective adenovirus that co-expresses the prodrug-activating P450 enzyme CYP2B6 and the pan-caspase inhibitor p35, and is shown to augment bystander killing and the overall anti-cancer response.
Methods
Cell lines and reagents
CPA was purchased from Sigma-Aldrich (St. Louis, MO). Fetal bovine serum (FBS) and RPMI 1640 medium were purchased from Invitrogen (Frederick, MD). Human tumor cell lines U251 (brain) and A549 (lung) were obtained from Dr. D. Scudiero (National Cancer Institute, Bethesda, MD). The rat 9L gliosarcoma tumor cell line was obtained from the UCSF Neurosurgery Tissue Bank (San Francisco, CA). Tumor cells were grown at 37°C in a humidified, 5% CO
2 atmosphere in RPMI 1640 culture medium containing 5% FBS, penicillin (100 units/ml), and streptomycin (100 μg/ml). The conditionally replicating adenovirus ONYX-017 [
24], which contains a wild-type viral E3 region and an E1B-55 kDa gene deletion, was obtained from ONYX Pharmaceuticals (Richmond, CA).

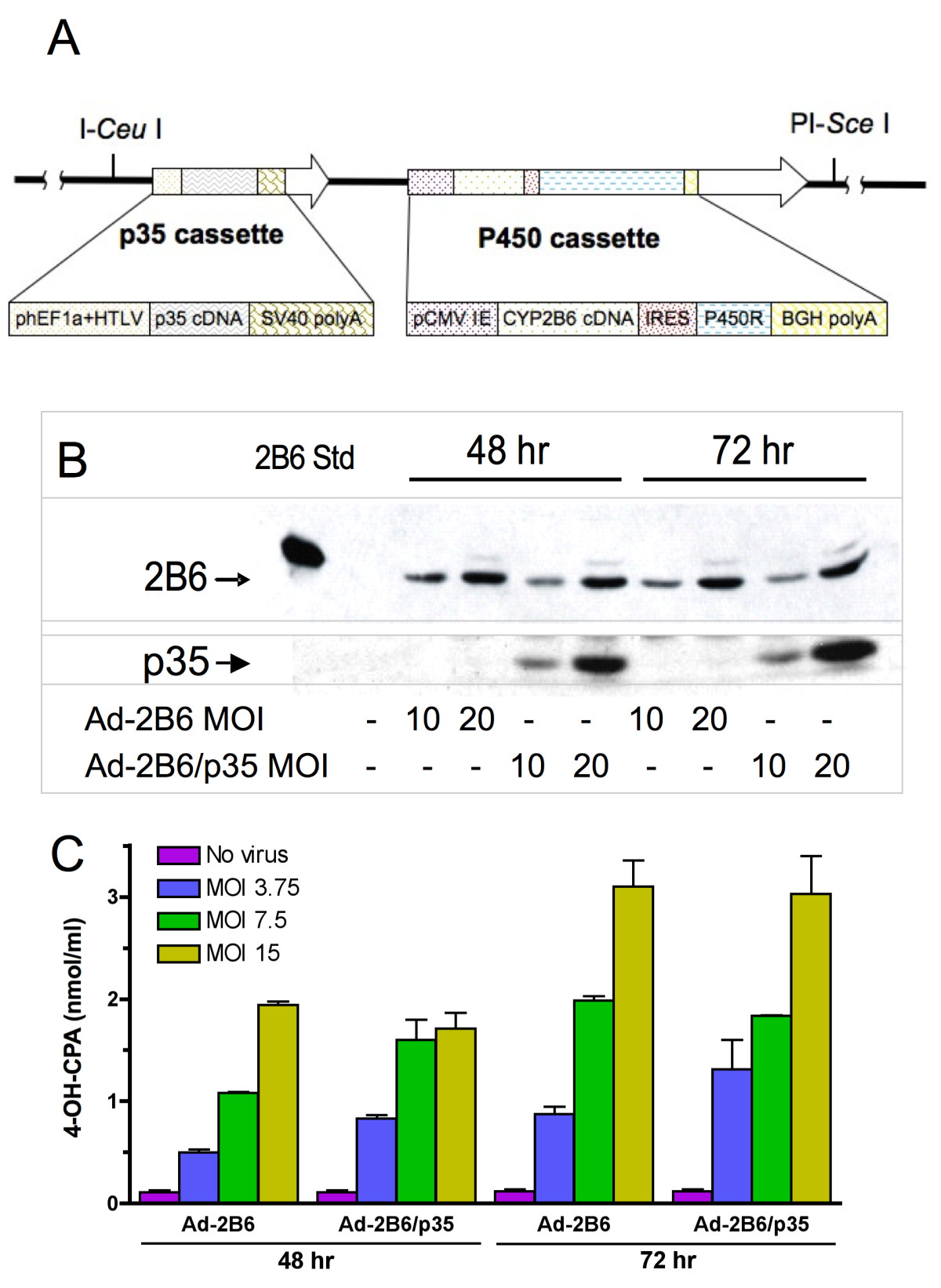

Construction of Adeno-2B6/p35
Virus was constructed in the following three steps. (1) Subcloning of p35 into pORF, to create a p35 expression cassette: p35 cDNA was excised with EcoR I from pBluescript-p35, obtained from Dr. Thomas D. Gilmore (Boston University, Boston, MA), and cloned into pORF-MCS (InvivoGen, San Diego, CA) linearized with EcoR I. The resulting plasmid, pORF-p35, was digested with Bgl I to select for clones with the correct orientation. (2) Subcloning of p35 expression cassette into pShuttle-2B6-IHOR: To obtain a blunt-ended p35 expression cassette driven by a hEF1-HTLV promoter, pORF-p35 was digested with BfuA I then blunt-ended using Klenow enzyme. The linearized plasmid was then digested with Swa I. To clone the p35 expression cassette into pShuttle-2B6-IHOR, which contains CYP2B6 cDNA in linked to P450 reductase cDNA
via an internal ribosome entry sequence [
24], pShuttle-2B6-IHOR was first digested with Mlu I, dephosphorylated, and blunt-ended with Klenow enzyme. The p35 expression cassette and pShuttle-2B6-IHOR vector, both gel purified, were ligated to create pShuttle-2B6-IHOR-p35. (3) Subcloning of 2B6-IHOR-p35 into Adeno-X: To obtain the final recombinant adenoviral DNA, a 2B6-IHOR-p35 fragment was excised from pShuttle-2B6-IHOR-p35 by PI-Sce I/I-Ceu I double digestion followed by ligation with Adeno-X viral DNA linearized using the same enzymes. The reaction mixture was then digested with Swa I to eliminate non-recombinants. Clones containing the 2B6-IHOR-p35 fragment were identified by PCR using CYP2B6 primers. Adenovirus was then generated following the manufacturer's instructions (Clontech, Mountain View, CA, USA). The recombinant Adeno-X-2B6-IHOR-p35 was digested with Pac I, and the linearized viral plasmid was transfected into low passage HK293 cells. A cytopathic effect was apparent after 10-14 days, at which point Adeno-2B6/p35 virus was isolated, amplified in HEK293 cells, purified, and quantified using the Adeno-X Rapid Titer kit (Clontech Labs), as described in the manufacturer's protocol [
24].
qPCR analysis
qPCR was performed as described [
24] using gene-specific primers for quantification of CYP2B6 (sense: 5'-ACTGCTCTCCATGACCCACACT-3' and antisense: 5'-CGATGCCTTCACCAAGACAAA-3') and p35 cDNA (sense: 5'-TCGACGAACGCAACGACTAC-3' and antisense: 5'-CTTGGTTGCTGCCGTTCTC-3').
Western blotting
Cell extracts (20 μg) prepared in lysis buffer (20% glycerol, 1% Triton X-100, 20 mM HEPES (pH 7.9), 1 mM EDTA, 1 mM EGTA, 20 mM NaF, 1 mM Na4P2O7, 1 mM DTT, 1 mM Na3VO4, 1 mg/ml leupeptin, and 1 mg/ml pepstatin) were analyzed by Western blotting. CYP2B6 protein was detected using a monoclonal rabbit anti-P450 2B6 antibody (1:3000 dilution; Gentest Corp., Woburn, MA), and p35 protein was detected using polyclonal rabbit anti-p35 antibody (1:3000 dilution; Biocarta, CA). Goat anti-rabbit HRP-conjugated secondary antibody (1:3000 dilution) was used for both primary antibodies (Amersham). Blots were visualized with enhanced chemiluminescence (ECL) Western blotting detection reagent (Amersham Pharmacia Biotech) exposed to Kodak X-OMAT blue film XB-1, and scanned to verify equal expression of CYP2B6 in tumor cells infected with Adeno-2B6 and Adeno-2B6/p35.
Quantification of cellular 4-OH-CPA production
U251 cells were plated at 100,000 cells/well with 1 ml medium/well in a 12-well plate. 24 hr later, cells were infected with Adeno-2B6 or Adeno-2B6/p35 at multiplicities of infection (MOIs) of 0, 3.75, 7, and 15. Cellular CPA 4-hydroxylase activity was determined 48 hr and 72 hr post-infection by 4-OH-CPA released into fresh culture medium containing 1 mM CPA over a 4 hr period. 5 mM semicarbazide was included in the medium to trap and stabilize the initial 4-OH-CPA metabolite. An aliquot of medium (0.5 ml) was removed from each well and snap frozen in liquid nitrogen and stored at -80°C until processing and HPLC analysis as previously described [
20]. Cells remaining on the plate were washed with 1X PBS and stained with crystal violet (A595) to normalize 4-OH levels to cell content for calculation of cellular CPA 4-hydroxylase-specific activity (nmol 4-OH-CPA/ml media/A595). HPLC calibration curves were generated using standard curves of 4-OH-CPA metabolite prepared using 4-OOH-CPA dissolved in cell culture medium [
20].
Caspase activity assay
Caspase-3/7 activities were measured using the Apo-ONE homogeneous caspase-3/7 assay (Promega, Madison, WI). Cells were plated in a 96-well plate at a density of 1,000 cells/0.1 ml/well. 24 hr after cell seeding, cells were infected with Adeno-2B6 or Adeno-2B6/p35 at MOIs specified in each figure. 48 hr after viral infection, medium was aspirated and 1 mM CPA was added in a vol of 60 μl/well. 48 hr after beginning drug treatment, caspase-3/7 activity was assayed by adding an equal volume (60 μl) of homogeneous caspase-3/7 reagent to each well, and the plate was incubated for 2 hr at room temperature with constant shaking at 300 rpm. Fluorescence was measured with an ABI Prism 7900HT sequence detection system (Applied Biosystems, Foster City, CA) using an allelic discrimination method with rhodamine 110 as a reporter dye. The value of bin 7, which is the peak of the raw fluorescence curve, was used to indicate the activities of caspase-3/7.
Immunohistochemical analysis and TUNEL staining
For immunohistochemistry, cells were fixed for 20 min with 4% formaldehyde and permeabilized with 1% Triton-X100/1% sodium citrate for 5 min at 4°C. Blocking was performed using 2% normal goat serum for 1 hr at room temperature. Cells were stained with 1:2000 diluted mouse anti-human 2B6 monoclonal antibody (GenTEST, BD Biosciences, Cat. #458326) for 1 hr at room temperature. Secondary antibody incubation used HRP-conjugated anti-mouse IgG (1:500 dilution) at room temperature for 1 hr. DAB or VIP was used as the substrate for HRP. TUNEL staining was used to assay the effect of p35 on CPA-induced apoptosis, as follows. 6,000 U251 cells were seeded in two 4-well chamber slides. The next day, cells were infected with Adeno-2B6 or Adeno-2B6/p35 at MOIs of 0 and 25. 48 hr post-infection, 1 mM CPA was added to each well for 48 hr. Slides were then fixed with 4% paraformaldehyde and processed with the DeadEnd colorimetric TUNEL system (cat. no. G7360; Promega). For double staining, immunohistochemistry for CYP2B6, as above, was carried out following TUNEL staining.
Growth inhibition assay
To assay the effect of p35 on CPA-induced cell death, 15,000 U251 cells were plated in 24-well plates 24 hr prior to viral infection. The next day, cells were infected with either Adeno-2B6 or Adeno-2B6/p35 at MOIs 0, 2.5, 5, and 10 in a minimal volume of 200 μl for 3 hr, following which 1 ml of fresh medium was added/well. 48 hr after viral infection, either no drug or 1 mM CPA was added to the cells for 4 days. Cells were stained with crystal violet and quantified by measuring the 70% ethanol-eluted crystal violet (A595). To assay cisplatin and doxorubicin cell sensitivity, U251 cells were seeded in a similar fashion but were infected with either virus at MOIs 15 and 30 and then treated for 4 days at 0, 5, 10, 20, and 40 μM (cisplatin) or at 0, 20, 40, 80, and 160 nM (doxorubicin).
Bystander killing
Since 9L cells are virtually uninfectable by adenovirus at MOIs ≤100 (data not shown), 9L cells were used as uninfectable bystander cells. To assay bystander killing, U251 and 9L/LacZ cells were mixed at a ratio of 60:40 then plated at 150,000 cells/well of a 12-well plate. 24 hr later the cells were infected with either Adeno-2B6 alone, Adeno-2B6/p35 alone, Adeno-2B6 + ONYX-017, or Adeno-2B6/p35 + ONYX-017 at MOIs calculated based on the number of seeded U251 cells, as indicated in the figures. 48 hr after viral infection, mixed cells were treated with 1 mM CPA for either 8 or 24 hr. A second treatment with 1 mM CPA for 8 or 24 hr was applied to the cells 48 hr after the beginning of the first CPA treatment. 16 hr after the end of the second CPA treatment, cells were trypsinized, counted, and reseeded at various densities in 6-well plates to allow for the growth of individual colonies, as follows: drug-free control cells were replated in duplicate at 100, 200, and 400 cells/well; and CPA-treated cells were replated at 1,000, 2,000, and 4,000 cells/well. Cells were grown for 7-9 days, and then stained with X-Gal. LacZ-positive colonies containing ≥50 cells were counted. The efficiency of colony formation was then calculated [
29].

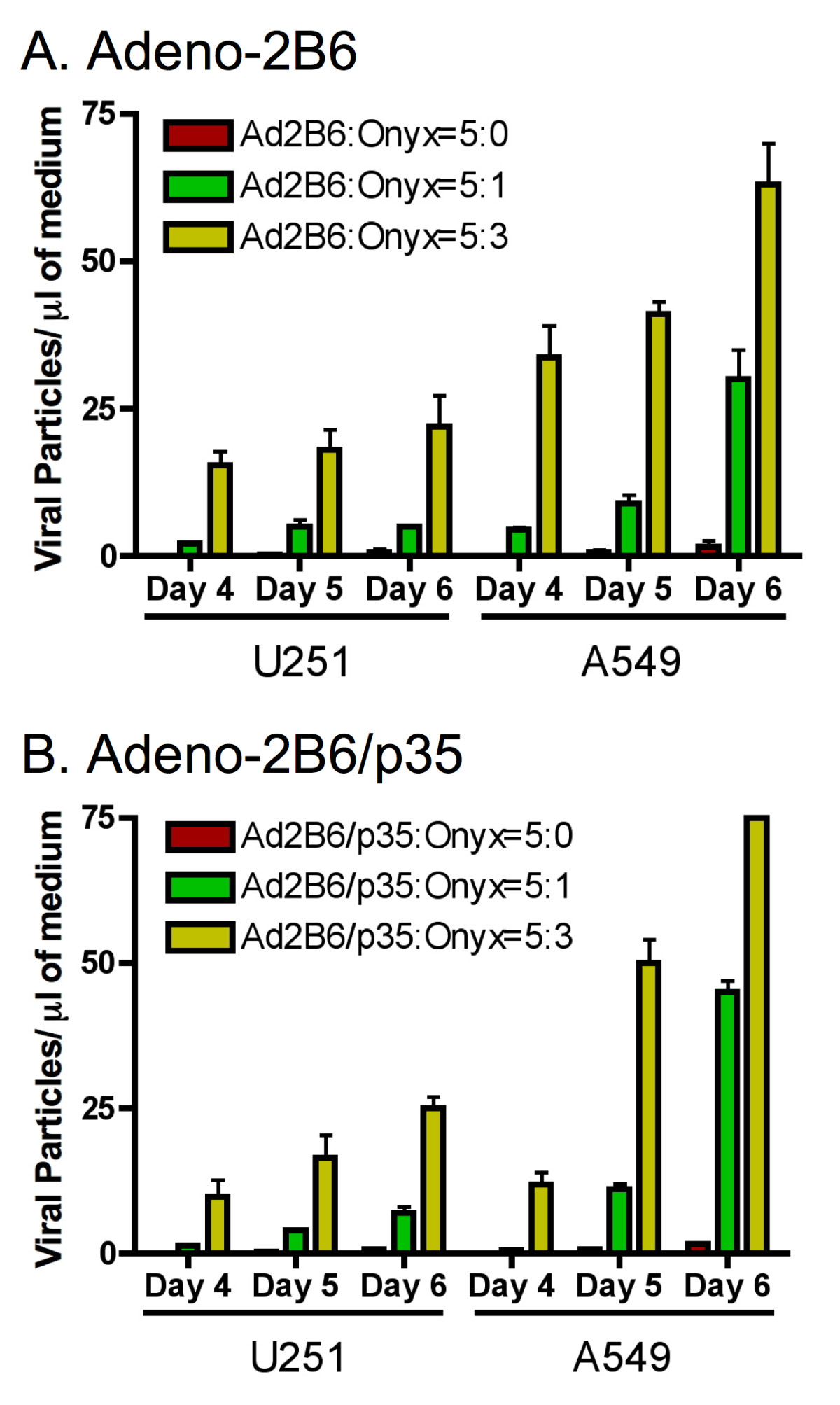

ONYX-017 helper virus studies
To determine whether expression of p35 from Adeno-2B6/p35 interferes with the replicating virus helper effect or viral spread by ONYX-017, U251 and A549 cells were plated at 8,000 cells/well of a 24-well plate, and 24 hr later the cells were infected for 4 hr with either Adeno-2B6, Adeno-2B6/p35, Adeno-2B6 + ONYX-017, or Adeno-2B6/p35 + ONYX-017 (MOI 5 for Adeno-2B6 and Adeno-2B6/p35, and MOIs of 0, 1, or 3 for ONYX-017). Virus was then removed and fresh medium was added to each well. Cell supernatants were isolated on days 1, 2, 3, 4, 5, and 6 post viral infection, and qPCR was performed on aliquots to assay for viral presence using primer sets for CYP2B6 and p35 cDNA, as described above. Viral particle numbers were determined by normalization to a calibration curve generated by qPCR analysis of known viral dilutions. To assay the ultimate extent of p35 bystander activity augmentation via the viral helper effect, 7,000 U251 + 9L/lacZ cells (ratio of 40:60) were seeded in a 12-well plate. The following day, cells were infected with ONYX-017 (MOIs of 0, 1, and 3) in combination with either Adeno-2B6 or Adeno-2B6/p35 (MOIs of either 7.5 or 15, using MOI values calculated based on initial U251 cell numbers). After a 48 hr viral incubation, either no drug or 1 mM CPA was added to the cells for 48 hr. 48 hr later the cells in each well were trypsinized, counted and replated at densities of 1,000 and 3,000 cells in two wells of a 6-well plate. Colony formation then proceeded for 5-7 days, after which the cells were stained with X-gal and counted to determine the impact of p35 expression on bystander activity, as judged by a decrease in tumor cell colony formation.
Data analysis
Data is presented as mean ± SD based on either technical duplicates or triplicates, as indicated. In addition, to ensure that all findings were reproducible and representative, experimental results were confirmed in at least 2 or 3 independent sets of experiments.
Discussion
Gene therapy offers unique opportunities to treat cancers that are either non-responsive or poorly responsive to conventional chemotherapeutic treatments. One approach, termed GDEPT, or suicide gene therapy, holds much promise with low systemic toxicity as a result of tumor-localized prodrug activation following targeted gene delivery with either viral or non-viral vectors [
4,
31,
32]. A key feature of GDEPT is the potential to augment the cytotoxic activity of a prodrug-activating gene by virtue of the bystander killing of nearby or in some cases more distant tumor cells by membrane-diffusible cytotoxic metabolites formed during the course of prodrug activation [
23]. Presently, we investigate ways to increase the bystander cytotoxicity of cytochrome P450-based GDEPT [
8,
22] by inhibiting the caspase 9-dependent apoptotic death [
33] that occurs in tumor cells infected with adenovirus expressing the CPA-activating P450 enzyme CYP2B6.
This study addresses a critical limitation of GDEPT, namely, that tumor cells transduced with a prodrug-activating enzyme, when treated with a prodrug, become exposed to high local concentrations of the active drug metabolite and as a consequence die rapidly, thereby halting their ability to continue to activate the prodrug substrate and generate tumor cell toxic drug metabolites. Previously, we reported that stable expression of the pan-caspase inhibitor p35 in 9L gliosarcoma cells engineered to express CYP2B6 delayed, but did not prevent death of the P450-expressing tumor cells, thereby increasing overall CPA activation and cancer cell death [
29]. We now report the utility of this strategy when implemented using an adenoviral vector that simultaneously delivers the pan-caspase inhibitor p35 together with CYP2B6 and its electron transfer partner P450 reductase. p35 gene delivery is shown to inhibit CPA-induced apoptosis of the CYP2B6-transduced tumor cells, which in turn leads to increased killing of bystander tumor cells, as verified by the decrease in bystander cell colony survival seen with two different CPA treatment schedules (Figure

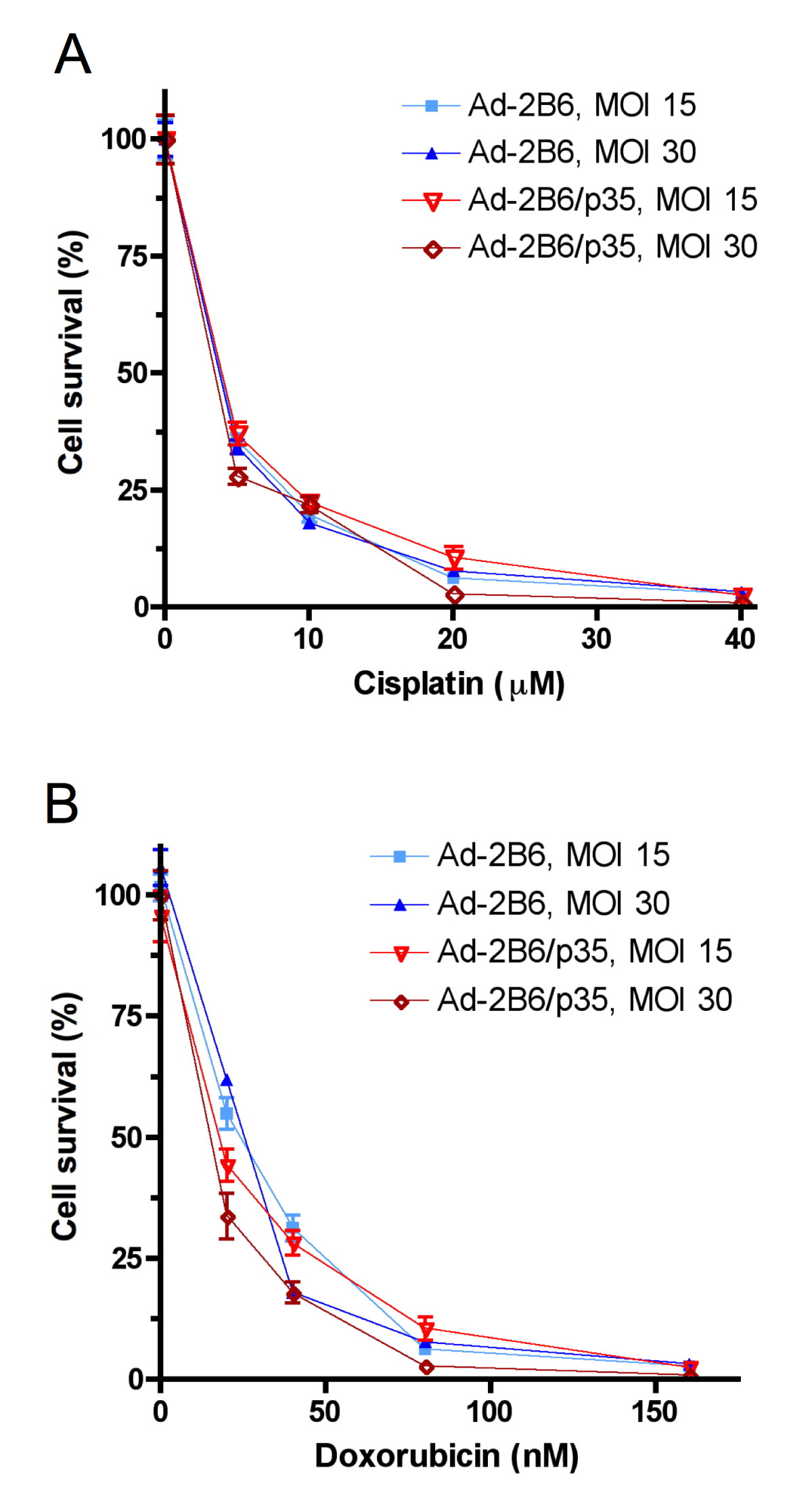

4). Importantly, tumor cells expressing p35, although resistant to CPA-induced cell killing, are nevertheless readily killed following exposure to either cisplatin or doxorubicin (Figure
3), whose cell killing mechanism is distinct from that of P450-activated CPA [
26]. Moreover, as we have previously shown, tumor cells expressing p35 ultimately die following exposure to activated CPA by a slower, non-apoptotic mechanism [
29]. Thus, adenoviral transduction of p35 does not introduce global drug resistance. Moreover, this concept of utilizing an anti-apoptotic factor to delay the death of tumor 'factory cells' to augment therapeutic potency may be extended to other anti-apoptotic factors and other prodrug-activating gene therapy systems as well.
While p35 inhibited CPA-induced apoptosis and delayed tumor cell death, it did not interfere with the helper effect of the cancer replication-conditional adenovirus ONYX-017. This finding may be explained by the fact that adenoviruses typically induce host cell death by an apoptosis-independent mechanism [
34] upon expression of the adenoviral death protein [
35], which is retained in the E3 region of ONYX-017 [

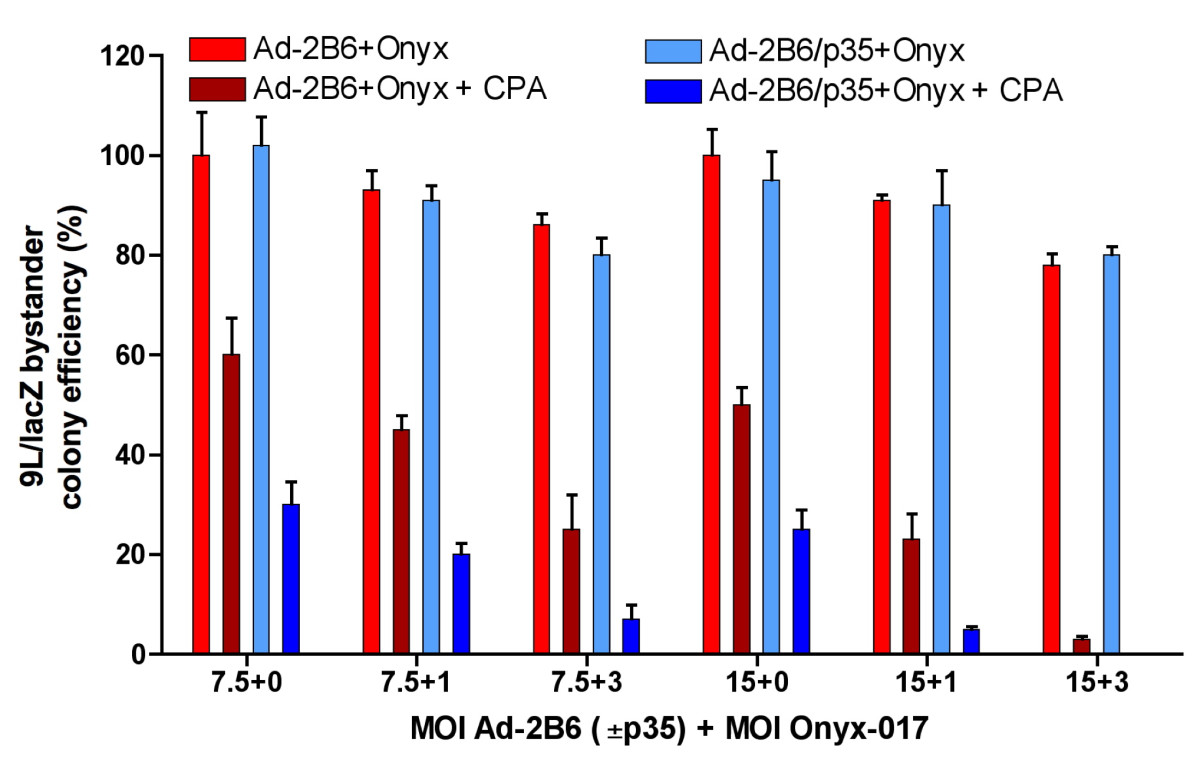

3]. We also show that ONYX-017 is able to enhance bystander cytotoxicity when used in conjunction with Adeno-2B6/p35, and to a lesser extent, Adeno-2B6. This finding is in accordance with earlier studies showing that replication-competent adenoviruses may supply viral replication and repackaging proteins in trans to facilitate the spread and expression of replication-deficient adenoviruses [
24]. Overall tumor cell killing was more extensive, as seen in a colony formation assay, when tumor cells were infected with ONYX-017 in combination with Adeno-2B6/p35 as compared to Adeno-2B6. These findings highlight the benefit of using a two-virus helper system for increasing transgene delivery and therapeutic activity. The present approach, involving the expression of CYP2B6, its redox partner P450 reductase, and p35 from a single replication-defective viral vector, may also be extended to cancer cell-replicating viral vectors. Balancing p35-mediated protection and viral lysis and spread from host cells would need to be considered in the context of a one virus system. While replication-competent adenoviruses that directly encode therapeutic transgenes have been investigated [
4], a two-virus system such as that described have may be particularly useful in cases where total transgene size is too large to engineer into a single replicating virus.
One potential drawback to the use of adenovirus-delivered p35 in human cancer treatment could be immune responses to the baculovirus-encoded p35, which might eliminate p35-expressing tumor cells and decrease the effectiveness of this strategy. Alternative approaches include the use of other naturally occurring, mammalian anti-apoptotic factors [
26] and masking the immunogenicity of adenoviruses and foreign antigens to overcome such issues [
36,
37]. Further study will be required to investigate these possibilities, in addition to the extension of this approach to other prodrug-activation systems and to gene therapies involving the production of tumor cell toxic protein products, and their translation to the clinic.
